Cat6/6A Standard RJ45 Connectors｜Unshielded

16 reviews

Part Number - LGRJ45_10pc

Features

  • Triple prong gold plated contacts
  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • Suitable for unshielded U/UTP Ethernet cable
  • UL Listed, ETL Verified, ANSI/TIA 568 2.D Certified

Need help finding compatible connectors for your Ethernet cable?

Look no further than our Connector Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $6.82 2.5%
25-49 $6.64 5%
50+ $6.47 7.5%
Download Spec Sheet
Download Instructions
$6.99 6.99
-Liquid error (sections/product-template line 325): Computation results in '-Infinity'%
Size
Quantity
Qty:
Saves you 2.5/span>%
Add 9 more for 2.5% discount
+1 +5 +10
Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Estimate Your Delivery Day

Enhanced Load Bar Design

  • Highly visible load bars minimize small parts loss and eliminates the guesswork on conductor length prior to insertion.

Maximum Performance

  • Staggered conductor design minimizes NEXT/FEXT. The load bar easily permits terminations tighter than the ANSI/TIA 0.50” standard.
  • Triple prong gold plated contacts.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

  • Great for Cat6 or Cat6A U/UTP cable. Works with 23AWG stranded or solid conductors.

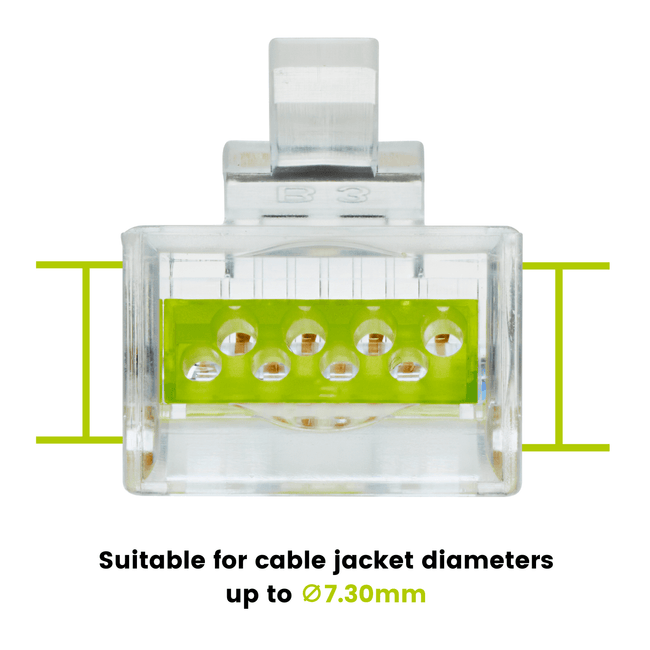

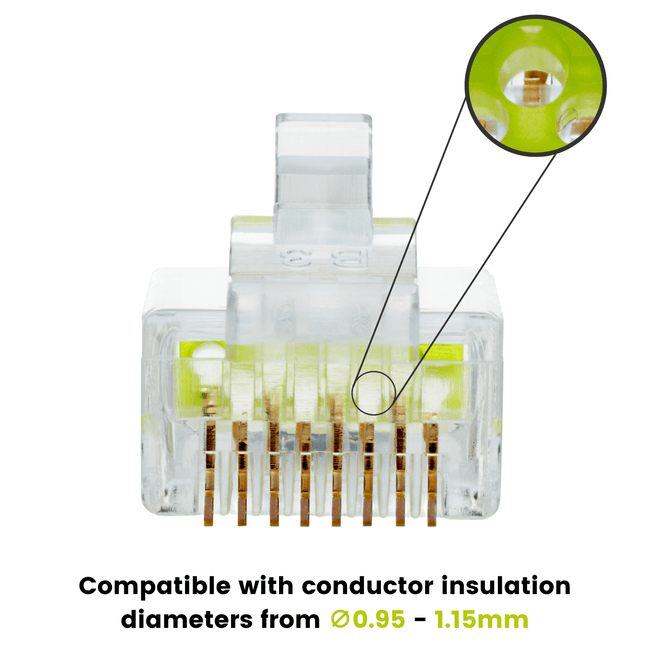

  • Suitable for cable jacket diameters up to ∅7.30mm and conductor insulation diameters from ∅0.95 - 1.15mm.
  • Terminate and crimp with any standard RJ45 crimp tool.

Quality Guaranteed

  • ANSI/TIA 568 2.D Certified and validated with trueCABLE U/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

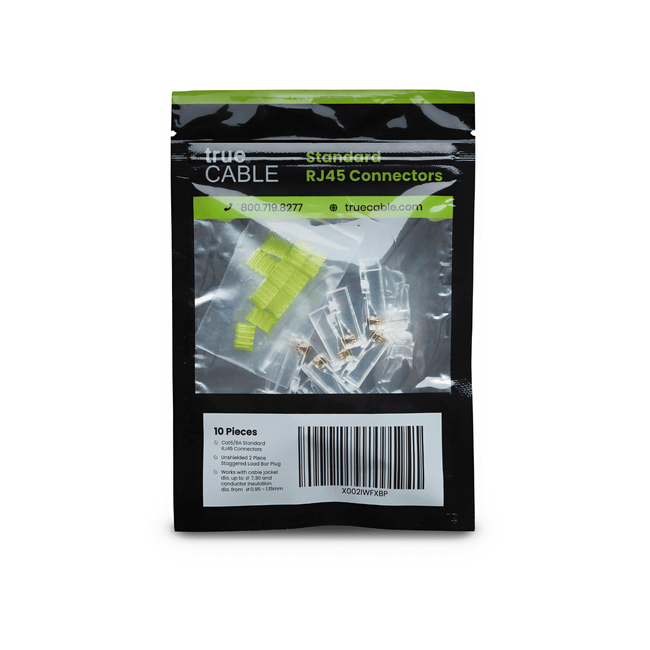

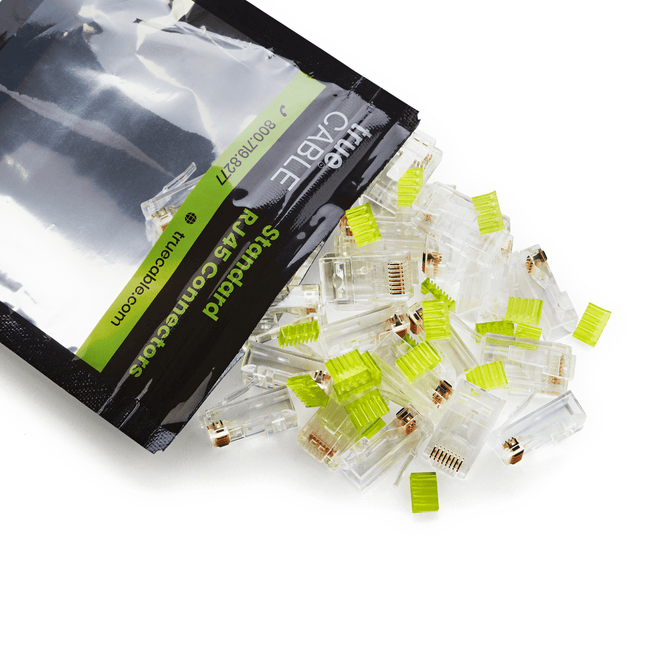

Resealable Bag

  • Our transparent gold plated RJ45 plugs are sure to make your install hassle free.
Weight 0.1 lbs
Length 6.25 in
Width 4.25 in
Height 0.5 in
Barcode X002IWFXBP
Download Spec Sheet
 Download Instructions

Enhanced Load Bar Design

  • Highly visible load bars minimize small parts loss and eliminates the guesswork on conductor length prior to insertion.

Maximum Performance

  • Staggered conductor design minimizes NEXT/FEXT. The load bar easily permits terminations tighter than the ANSI/TIA 0.50” standard.
  • Triple prong gold plated contacts.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

  • Great for Cat6 or Cat6A U/UTP cable. Works with 23AWG stranded or solid conductors.
  • Suitable for cable jacket diameters up to ∅7.30mm and conductor insulation diameters from ∅0.95 - 1.15mm.
  • Terminate and crimp with any standard RJ45 crimp tool.

Quality Guaranteed

  • ANSI/TIA 568 2.D Certified and validated with trueCABLE U/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

Resealable Bag

  • Our transparent gold plated RJ45 plugs are sure to make your install hassle free.
  • Weight - 0.1 lbs
  • Length - 6.25 in
  • Width - 4.25 in
  • Height - 0.5 in
  • Barcode - X002IWFXBP
 Download Spec Sheet
