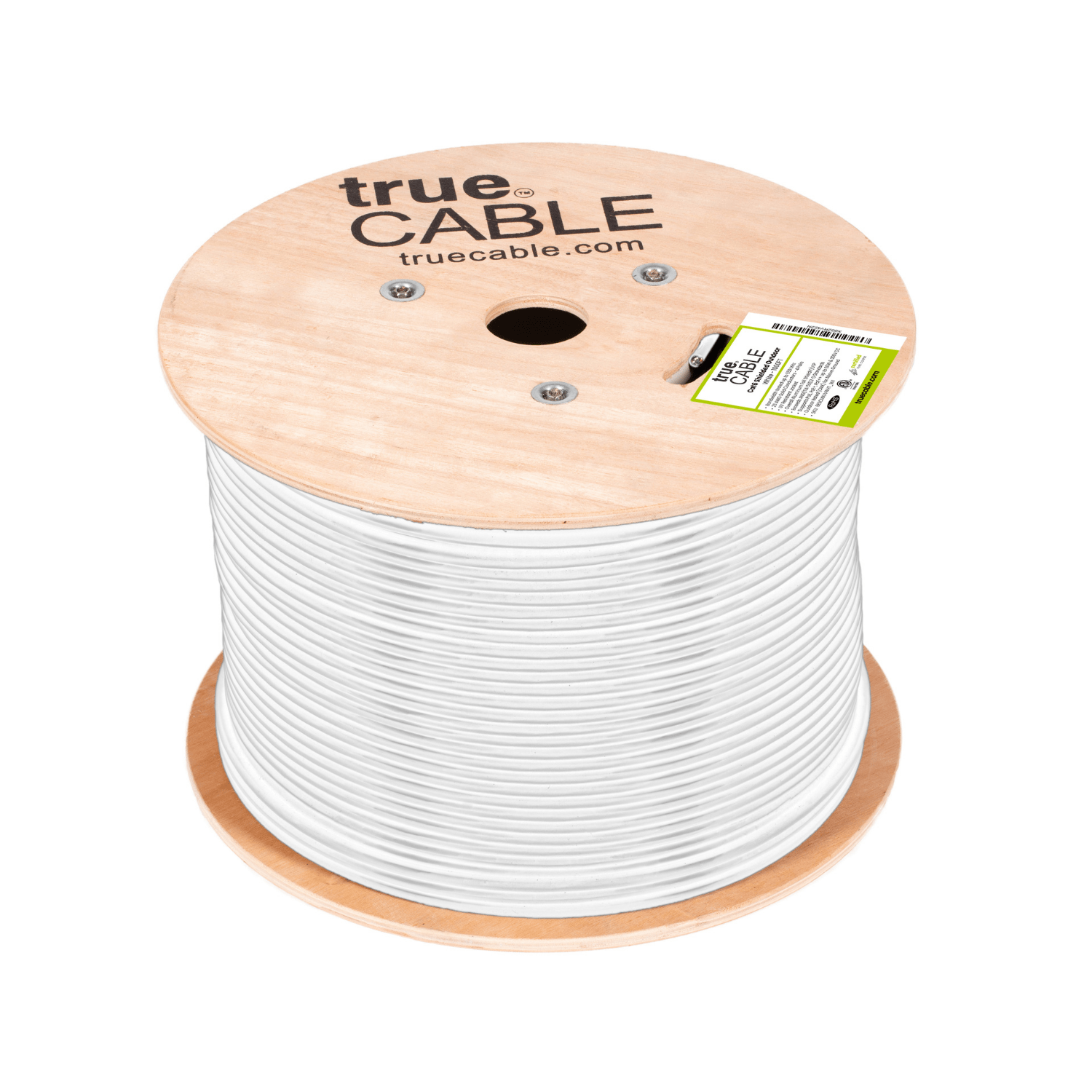

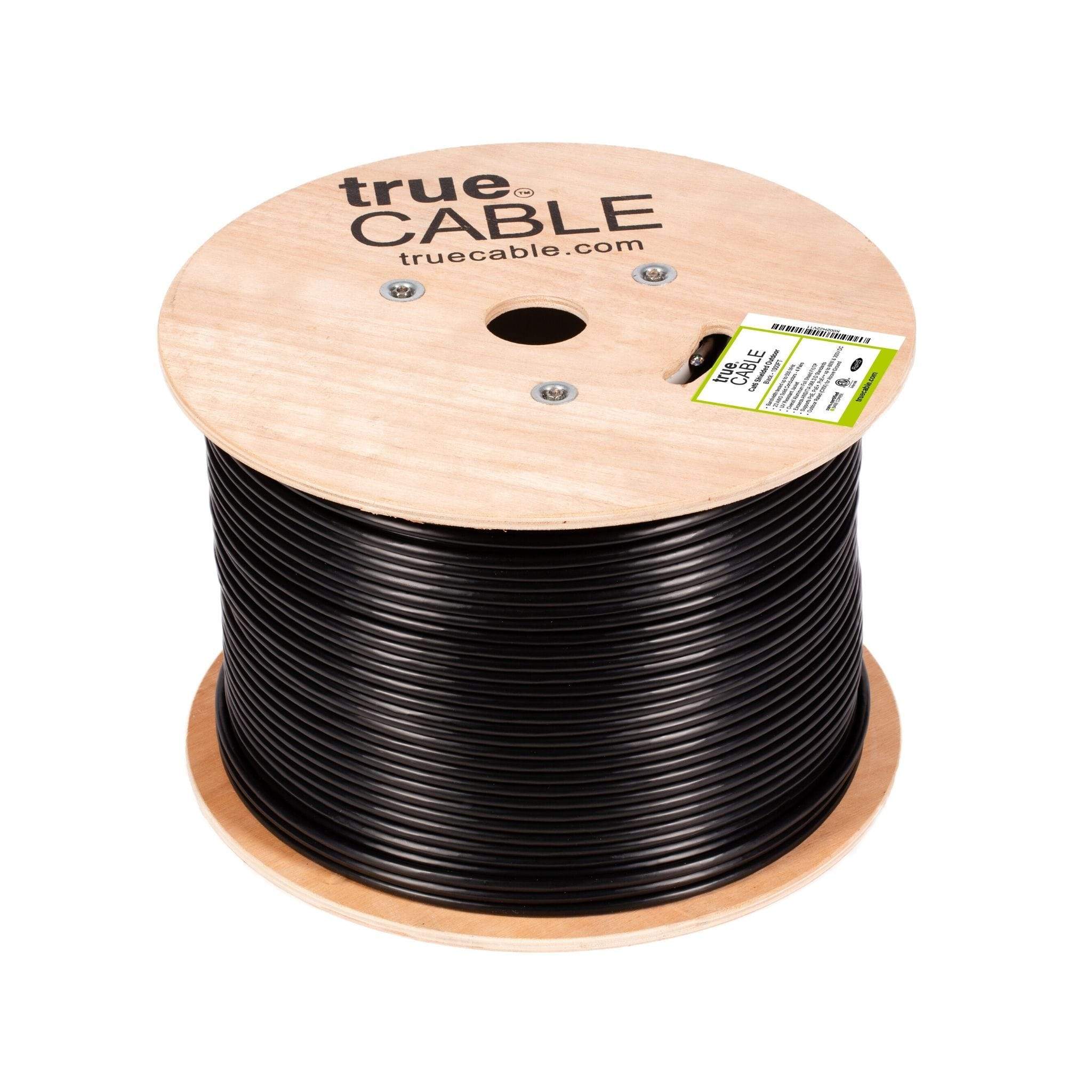

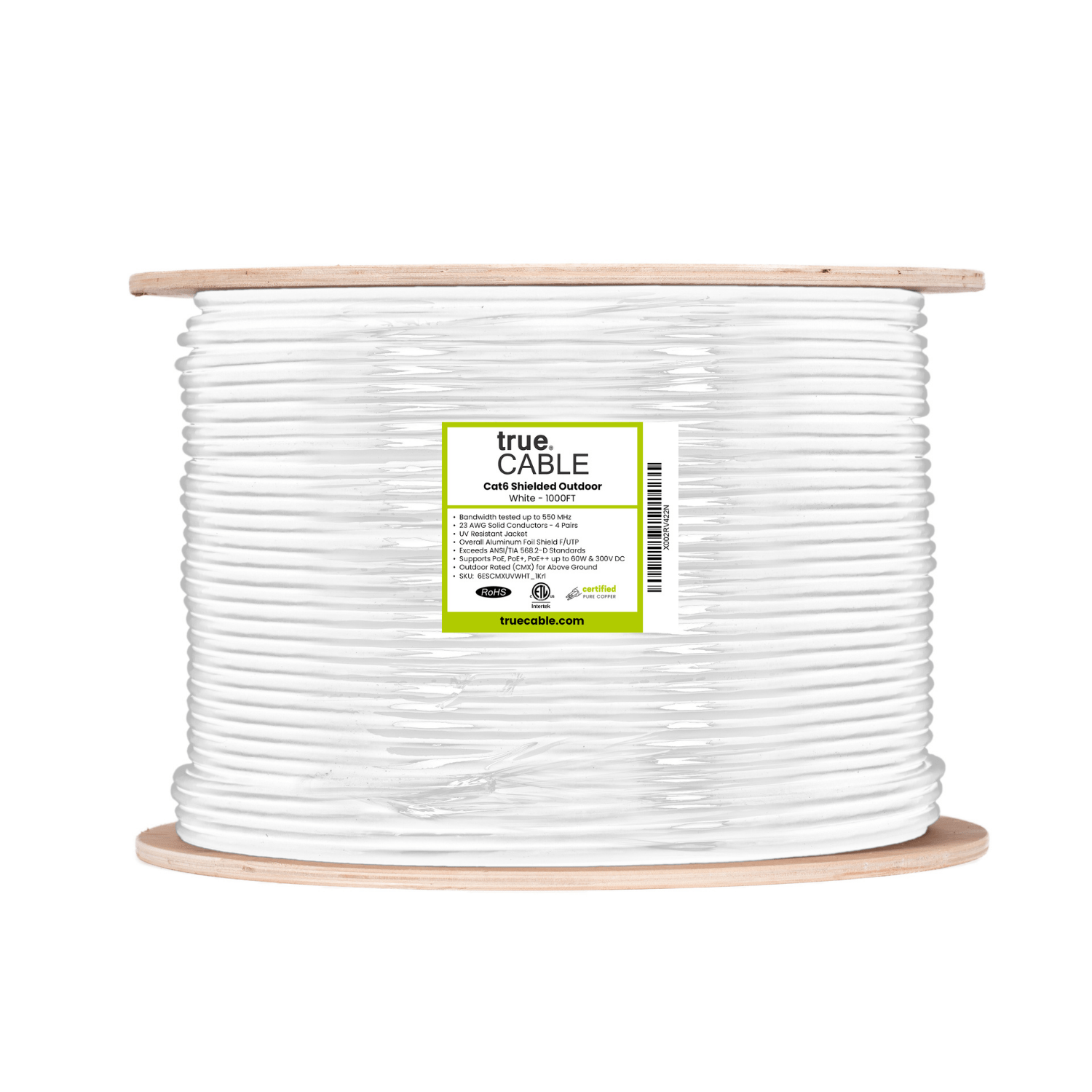

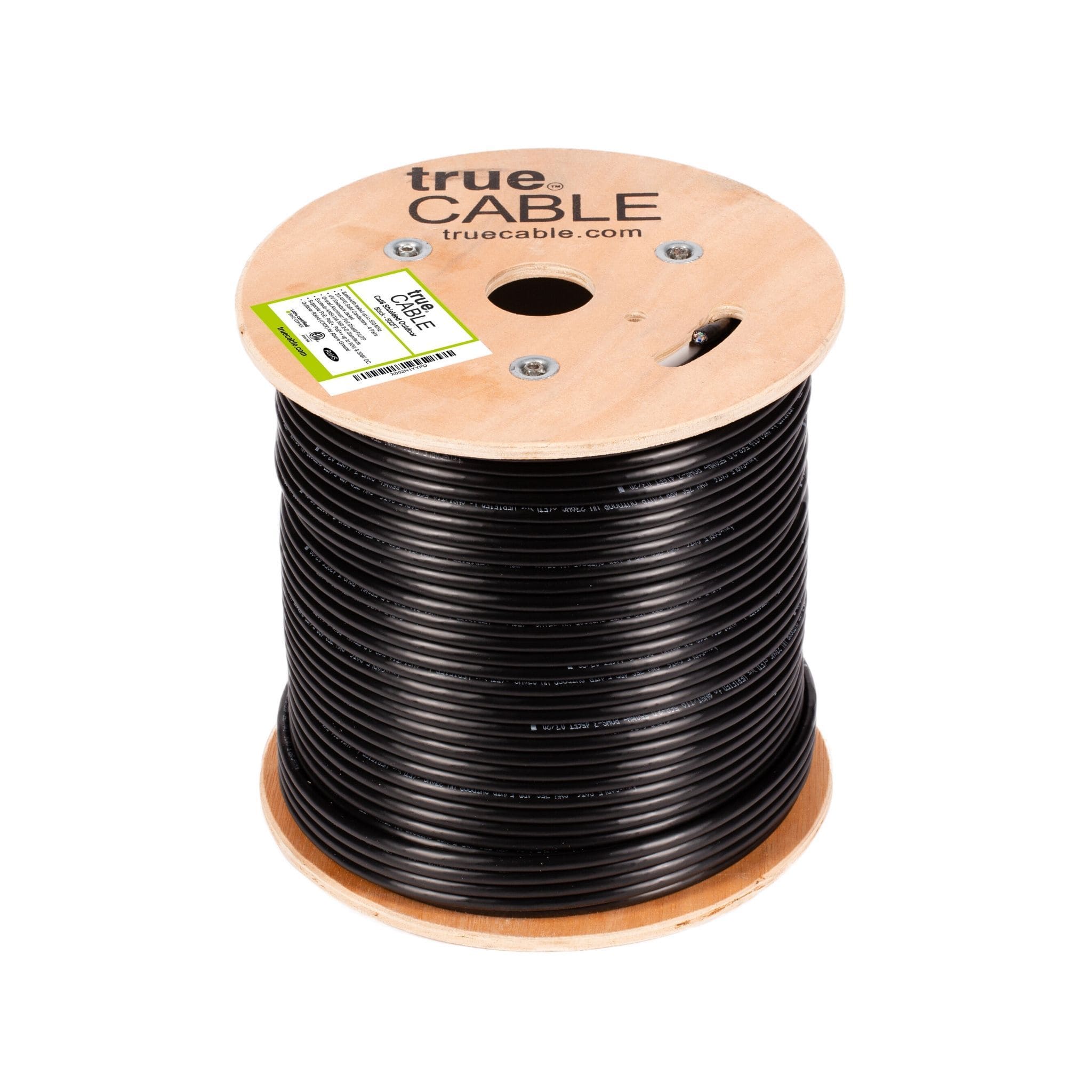

Cat6 Outdoor|Shielded

  • 23AWG 4-Pair, solid bare copper conductors
  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 550 MHz
  • Supports PoE, PoE+, and PoE++
  • cETLus Certified, RoHS-3 Compliant
  • NOT rated for direct burial

$217.99 217.99

Buy 10 or more each save 5%

Buy 25 or more each save 10%

Buy 50 or more each save 15%

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Outdoor Rated

  • Not rated for direct burial.
  • The CMX jacket is UV resistant designed to withstand sunlight, snow, and ice.
  • Perfect for above ground applications. Ideal for aerial runs where a messenger wire or other attachment mechanism already exists.

      Optimum Performance

      • Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
      • Bandwidth tested up to 550 MHz
      • Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) up to 60W and 300V DC.

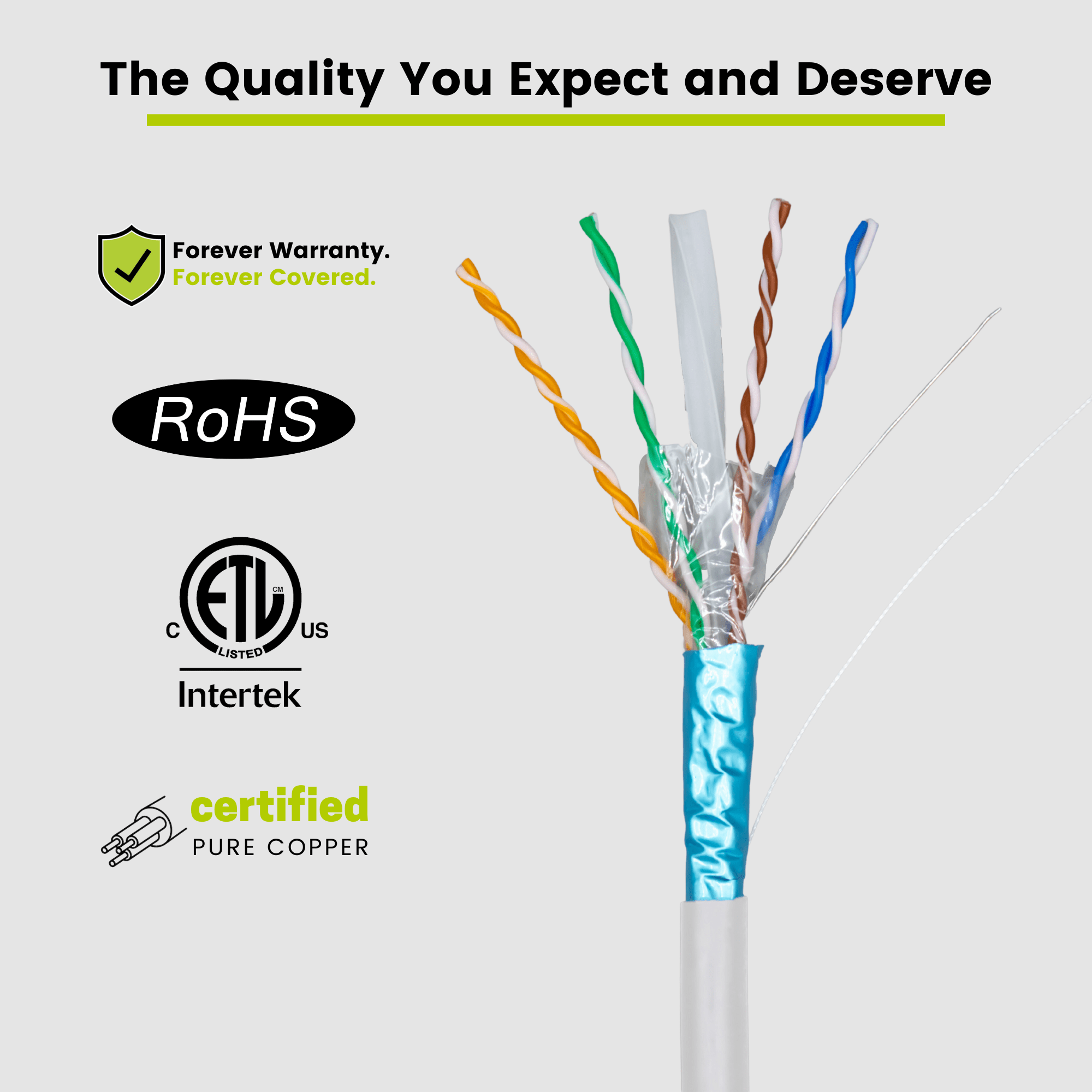

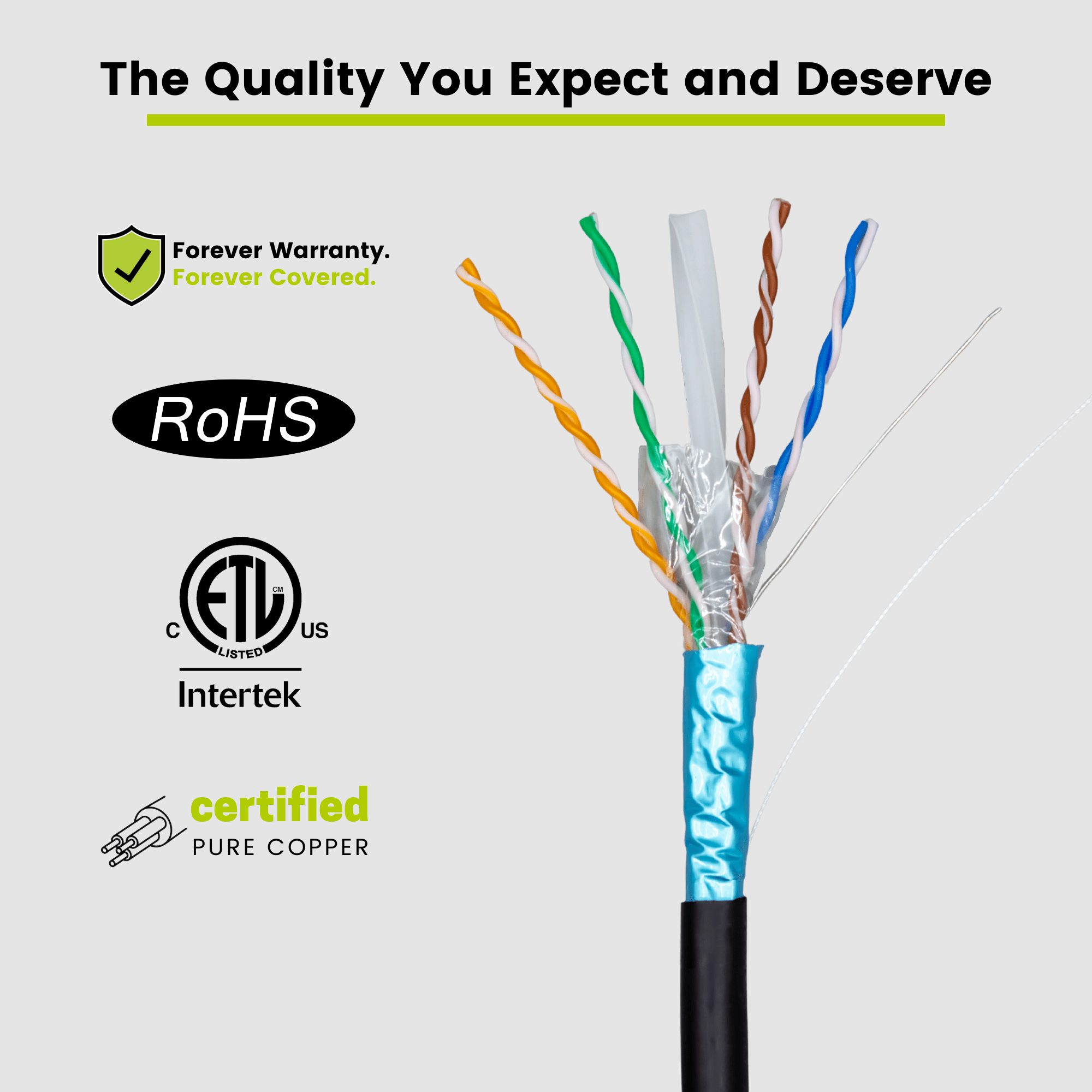

      • The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.

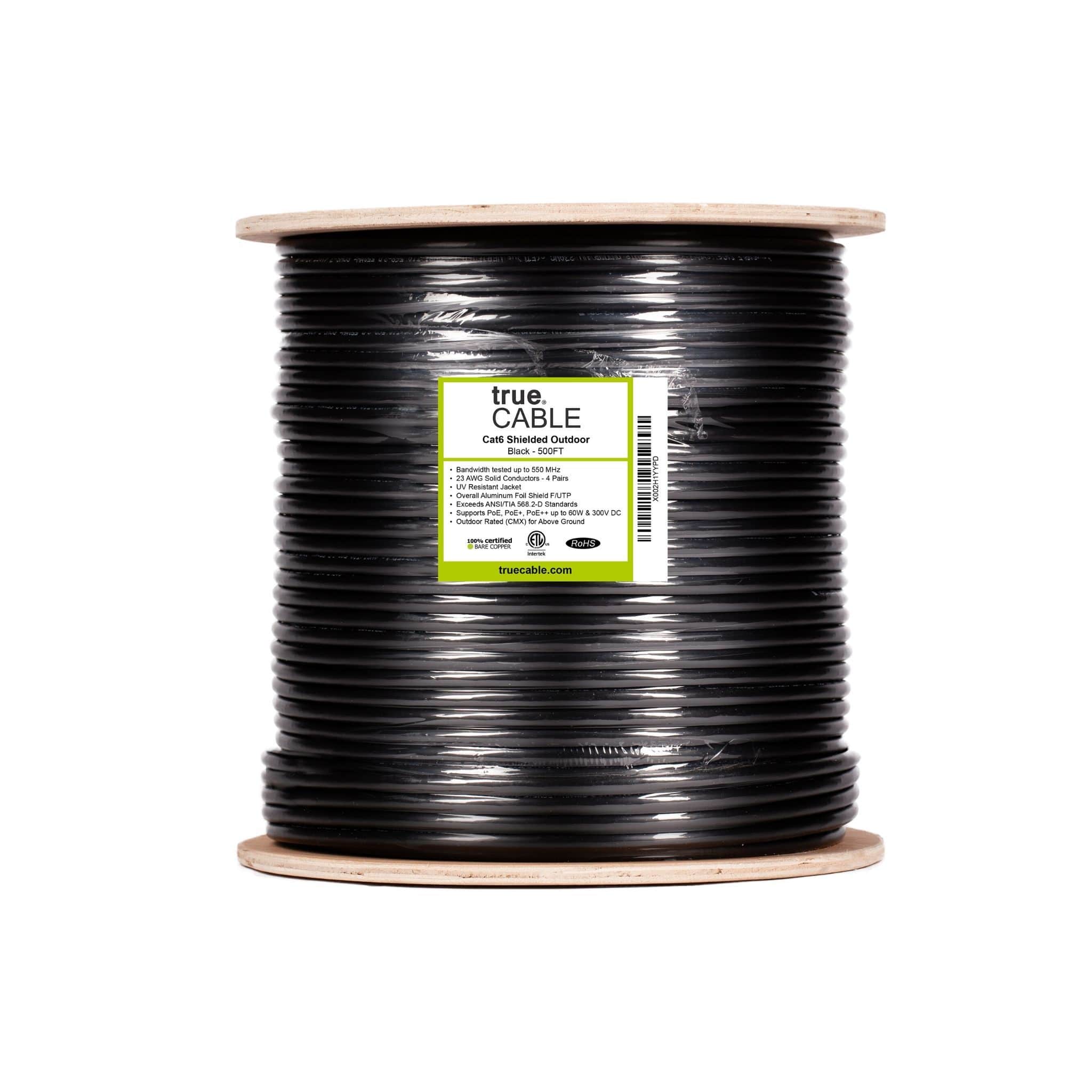

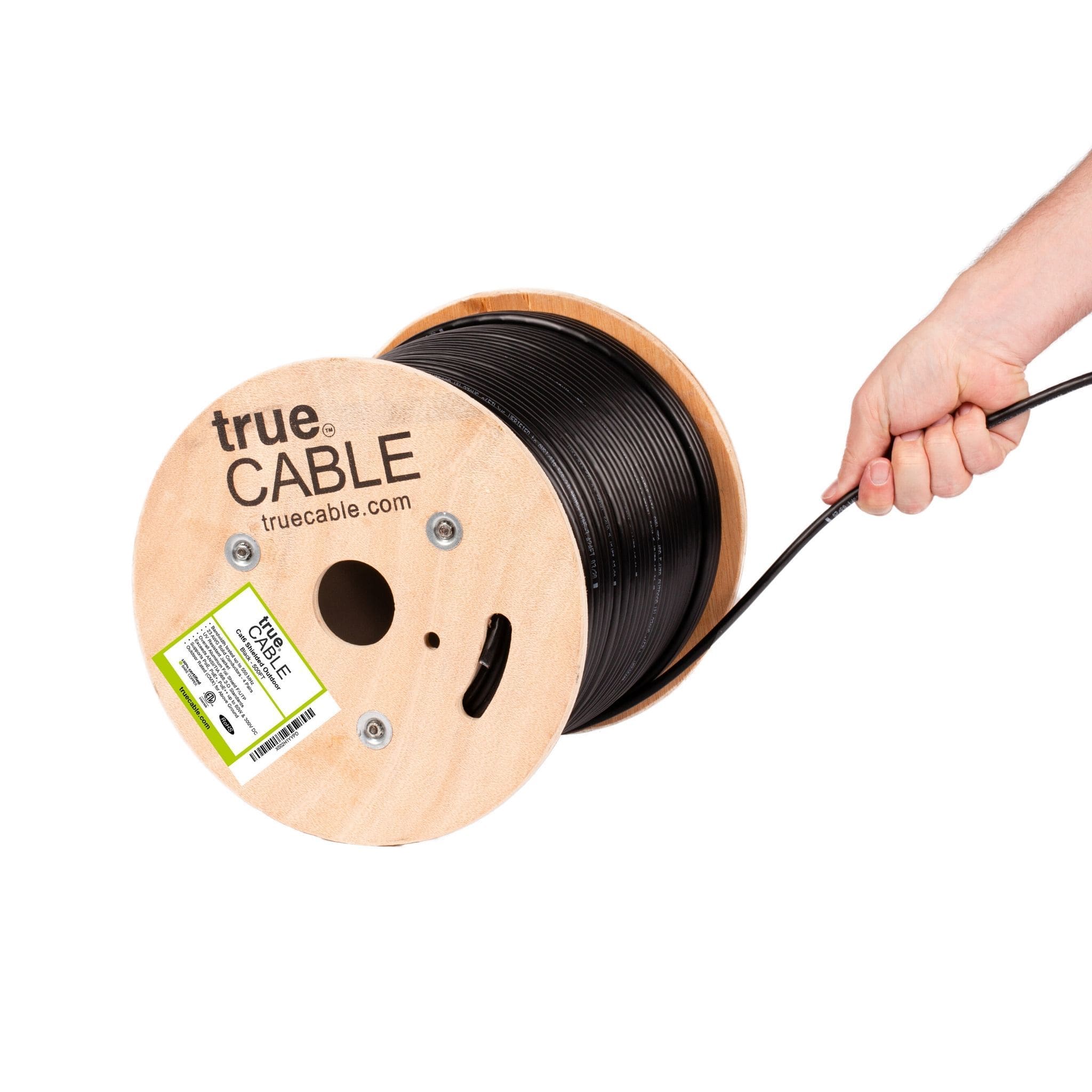

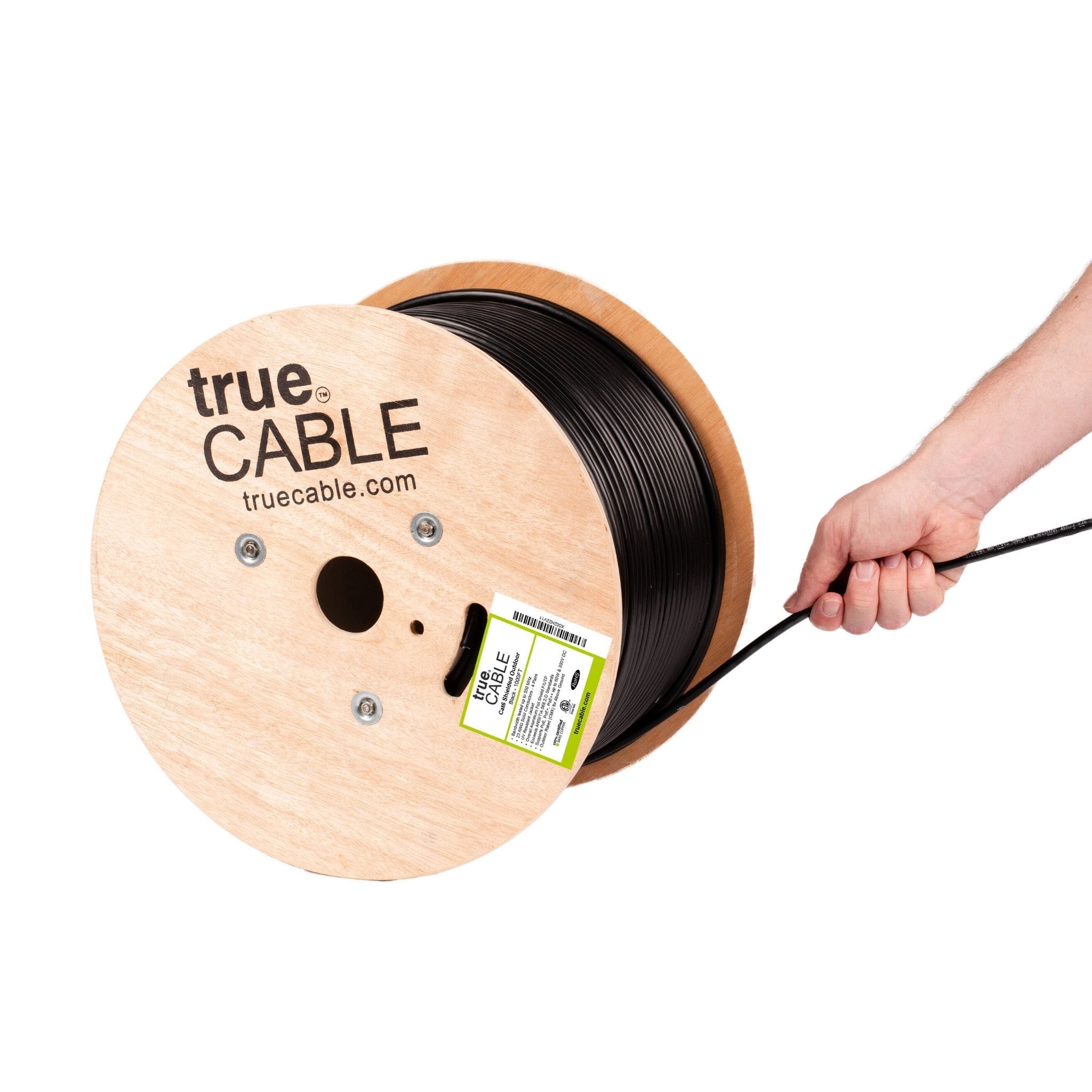

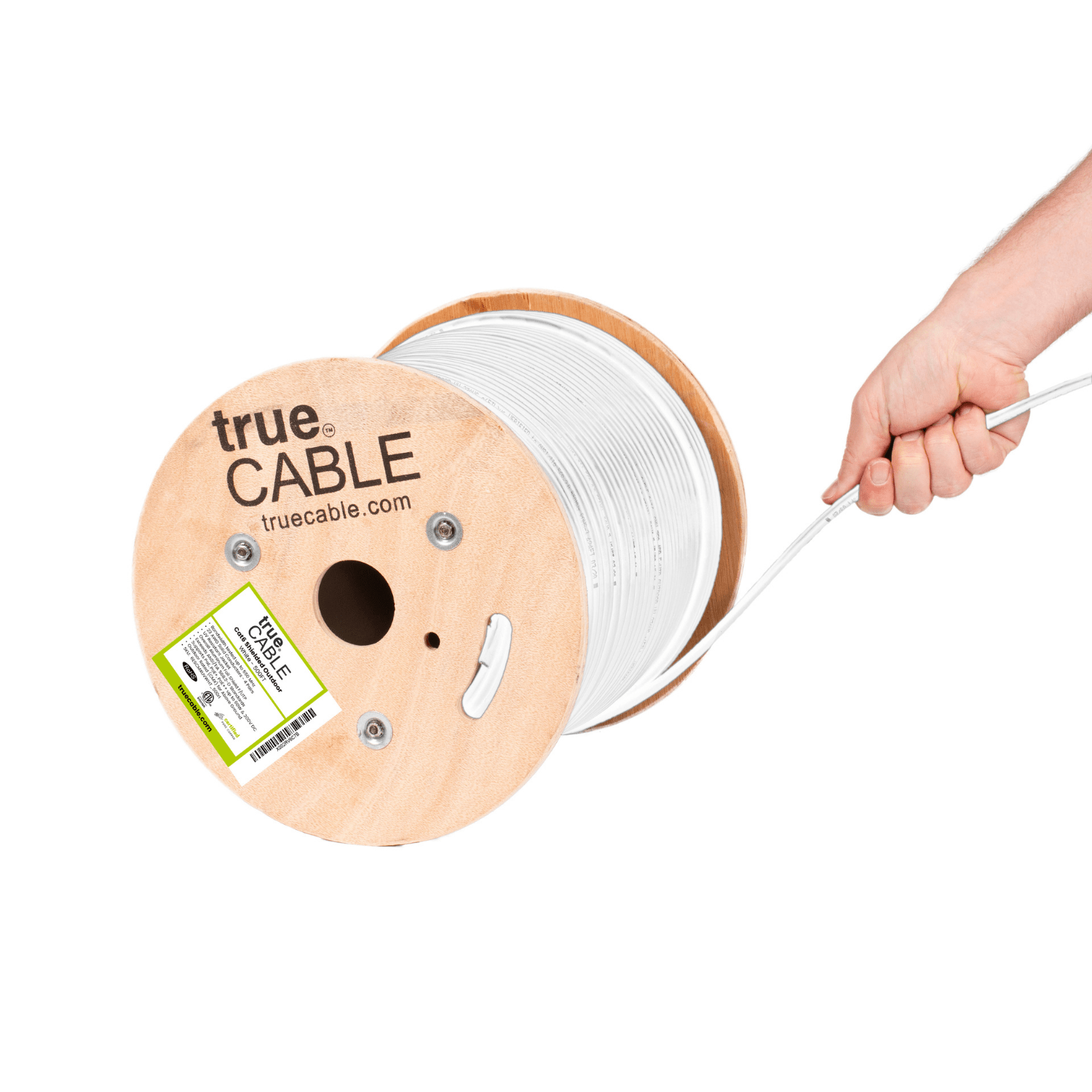

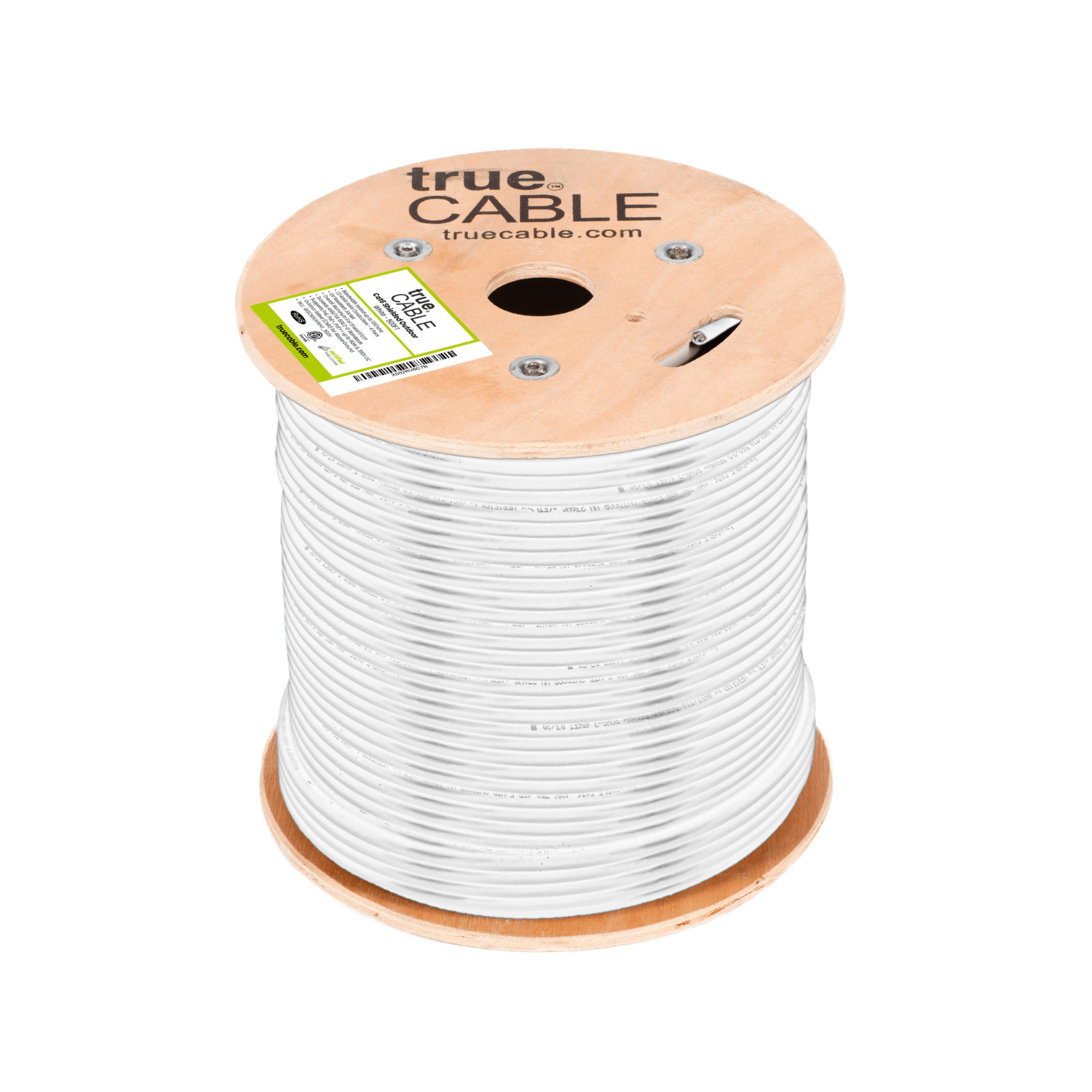

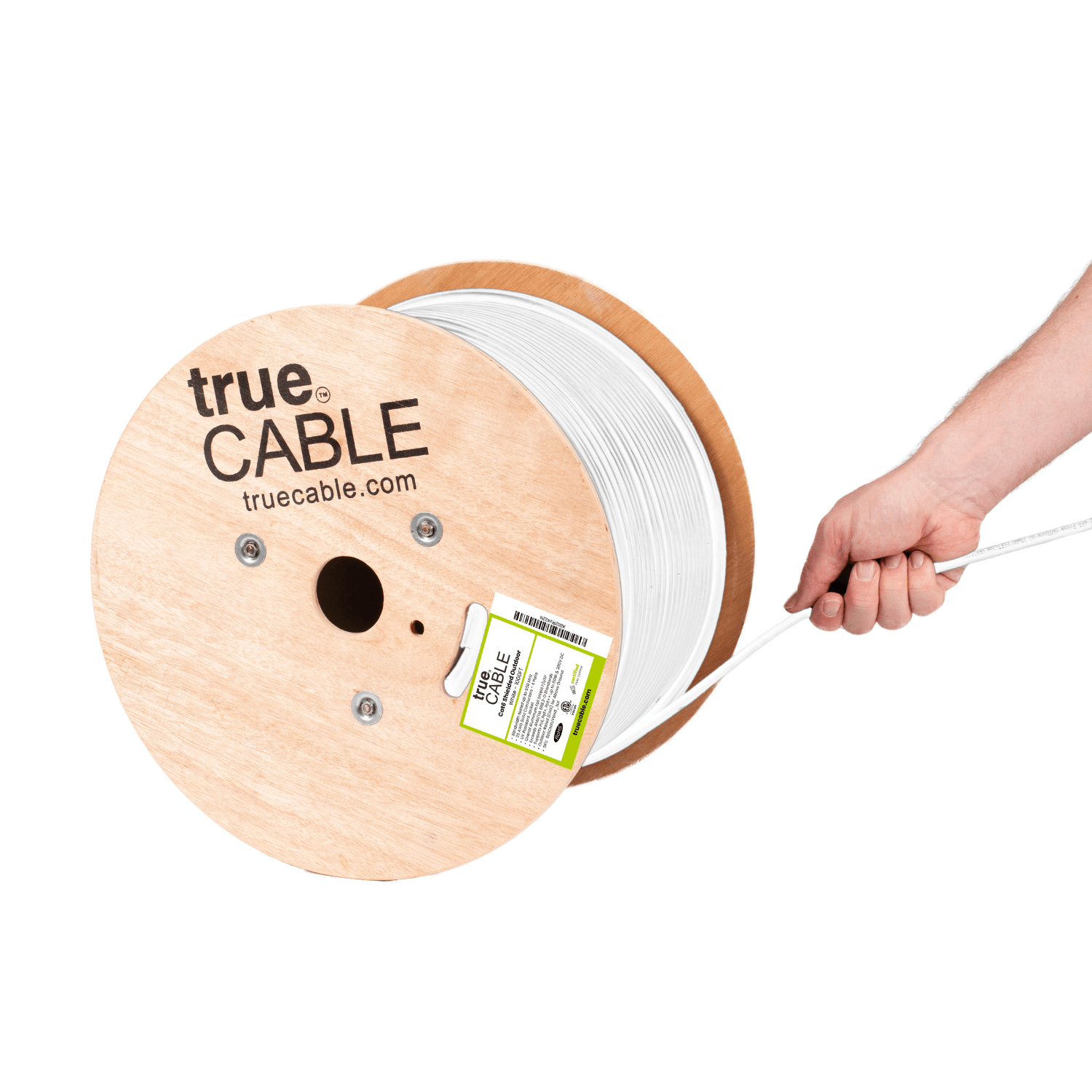

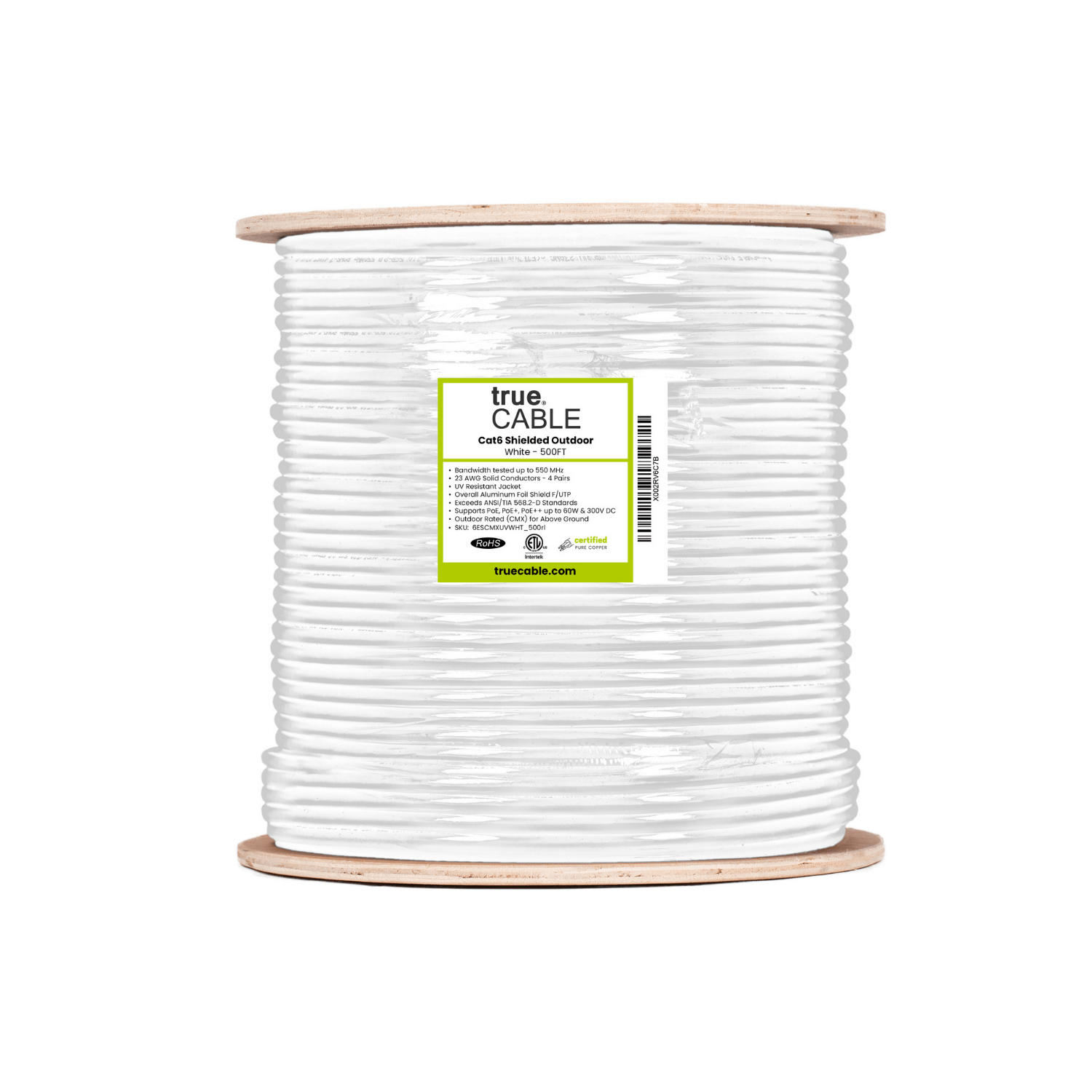

      • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
      • Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

        Compatibility Counts

        Pure Solid Bare Copper Conductors

        • Complies with UL, ANSI/TIA, and U.S. product safety standards.
        • Bare copper is superior conductor material for data transmission and PoE use.
        • The only industry and governmental approved type of conductor for use in Ethernet networks.
        ✓ CERTIFIED by trueCABLE
        • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
        • Part Number - 6ESCMXUVBLK_1Krl
        • Operating Temp. Range - 75 C / 167 F
        • Max. Operating Voltage - 300v
        • Conductor Insulation Diameter - 1.08mm
        • Overall Diameter (OD) - 7.30mm
        • Weight - 37.0 lbs
        • Length - 14.6 in
        • Width - 14.6 in
        • Height - 9.8 in
