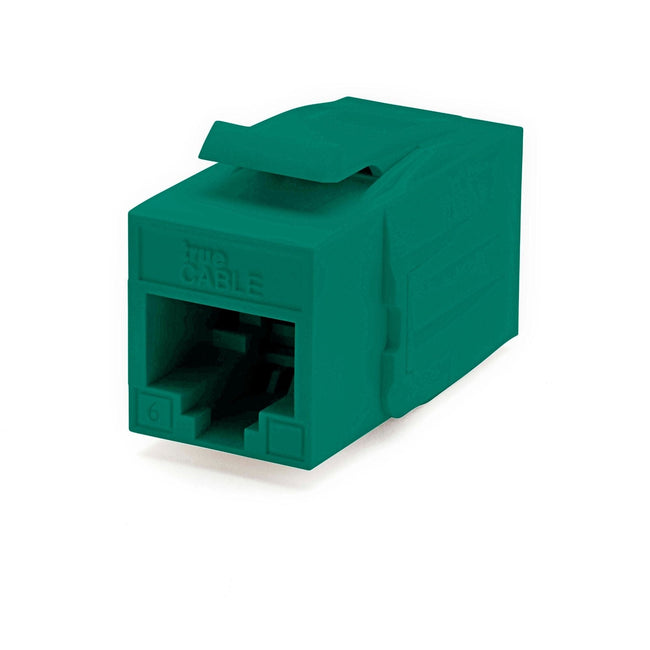

Cat6 Keystone Jack Coupler | Unshielded | Green | 2 Piece | front

1/8

Description

The ultimate Cat6 unshielded keystone jack coupler. Ease of use with tested and guaranteed performance. Many keystone jack couplers fall short where ours excel. Ideal for consolidation points. Fully backwards compatible with Cat5e.

Make your installation neat and organized without additional tools or specialized expertise. These couplers are suited to even the most severe Ethernet channel environments where multiple terminations must be used. With impedance matching technology, Return Loss and NEXT are kept minimal.

Maximum Performance

Supports 100BASE-TX, 1000BASE-T, 2.5GBASE-T, and 5GBASE-T up to 5 Gbp/s in 328 foot channels.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Impedance matching technology.

Durable

Our 180° RJ45 to RJ45 feedthrough keystone jack couplers are designed for quick and painless installations.
The reusable keystone jack design makes it easy to disconnect and relocate as needed.

Versatile

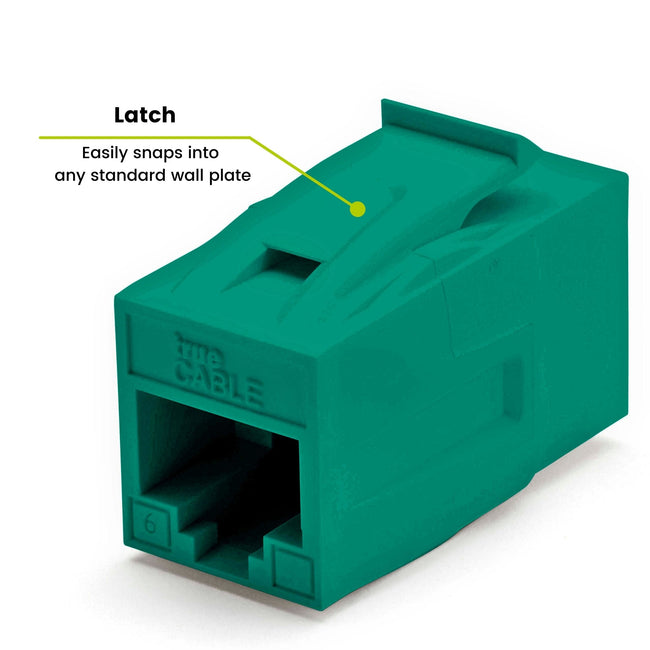

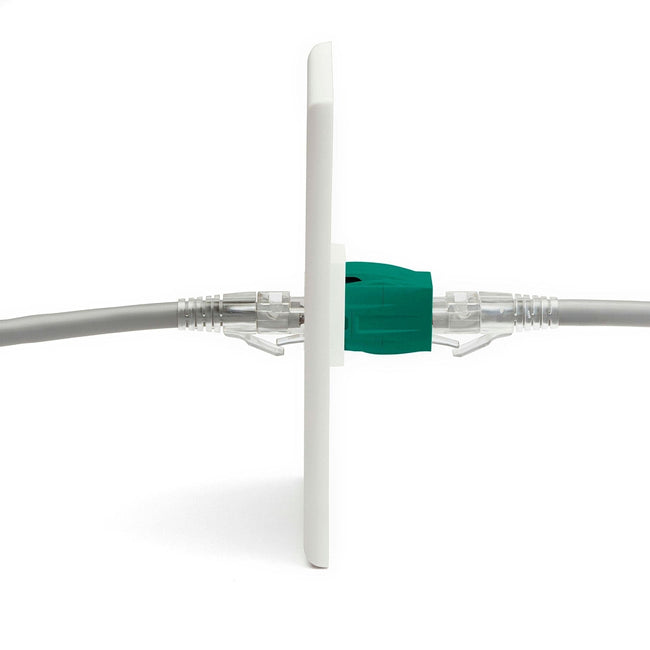

100% compatible with any standard wall plate or patch panel. Unique PCB and internal structure offers an effective method for reducing alien crosstalk from neighboring connectors.
Designed for unshielded Ethernet cable.

Quality Guaranteed

ANSI/TIA 568 2.D Cat6 Permanent Link & Channel Certified up to 5 Gigabit by trueCABLE. UL Listed, ETL Verified, TAA compliant, and RoHS-2 compliant. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.
UL Certificate of Compliance
ETL Certificate of Compliance

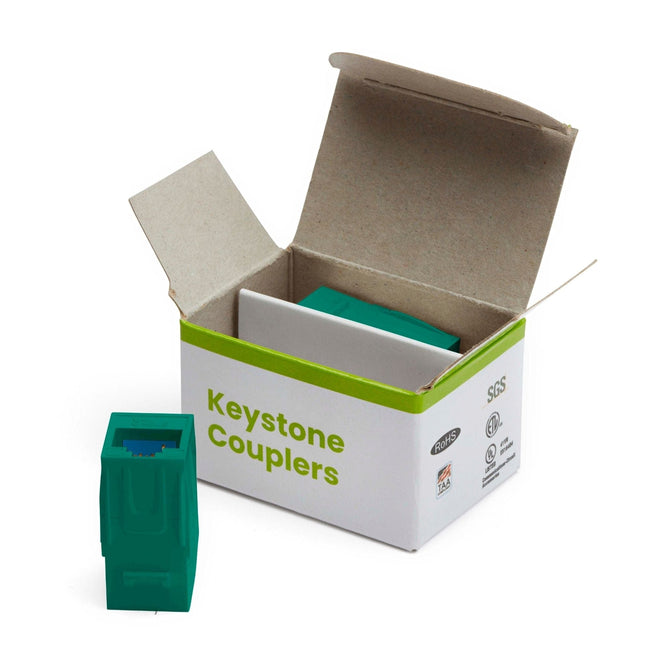

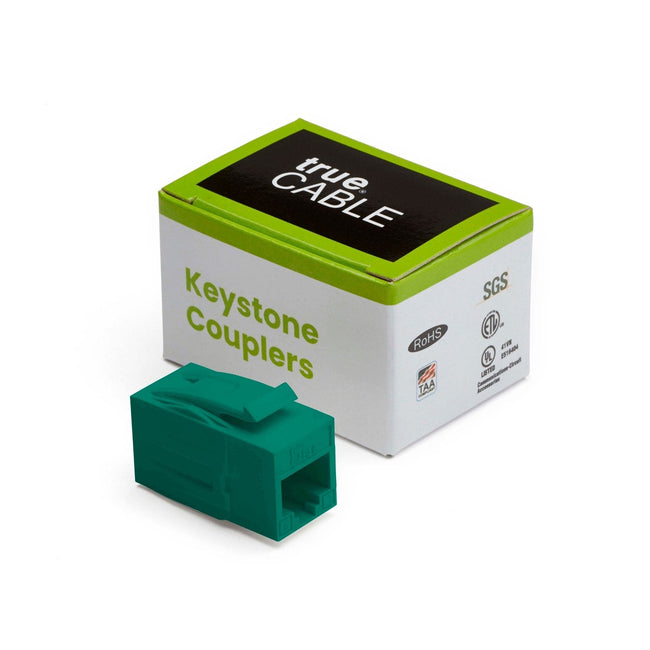

What's in the Box

These durable and time saving female to female keystone RJ45 couplers are sure to make your install hassle-free. No tools required.

Item Details

Weight	0.09 lb
Length	2.0 in
Width	1.5 in
Height	1.25 in
Barcode	X002UKIJDT

Specs & User Guides

Cat6 Keystone Jack Coupler｜Unshielded

Part Number - 6EKYCPLRGRN_2pc

$1.60 $7.99

180° RJ45 to RJ45 feed through keystone jack coupler
Reusable design for versatility
Supports PoE++ (802.3bt) 4PPoE, up to 100W
UL Listed, ETL Verified, ANSI/TIA 568 2.D Certified

Color: Green

Size: 2pc 6pc 12pc

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$1.56	2.5%
25-49	$1.52	5%
50+	$1.48	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Maximum Performance

Supports 100BASE-TX, 1000BASE-T, 2.5GBASE-T, and 5GBASE-T up to 5 Gbp/s in 328 foot channels.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Impedance matching technology.

Durable

Our 180° RJ45 to RJ45 feedthrough keystone jack couplers are designed for quick and painless installations.
The reusable keystone jack design makes it easy to disconnect and relocate as needed.

Versatile

100% compatible with any standard wall plate or patch panel. Unique PCB and internal structure offers an effective method for reducing alien crosstalk from neighboring connectors.
Designed for unshielded Ethernet cable.

Quality Guaranteed

ANSI/TIA 568 2.D Cat6 Permanent Link & Channel Certified up to 5 Gigabit by trueCABLE. UL Listed, ETL Verified, TAA compliant, and RoHS-2 compliant. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.
UL Certificate of Compliance
ETL Certificate of Compliance

What's in the Box

These durable and time saving female to female keystone RJ45 couplers are sure to make your install hassle-free. No tools required.

Specifications

Weight	0.09 lb
Length	2.0 in
Width	1.5 in
Height	1.25 in
Barcode	X002UKIJDT

Downloads

Frequently Asked Questions

Is this product suitable for use in high-temperature environments or exposed to outdoor elements?

This Cat6 unshielded keystone coupler is designed for indoor use but may be used outdoors if mounted in and protected by a weather sealed enclosure. Maximum operating temperature is 167℉.

What is the compatibility of this keystone jack coupler with my existing network equipment?

This Cat6 unshielded keystone coupler is straight-through and backwards compatible with Cat5e, providing a standard RJ45 port on both sides. In addition, this keystone coupler will snap into any standard wall plate or tool-less keystone patch panel.

What certifications does this product hold to ensure compliance with industry standards?

All trueCABLE keystone jack couplers are UL Listed, cETLus Verified, ANSI/TIA 568.2-E Component Rated, and RoHS Compliant.

Can I use this keystone jack coupler for both new installations and repairs or upgrades?

Yes, the reusable design of this keystone jack coupler makes it versatile for various applications, including new installations, repairs, and upgrades.

Is there a minimum order quantity for bulk purchasing of these keystone jack couplers?

trueCABLE does not impose minimum order quantities. Bulk quantity pricing is available on our product detail pages.

What is the expected lifespan of this product when properly maintained and used within its specifications?

The product's lifespan will depend on proper maintenance and use, but can be expected to last for many years in normal operating environments.

Can I purchase this keystone jack coupler as part of a larger bulk Ethernet cable order or is it only sold individually?

Our Cat6 unshielded keystone jack coupler may be ordered separately or combined with bulk Ethernet cable.

Does this keystone jack coupler support gigabit speeds over long distances or is it limited to shorter lengths?

This product supports data transfer speeds up to 5000 Mbps (5 Gbps) in communications channels up to 328 feet.
