Description

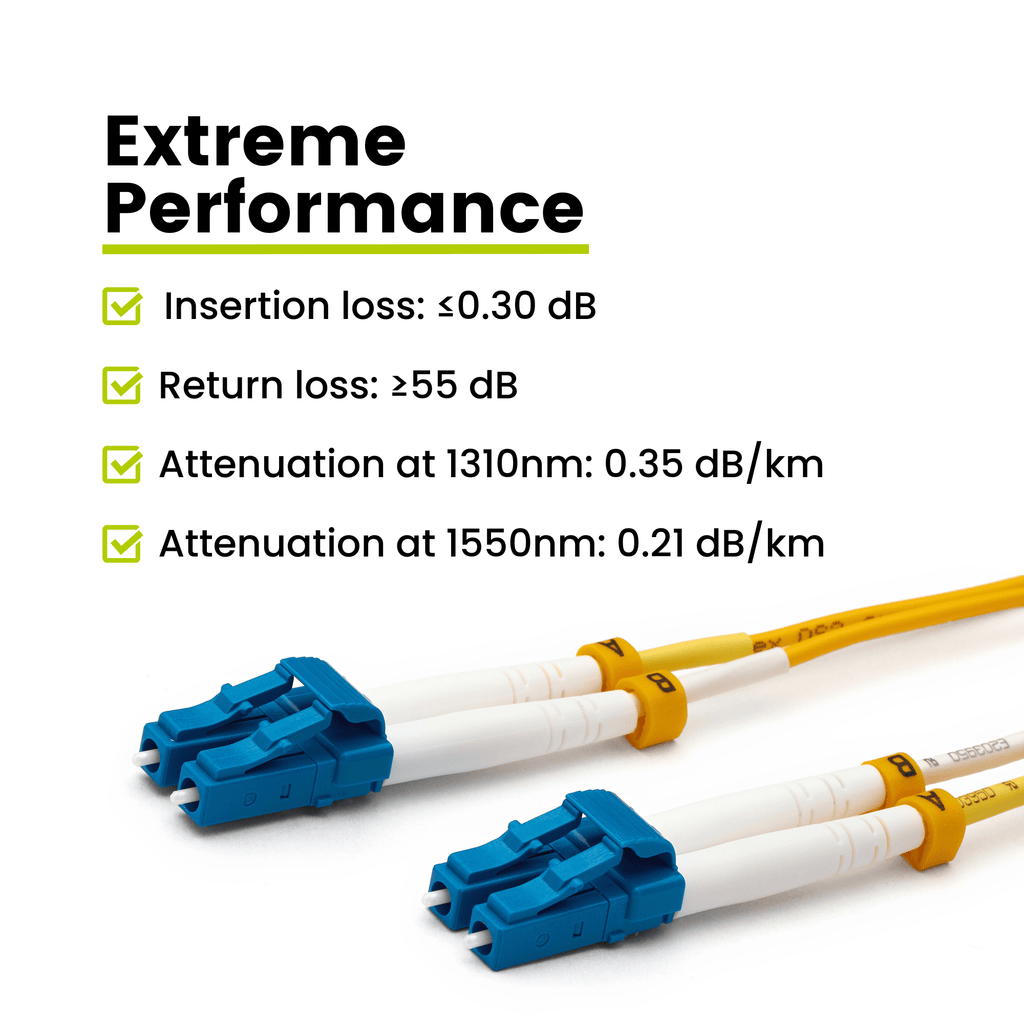

EXTREME PERFORMANCE

G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
UPC or "Ultra Physical Contact" polish on the fiber optic connector ends.

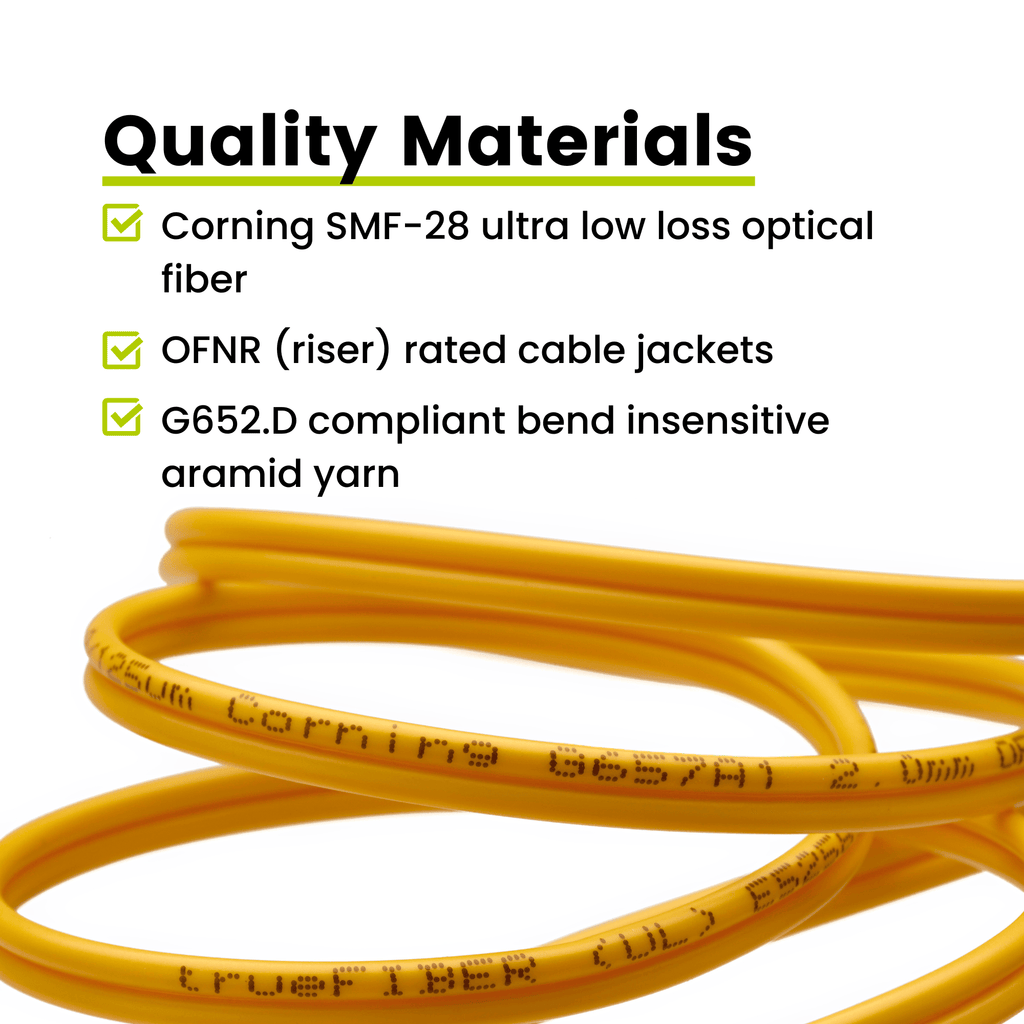

Corning® ultra low loss glass, ultra optical fiber core and cladding.
Local Area Network/Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.

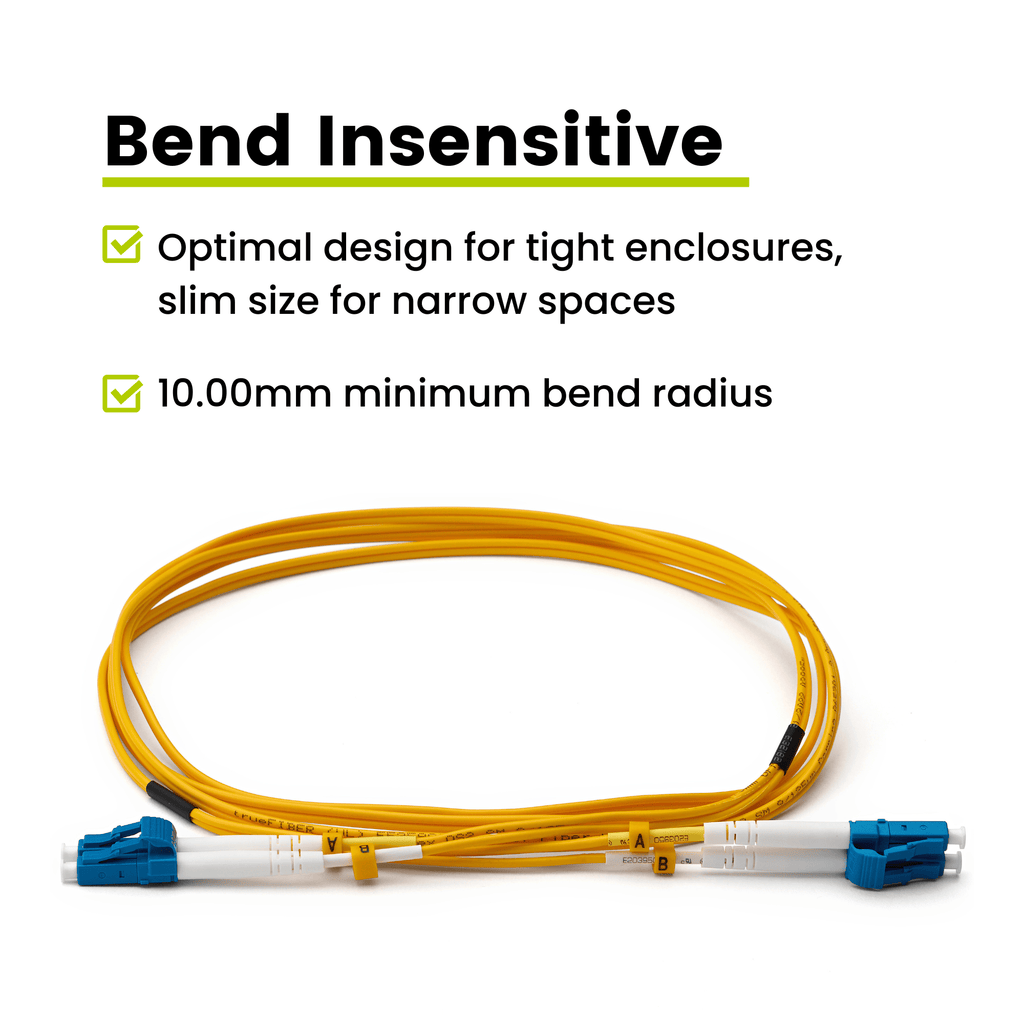

BEND INSENSITIVE

G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
2.0mm OD (overall diameter) cable jacket supports high density applications.

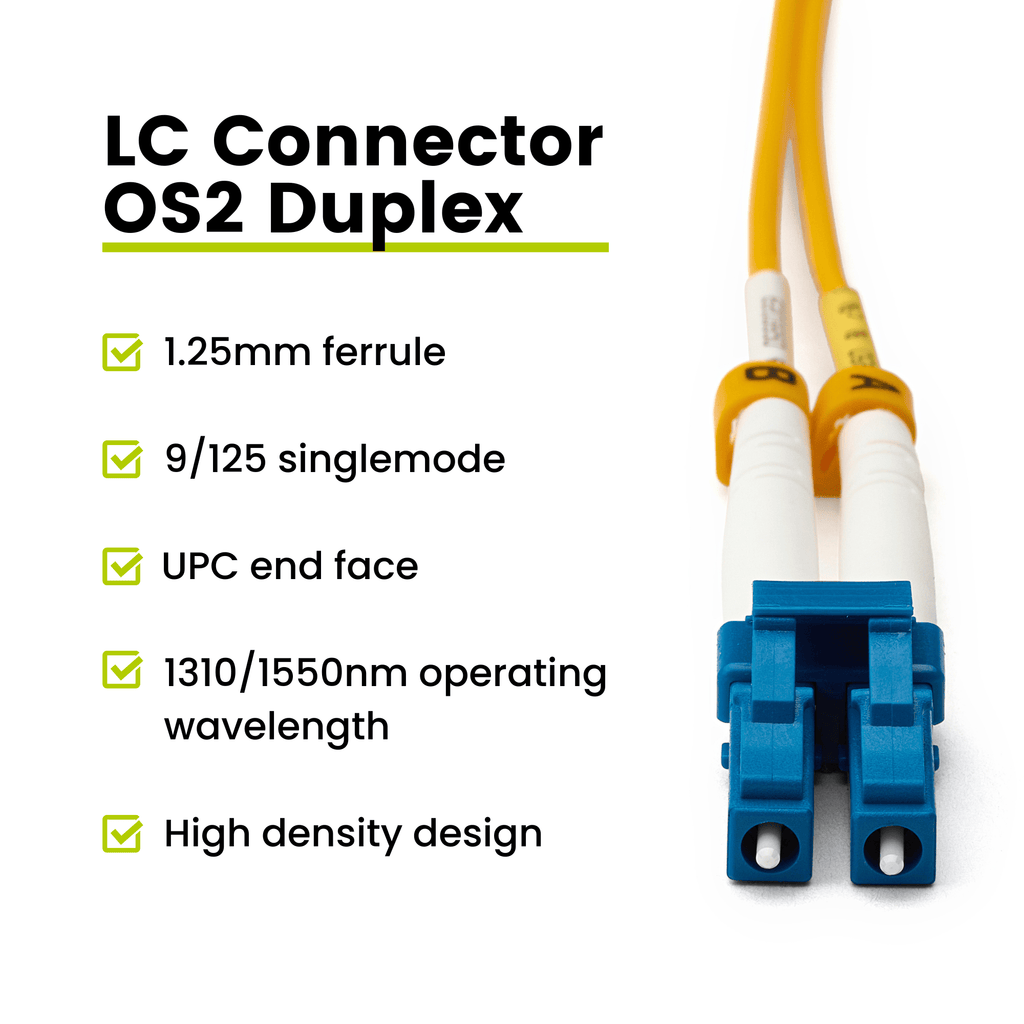

HIGH QUALITY LC CERAMIC FERRULES

1.25mm superior grade LC zirconia ceramic ferrules ensure precision alignment and very low optical loss.

FOR USE INDOORS

OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

✓ CERTIFIED by trueCABLE

Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Item Details

Weight	0.04 lb
Length	9 in
Width	7.5 in
Height	0.5 in
Barcode	X0031RCTM7

Specs & User Guides

Download Spec Sheet

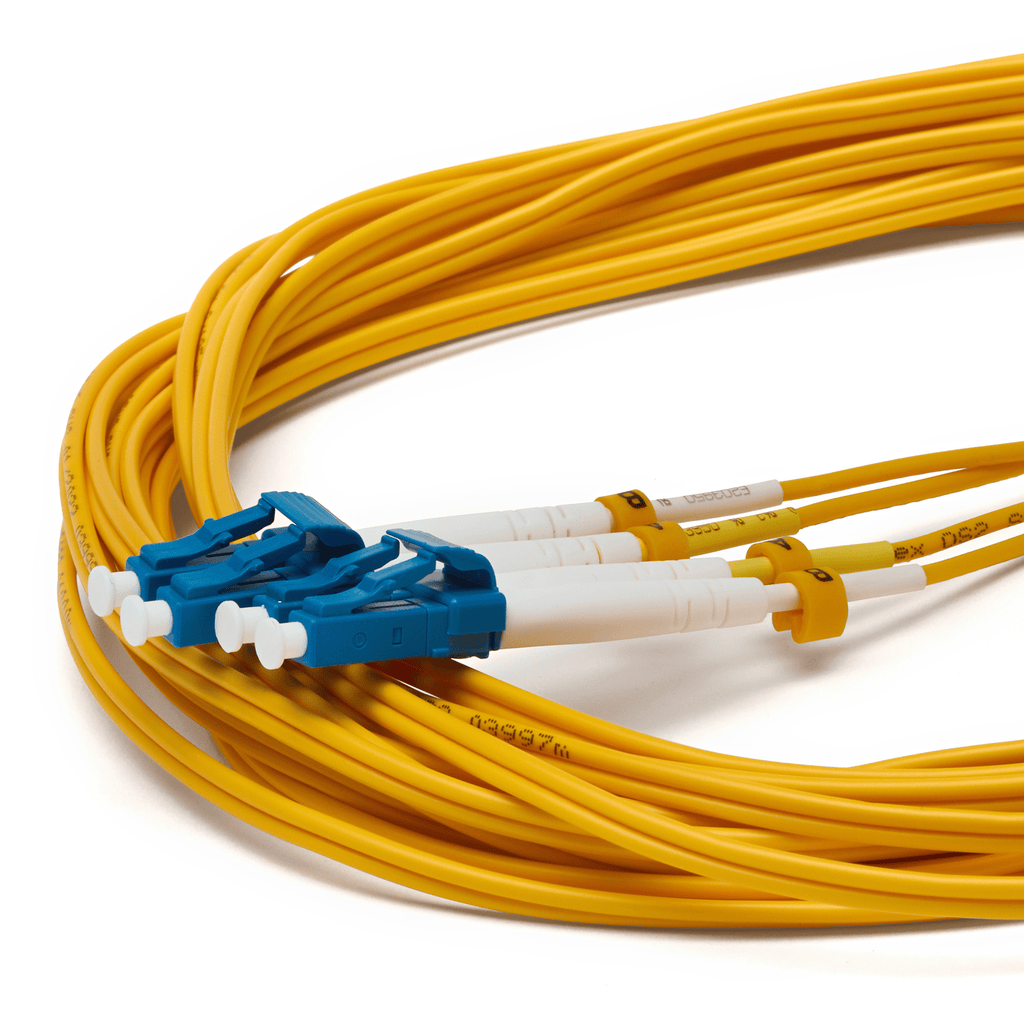

LC to LC UPC Duplex OS2 | SM OFNR

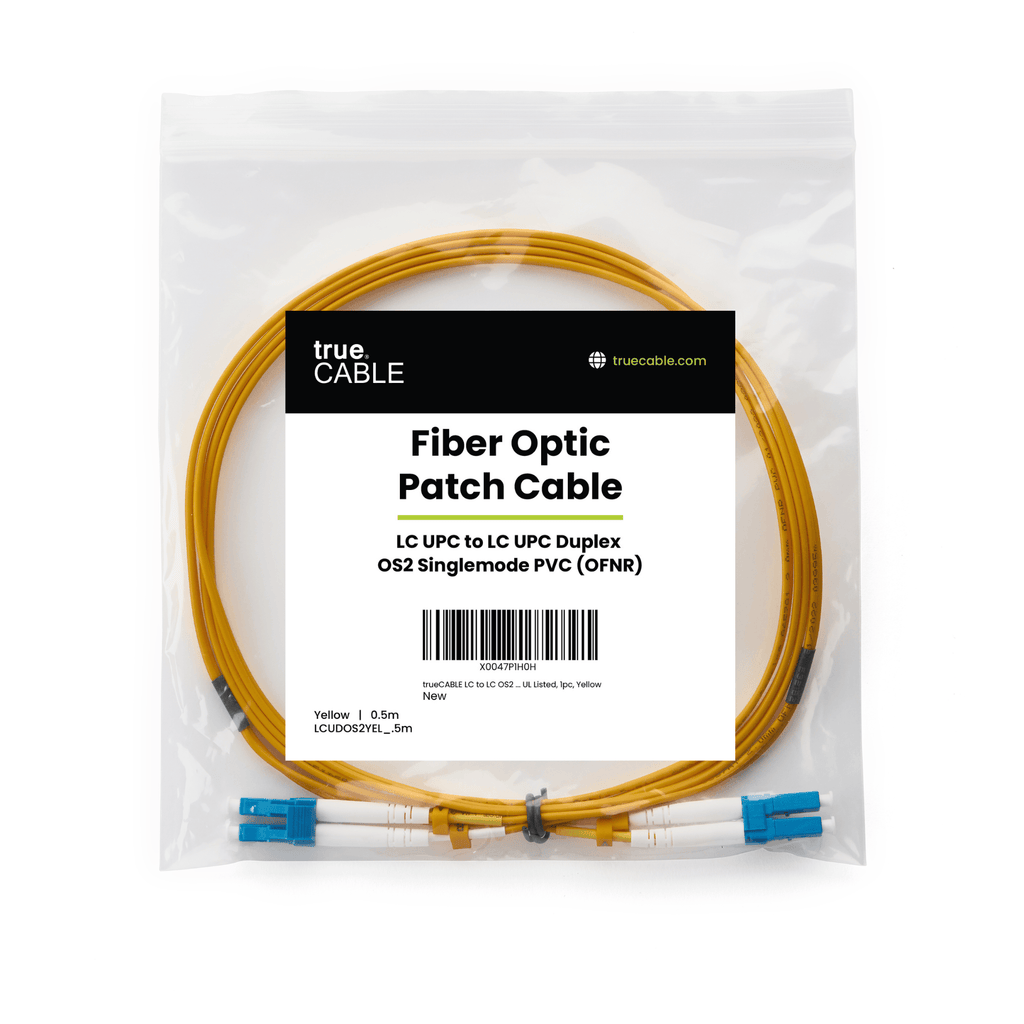

Part Number - LCUDOS2YEL_.5m

$5.55

Ability to carry data from 10km to 40km at 10GB - 200GB speeds
G657.A1 compliant bend insensitive SMF
1.25mm superior grade LC zirconia ceramic ferrules
Ultra low loss Corning® glass, ultra optical fiber
UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant IEC 61300-3-35
Quality Tested with a Fluke Versiv™ CableAnalyzer

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$5.41	2.5%
25-49	$5.27	5%
50+	$5.13	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

EXTREME PERFORMANCE

G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
UPC or "Ultra Physical Contact" polish on the fiber optic connector ends.
Corning® ultra low loss glass, ultra optical fiber core and cladding.
Local Area Network/Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.

BEND INSENSITIVE

G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
2.0mm OD (overall diameter) cable jacket supports high density applications.

HIGH QUALITY LC CERAMIC FERRULES

1.25mm superior grade LC zirconia ceramic ferrules ensure precision alignment and very low optical loss.

FOR USE INDOORS

OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

✓ CERTIFIED by trueCABLE

Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Specifications

Weight	0.04 lb
Length	9 in
Width	7.5 in
Height	0.5 in
Barcode	X0031RCTM7

Downloads

Download Spec Sheet

Frequently Asked Questions

What is the bandwidth capability of this LC to LC UPC duplex OS2 fiber optic cable?

This LC to LC UPC duplex OS2 fiber optic cable can carry data from 10km to 40km at speeds ranging from 10GB to 200GB, making it ideal for high-speed applications.

Is this product compliant with international standards and regulations?

This product is UL Listed, IEC 61300-3-35 Certified, ANSI/TIA 568.3-E Compliant, and RoHS Compliant.

What is the purpose of using an SM OFNR fiber optic cable?

The SM (Single Mode) OFNR (Optical Fiber Nonconductive Riser) designation indicates that this cable is designed for indoor use in riser applications in conjuction with single mode fiber optical transceivers for data transmission.

Can you provide more information on the fiber optic cable itself?

This product is OS2 fiber optic cable featuring G657.A1 compliant bend-insensitive SMF Corning® glass fibers with 1.25mm superior grade LC zirconia ceramic ferrules.

Is this product suitable for outdoor or direct burial applications?

No, this LC to LC UPC duplex OS2 fiber optic cable is specifically designed for indoor use only.
