1/8

Description

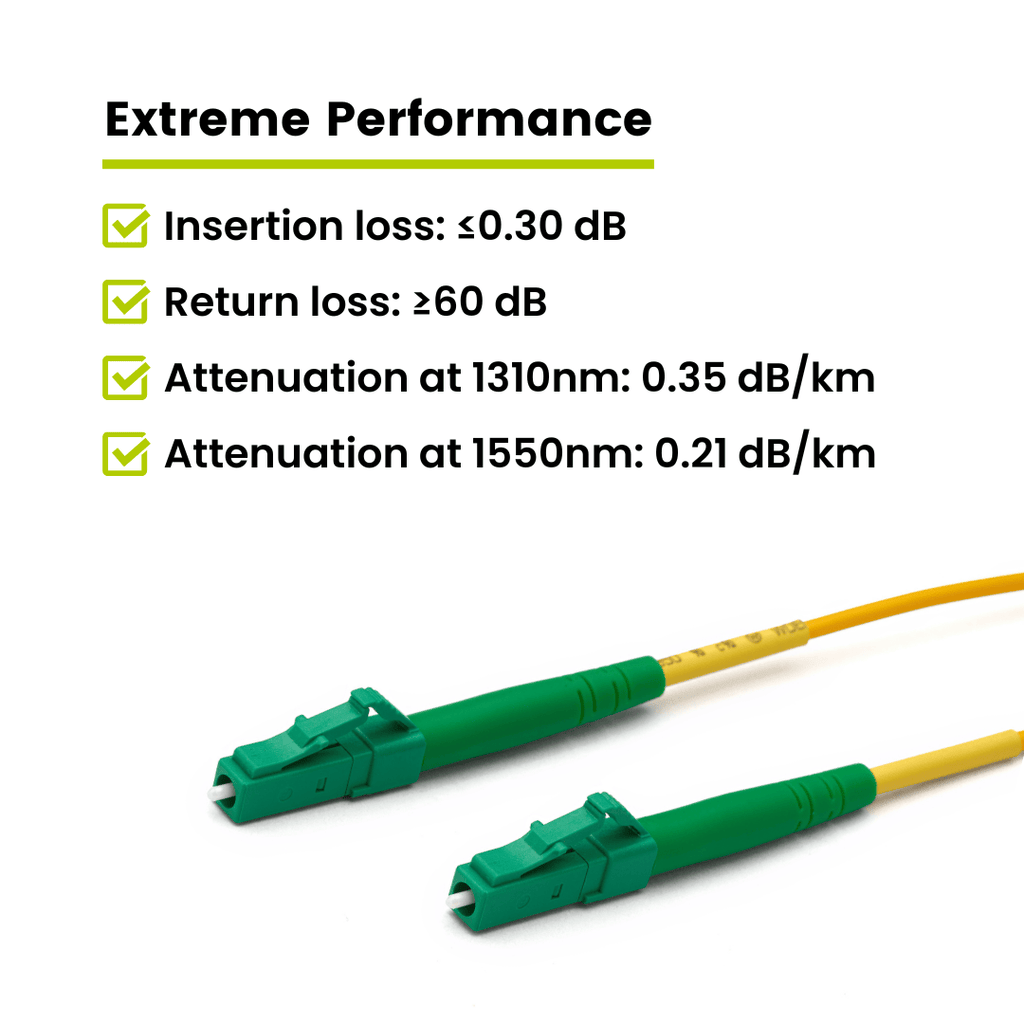

EXTREME PERFORMANCE

G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
APC or "Angled Physical Contact" polish on the fiber optic connector ends.

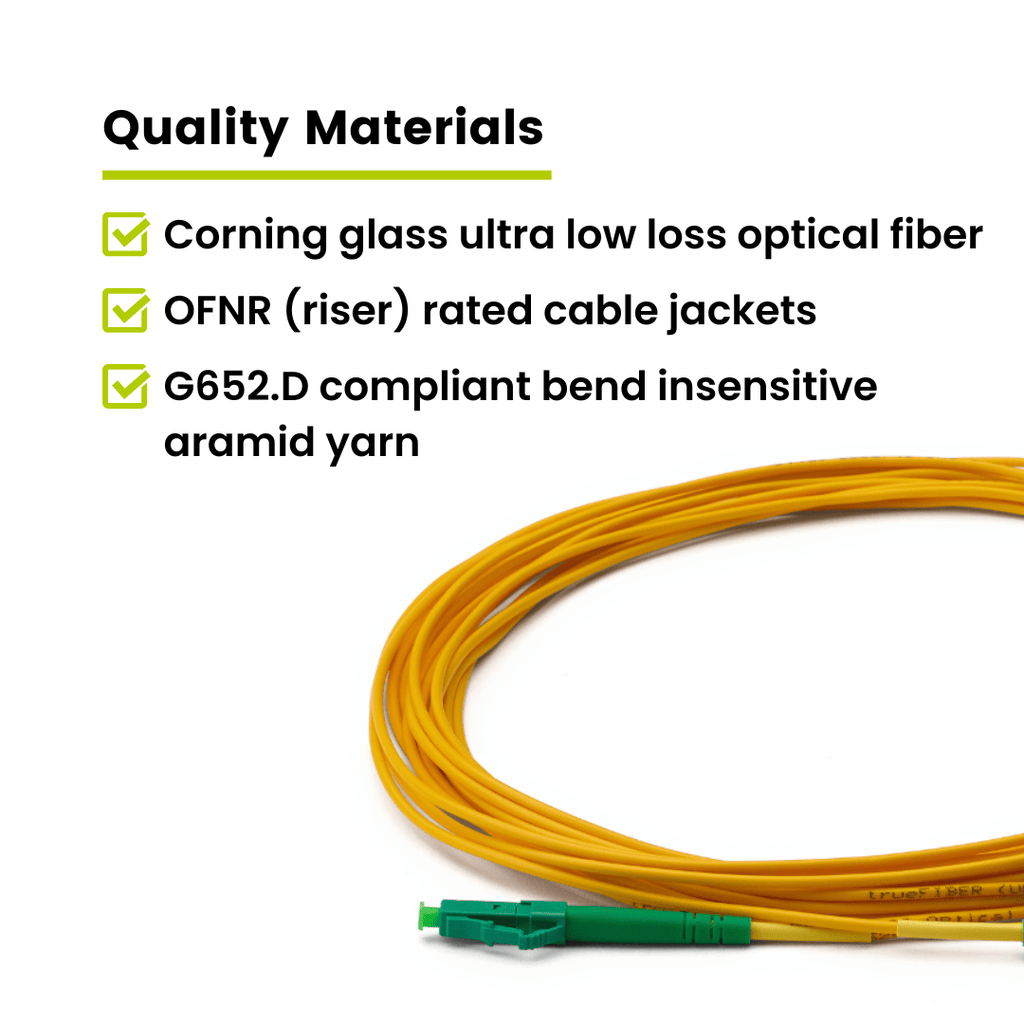

Corning® ultra low loss glass, ultra optical fiber core and cladding.

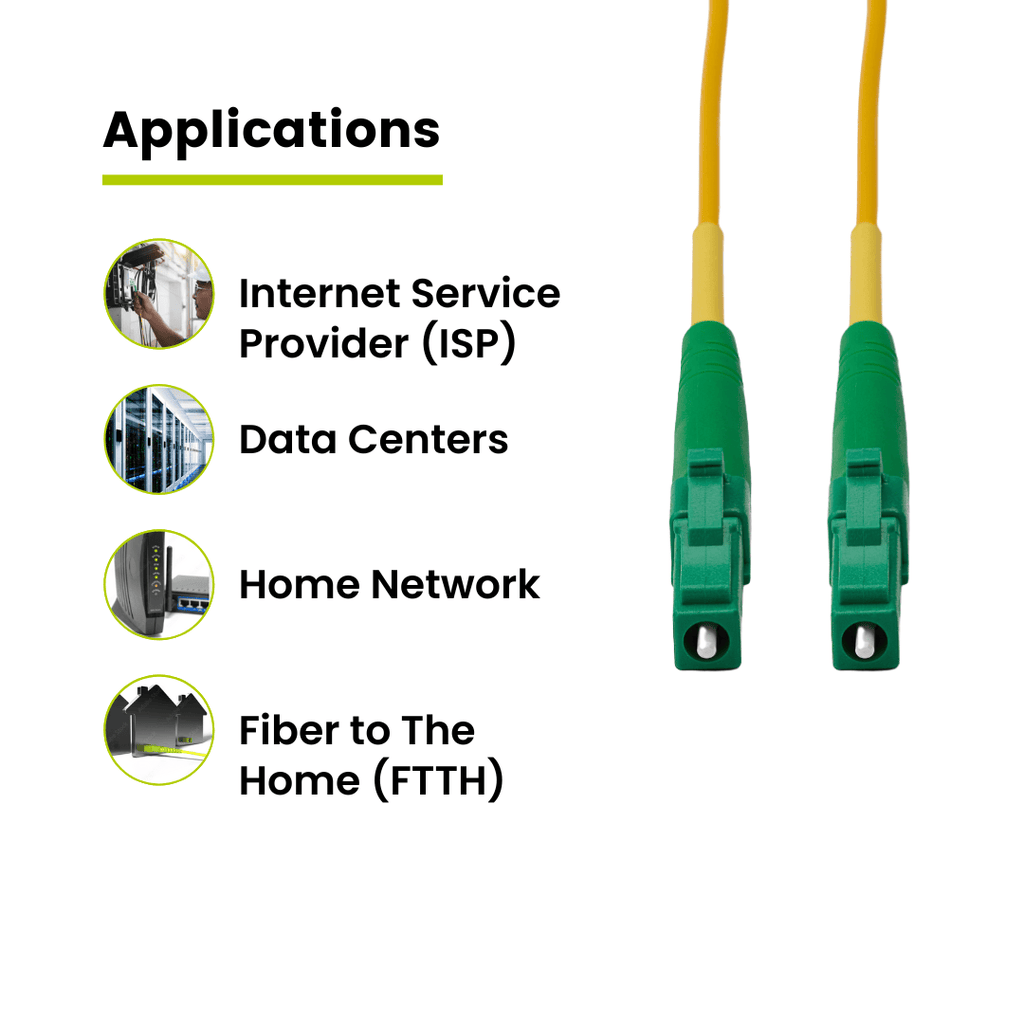

Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.

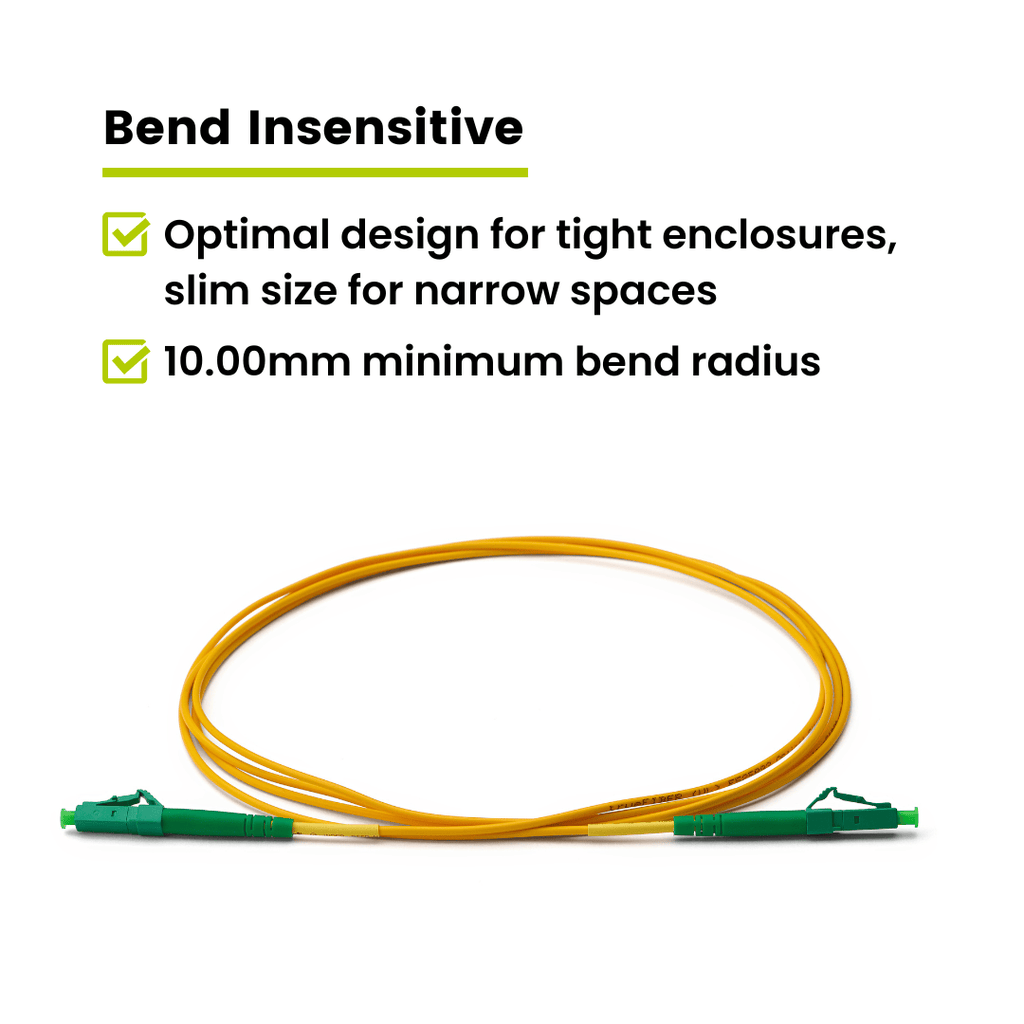

BEND INSENSITIVE

G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
2.0mm OD (overall diameter) cable jacket supports high density applications.

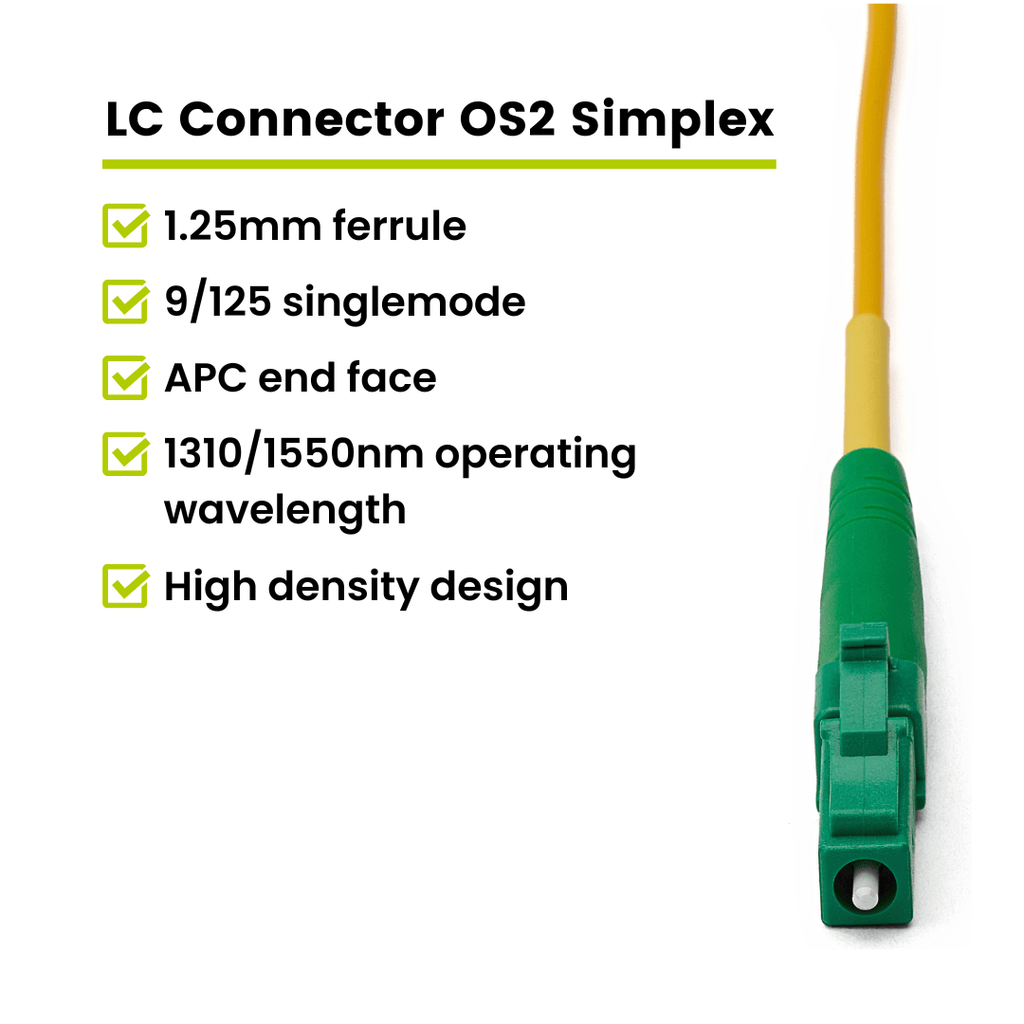

HIGH QUALITY LC CERAMIC FERRULES

1.25mm superior grade LC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC end-face

FOR USE INDOORS

OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

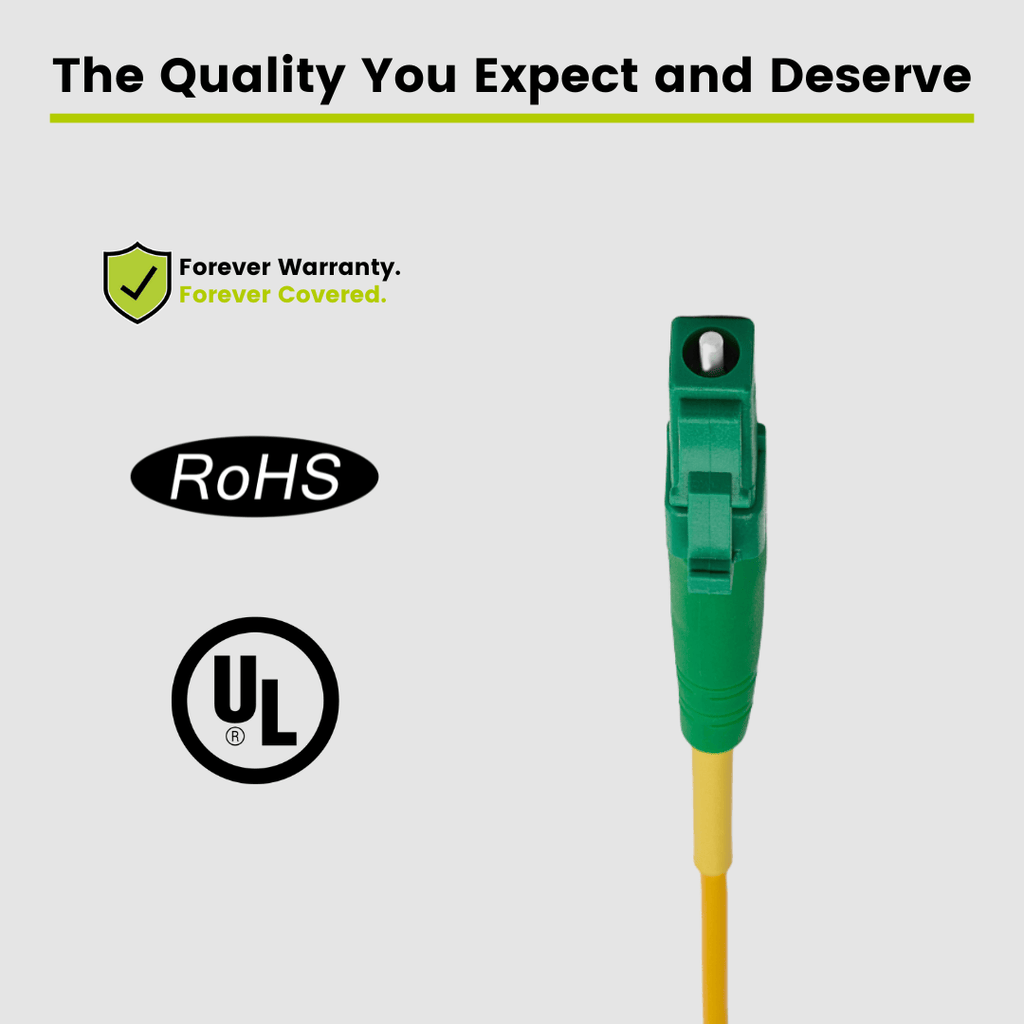

✓ CERTIFIED by trueCABLE

Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Item Details

Weight	0.05 lb
Length	9 in
Width	7.5 in
Height	0.5 in
Barcode	X003R8F06R

Specs & User Guides

Download Spec Sheet

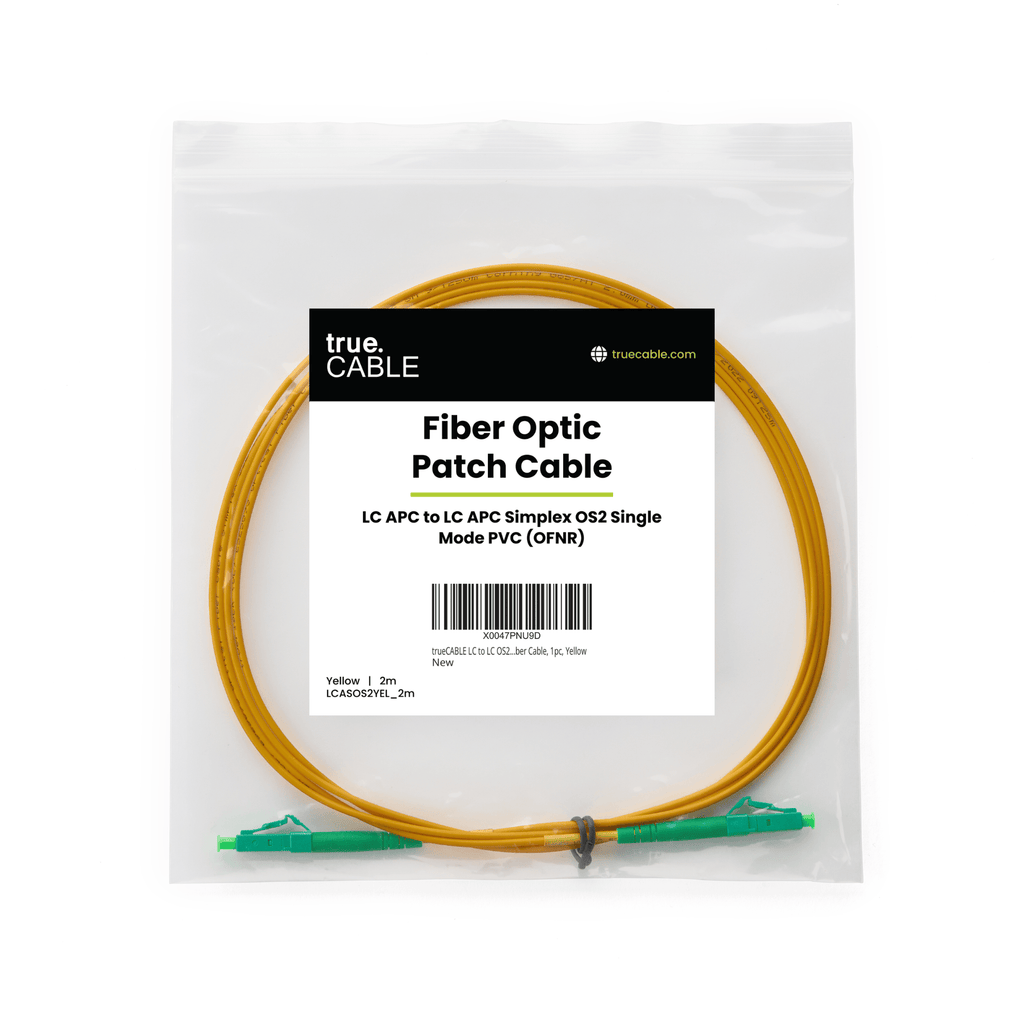

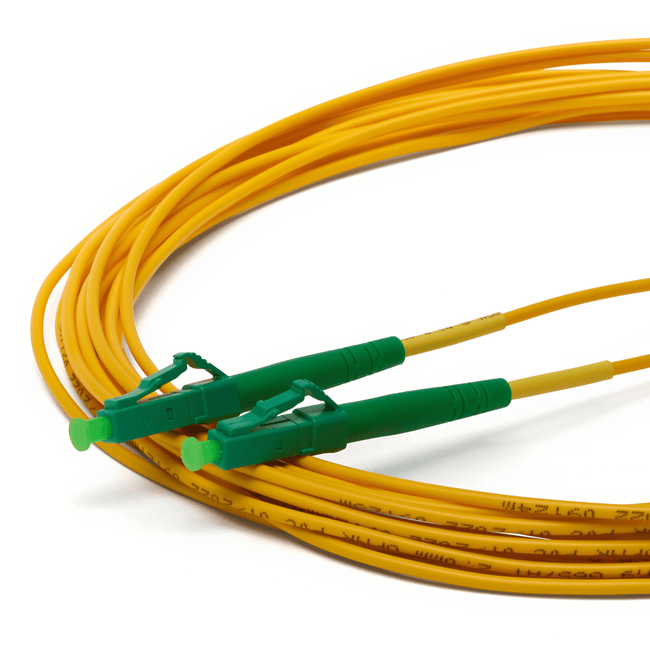

LC to LC APC Simplex OS2 | SM OFNR

Part Number - LCASOS2YEL_2m

$3.75

Ability to carry data from 10km to 40km at 10GB - 200GB speeds
G657.A1 compliant bend insensitive SMF
1.25mm superior grade LC zirconia ceramic ferrules
Ultra low loss Corning® ultra optical fiber
UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant IEC 61300-3-35
Quality Tested with a Fluke Versiv™ CableAnalyzer

Length: 1m (3.28ft) 2m (6.56ft) 3m (9.84ft) 5m (16.40ft) 7m (22.96ft) 10m (32.80ft) 15m (49.21ft)

Size: 1 Pack 5 Pack

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$3.66	2.5%
25-49	$3.56	5%
50+	$3.47	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

EXTREME PERFORMANCE

G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
APC or "Angled Physical Contact" polish on the fiber optic connector ends.
Corning® ultra low loss glass, ultra optical fiber core and cladding.
Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.

BEND INSENSITIVE

G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
2.0mm OD (overall diameter) cable jacket supports high density applications.

HIGH QUALITY LC CERAMIC FERRULES

1.25mm superior grade LC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC end-face

FOR USE INDOORS

OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

✓ CERTIFIED by trueCABLE

Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Specifications

Weight	0.05 lb
Length	9 in
Width	7.5 in
Height	0.5 in
Barcode	X003R8F06R

Downloads

Download Spec Sheet

Frequently Asked Questions

What types of certifications do your products have?

It depends upon the product in question. Many of our products are either UL listing or cETLus Listed, meet ANSI/TIA 568 standards, and typically also RoHS Compliant.

How long can I pull these cables without causing damage?

This LC/APC to LC/APC SM Simplex fiber optical patch cable may be pulled to it's full length without issue.

Can I use your fiber optic products with my existing network equipment?

Our LC to LC APC Simplex OS2 | SM OFNR, for example, are designed to work with a wide range of fiber optical transceivers and couplers and complies with G657.A1 standards. However, we recommend verifying compatibility with your specific equipment before making a purchase.

Yes, we offer competitive pricing for larger orders. Pricing can be found on the product page.

Yes, we offer bulk quantity pricing for all our products.
