SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
1/8
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK
  • SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK

Description

EXTREME PERFORMANCE
  • G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on one fiber optic connector end.
  • Corning® ultra low loss glass, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.
  • Mechanical and Fusion Splice ready
  • Low Loss Simplex SC APC Pigtail

BEND INSENSITIVE

  • G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.



HIGH QUALITY SC CERAMIC FERRULES

  • 2.50mm superior grade SC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface.

FOR USE INDOORS

  • LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

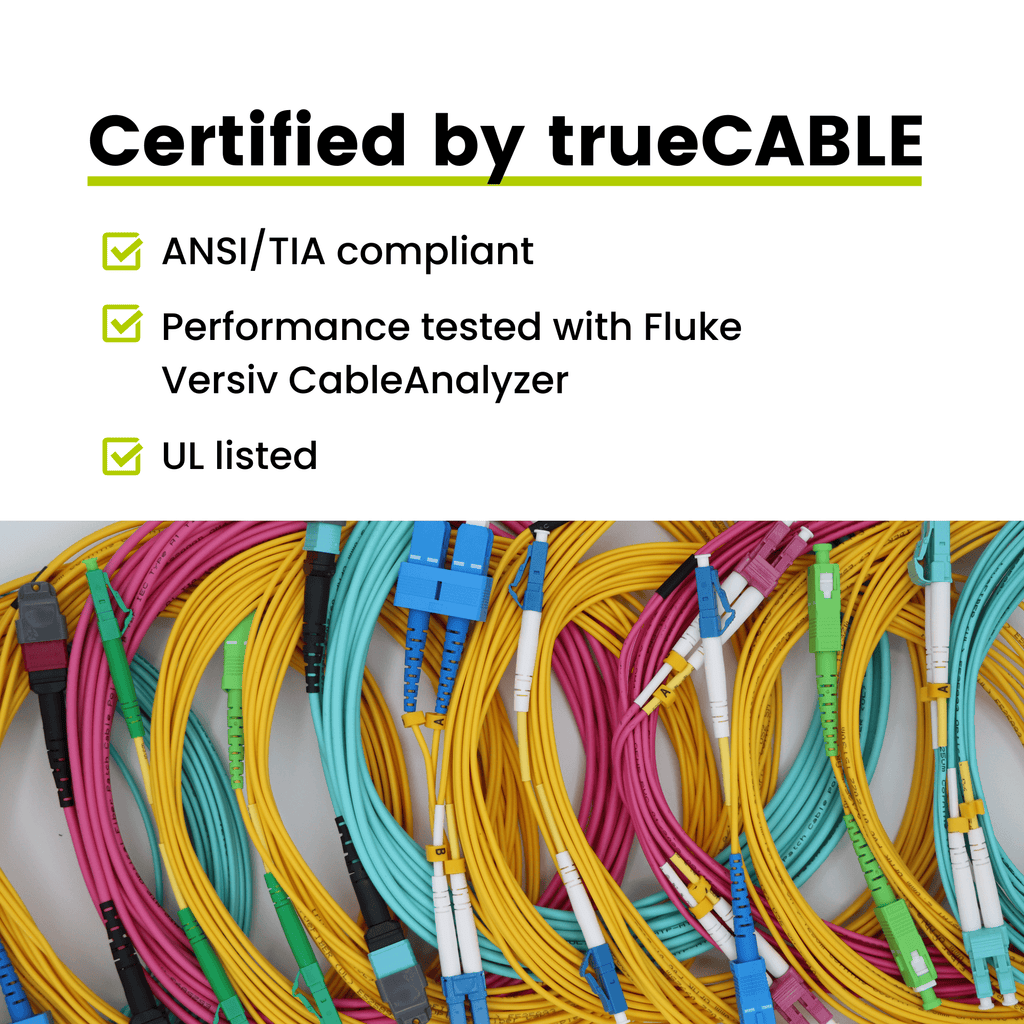

✓ CERTIFIED by trueCABLE
    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Item Details

Weight 0.1 lb
Length 8 in
Width 9 in
Height 0.5 in
Barcode X003XAEEZR

Specs & User Guides

Download Spec Sheet

SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK

Part Number - PT1SCASOS2_2m_6PK
$12.99
  • PVC LSZH Flame-retardant Fiber Optic Cable with Tight-buffered Coating
  • G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Optical Testing Guarantees Insertion Loss and Return Loss
  • Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
  • Corning® Glass Ultra Fiber with 10mm Min. Bend Radius
  • UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant
  • 2 meters to ensure sufficient splice length
Style:

Add 9 more for 2.5% discount

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $12.67 2.5%
25-49 $12.34 5%
50+ $12.02 7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Estimate Your Delivery Date

Description

EXTREME PERFORMANCE
  • G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on one fiber optic connector end.
  • Corning® ultra low loss glass, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.
  • Mechanical and Fusion Splice ready
  • Low Loss Simplex SC APC Pigtail

BEND INSENSITIVE

  • G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.



HIGH QUALITY SC CERAMIC FERRULES

  • 2.50mm superior grade SC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface.

FOR USE INDOORS

  • LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.
✓ CERTIFIED by trueCABLE
    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Specifications

Weight 0.1 lb
Length 8 in
Width 9 in
Height 0.5 in
Barcode X003XAEEZR

Downloads

Download Spec Sheet

Frequently Asked Questions

What is the minimum bend radius for this SC APC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK?
The fibers in this pigtail have a minimum bend radius of 10mm.
Are these fiber pigtails certified to any industry standards or regulations?
This product is UL Listed, IEC Certified, and ANSI/TIA 568.3-E Compliant meeting all IEC-61754 and TIA-604 (FOCIS) Performance Requirements. Further, our single mode fiber pig tails have been end face Certified to IEC 61300-3-35 ED.2 SM.
Can you confirm the length of each fiber pigtail?
Each SC APC Simplex Fiber Pigtail OS2 | SM LSZH is 2 meters long to ensure sufficient splice length.
What type of termination methods can be used with these fiber pigtails?
They support both fusion and mechanical splicing for fiber cabling systems.
What type of fiber is used in these pigtails?
This pigtail is made using OS2 singlemode (SM) fibers with a G.657.A1 rating. The glass core and cladding used in construction is Corning.
What makes these fiber pigtails resistant to flame and heat?
They have a PVC LSZH (Low Smoke Zero Halogen) Flame-retardant coating for enhanced safety in case of accidents or fires.
Are there any certifications or compliance labels on these products that meet specific industry standards?
This product is UL Listed, IEC Certified, and ANSI/TIA 568.3-E Compliant meeting all IEC-61754 and TIA-604 (FOCIS) Performance Requirements. Further, our single mode fiber pig tails have been end face Certified to IEC 61300-3-35 ED.2 SM.
How many units are included in this 6-pack purchase, and what is the packaging like?
You will receive 6 individual fiber pigtails packaged together in a zip top plastic bag.
