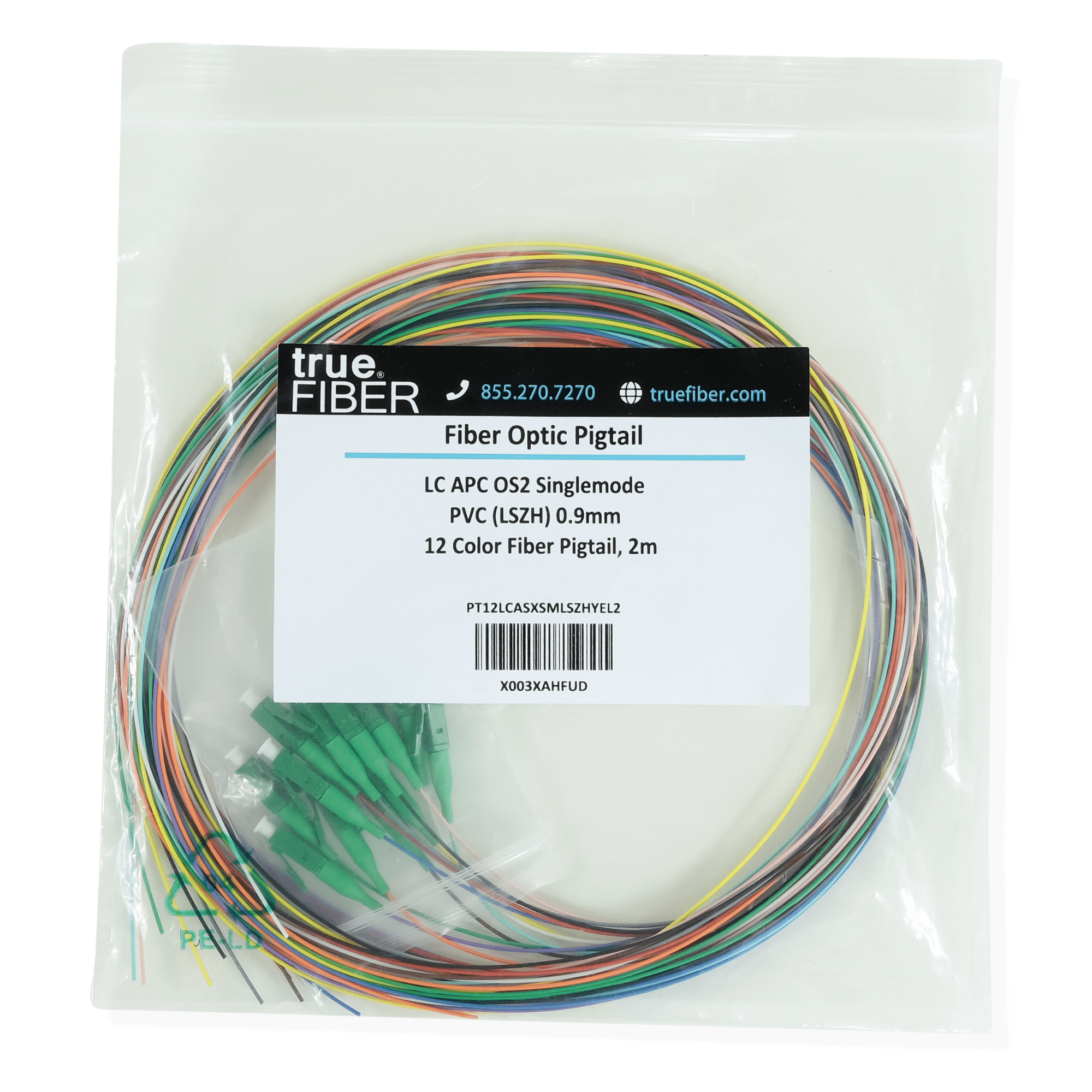

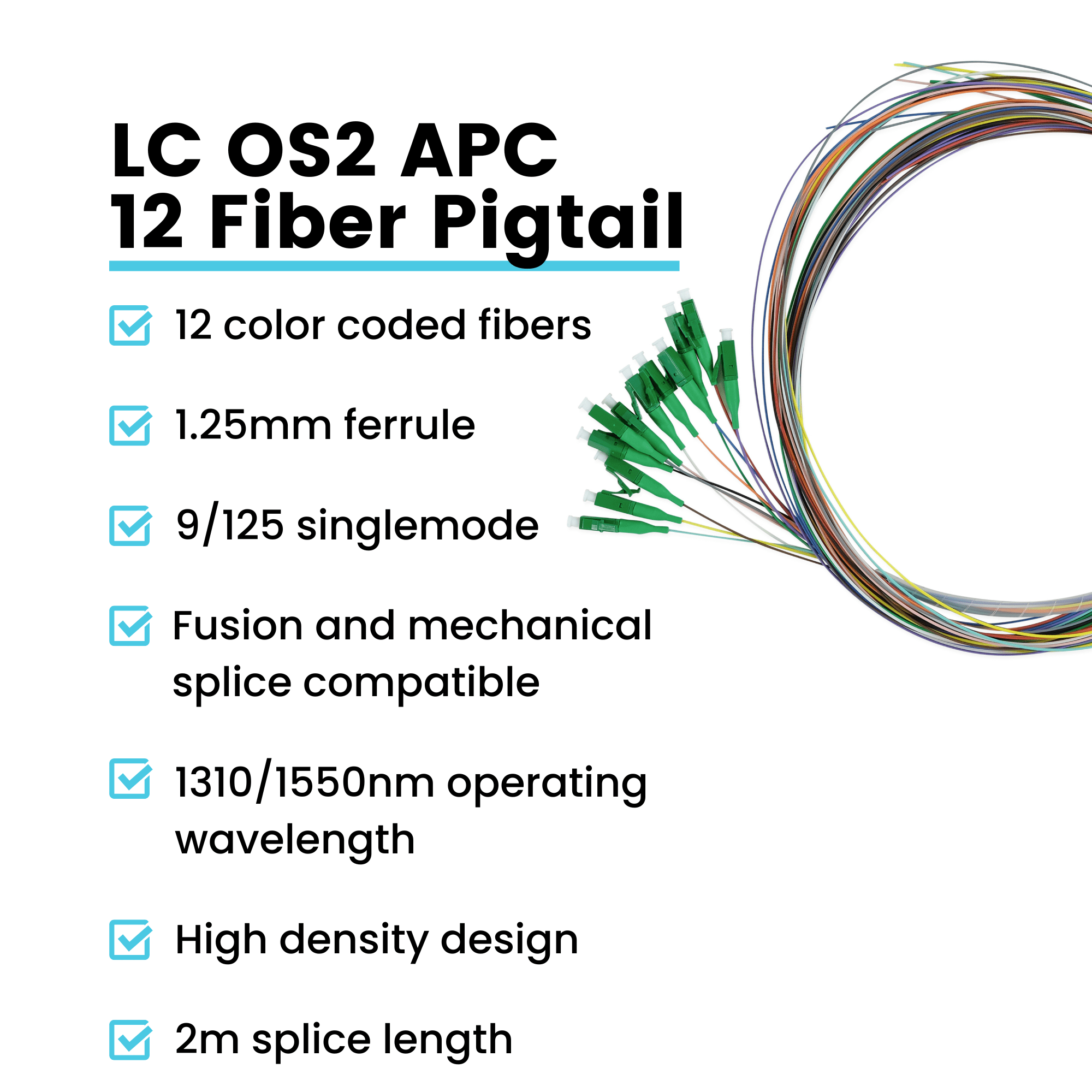

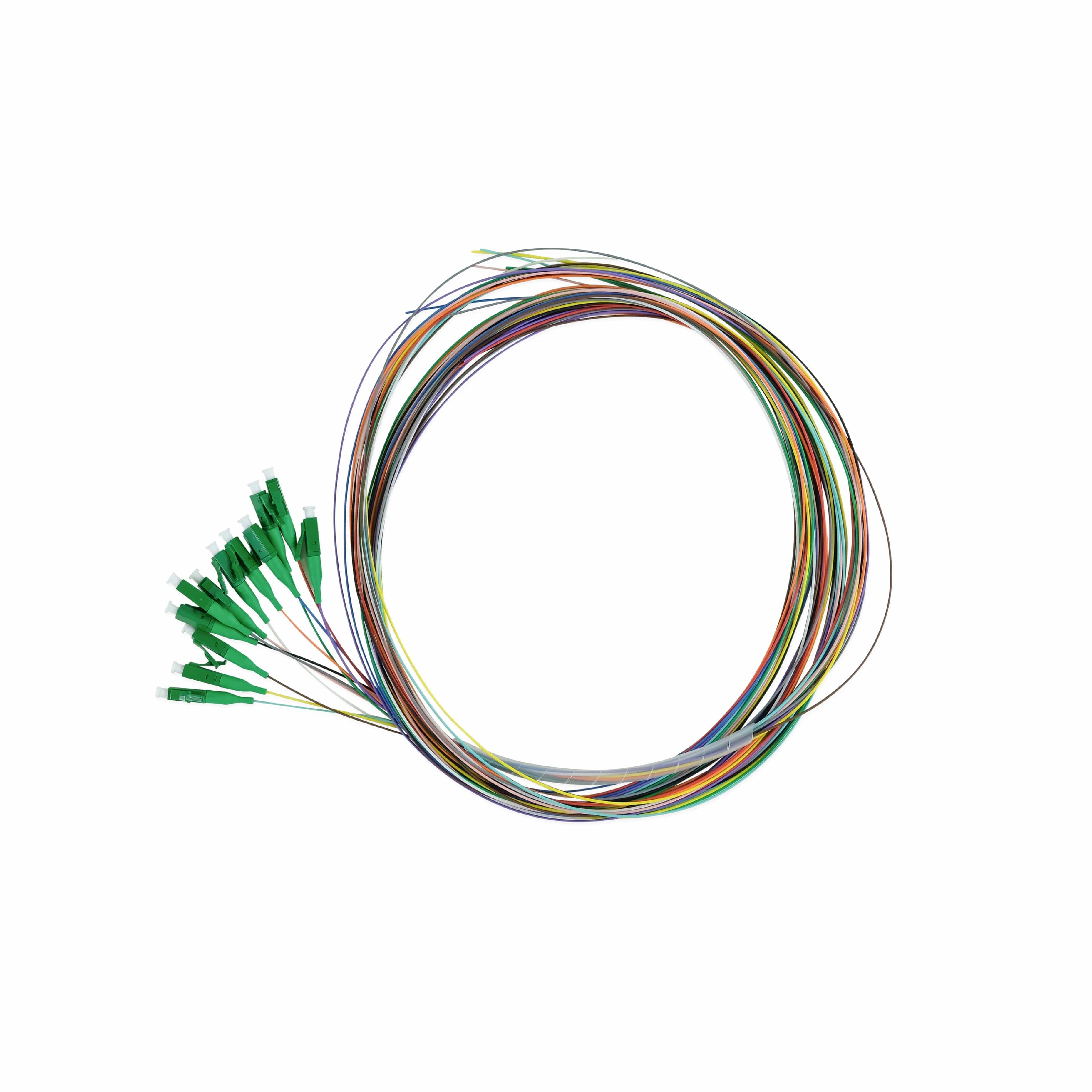

12 Fiber LC APC Pigtail OS2 | SM LSZH

Part Number - PT12LCASOS2_2m

Features

  • PVC LSZH Flame-retardant Fiber Optic Pigtail with 0.9mm Tight-buffered Coating on Each Optical Fiber
  • G.657.A1 Rated Singlemode Fiber Optic Cable
  • Optical Testing Guarantees Insertion Loss and Return Loss
  • Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
  • Corning® Ultra Fiber with 10mm Min. Bend Radius
  • UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant
  • 2 meters to ensure sufficient splice length

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $32.17 2.5%
25-49 $31.34 5%
50+ $30.52 7.5%
$32.99 32.99
-Liquid error (sections/product-template line 308): Computation results in '-Infinity'%
Style
Quantity
Qty:
Saves you 2.5/span>%
Add 9 more for 2.5% discount
Same-day free shipping on orders placed Mon-Fri by 3pm Central.

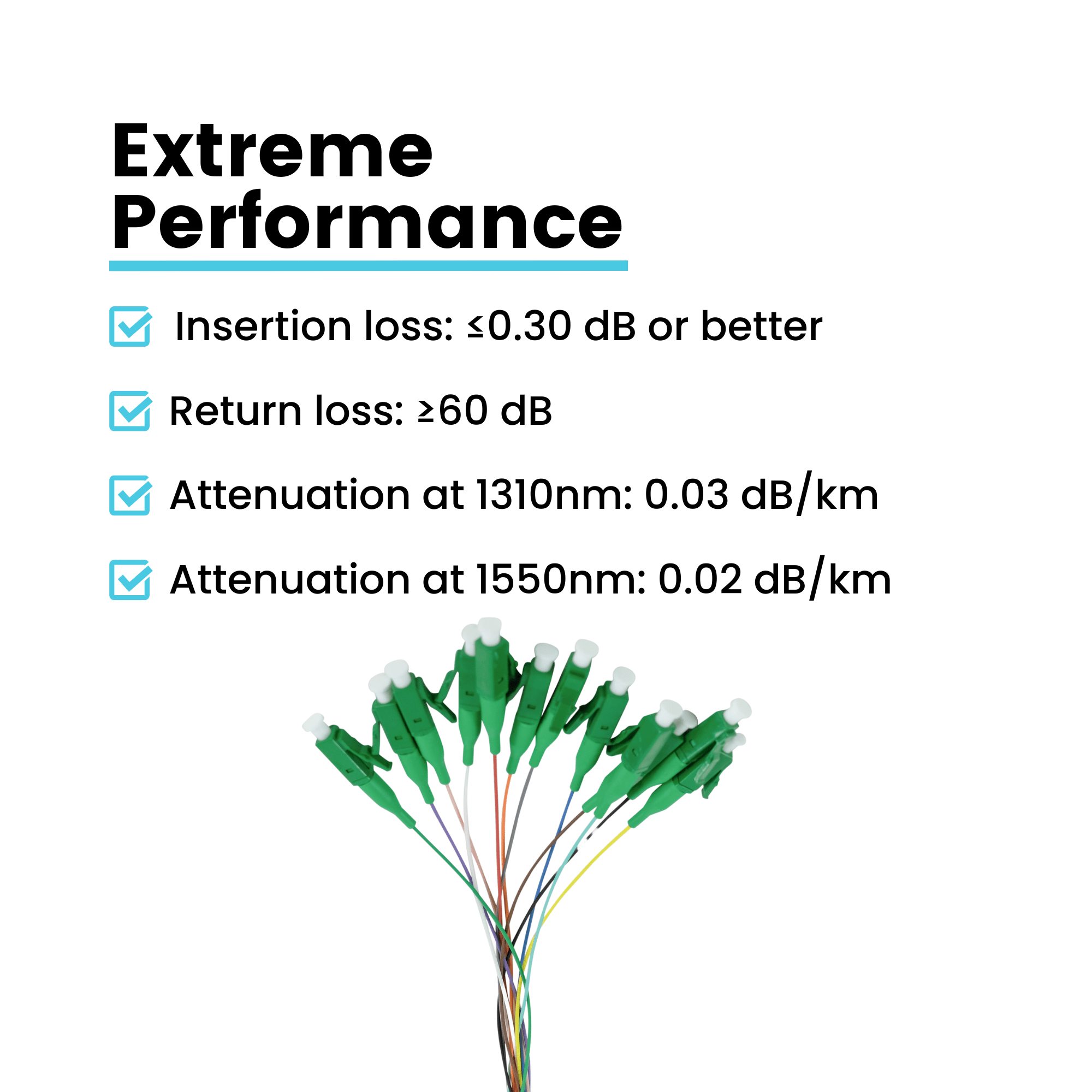

EXTREME PERFORMANCE
  • G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on one fiber optic connector end.

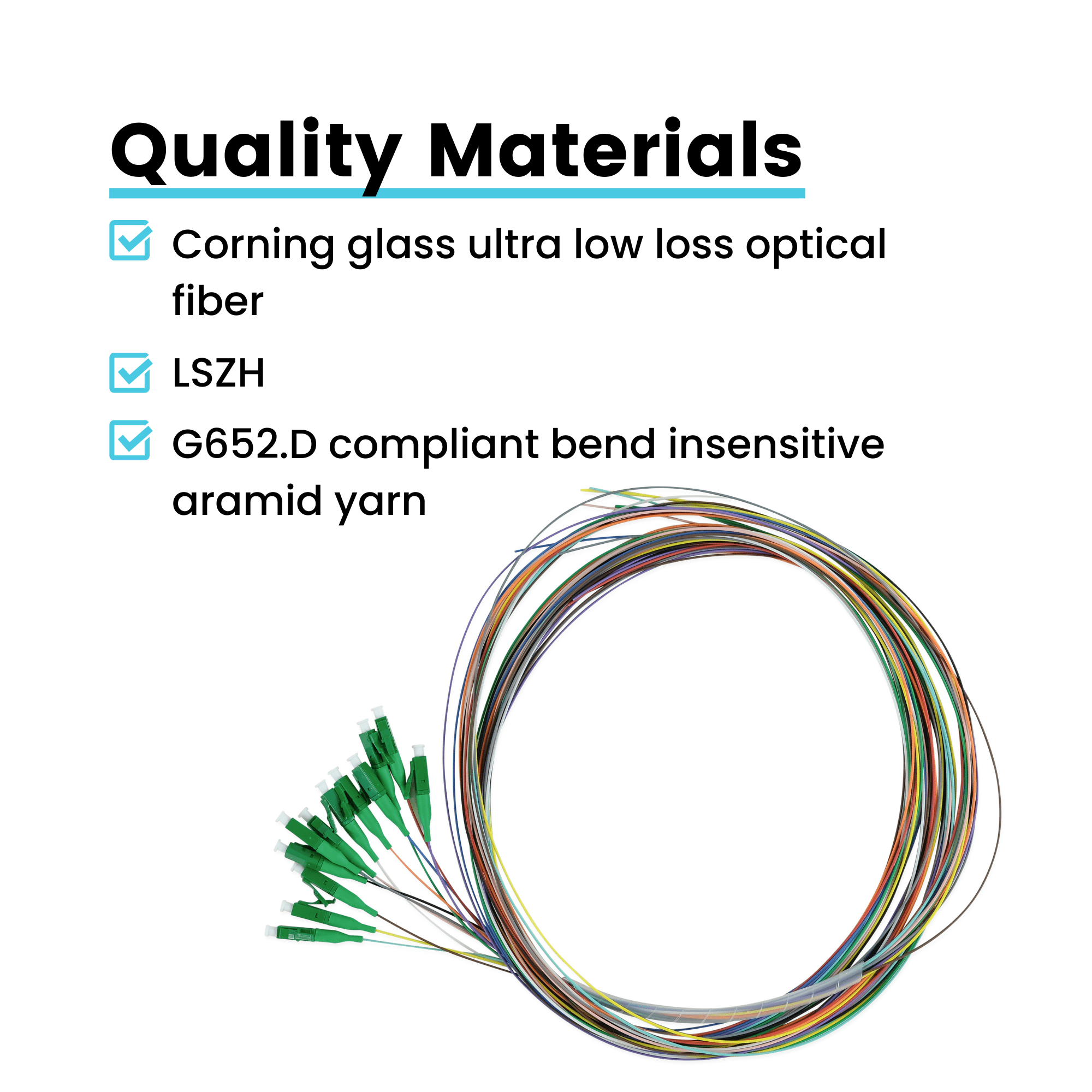

  • Corning® ultra low loss, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.
  • Mechanical and Fusion Splice ready
  • Low Loss 12 Fiber LC APC Pigtail

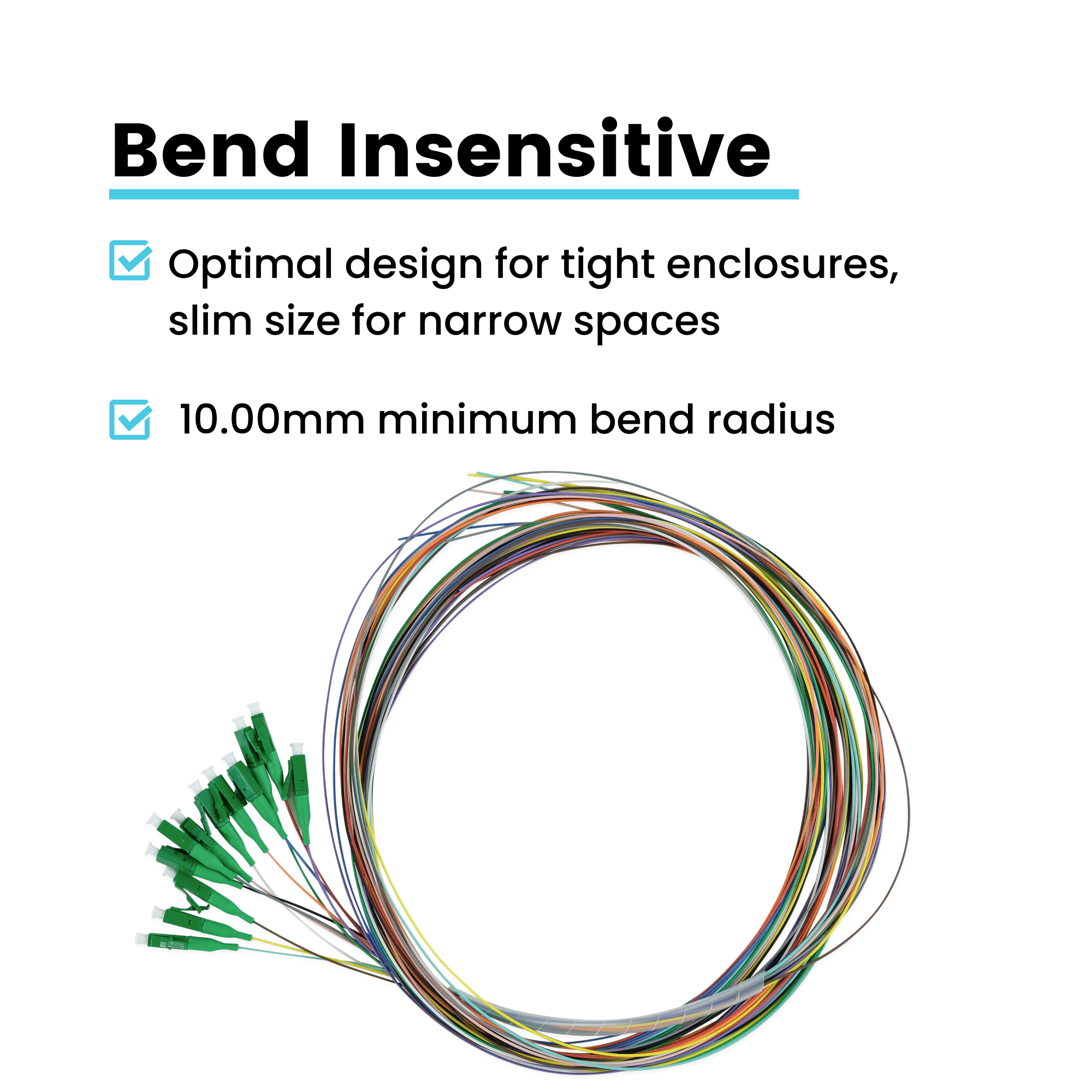

BEND INSENSITIVE

  • G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.
  • 12 Fiber LC TIA-598 Color-coded 0.9mm pigtails



HIGH QUALITY LC CERAMIC FERRULE

  • 1.25mm superior grade LC zirconia ceramic ferrule ensures precision alignment and very low optical loss with an 8 degree APC end-face.

FOR USE INDOORS

  • LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in interior spaces.

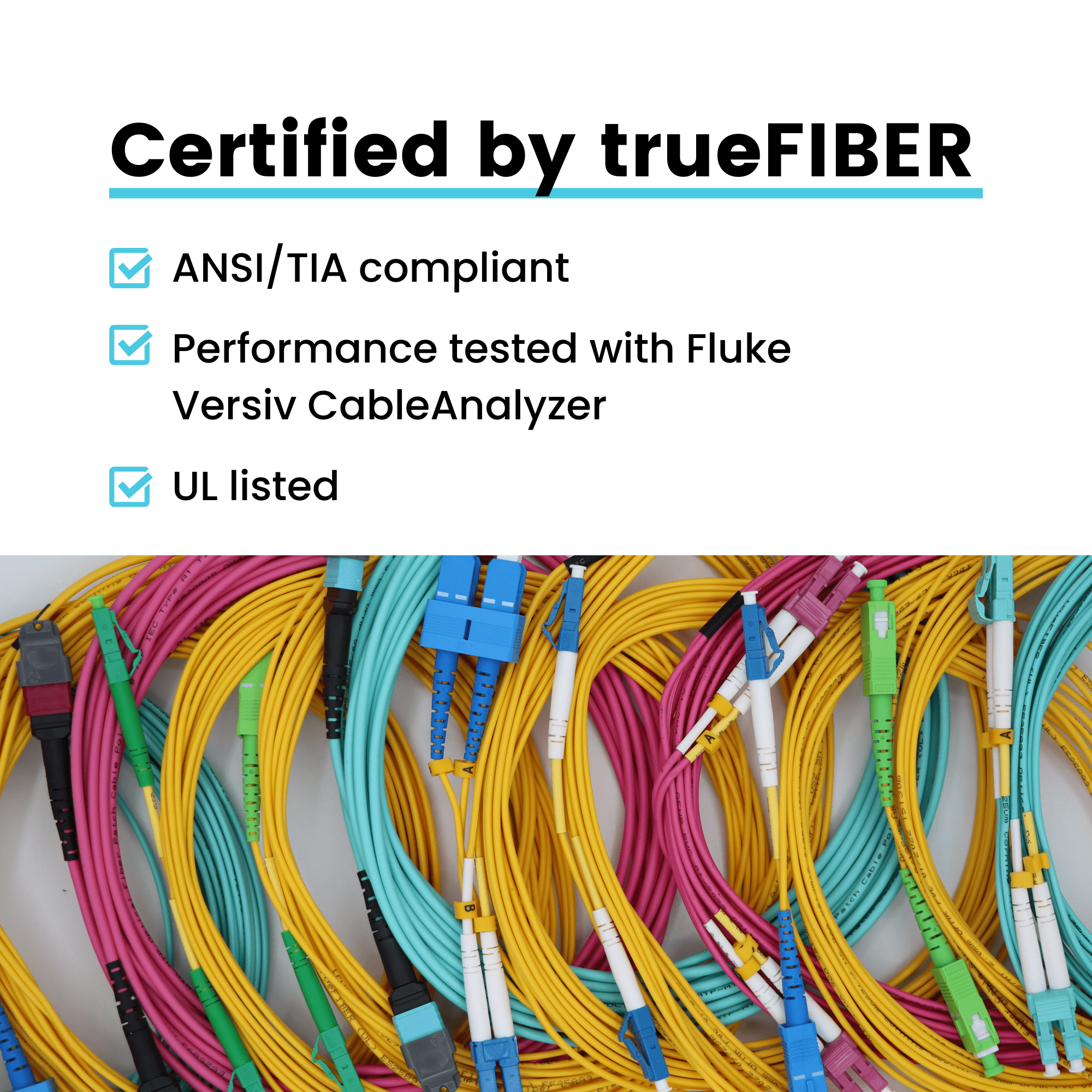

✓ CERTIFIED by trueCABLE
    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
Weight 0.1 lbs
Length 8.5 in
Width 7.34 in
Height 0.3 in
Barcode X003XAHFUD
EXTREME PERFORMANCE
  • G652.D compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on one fiber optic connector end.
  • Corning® ultra low loss, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.
  • Mechanical and Fusion Splice ready
  • Low Loss 12 Fiber LC APC Pigtail

BEND INSENSITIVE

  • G652.D compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.
  • 12 Fiber LC TIA-598 Color-coded 0.9mm pigtails



HIGH QUALITY LC CERAMIC FERRULE

  • 1.25mm superior grade LC zirconia ceramic ferrule ensures precision alignment and very low optical loss with an 8 degree APC end-face.

FOR USE INDOORS

  • LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in interior spaces.
✓ CERTIFIED by trueCABLE
    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
  • Weight - 0.1 lbs
  • Length - 8.5 in
  • Width - 7.34 in
  • Height - 0.3 in
  • Barcode - X003XAHFUD
