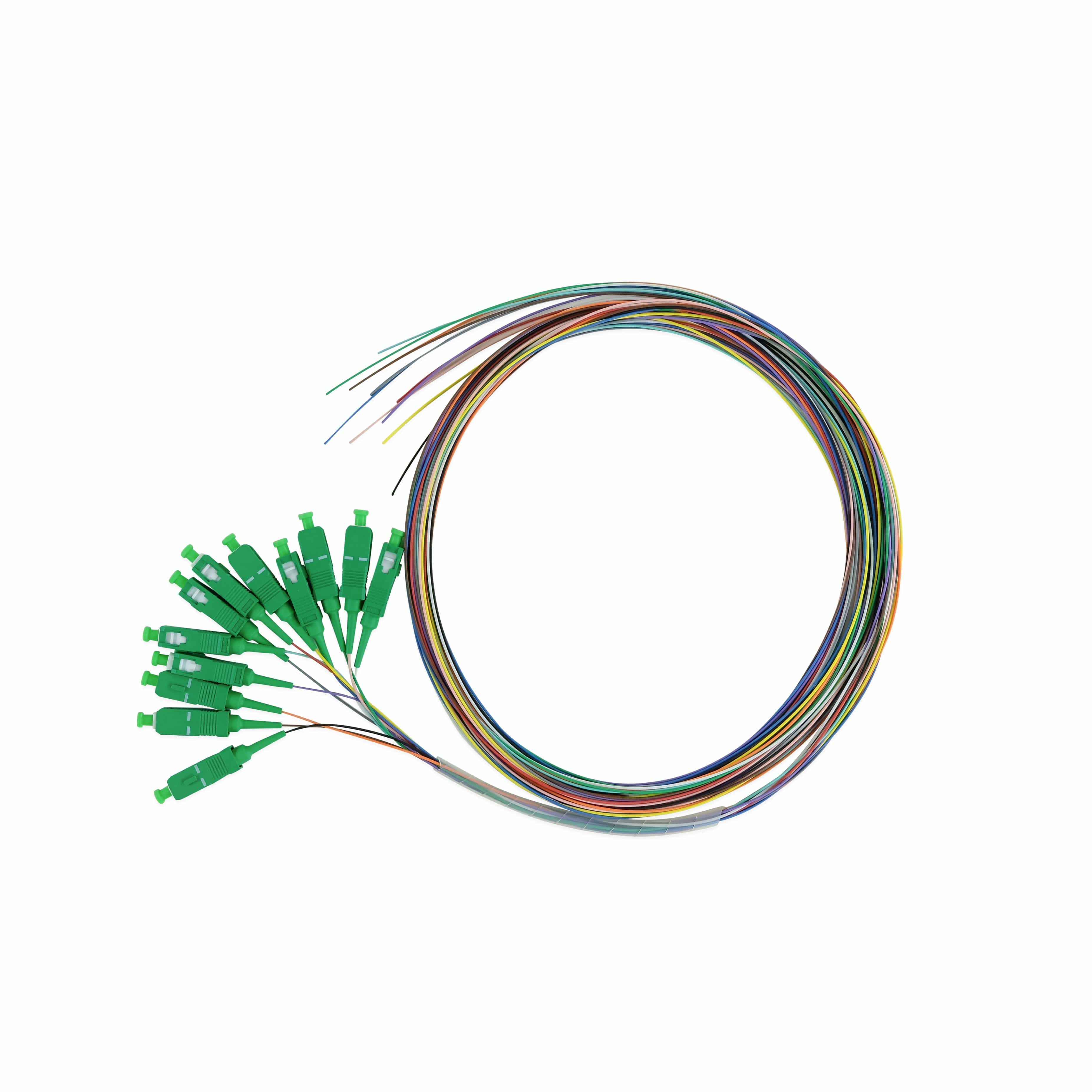

12 Fiber SC APC Pigtail OS2 | SM LSZH
1/8
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH
  • 12 Fiber SC APC Pigtail OS2 | SM LSZH

Description

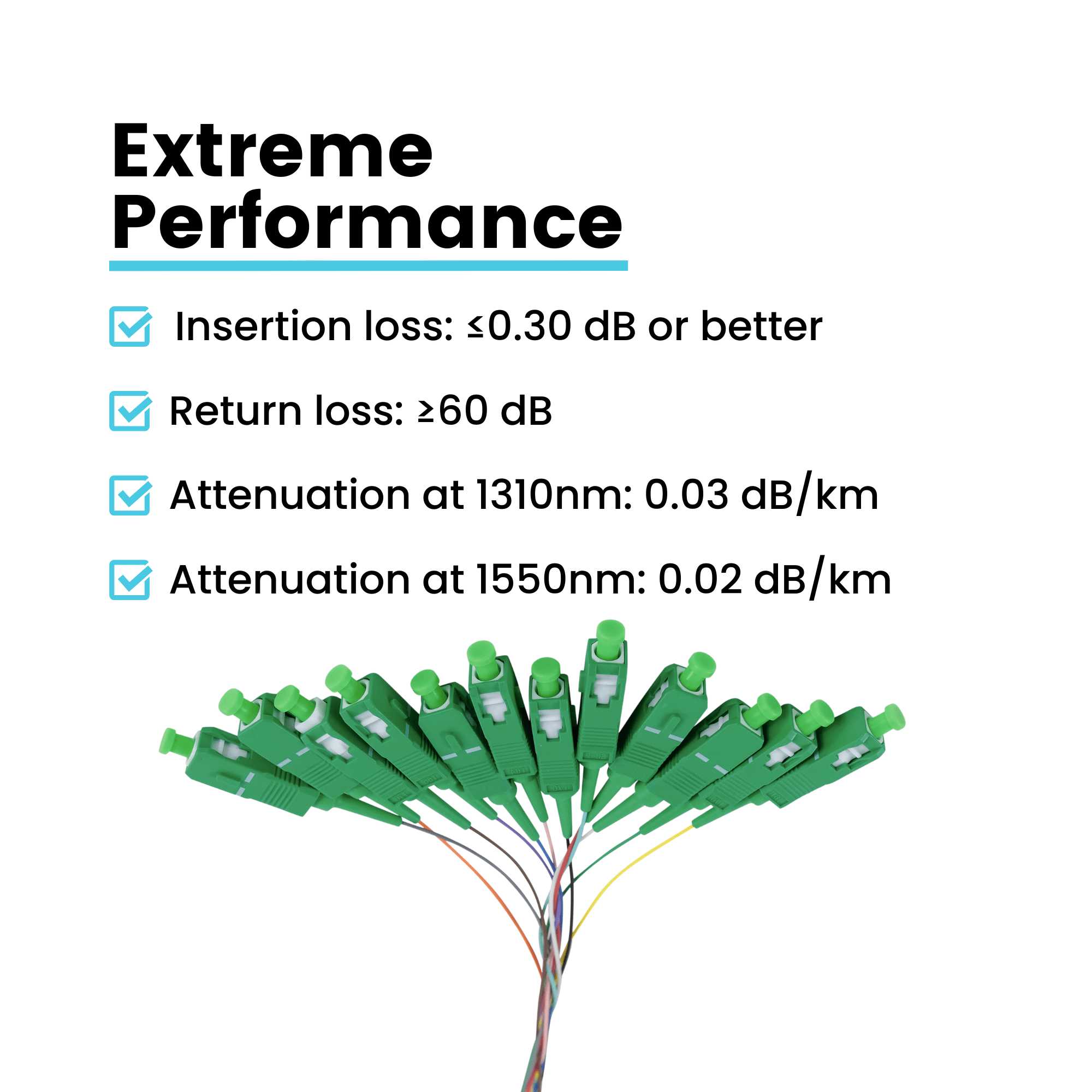

Extreme Performance

  • G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on one fiber optic connector end.

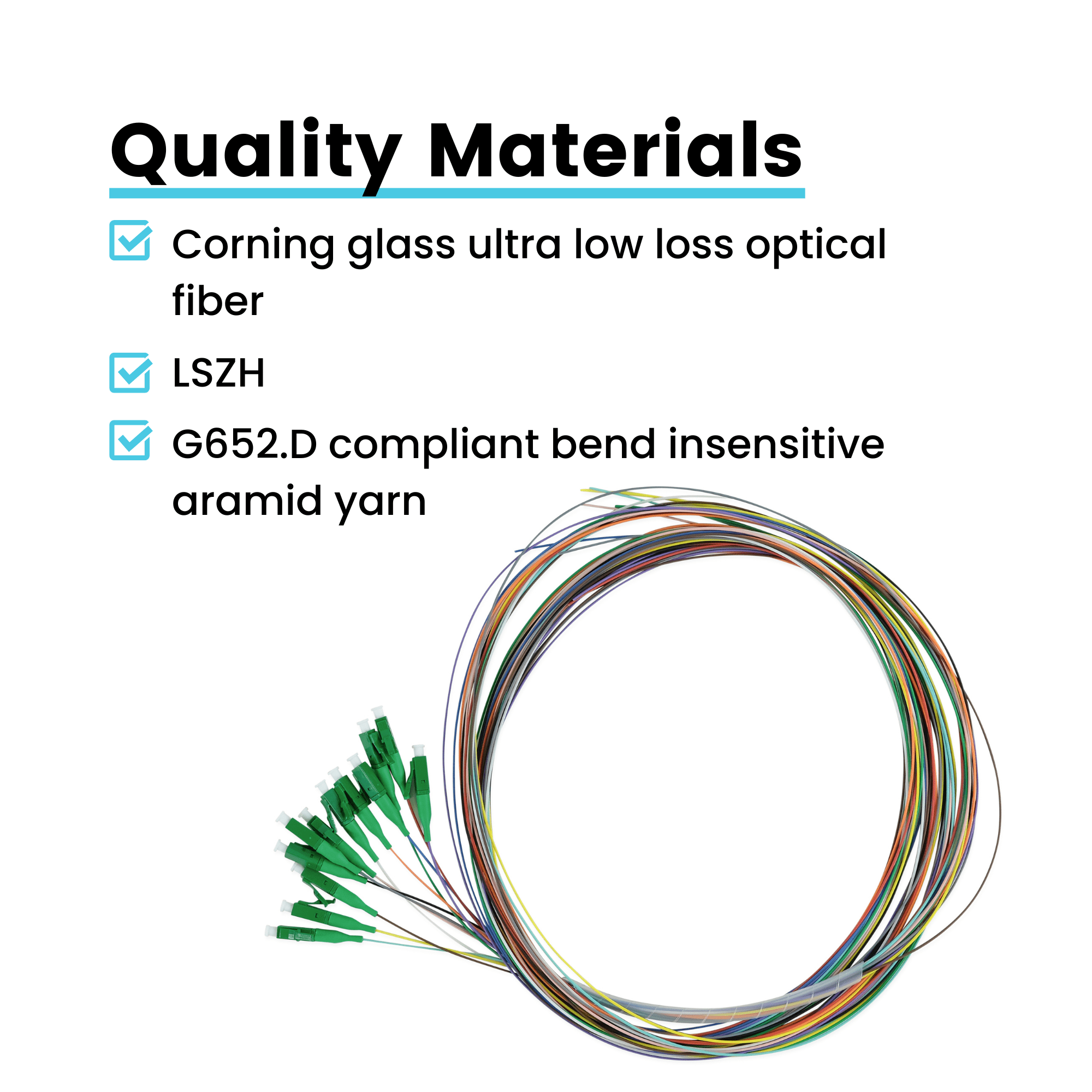

  • Corning® ultra low loss, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.
  • Mechanical and Fusion Splice ready
  • Low Loss 12 Fiber SC APC Pigtail

Bend Insensitive

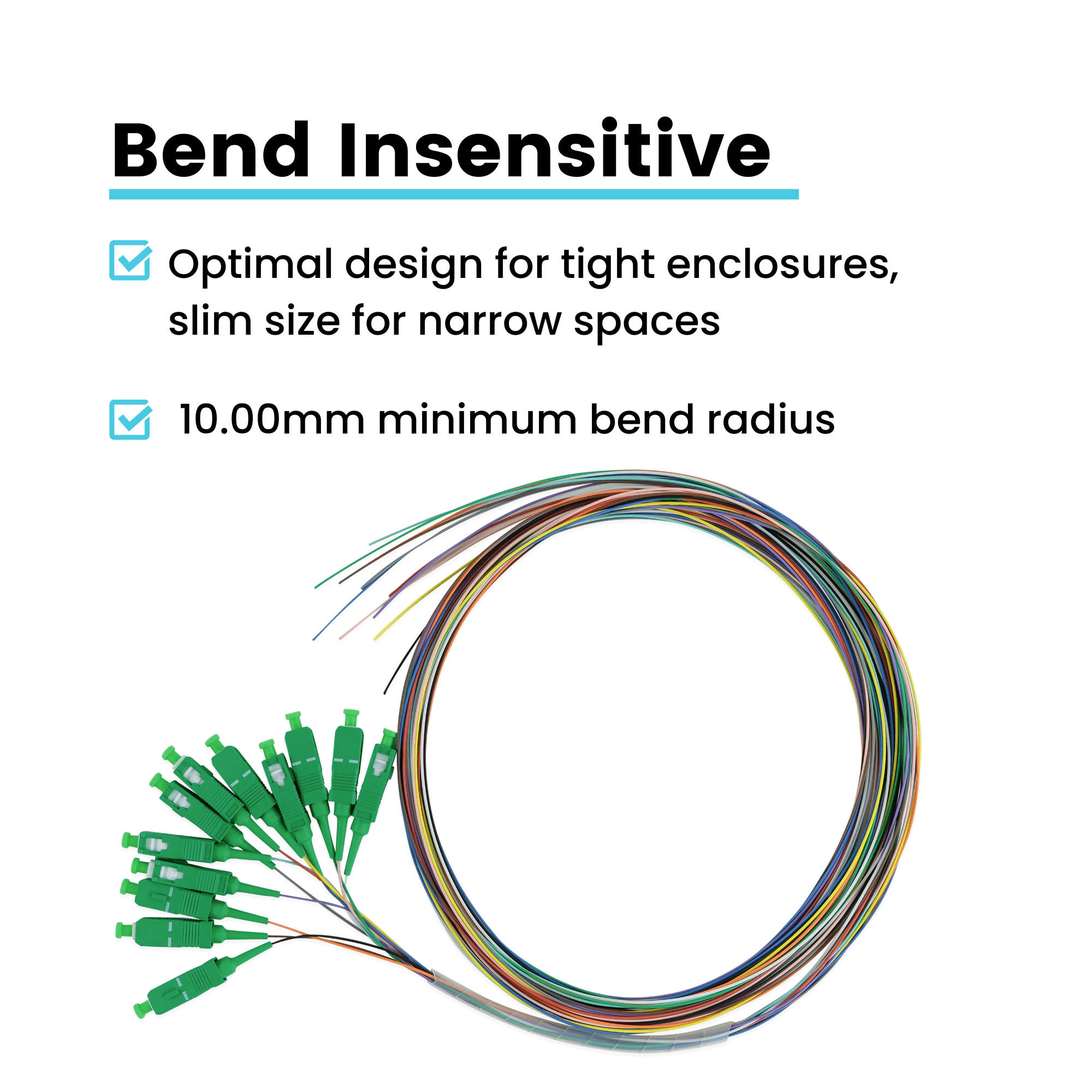

  • G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.

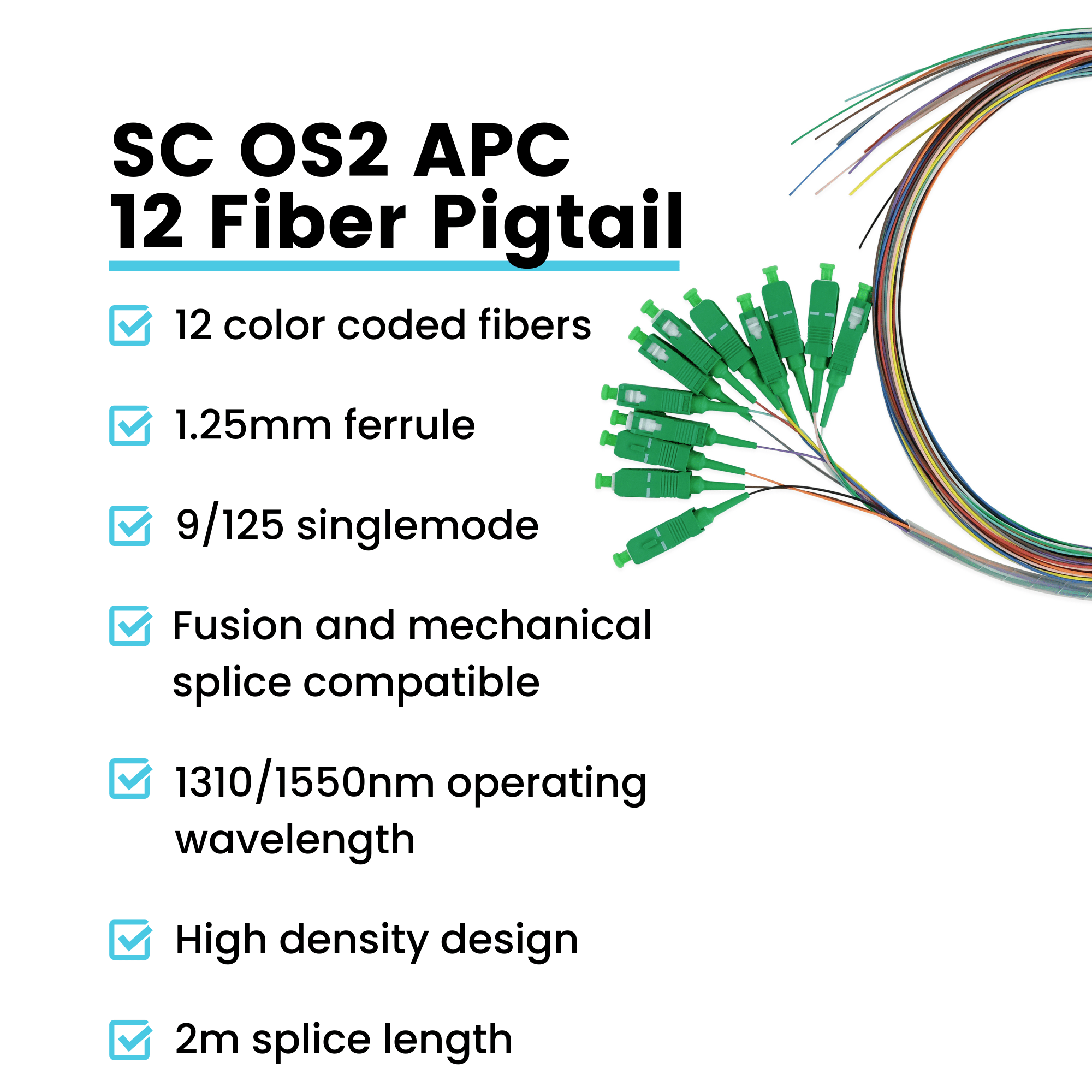

  • 12 Fiber SC TIA-598 Color-coded 0.9mm pigtails



High Quality SC Ceramic Ferrule

  • 2.50mm superior grade SC zirconia ceramic ferrule ensures precision alignment and very low optical loss with an 8 degree APC end-face.

For Use Indoors

  • LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in interior spaces.

✓ Field Tested, Customer Approved

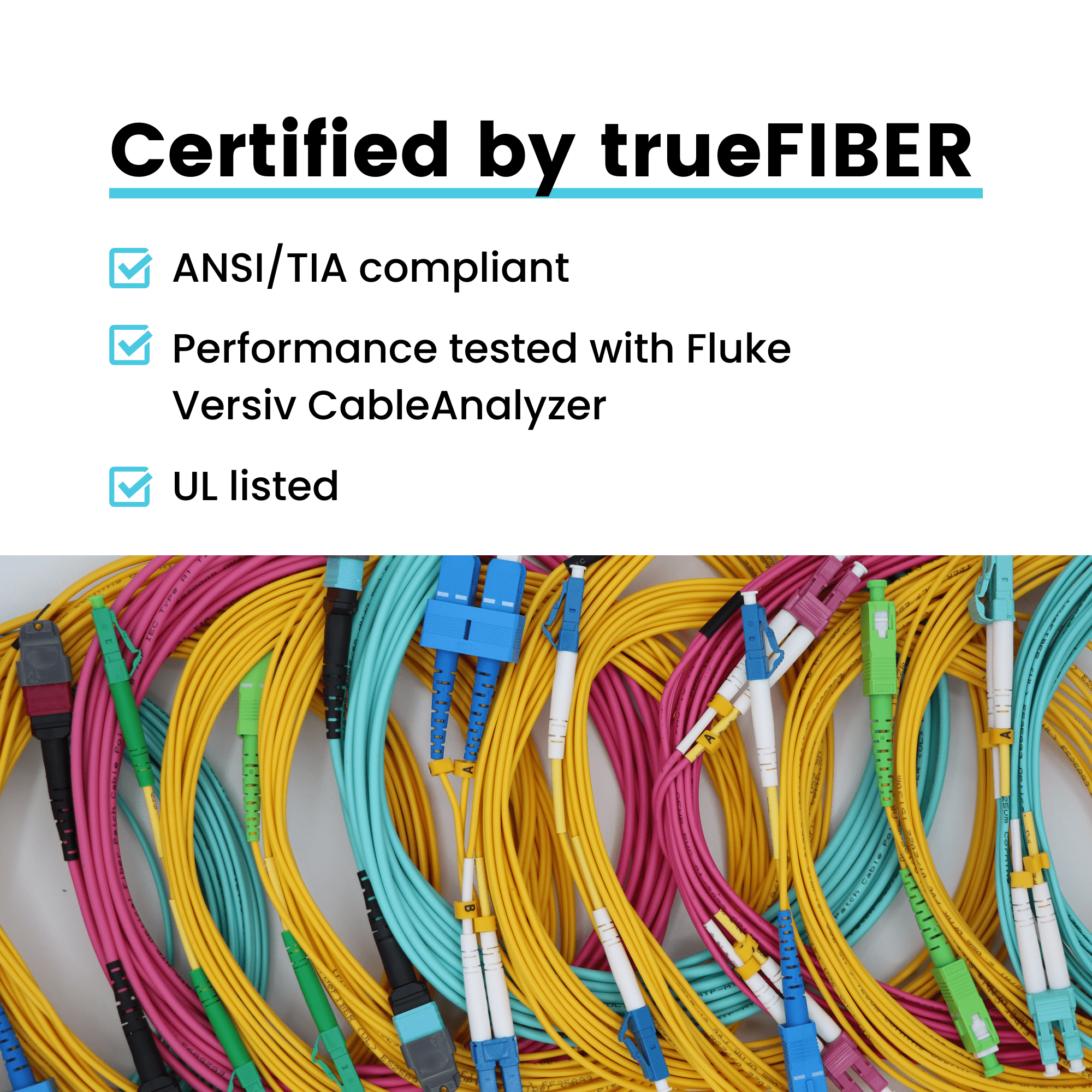

    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Item Details

Weight 0.17 lb
Length 8.0 in
Width 9.0 in
Height 0.5 in

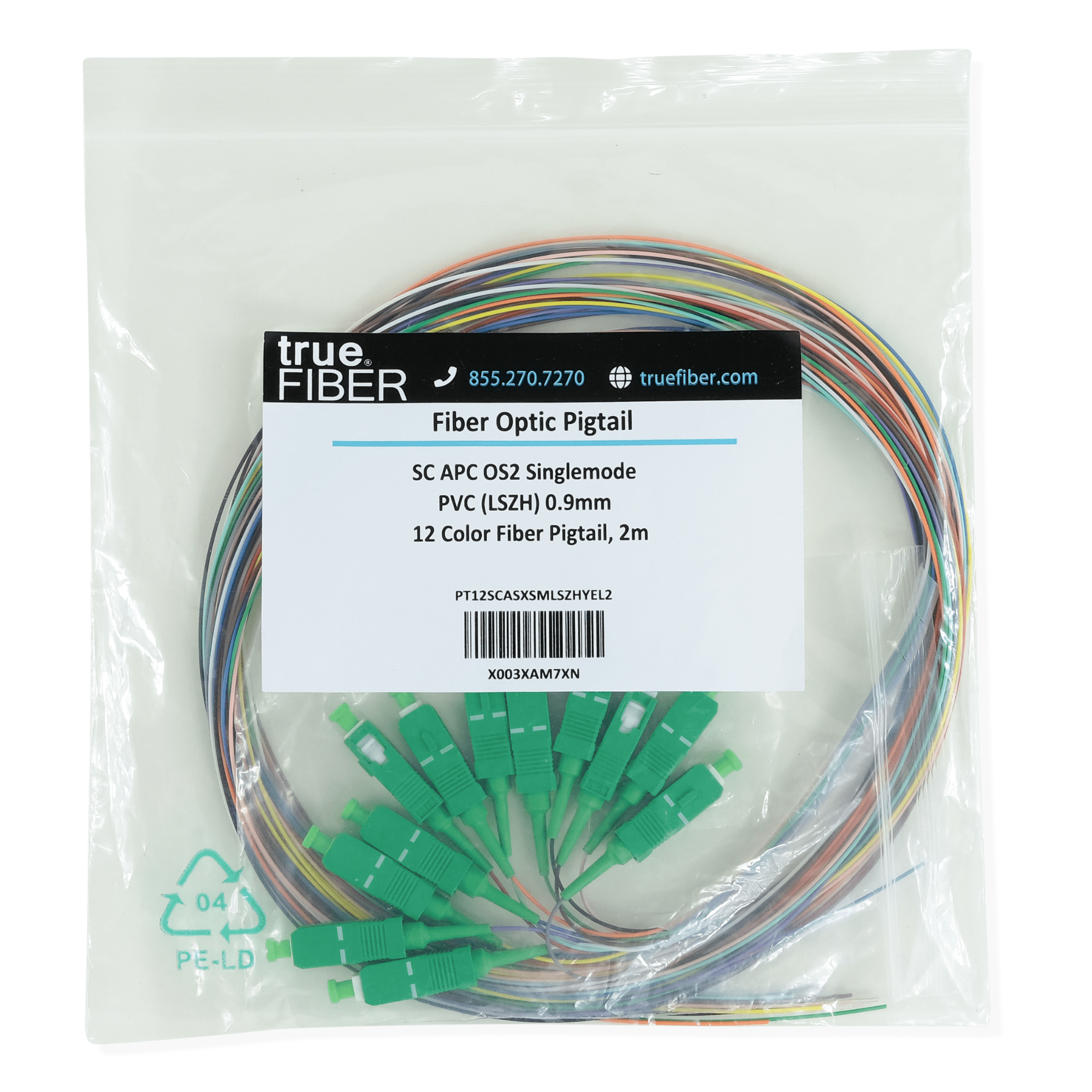

Barcode X003XAM7XN

Specs & User Guides

Download Spec Sheet

12 Fiber SC APC Pigtail OS2 | SM LSZH

Part Number - PT12SCASOS2_2m
$19.99
  • PVC LSZH Flame-retardant Fiber Optic Pigtail with 0.9mm Tight-buffered Coating on Each Optical Fiber
  • G.657.A1 Rated Singlemode Fiber Optic Cable
  • Optical Testing Guarantees Insertion Loss and Return Loss
  • Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
  • Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
  • Corning® Ultra Fiber with 10mm Min. Bend Radius
  • UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant
  • 2 meters to ensure sufficient splice length
Style:

Add 9 more for 2.5% discount

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $19.49 2.5%
25-49 $18.99 5%
50+ $18.49 7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Estimate Your Delivery Date

Description

Extreme Performance

  • G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
  • APC or "Angled Physical Contact" polish on one fiber optic connector end.
  • Corning® ultra low loss, ultra optical fiber core and cladding.
  • Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
  • Quality Tested with a Fluke Versiv™ CableAnalyzer.
  • Mechanical and Fusion Splice ready
  • Low Loss 12 Fiber SC APC Pigtail

Bend Insensitive

  • G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
  • 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.
  • 12 Fiber SC TIA-598 Color-coded 0.9mm pigtails



High Quality SC Ceramic Ferrule

  • 2.50mm superior grade SC zirconia ceramic ferrule ensures precision alignment and very low optical loss with an 8 degree APC end-face.

For Use Indoors

  • LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in interior spaces.

✓ Field Tested, Customer Approved

    • Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Specifications

Weight 0.17 lb
Length 8.0 in
Width 9.0 in
Height 0.5 in
Barcode X003XAM7XN

Downloads

Download Spec Sheet

Frequently Asked Questions

What type of fiber optic cable is this pigtail made from?
This 12 Fiber SC/APC Pigtail is made using OS2 singlemode (SM) fibers with a G.657.A1 rating. The glass core and cladding used in construction is Corning.
Is this pigtail suitable for both fusion and mechanical splicing?
Yes, this 12 Fiber SC/APC Pigtail supports both fusion and mechanical splicing.
What certifications does this product meet?
This product is UL Listed, IEC Certified, and ANSI/TIA 568.3-E Compliant meeting all IEC-61754 and TIA-604 (FOCIS) Performance Requirements. Further, our single mode fiber pig tails have been end face Certified to IEC 61300-3-35 ED.2 SM.
Can you confirm the minimum bend radius for this fiber optic cable?
Yes, the Corning Ultra Fiber used in this pigtail has a minimum bend radius of 10mm.
What kind of performance guarantees come with this product?
All trueCABLE products carry a FOREVER WARRANTY against defects in materials and workmanship.
Is this pigtail suitable for outdoor use?
No, this product is designed for indoor use only UNLESS it is used in an outdoor weather proof enclosure.
Does this product meet UL listing requirements?
Yes, this product is UL Listed.
What kind of termination methods can be used with this pigtail?
Pigtails such as this one may be fusion or mechanically spliced to your bulk structure fiber optical cable drops.
