Description
Extreme Performance

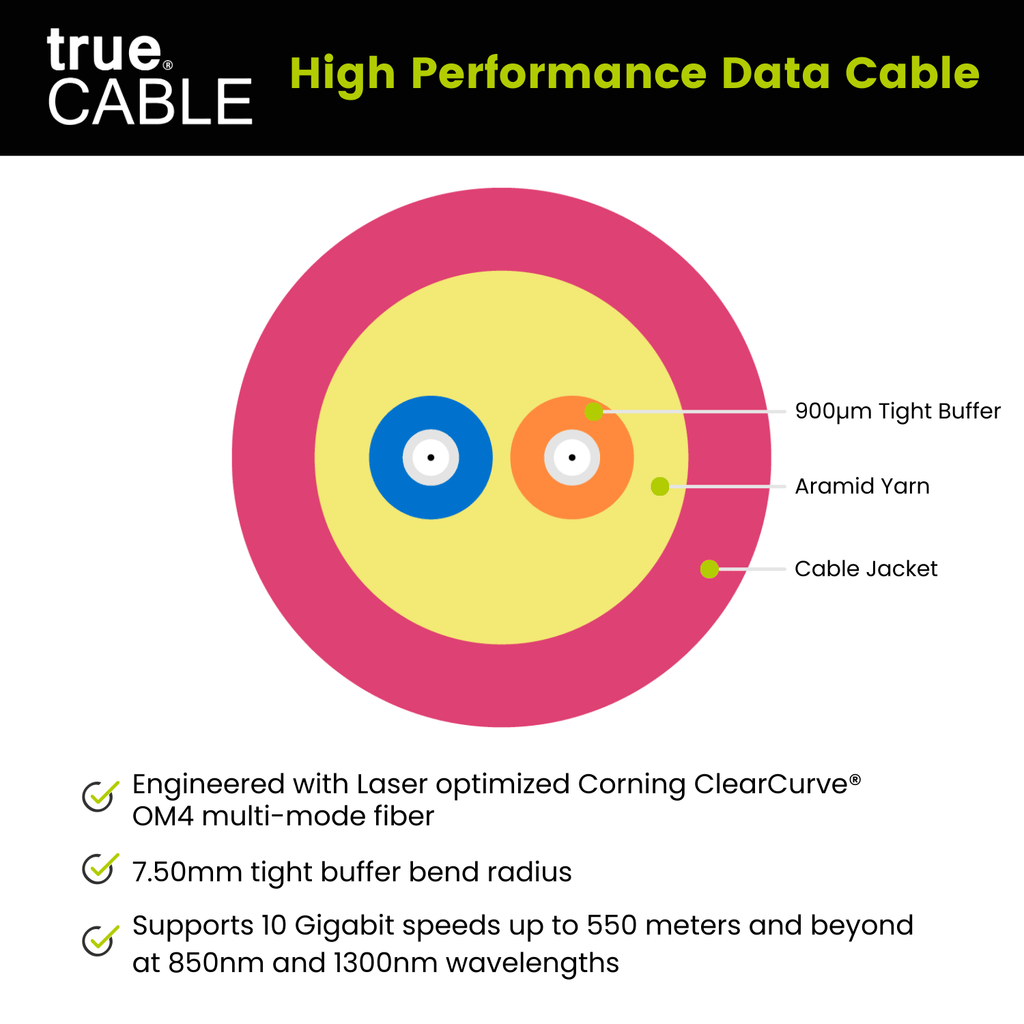

Engineered with Laser optimized Corning ClearCurve® OM4 multi-mode fiber, this cable supports 10 Gigabit speeds up to 550 meters and beyond at 850nm and 1300nm wavelengths. Optimized for ultra-low signal loss, your optical loss budget will be easier to preserve while delivering rapid, stable, and high-capacity networking for critical data applications.
Quality Guaranteed

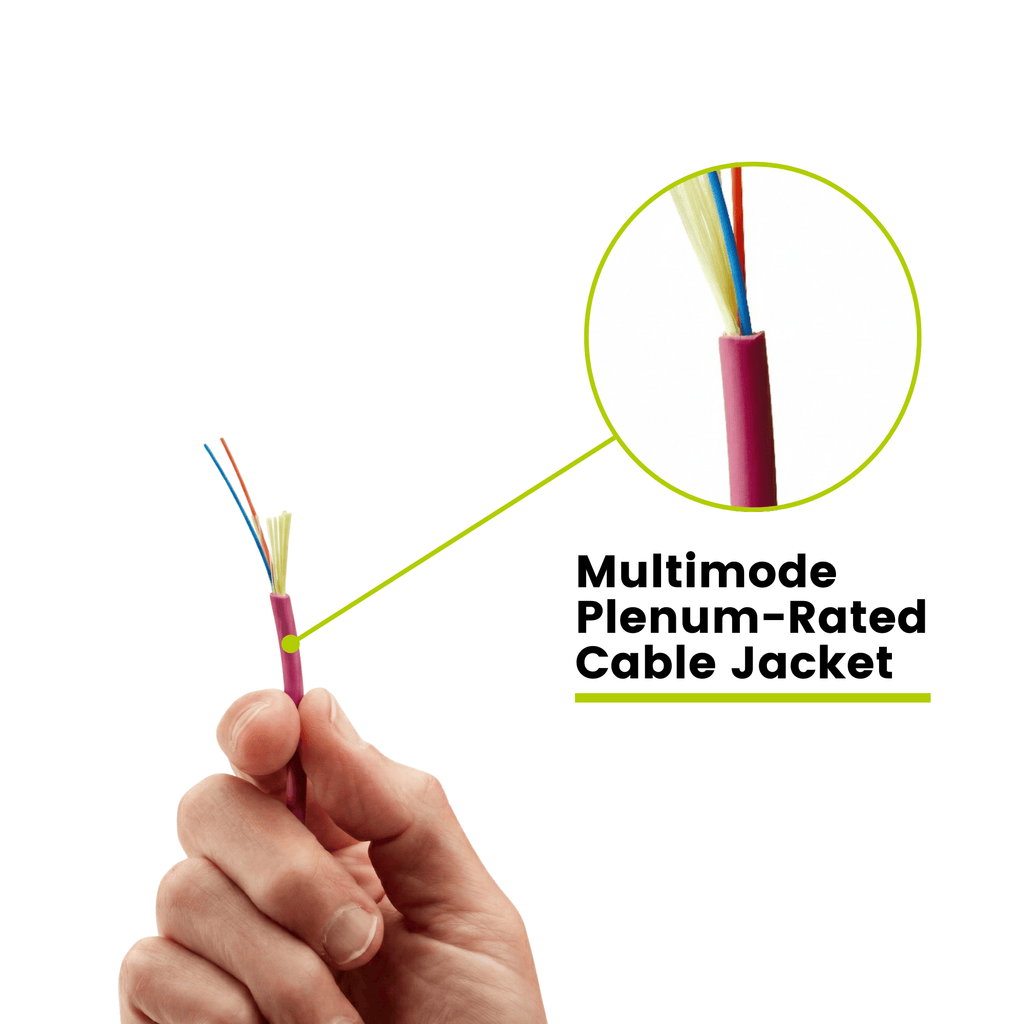

Built to withstand abrasion, impact, and frequent handling, the tough Plenum-rated distribution jacket and aramid yarn reinforcement (brand name Kevlar®) help avoid costly damage, even in the most challenging installations.
Versatile
Bend-insensitive tight buffer construction preserves optical integrity when navigating sharp corners, and a minimum bend radius of just 7.50mm allows for seamless routing through tight spaces. Combined, these features bring next-level versatility and convenience when wiring racks, high-density patch panels, and enclosures.
Easy To Use
Keep your job running smoothly! Nobody wants to fight with a box of cable during an installation. Our distribution cable is supplied in 1000 ft no-snag, easy-pull boxes, with the outer jacket clearly marked every meter for fast measuring and clean pulls.
✓ Field Tested, Customer Approved
Performance tested and compliant with ANSI/TIA 568.3-E, IEC-61754-7, and TIA-604-5 (FOCIS-5). UL Listed. RoHS Compliant. Eco-friendly materials meet strict environmental standards. Field-tested by professionals. Trusted by fiber optic installers for reliable performance. Backed by our FOREVER WARRANTY.
Specifications
| Weight | 15.4 lbs |
| Length | 14 in |
| Width | 10.8 in |
| Height | 13.25 in |
