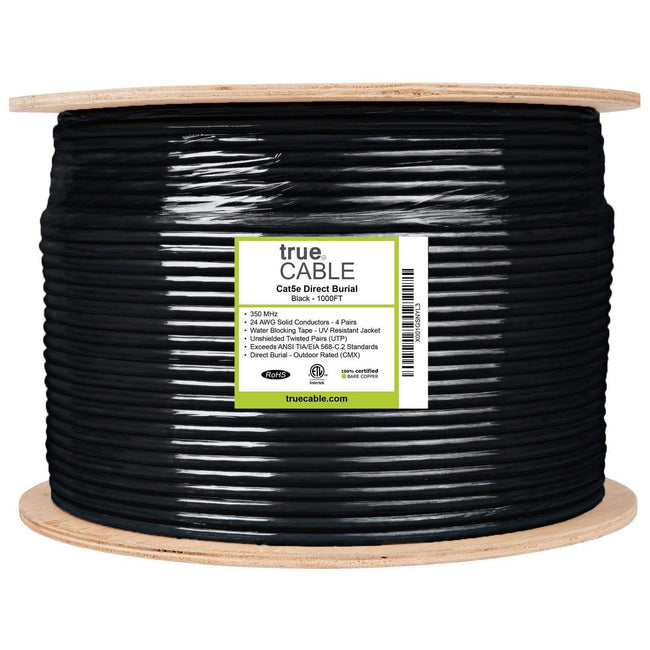

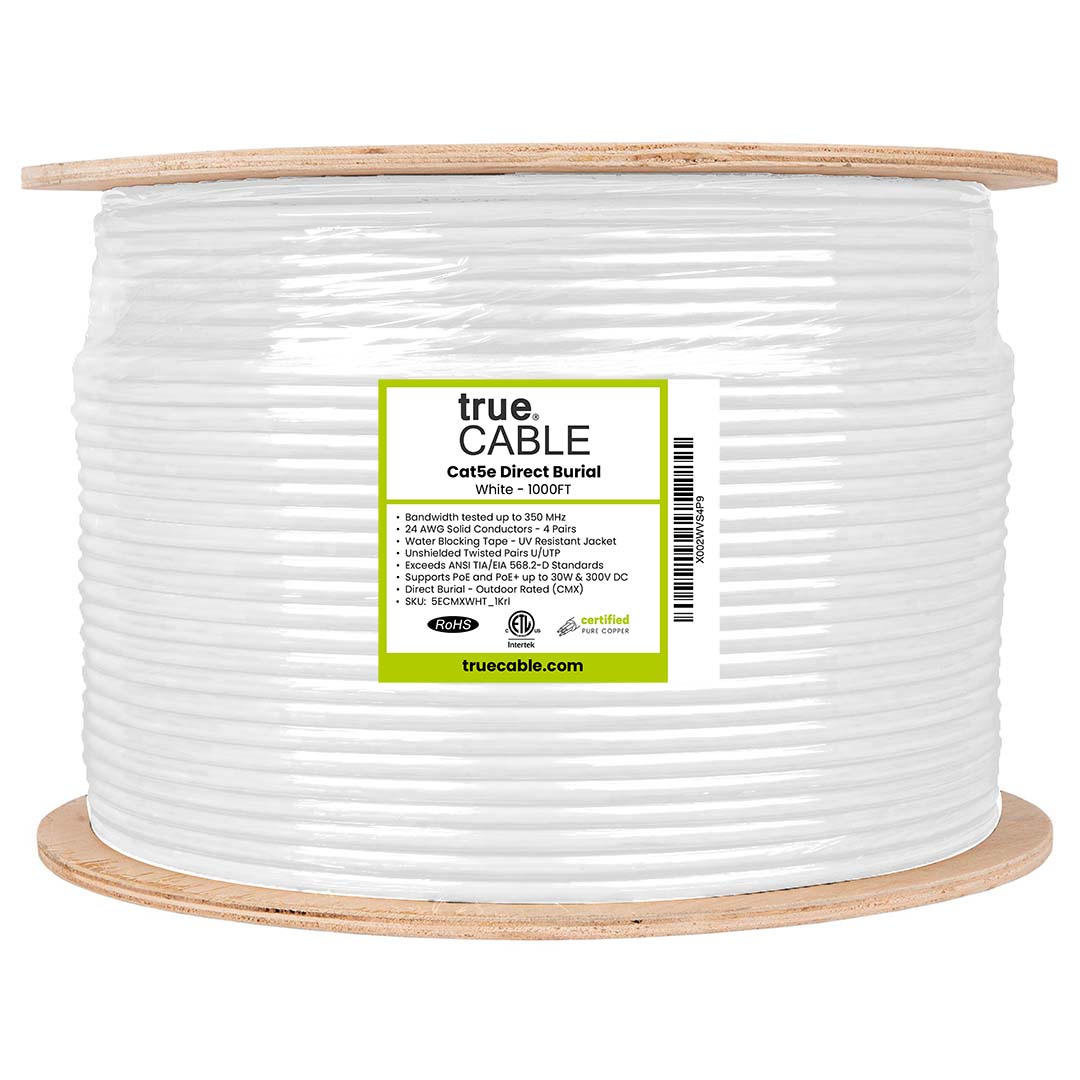

Cat5e Direct Burial Ethernet Cable｜Unshielded

1/4

Description

Outdoor Rated Ethernet Cable

The OSP jacket is designed to withstand sunlight, dirt, snow, and moisture.
Suitable for direct burial with or without conduit.
Water blocking tape provides ultimate moisture protection for outdoor use.

Everyday Performance

Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
Bandwidth tested up to 350 MHz
Unshielded twisted pairs - U/UTP
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

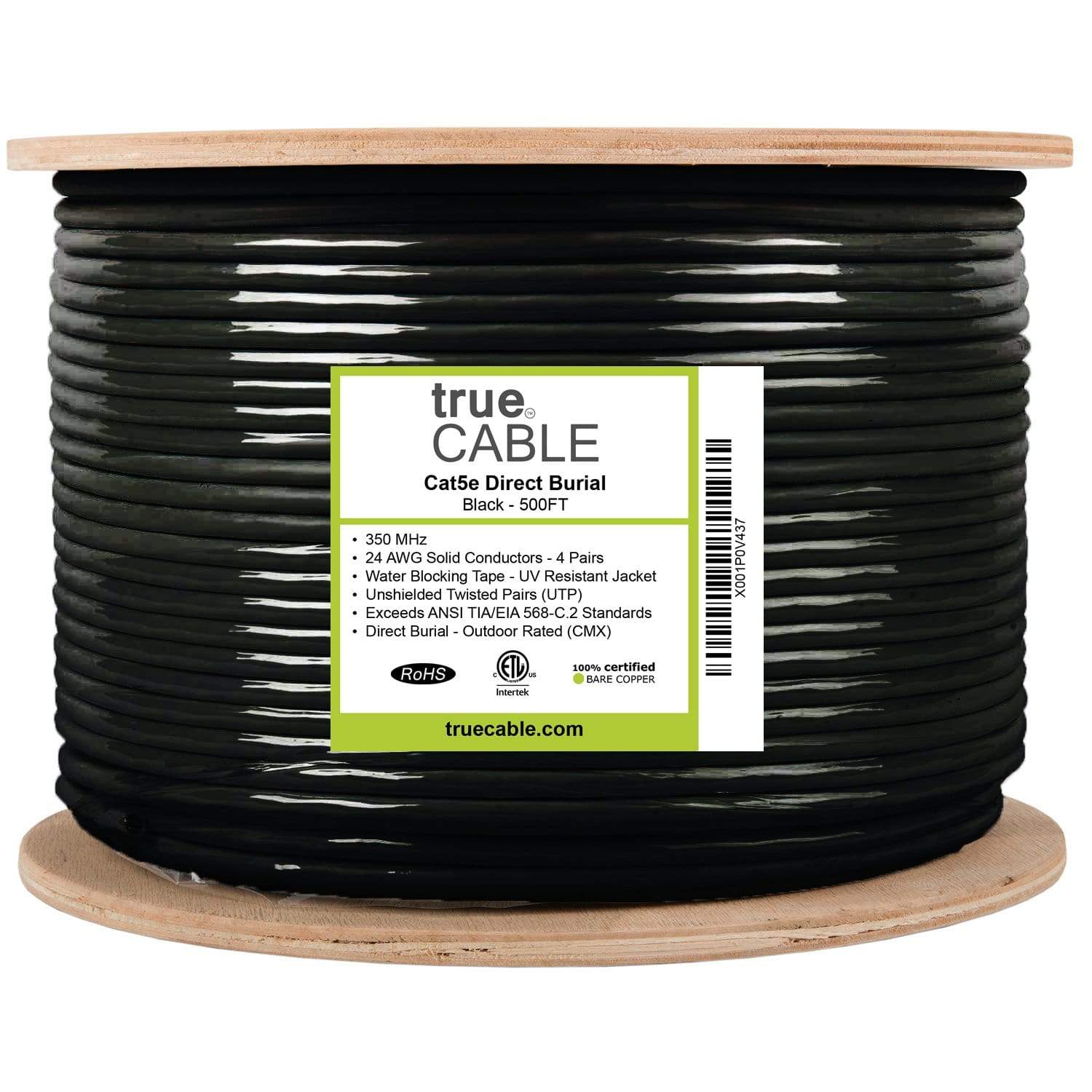

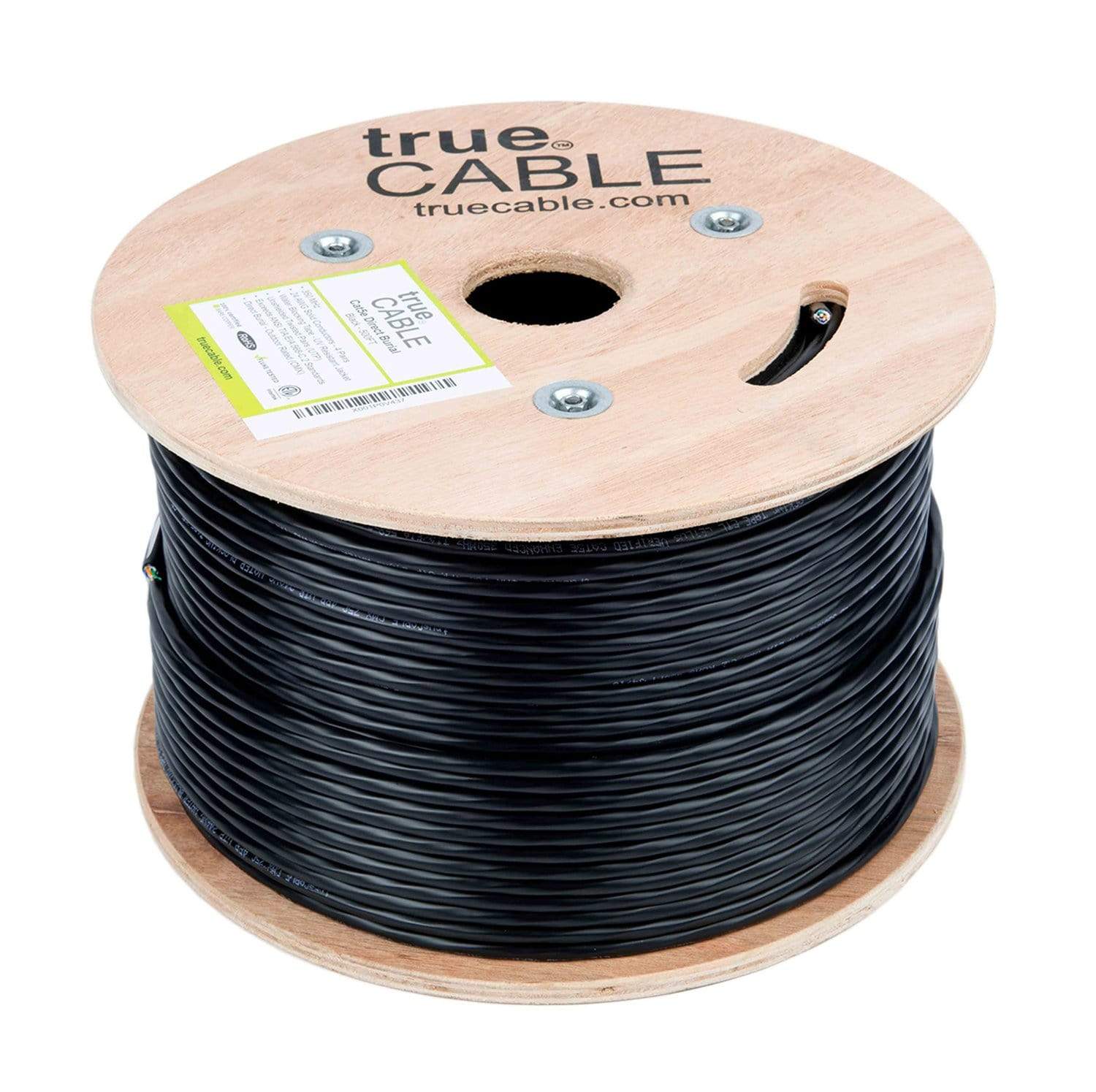

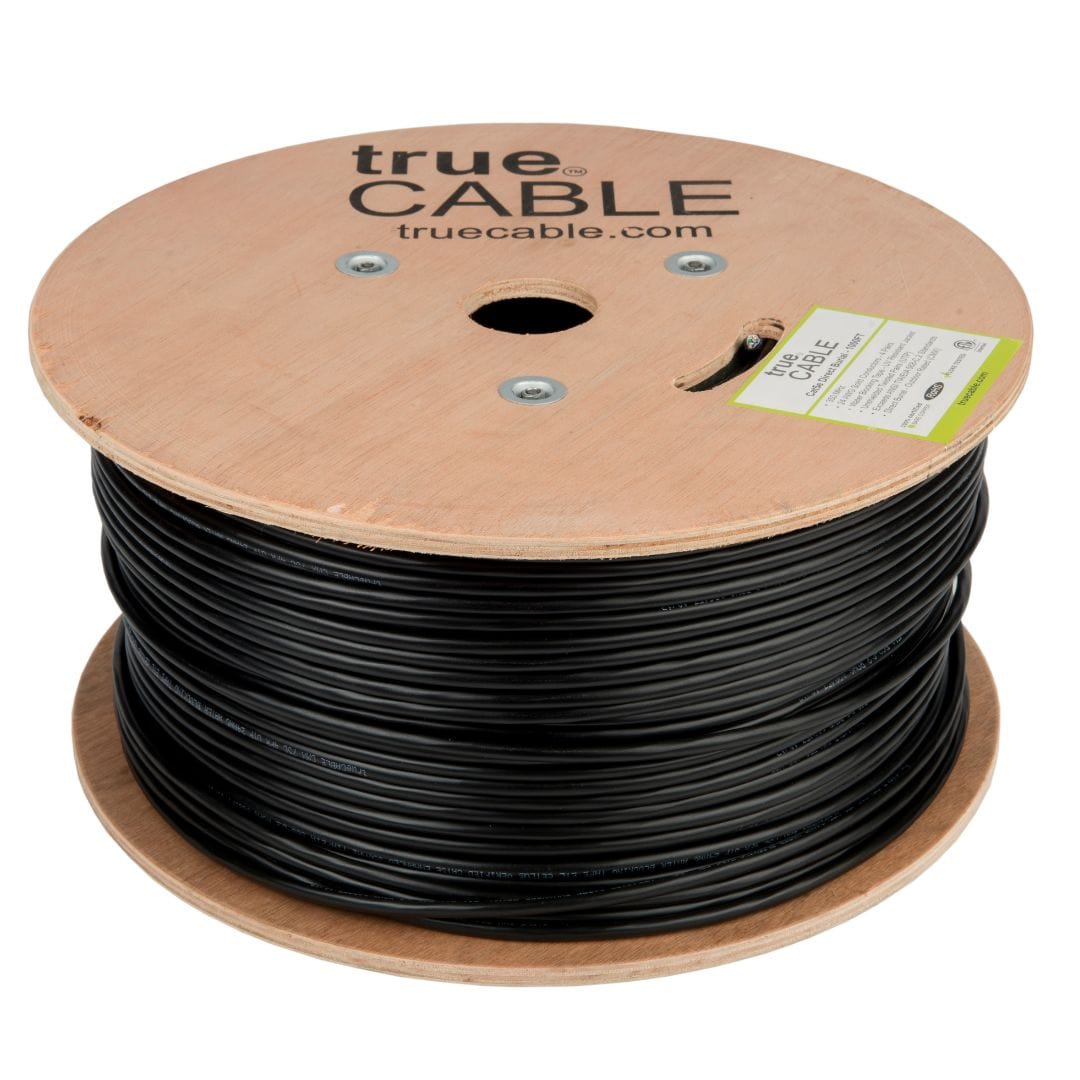

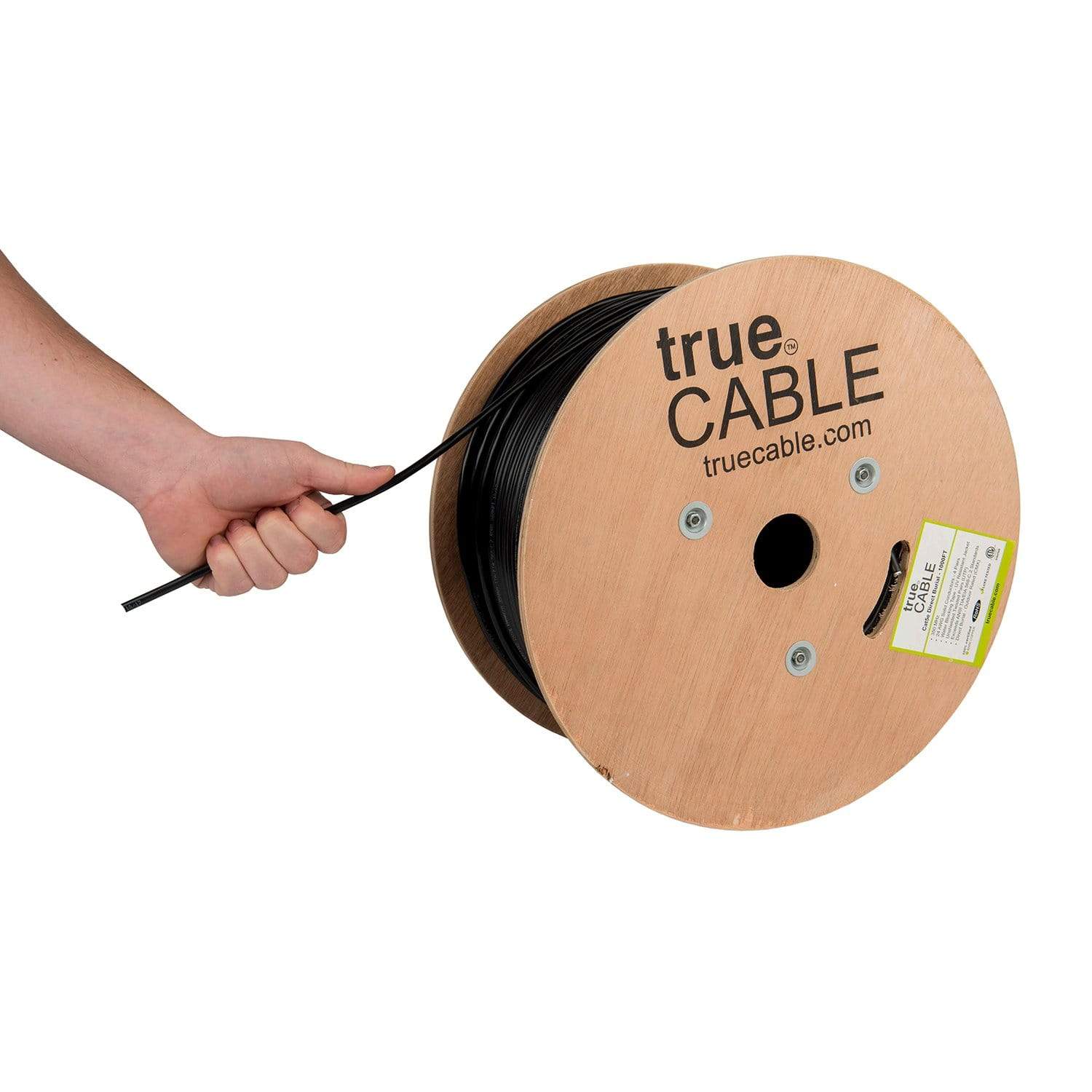

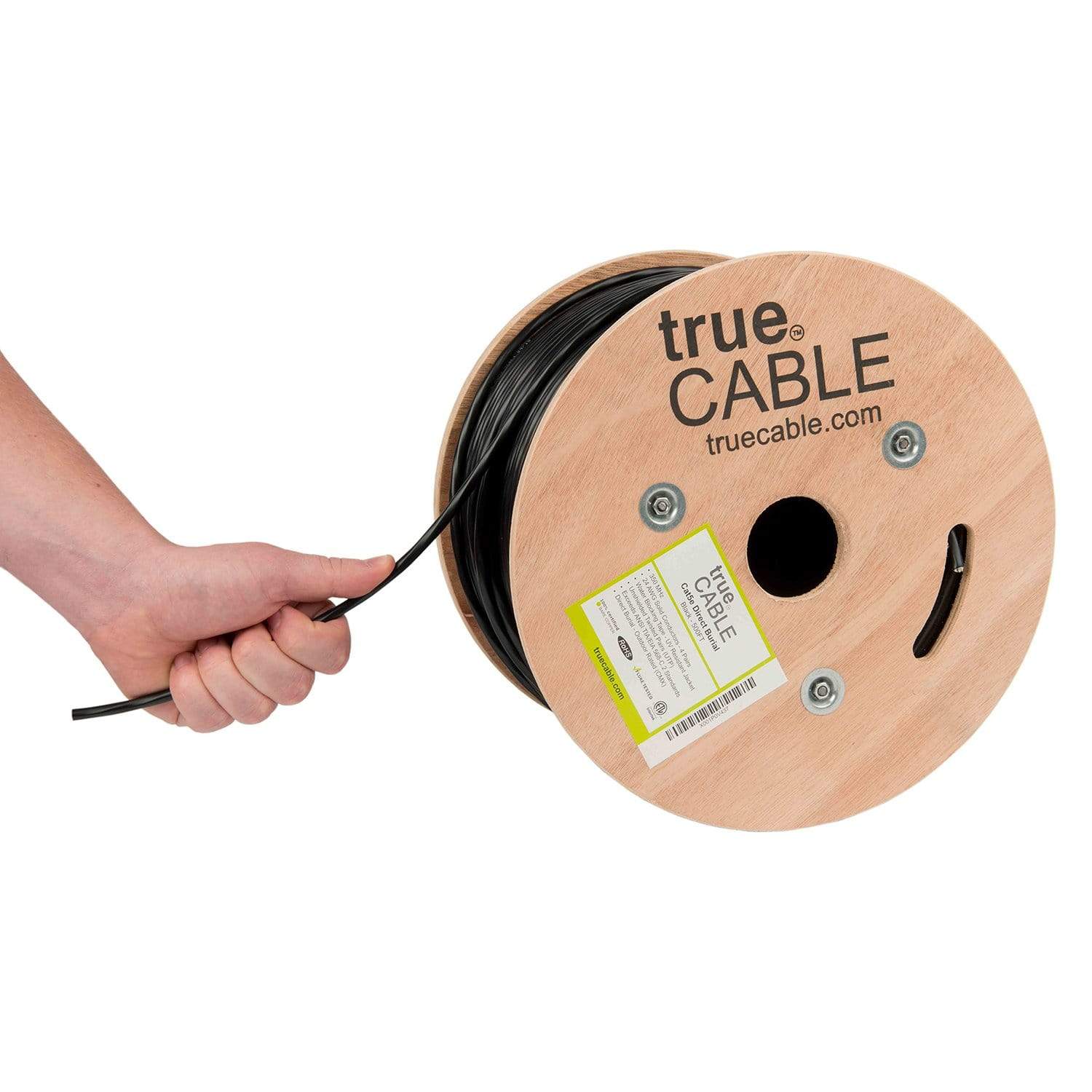

Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.

Compatibility Counts

Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.91mm and an overall cable jacket diameter of 6.10mm.

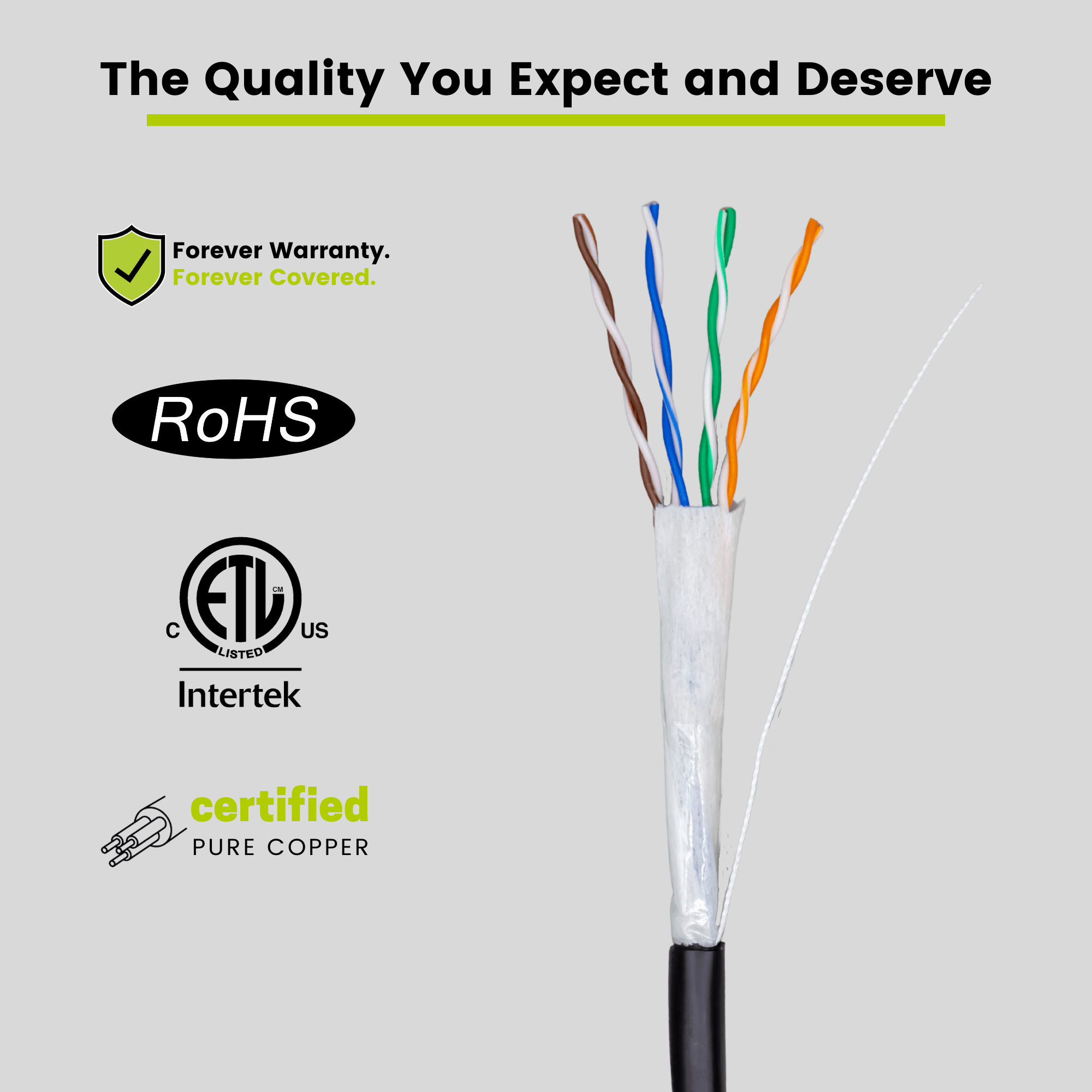

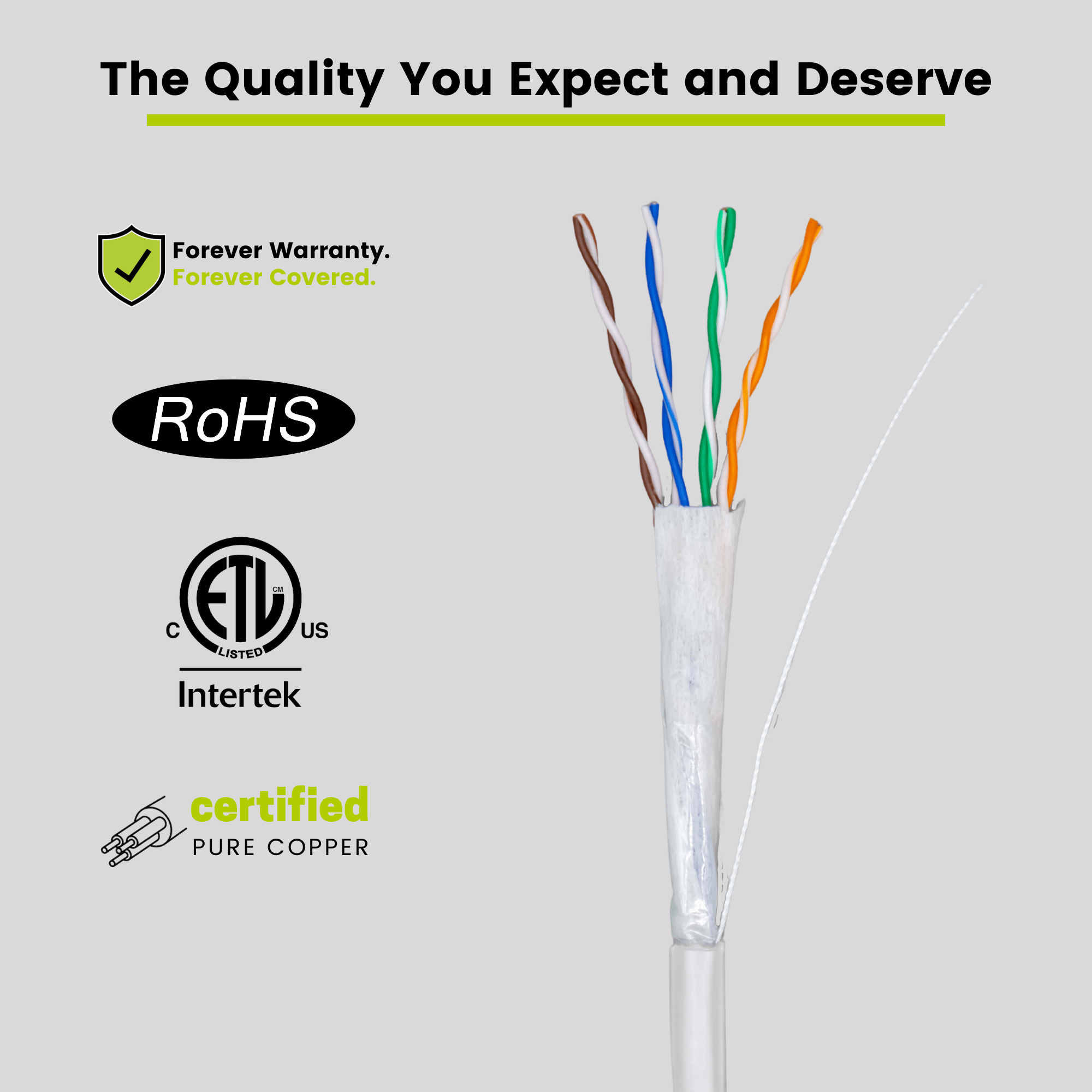

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-E standards, RoHS-3 compliant.

Item Details

Weight	23.5 lb
Length	14.5 in
Width	14.5 in
Height	7 in
Barcode	X001GSNYL3

Specs & User Guides

Download Spec Sheet

Cat5e Direct Burial Ethernet Cable｜Unshielded

Part Number - 5ECMXBLK_1Krl

$228.99

24AWG 4-Pair, solid bare copper conductors
Unshielded twisted pairs - U/UTP
Bandwidth tested up to 350 MHz
Supports PoE++ (802.3bt) 4PPoE, up to 100W
RoHS-3 & ANSI/TIA 568.2-E compliant

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$223.27	2.5%
25-49	$217.54	5%
50+	$211.82	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Outdoor Rated Ethernet Cable

The OSP jacket is designed to withstand sunlight, dirt, snow, and moisture.
Suitable for direct burial with or without conduit.
Water blocking tape provides ultimate moisture protection for outdoor use.

Everyday Performance

Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
Bandwidth tested up to 350 MHz
Unshielded twisted pairs - U/UTP
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.

Compatibility Counts

Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.91mm and an overall cable jacket diameter of 6.10mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-E standards, RoHS-3 compliant.

Specifications

Weight	23.5 lb
Length	14.5 in
Width	14.5 in
Height	7 in
Barcode	X001GSNYL3

Downloads

Download Spec Sheet

Frequently Asked Questions

What is the maximum bandwidth supported by this Cat5e direct burial Ethernet cable?

Our Cat5e direct burial unshielded Ethernet cable has been quality tested (in laboratory conditions) to 350 MHz, ensuring stable ANSI/TIA required Cat5e 100 MHz operating bandwidth under all in-field conditions.

Is this cable suitable for outdoor use and can it be buried directly in the ground?

Yes, this Cat5e direct burial Ethernet cable is designed for outdoor use and can be buried directly in the ground, making it ideal for installation in harsh environments.

Does this cable support Power over Ethernet (PoE) up to 100W?

Yes, this cable supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) standards and can handle 4PPoE up to 100W DC, making it suitable for powering devices with high power requirements. This cable is cETLus Listed.

What certifications does this product hold?

This product has been tested for IEEE 802.3, ANSI/TIA 568.2, and RoHS-3 Compliance, ensuring it meets rigorous standards for performance and environmental responsibility.

Can I purchase bulk quantities of this Cat5e direct burial Ethernet cable?

Yes, we offer high-quality bulk Ethernet cables in various categories, including Cat5e, Cat6, and Cat6A.

What is the conductor type used in this cable? Is it solid or stranded?

This cable features 24 AWG solid pure copper conductors for optimal signal transmission and durability.

How many AWG gauges are present in this cable?

This cable makes use eight 24 AWG solid pure copper conductors twisted into 4 color coded conductor circuits.

Are there any specific termination methods recommended for use with this Cat5e direct burial Ethernet cable?

For optimal performance and reliability, we recommend using trueCABLE Cat5e unshielded component rated keystone jacks at both ends of the drop. If termination to a RJ45 plug becomes necessary at one end (like to plug into a PoE device), trueCABLE offers tested and compatible Cat5e RJ45 connector plugs.
