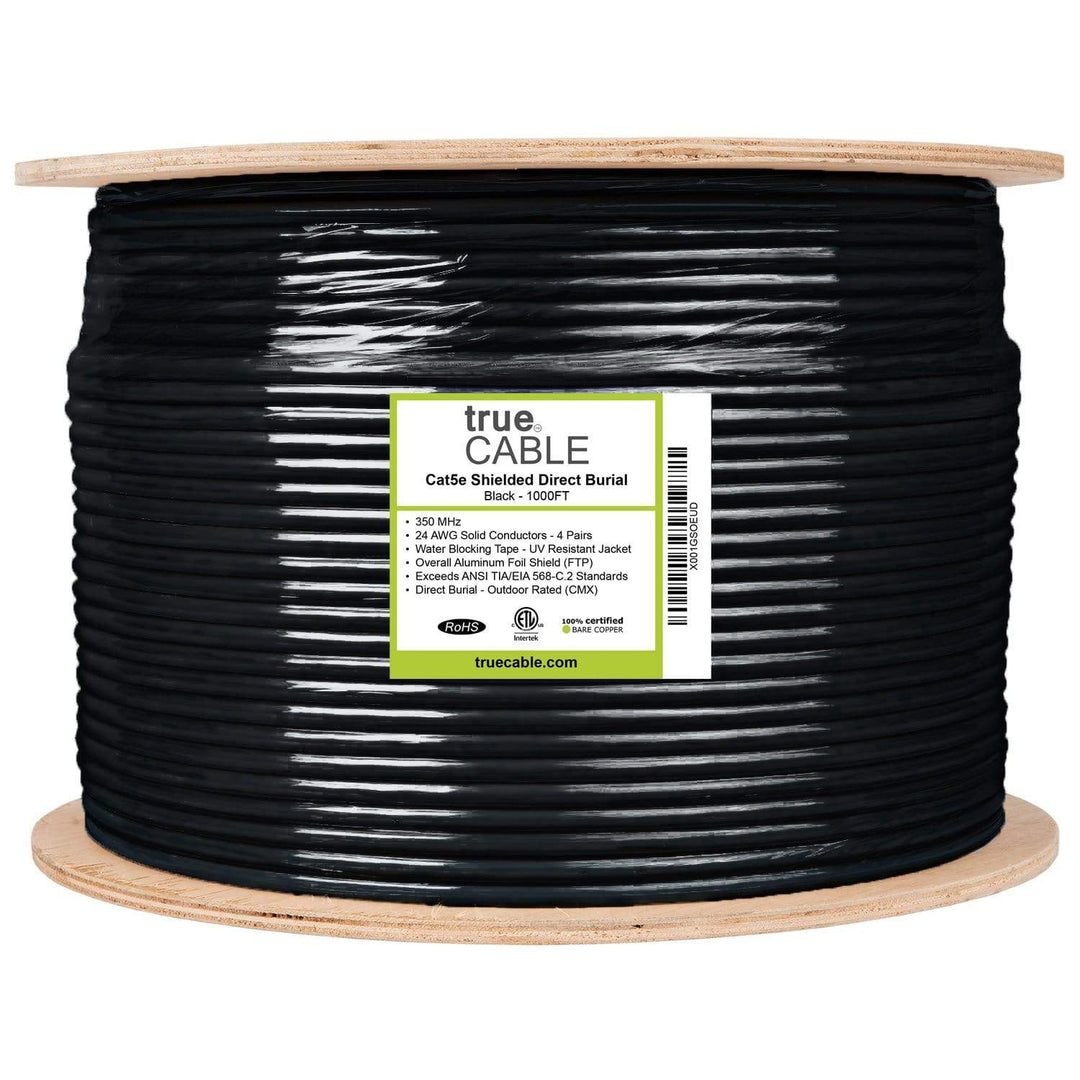

Outdoor Cat5e|Shielded

  • 24AWG 4-Pair, solid bare copper conductors
  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 350 MHz
  • Supports PoE and PoE+
  • cETLus Certified, RoHS-3 Compliant

$158.99 158.99

Buy 10 or more each save 5%

Buy 25 or more each save 10%

Ships Same Day - Order by 3pm CT
100% Solid Copper Conductors
Outdoor Rated
  • The CMX jacket is designed to withstand sunlight, dirt, snow, and moisture.
  • Suitable for direct burial with or without conduit.
  • Water blocking tape provides ultimate moisture protection for outdoor use.

    Everyday Performance

    • Suitable for 1 Gigabit Ethernet.
    • Bandwidth tested up to 350 MHz
    • Supports PoE and PoE+ (IEEE 802.3af/at) up to 30W and 300V DC.

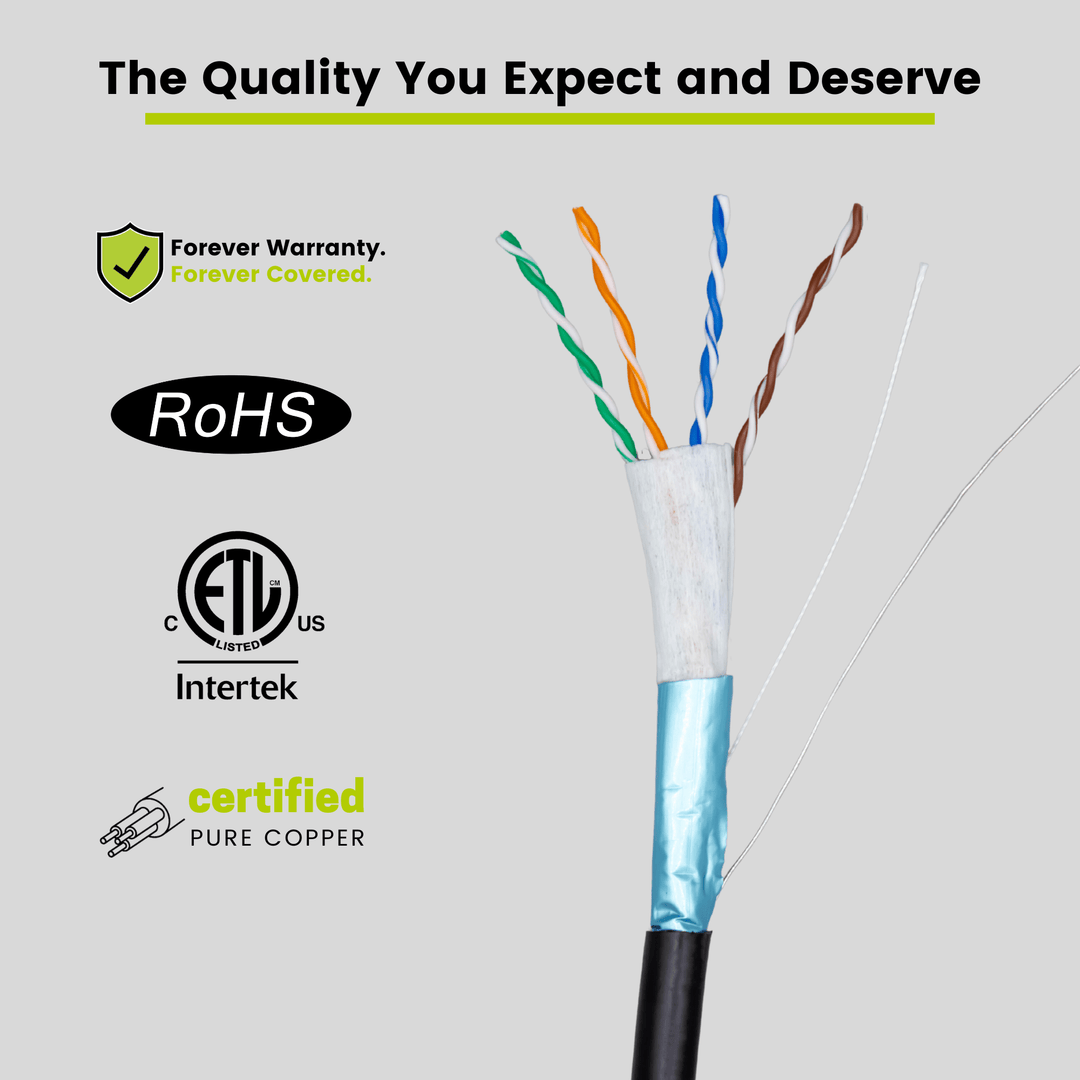

    • The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.

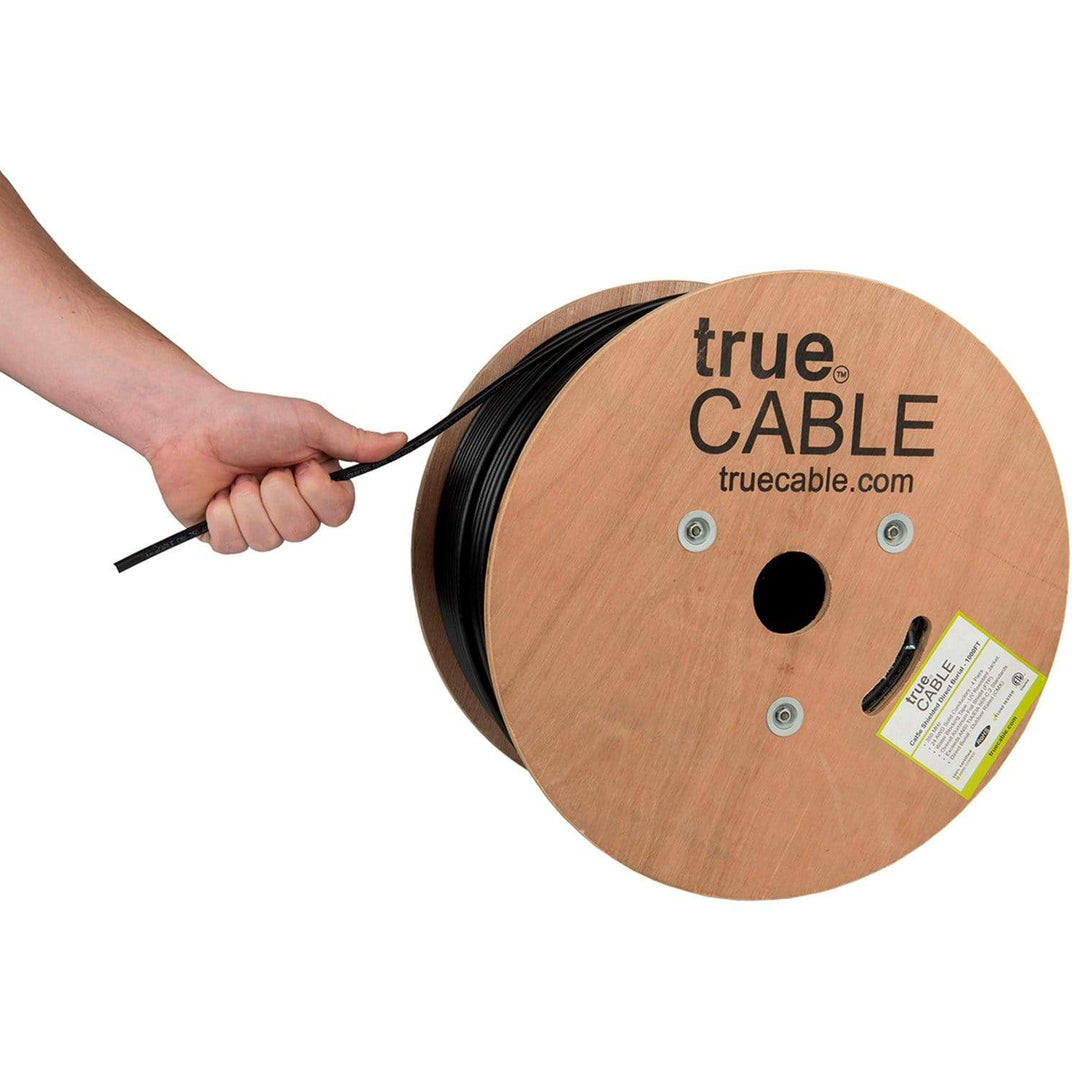

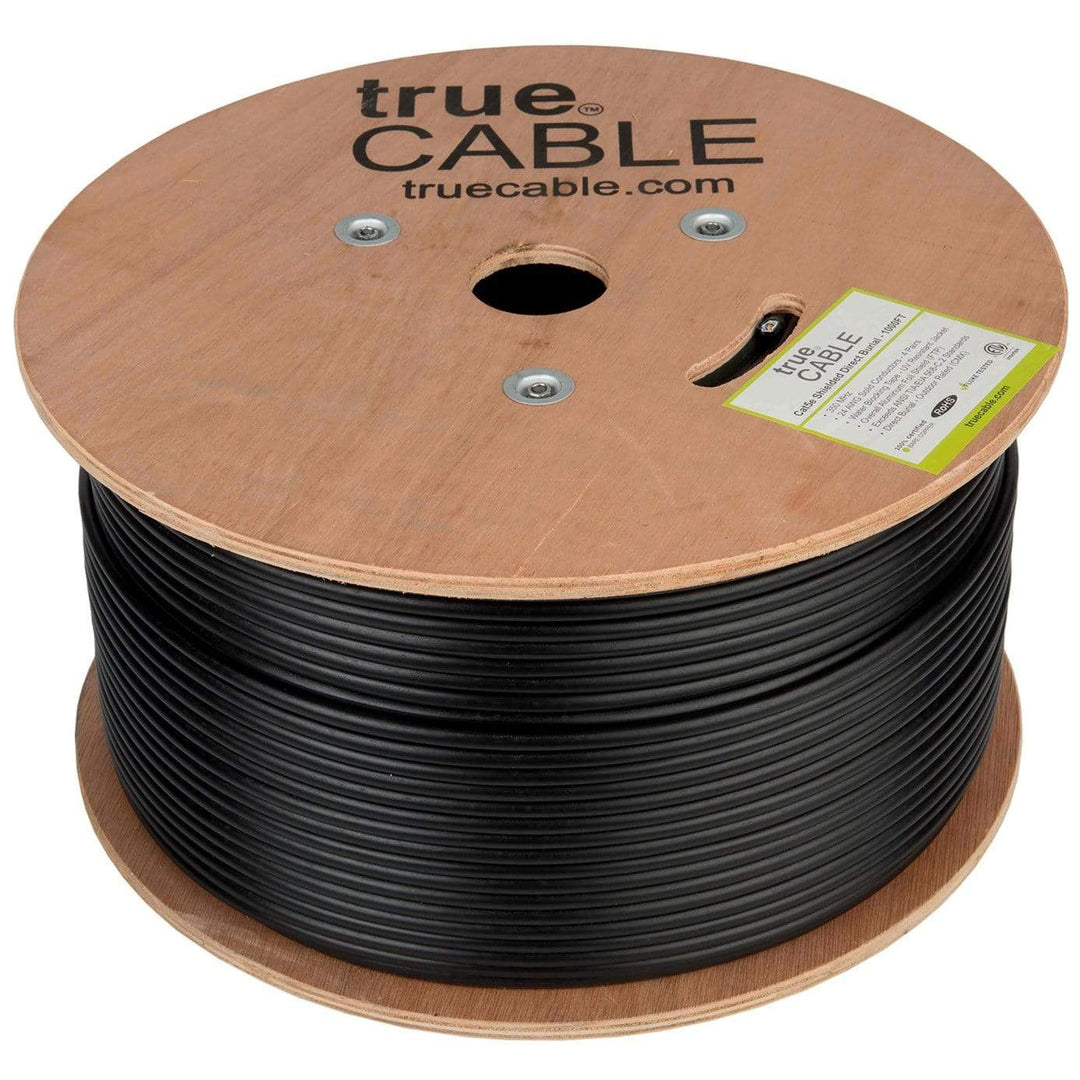

    • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.

      Compatability Counts

      • Terminate with shielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.97mm and an overall cable jacket diameter of 6.80mm.

      100% Pure Solid Bare Copper Conductors

      • Complies with UL, ANSI/TIA, and U.S. product safety standards.
      • Bare copper is superior conductor material for data transmission and PoE use.
      • The only industry and governmental approved type of conductor for use in Ethernet networks.
      • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
      • Part Number - 5ESCMXBLK_1Krl
      • Operating Temp. Range - 75 C / 167 F
      • Max. Operating Voltage - 300v
      • Conductor Insulation Diameter - 0.97mm
      • Overall Diameter (OD) - 6.80mm
      • Weight - 26.0 lbs
      • Length - 14.5 in
      • Width - 14.5 in
      • Height - 8 in
