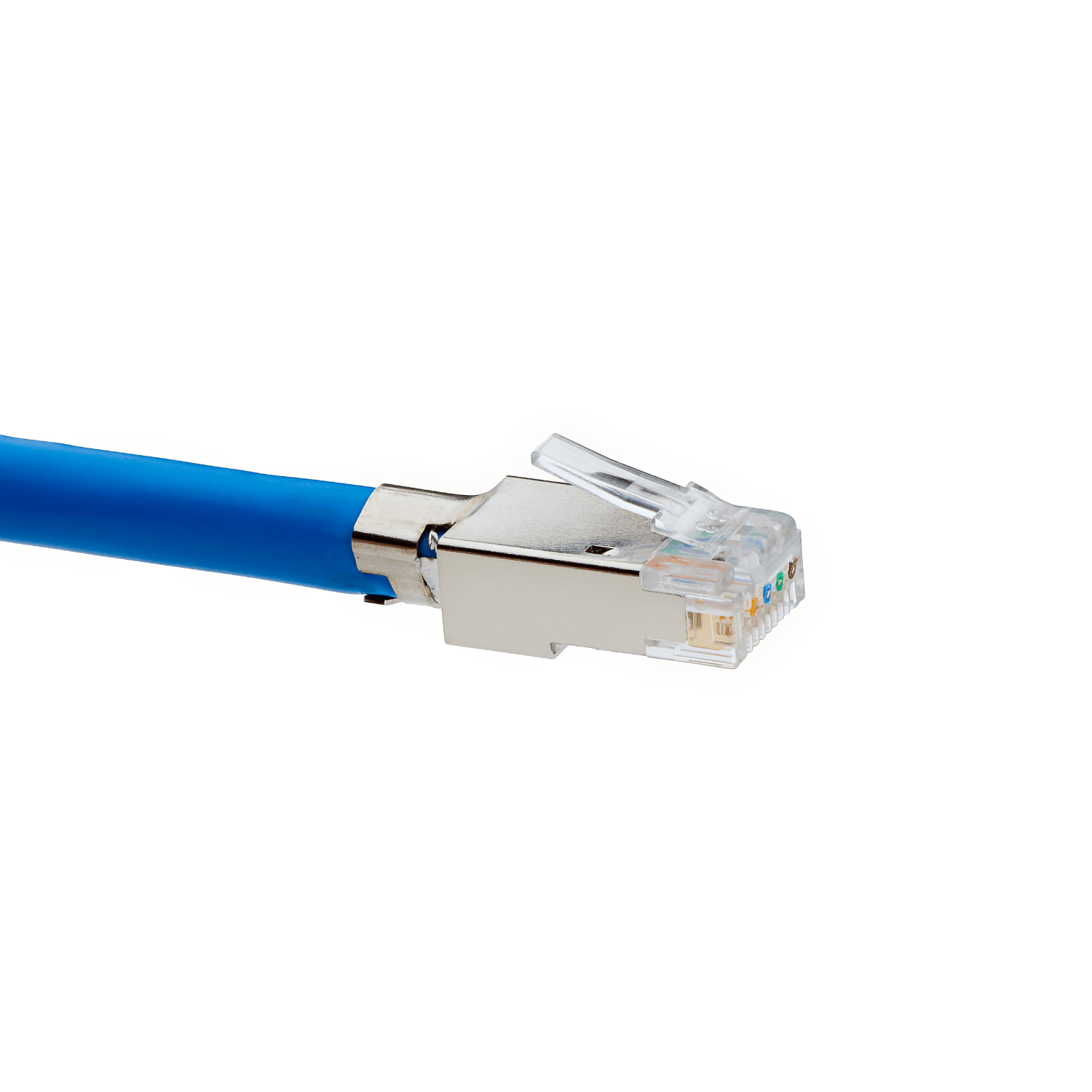

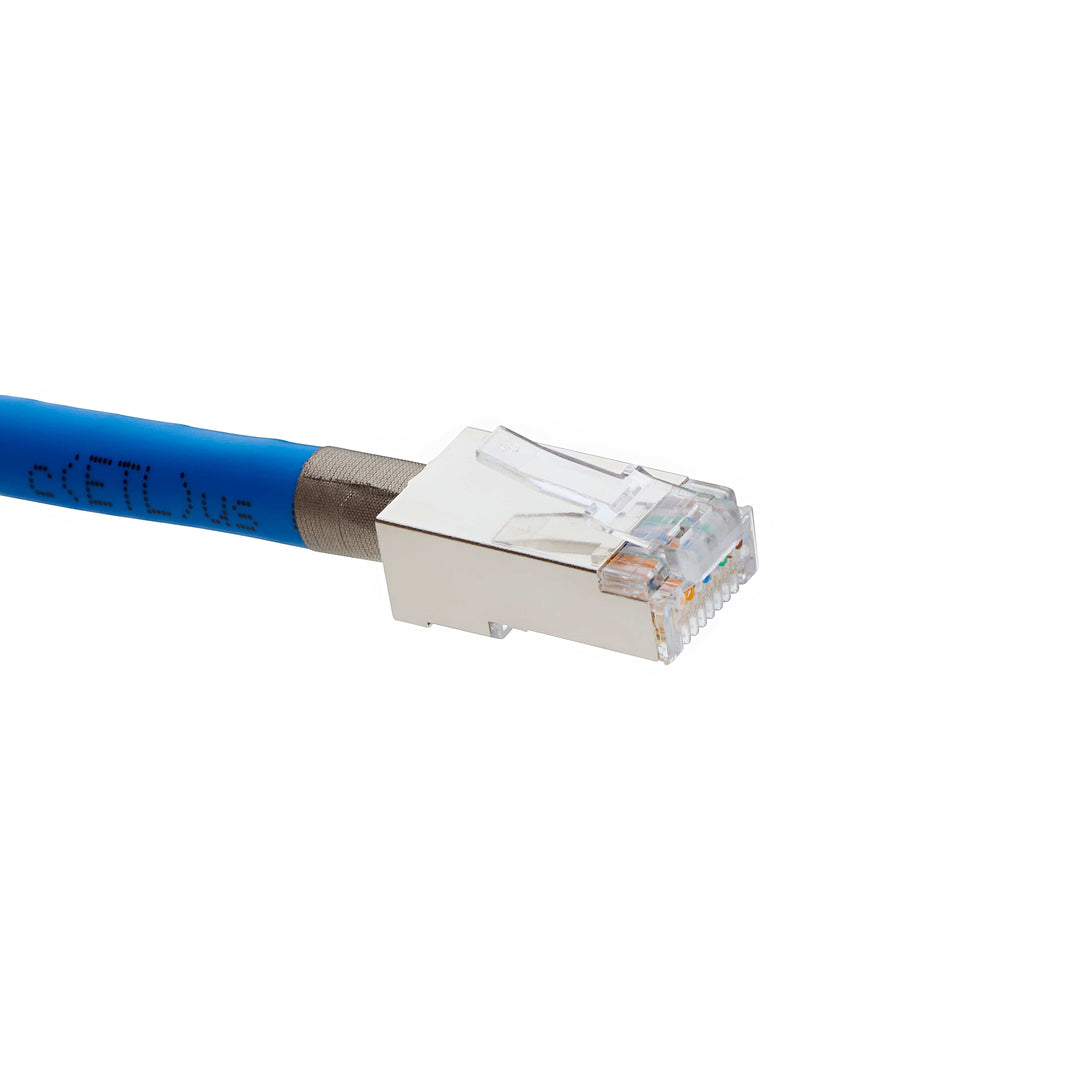

Cat5e Pass Through RJ45 Connectors|Shielded

Part Number - SMIGPTRJ45_10pc

Features

  • Hassle free pass through design
  • Triple prong gold plated contacts
  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • Terminate with our All-In-One Crimp and Termination Tool
  • UL Listed, ETL Verified, ANSI/TIA 568 2.D Certified

Need help finding compatible connectors for your Ethernet cable?

Look no further than our Connector Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $11.59 2.5%
25-49 $11.3 5%
50+ $11.0 7.5%
$13.99 $11.89 11.89
-16%
Size
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

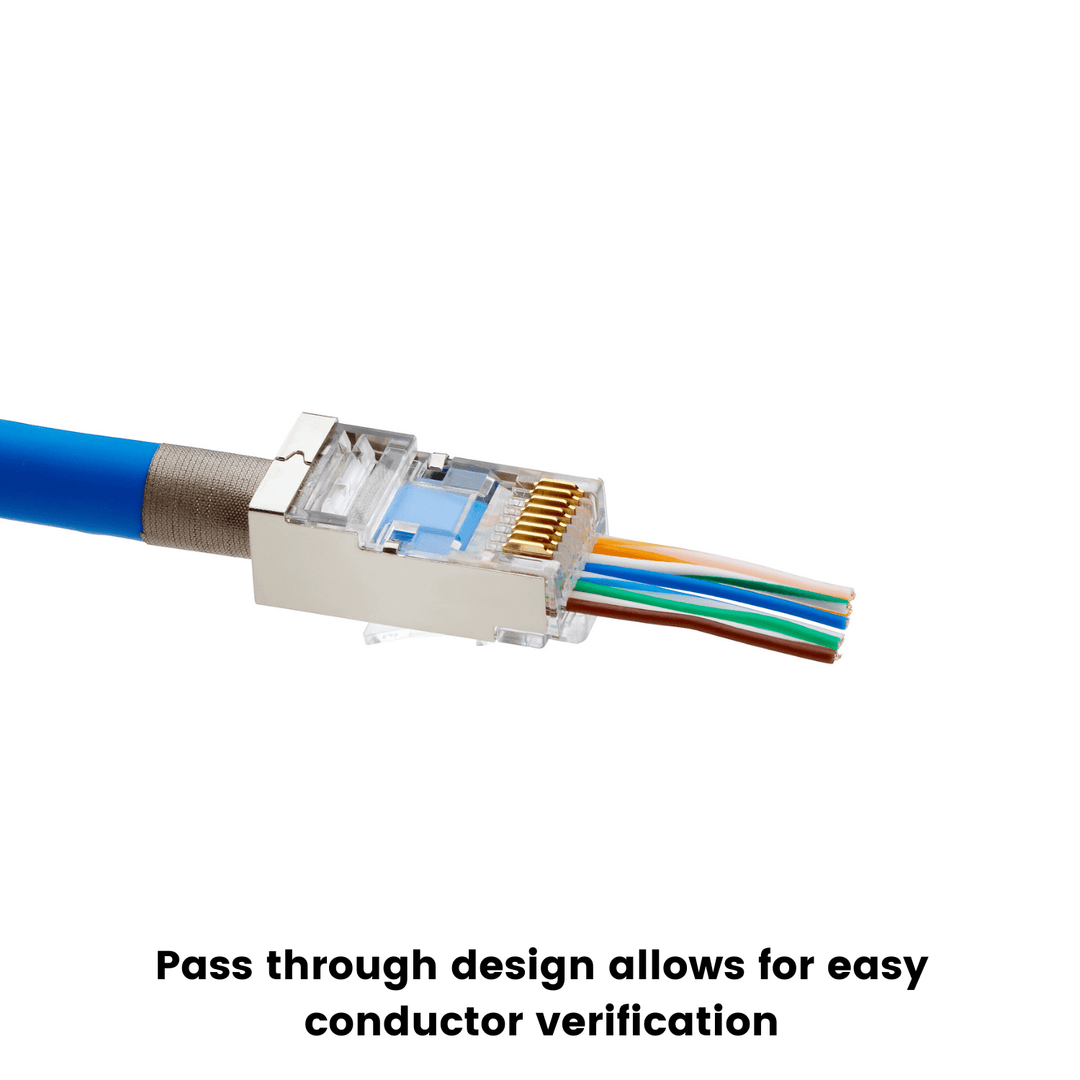

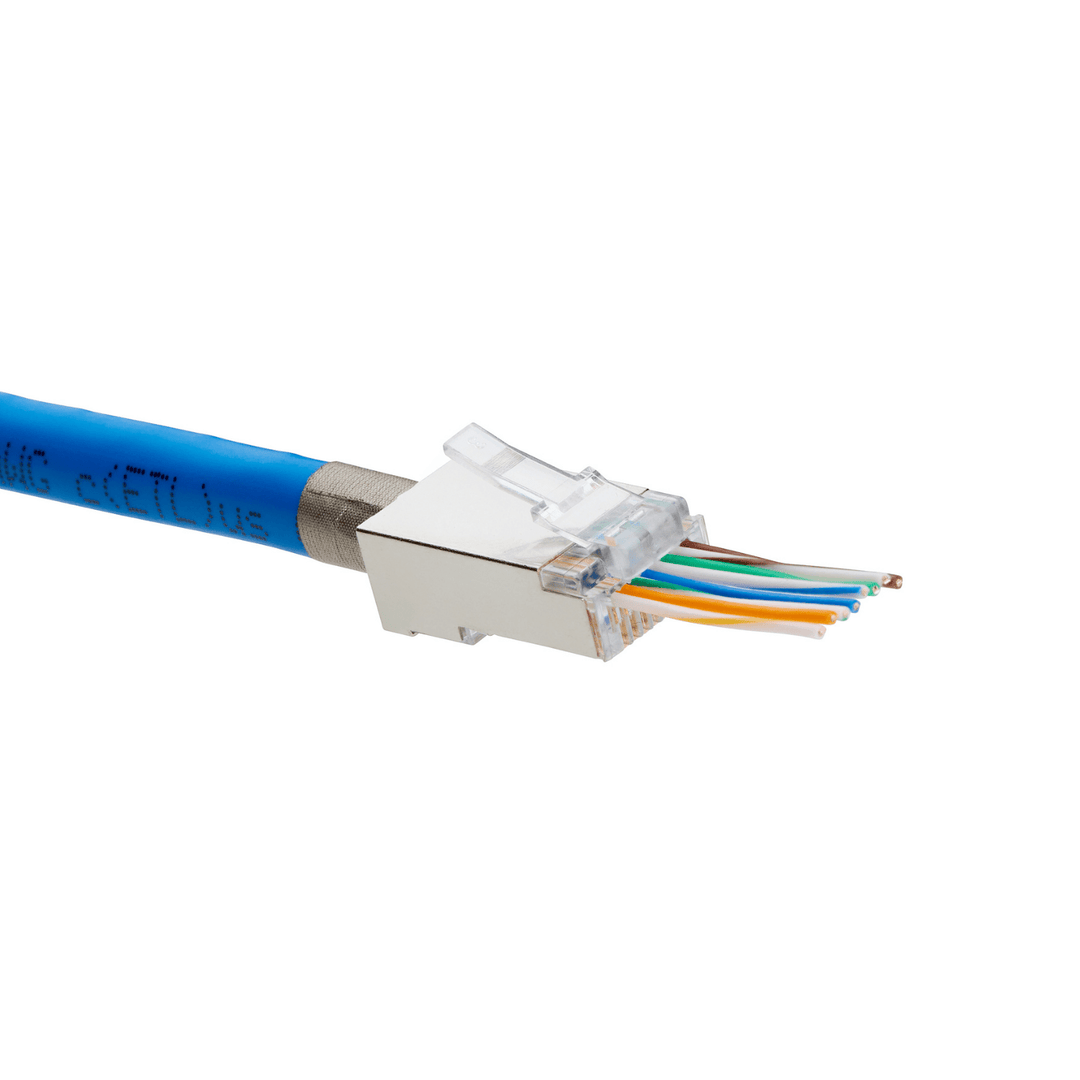

Pass Through Design

  • No more load bars means less waste and frustration. The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.

Maximum Performance

  • Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible.

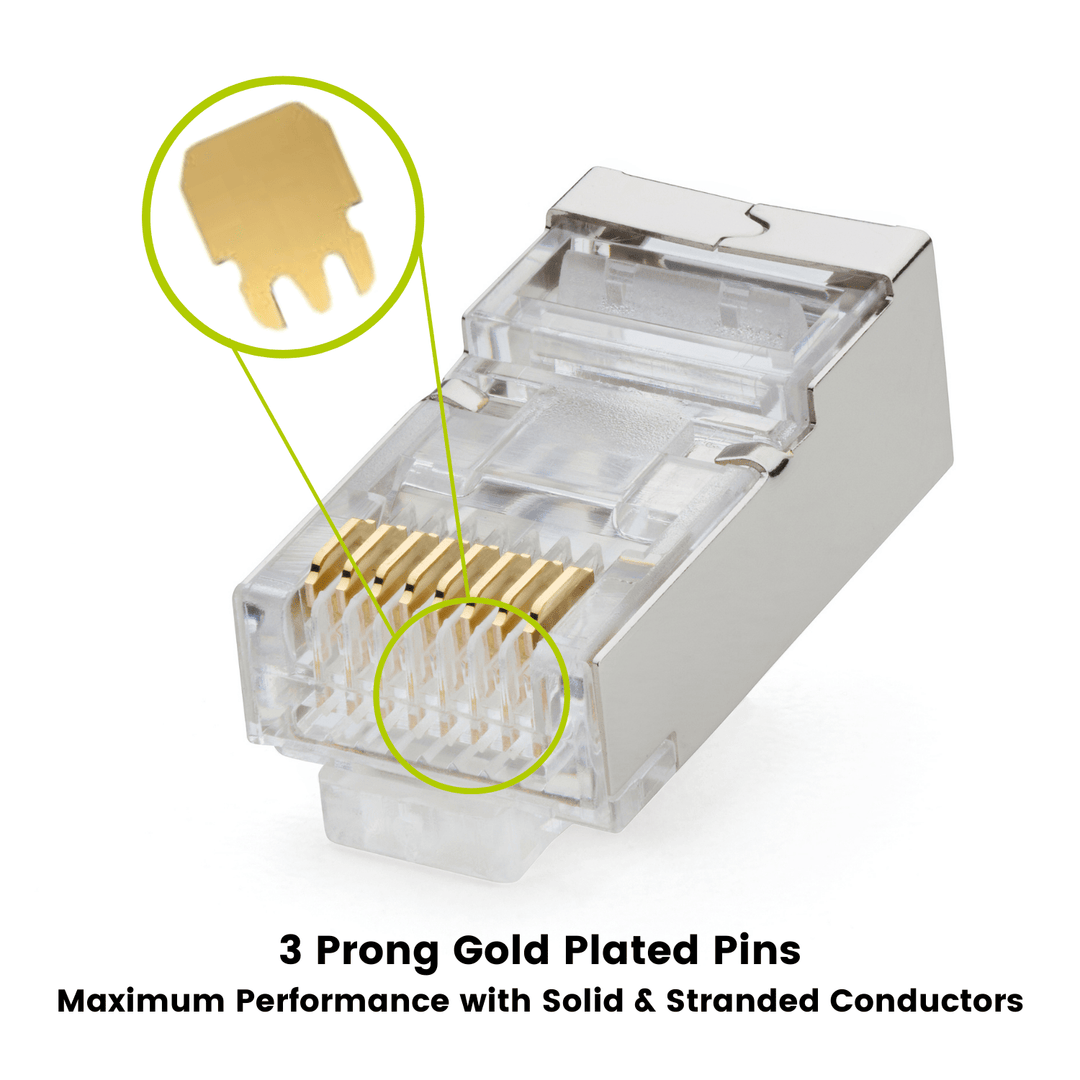

  • Triple prong gold plated contacts.

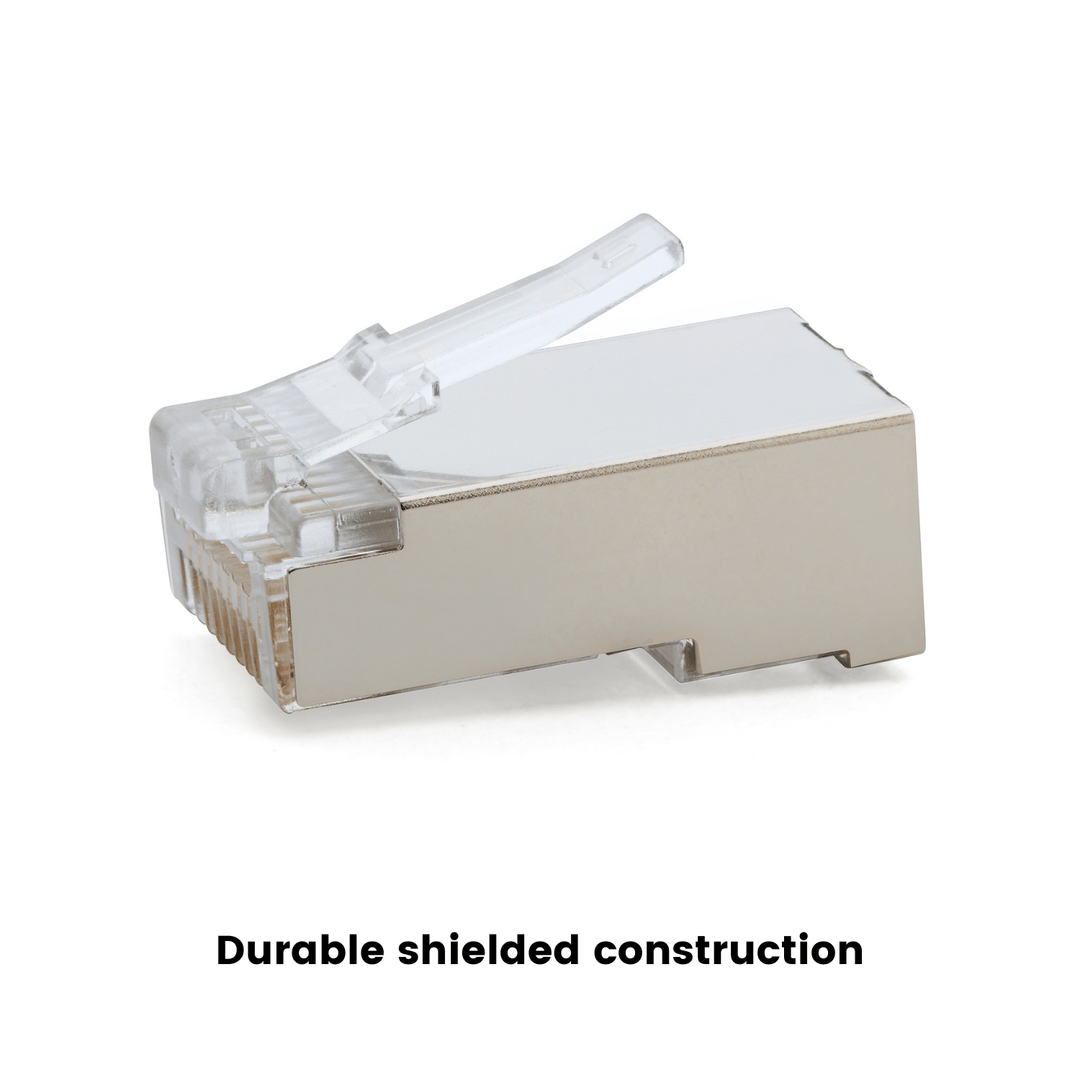

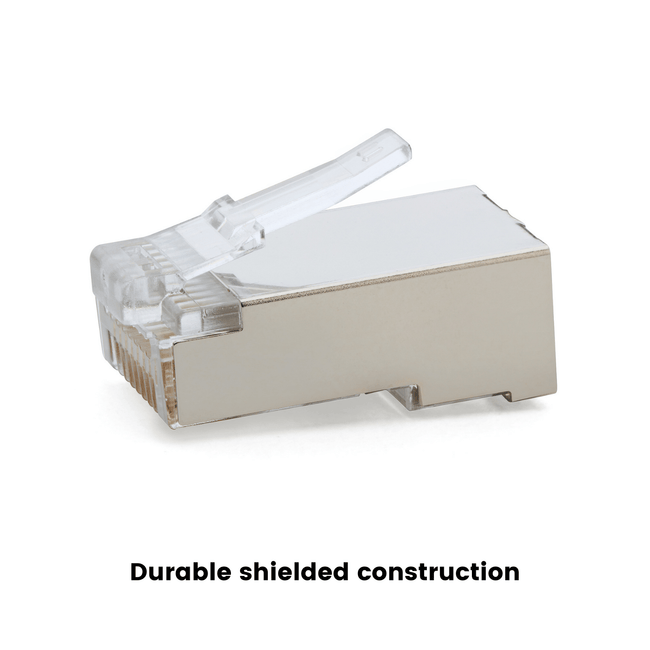

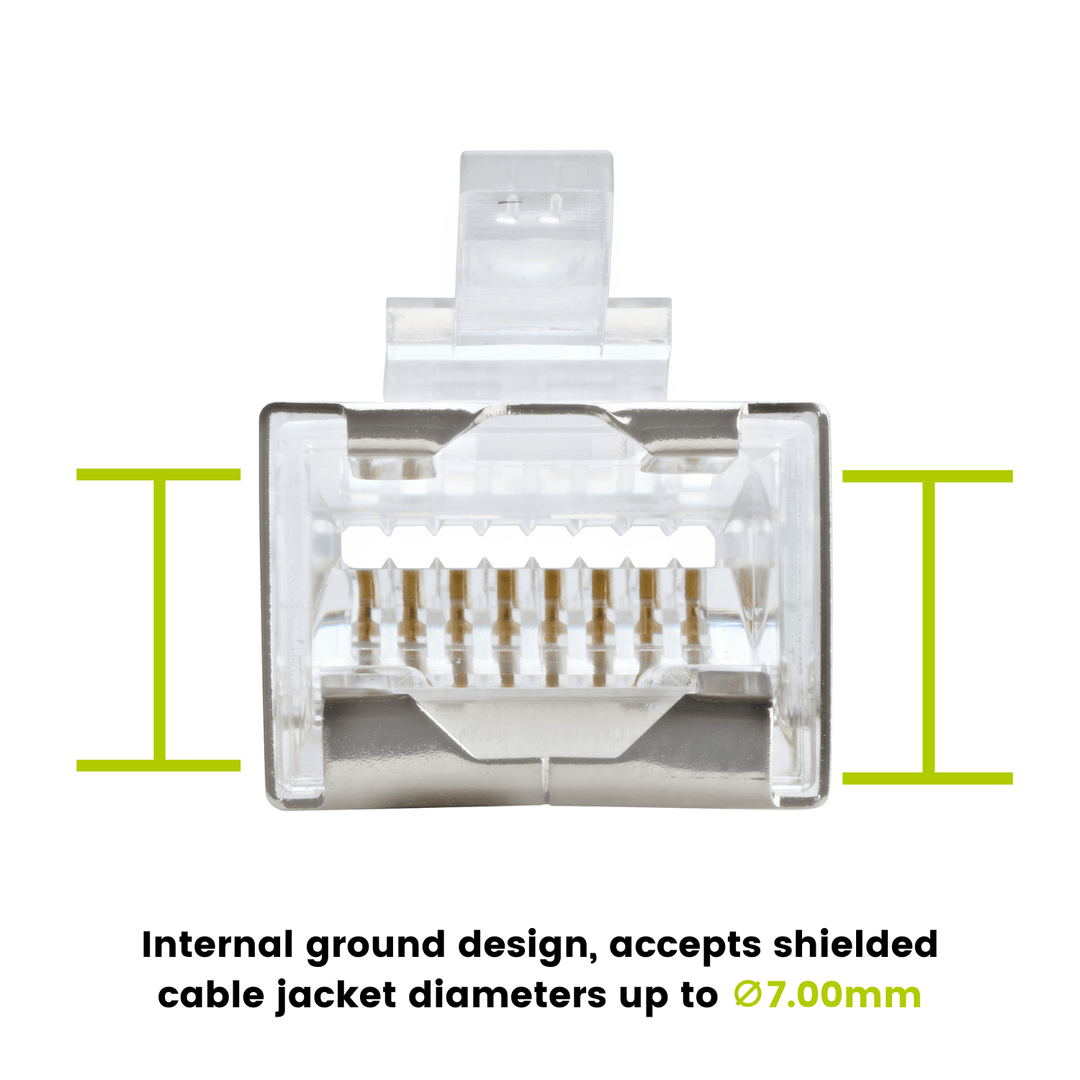

  • Shielded (Internal Ground) construction.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

  • Compatible with 23 and 24AWG stranded or solid conductors.

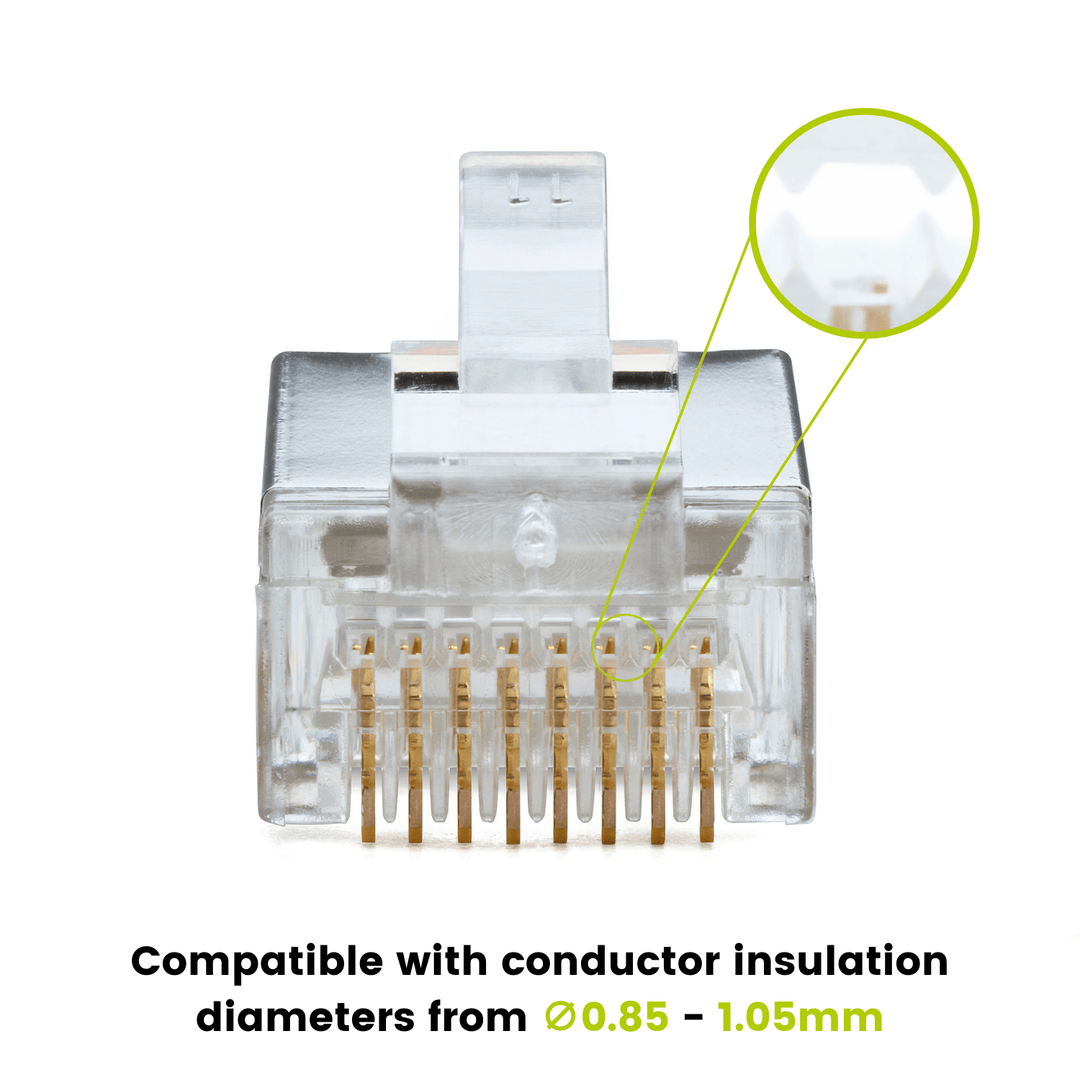

  • Suitable for cable jacket diameters up to ∅7.00mm and conductor insulation diameters from ∅0.85 - 1.05mm.
  • Terminate with our All-In-One Crimp and Termination Tool.

Quality Guaranteed

  • ANSI/TIA 568 2.D Certified and Validated with trueCABLE F/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

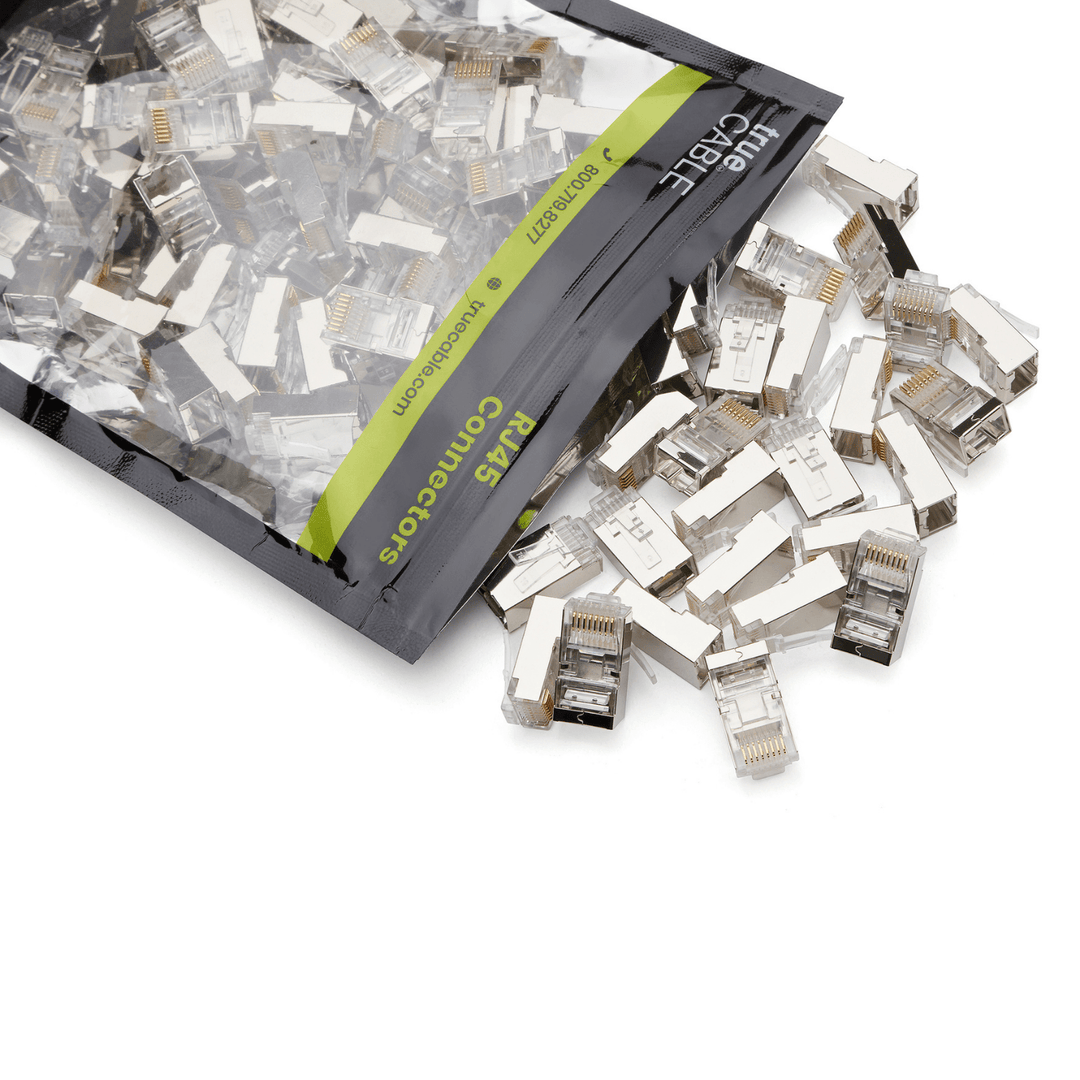

Resealable Bag

  • These shielded pass through RJ45 ends are sure to make your install hassle-free.
Weight 0.1 lbs
Length 6.25 in
Width 4.25 in
Height 0.50 in
Barcode X002IVTOKR

Pass Through Design

  • No more load bars means less waste and frustration. The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.

Maximum Performance

  • Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible.
  • Triple prong gold plated contacts.
  • Shielded (Internal Ground) construction.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

  • Compatible with 23 and 24AWG stranded or solid conductors.
  • Suitable for cable jacket diameters up to ∅7.00mm and conductor insulation diameters from ∅0.85 - 1.05mm.
  • Terminate with our All-In-One Crimp and Termination Tool.

Quality Guaranteed

  • ANSI/TIA 568 2.D Certified and Validated with trueCABLE F/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

Resealable Bag

  • These shielded pass through RJ45 ends are sure to make your install hassle-free.
  • Weight - 0.1 lbs
  • Length - 6.25 in
  • Width - 4.25 in
  • Height - 0.50 in
  • Barcode - X002IVTOKR
