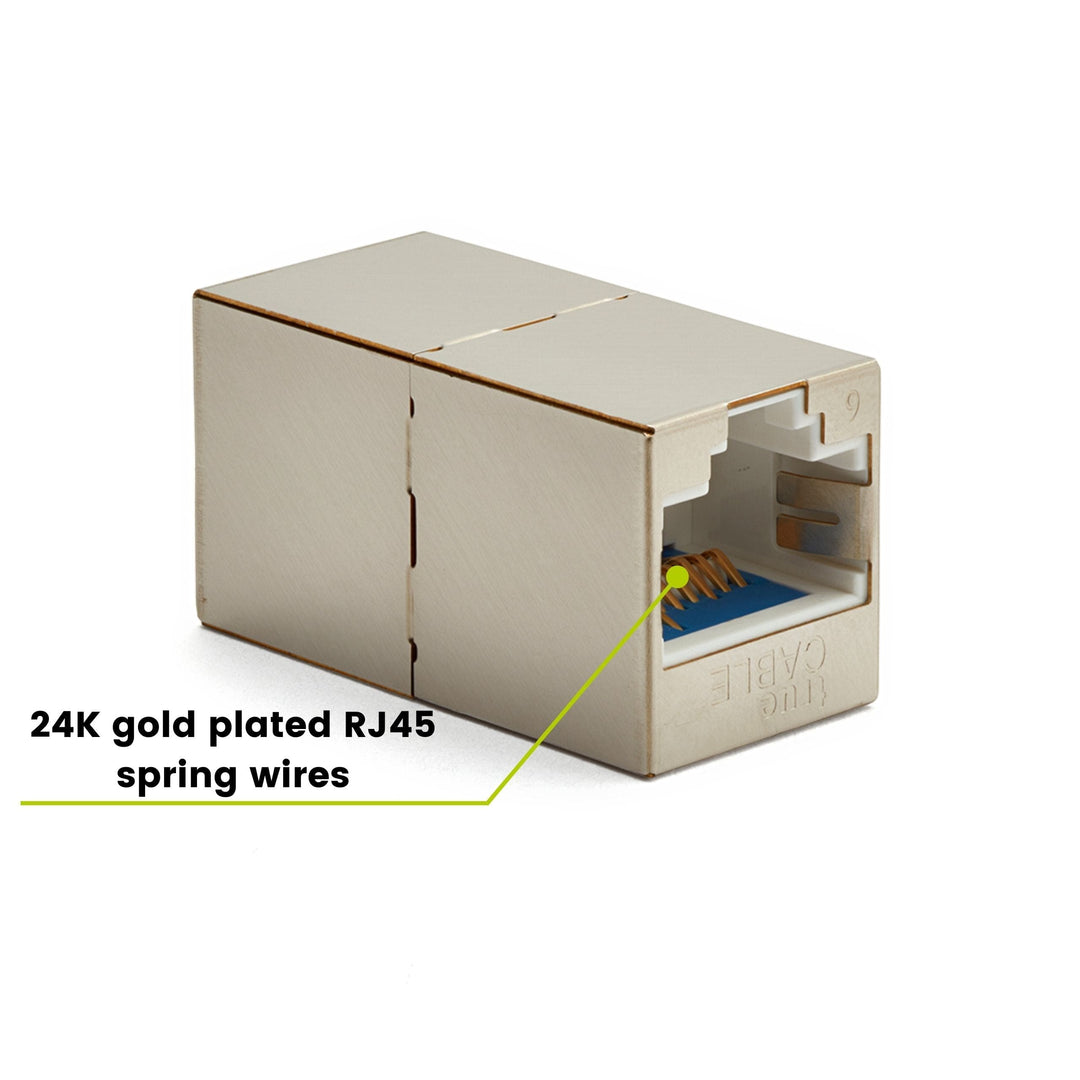

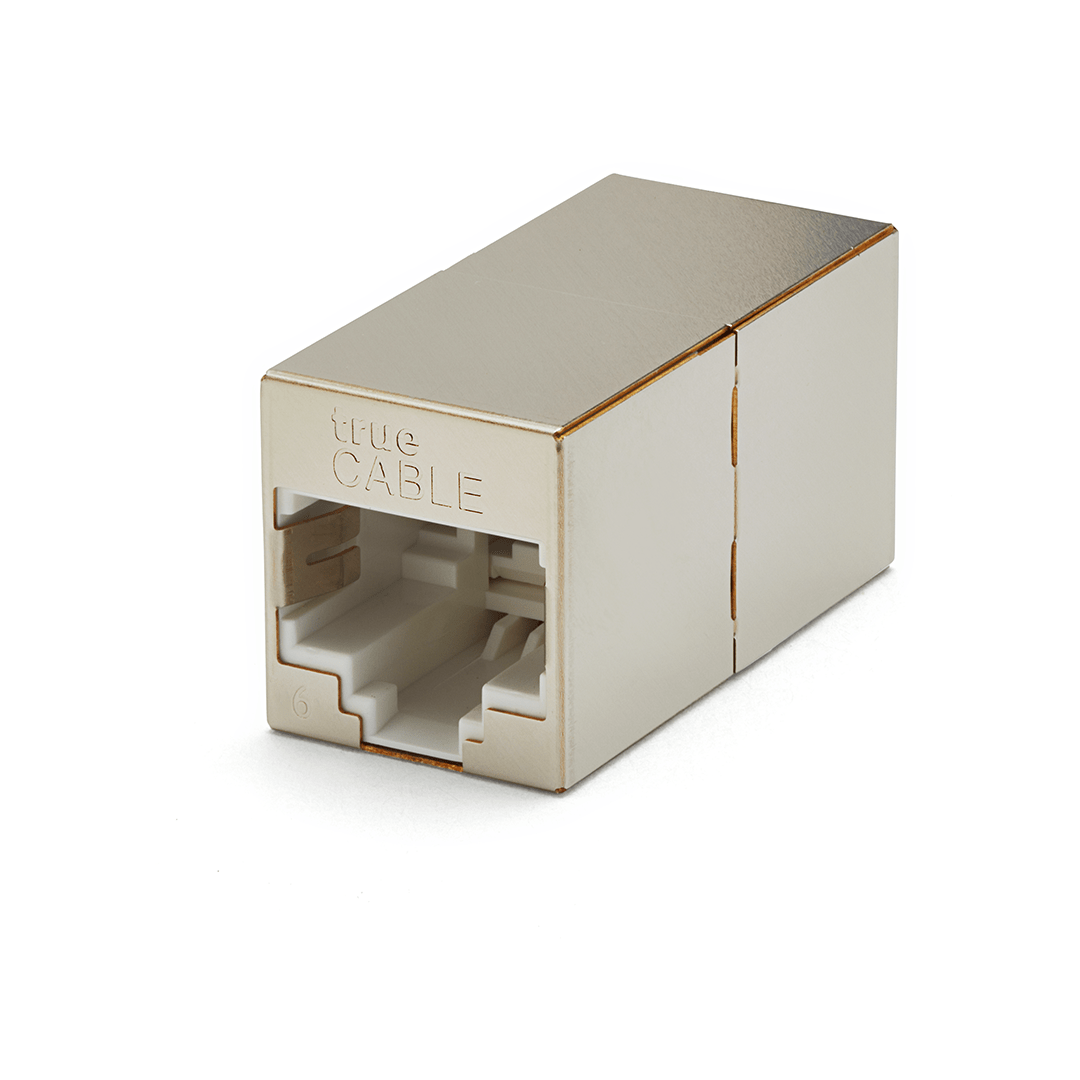

Cat6 Inline Coupler | Shielded

  • 180° RJ45 to RJ45 feed through inline coupler
  • Supports PoE, PoE+ and PoE++
  • Works with shielded and unshielded Ethernet cable
  • UL Listed, ETL Verified, ANSI/TIA 568 2.D Certified

$15.99 15.99

Buy 10 or more each save 5%

Buy 25 or more each save 10%

Buy 50 or more each save 15%

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

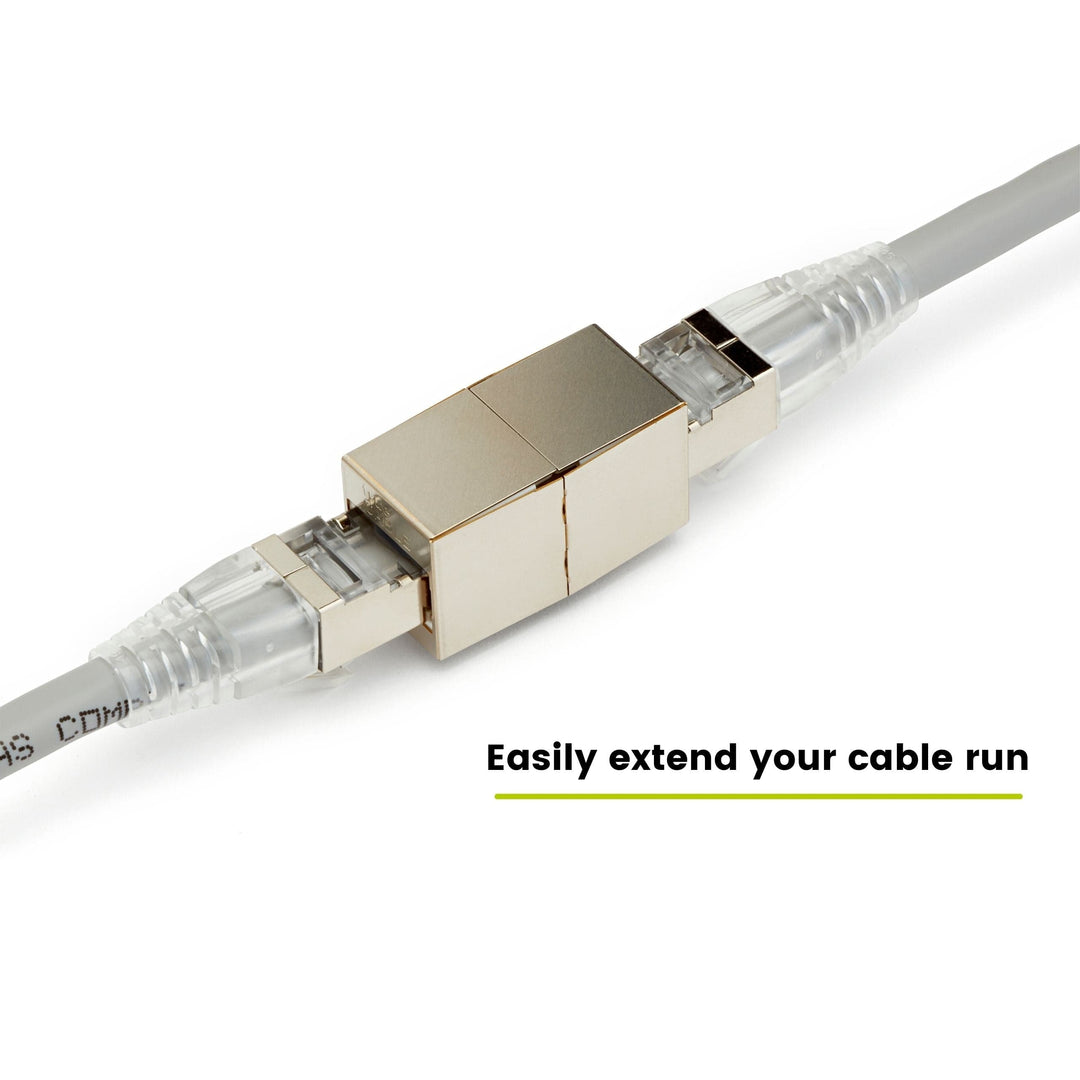

Looking for a quick way to extend your Ethernet cable? We have the perfect solution for you. Our inline couplers are easy to use and have been thoroughly tested to provide maximum performance. Many inline couplers fall short where ours excel. Ideal for mobile users looking to connect up to a cable that is too short.  Fully backwards compatible with Cat5e.

Make your connections without additional tools or specialized expertise. These shielded couplers are suited to even the most severe Ethernet channel environments where multiple terminations must be used. With impedance matching technology, Return Loss and NEXT are kept minimal.

Maximum Performance

  • Supports 100BASE-TX, 1000BASE-T, 2.5GBASE-T, and 5GBASE-T up to 5 Gbp/s in 328 foot channels. Power over Ethernet: PoE compatible 802.3af/at/bt, PoE / PoE+ / PoE++ up to 60 watts. Impedance matching technology.

Easy to Use

  • Our 180° RJ45 to RJ45 feedthrough inline couplers are designed for on the go convenience. The reusable inline design makes it easy to disconnect and relocate as needed.
  • Ideal for nonpermanent installations.

Versatile

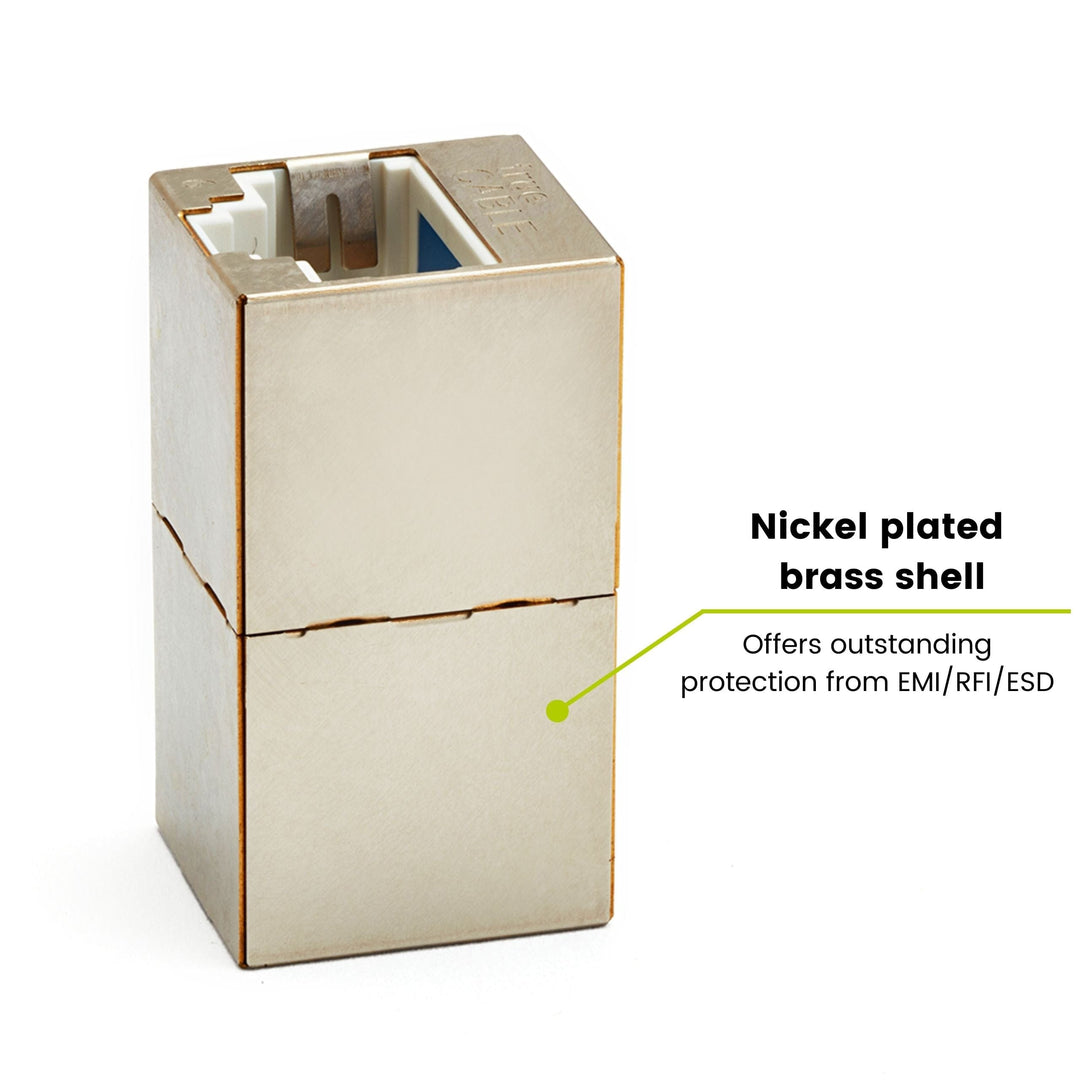

  • Durable nickel plated brass housing offers outstanding shielding and an effective method for reducing alien crosstalk from neighboring connectors. Works with shielded and unshielded Ethernet cable.

Quality Guaranteed

  • ANSI/TIA 568 2.D Cat6 Permanent Link & Channel Certified up to 5 Gigabit by trueCABLE. UL Listed, ETL Verified, TAA compliant, and RoHS-2 compliant. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.

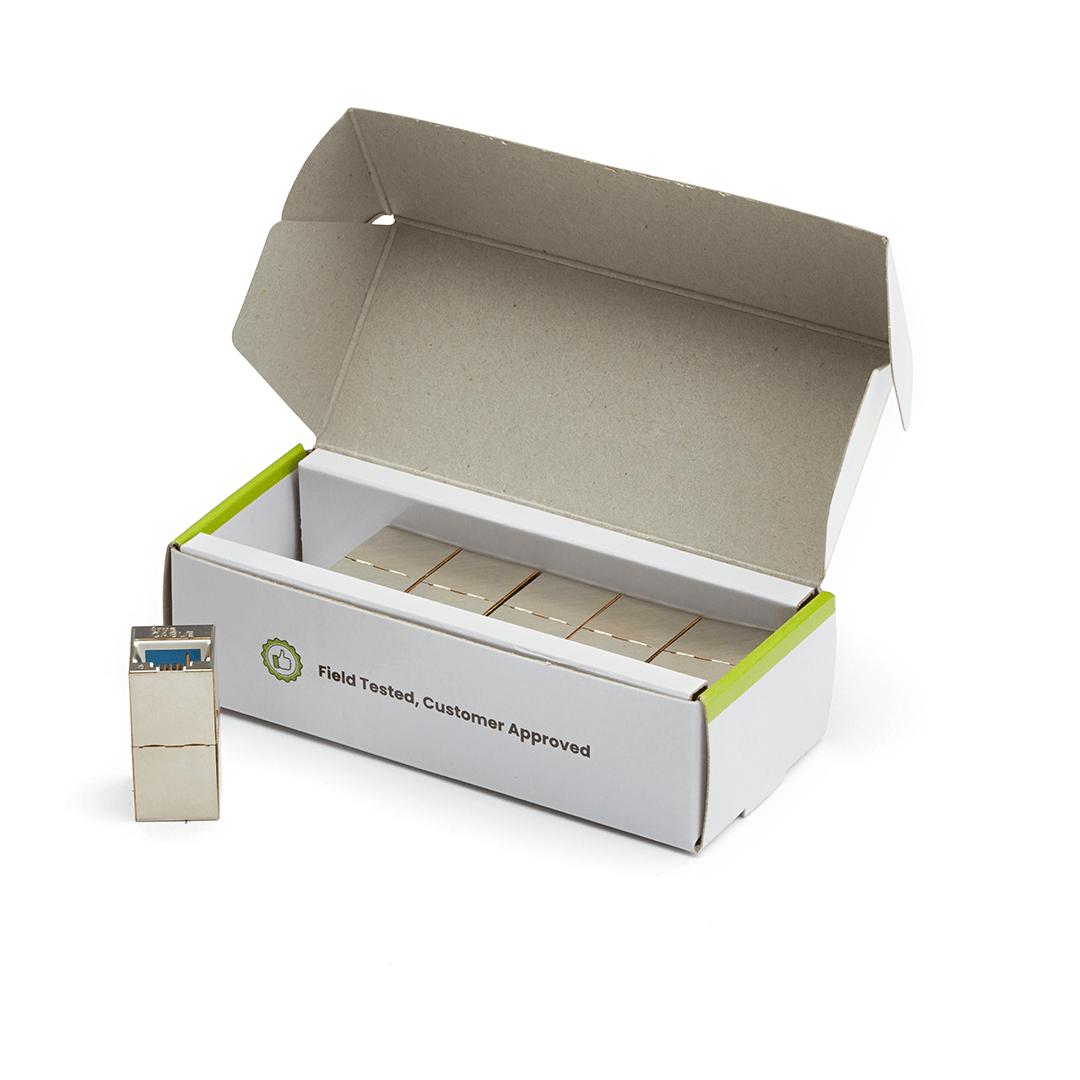

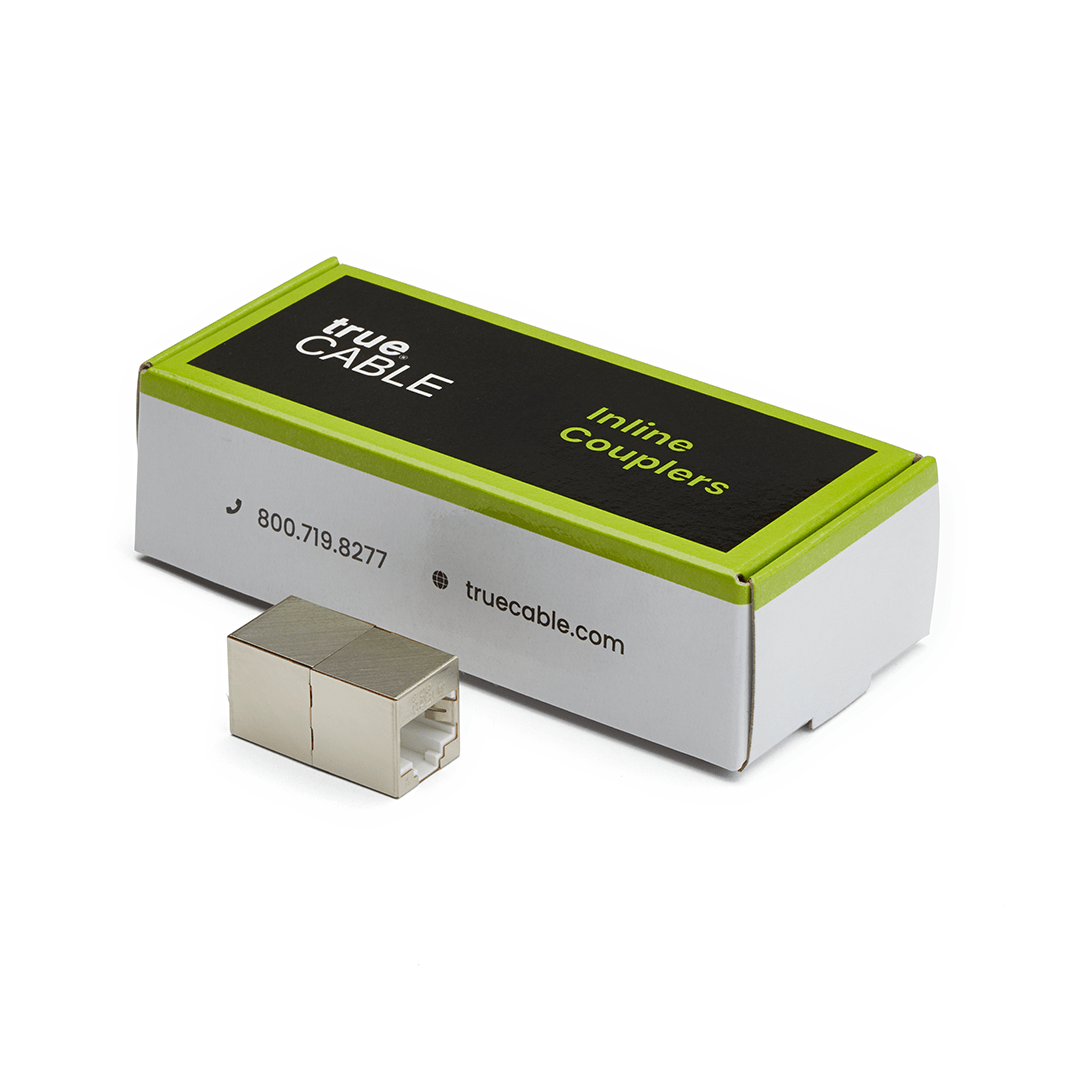

What's in the Box

  • These durable and time saving female to female RJ45 couplers are sure to make your install hassle-free. No tools required.



  • Part Number - 6ESINCPLR_2pc
  • Operating Temp. Range -
  • Max. Operating Voltage -
  • Conductor Insulation Diameter -
  • Overall Diameter (OD) -
  • Weight - 0.1 lbs
  • Length - 2.0 in
  • Width - 1.50 in
  • Height - 1.25 in
