Description

Outdoor Rated Ethernet Cable

Not rated for direct burial.
The OSP jacket is UV resistant designed to withstand sunlight, snow, and ice.
Perfect for above ground applications. Ideal for aerial runs where a messenger wire or other attachment mechanism already exists.

Optimum Performance

Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
Bandwidth tested up to 550 MHz
Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

Compatibility Counts

Terminate with Cat6/6A Shielded Pass Through RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.30mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ Field Tested, Customer Approved

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and comply with ANSI/TIA 568.2-E standards, RoHS-3 compliant. Backed by our FOREVER WARRANTY.

Item Details

Weight	36.26 lb
Length	14.5 in
Width	14.5 in
Height	10 in
Barcode	X002H22V11

Specs & User Guides

Download Spec Sheet

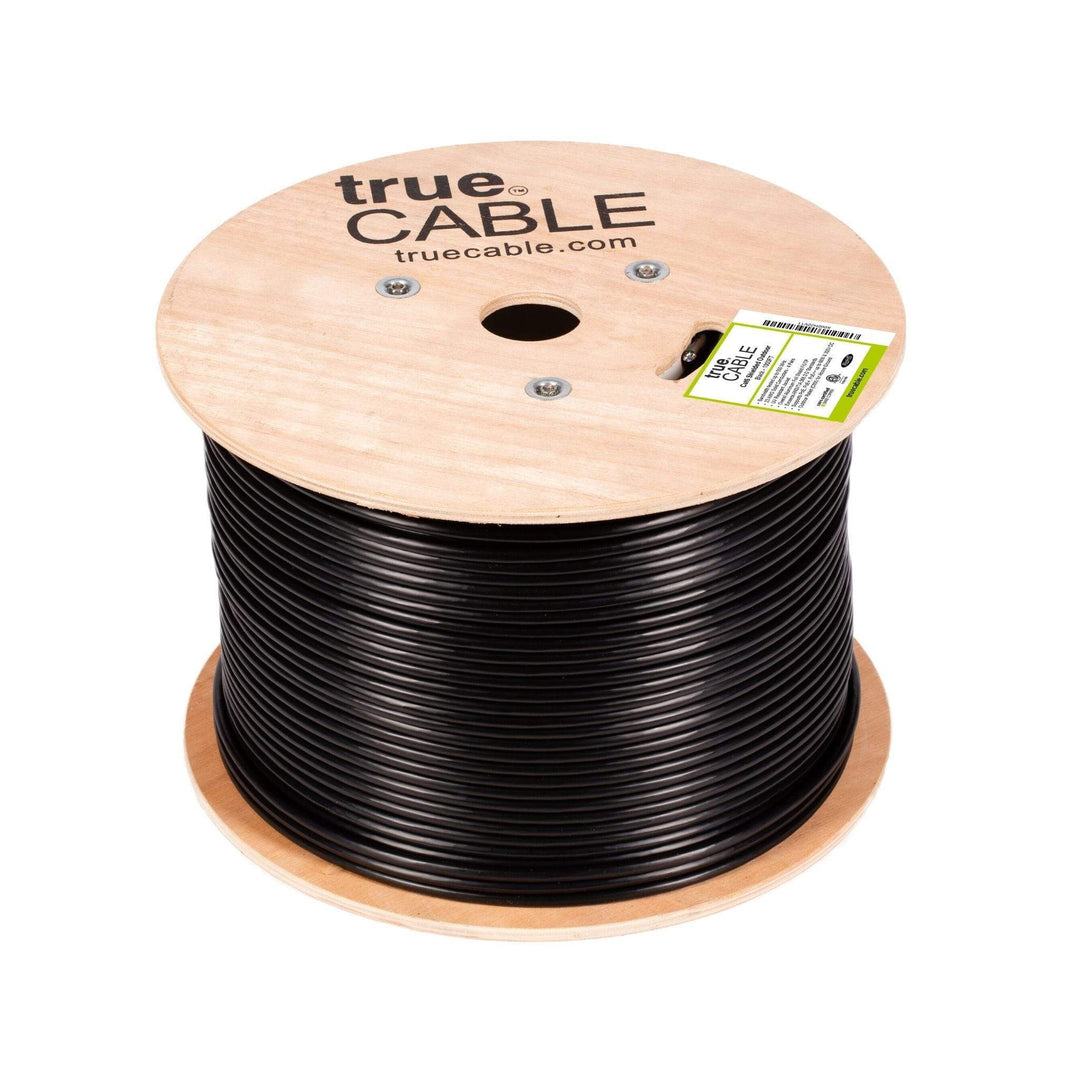

Cat6 Outdoor Ethernet Cable｜Shielded

Part Number - 6ESCMXUVBLK_1Krl

$296.99

23AWG 4-Pair, solid bare copper conductors
Overall aluminum foil shield - F/UTP
Bandwidth tested up to 550 MHz
Supports PoE++ (802.3bt) 4PPoE, up to 100W
RoHS-3 Compliant
NOT rated for direct burial

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$289.57	2.5%
25-49	$282.14	5%
50+	$274.72	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Outdoor Rated Ethernet Cable

Not rated for direct burial.
The OSP jacket is UV resistant designed to withstand sunlight, snow, and ice.
Perfect for above ground applications. Ideal for aerial runs where a messenger wire or other attachment mechanism already exists.

Optimum Performance

Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
Bandwidth tested up to 550 MHz
Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

Compatibility Counts

Terminate with Cat6/6A Shielded Pass Through RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.30mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ Field Tested, Customer Approved

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and comply with ANSI/TIA 568.2-E standards, RoHS-3 compliant. Backed by our FOREVER WARRANTY.

Specifications

Weight	36.26 lb
Length	14.5 in
Width	14.5 in
Height	10 in
Barcode	X002H22V11

Downloads

Download Spec Sheet

Frequently Asked Questions

What kind of shielding does this Cat6 outdoor shielded Ethernet cable feature?

This cable features an overall aluminum foil shield (F/UTP), providing excellent protection against electromagnetic interference (EMI) and radio-frequency interference (RFI).

What types of bulk Ethernet cables are available from trueCABLE?

We offer high-quality bulk Ethernet cables in Cat5e, Cat6, and Cat6A, all manufactured with solid bare copper conductors for optimal performance.

Is this cable compliant with RoHS-3 regulations?

Yes, this cable is RoHS-3 Compliant, ensuring it meets the requirements for Restriction of Hazardous Substances in electrical and electronic equipment.

Can I use this cable for direct burial installations?

No, this cable is NOT rated for direct burial, so please consider using it in a manner that avoids burial or other harsh environmental conditions.
