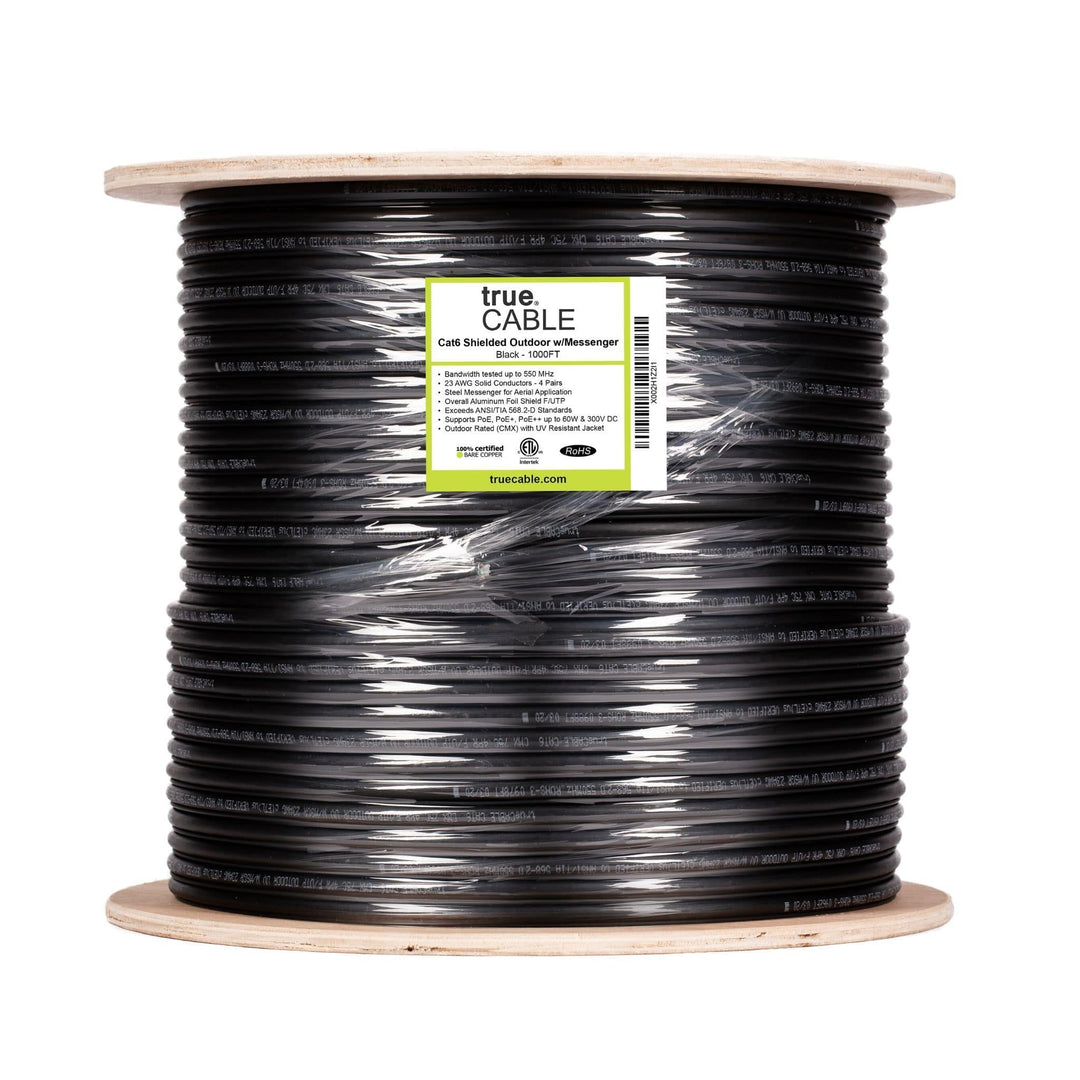

Cat6 Outdoor Ethernet Cable W/Messenger|Shielded

Part Number - 6ESCMXMSBLK_1Krl

Features

  • 23AWG 4-Pair, solid bare copper conductors
  • 16AWG Steel Messenger
  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 550 MHz
  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • cETLus Certified, RoHS-3 Compliant
  • NOT rated for direct burial

Struggling to find the best Ethernet cable for your install?

Look no further than our Ethernet Cable Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $251.54 2.5%
25-49 $245.09 5%
50+ $238.64 7.5%
$257.99 257.99
-Liquid error (sections/product-template line 309): Computation results in '-Infinity'%
Color
Length
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Outdoor Rated Ethernet Cable
  • NOT rated for direct burial.
  • The CMX jacket is UV resistant designed to withstand sunlight, snow, and ice.
  • Built-in steel messenger makes this cable ideal for aerial applications.

Optimum Performance

  • Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
  • Bandwidth tested up to 550 MHz
  • Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

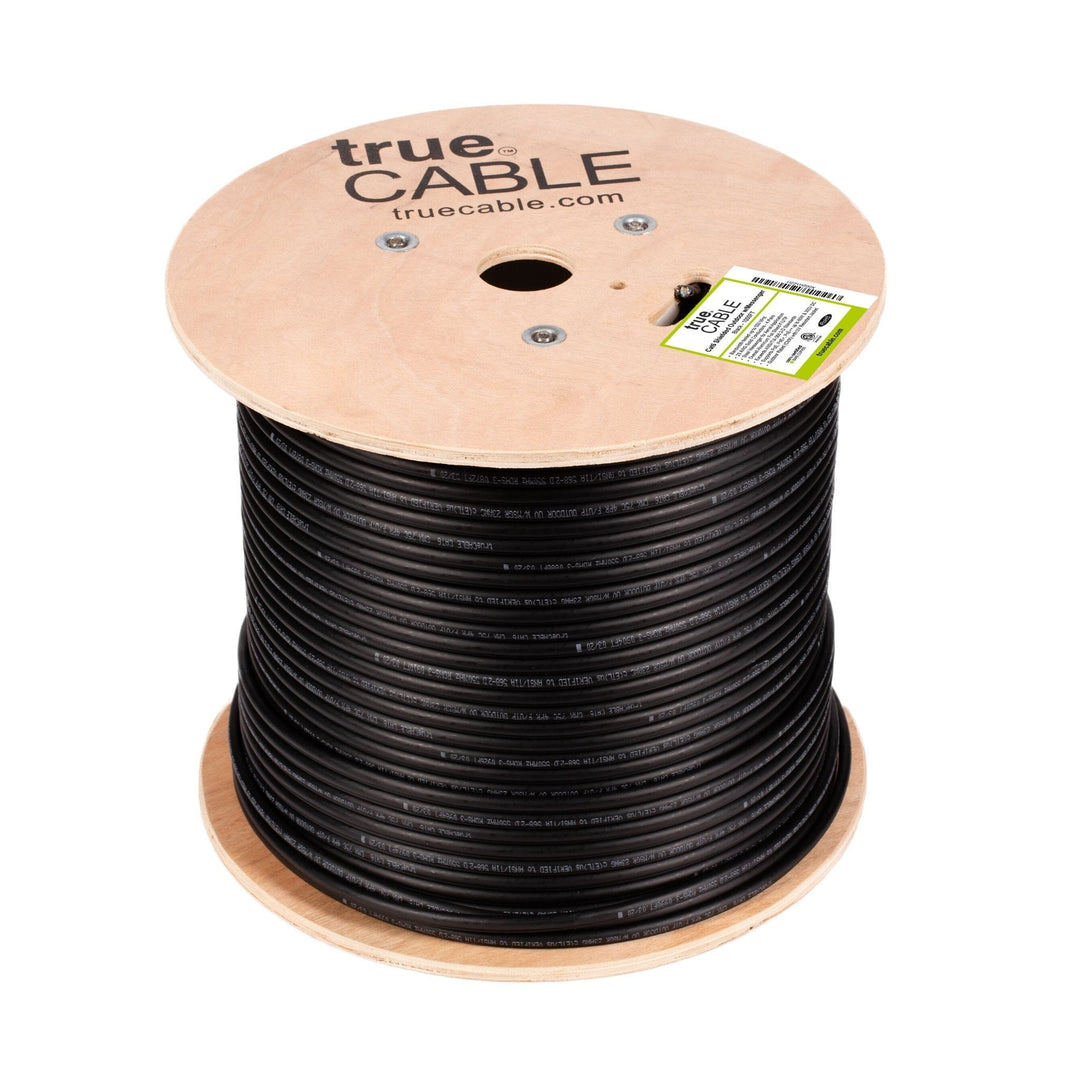

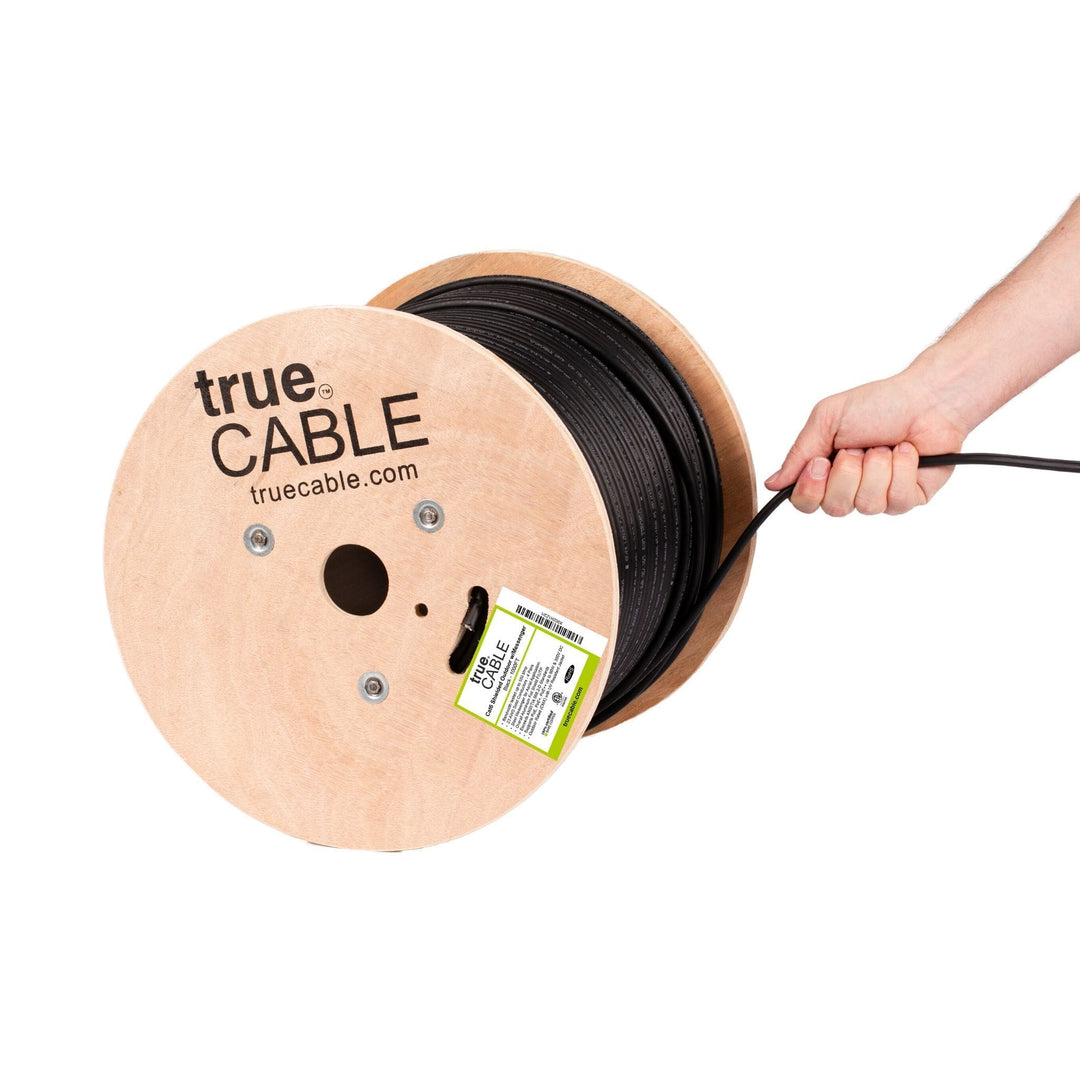

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
  • Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

    Compatibility Counts

    • Terminate with shielded Cat6 RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.40mm.

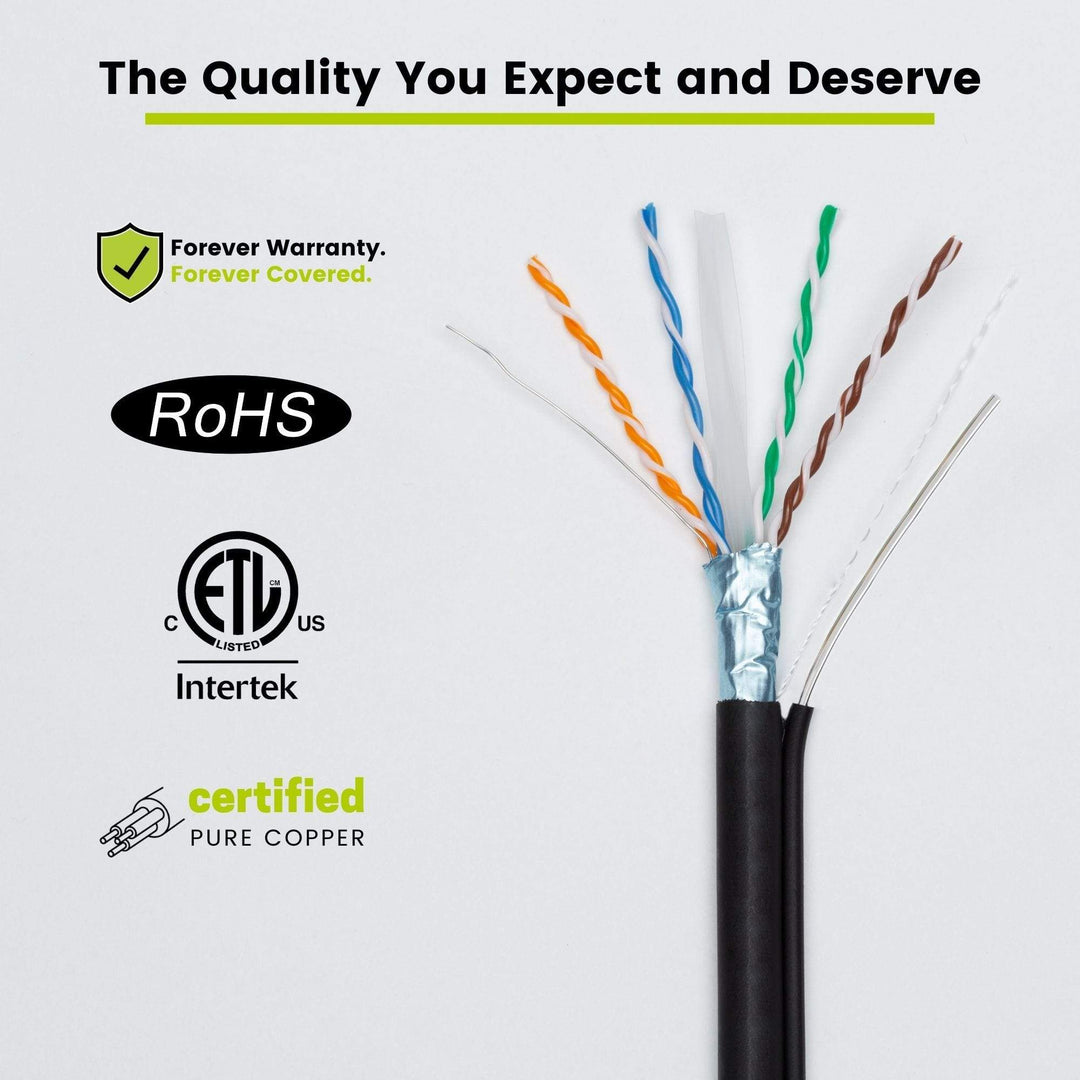

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
    Weight 48.0 lbs
    Length 14.6 in
    Width 14.6 in
    Height 12.6 in
    Barcode X002H1Z2I1
