Cat6A Direct Burial Ethernet Cable｜Shielded

1/4

Description

Capable of withstanding harsh environments while providing an efficient and effective connection to your network, our direct burial shielded Cat6A cables have been well-loved members of our inventory for a multitude of reasons.

Outdoor Rated Ethernet Cable

The OSP jacket is designed to withstand sunlight, dirt, snow, and moisture.
Suitable for direct burial with or without conduit.
Water blocking tape provides ultimate moisture protection for outdoor use.

Optimum Performance

Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds up to 328 feet depending on the installation environment.
Bandwidth tested up to 750 MHz.
Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

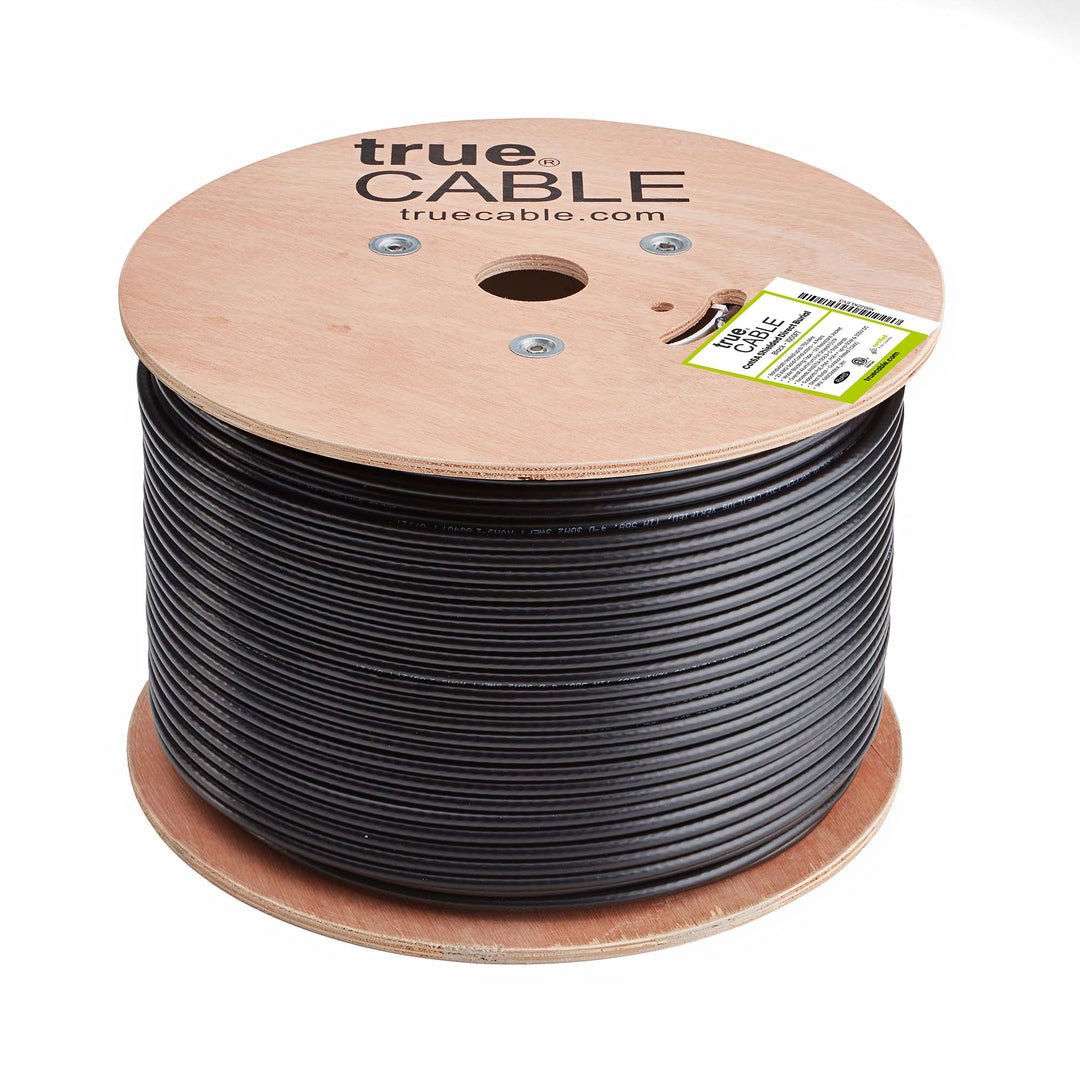

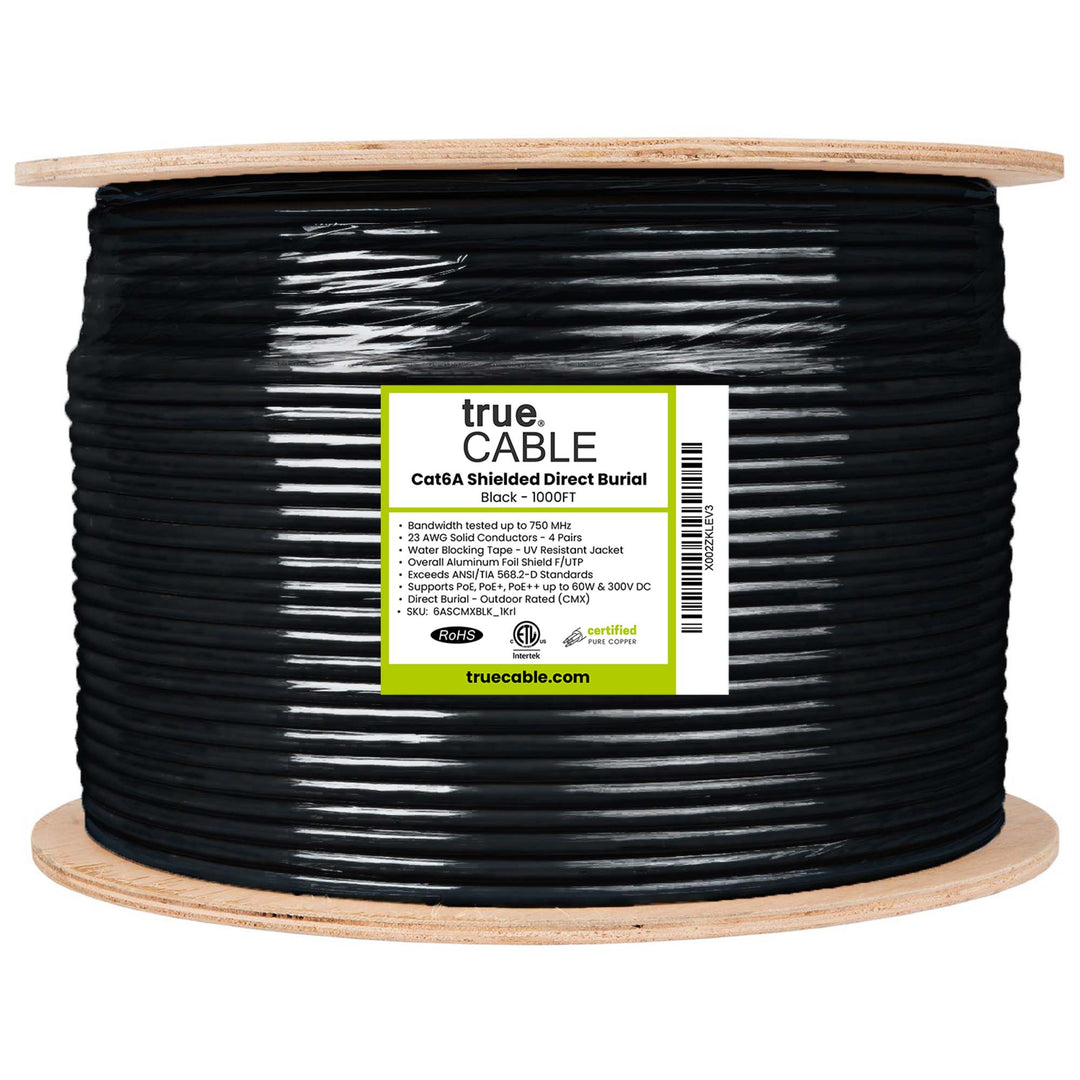

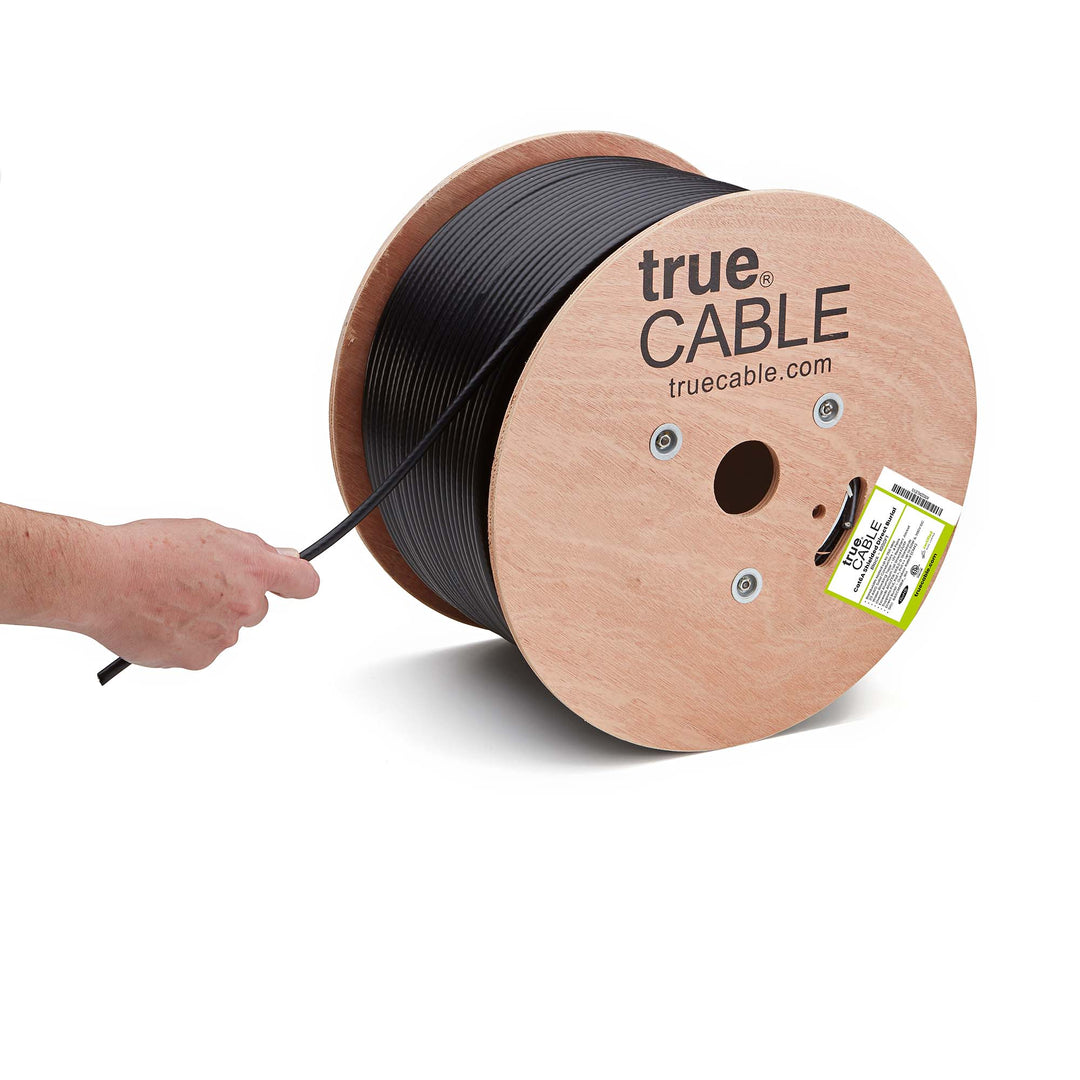

Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.

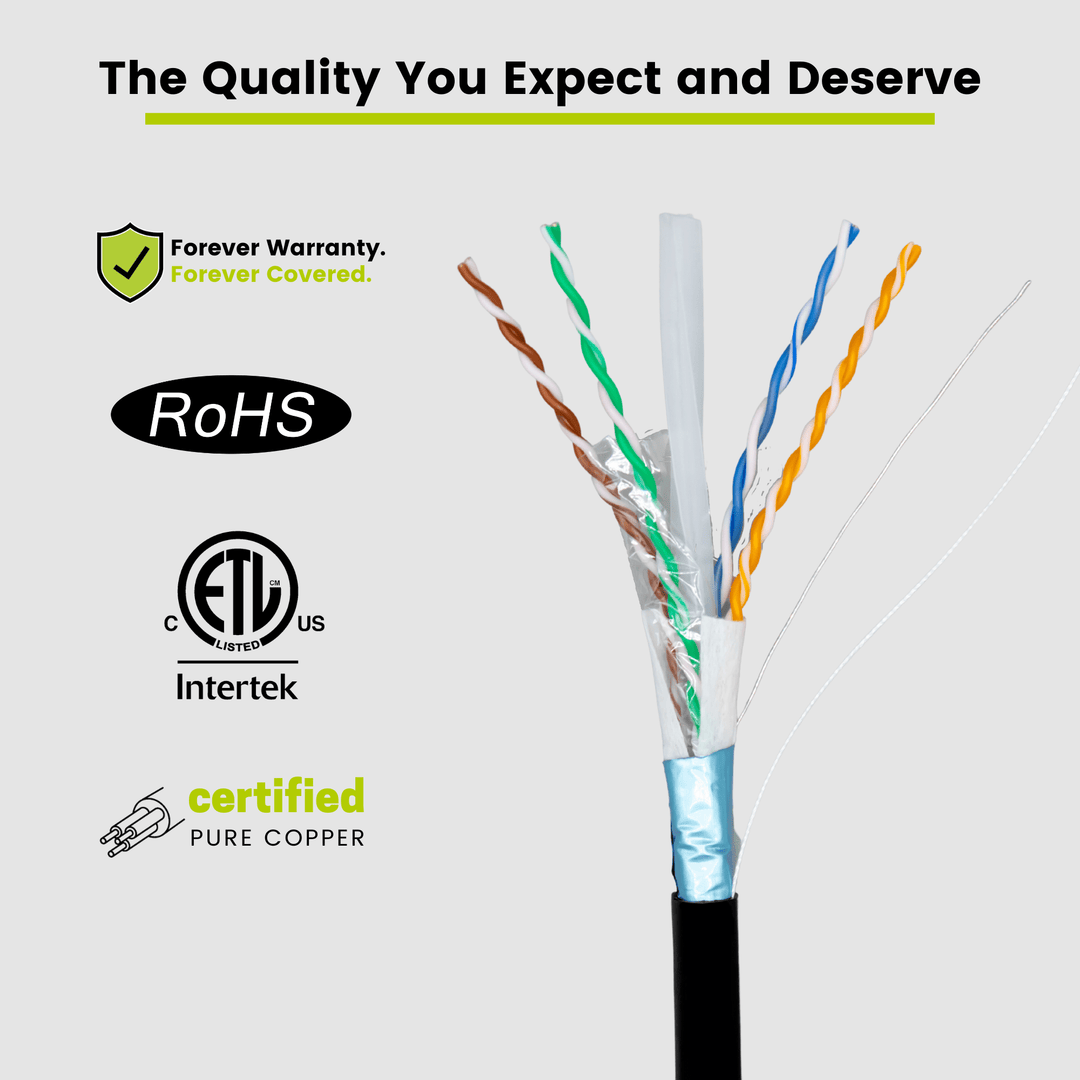

Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

Compatibility Counts

Terminate with our shielded Cat6/6A RJ45 connectors or RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.14mm and an overall cable jacket diameter of 7.60mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-E standards, RoHS-3 compliant.

If you have any questions or concerns regarding our Ethernet cables, then don’t hesitate to reach out to us. We’d be more than happy to help, and we want nothing more than to help you acquire the perfect match for you and your systems.

Item Details

Weight	21.14 lb
Length	11.00 in
Width	11.00 in
Height	11.00 in
Barcode	X002ZKLEVN

Specs & User Guides

Download Spec Sheet

Cat6A Direct Burial Ethernet Cable｜Shielded

Part Number - 6ASCMXBLK_500rl

$249.99

23AWG 4-Pair, solid bare copper conductors
Overall aluminum foil shield - F/UTP
Bandwidth tested up to 750 MHz
Supports PoE++ (802.3bt) 4PPoE, up to 100W
RoHS-3 & ANSI/TIA 568.2-E compliant

Color: Black

Length: 1000ft 500ft

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$243.74	2.5%
25-49	$237.49	5%
50+	$231.24	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Outdoor Rated Ethernet Cable

The OSP jacket is designed to withstand sunlight, dirt, snow, and moisture.
Suitable for direct burial with or without conduit.
Water blocking tape provides ultimate moisture protection for outdoor use.

Optimum Performance

Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds up to 328 feet depending on the installation environment.
Bandwidth tested up to 750 MHz.
Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

Compatibility Counts

Terminate with our shielded Cat6/6A RJ45 connectors or RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.14mm and an overall cable jacket diameter of 7.60mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-E standards, RoHS-3 compliant.

Specifications

Weight	21.14 lb
Length	11.00 in
Width	11.00 in
Height	11.00 in
Barcode	X002ZKLEVN

Downloads

Download Spec Sheet

Frequently Asked Questions

Is this Cat6A direct burial shielded cable suitable for outdoor use?

Yes. Our Cat6A shielded direct burial cable has an outer LLDPE (Linear Low-Density Polyethylene) cable jacket and dry water blocking tape inside the cablet making it suitable for direct burial without conduit.

Can I use this cable for PoE++ (802.3bt) applications that require up to 100W of power?

This cable supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) standards and can handle 4PPoE up to 100W DC, making it suitable for powering devices with high power requirements.

Is this cable suitable for indoor use as well as outdoor direct burial applications?

No. This cable is designed for outdoor and direct burial use only. That said, you may bring it from outside into your structure up to 50 feet before it must be terminated or transitioned to an appropriate indoor cable type.

What is the bandwidth capability of this Cat6A shielded Ethernet cable?

Our Cat6A shielded direct burial Ethernet cable has been quality tested (in laboratory conditions) to 750 MHz, ensuring stable ANSI/TIA required Cat6A 500 MHz operating bandwidth under all in-field conditions.

Are there any certifications or compliance standards that this product meets?

This product has been tested for IEEE 802.3, ANSI/TIA 568.2, and RoHS-3 Compliance, ensuring it meets rigorous standards for performance and environmental responsibility.

What types of Ethernet cables does trueCABLE offer in bulk quantities?

We offer Cat5e, Cat6, and Cat6A bulk Ethernet cables for your convenience. Each cable type has its own set of specifications and benefits.

How do I choose the right category (Cat5e/Cat6/Cat6A) for my project or installation?

When deciding upon the right Ethernet cable for your application consider current and future Category speed needs, fire rating, installation environment, and the distances you need to run. A helpful selection tool can be found at https://www.truecable.com/pages/guided-selling

What type of conductors does this Cat6A shielded direct burial Ethernet cable use?

This cable makes use eight 23 AWG solid pure copper conductors twisted into 4 color coded conductor circuits.
