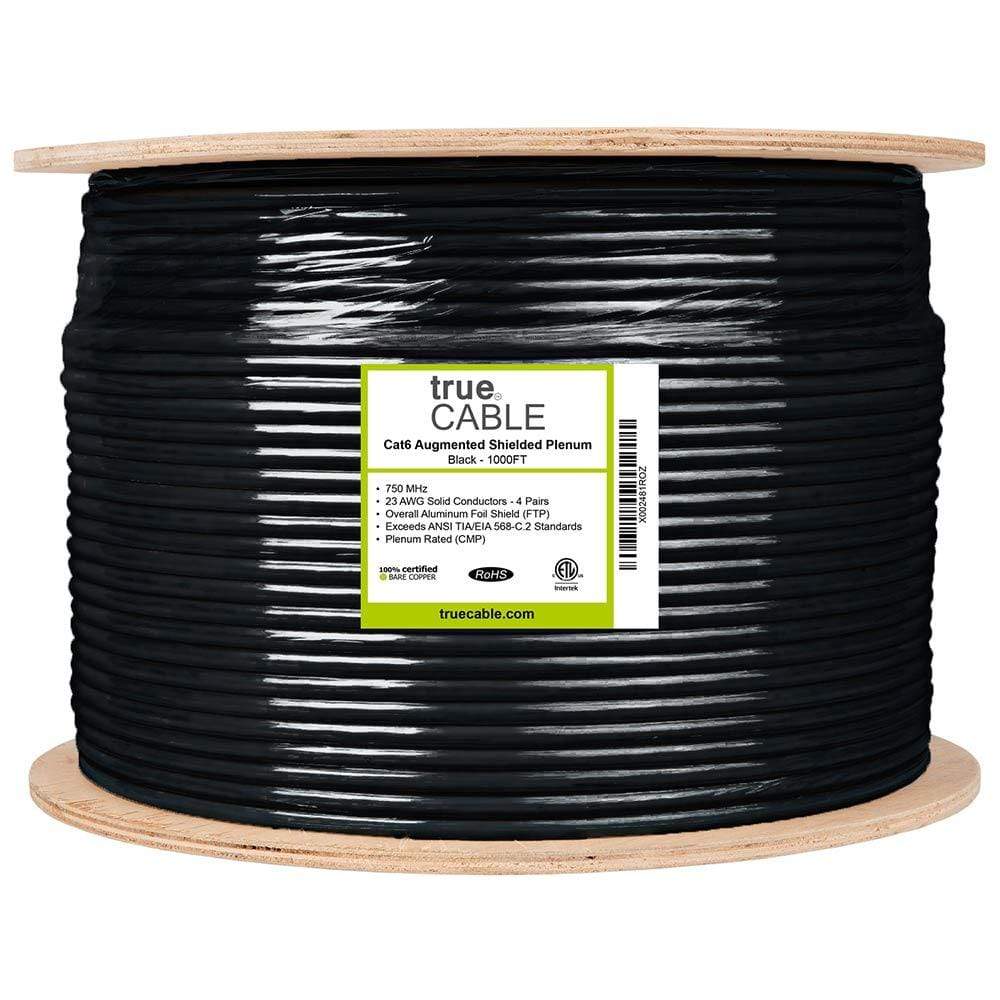

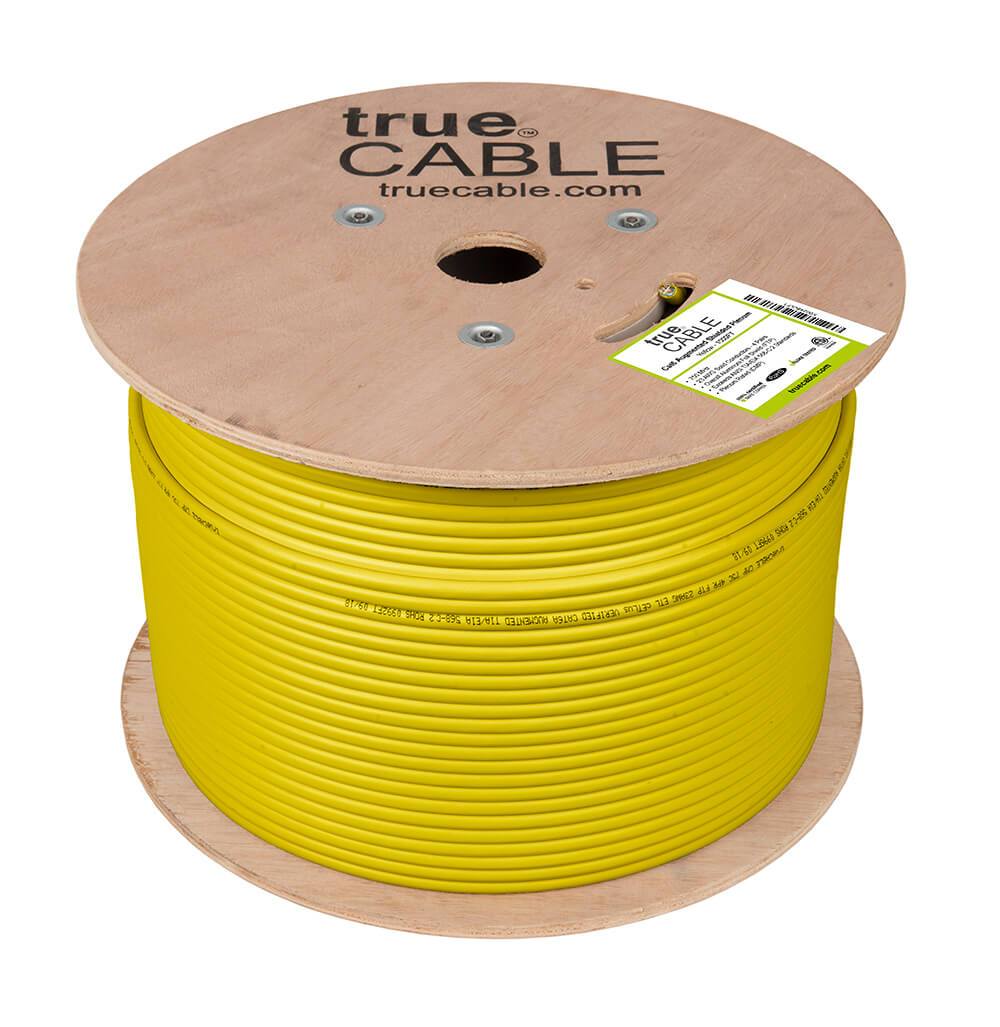

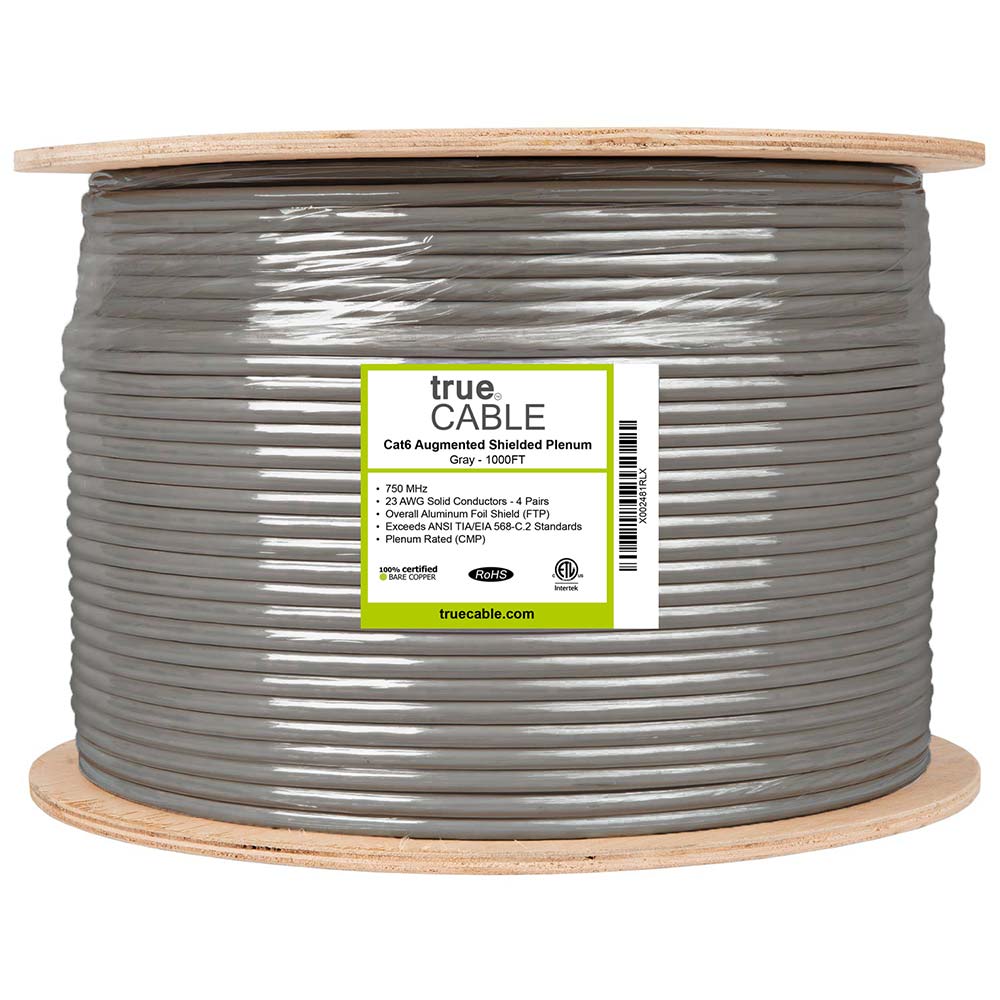

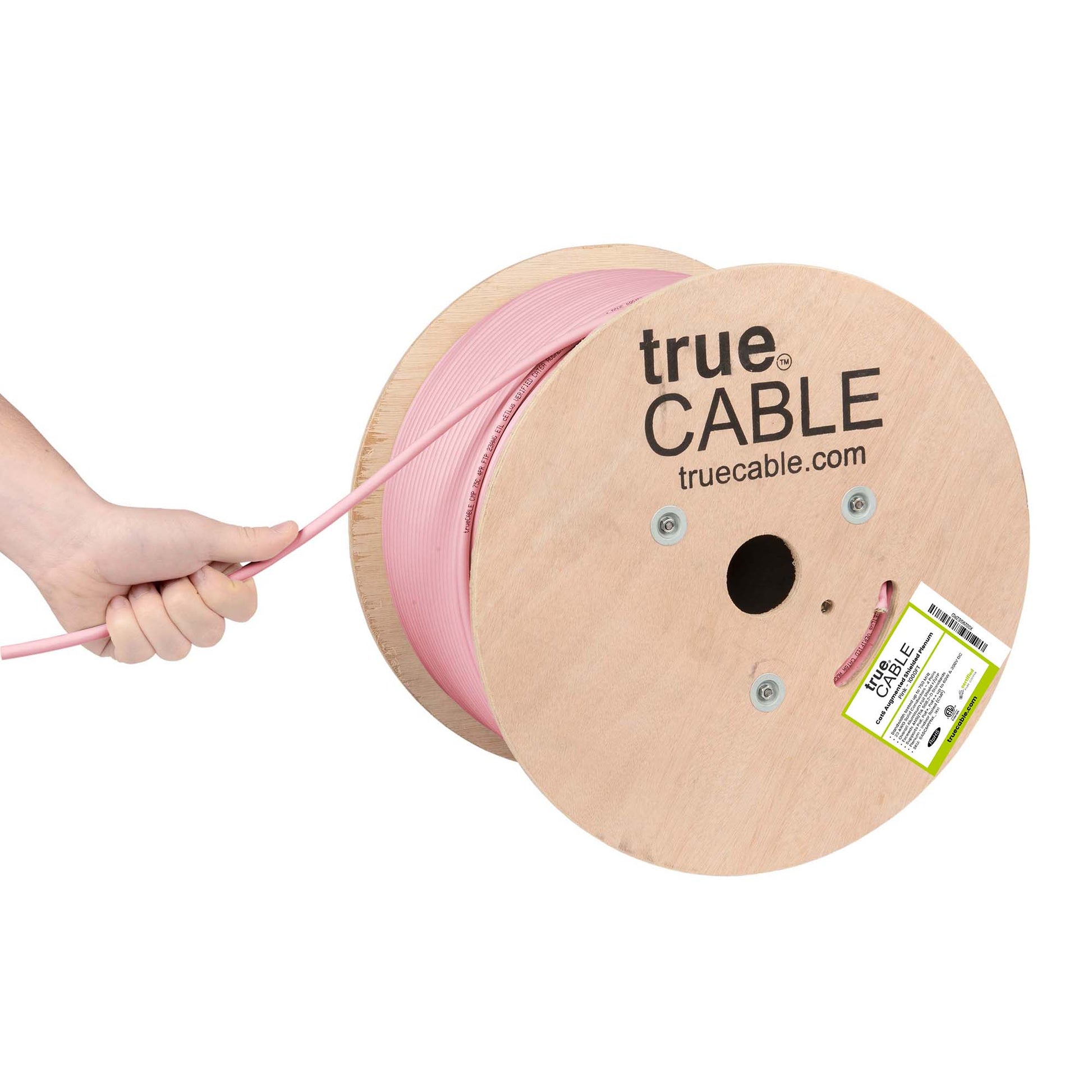

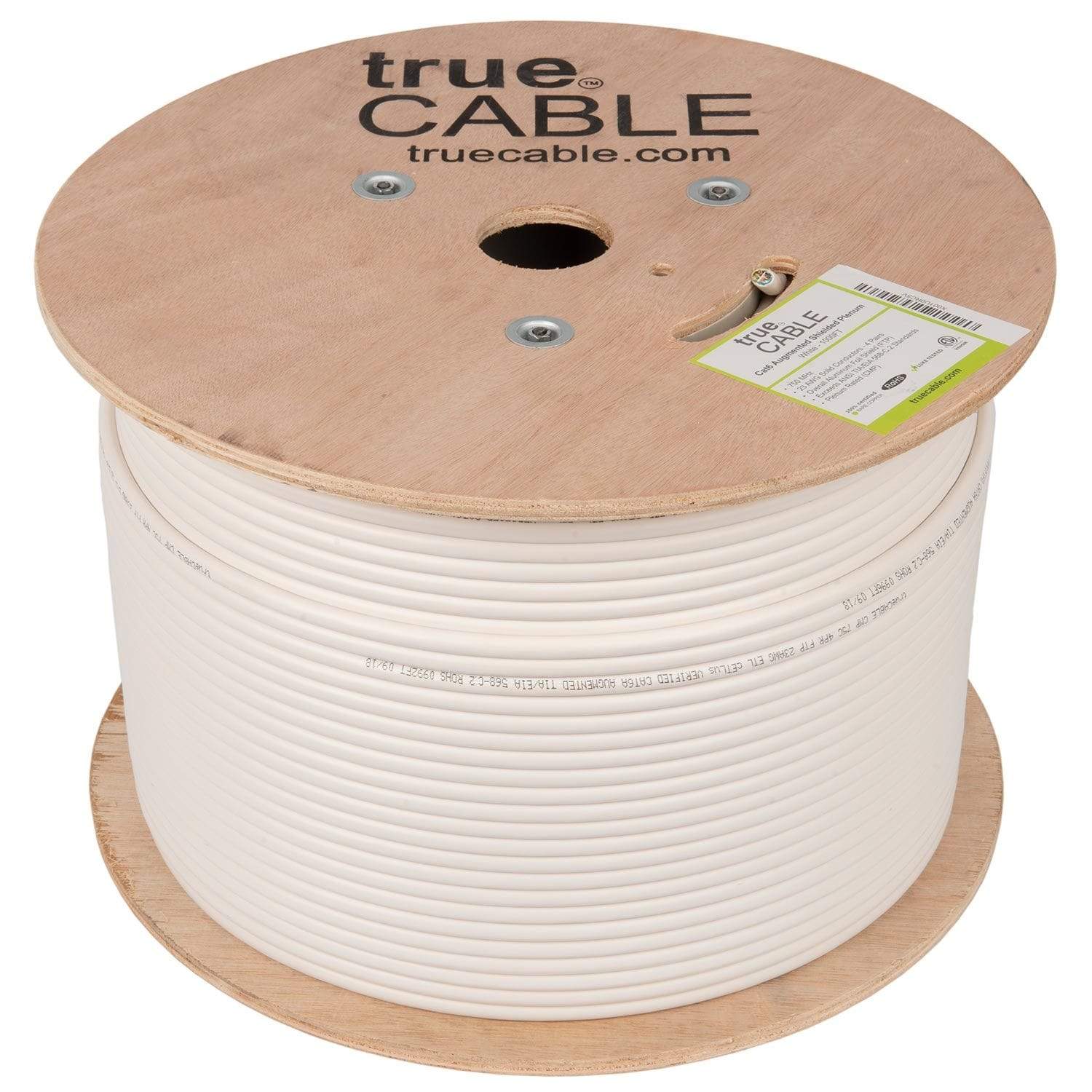

Cat6A Shielded Plenum Ethernet Cable Black 1000ft Reel Spool

1/4

Description

Extreme Performance

Our Shielded Cat6A plenum Ethernet cable supports 1 and 10 Gigabit speeds up to 328 feet, depending on the installation environment. Bandwidth tested up to 750MHz. Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Quality Guaranteed

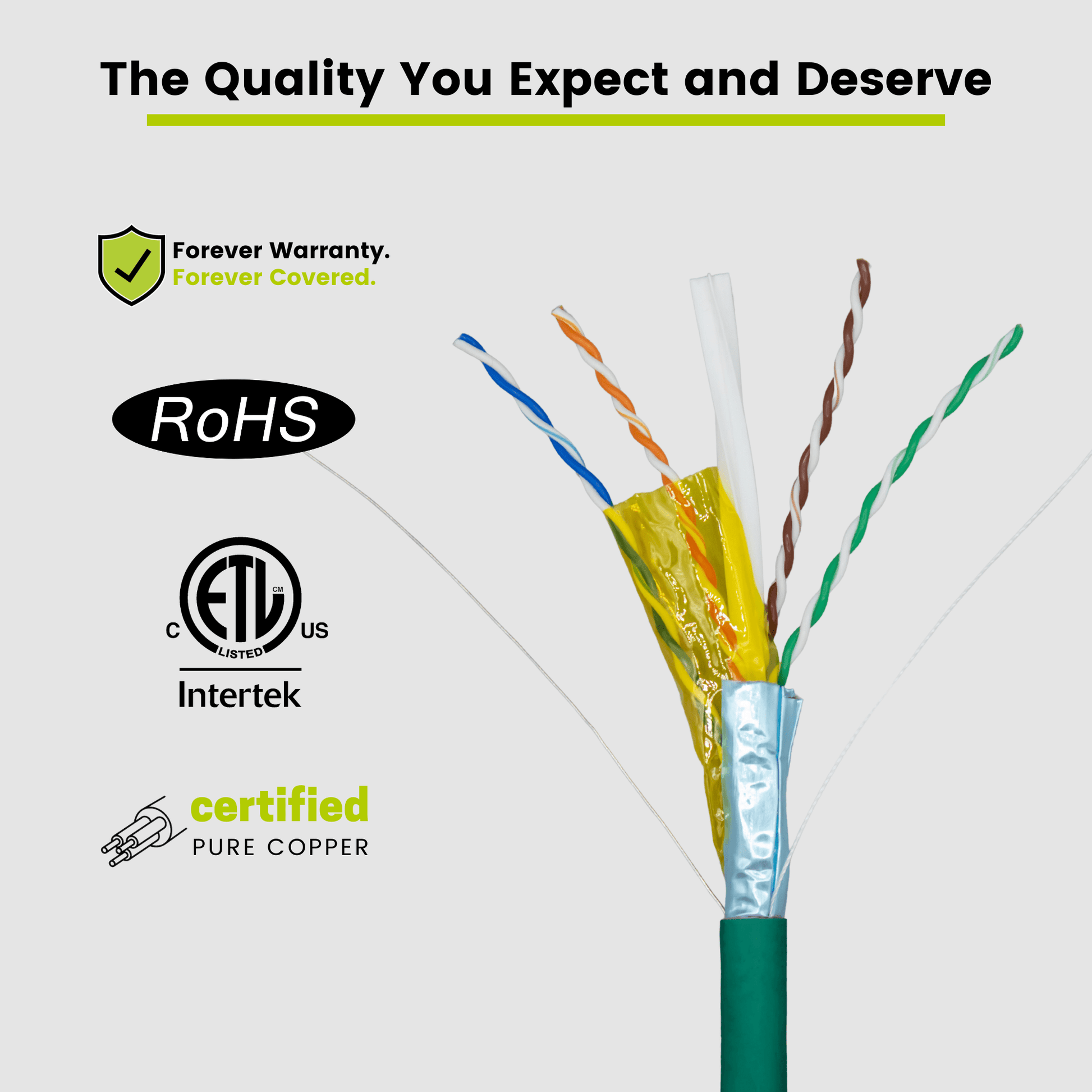

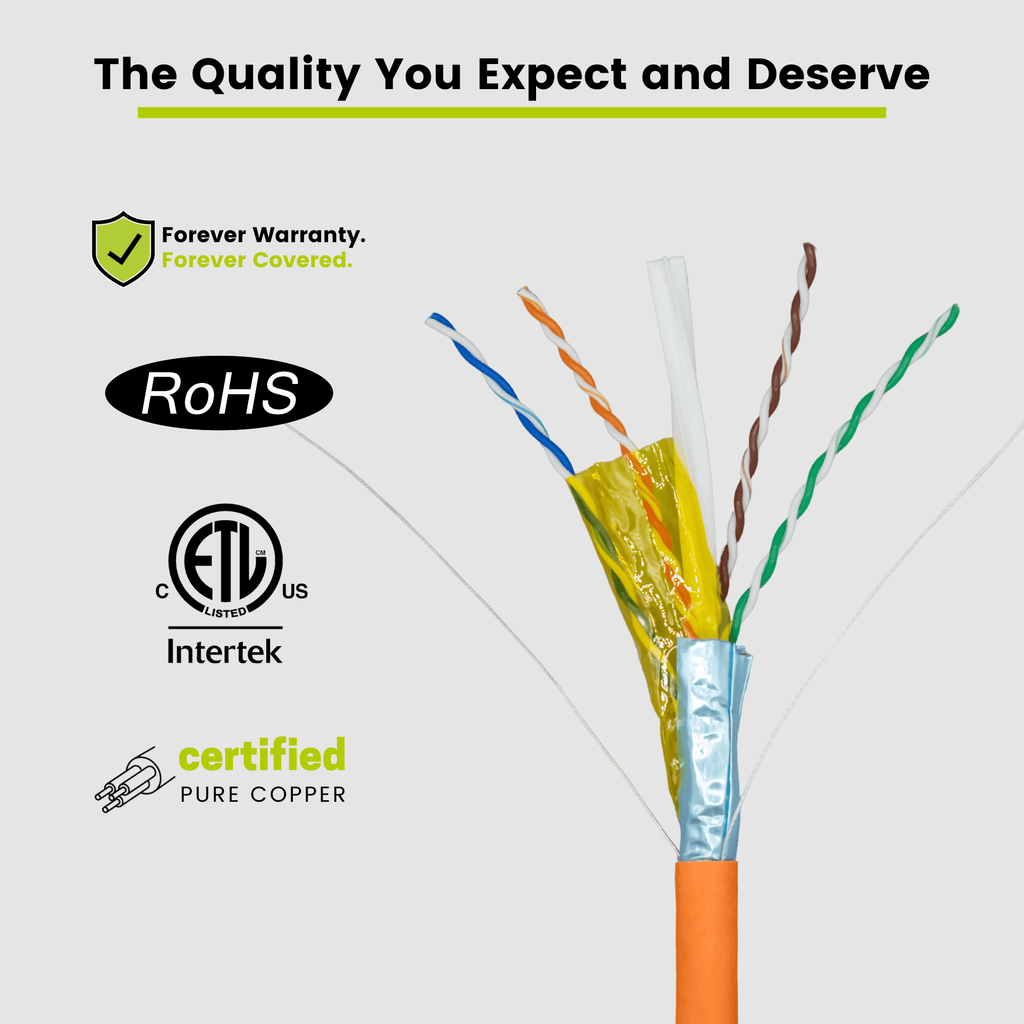

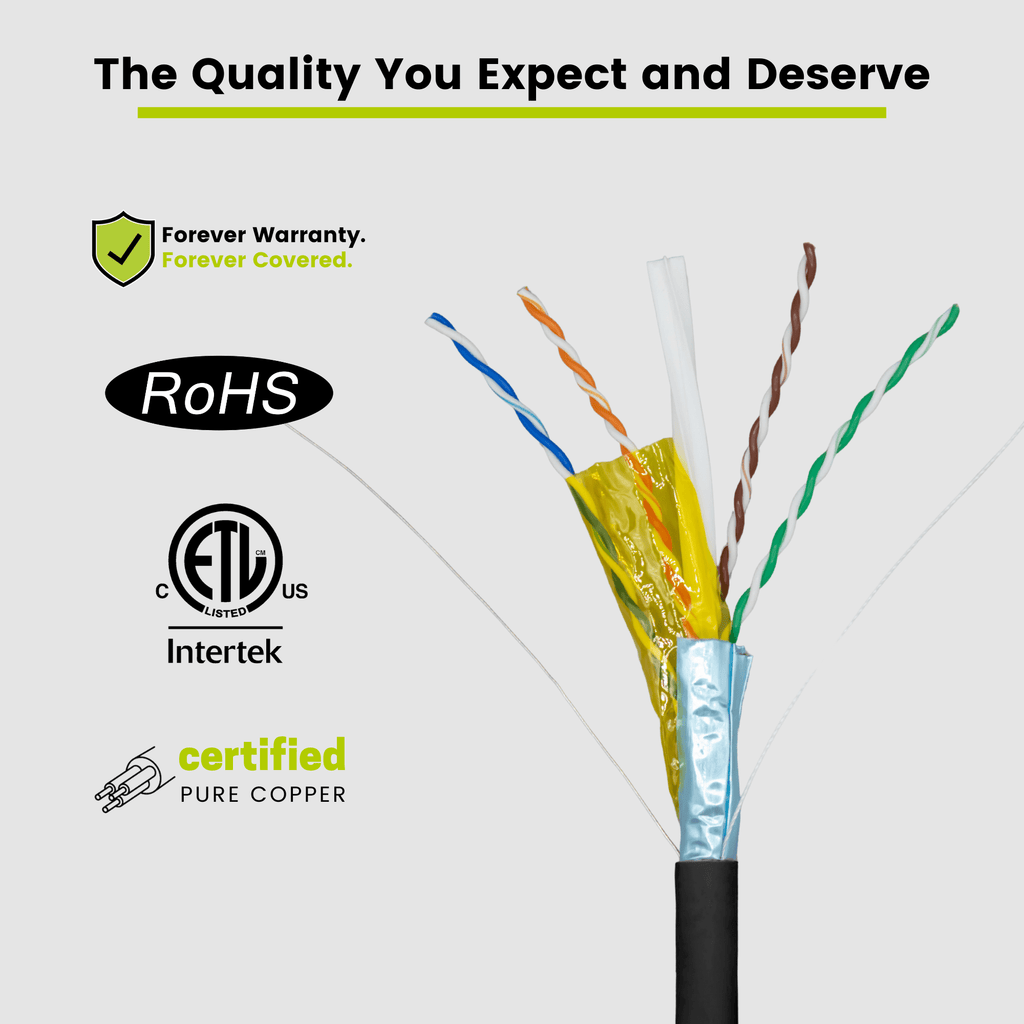

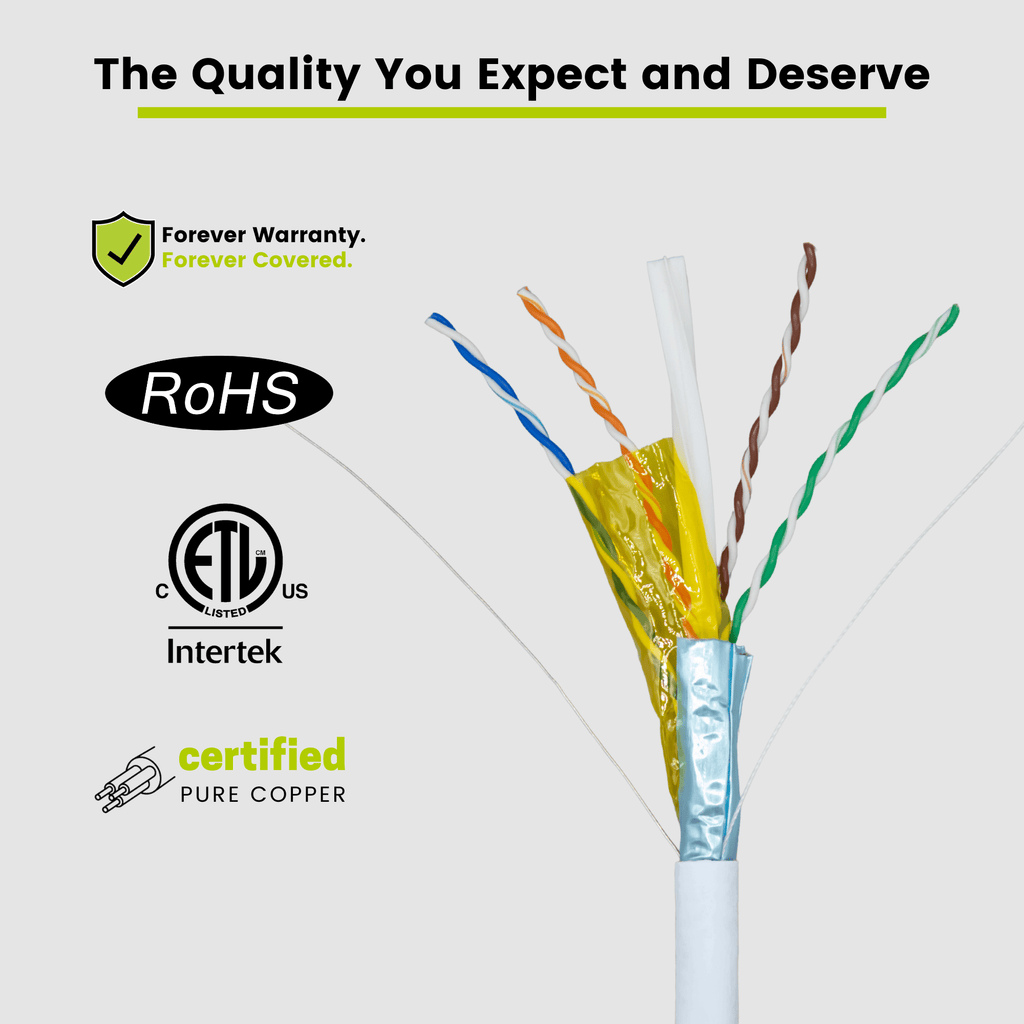

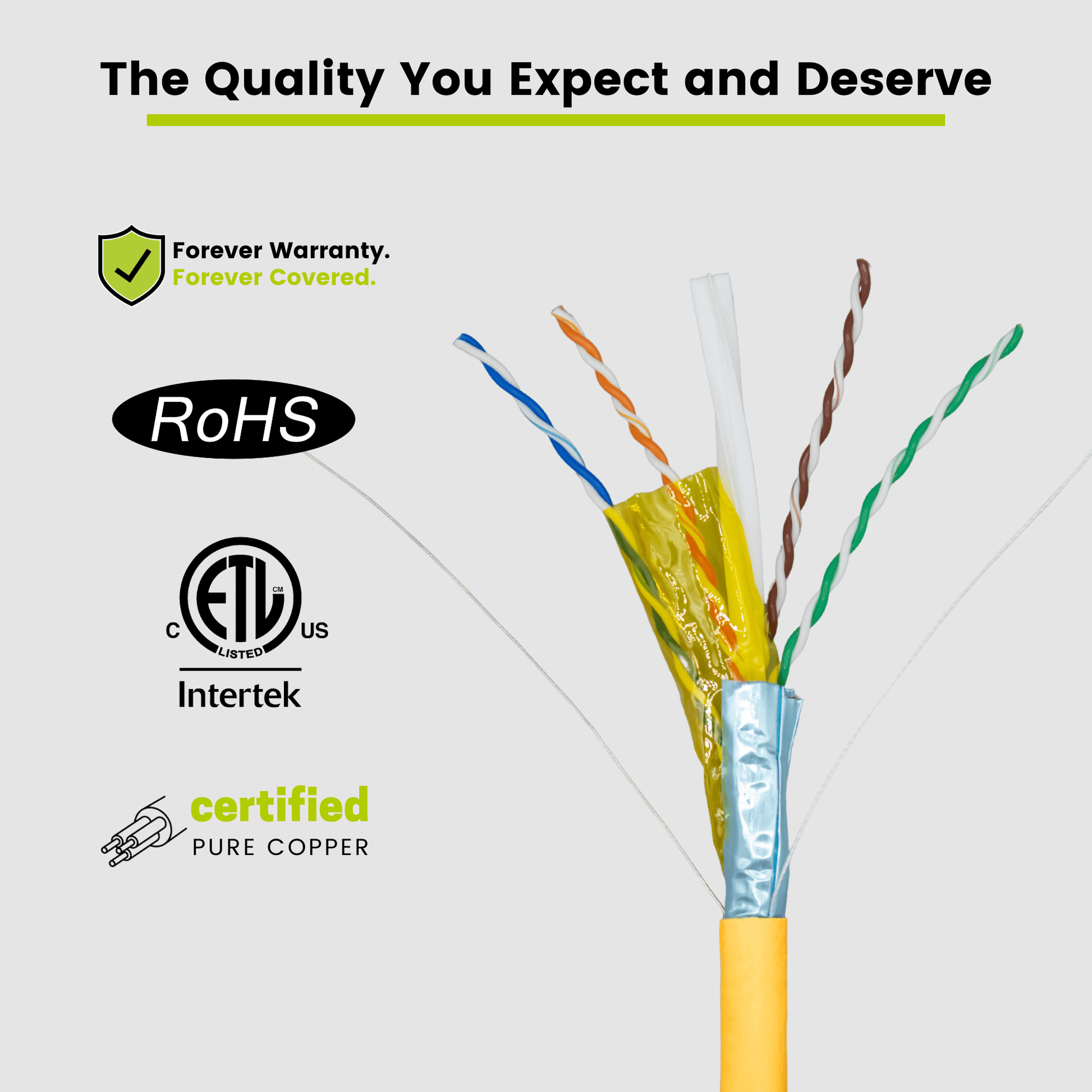

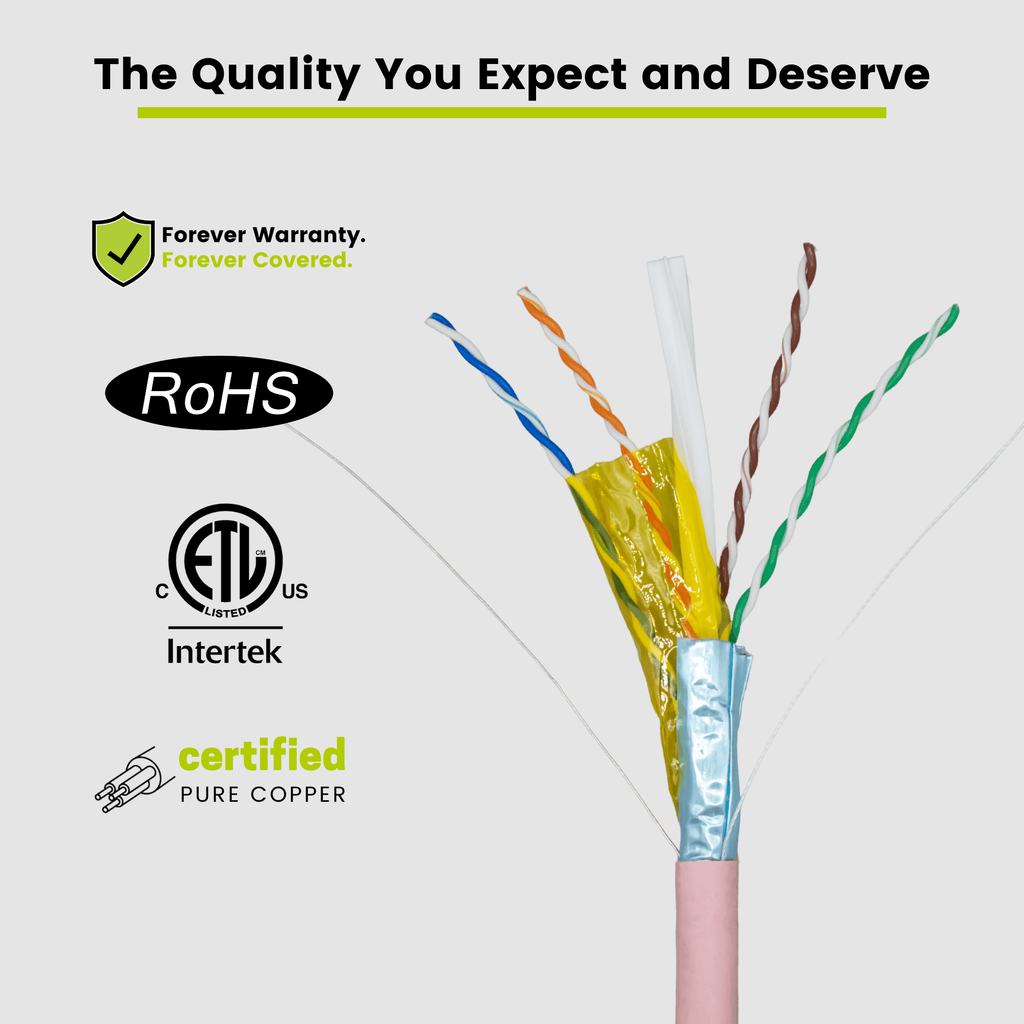

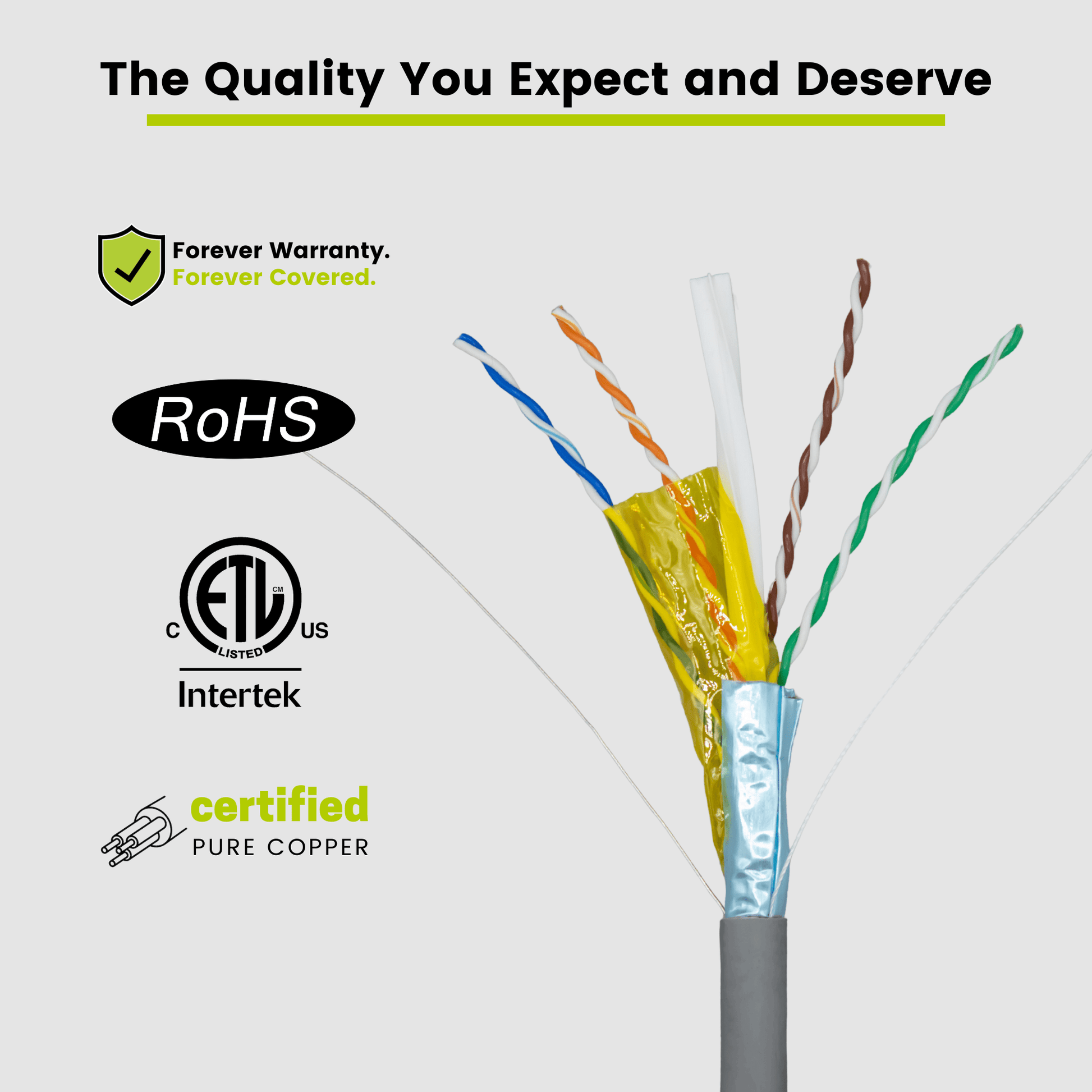

The fire-rated CMP jacket is engineered for use in air plenum spaces above suspended ceilings or below raised floors, offering a high degree of flame resistance and low toxicity smoke. Features 23AWG solid bare copper conductors, delivering superior signal integrity, conductivity, and longevity. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference (EMI).

Versatile

A great option for residential, commercial, and data center installations requiring fast, stable network connectivity and reliable PoE. We advise terminating with shielded Cat6A RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.40mm.

Easy to Use

Comes with sequential footage markings every 2 feet so you’ll always know how much cable remains. The Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal, making installation efficient and frustration-free.

✓ Field Tested, Customer Approved

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-E standards, UL listed, RoHS-3 compliant, and cETLus certified. Backed by our FOREVER WARRANTY.

Item Details

Weight	47.0 lb
Length	14.5 in
Width	14.5 in
Height	10 in
Barcode	X002481ROZ

Specs & User Guides

Download Spec Sheet

Cat6A Plenum Ethernet Cable｜Shielded

Part Number - 6ASCMPBLK_1Krl

$631.99

23AWG 4-Pair, solid bare copper conductors
Overall aluminum foil shield - F/UTP
Bandwidth tested up to 750 MHz & 1G/10G Ethernet up to 328 ft
PoE/PoE+/PoE++ (IEEE 802.3af/at/bt), 4PPoE up to 100W
cETLus Certified, RoHS-3 & ANSI/TIA 568.2-E compliant

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$616.19	2.5%
25-49	$600.39	5%
50+	$584.59	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Extreme Performance

Quality Guaranteed

Versatile

Easy to Use

✓ Field Tested, Customer Approved

Specifications

Weight	47.0 lb
Length	14.5 in
Width	14.5 in
Height	10 in
Barcode	X002481ROZ

Downloads

Download Spec Sheet

Frequently Asked Questions

Can I use this Cat6A Plenum Shielded cable for outdoor installations?

No. This cable is designed for indoor applications only.

What is the difference between Cat6 and Cat6A Ethernet cables?

The main difference between Cat6 and Cat6A cables is their bandwidth and distance limitations. Cat6A cables can support higher speeds (up to 10 Gbps) over longer distances (up to 328 ft), making them ideal for high-bandwidth applications such as 10GBASE-T.

What type of shielding does this cable have?

This cable features an overall aluminum foil shield (F/UTP) with ESD drain wire for excellent electromagnetic interference (EMI) protection.

Is this cable certified for use in plenum spaces?

Yes, it is tested and cETLus Listed as CMP (plenum rated) making it suitable for installation in plenum spaces.

What are the PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) capabilities of this cable?

This cable supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) standards and can handle 4PPoE up to 100W DC, making it suitable for powering devices with high power requirements.

How long is a typical spool or roll of this bulk Ethernet cable?

trueCABLE Cat6A indoor Ethernet cables are available in 1,000 foot (305 meter) spools only.

Can I use this cable with my existing network equipment and patch panels?

All trueCABLE Ethernet cable meets or exceeds IEEE 802.3 and ANSI/TIA 568 standards, ensuring compatibility with most modern networking equipment, including switches and patch panels.

What is the warranty or guarantee offered by trueCABLE for this product?

All trueCABLE products are covered by our Forever Warranty.
