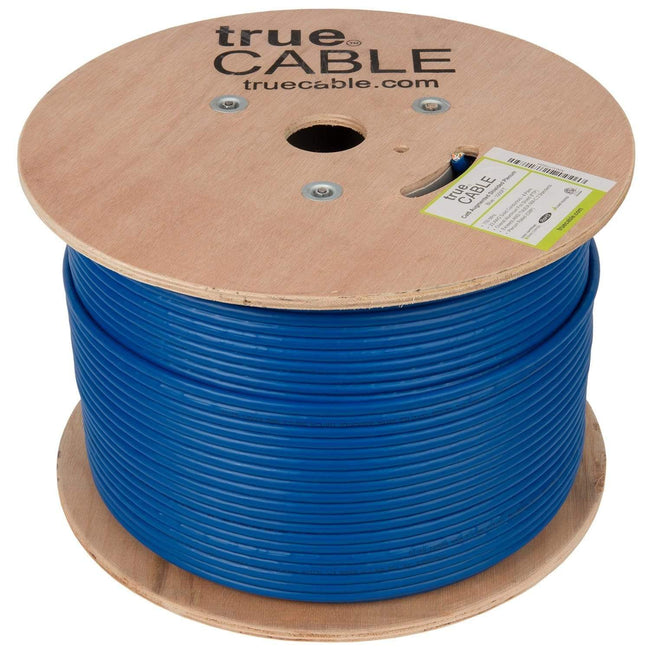

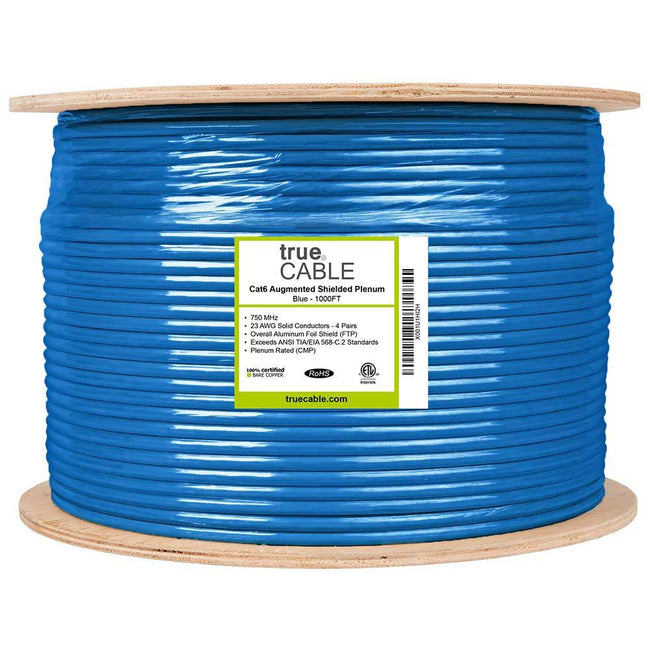

Cat6A Plenum Ethernet Cable|Shielded

Part Number - 6ASCMPBLU_1Krl

Features

  • 23AWG 4-Pair, solid bare copper conductors
  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 750 MHz
  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • cETLus Certified, RoHS-3 Compliant

Struggling to find the best Ethernet cable for your install?

Look no further than our Ethernet Cable Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $515.77 2.5%
25-49 $502.54 5%
50+ $489.32 7.5%
$528.99 528.99
-Liquid error (sections/product-template line 325): Computation results in '-Infinity'%
Color
Length
Quantity
Qty:
Saves you 2.5/span>%
Add 9 more for 2.5% discount

Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Plenum Rated Ethernet Cable
  • The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

Ultimate Performance

  • Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds up to 328 feet.
  • Bandwidth tested up to 750 MHz.

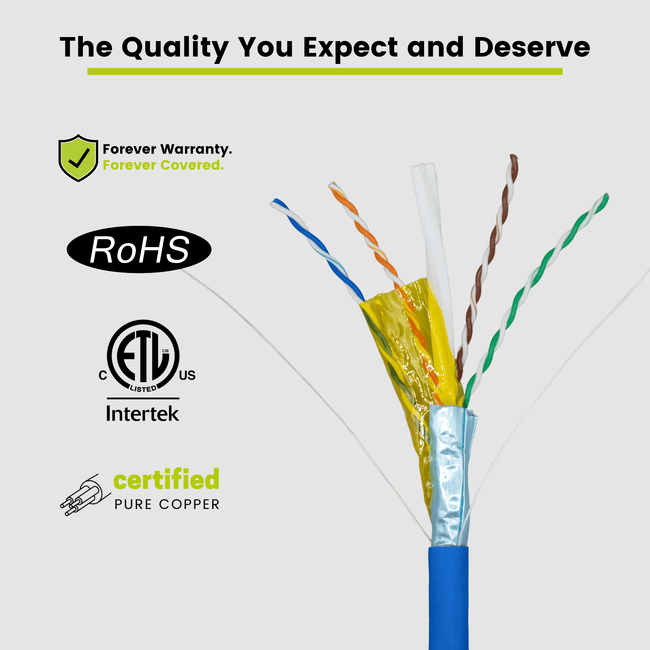

  • Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

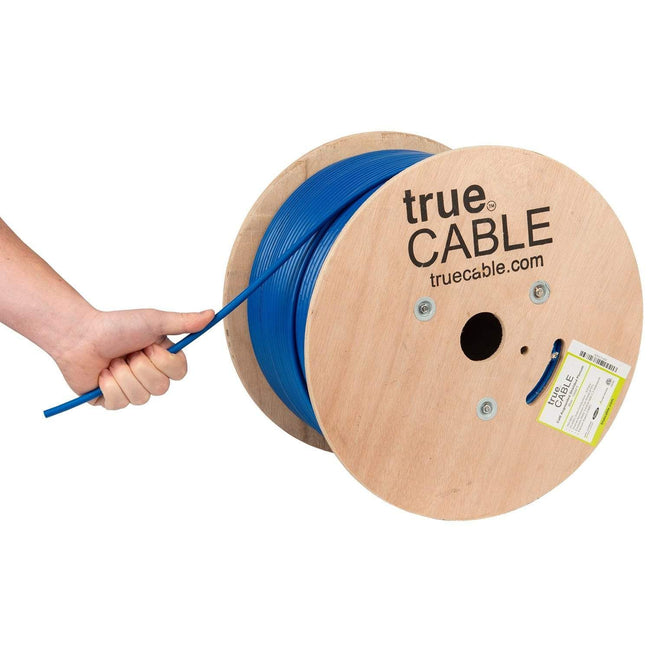

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
  • Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

    Compatibility Counts

    • Terminate with shielded Cat6A RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.40mm.

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
    Weight 44.5 lbs
    Length 14.5 in
    Width 14.5 in
    Height 9.75 in
    Barcode X001U1HI2H
