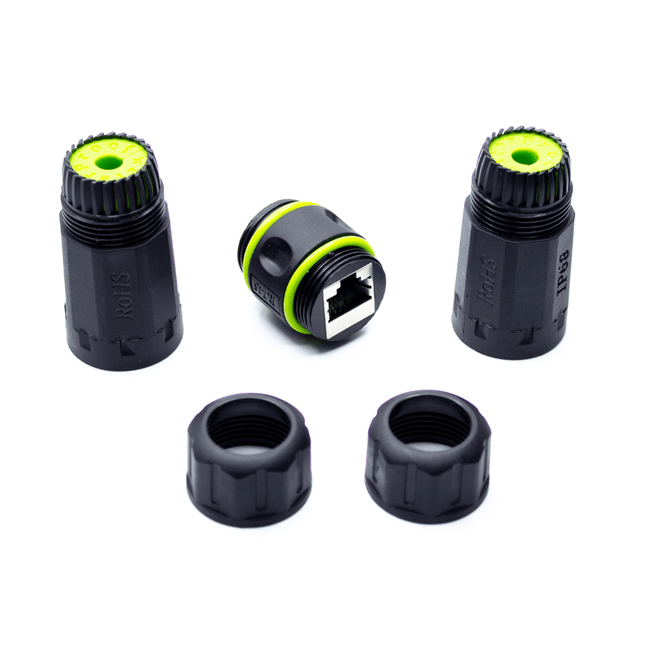

Cat6A Waterproof Couplers | Shielded

Part Number - 6AWPINCPLR_2pc

Features

  • May be used above or below ground
  • UV resistant and can be submerged in water up to 1 meter deep
  • Compatible with shielded and unshielded Ethernet cable
  • Supports PoE++ (802.3bt) 4PPoE, up to 90W
  • ANSI/TIA 568 2.D Cat6A Channel Certified

Bulk Save with trueCABLE
Qty Price Per Item your saving
10-24 $18.99 5%
25-49 $17.99 10%
50+ $16.99 15%
$19.99 19.99
Size
Quantity
Qty:
Saves you 5%
Add 9 more for 5% discount
Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Looking for a quick way to extend your outdoor Ethernet cable? Wondering how to transition from indoor Ethernet cable to outdoor grade cable easily? We have the perfect solution for you. Our Cat6A inline couplers are easy to use and have been thoroughly tested to provide maximum performance. Fully backwards compatible with Cat6 and Cat5e.

Make your connections without additional tools or specialized expertise. These shielded couplers are suited to even the most severe environments, including being directly buried into the dirt!

Optimum Performance

  • Supports 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T up to 10 Gbp/s in 328 foot channels.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 90W.

Durable

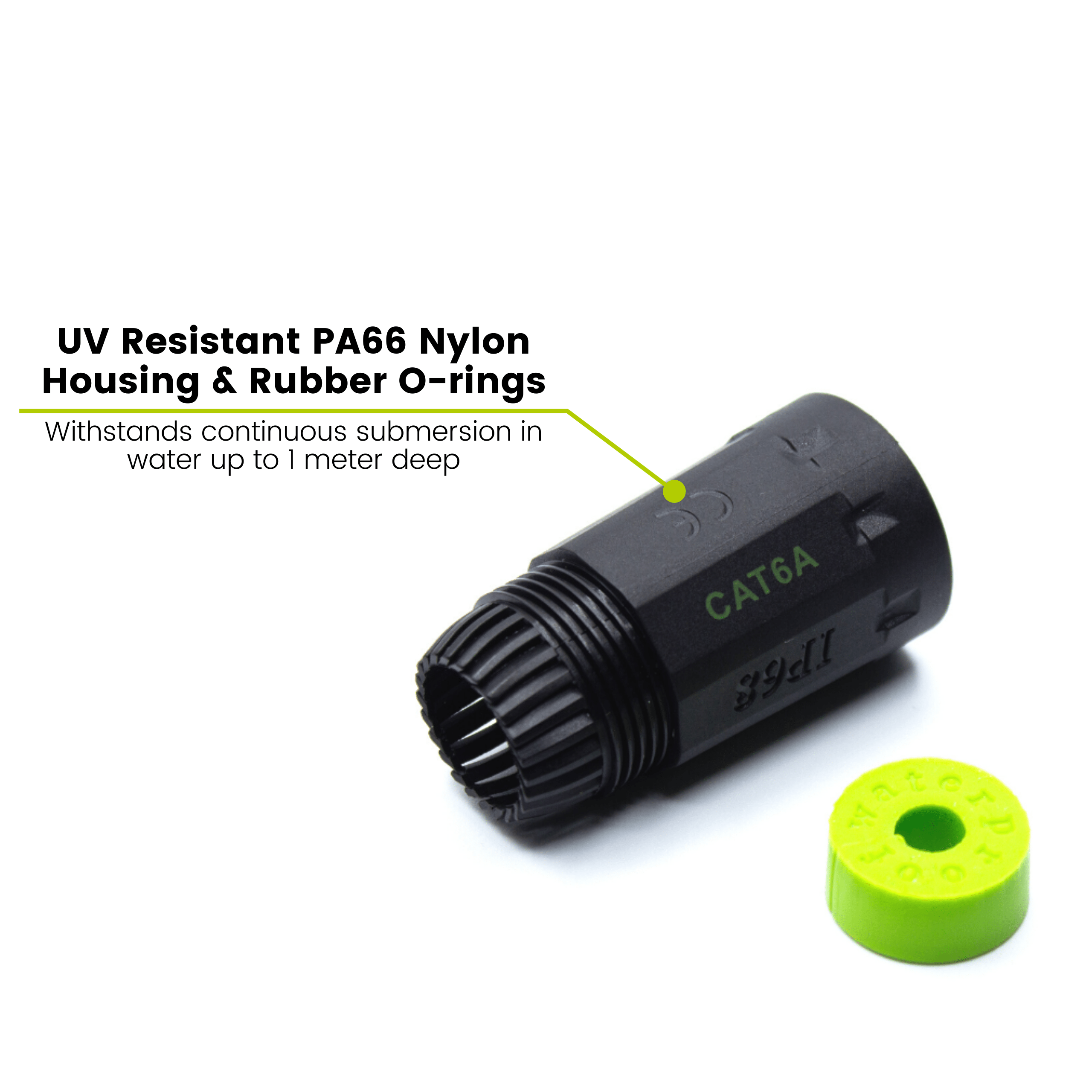

  • Outer IP68 rated housing is constructed of UV resistant PA66 nylon and rubber o-rings.
  • Built to withstand continuous submersion in water up to 1 meter deep. Impervious to outdoor conditions regardless of the season.

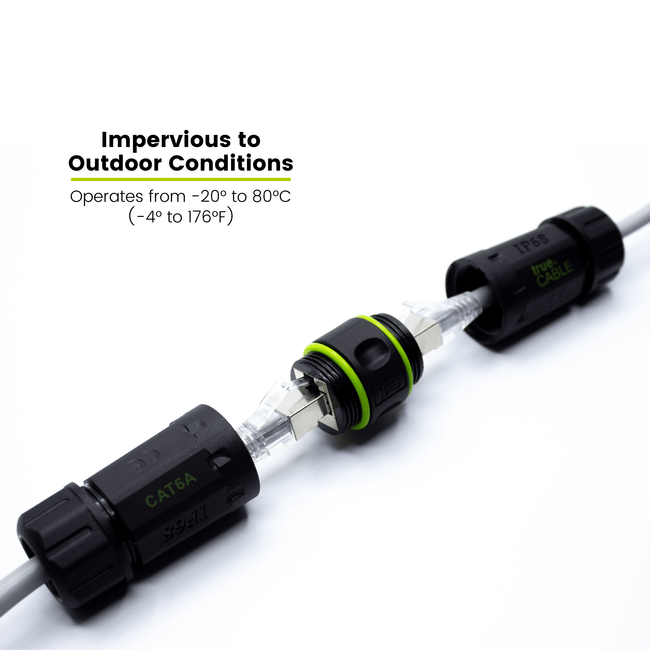

  • Operates from -20° to 80°C (-4° to 176°F).

Versatile

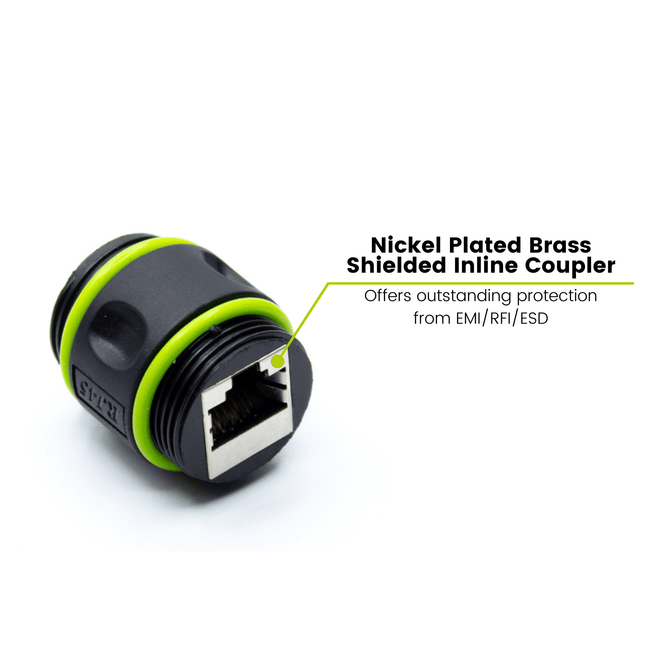

  • The nickel plated brass shielded inline coupler offers outstanding protection from EMI/RFI/ESD.
  • Compatible with shielded and unshielded Ethernet cable.
  • May be used above ground or buried directly underground.
  • Suitable for cable jacket diameters ranging from ∅5.1 to 7.8mm.

Quality Guaranteed

  • ANSI/TIA 568 2.D Cat6A Channel Certified up to 10 Gigabit by trueCABLE. TAA and RoHS-2 compliant. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.

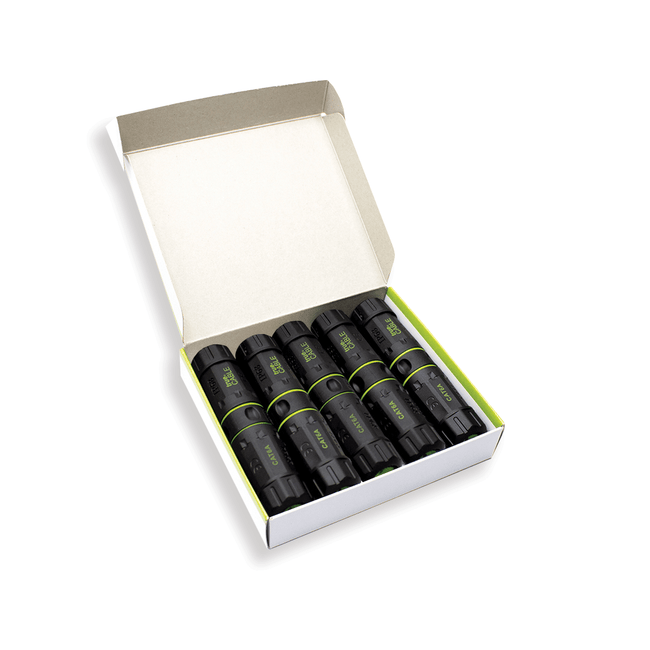

What's in the Box

  • These durable and time saving female to female RJ45 couplers are sure to make your install hassle-free. No tools required.
Weight 0.3 lbs

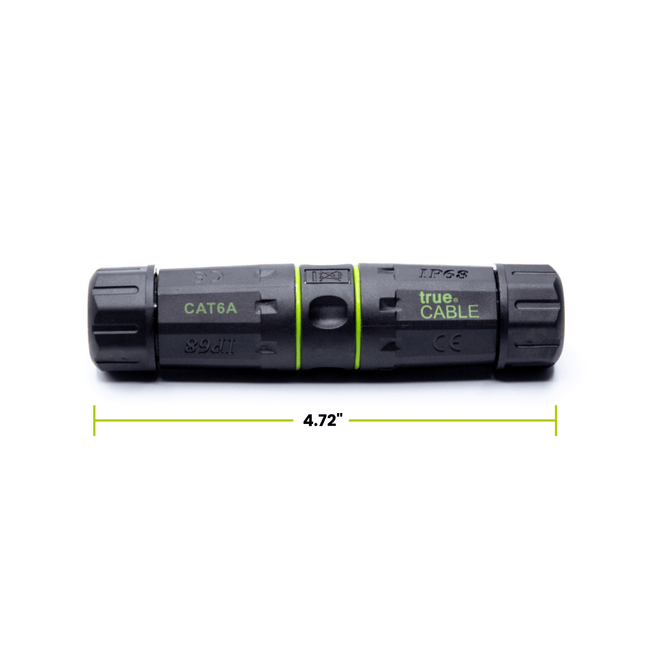

Length 5.25 in
Width 2.50 in
Height 1.25 in

Looking for a quick way to extend your outdoor Ethernet cable? Wondering how to transition from indoor Ethernet cable to outdoor grade cable easily? We have the perfect solution for you. Our Cat6A inline couplers are easy to use and have been thoroughly tested to provide maximum performance. Fully backwards compatible with Cat6 and Cat5e.

Make your connections without additional tools or specialized expertise. These shielded couplers are suited to even the most severe environments, including being directly buried into the dirt!

Optimum Performance

  • Supports 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T up to 10 Gbp/s in 328 foot channels.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 90W.

Durable

  • Outer IP68 rated housing is constructed of UV resistant PA66 nylon and rubber o-rings.
  • Built to withstand continuous submersion in water up to 1 meter deep. Impervious to outdoor conditions regardless of the season.
  • Operates from -20° to 80°C (-4° to 176°F).

Versatile

  • The nickel plated brass shielded inline coupler offers outstanding protection from EMI/RFI/ESD.
  • Compatible with shielded and unshielded Ethernet cable.
  • May be used above ground or buried directly underground.
  • Suitable for cable jacket diameters ranging from ∅5.1 to 7.8mm.

Quality Guaranteed

  • ANSI/TIA 568 2.D Cat6A Channel Certified up to 10 Gigabit by trueCABLE. TAA and RoHS-2 compliant. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.

What's in the Box

  • These durable and time saving female to female RJ45 couplers are sure to make your install hassle-free. No tools required.
  • Weight - 0.3 lbs
  • Length - 5.25 in
  • Width - 2.50 in
  • Height - 1.25 in
