Cat6A Extra Large Pass Through RJ45 Connectors | Unshielded | 100pc | Conductors inserted

1/7

Description

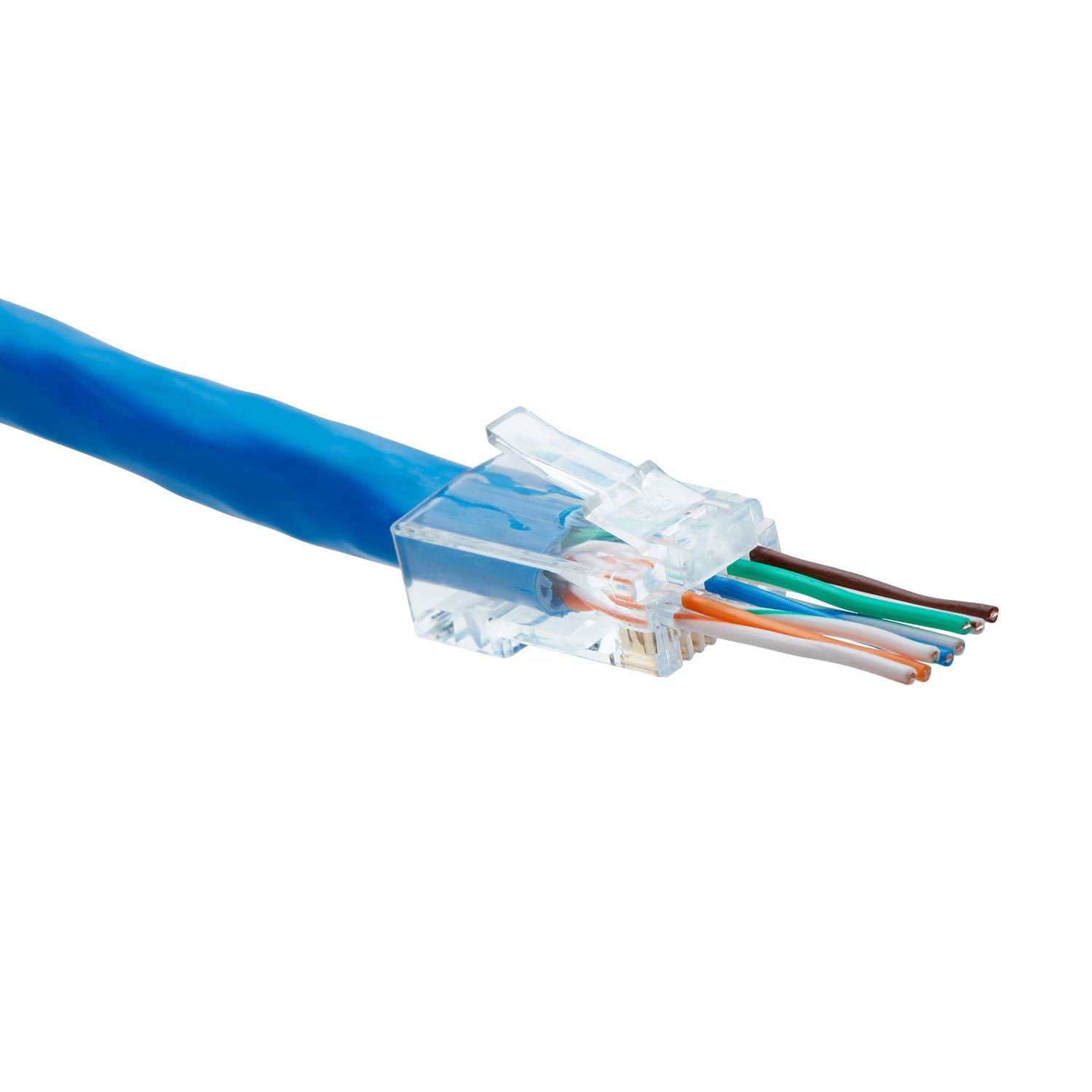

Pass Through Design

No more load bars means less waste and frustration! The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.

Maximum Performance

Staggered conductor design minimizes NEXT/FEXT. Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible.

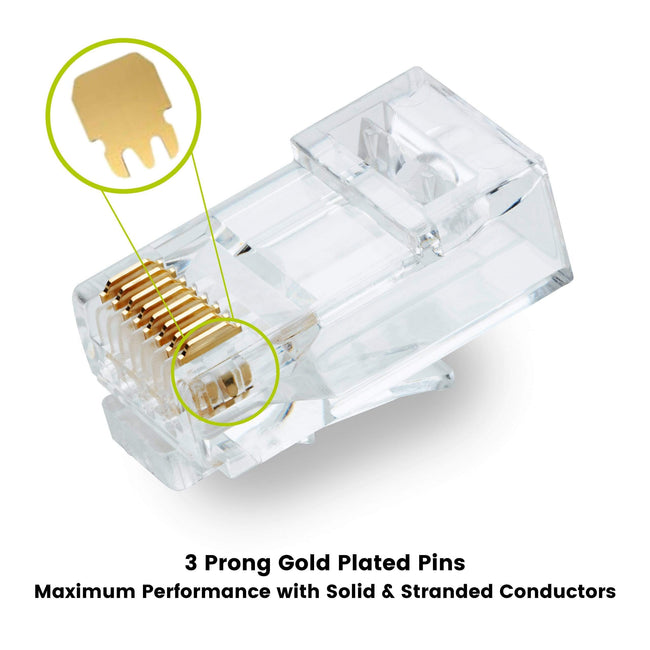

Triple prong gold plated contacts.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

Works with 23AWG stranded or solid conductors.

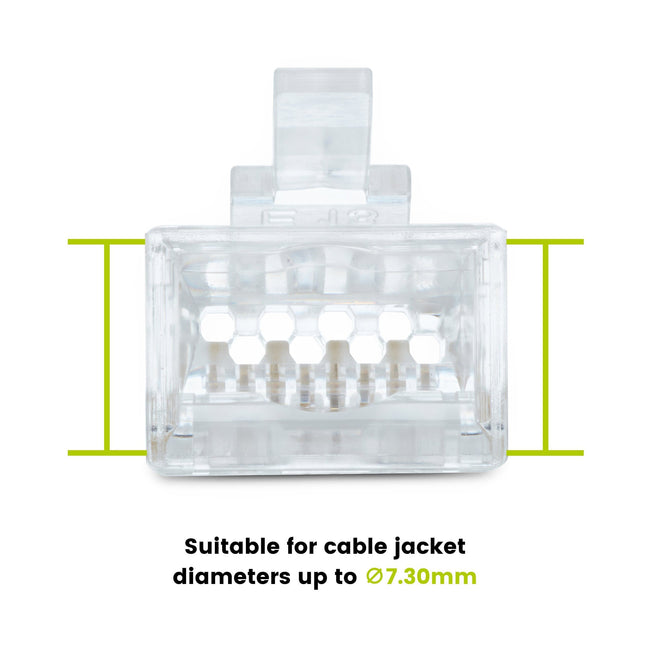

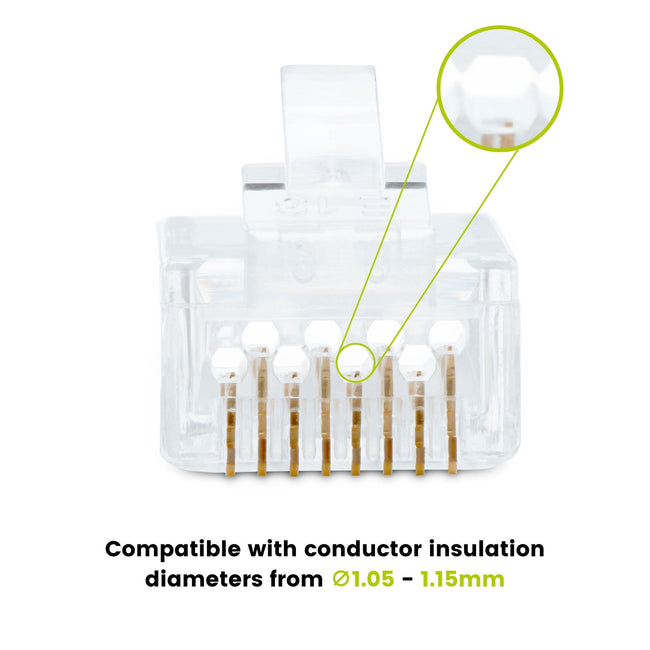

Suitable for cable jacket diameters up to ∅7.30mm and conductor insulation diameters from ∅1.05- 1.15mm.
Terminate with our All-In-One Crimp and Termination Tool.

Quality Guaranteed

ANSI/TIA 568 2.D Certified and Validated with trueCABLE U/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

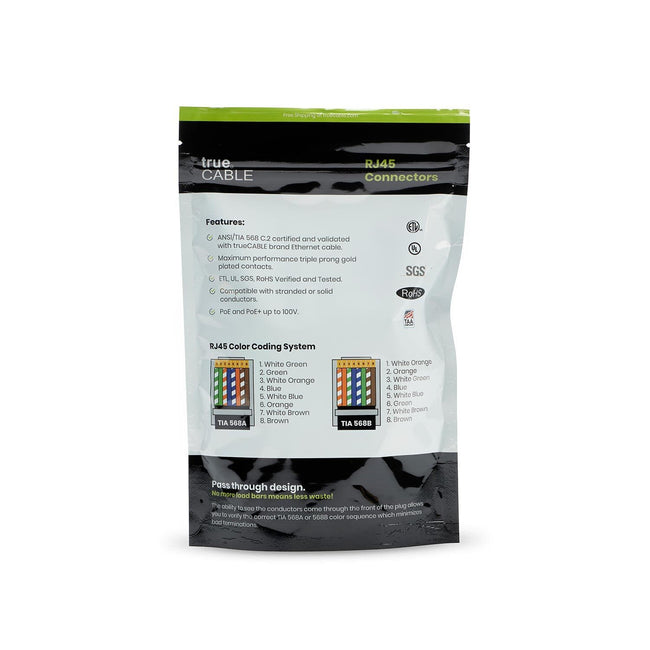

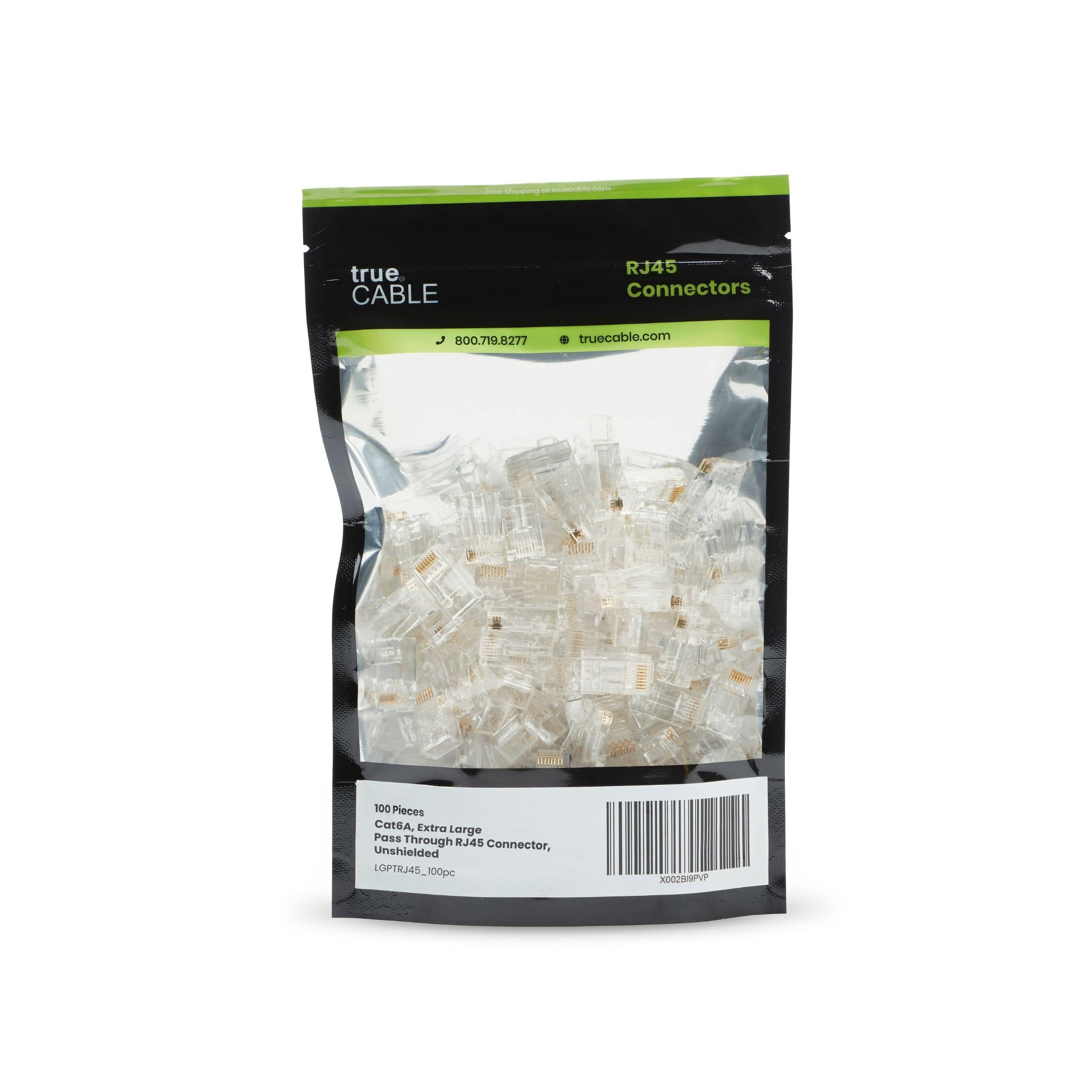

Resealable Bag

Our transparent gold plated RJ45 plugs are sure to make your install hassle free.

Item Details

Weight	0.34 lb
Length	9 in
Width	5.75 in
Height	1 in
Barcode	X002BI9PVP

Specs & User Guides

Download Spec Sheet

Cat6A Extra Large Pass Through RJ45 Connectors｜Unshielded

Part Number - LGPTRJ45_100pc

$37.99

Hassle free pass through design
Triple prong gold plated contacts
Supports PoE++ (802.3bt) 4PPoE, up to 100W
UL Listed, ETL Verified, ANSI/TIA 568 2.D Certified
Compatible with trueCABLE Cat6A Plenum Ethernet Cable｜Unshielded

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$37.04	2.5%
25-49	$36.09	5%
50+	$35.14	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Pass Through Design

No more load bars means less waste and frustration! The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.

Maximum Performance

Staggered conductor design minimizes NEXT/FEXT. Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible.
Triple prong gold plated contacts.
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

Works with 23AWG stranded or solid conductors.
Suitable for cable jacket diameters up to ∅7.30mm and conductor insulation diameters from ∅1.05- 1.15mm.
Terminate with our All-In-One Crimp and Termination Tool.

Quality Guaranteed

ANSI/TIA 568 2.D Certified and Validated with trueCABLE U/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

Resealable Bag

Our transparent gold plated RJ45 plugs are sure to make your install hassle free.

Specifications

Weight	0.34 lb
Length	9 in
Width	5.75 in
Height	1 in
Barcode	X002BI9PVP

Downloads

Download Spec Sheet

Frequently Asked Questions

Can I use these Cat6 XL shielded keystone jacks with any type of Ethernet cable?

Yes, they are designed to work with a variety of Ethernet cables, including trueCABLE's bulk Cat5e, Cat6, and Cat6A options.

Are there any certifications or standards these connectors meet?

Yes, they comply with ANSI/TIA 568 2.D and are UL Listed, ETL Verified, which ensures their performance and safety meet industry standards.

What's the difference between a shielded and an unshielded keystone jack?

A shielded keystone jack like this one provides additional protection against electromagnetic interference (EMI) and radio-frequency interference (RFI), making it ideal for high-noise environments.

Can I install these connectors outdoors or do they need to be used indoors?

While suitable for most indoor applications, it's recommended to check local regulations before using them in outdoor environments. They're not designed for direct burial.
