LC UPC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK

1/8

Description

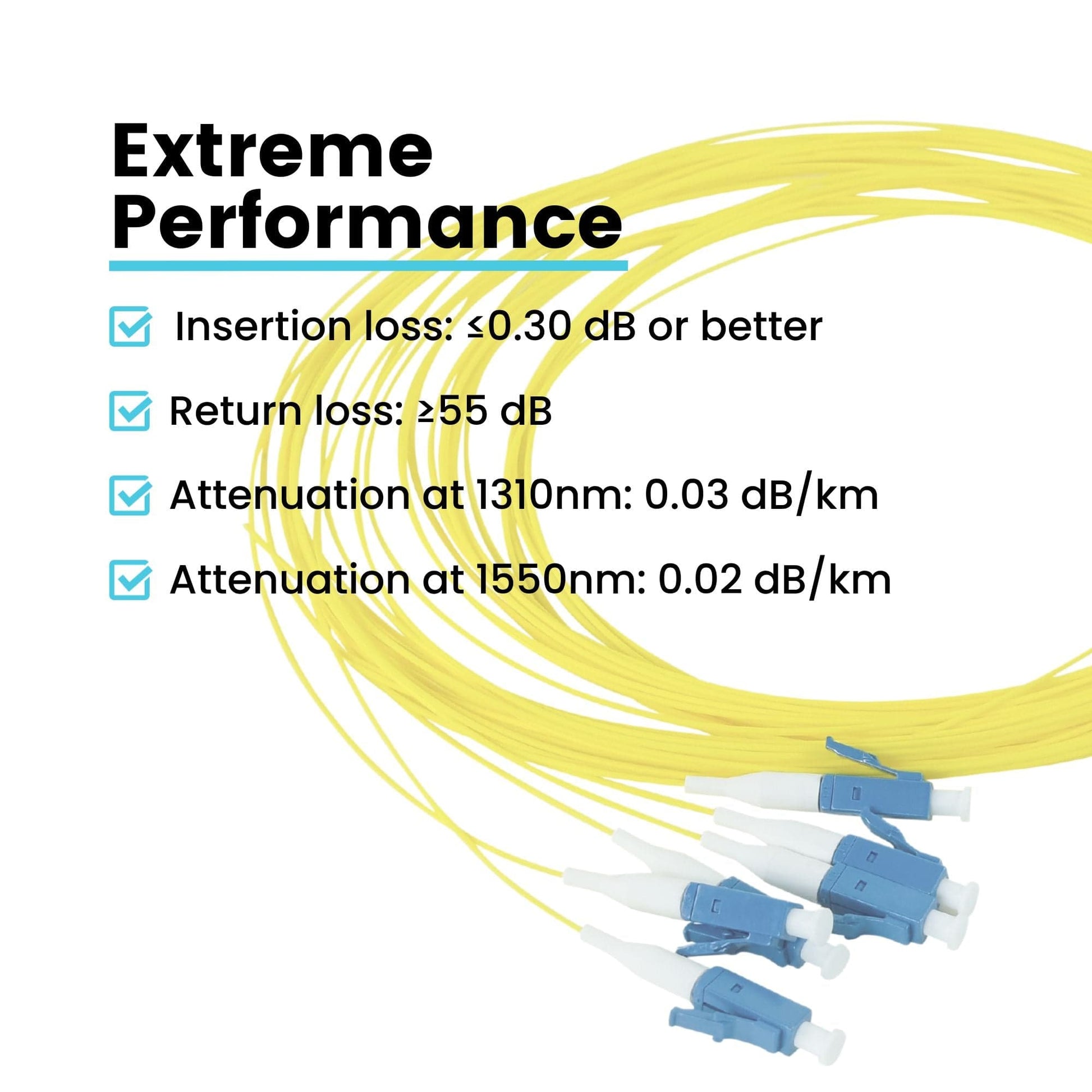

EXTREME PERFORMANCE

G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
UPC or "Ultra Physical Contact" polish on one fiber optic connector end.

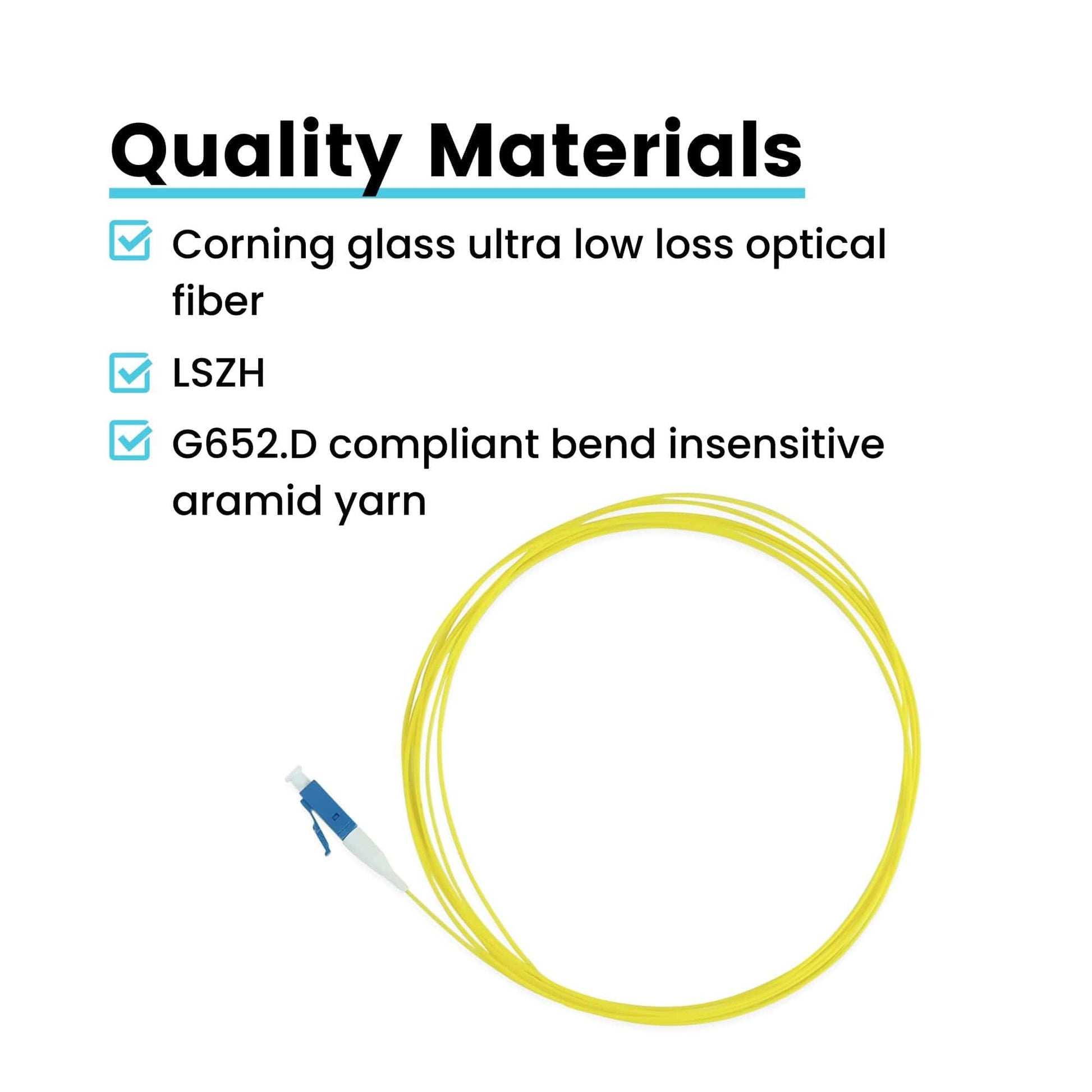

Corning® ultra low loss glass, ultra optical fiber core and cladding.
Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
Quality Tested with a Fluke Versiv™ CableAnalyzer.
Mechanical and Fusion Splice ready
Low Loss Simplex LC UPC Pigtail

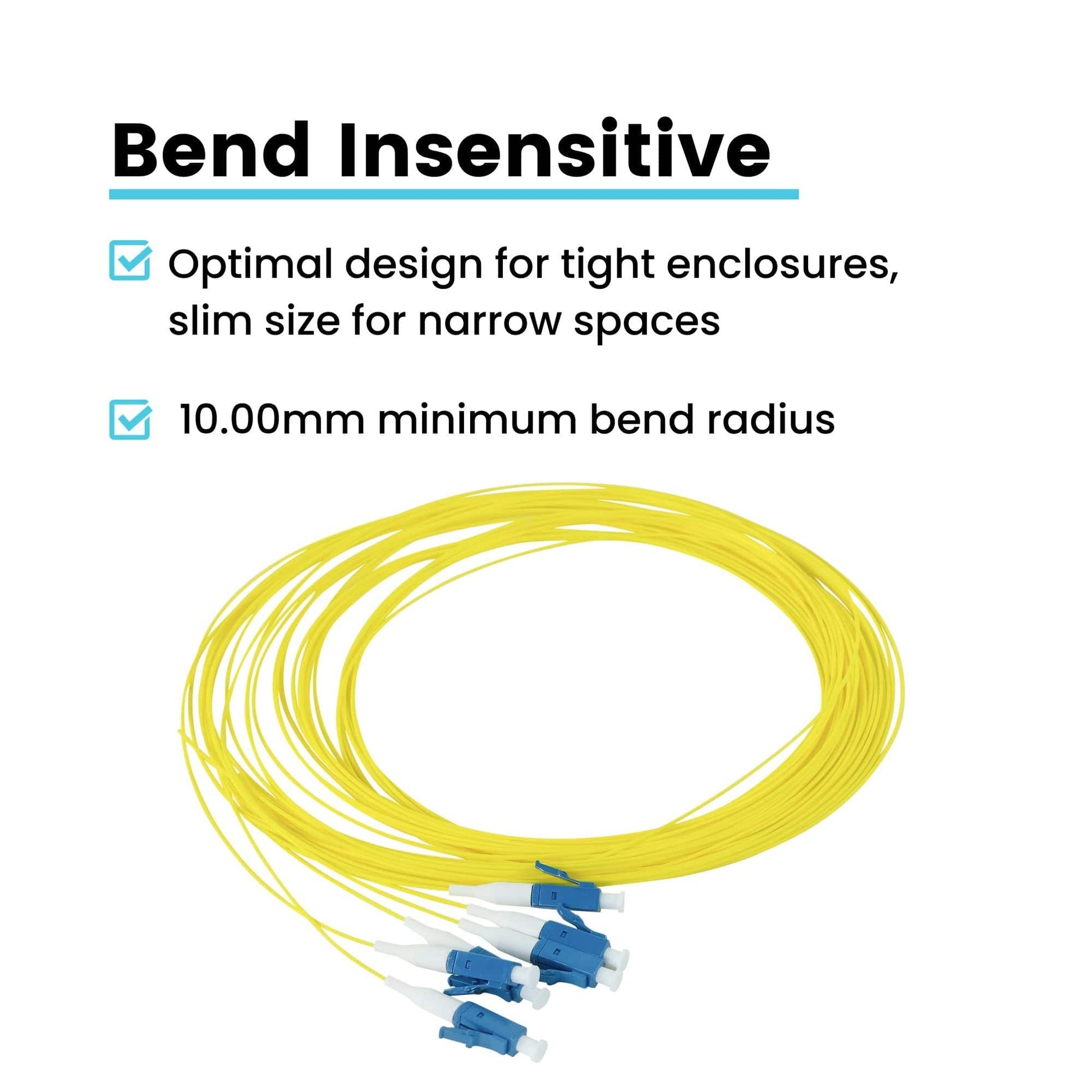

BEND INSENSITIVE

G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.

HIGH QUALITY LC CERAMIC FERRULES

1.25mm superior grade LC zirconia ceramic ferrules ensure precision alignment and very low optical loss.

FOR USE INDOORS

LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

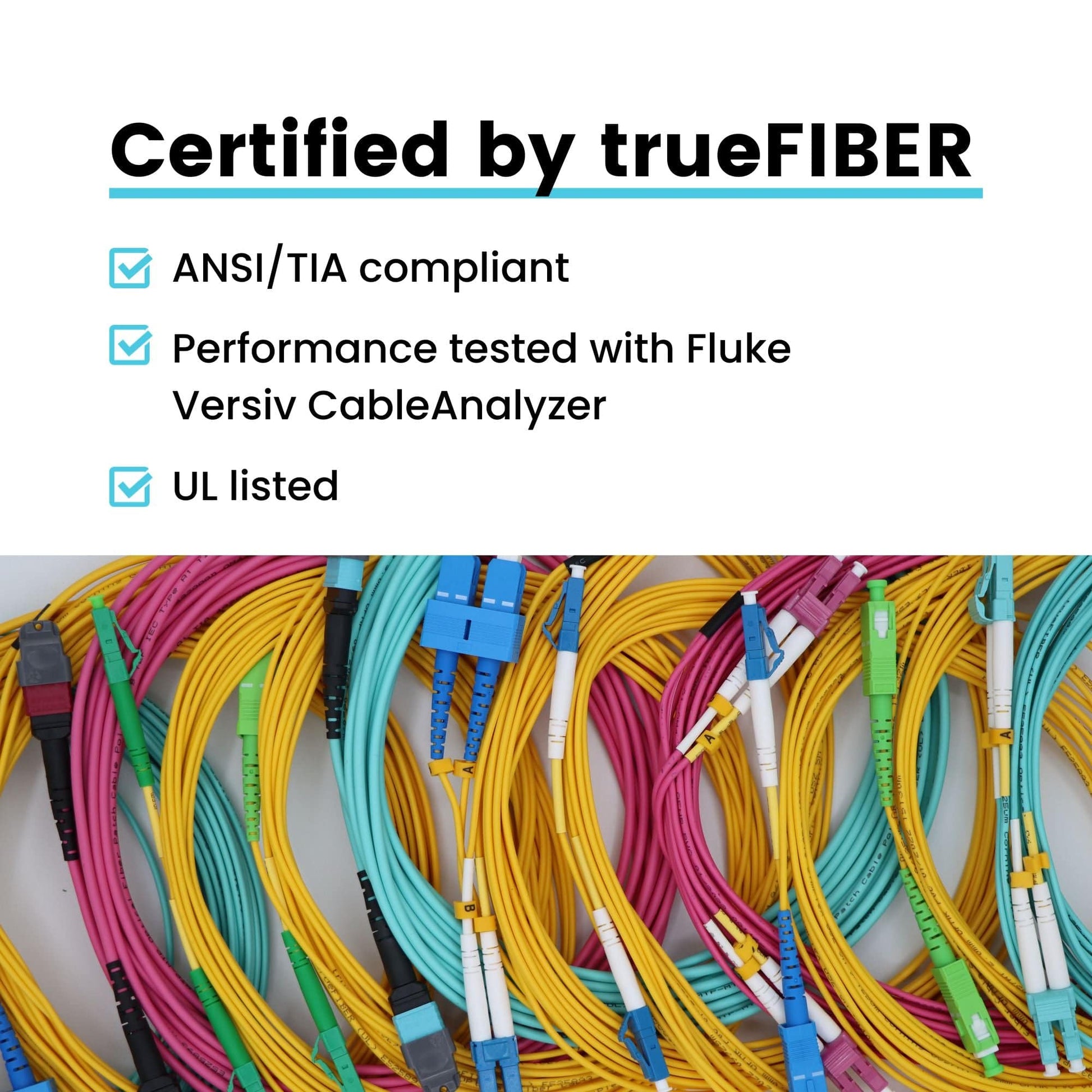

✓ CERTIFIED by trueCABLE

Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.

Item Details

Weight	0.1 lbs
Length	8.5 in
Width	7.34 in
Height	0.2 in
Barcode	X003XAM7XD

Specs & User Guides

Download Spec Sheet

LC UPC Simplex Fiber Pigtail OS2 | SM LSZH - 6 PACK

Part Number - PT1LCUSOS2_2m_6PK

$12.99

PVC LSZH Flame-retardant Fiber Optic Cable with Tight-buffered Coating
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Optical Testing Guarantees Insertion Loss and Return Loss
Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
Corning® glass, ultra fiber with 10mm Min. Bend Radius
UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant
2 meters to ensure sufficient splice length

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$12.67	2.5%
25-49	$12.34	5%
50+	$12.02	7.5%
