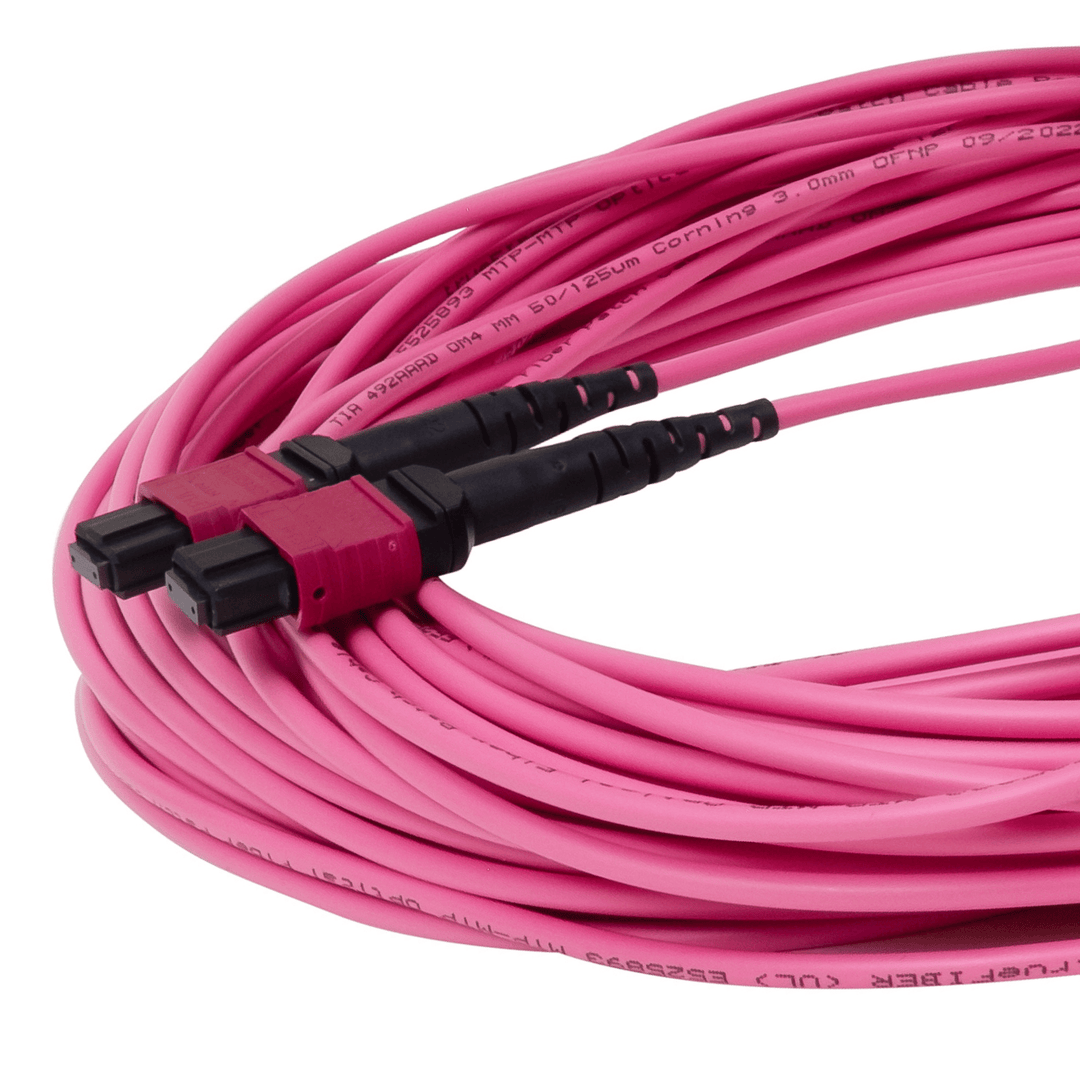

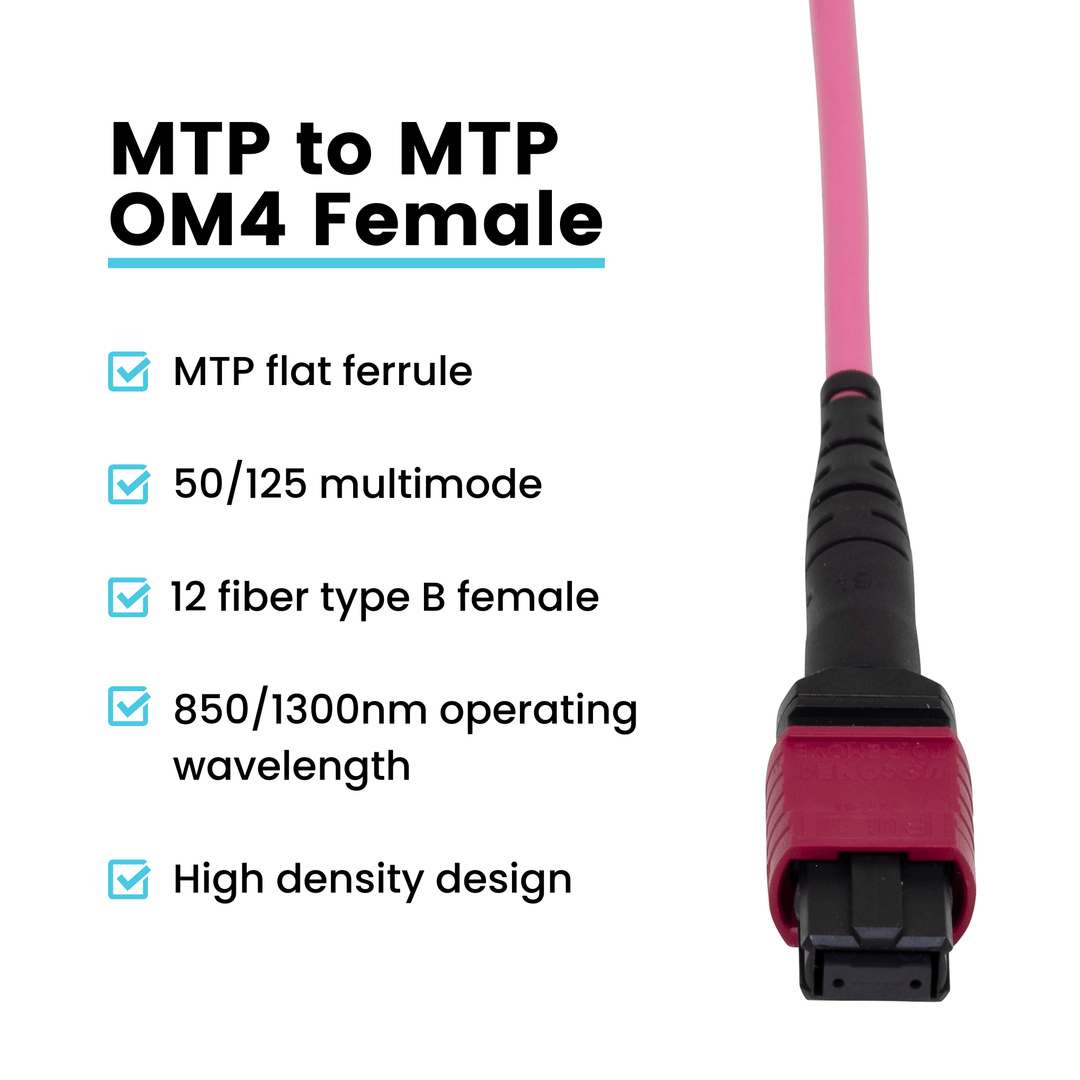

MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
1/9
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP
  • MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP

Description

EXTREME PERFORMANCE

With blazing-fast speeds this cable will transmit data at 10Gbps for up to 400 meters or 40/100Gbps for up to 150 meters, ideal for high-bandwidth applications (distances will vary depending on your equipment). The flexible design with a bendable core and cladding for easier installation in tight spaces without compromising performance. This cable has broad compatibility to support 850nm and 1300nm wavelengths, making it compatible with a wide range of network devices. Works with multimode MTP/MPO QSFP+ SFP modules. You can rely on the performance with UPC-polished connectors ensure superior signal quality and low-loss transmission for dependable data transfer.

QUALITY GUARANTEED

    Our MTP/MPO cables ensure consistent performance with MTP/MPO Elite connectors for secure, easy mating. This cable will minimize signal loss over time with a floating ferrule design that reduces fiber contact wear. The elliptical guide pin tip and spring centering help protect the fiber array for long-lasting performance. Delivers low optical loss for high-speed data transmission.

    VERSATILE

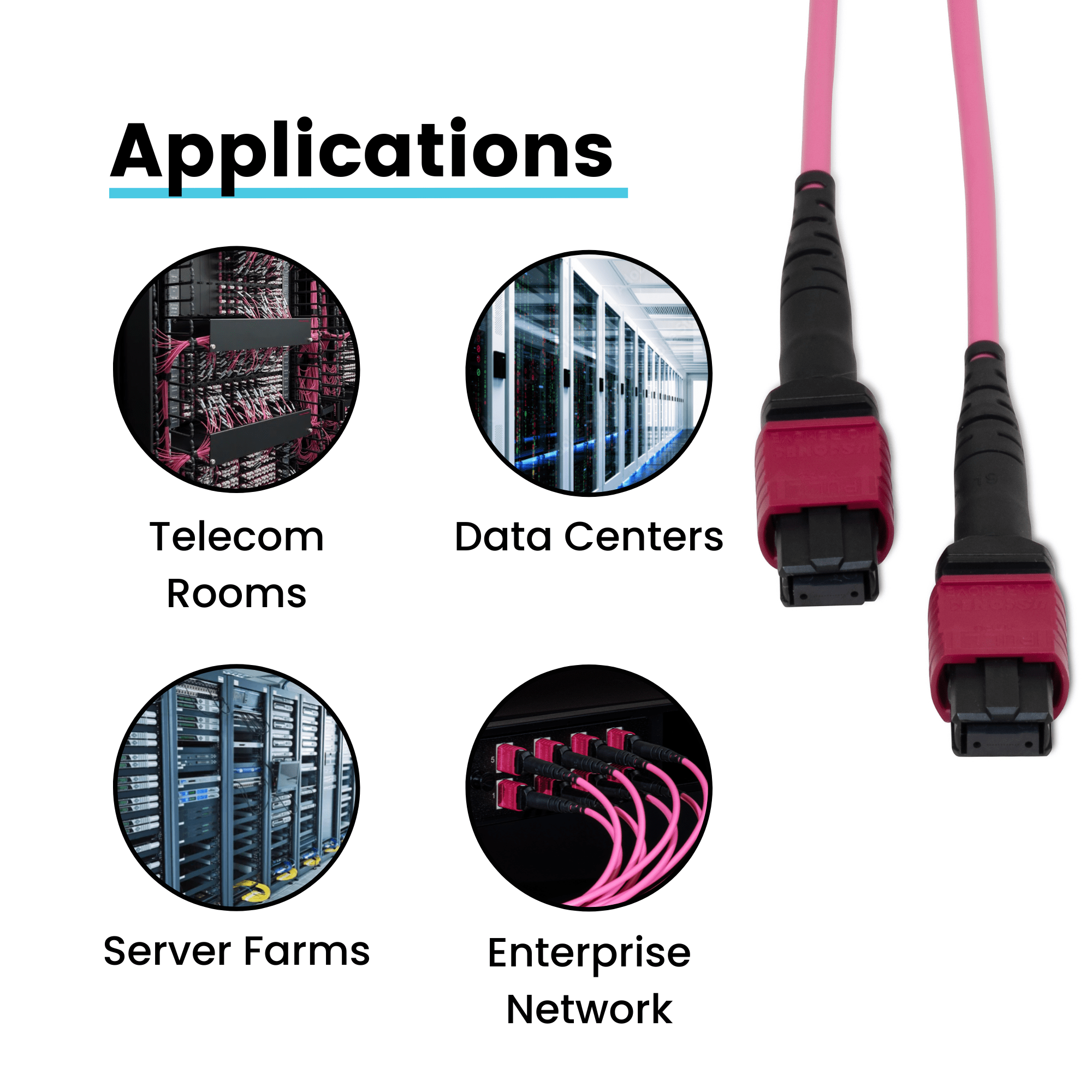

    Upgrade your network with this MTP/MPO fiber patch cable with its OFNP (Plenum) rated jacket. It’s perfect for both Plenum and non-plenum spaces. It establishes direct links with QSFP+ 40G SR4/CSR4 and 100G QSFP28-SR4 connections. Tested with a Fluke Versiv™ CableAnalyzer, it guarantees top-notch quality. Upgrade your local area network and data center.

    DURABLE

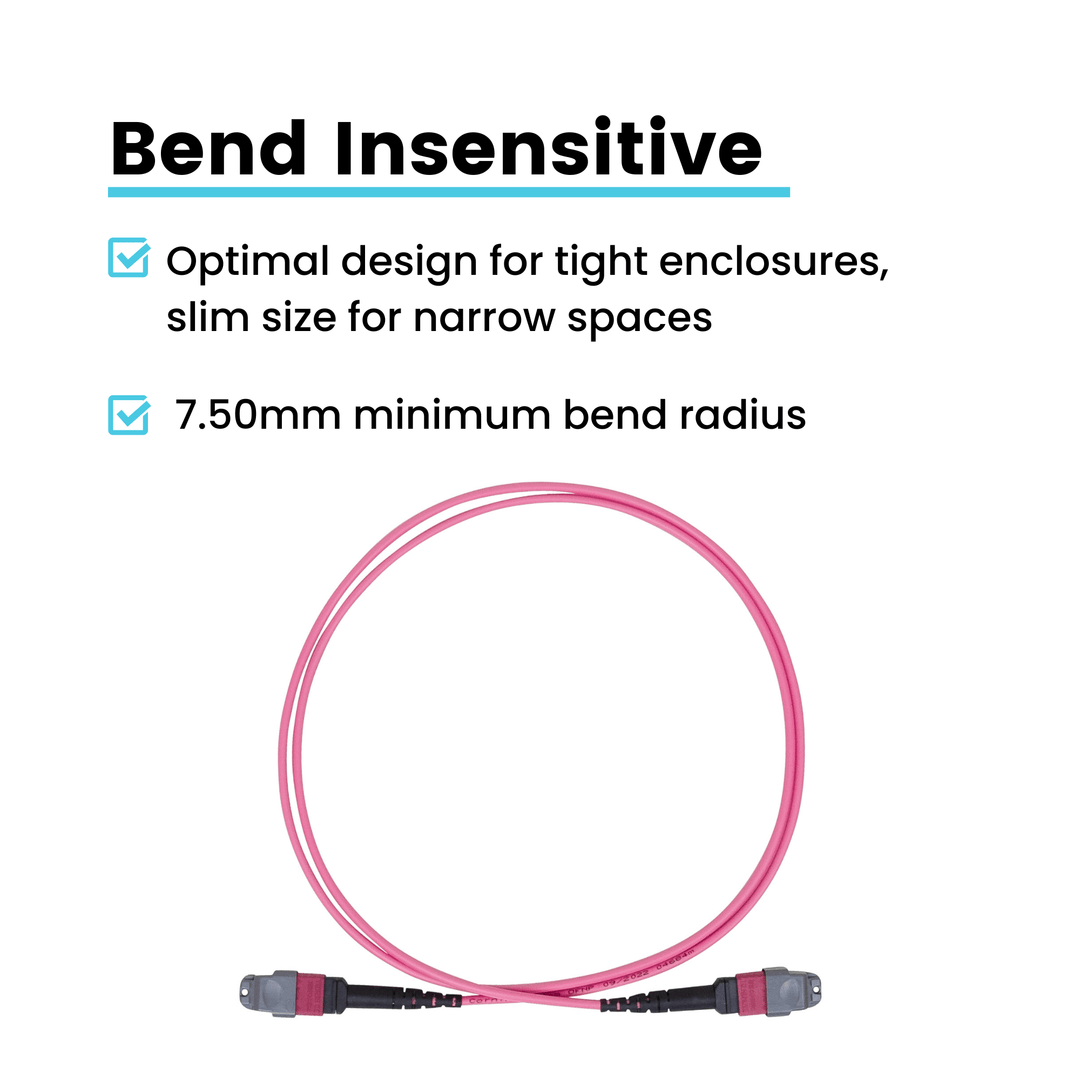

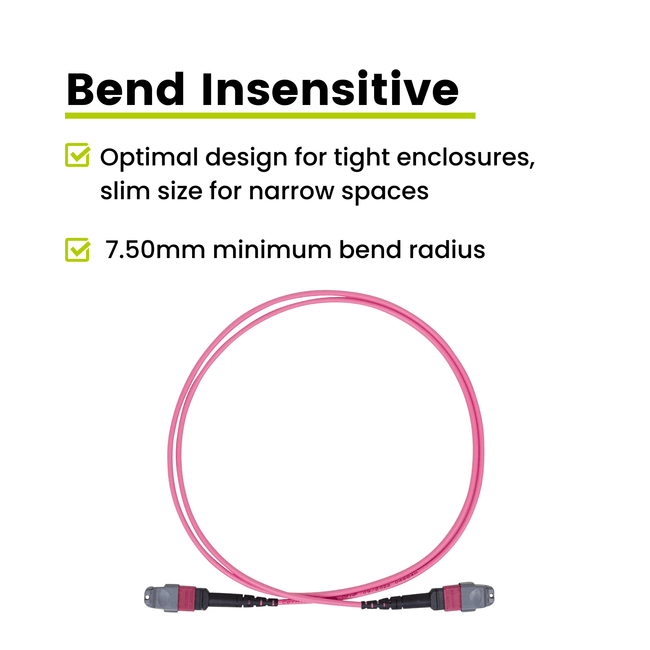

    Experience reliable and high-performance connectivity with our MTP/MPO OM4 MM fiber patch cable. Its durable construction, featuring a minimum bend radius of 7.50mm, makes it perfect for tight enclosures and sharp turns. The 3.0mm OD cable jacket supports high-density applications, ensuring seamless data transmission. Upgrade your network with our top-notch MTP/MPO fiber cable.

      ✓FIELD TESTED, CUSTOMER APPROVED

      Our MTP/MPO cables have been performance tested and are in compliance with ANSI/TIA 568.3-E standards. Further, our MTP/MPO cables have been end face certified to IEC 61300-3-35, IEC-61754-7, and TIA-604-5 (FOCIS-5). UL Listed. Trusted by fiber optic installers for reliable performance. Backed by our FOREVER WARRANTY.

      Item Details

      Weight 0.04 lb
      Length 8 in
      Width 7 in
      Height 0.5 in
      Barcode X003DR0QYX

      Specs & User Guides

      Download Spec Sheet

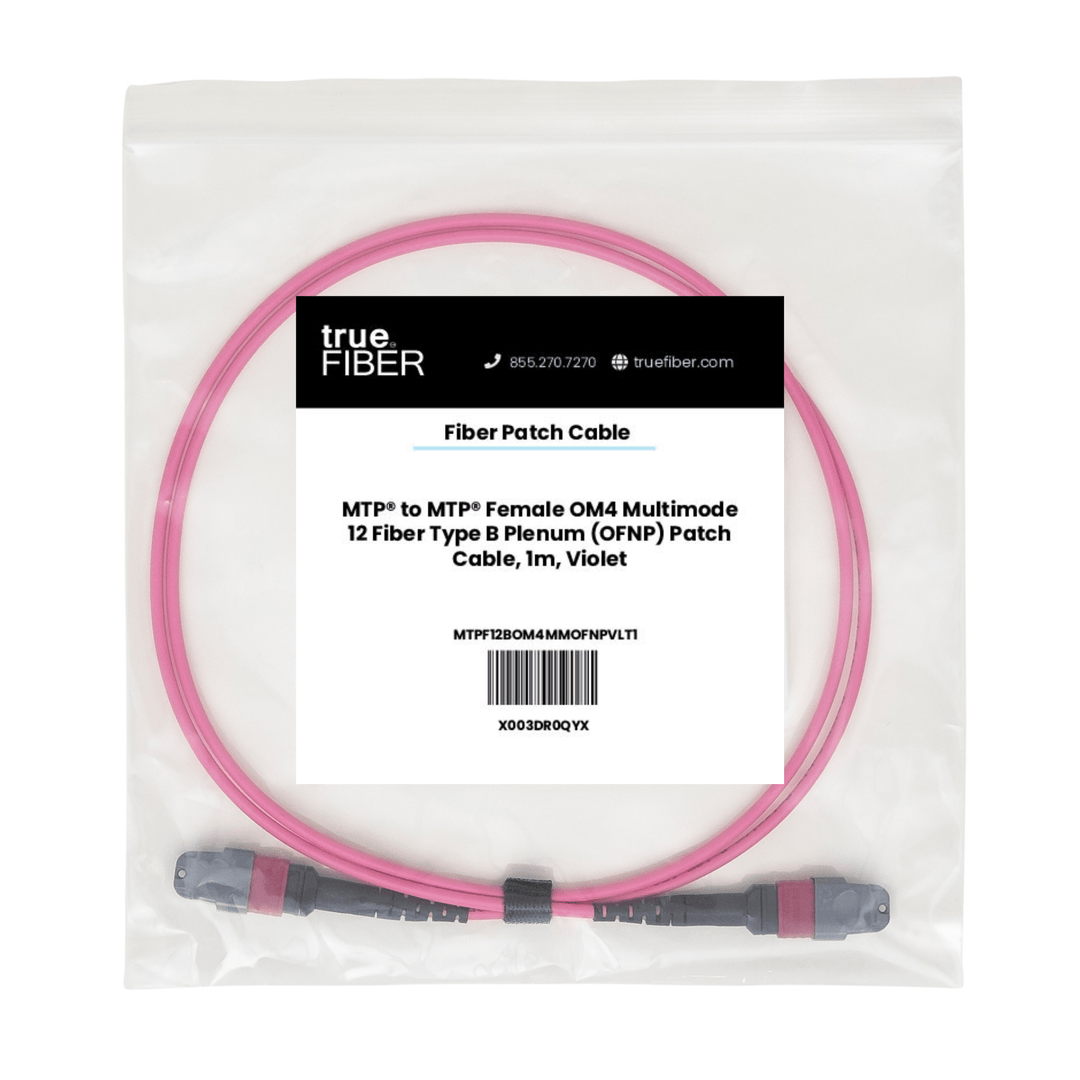

      MTP® to MTP® Female OM4 12 Fiber Type B | MM OFNP

      Part Number - MTPFBOM4VLT_1m
      $55.50

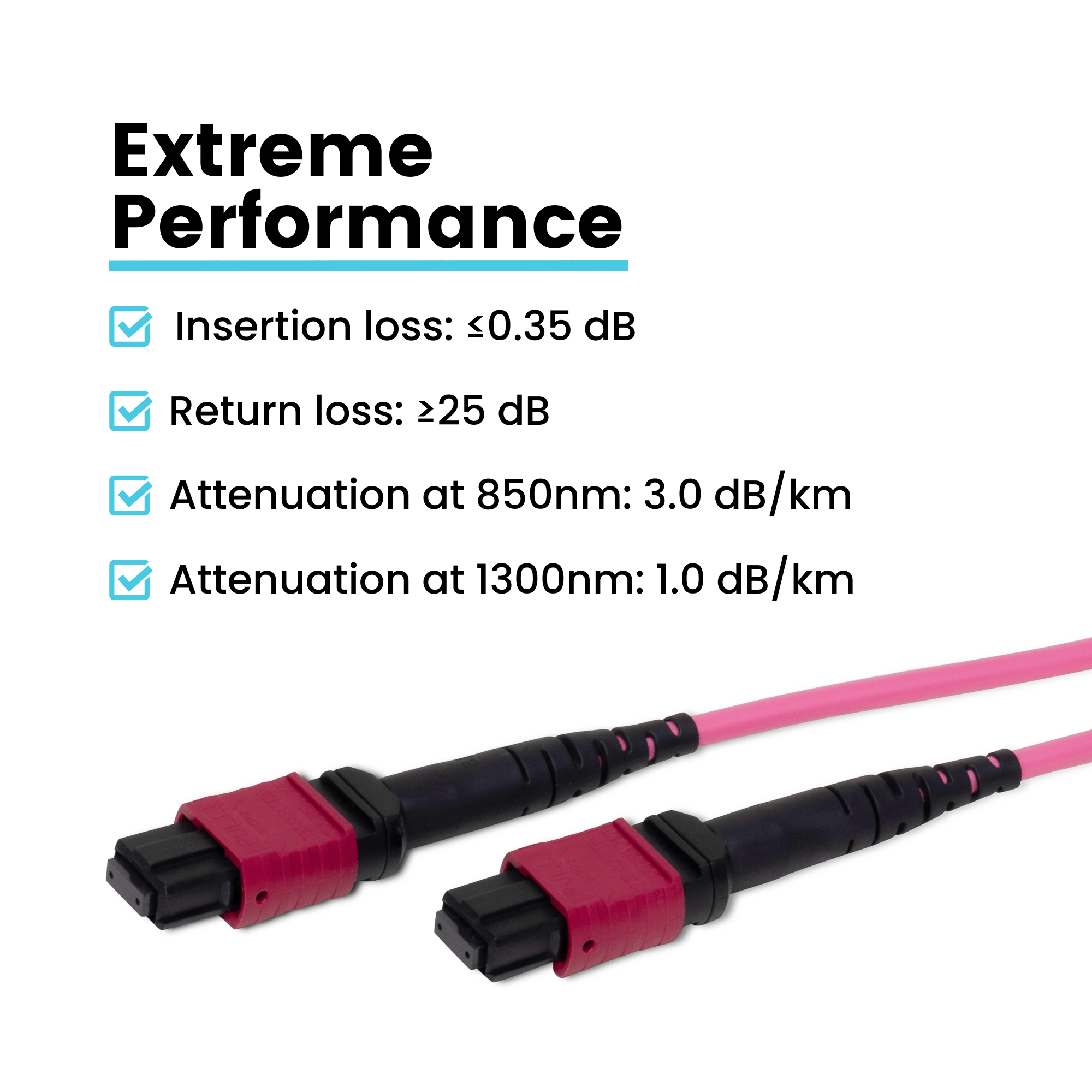

      • High Performance Elite MTP® Connector with 0.35dB or better IL

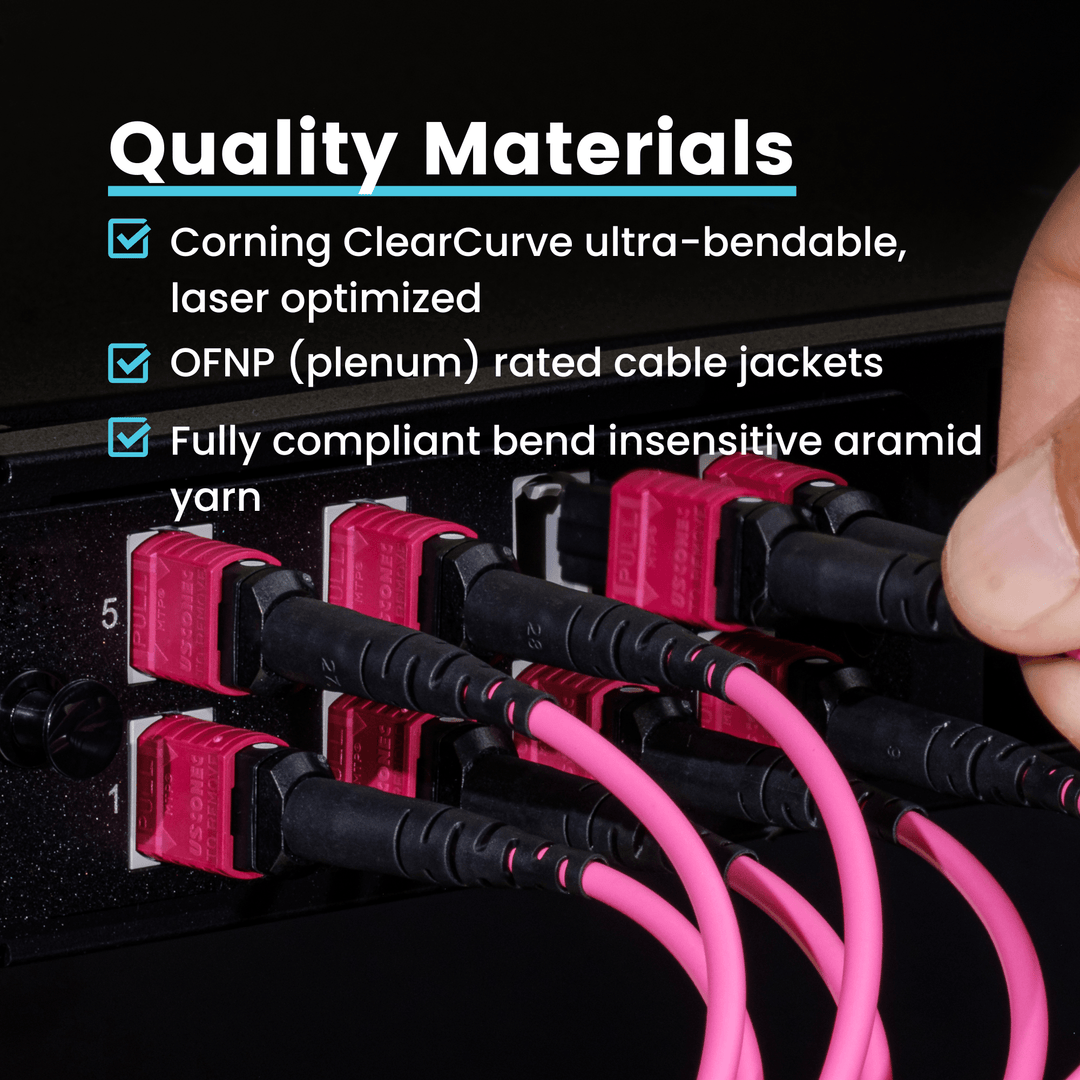

      • Laser Optimized Corning® Glass Fiber with 7.5mm Min. Bend Radius
      • OFNP (Plenum) Fire Rating, UL Listed, IEC Certified, ANSI/TIA 568.3-E Compliant
      • IEC-61754-7 and TIA-604-5 (FOCIS-5) IEC 61300-3-35
      • Ideal for up to 150m 40G/100G Indoor Connections
      Length:
      Size:
      Color: Violet

      Add 9 more for 2.5% discount

      Visit the Product Certification and Compliance List for full documentation and technical standards.

      Bulk Save with trueCABLE
      Qty Price Per Item Your Savings
      10-24 $54.11 2.5%
      25-49 $52.73 5%
      50+ $51.34 7.5%

      Why buy direct from trueCABLE?

      30 day returns Returns Policy

      We stand by our products with our Forever Warranty

      Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

      Estimate Your Delivery Date

      Description

      EXTREME PERFORMANCE

      With blazing-fast speeds this cable will transmit data at 10Gbps for up to 400 meters or 40/100Gbps for up to 150 meters, ideal for high-bandwidth applications (distances will vary depending on your equipment). The flexible design with a bendable core and cladding for easier installation in tight spaces without compromising performance. This cable has broad compatibility to support 850nm and 1300nm wavelengths, making it compatible with a wide range of network devices. Works with multimode MTP/MPO QSFP+ SFP modules. You can rely on the performance with UPC-polished connectors ensure superior signal quality and low-loss transmission for dependable data transfer.

      QUALITY GUARANTEED

        Our MTP/MPO cables ensure consistent performance with MTP/MPO Elite connectors for secure, easy mating. This cable will minimize signal loss over time with a floating ferrule design that reduces fiber contact wear. The elliptical guide pin tip and spring centering help protect the fiber array for long-lasting performance. Delivers low optical loss for high-speed data transmission.

        VERSATILE

        Upgrade your network with this MTP/MPO fiber patch cable with its OFNP (Plenum) rated jacket. It’s perfect for both Plenum and non-plenum spaces. It establishes direct links with QSFP+ 40G SR4/CSR4 and 100G QSFP28-SR4 connections. Tested with a Fluke Versiv™ CableAnalyzer, it guarantees top-notch quality. Upgrade your local area network and data center.

        DURABLE

        Experience reliable and high-performance connectivity with our MTP/MPO OM4 MM fiber patch cable. Its durable construction, featuring a minimum bend radius of 7.50mm, makes it perfect for tight enclosures and sharp turns. The 3.0mm OD cable jacket supports high-density applications, ensuring seamless data transmission. Upgrade your network with our top-notch MTP/MPO fiber cable.

          ✓FIELD TESTED, CUSTOMER APPROVED

          Our MTP/MPO cables have been performance tested and are in compliance with ANSI/TIA 568.3-E standards. Further, our MTP/MPO cables have been end face certified to IEC 61300-3-35, IEC-61754-7, and TIA-604-5 (FOCIS-5). UL Listed. Trusted by fiber optic installers for reliable performance. Backed by our FOREVER WARRANTY.

          Specifications

          Weight 0.04 lb
          Length 8 in
          Width 7 in
          Height 0.5 in
          Barcode X003DR0QYX

          Downloads

          Download Spec Sheet

          Frequently Asked Questions

          What type of fiber optic cable is this MTP connector compatible with?
          This MTP to MTP female OM4 12 fiber Type B MM OFNP connector is designed for use with OM4 multi-mode fiber optical cable.
          Is this MTP connector suitable for outdoor use?
          No, this MTP OM4 plenum rated cable is designed for indoor use only.
          What certifications does this MTP connector meet?
          Our MTP/MPO cables have been performance tested and are in compliance with ANSI/TIA 568.3-E standards. Further, our MTP/MPO cables have been end face certified to IEC 61300-3-35, IEC-61754-7, and TIA-604-5 (FOCIS-5). Further, they are UL Listed.
          Can this MTP connector support data transfer speeds of up to 40G/100G?
          Yes, this connector and cable combination are ideal for up to 150m 40G/100G indoor connections.
          What is the minimum bend radius of this MTP connector?
          The minimum bend radius of this cable is 7.5mm.
          Can I purchase this MTP connector in bulk?
          Yes. trueCABLE offers bulk quantity pricing. Pricing can be found on the product page.
          What type of rating does this MTP connector have?
          This MTP OM4 cable has an OFNP (Plenum) fire rating and UL Listing.
          What is the price of a single MTP to MTP female OM4 12 fiber Type B MM OFNP connector?
          Pricing is subject to change. Please check the product page listing for the latest pricing information at https://www.truecable.com/collections/mtp-mpo/products/mtp-to-mtp-female-om4-12-fiber-type-b-mm-ofnp?variant=40818680627267
