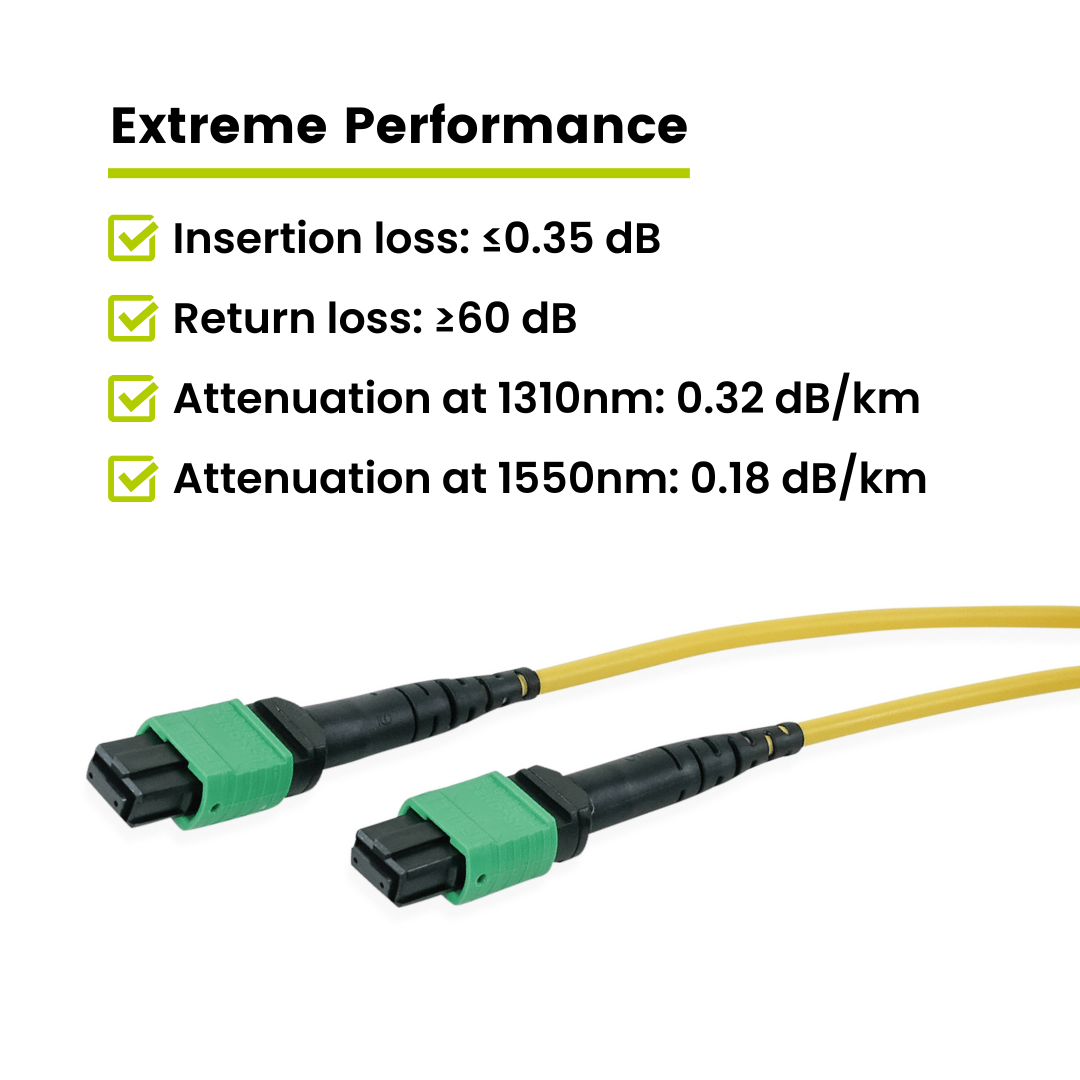

Extreme Performance

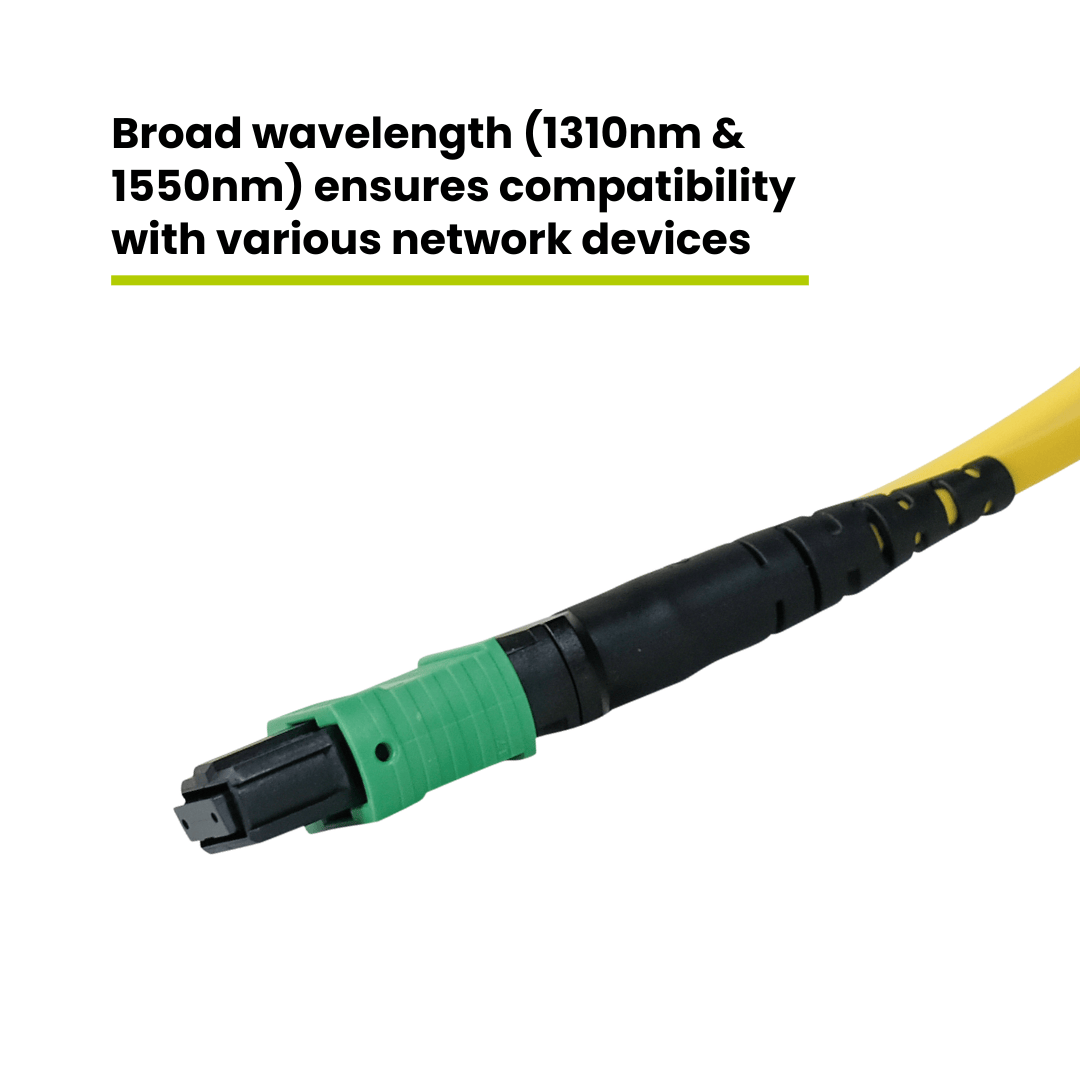

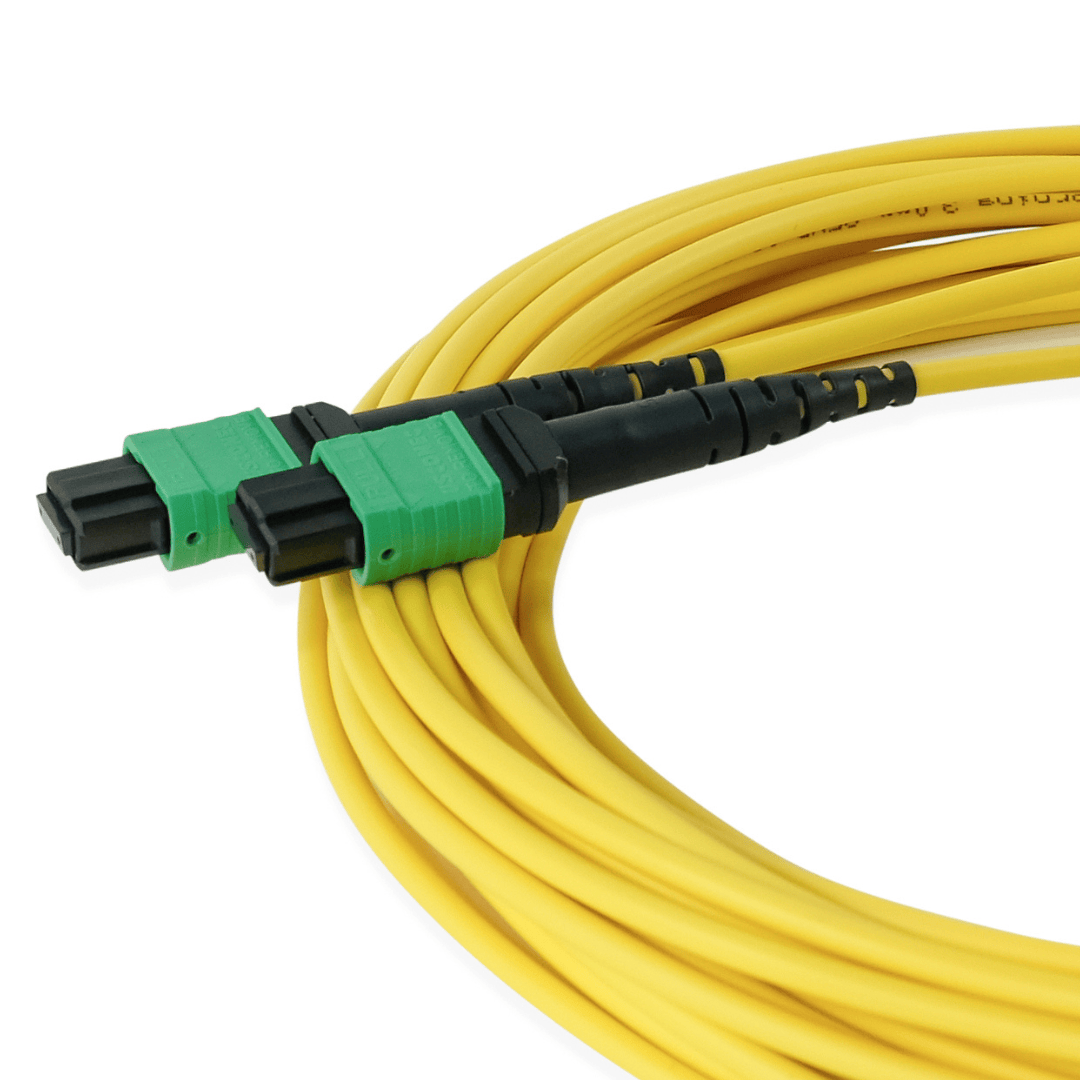

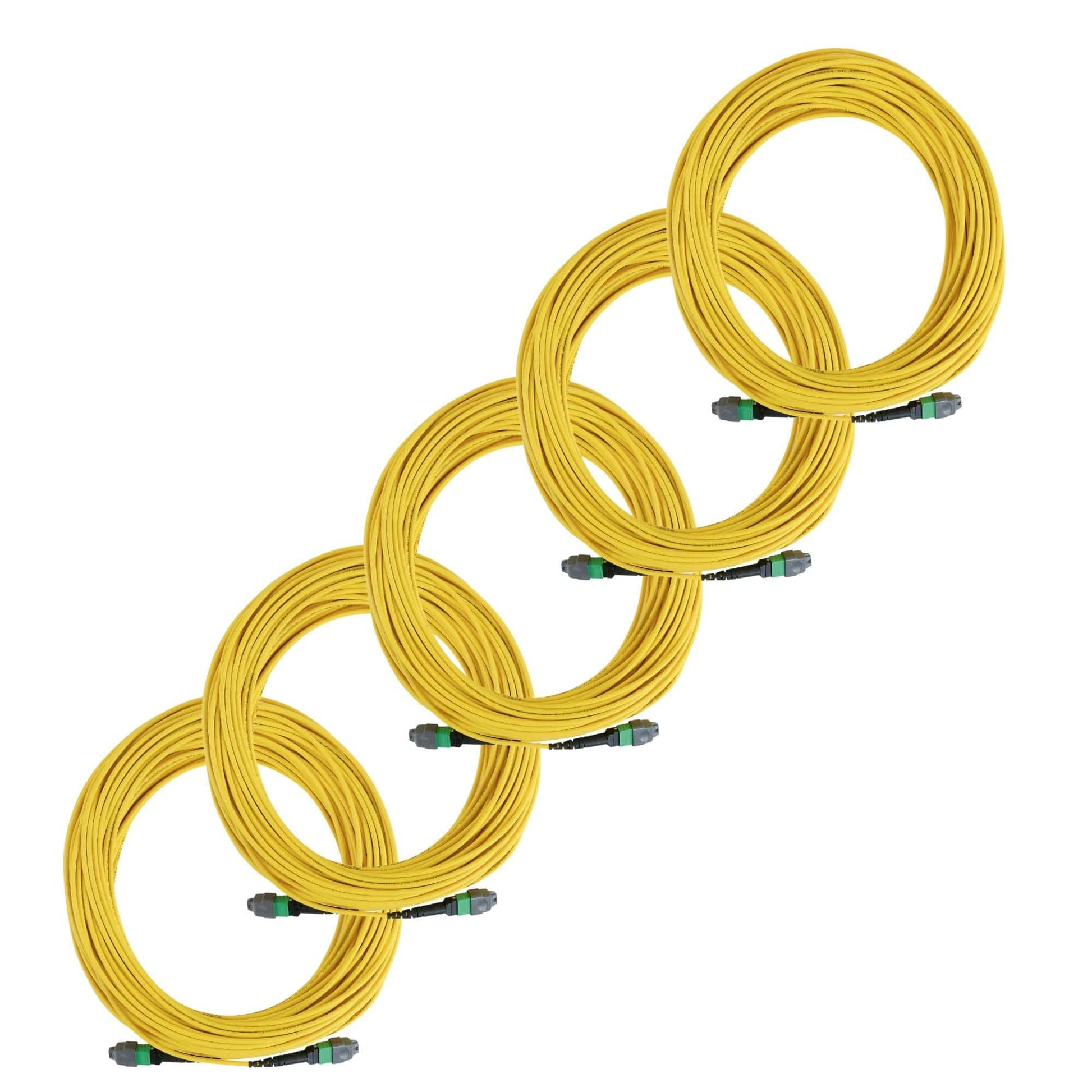

Our MTP/MPO OS2 single mode fiber patch cable (Type B, unpinned) is a low-loss optical cable designed for blazing-fast 40/100/400 Gigabit speeds up to 2 kilometers (equipment dependent). Built with Corning SMF-28 Ultra G.657.A1 bend-insensitive glass, it delivers reliable data transmission at both 1310 nm and 1550 nm wavelengths. A solid choice for high-speed networking applications across data centers, campus backbones, and SANs.

Quality Guaranteed
Engineered for stability and low loss. The floating ferrule design maintains consistent fiber contact, while the elliptical guide pin tip reduces debris and signal loss. Spring centering protects the fiber array for long-lasting performance. You can expect low optical loss for high-speed data transmission.

Versatile

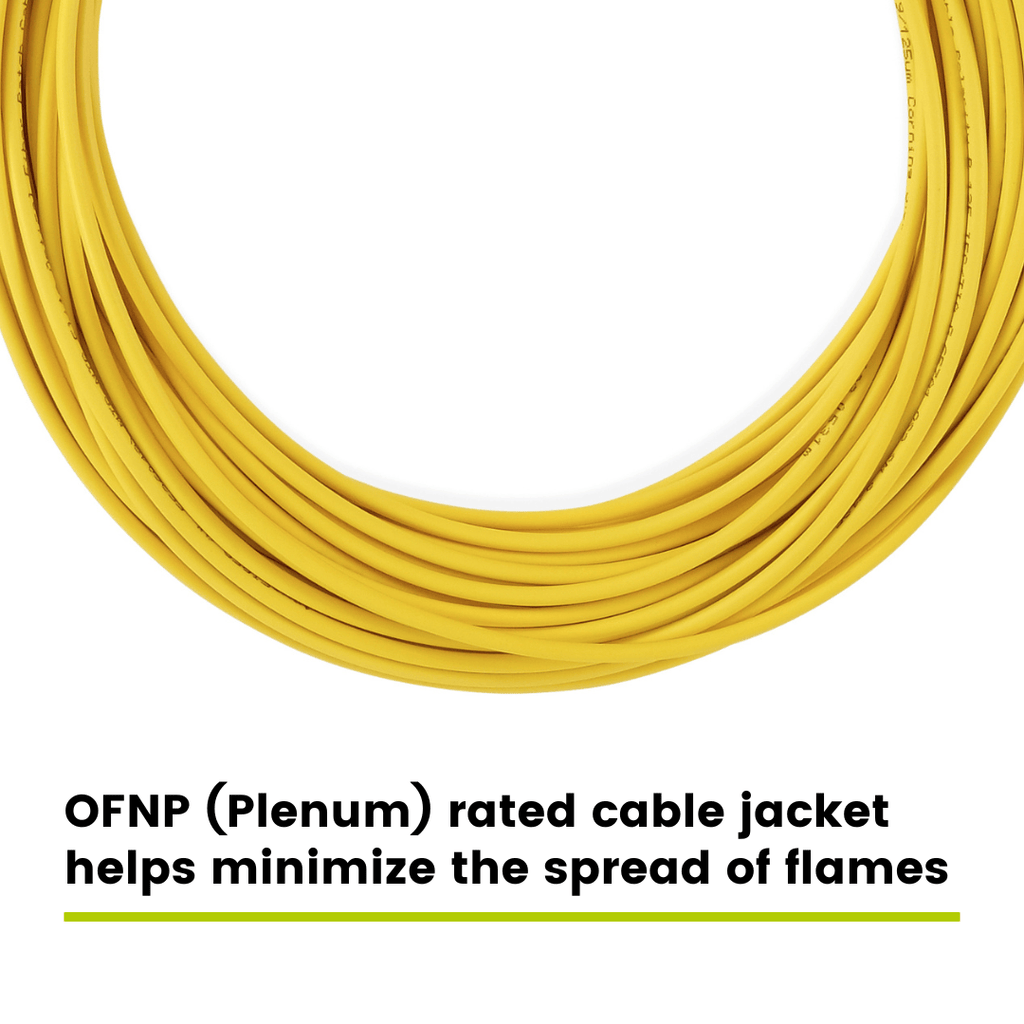

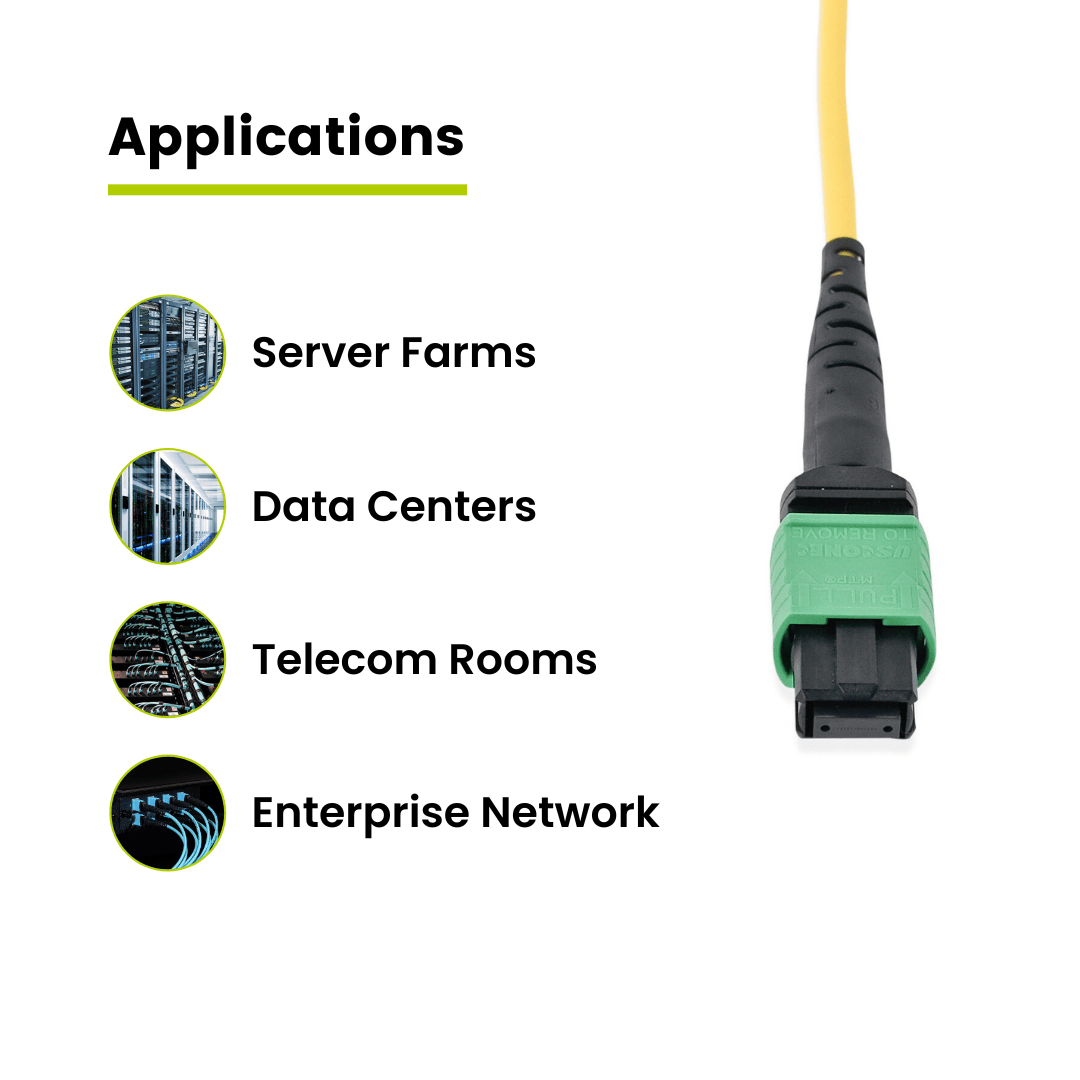

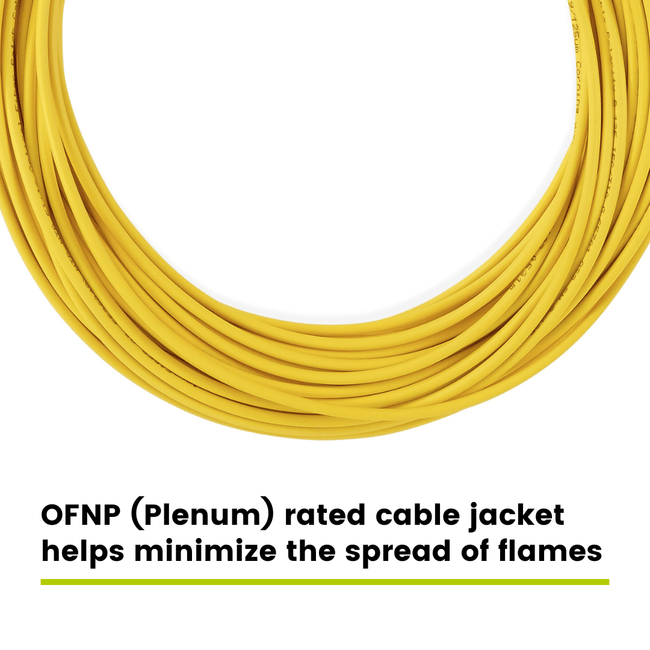

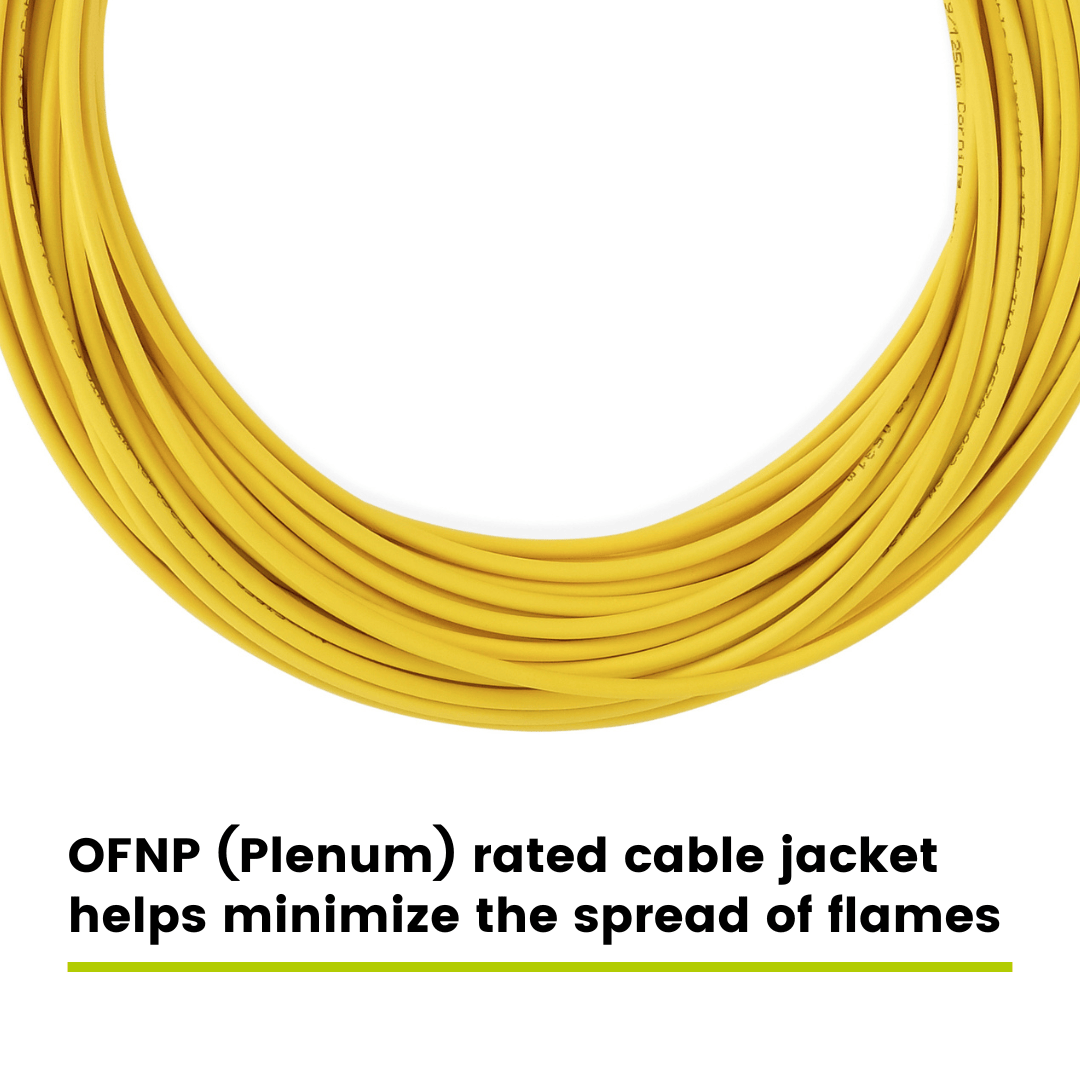

Upgrade your network with our MTP/MPO fiber patch cable, featuring an OFNP (Plenum) rated jacket for use in both plenum and non-plenum spaces. Establish direct links with QSFP+ 40G SR4/CSR4 and 100G QSFP28-SR4 connections. MTP-12 supports MTP-8 architectures for flexible trunking. It is engineered for high-density spine-leaf fabrics, cross-connects, and backbone runs in modern data centers and enterprise LANs.

Durable

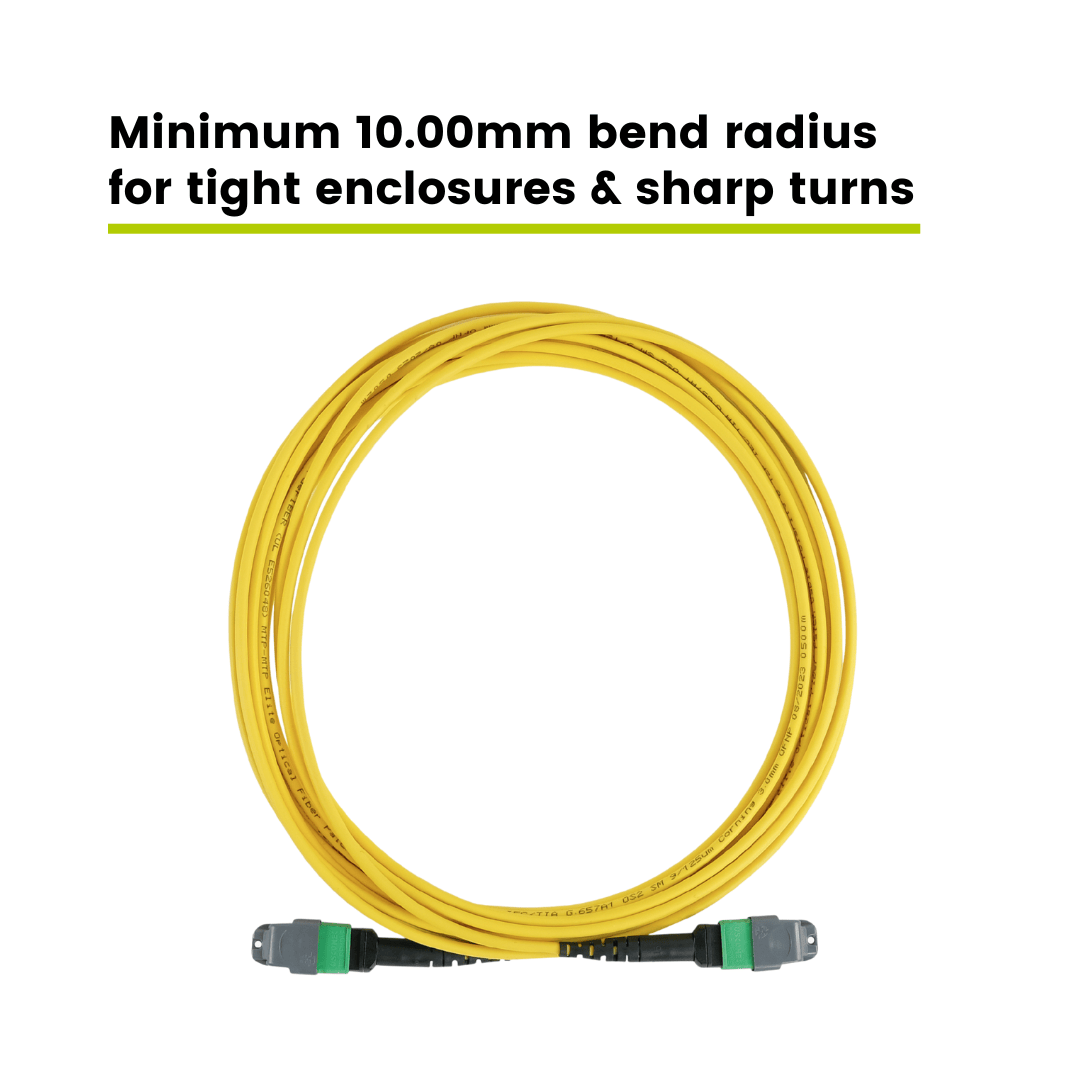

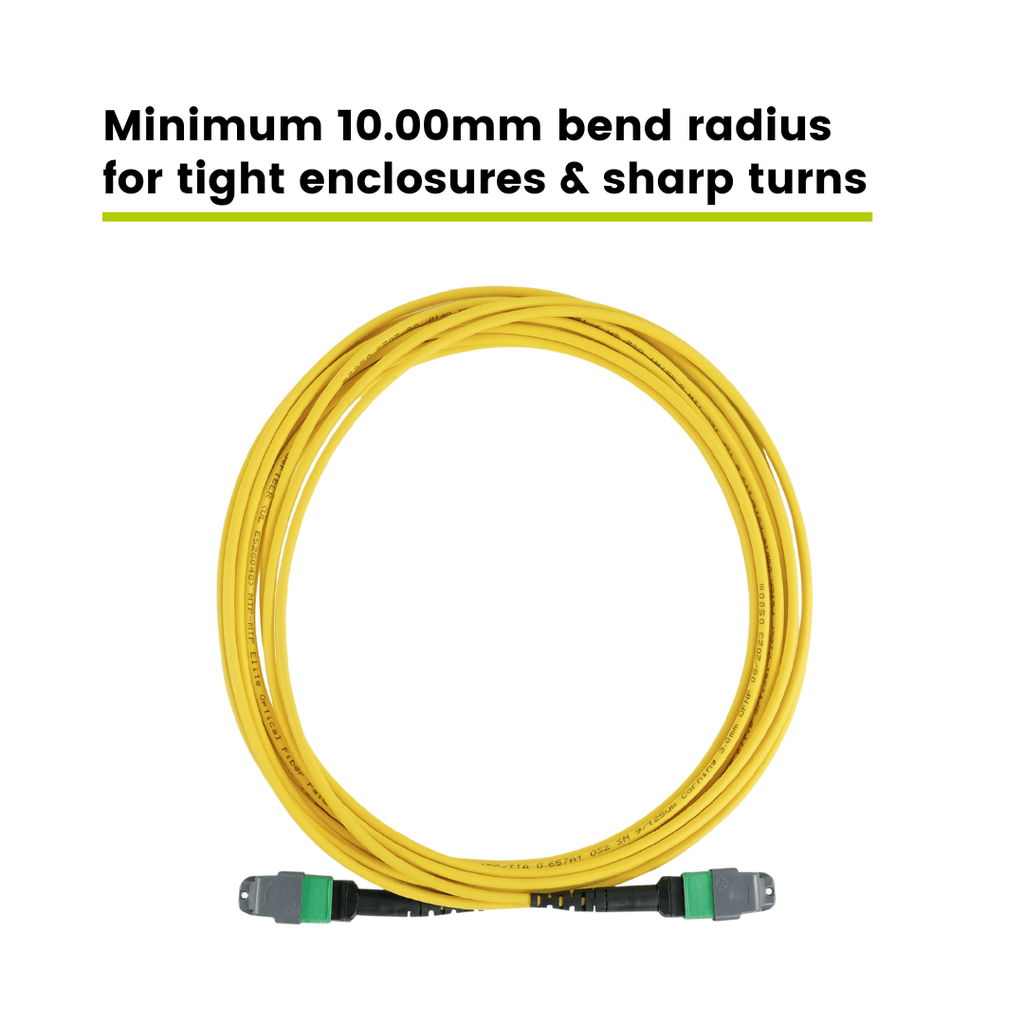

Built to perform in tight spaces. The aramid yarn–encased tight buffer and G.657.A1 bend-insensitive SMF allow a minimum bend radius of 10.00 mm, perfect for tight enclosures and sharp turns. The compact 3.0 mm OD jacket supports high-density applications, ensuring smooth and consistent throughput. Upgrade your network with our dependable MTP/MPO fiber optic cable.

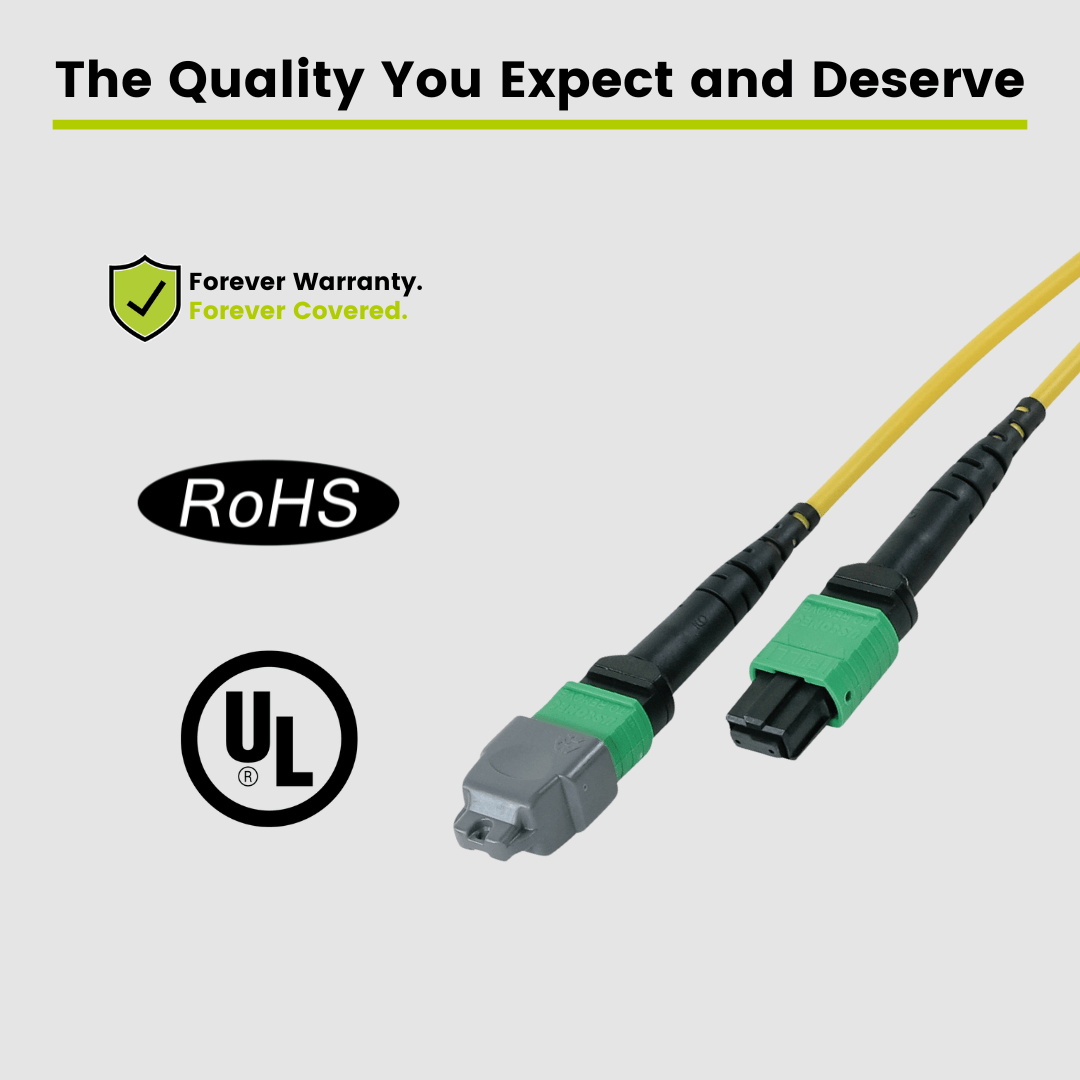

✓FIELD TESTED, CUSTOMER APPROVED
Our MTP/MPO cables are performance tested and compliant with ANSI/TIA 568.3-E. End faces are certified to IEC 61300-3-35 ED.2. Interfaces align with IEC-61754-7 and TIA-604-5 (FOCIS-5). UL Listed and RoHS compliant. Trusted by fiber optic installers for reliable performance. Backed by our FOREVER WARRANTY.
