Description

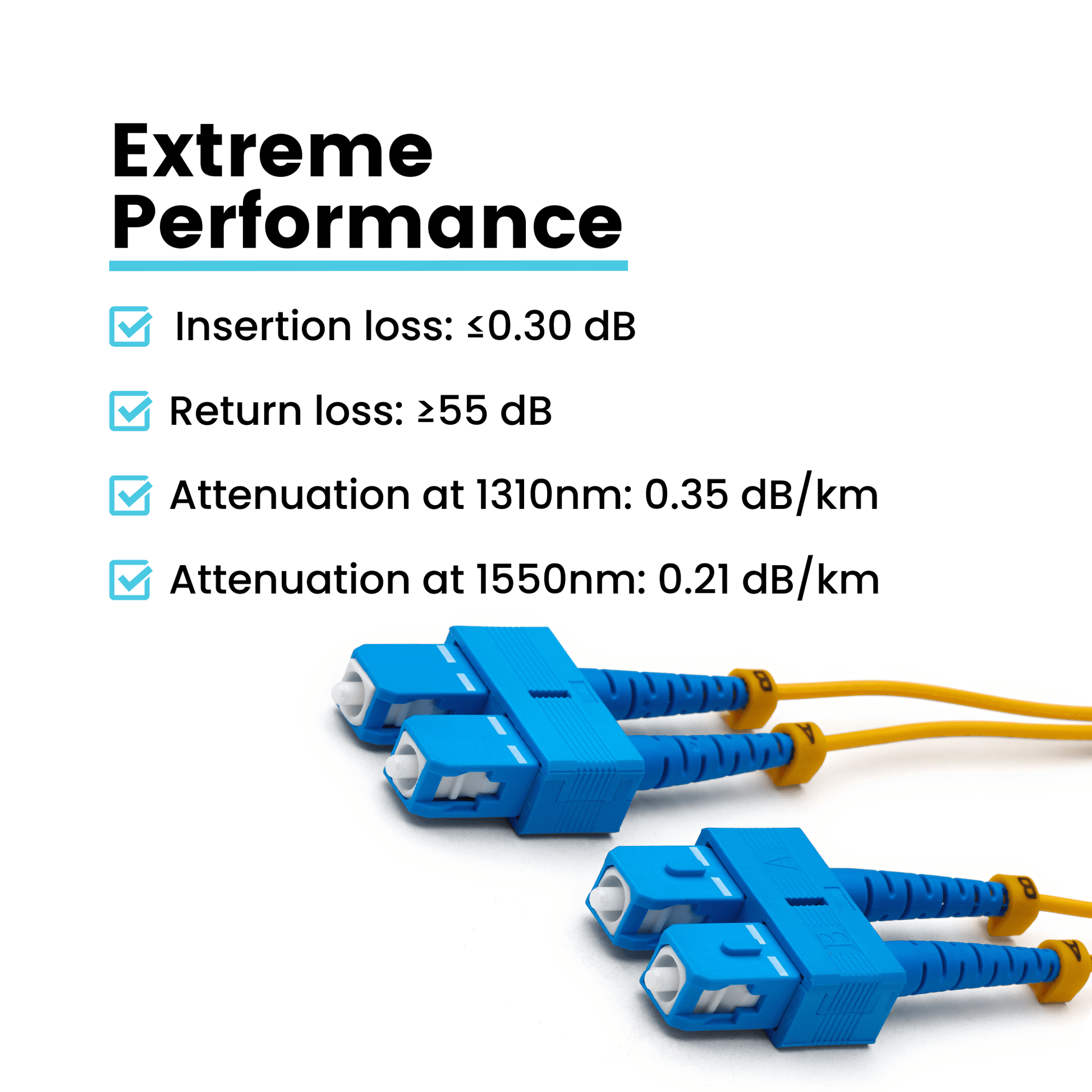

EXTREME PERFORMANCE
- G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
- UPC or "Ultra Physical Contact" polish on the fiber optic connector ends.

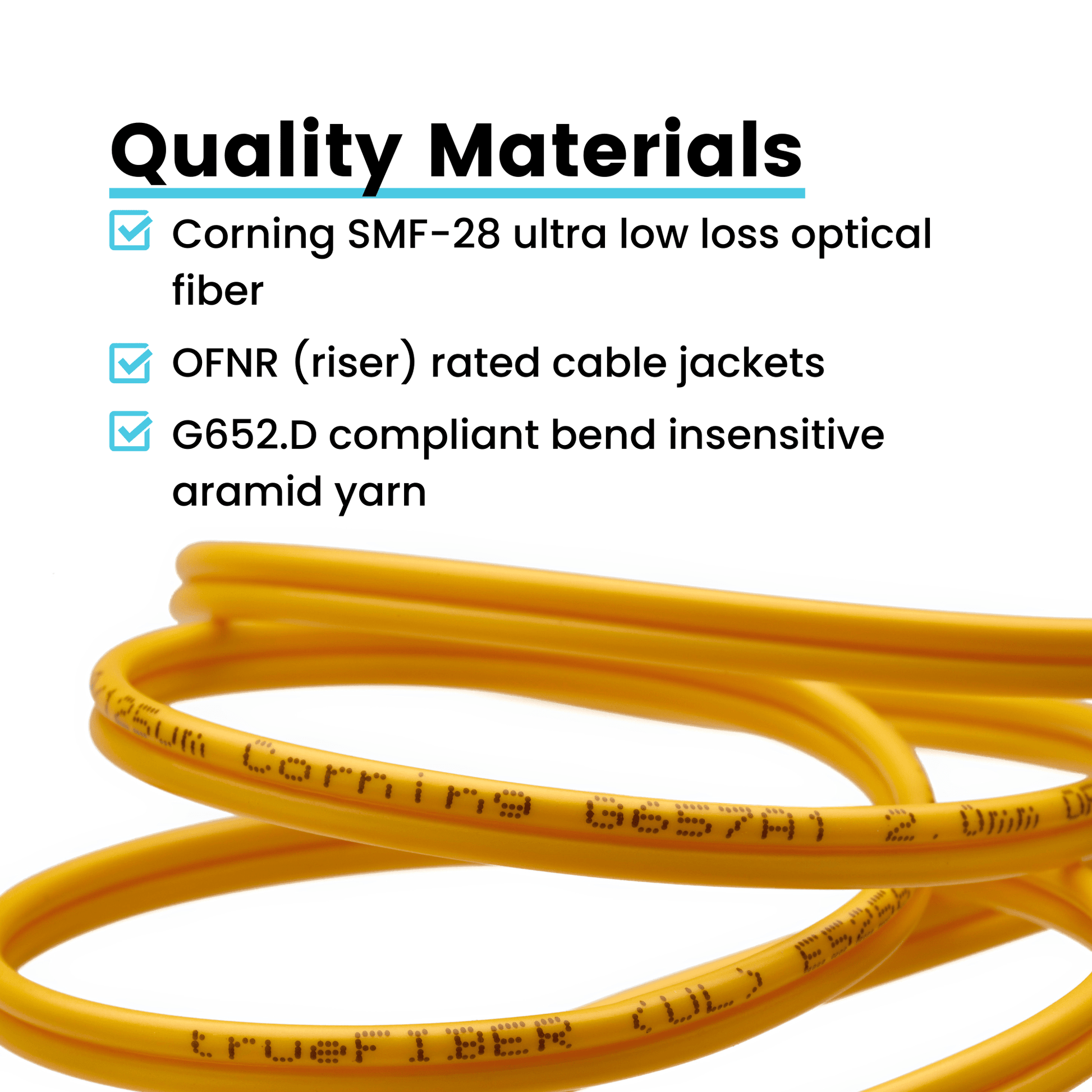

- Corning® ultra low loss glass, ultra optical fiber core and cladding.

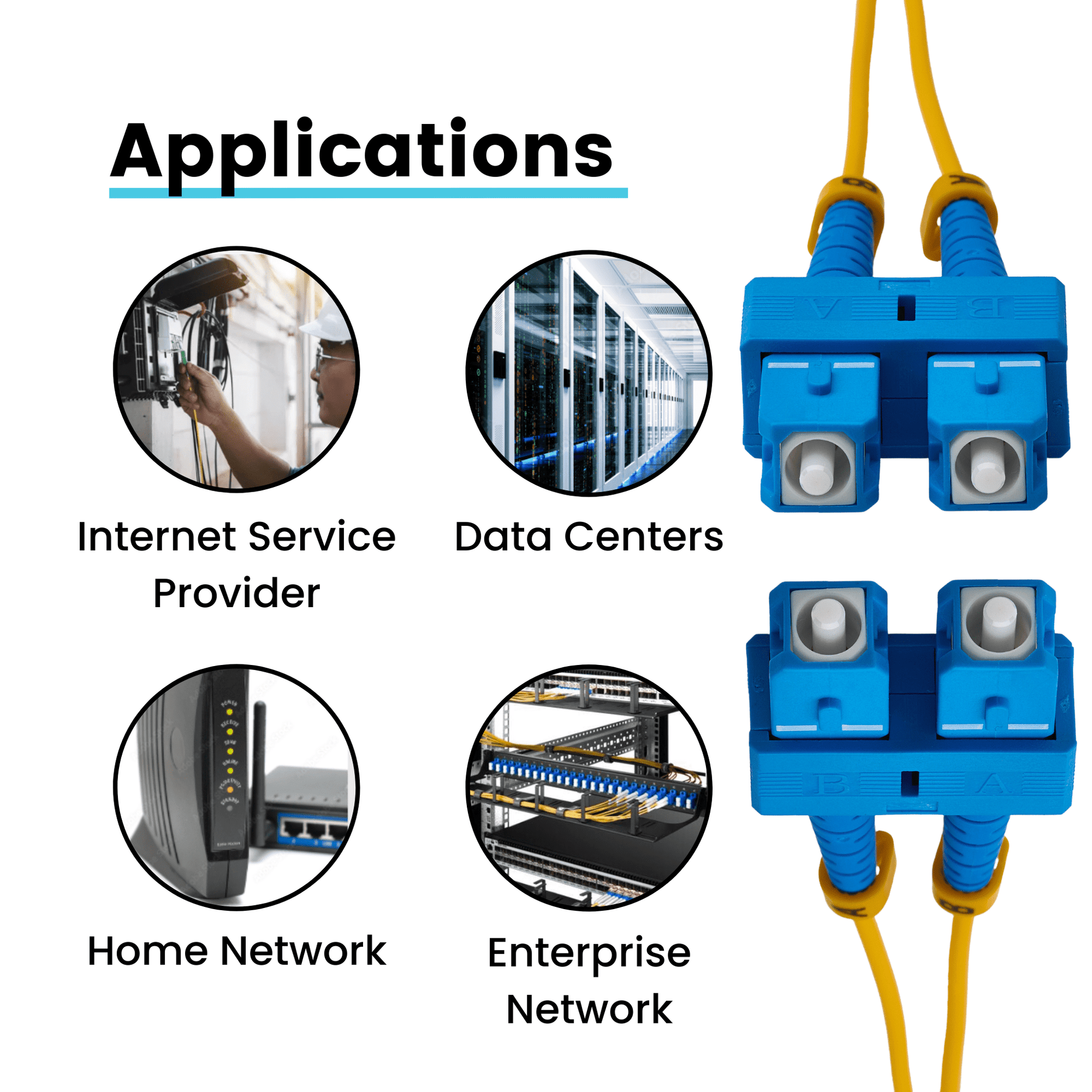

- Local Area Network/Data Center & Internet Service Provider applications.
- Quality Tested with a Fluke Versiv™ CableAnalyzer.

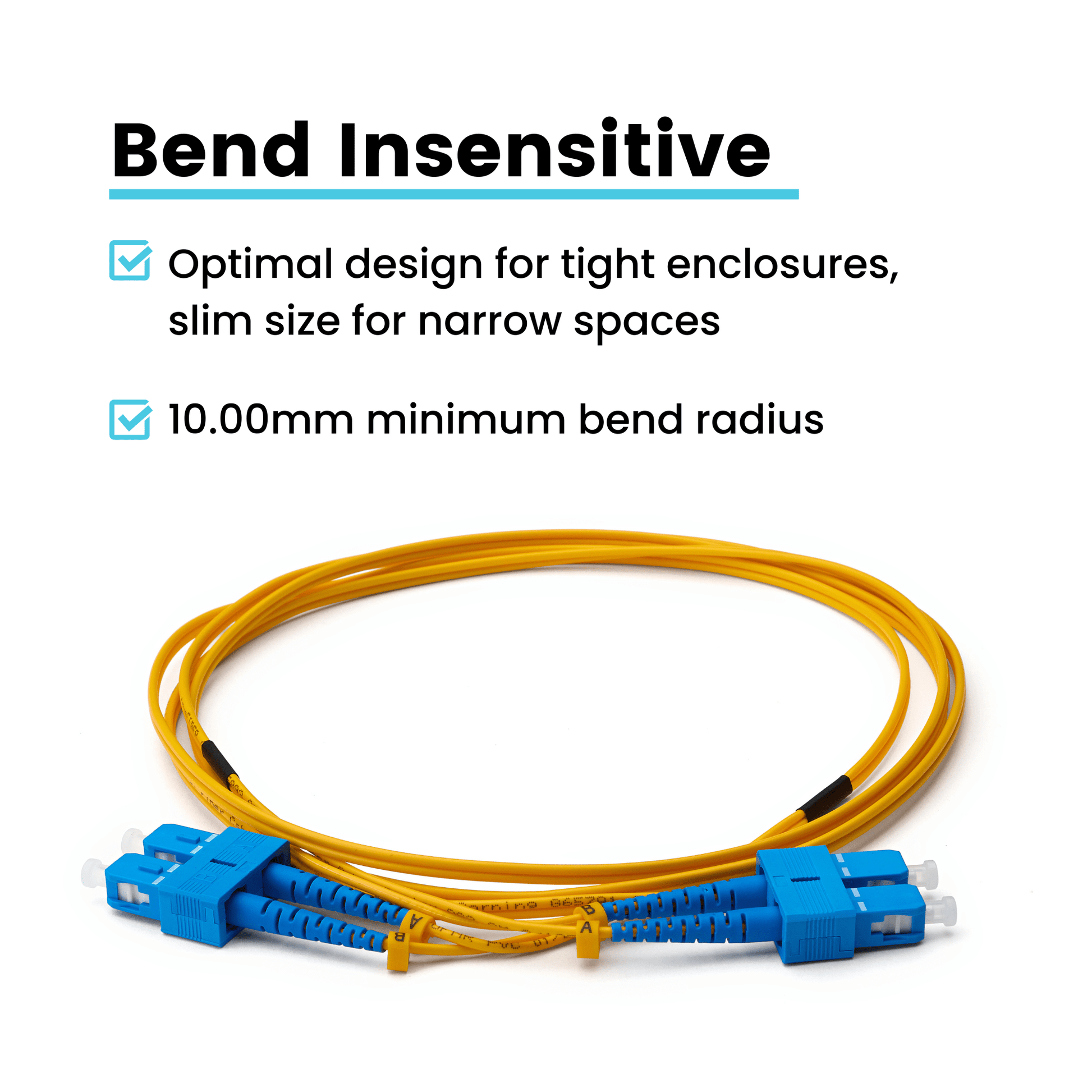

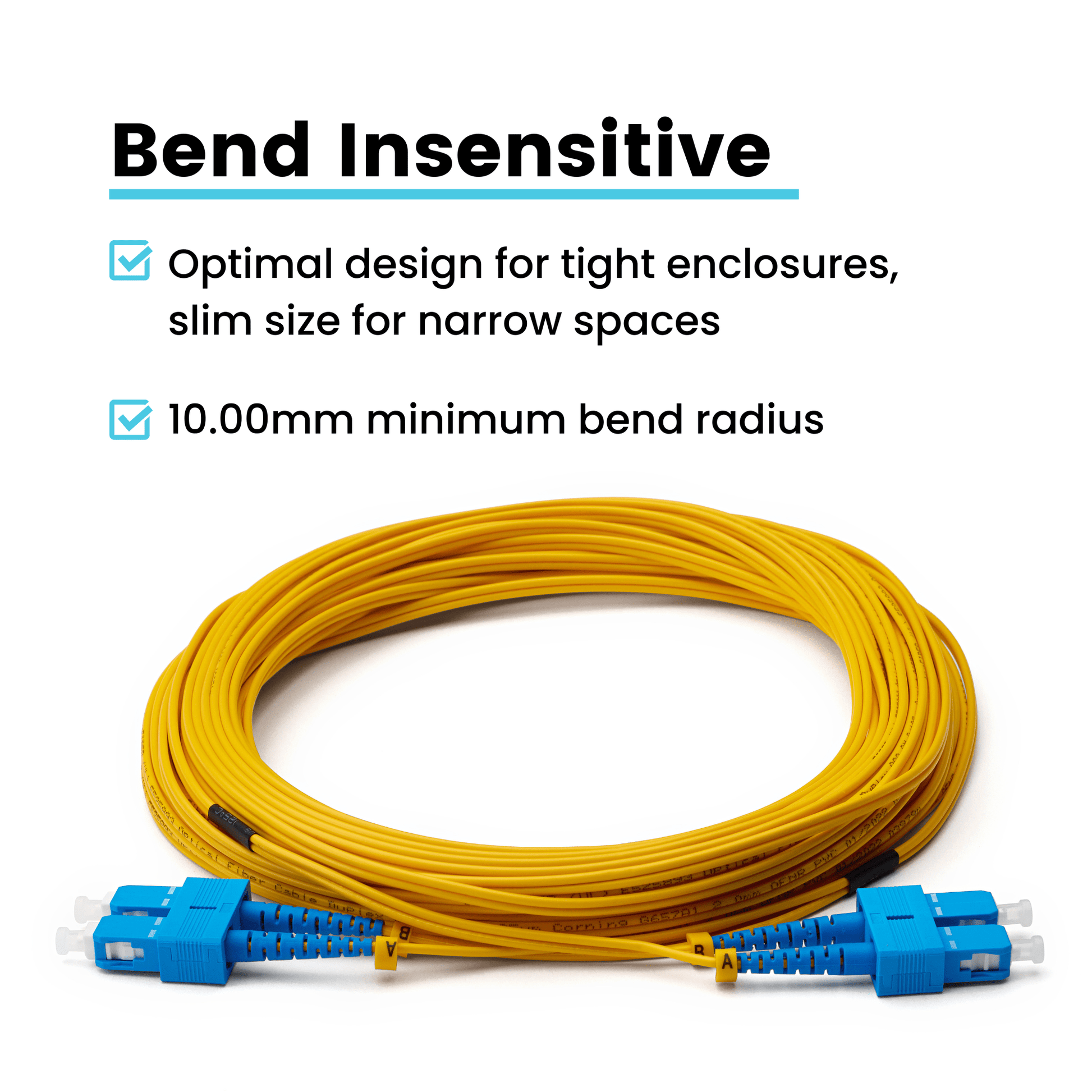

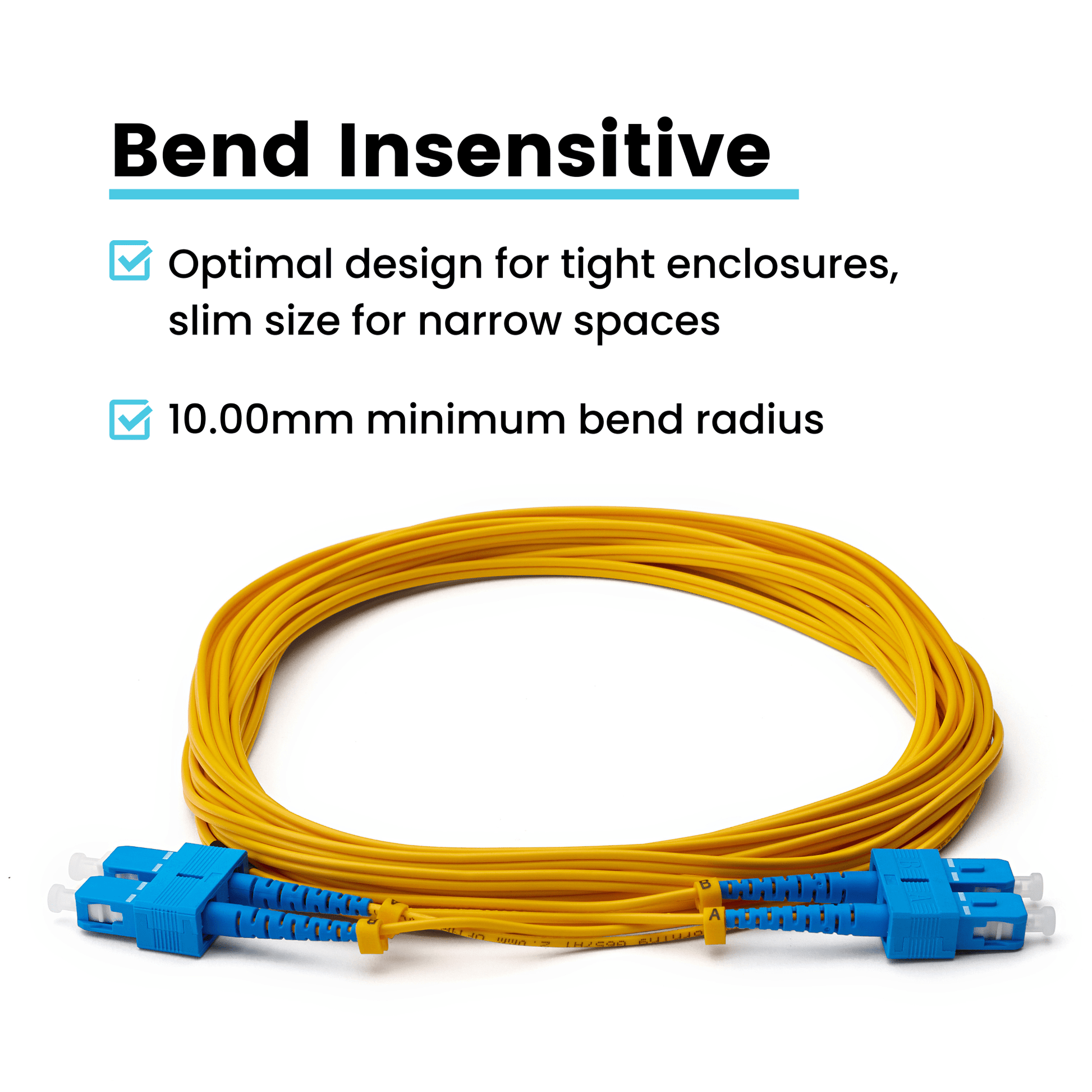

BEND INSENSITIVE
- G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
- 2.0mm OD (overall diameter) cable jacket supports high density applications.

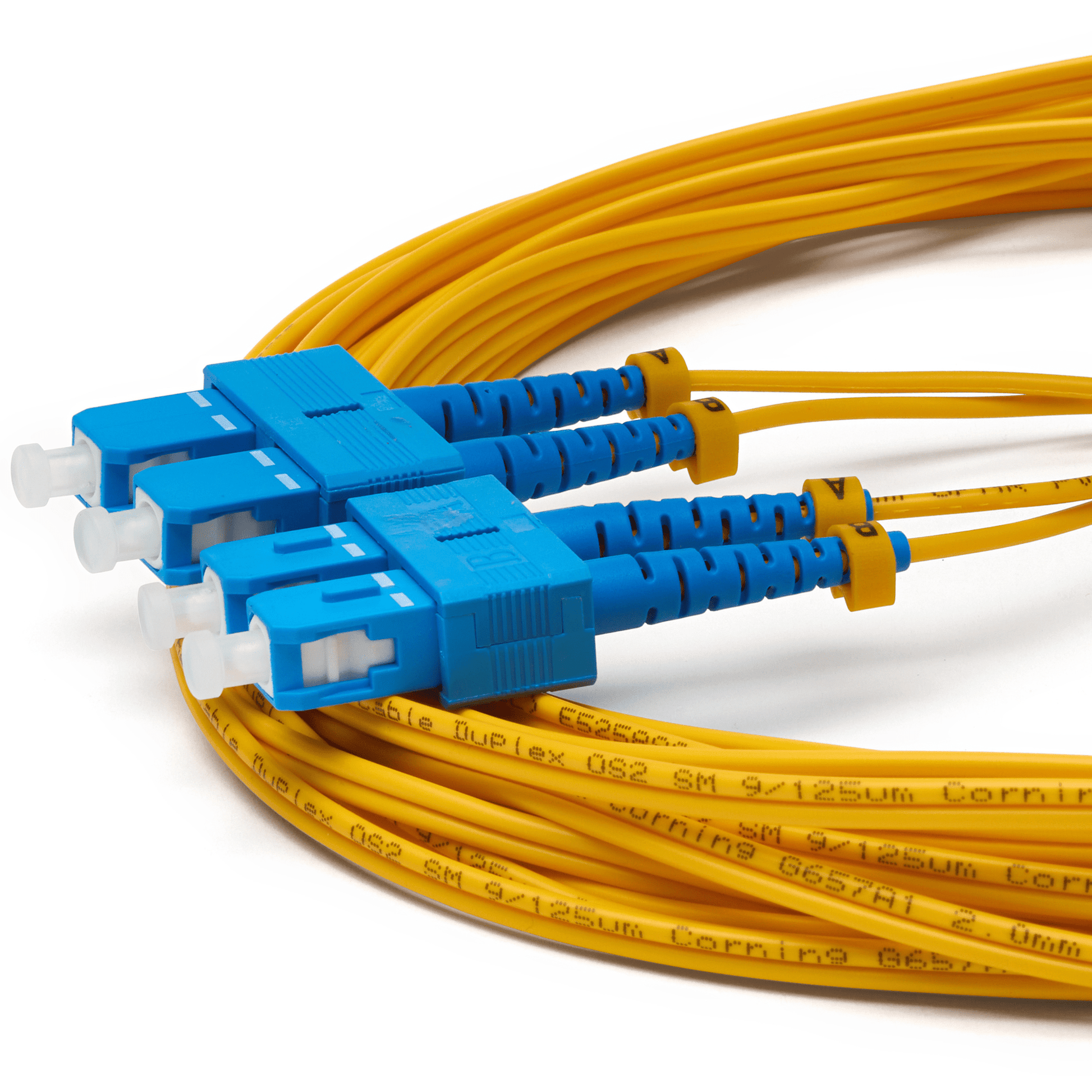

HIGH QUALITY LC CERAMIC FERRULES

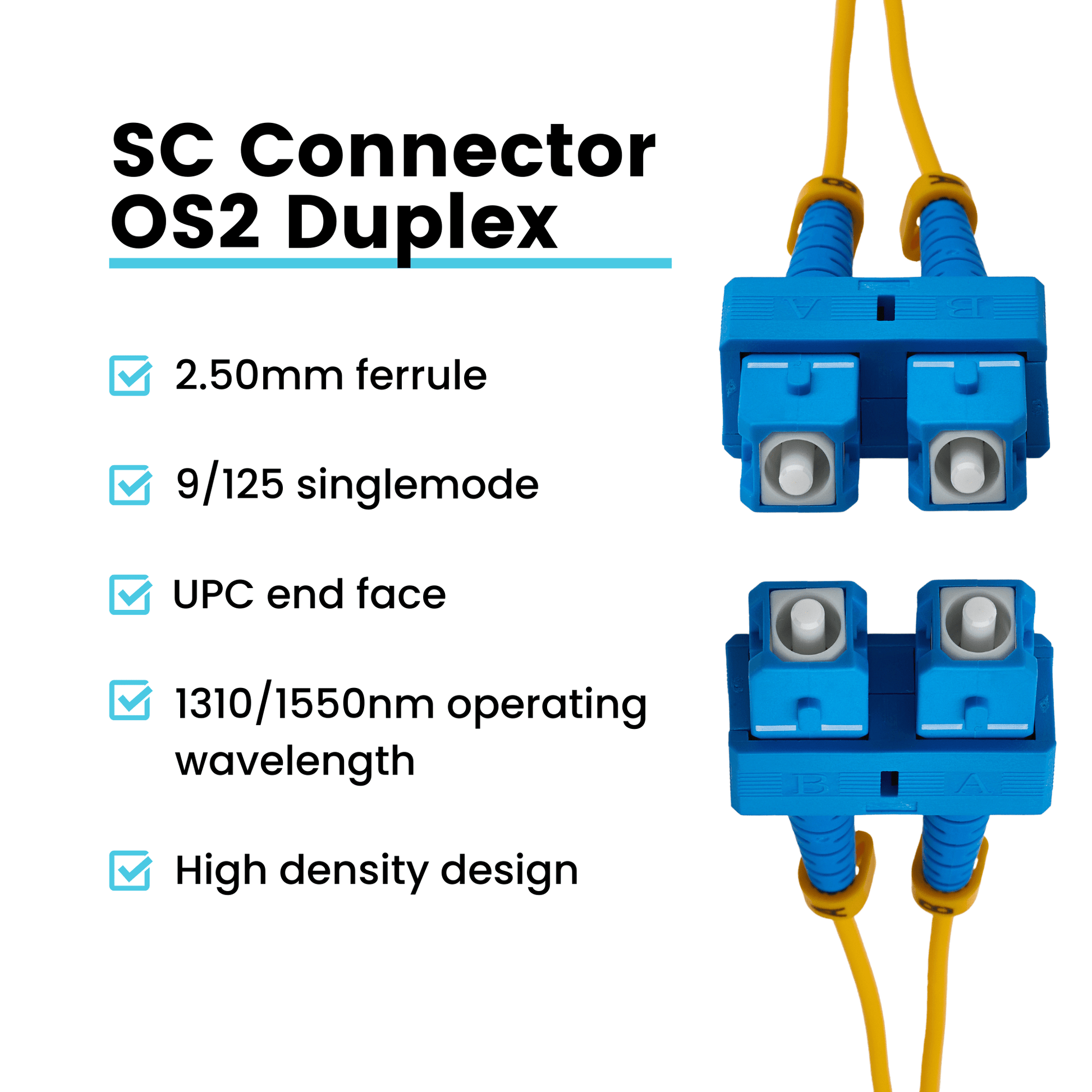

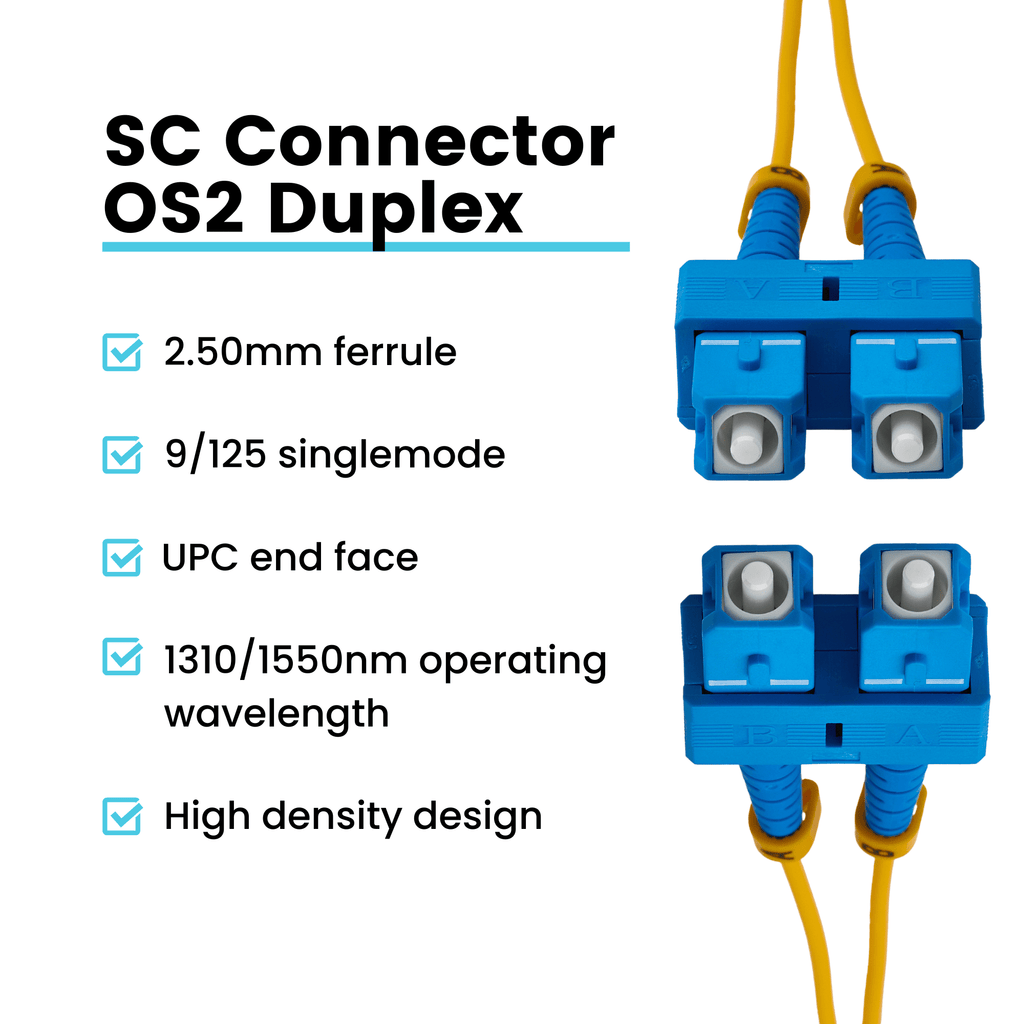

- 2.50mm superior grade SC zirconia ceramic ferrules ensure precision alignment and very low optical loss.
FOR USE INDOORS
- OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.
✓ CERTIFIED by trueCABLE
- Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
Specifications
| Weight | 0.1 lbs |
| Length | 9 in |
| Width | 7.5 in |
| Height | 0.5 in |
