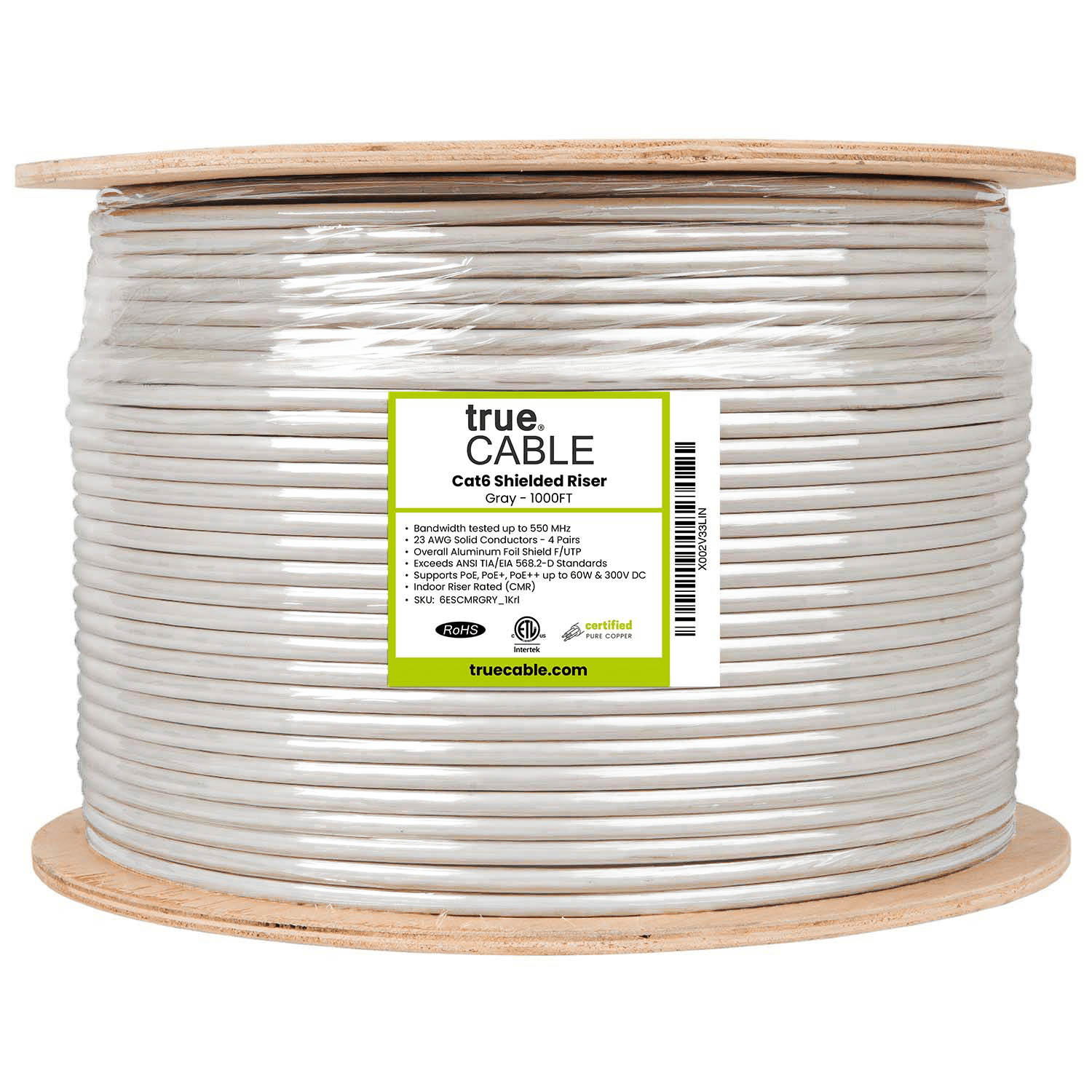

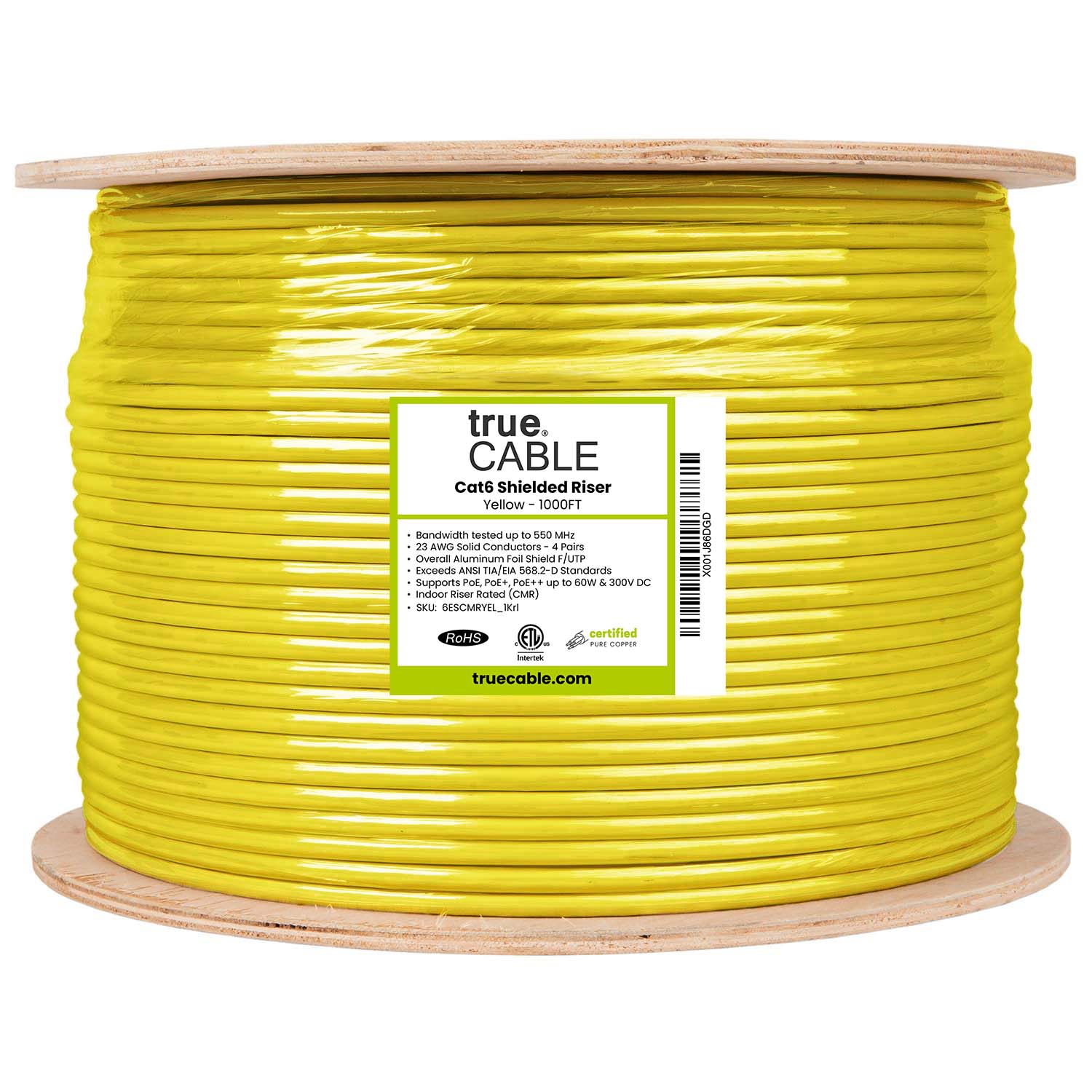

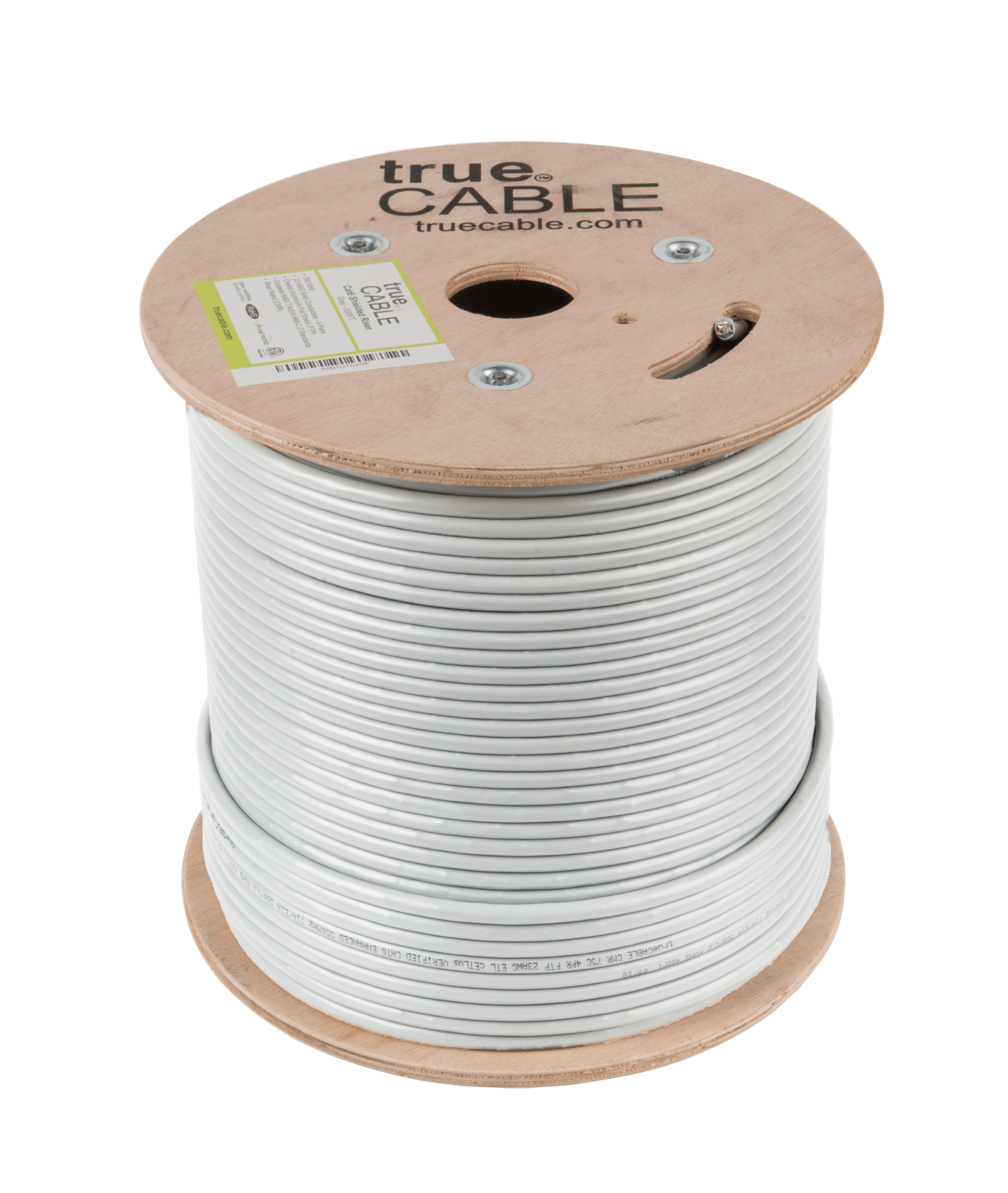

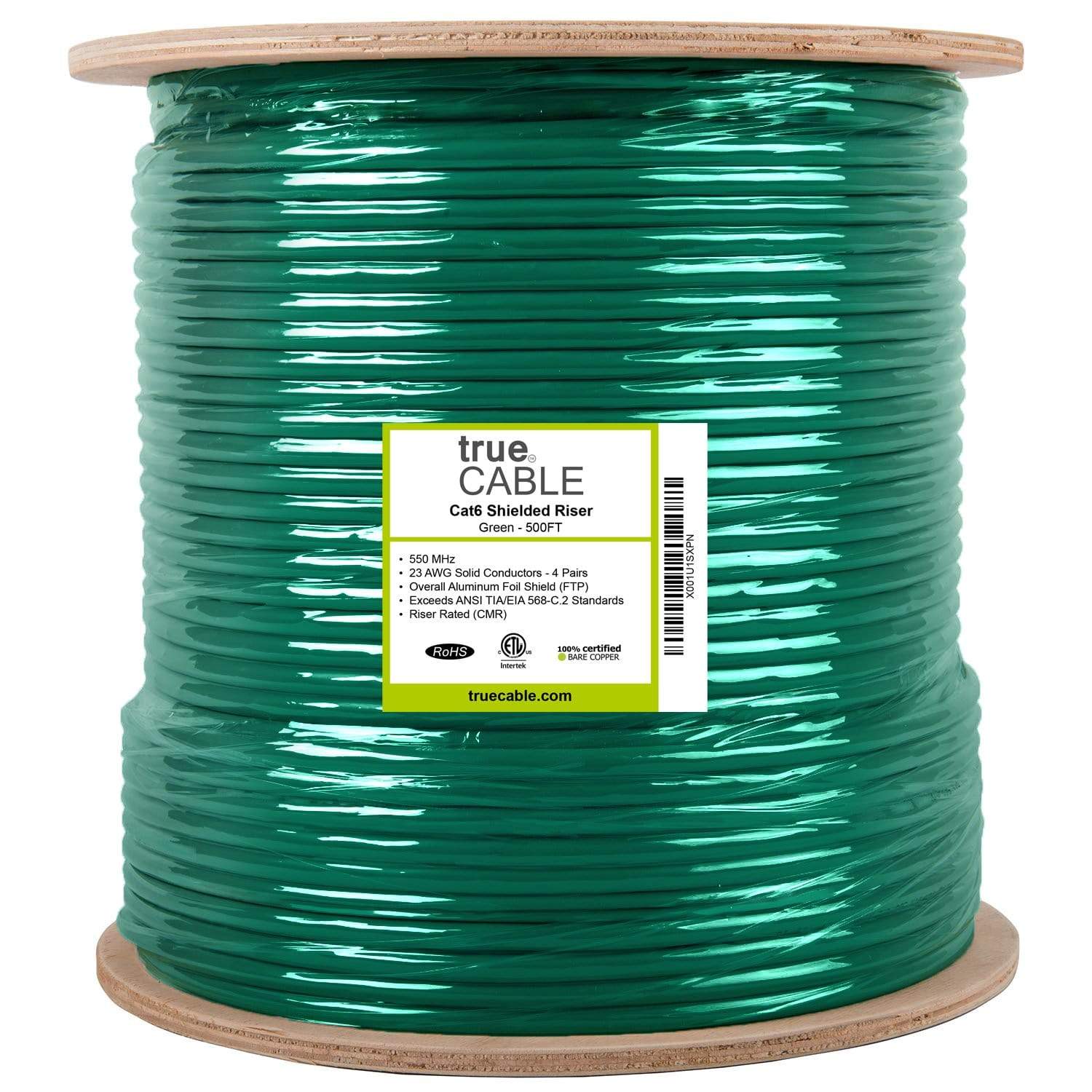

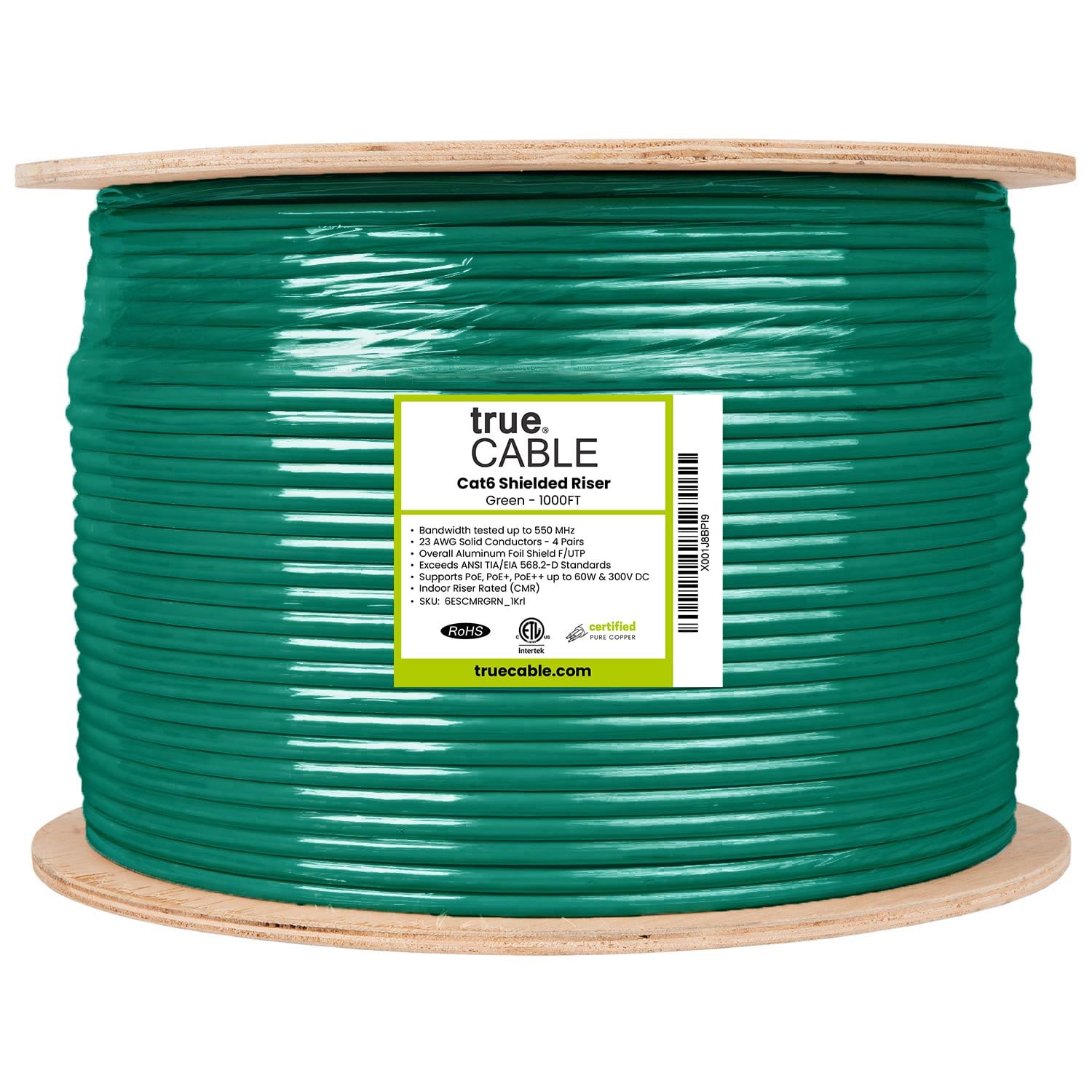

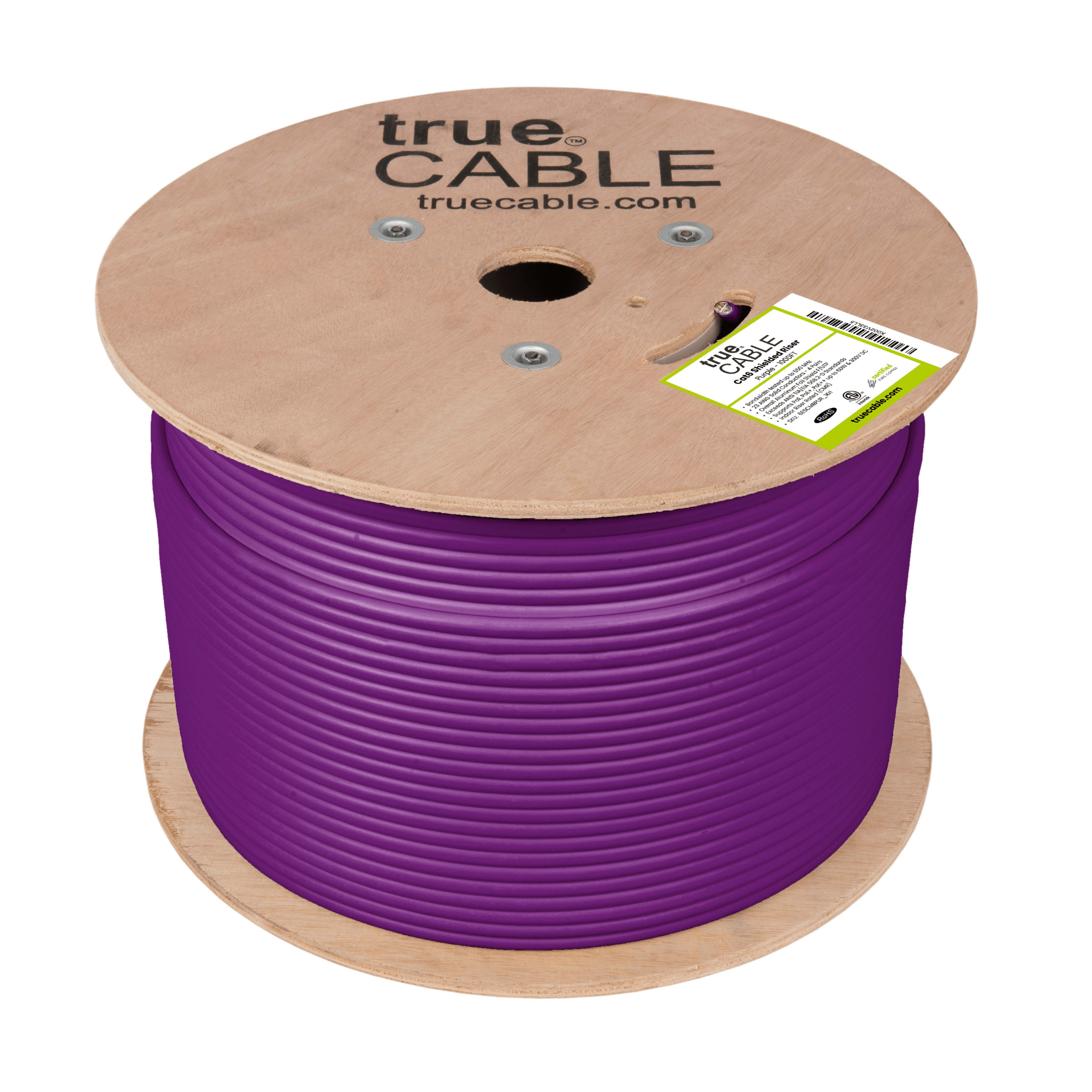

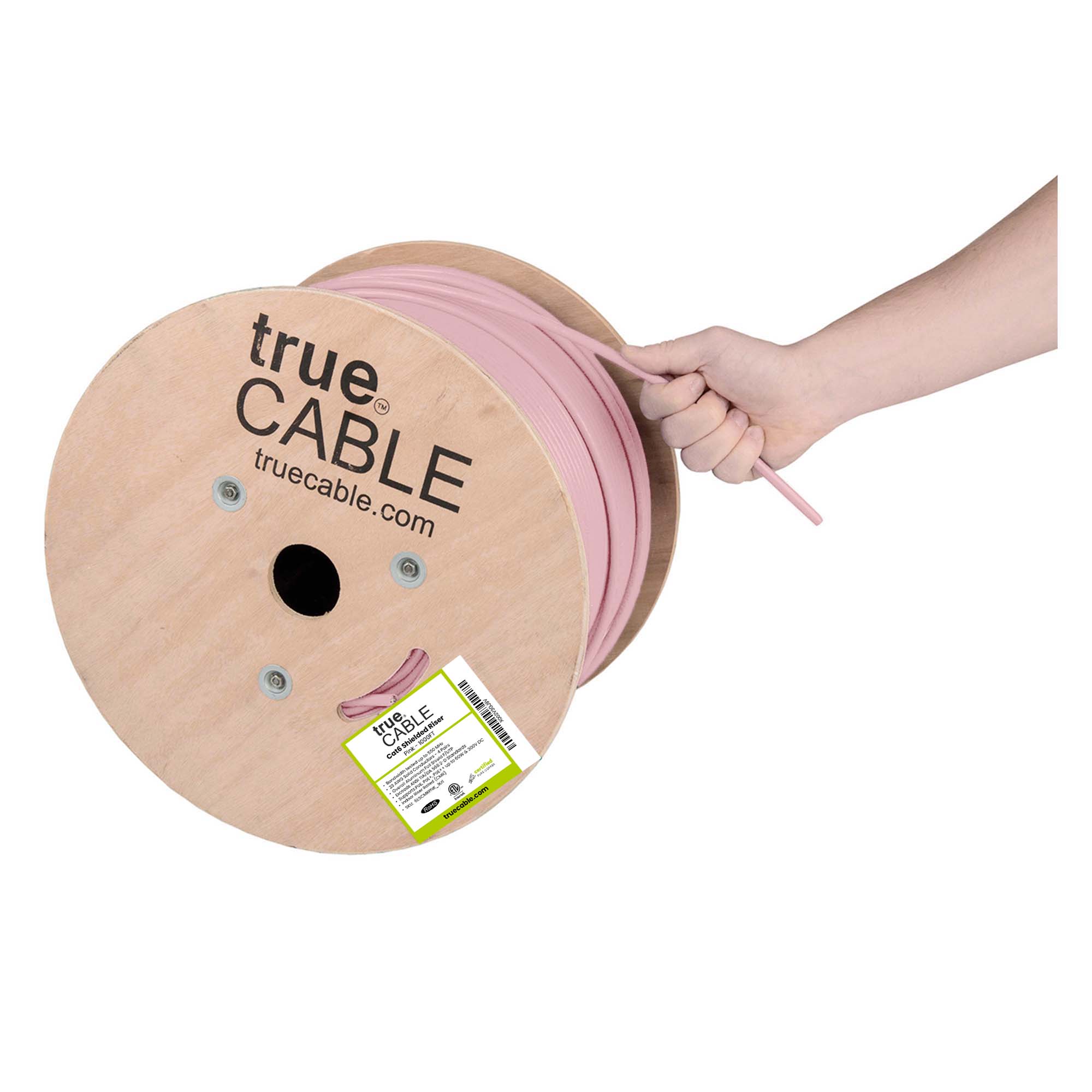

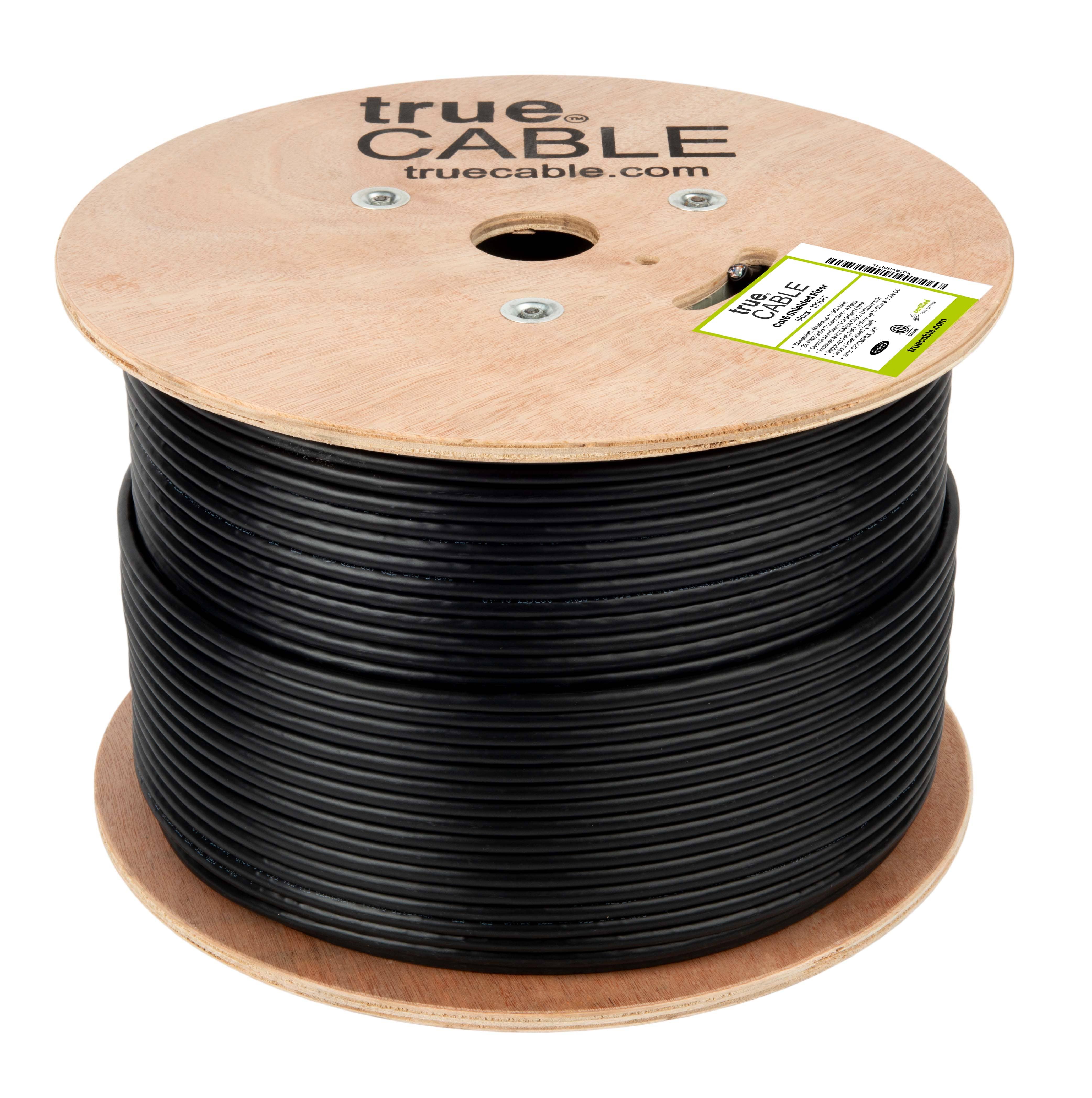

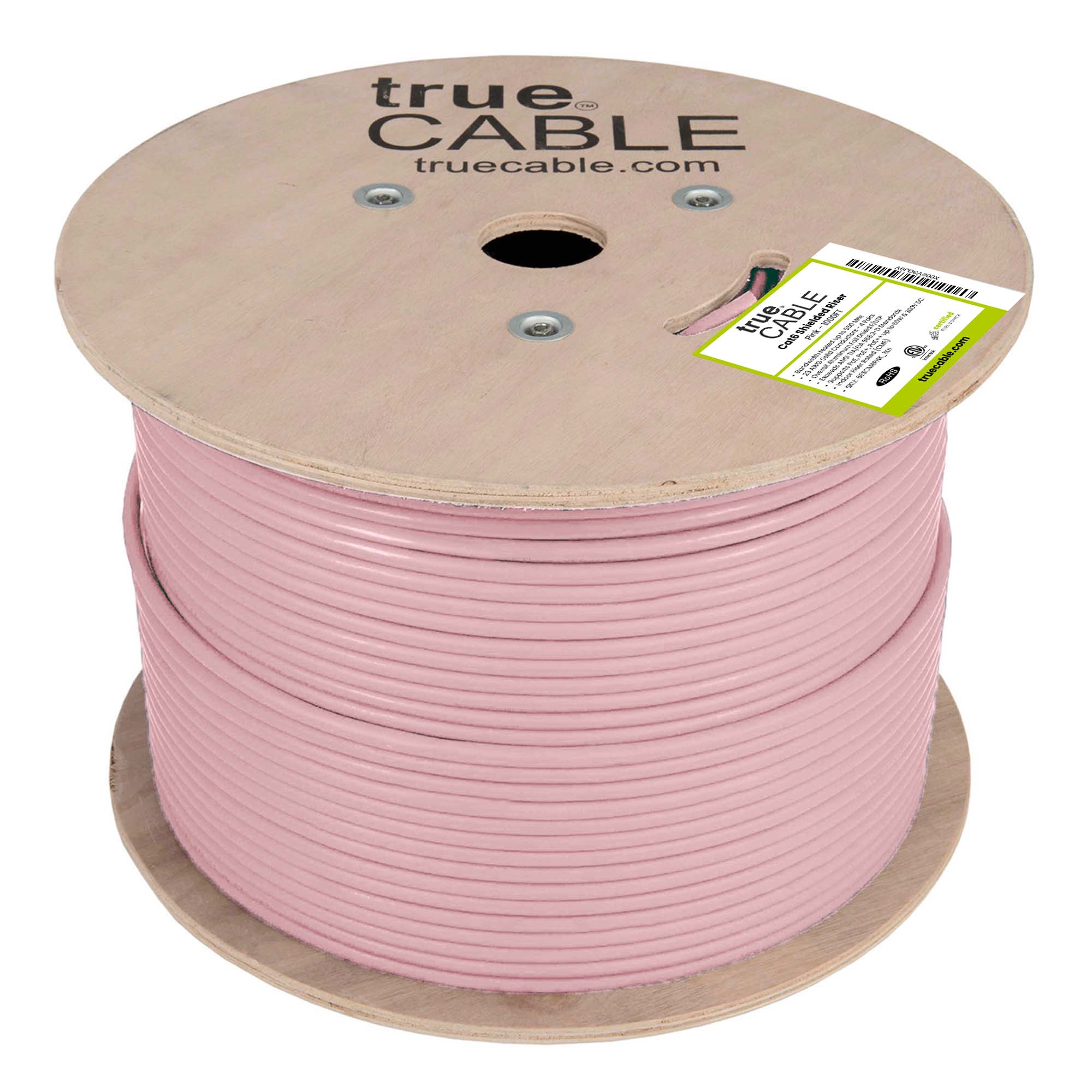

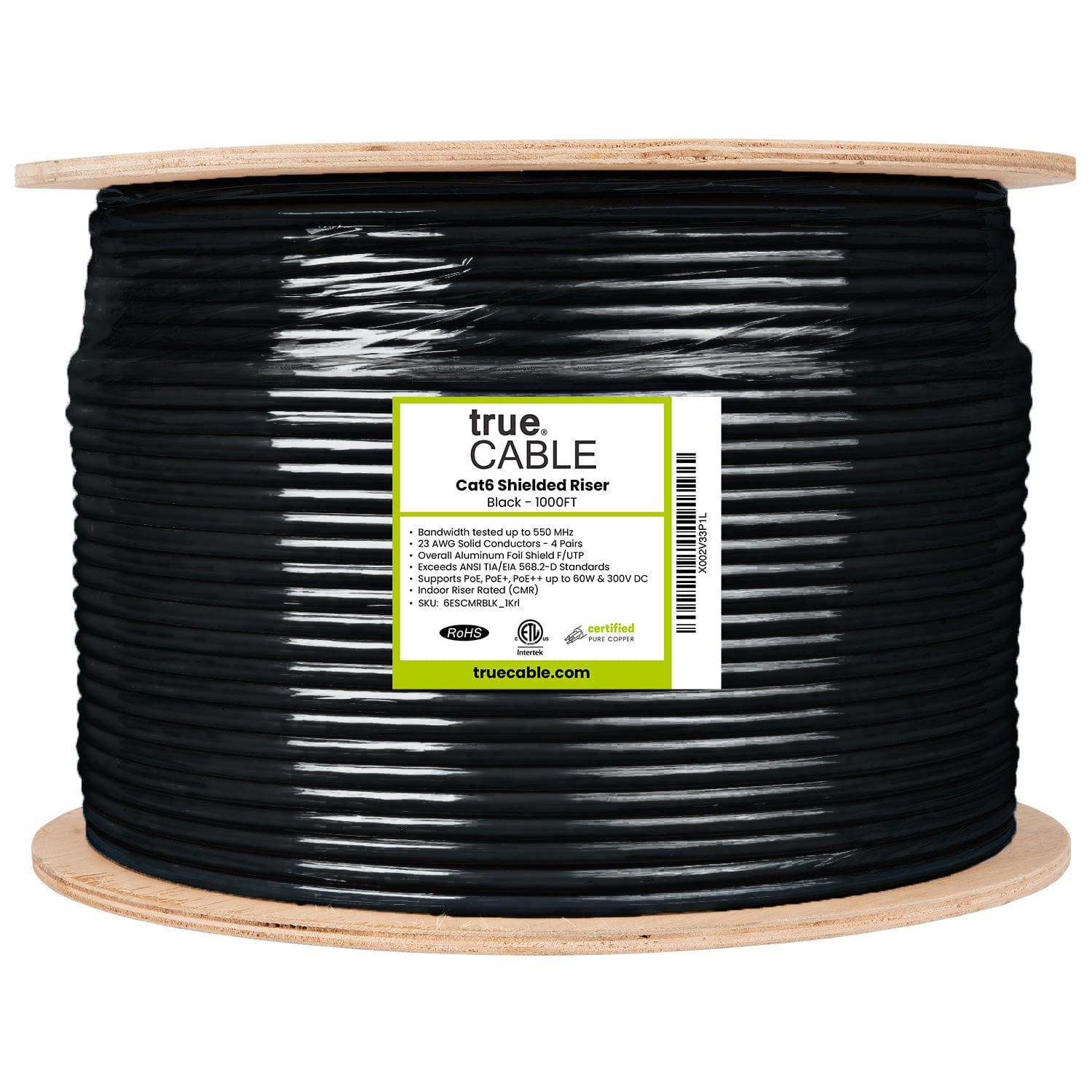

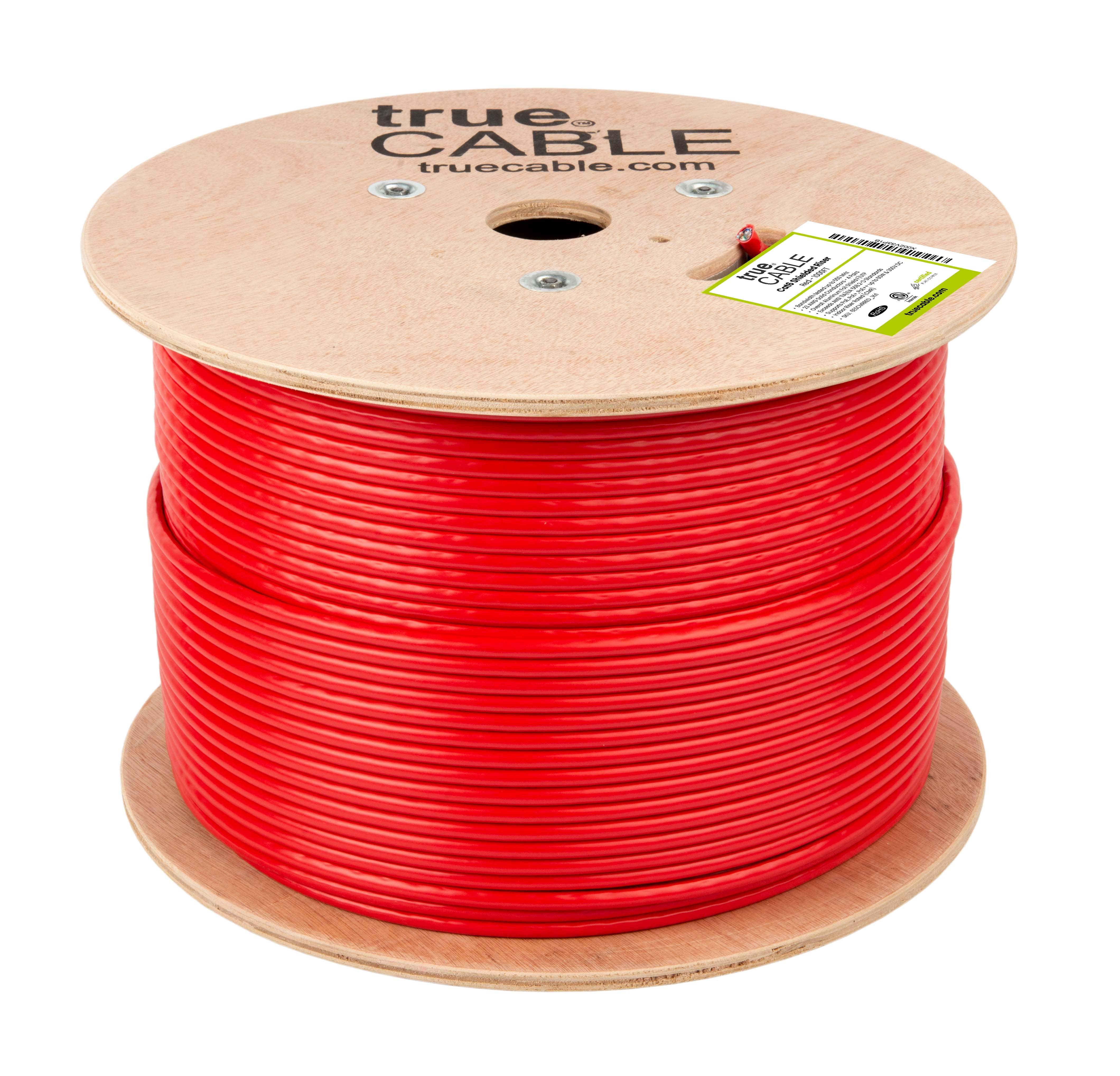

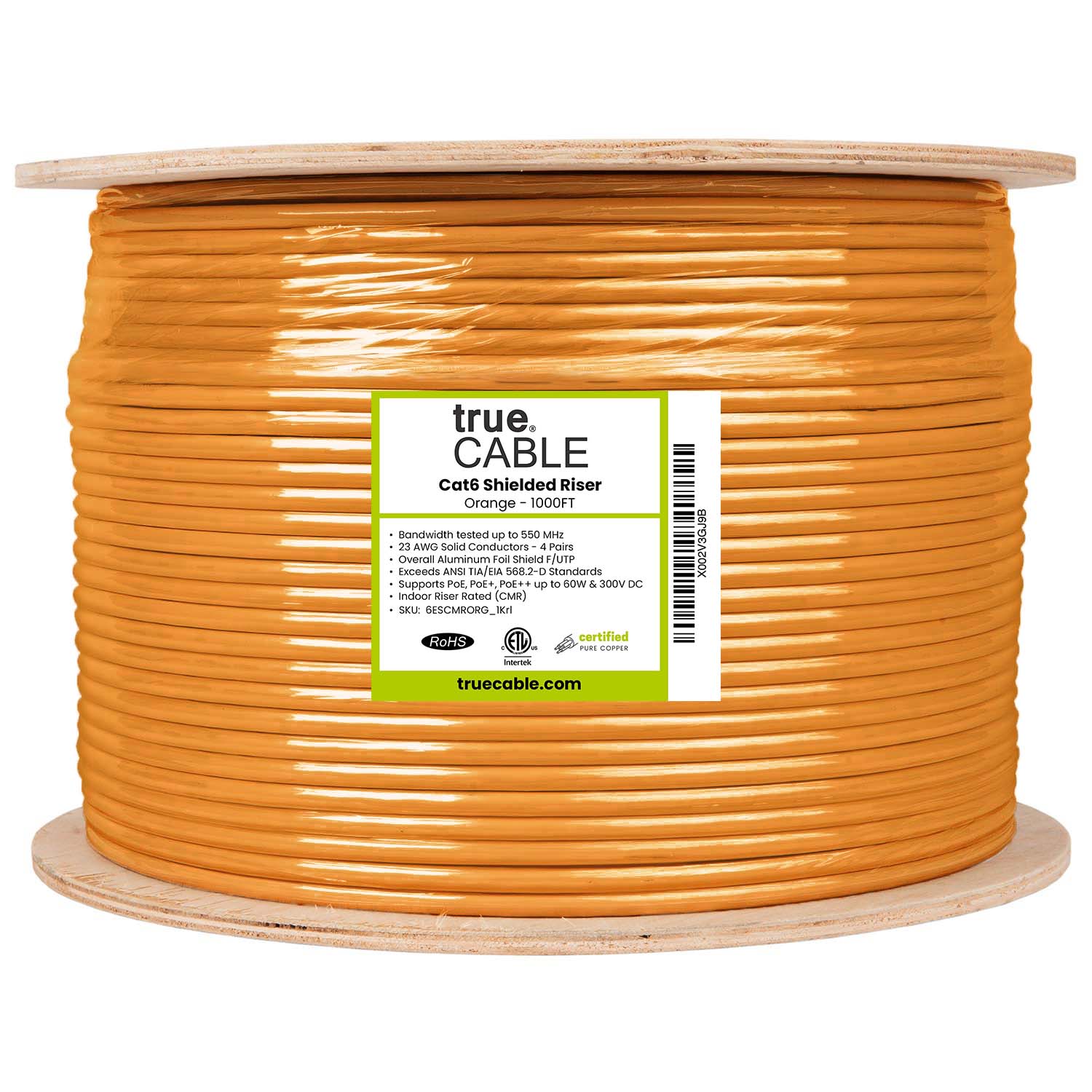

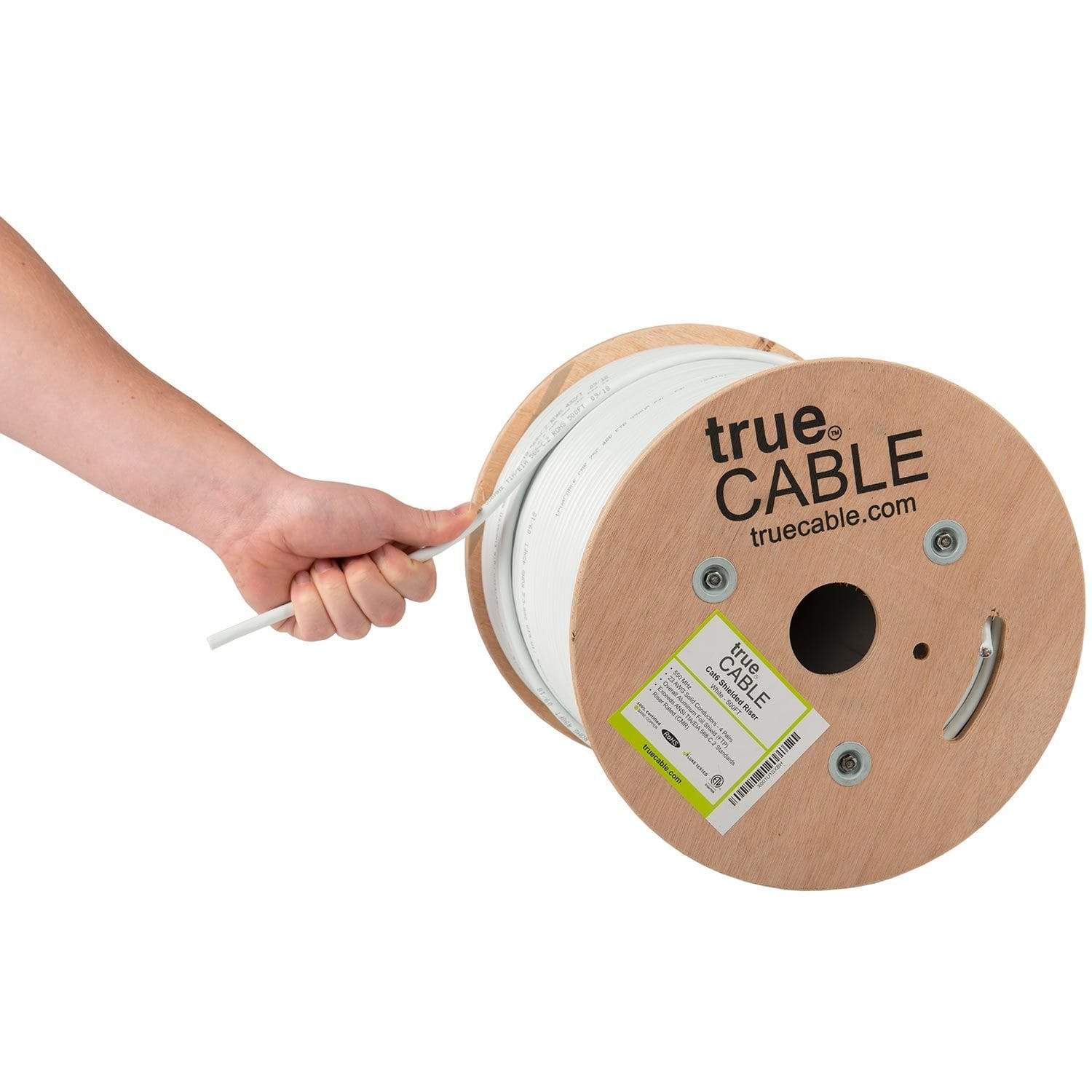

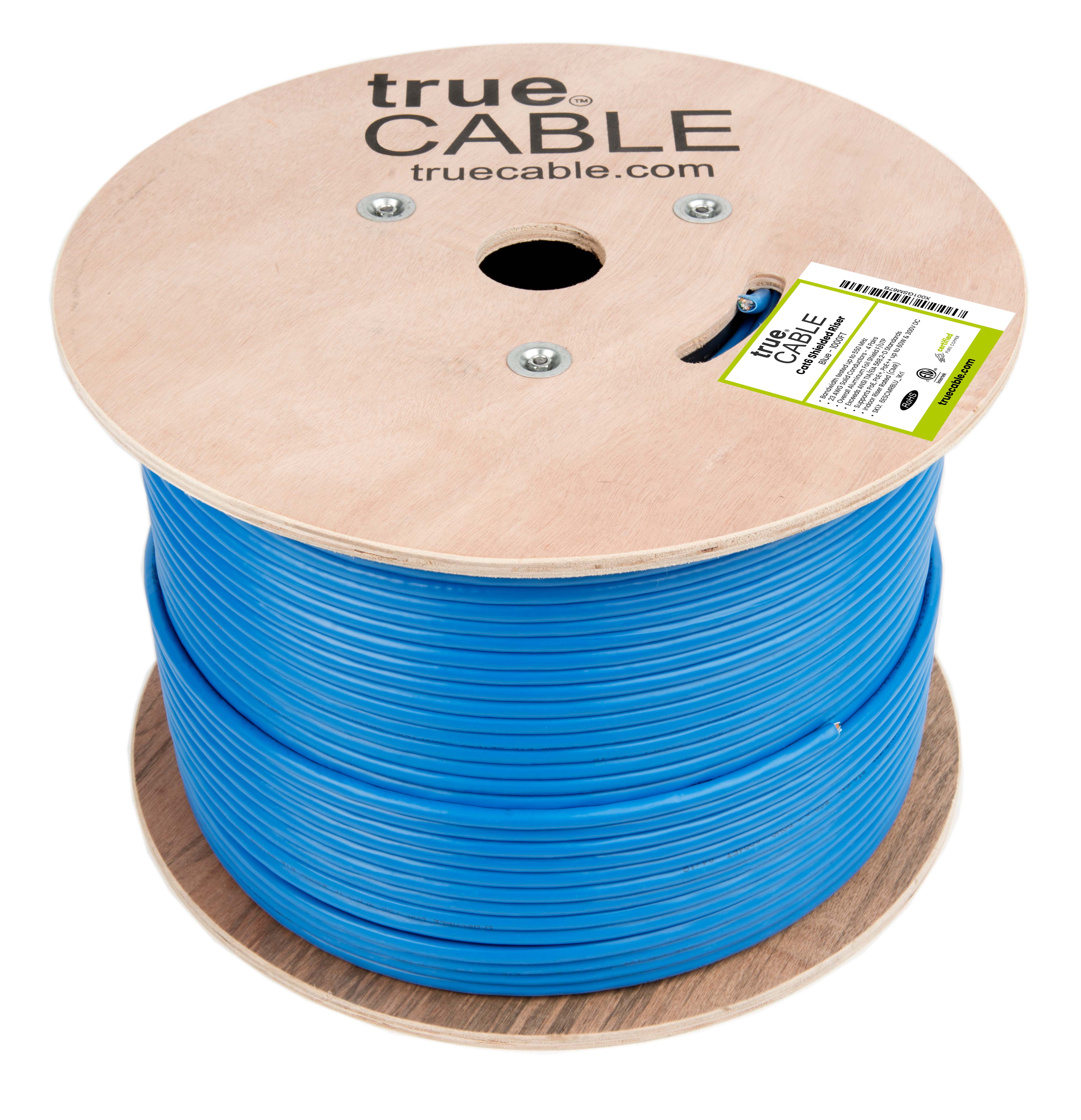

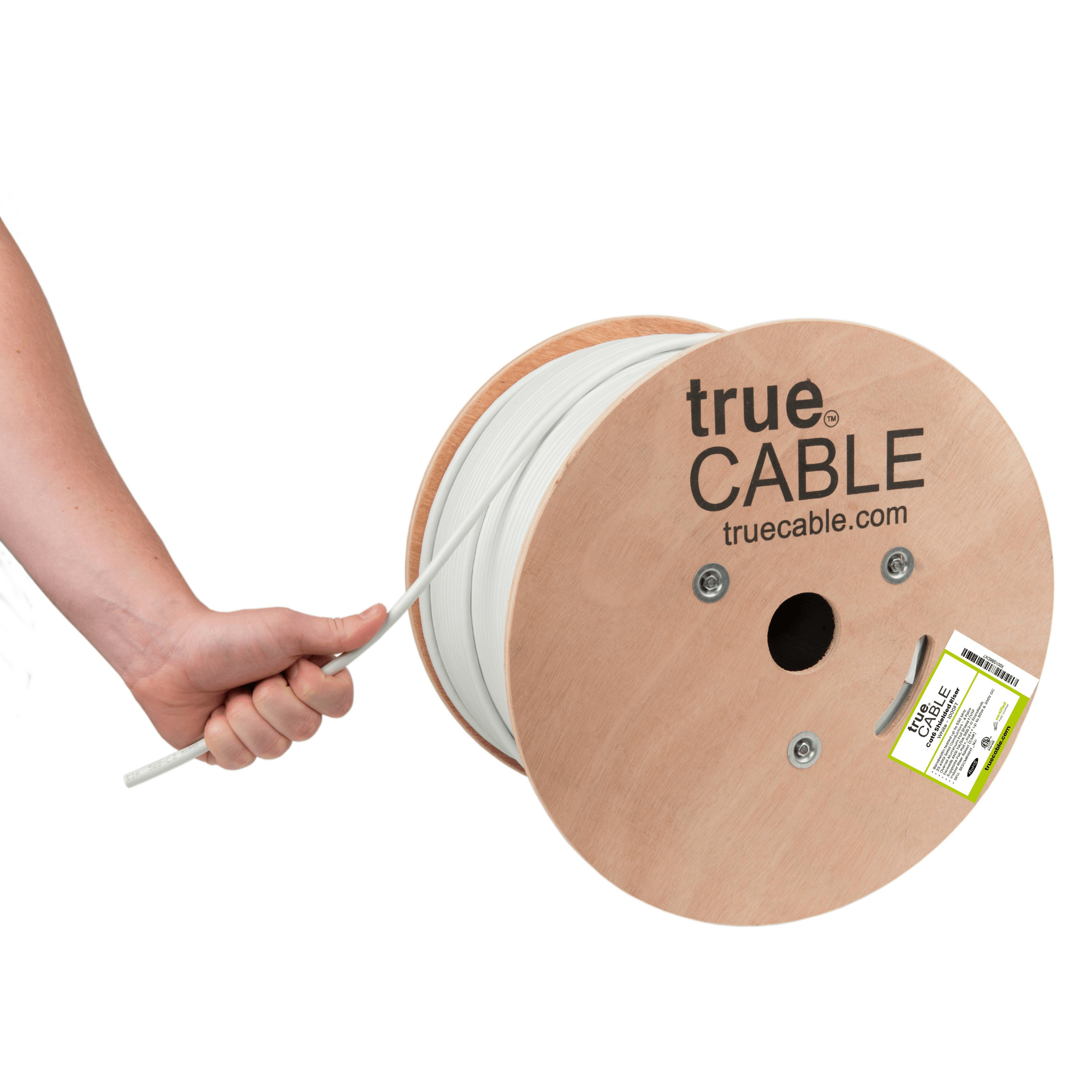

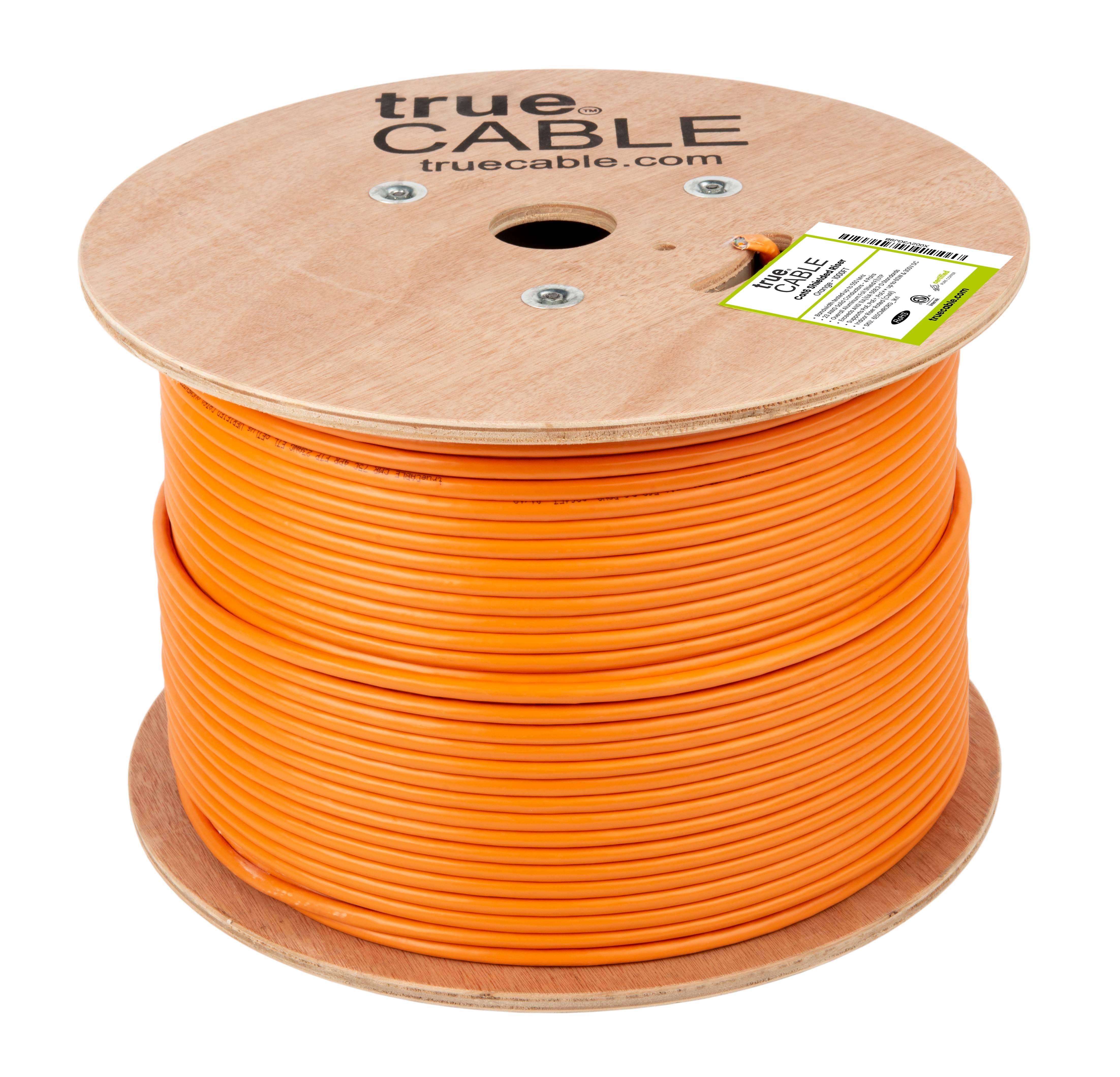

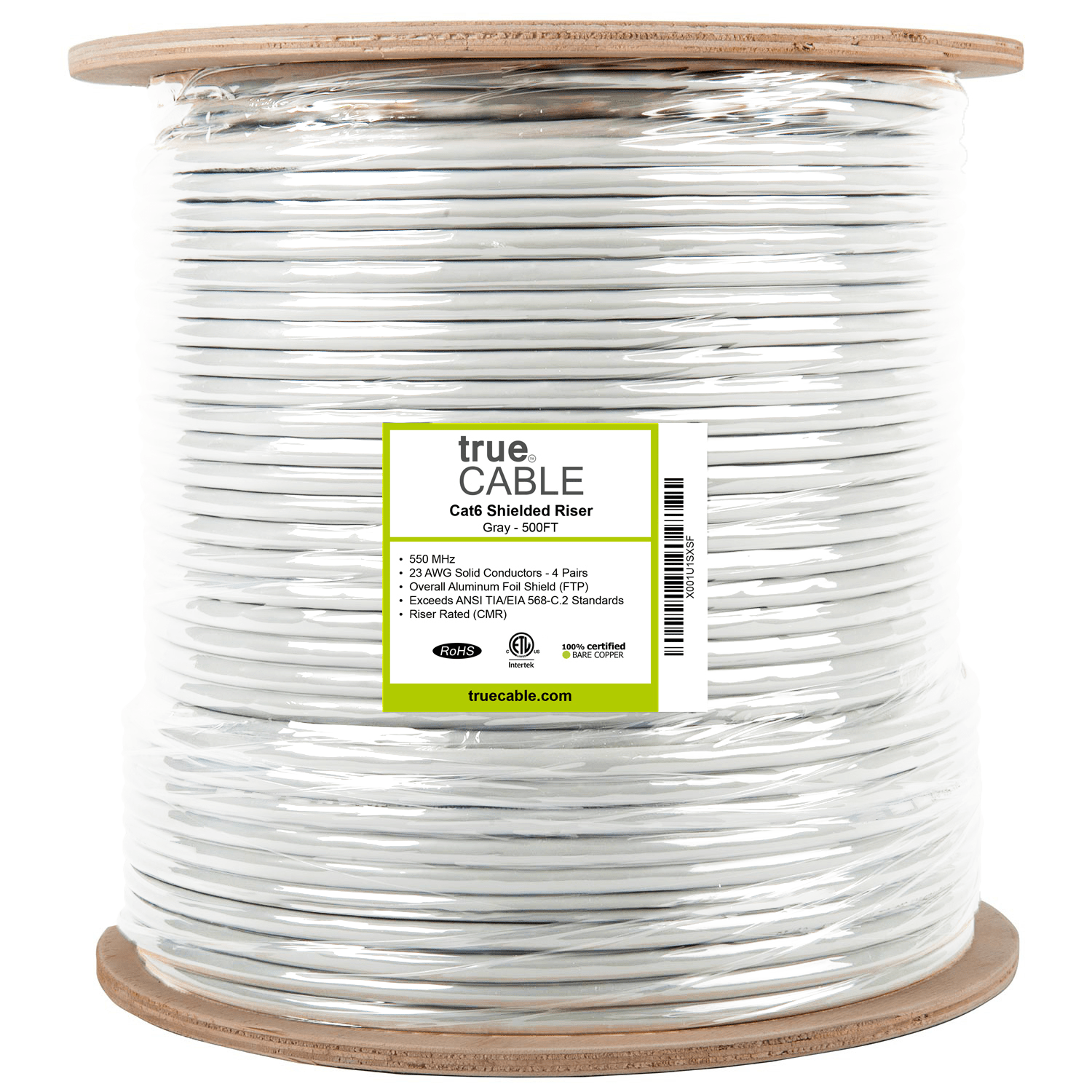

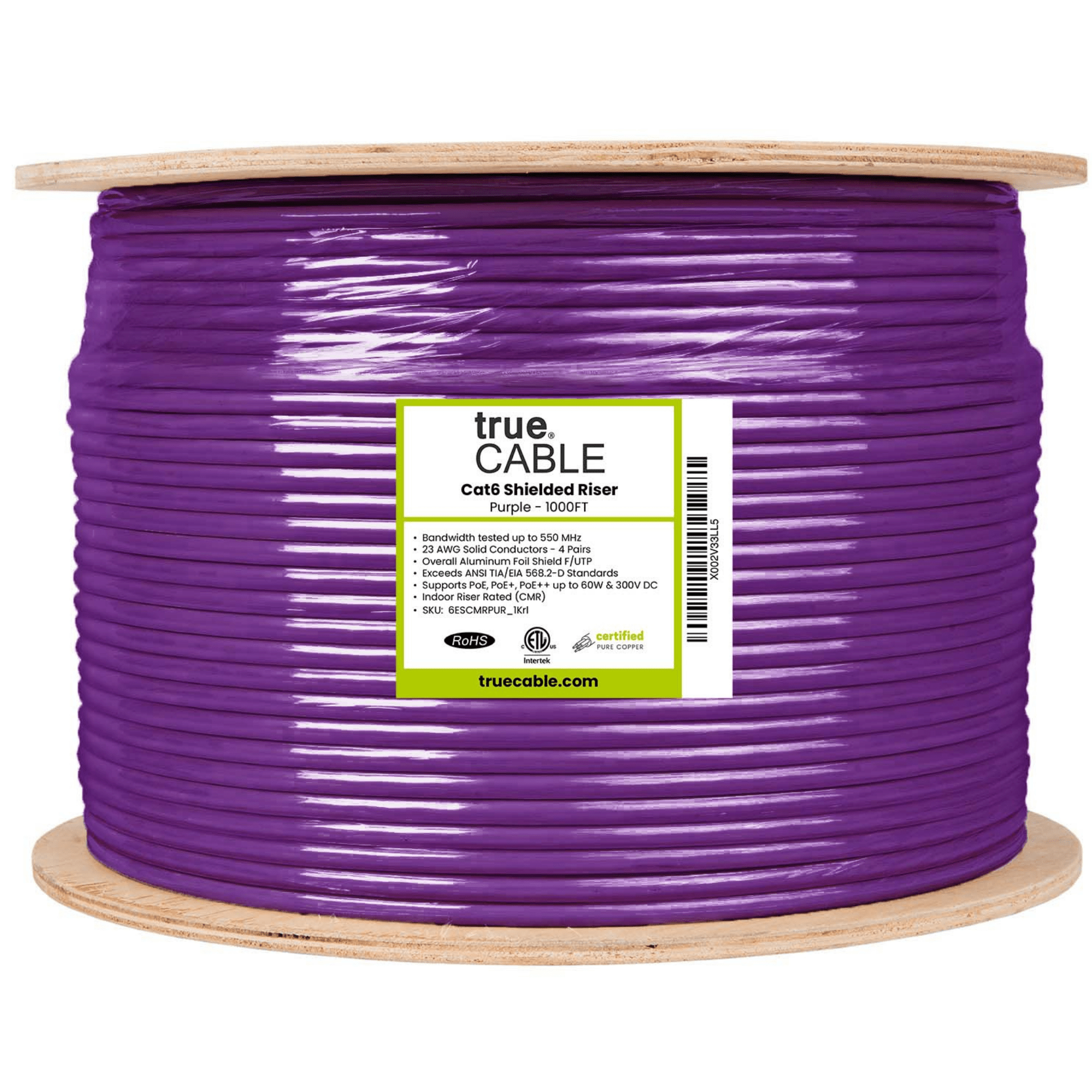

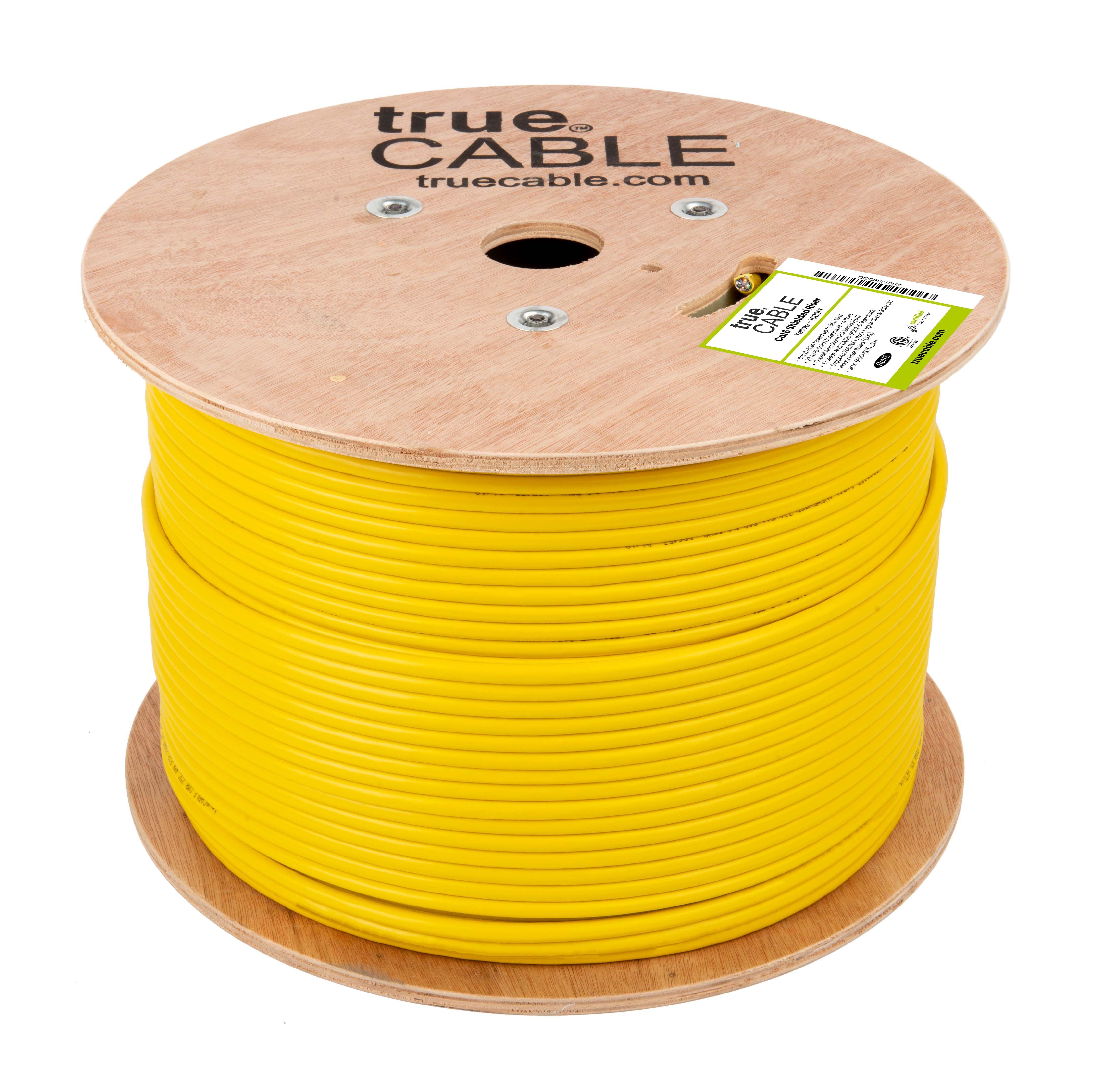

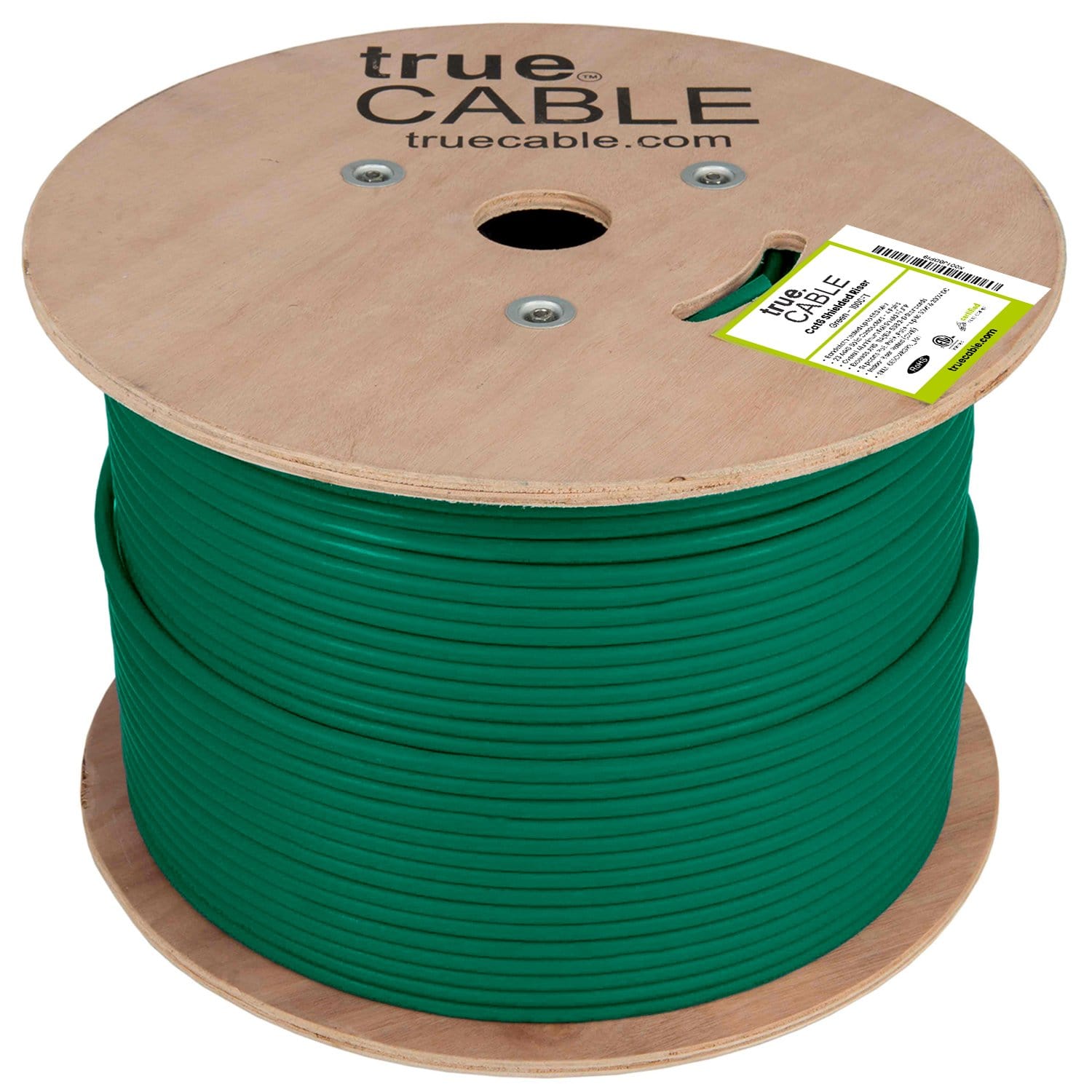

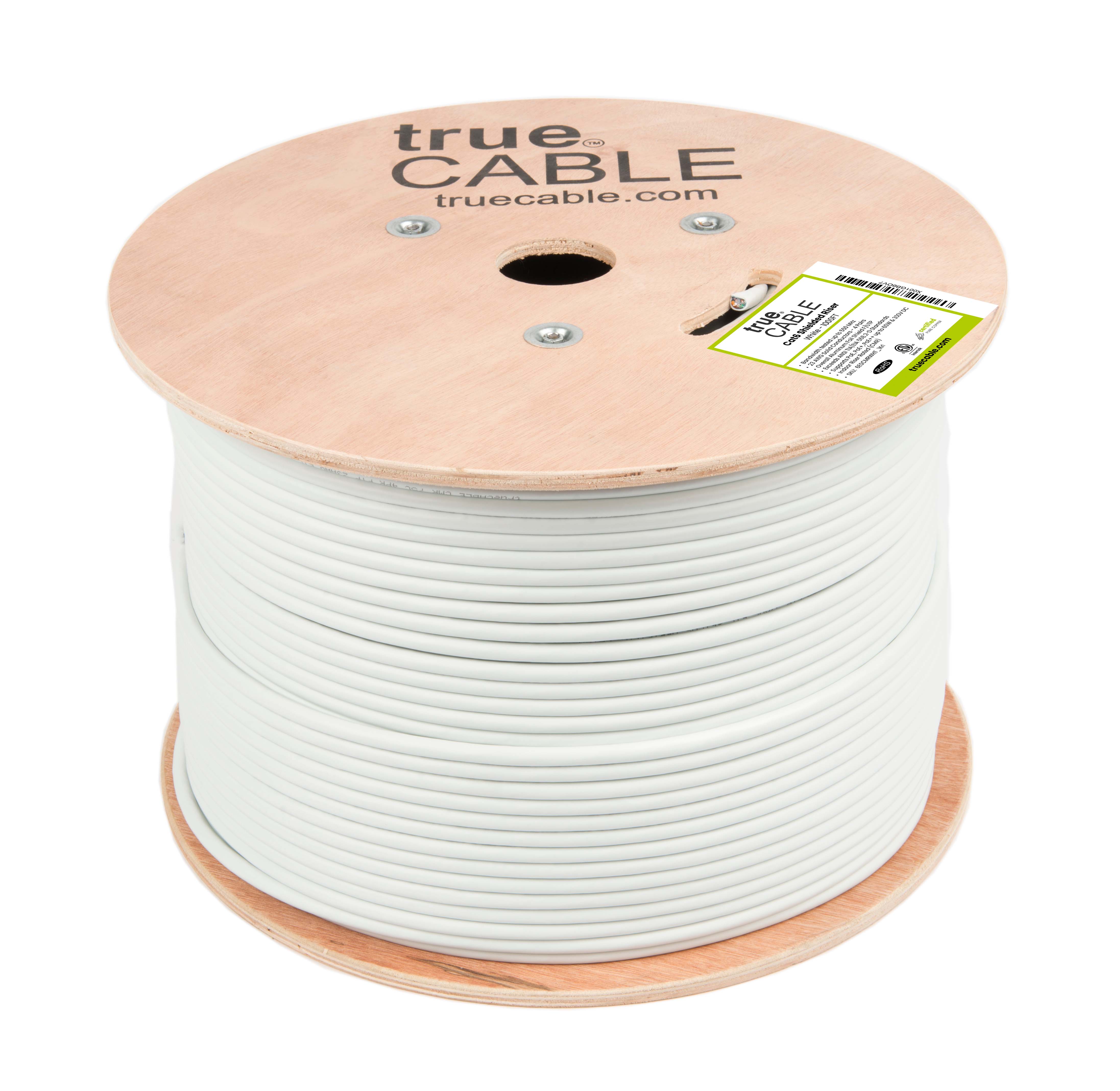

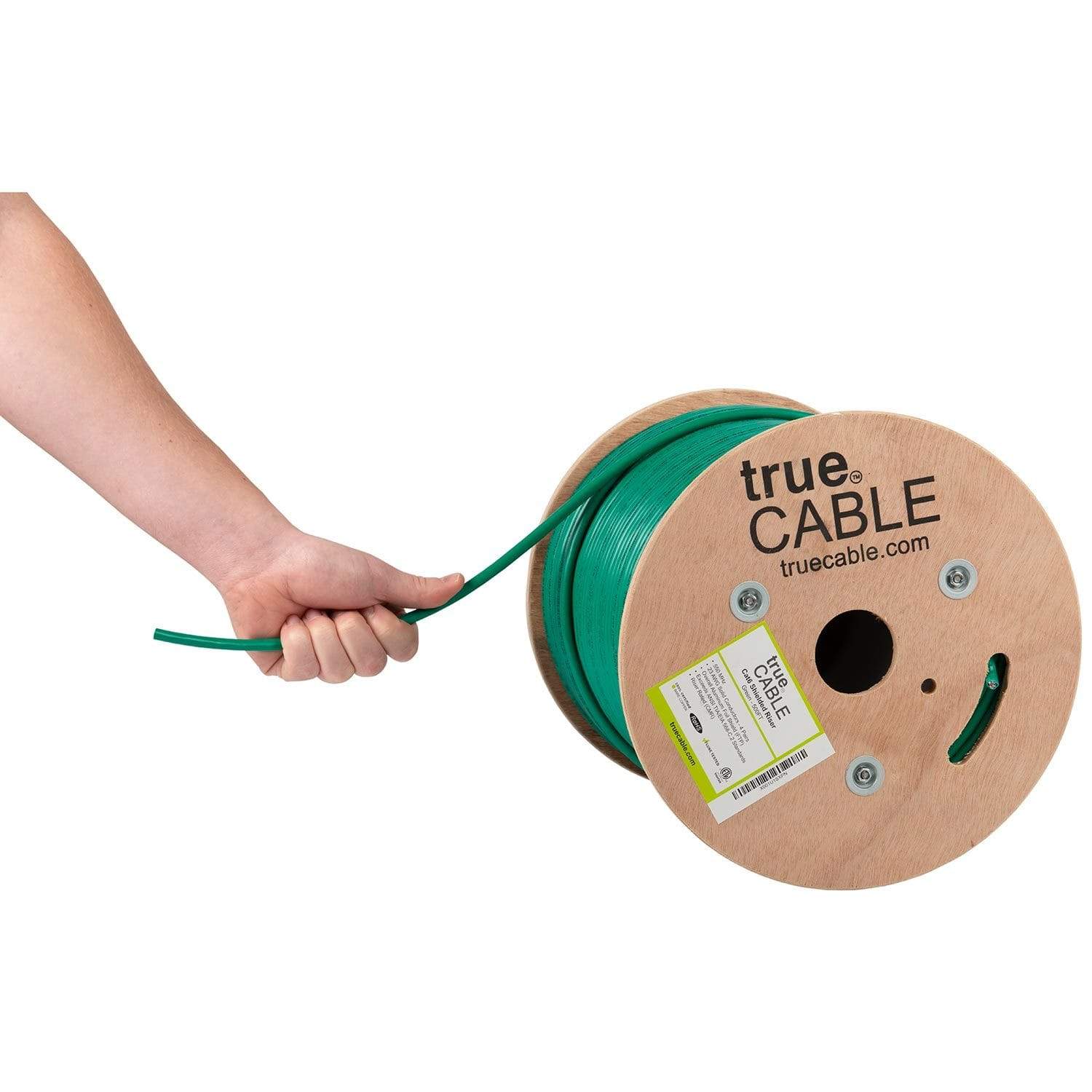

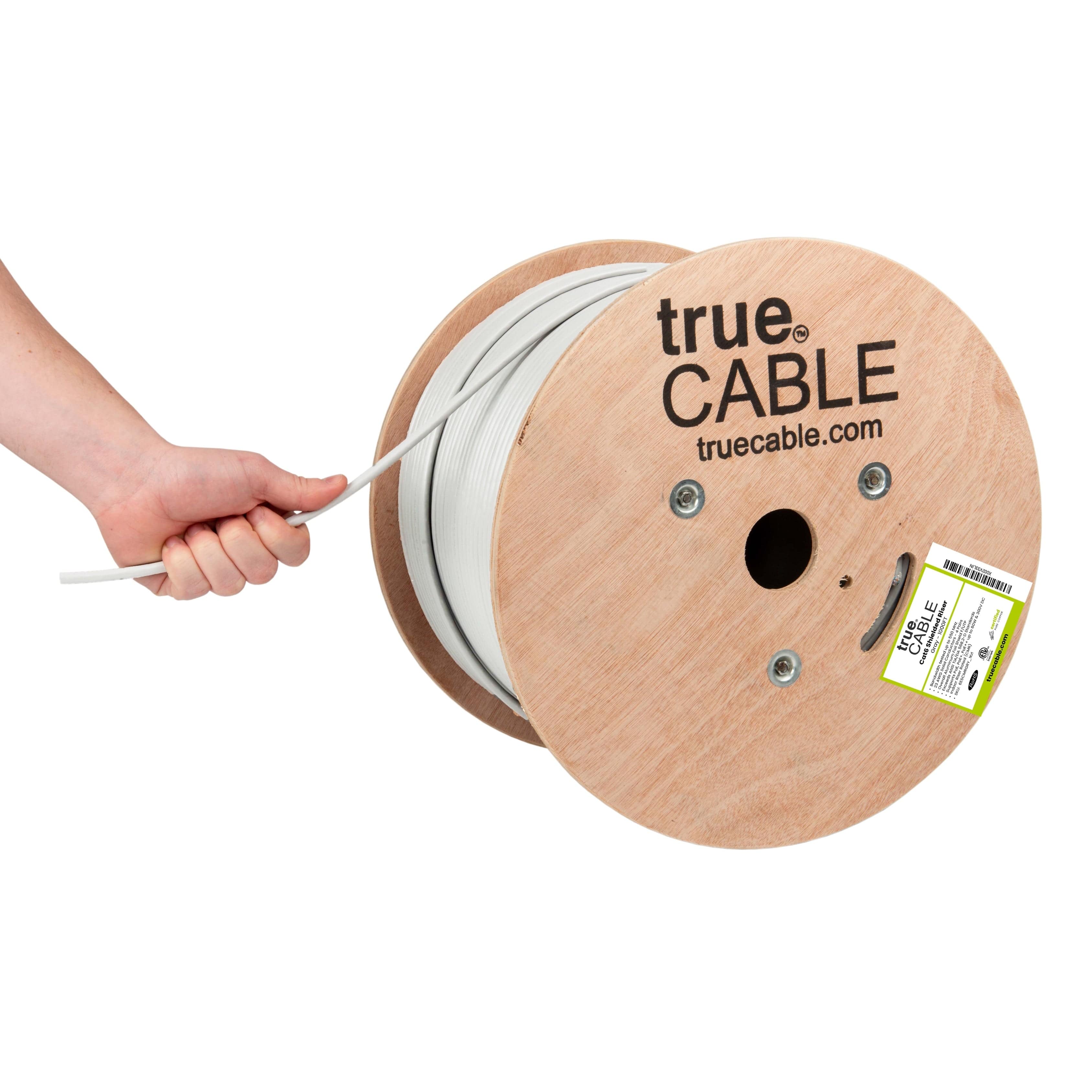

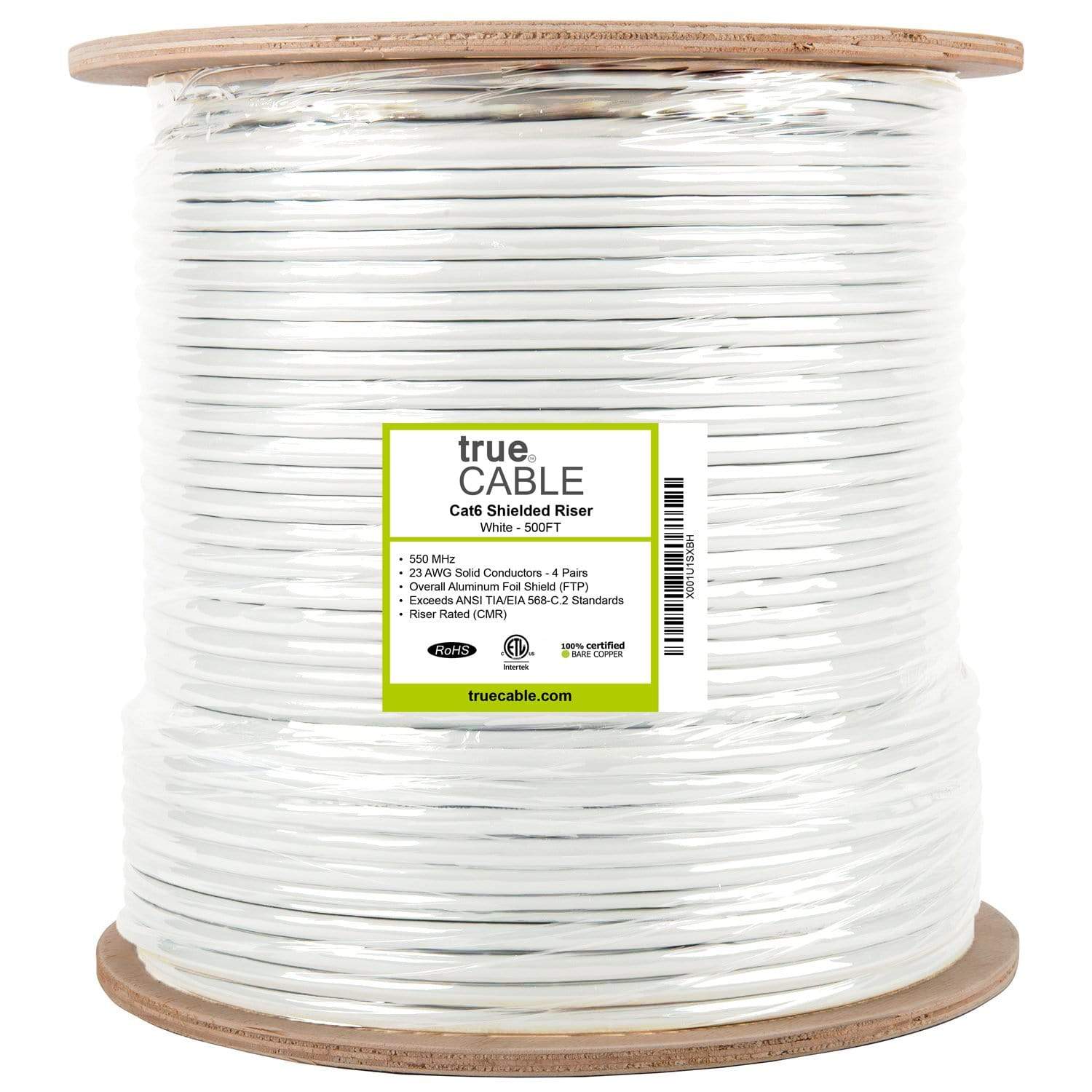

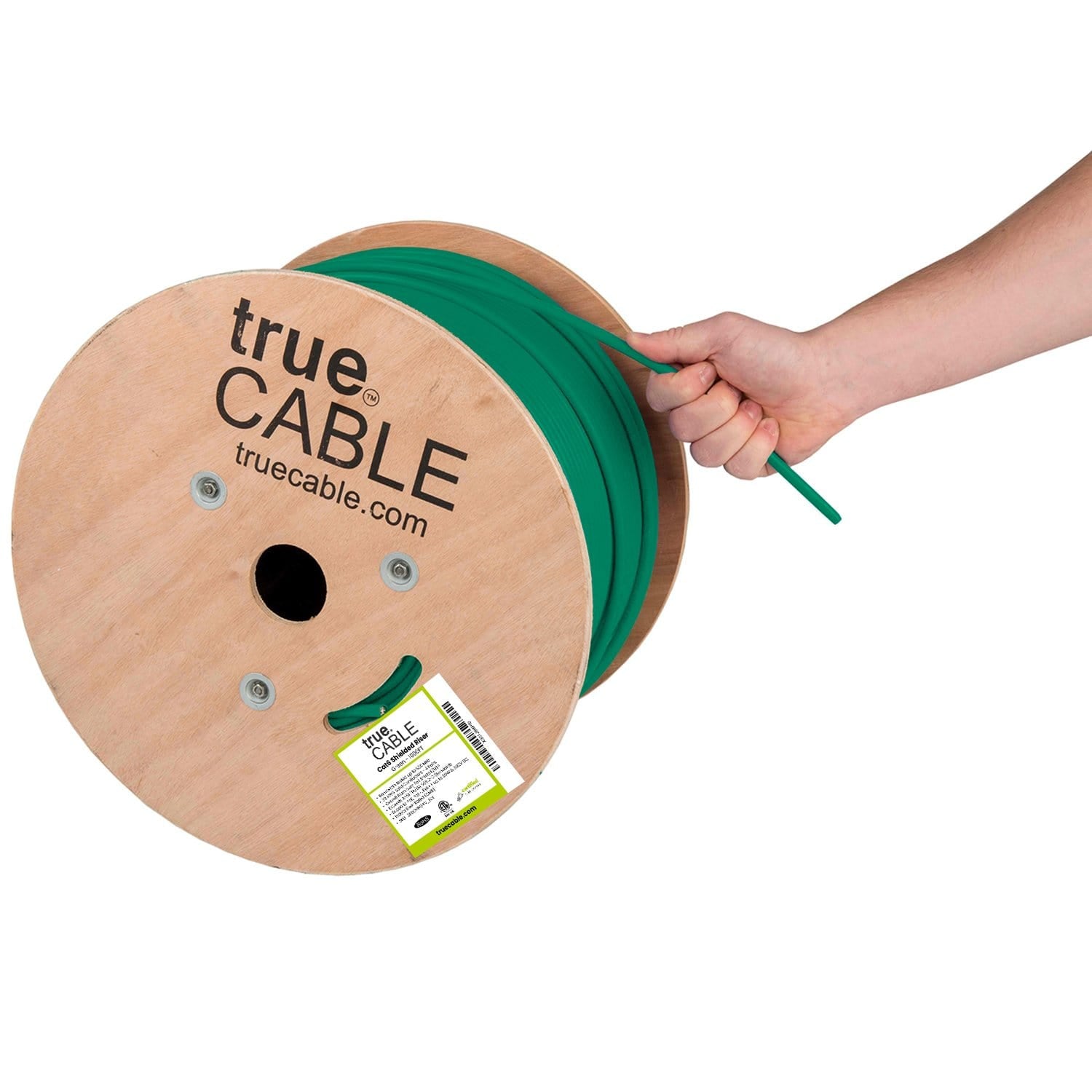

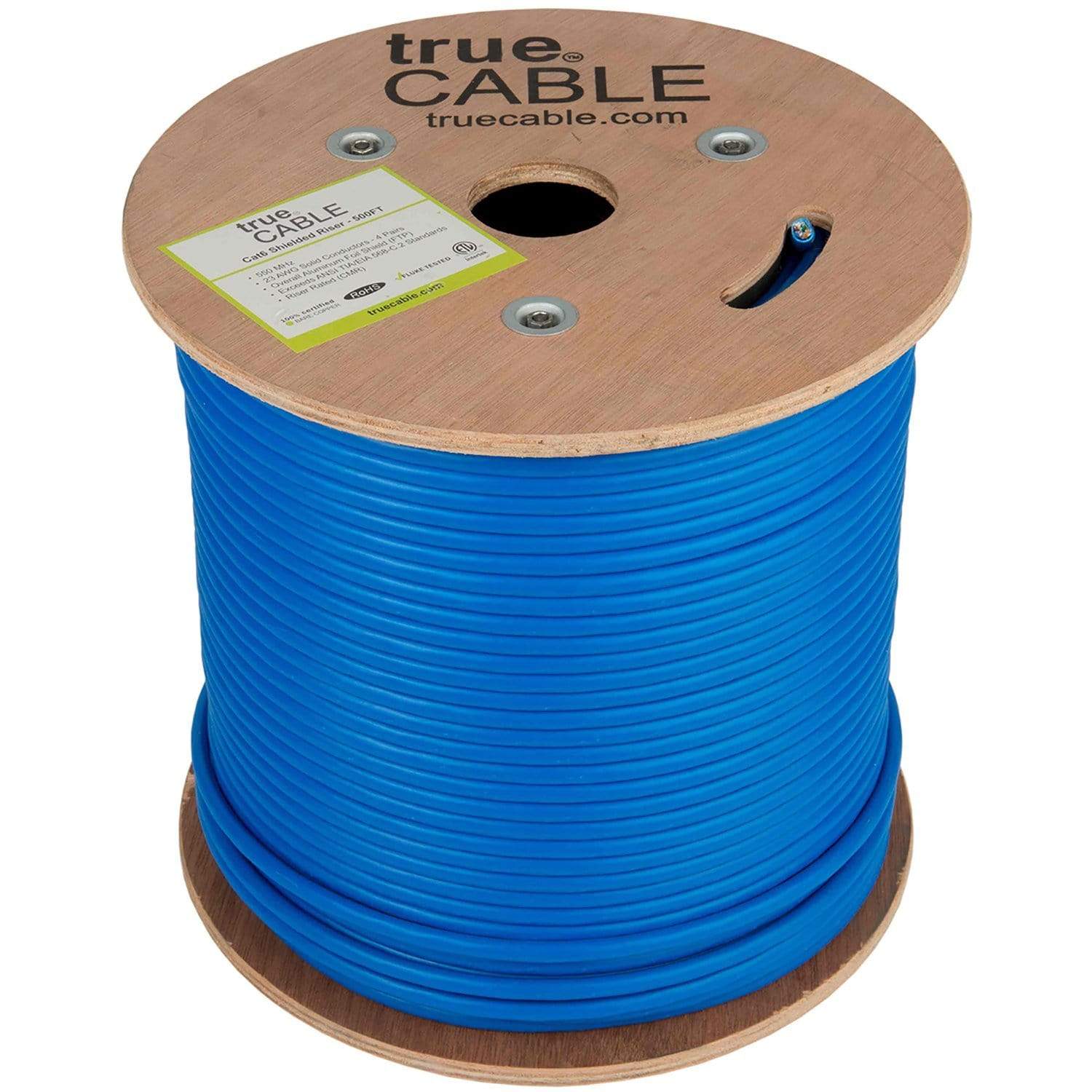

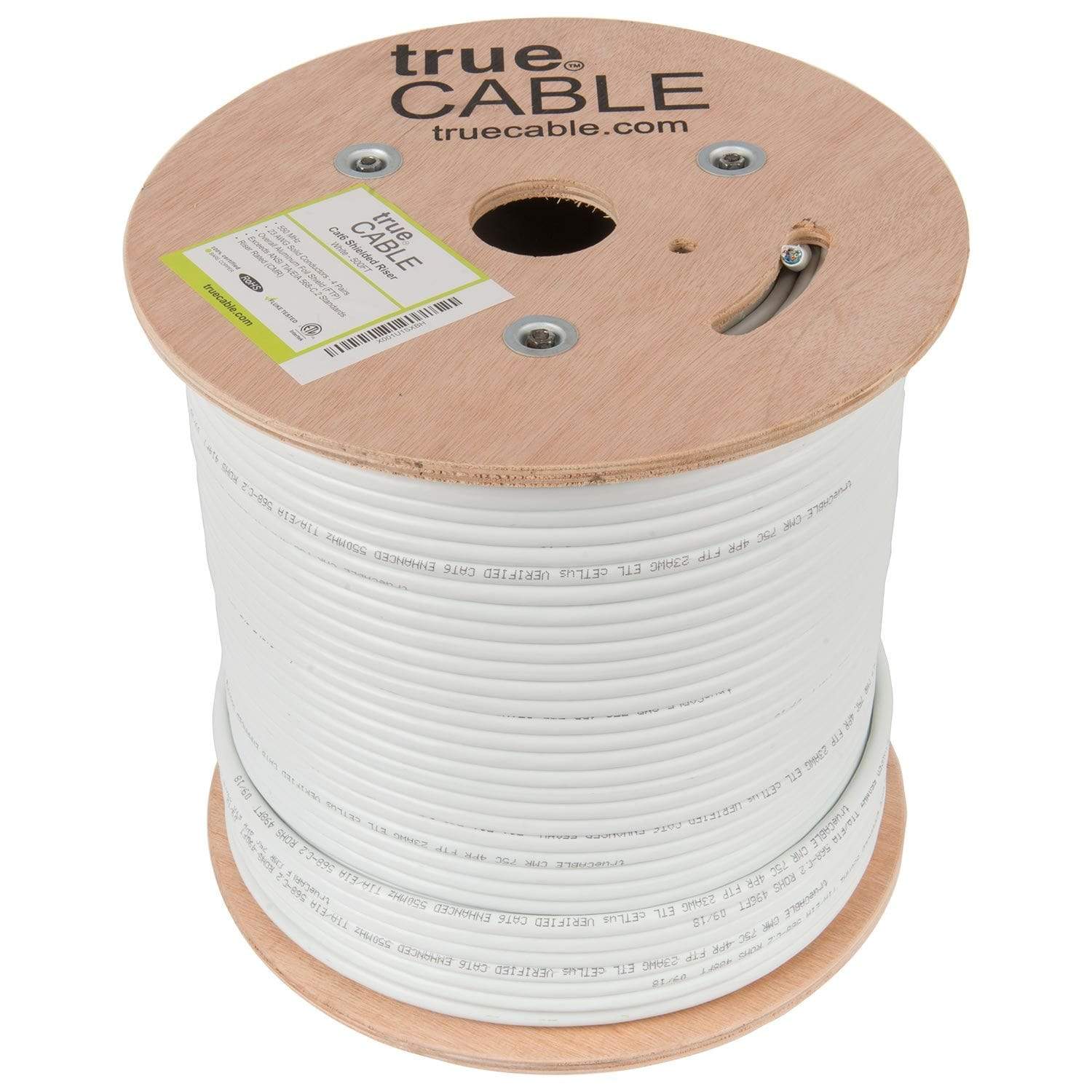

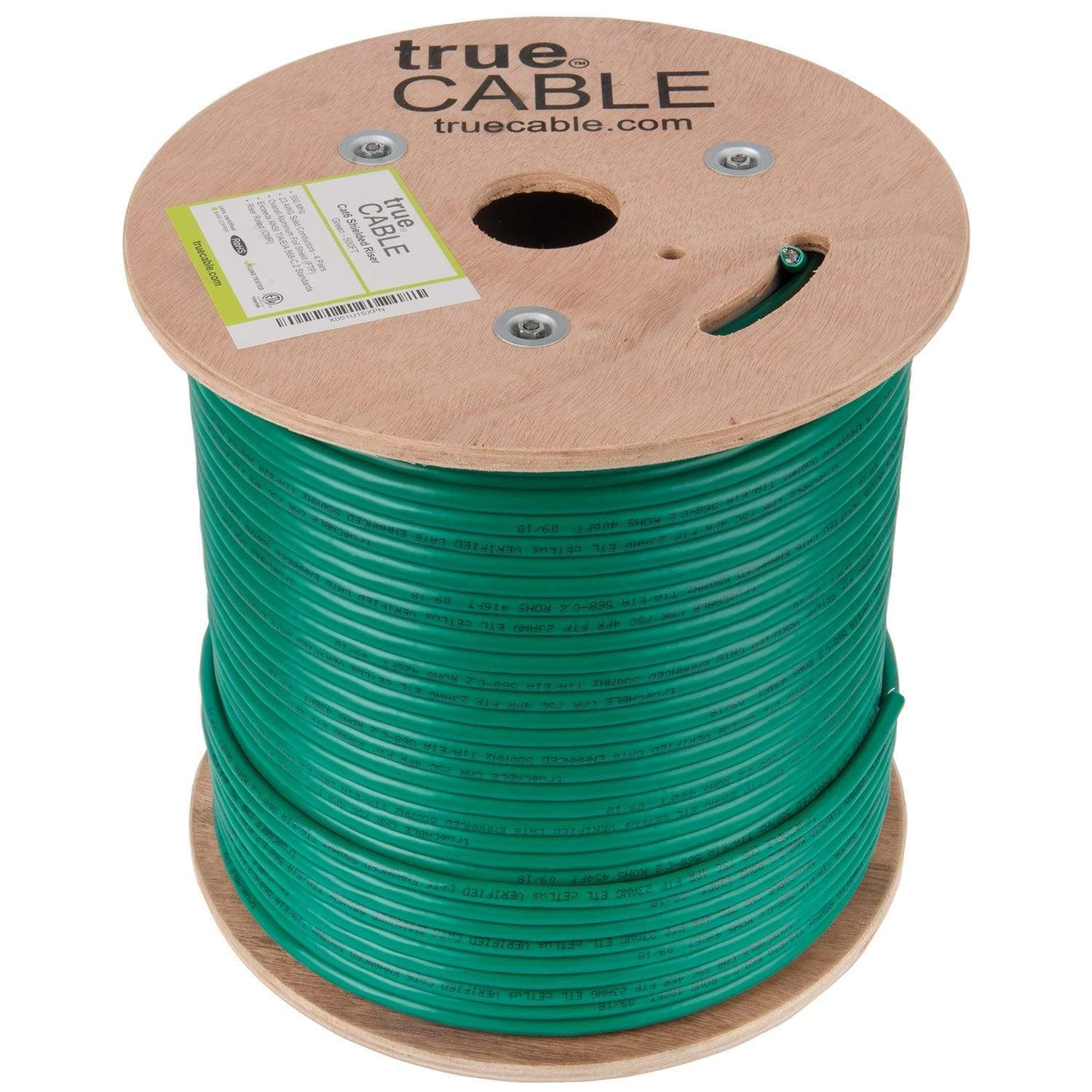

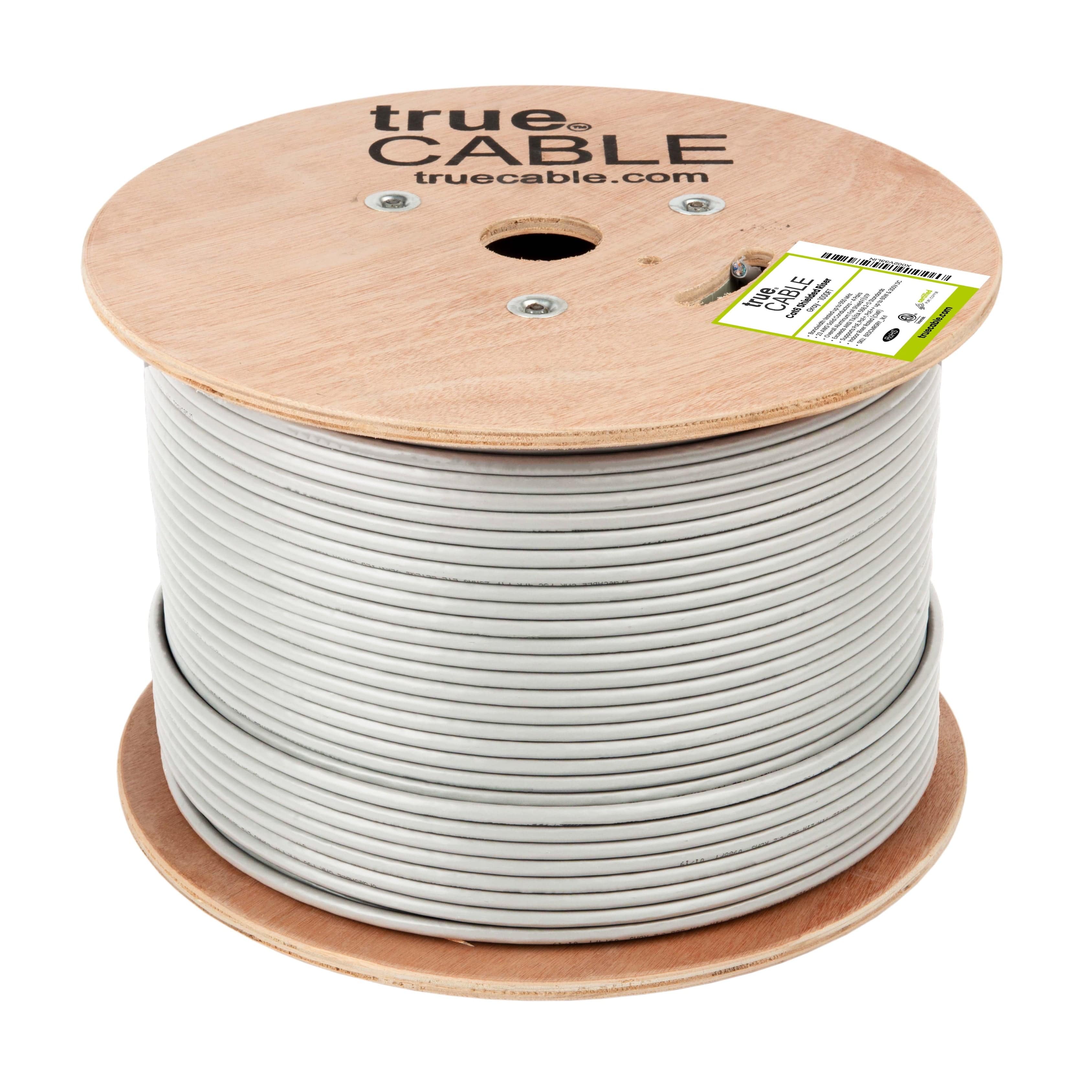

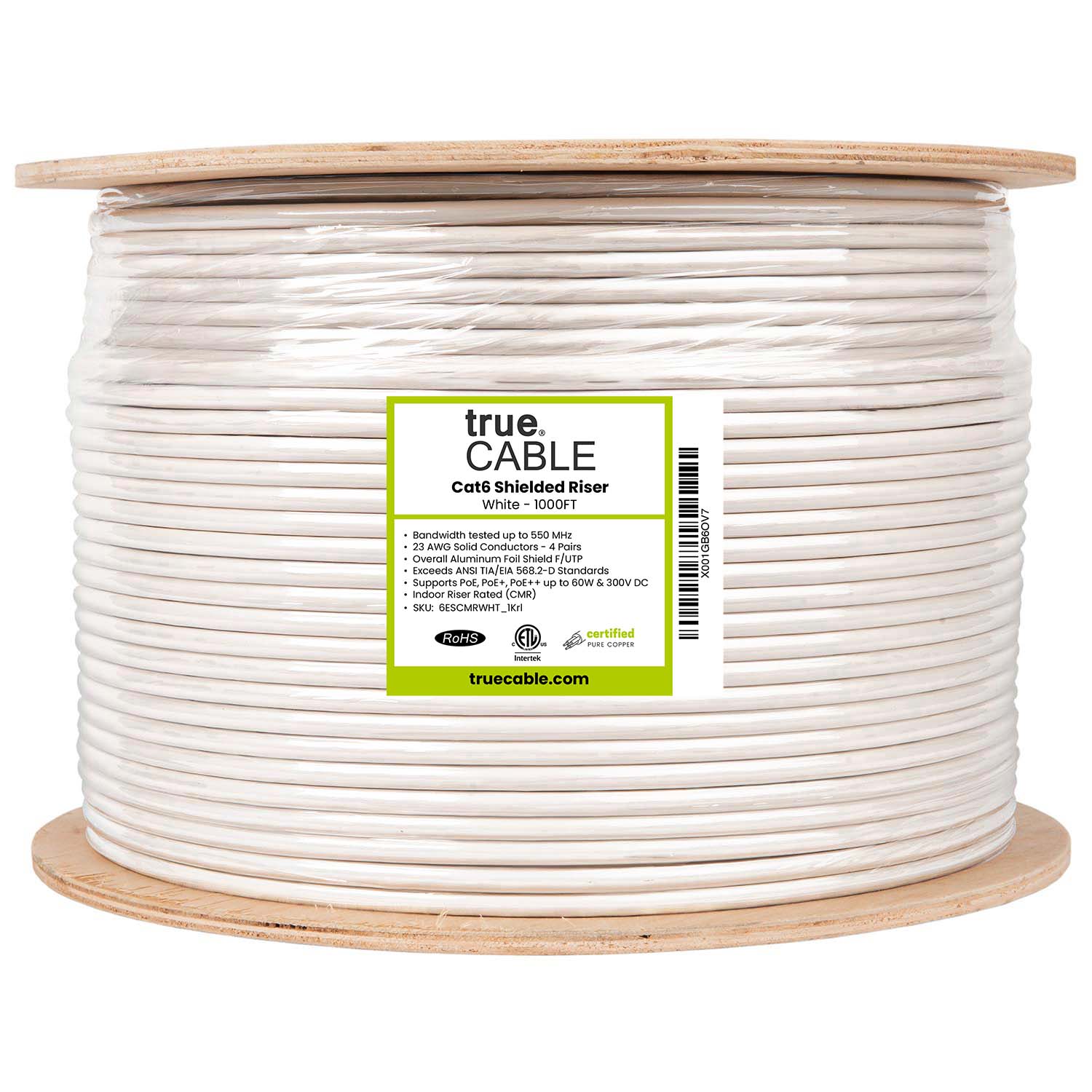

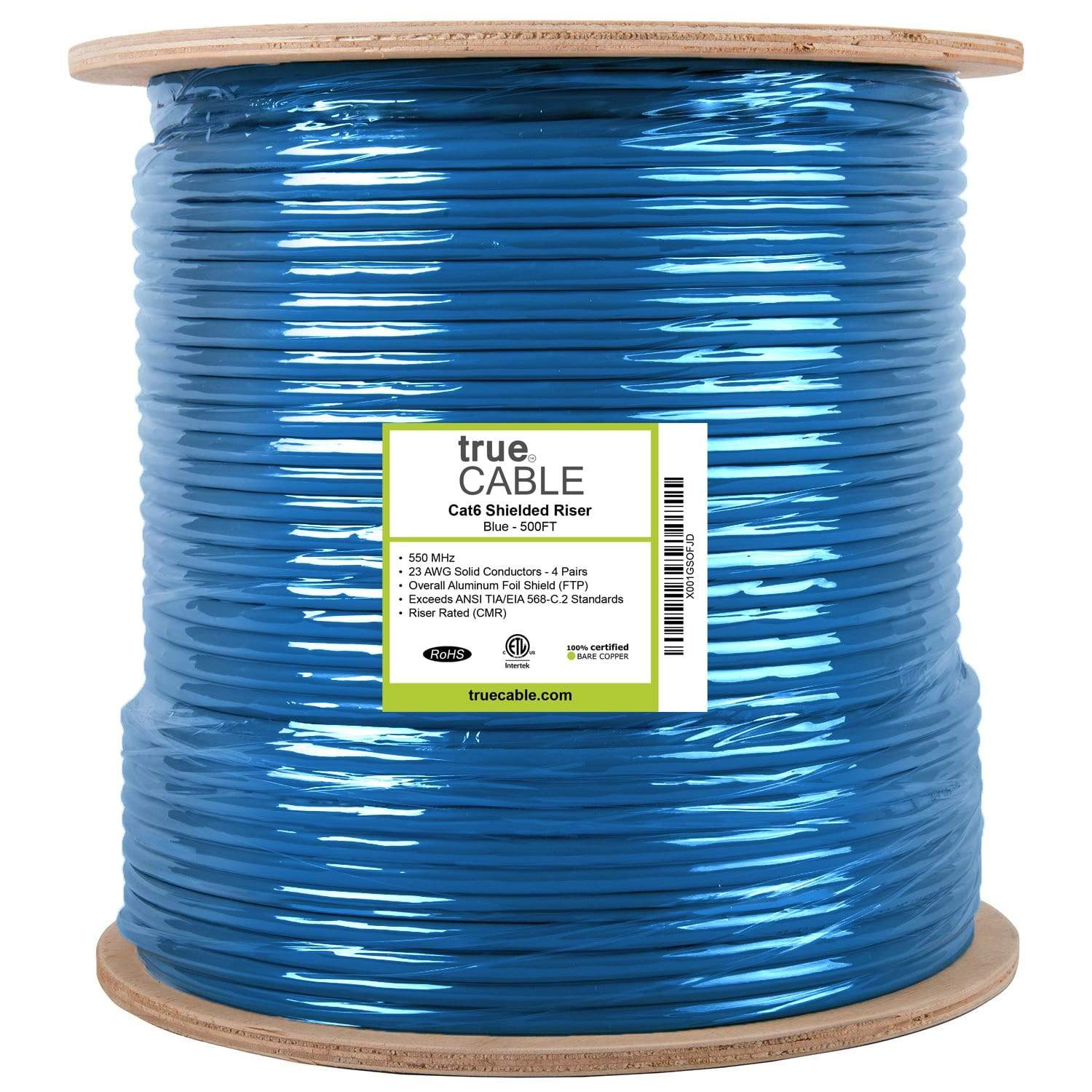

Cat6 Riser|Shielded

  • 23AWG 4-Pair, solid bare copper conductors

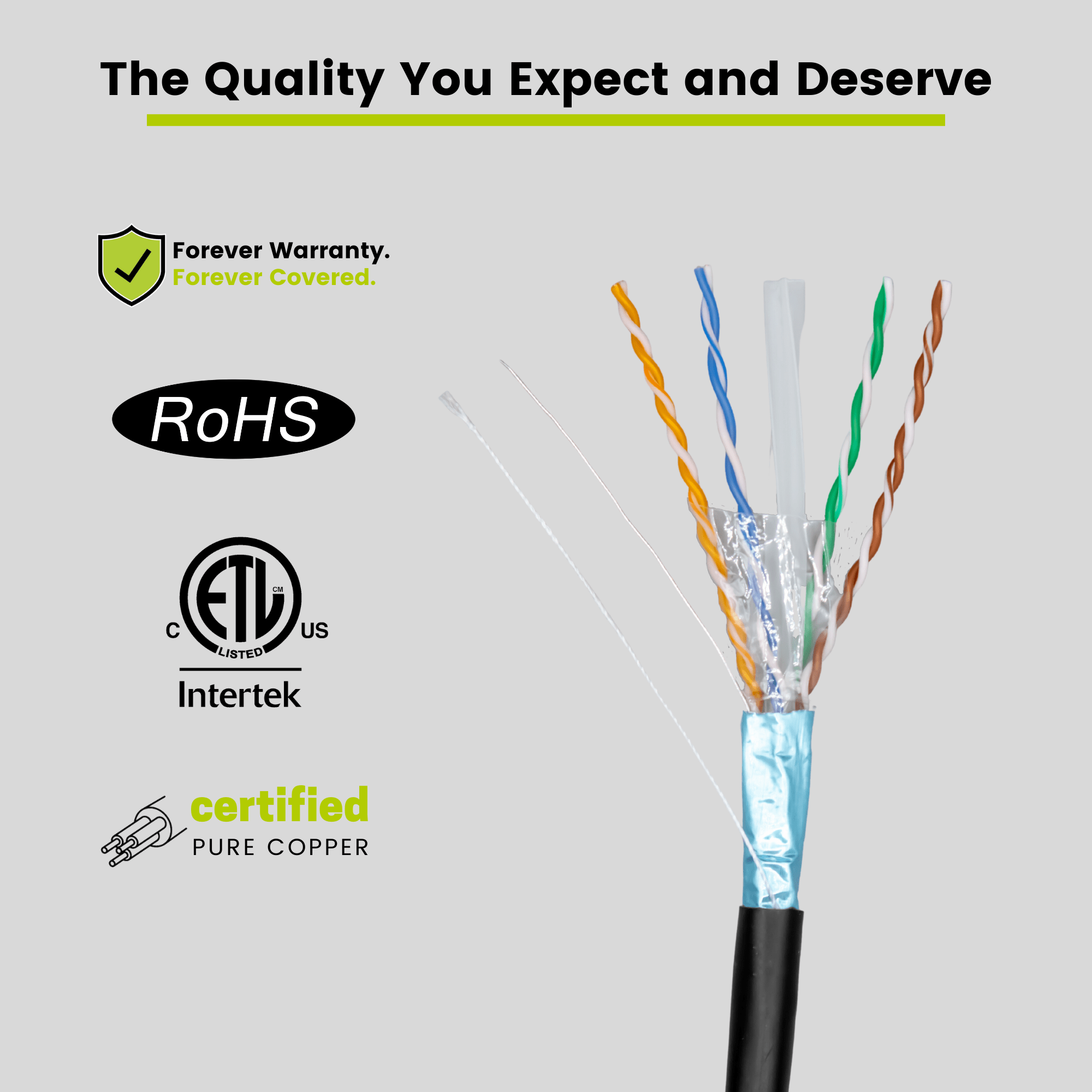

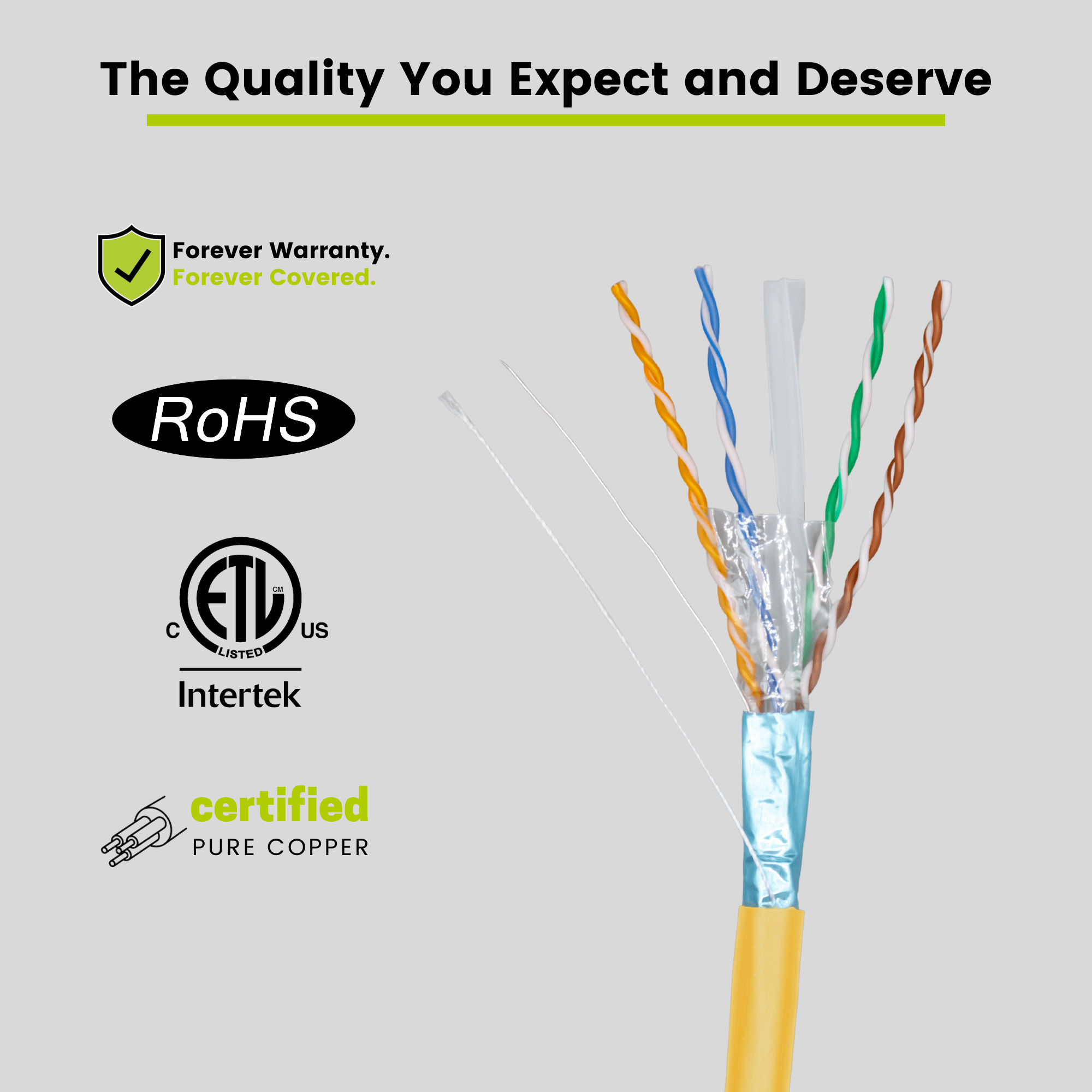

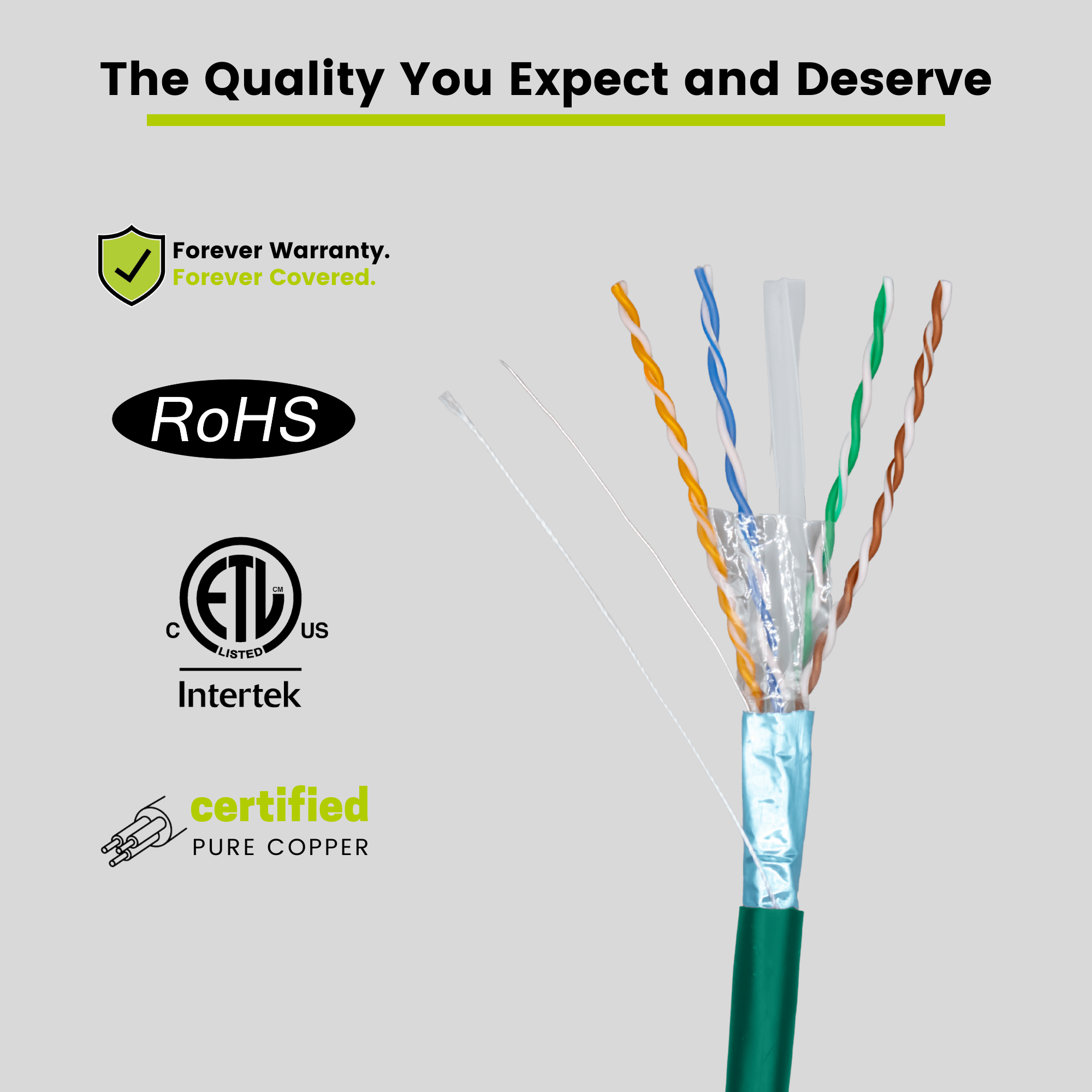

  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 550 MHz
  • Supports PoE, PoE+, and PoE++
  • cETLus Certified, RoHS-3 Compliant

$229.99 229.99

Buy 10 or more each save 5%

Buy 25 or more each save 10%

Buy 50 or more each save 15%

Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Riser Rated
  • The CMR jacket is for use in between floors, in wall, and non-plenum spaces. Help fires from spreading floor to floor in vertical installations with mild flame retardance.

Optimum Performance

  • Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
  • Bandwidth tested up to 550 MHz
  • Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) up to 60W and 300V DC.

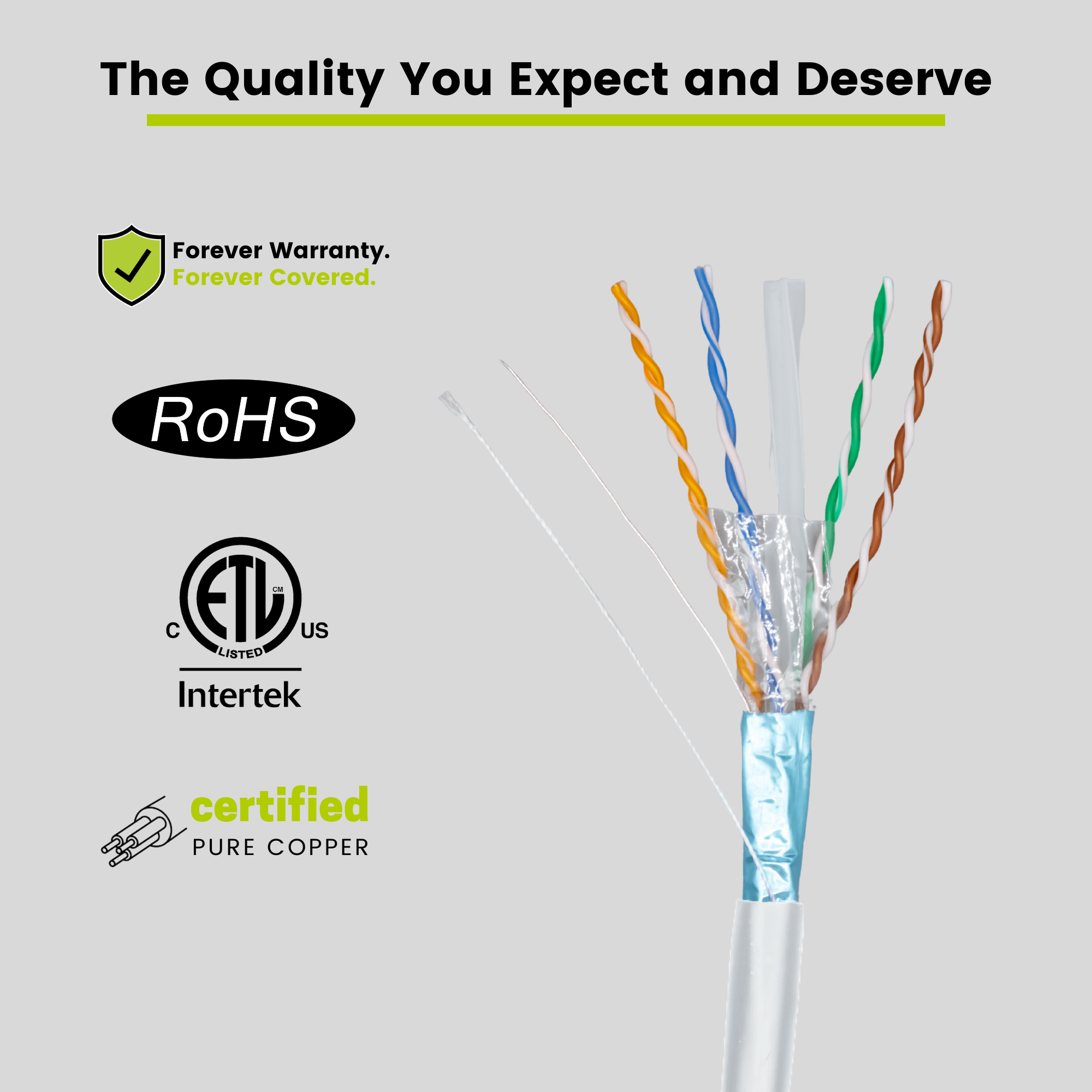

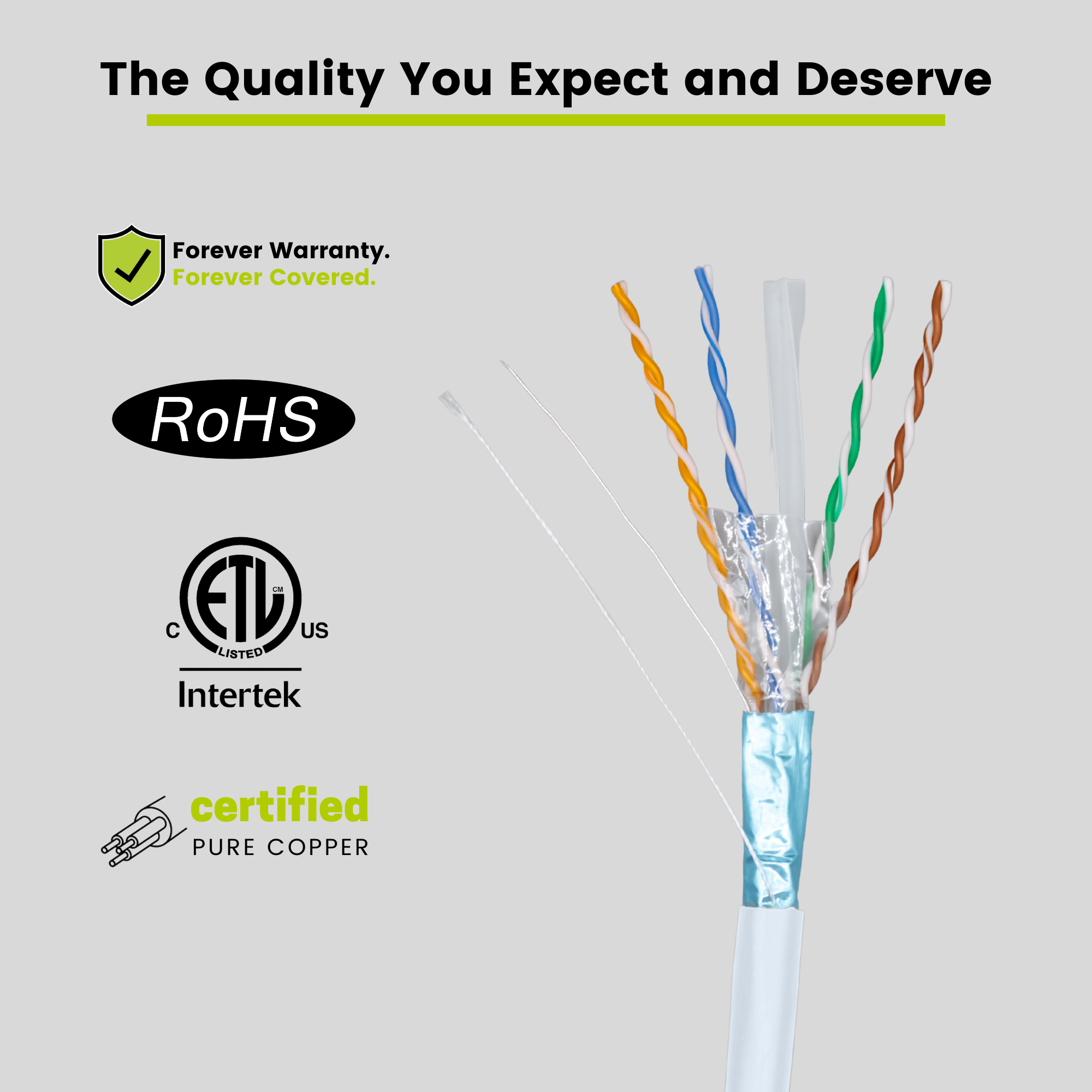

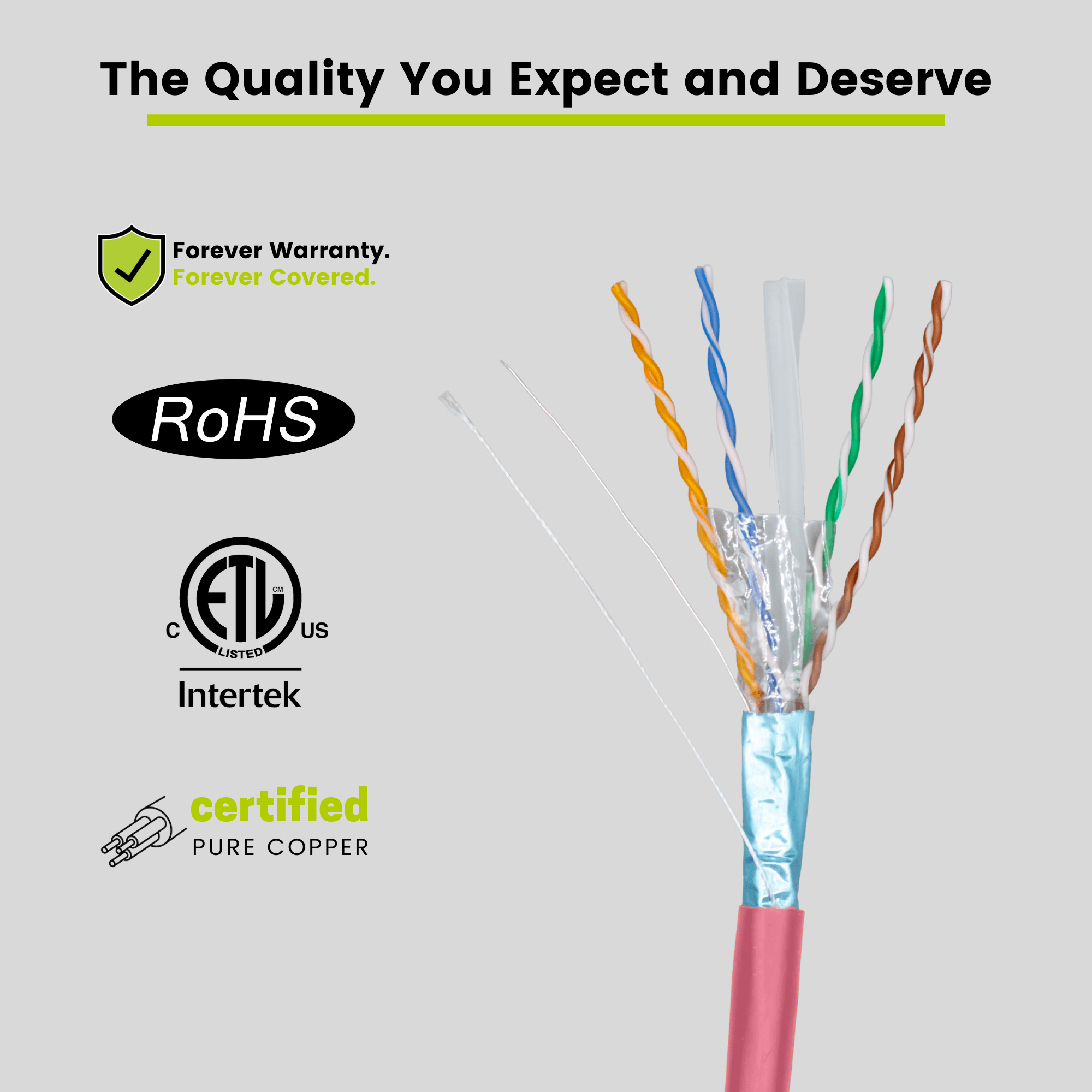

  • The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.

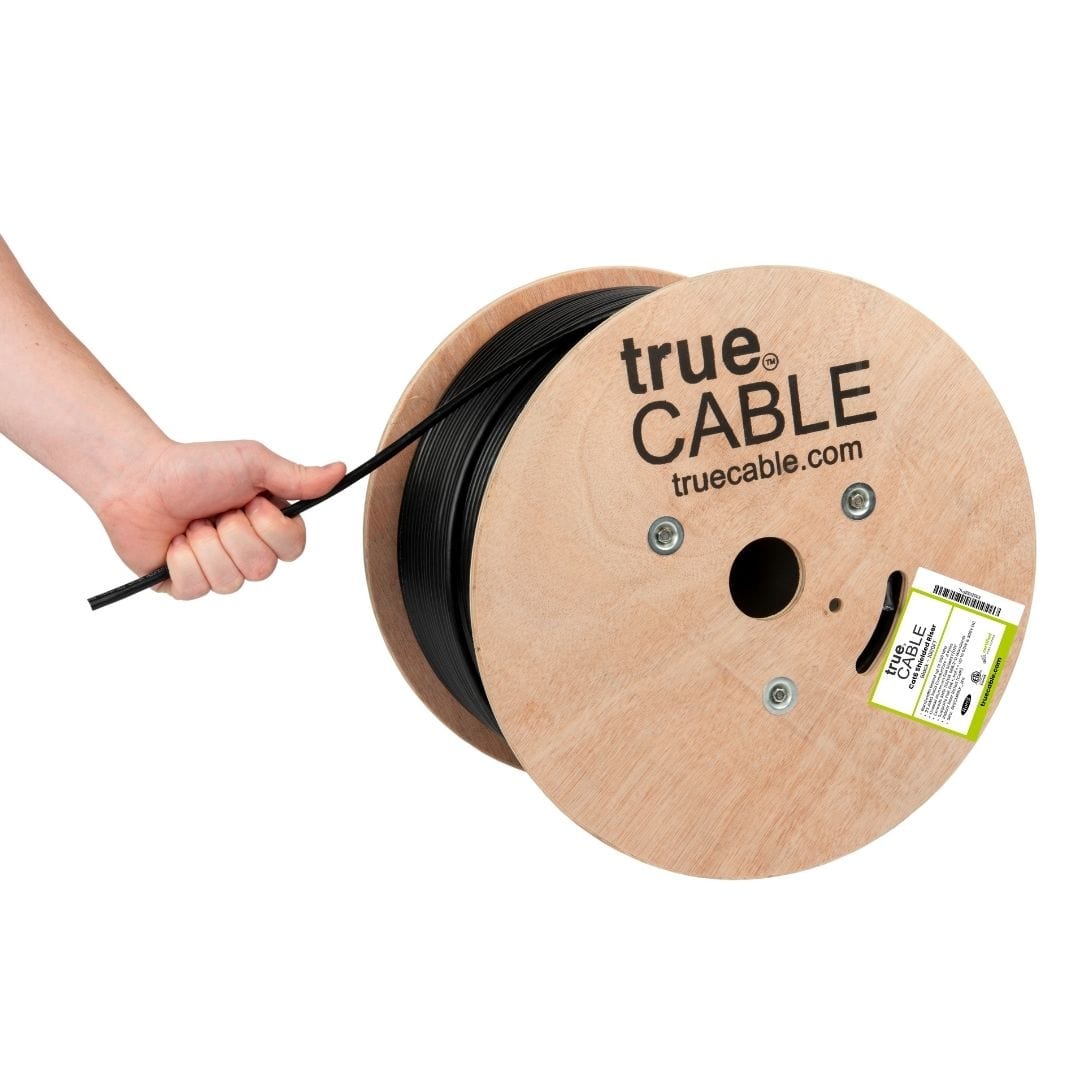

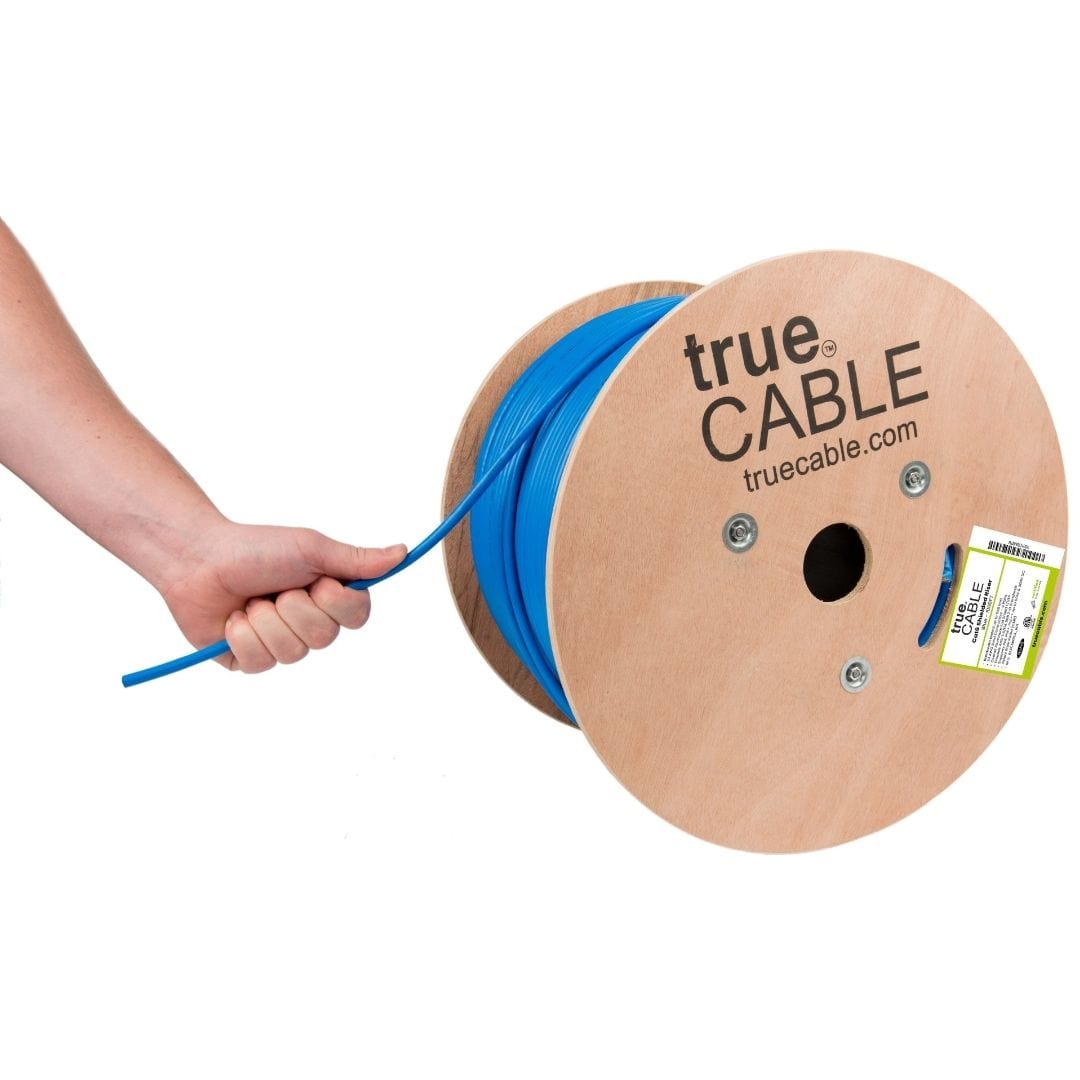

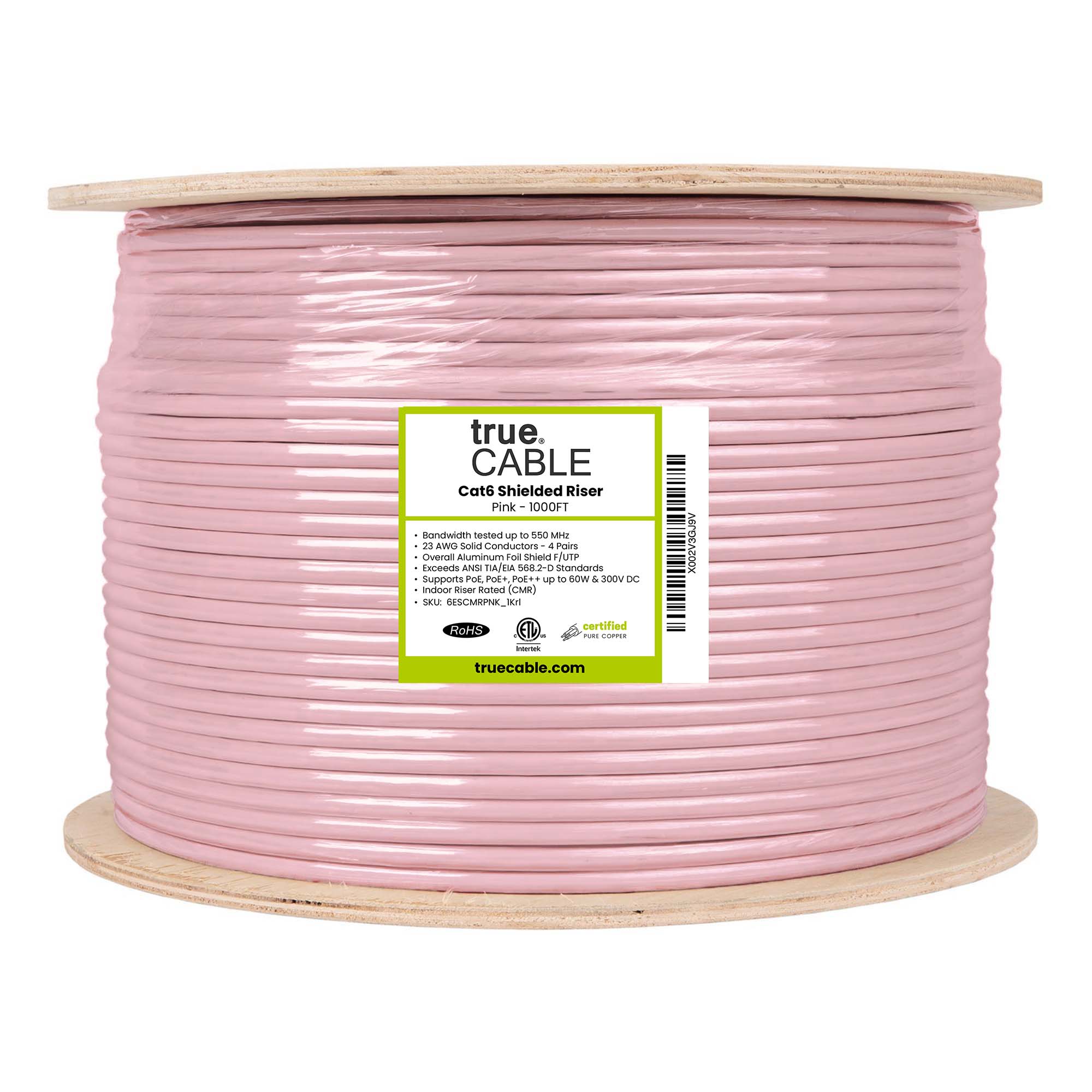

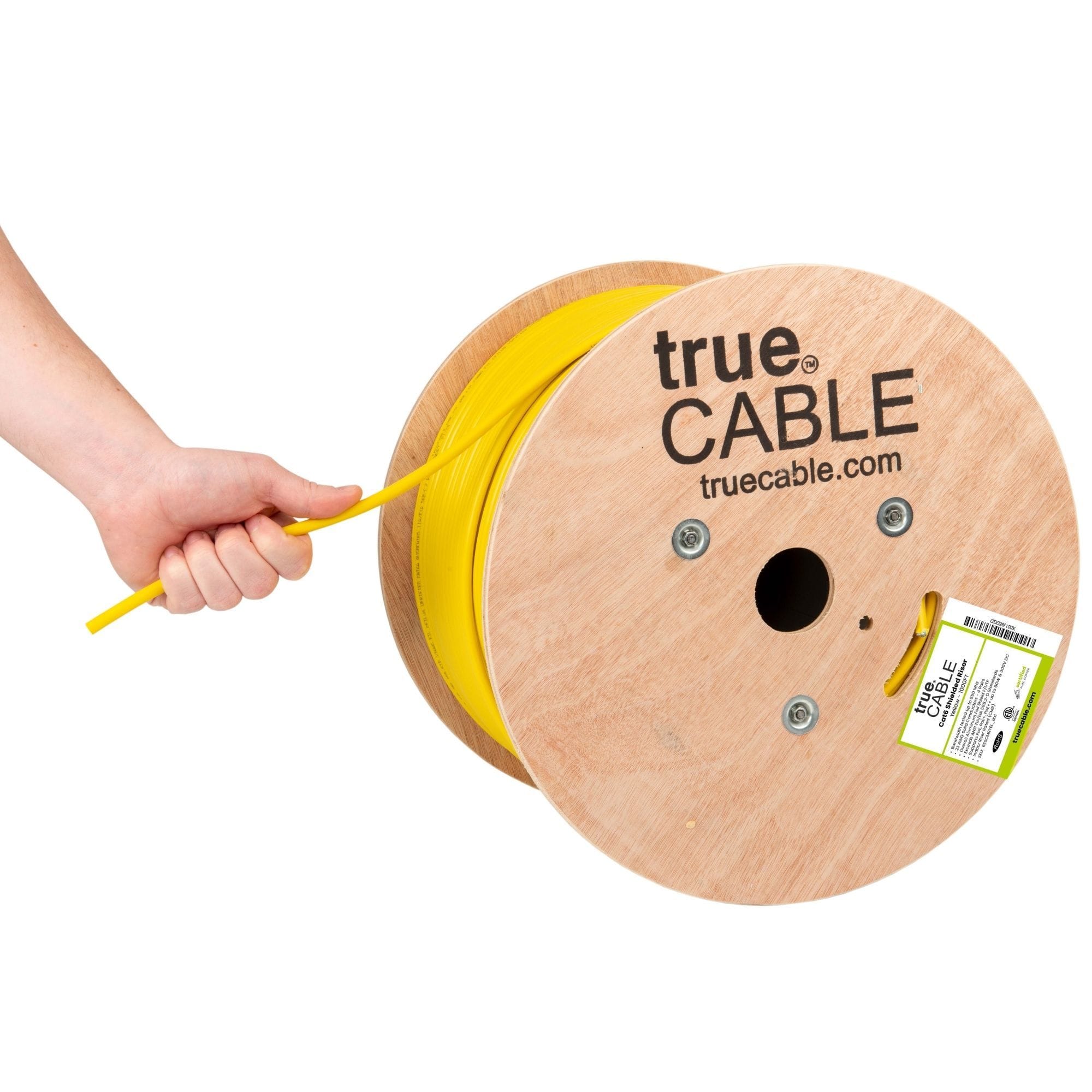

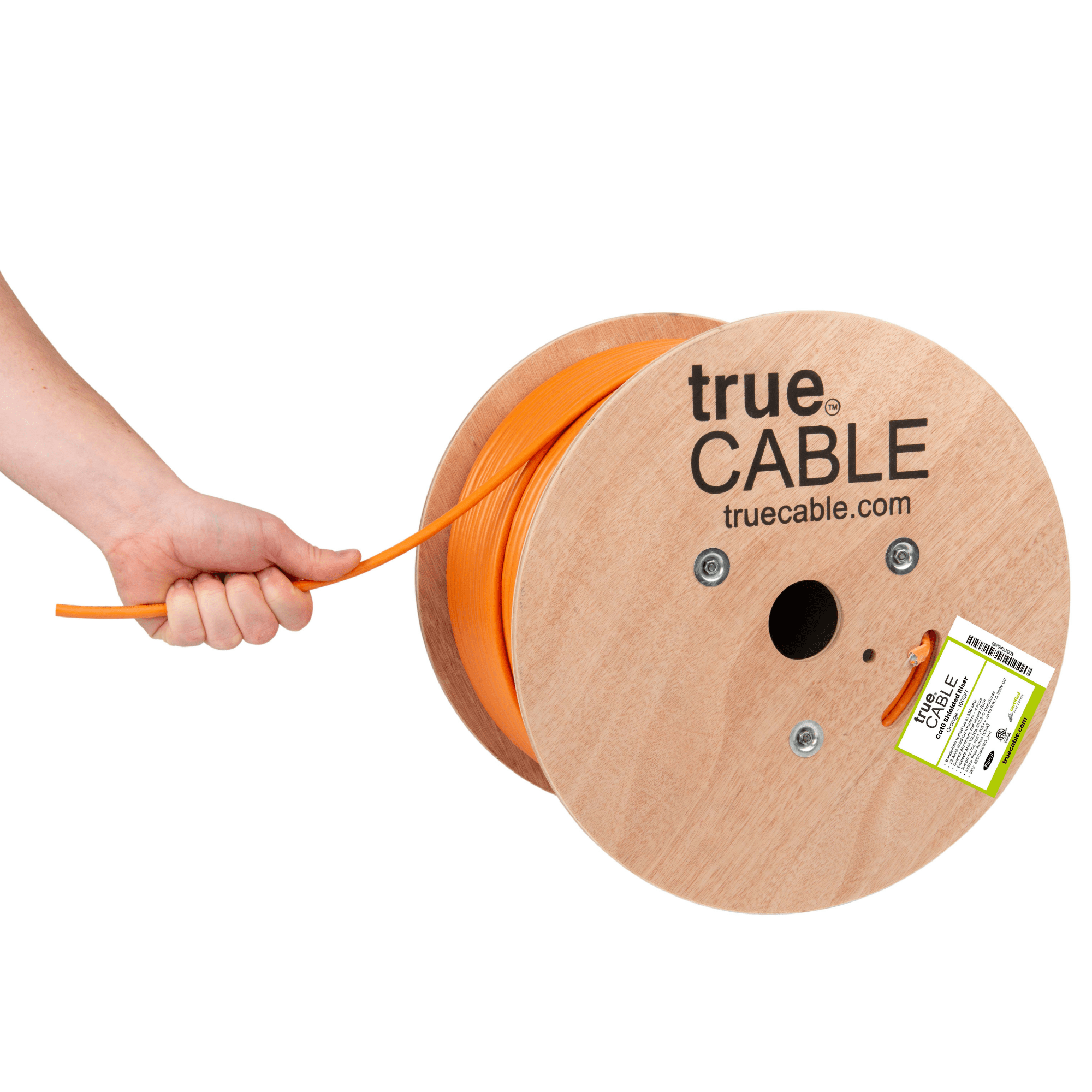

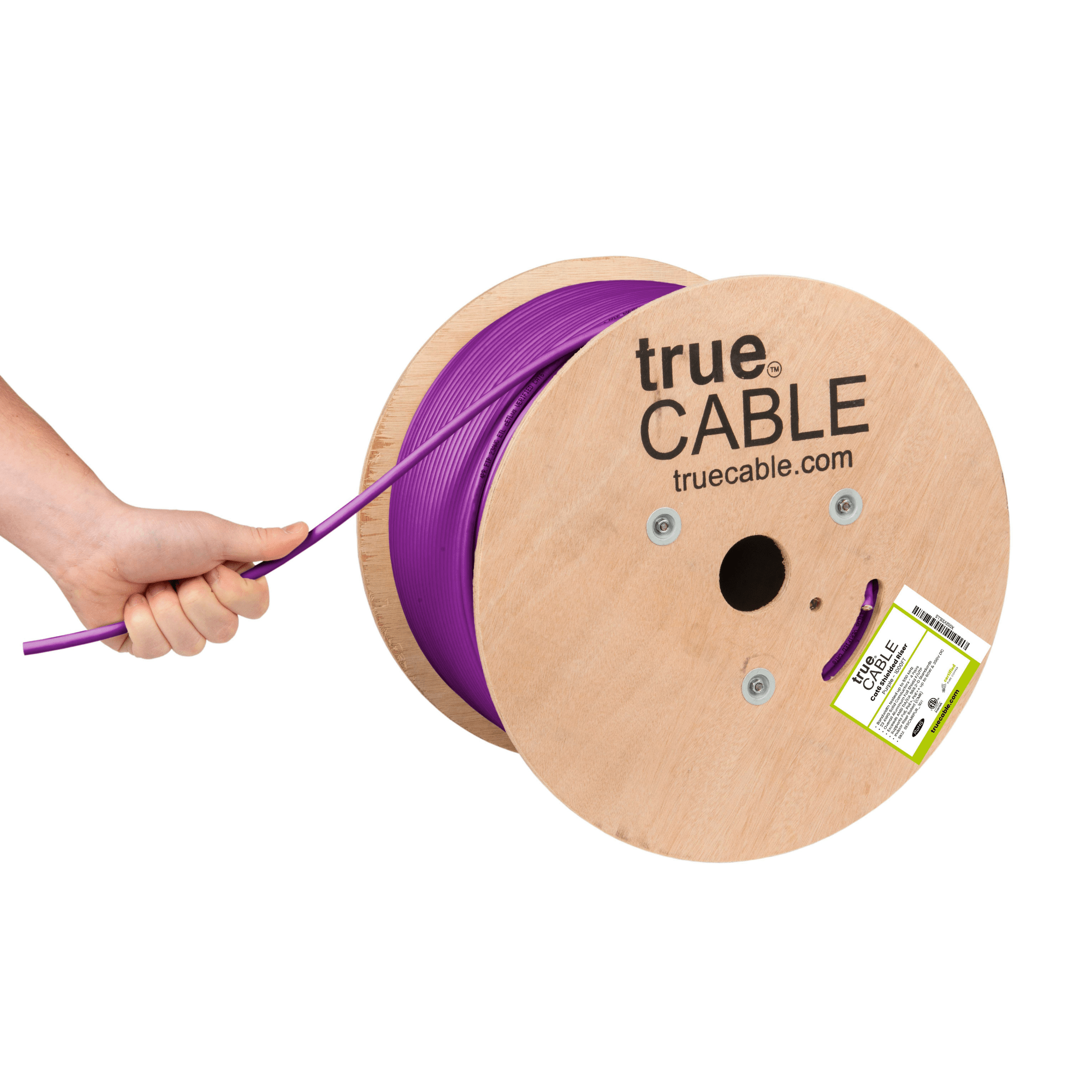

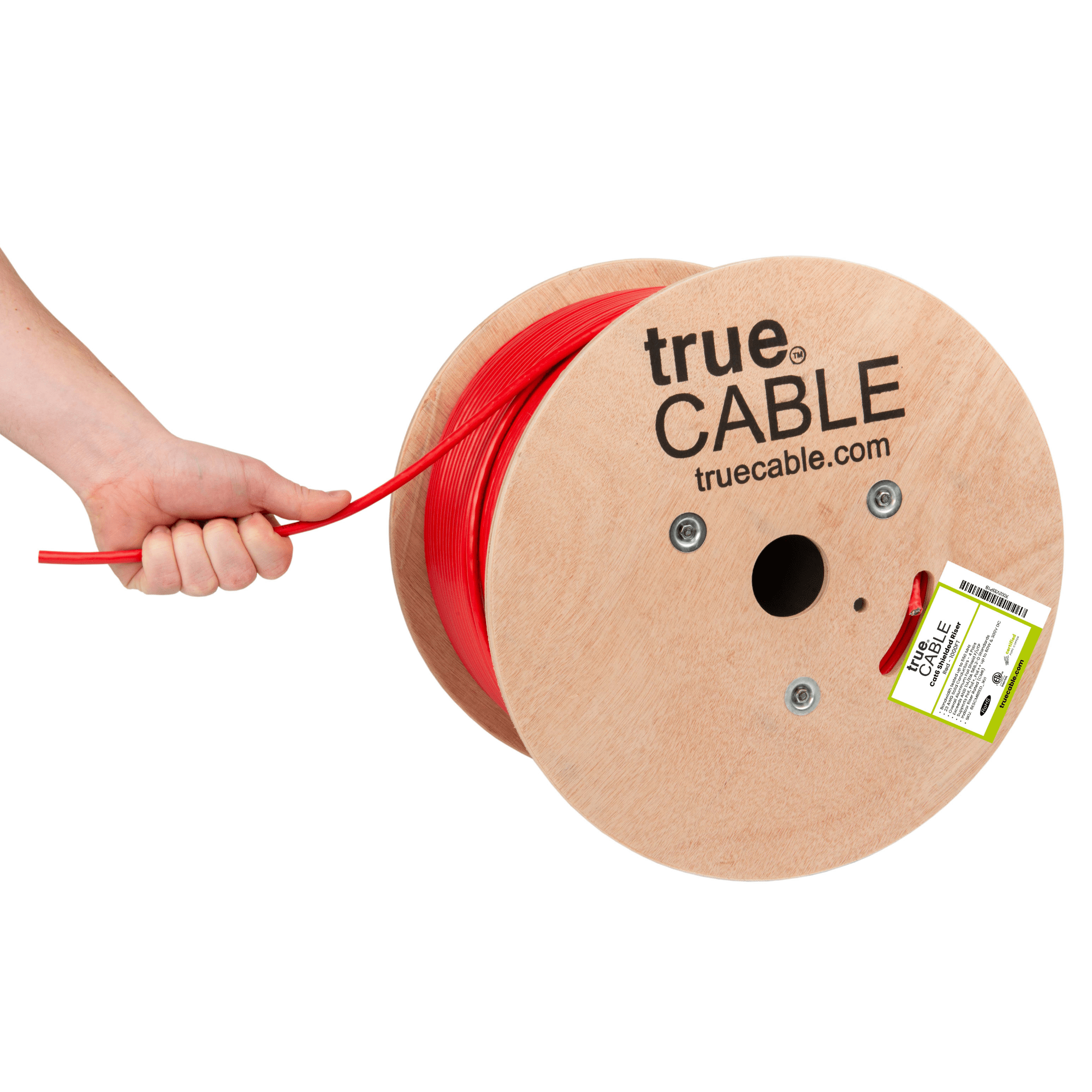

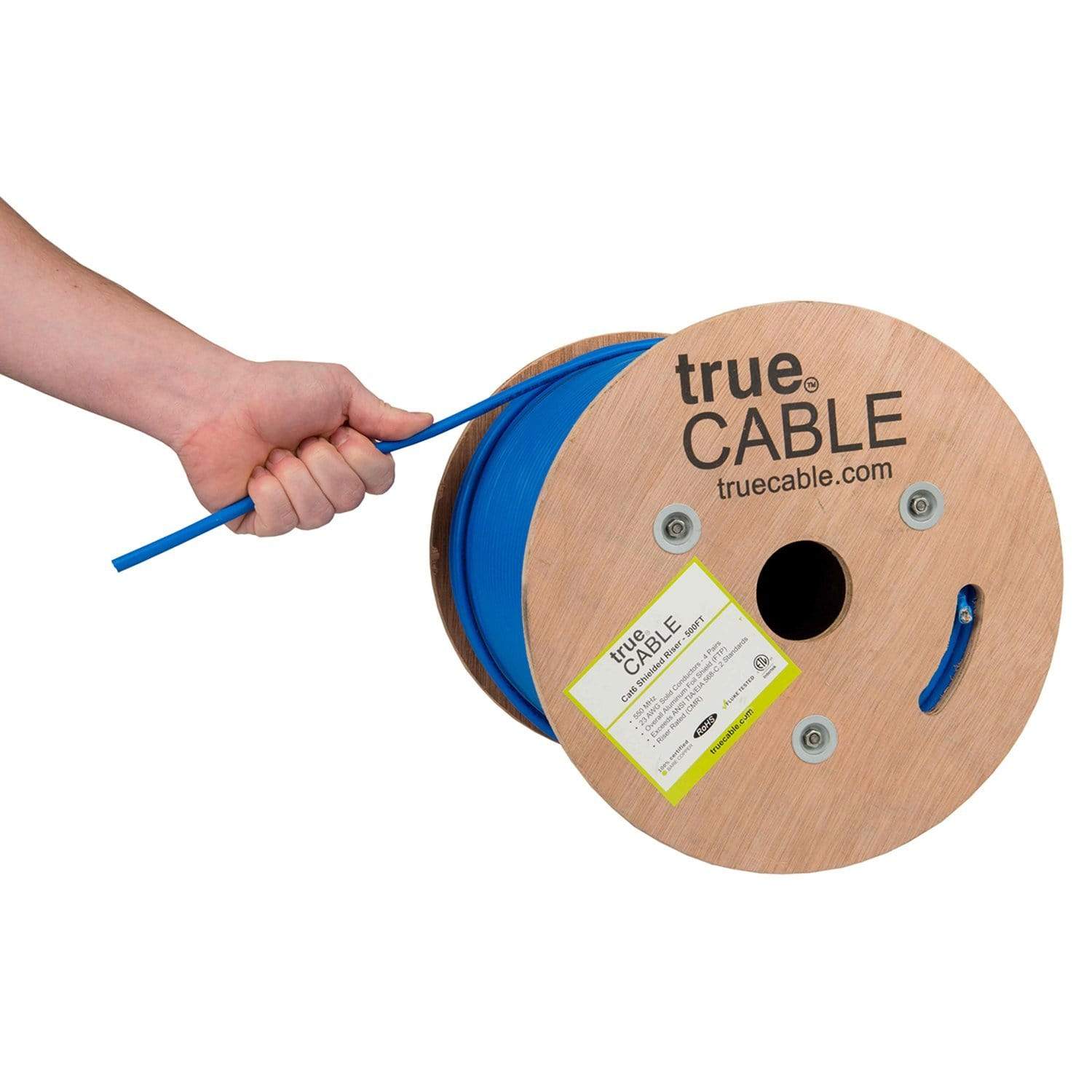

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox or reel.
  • Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

    Compatibility Counts

    • Terminate with shielded Cat6 RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.30mm.

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
    • Part Number - 6ESCMRBLU_1Kbx
    • Operating Temp. Range - 75 C / 167 F
    • Max. Operating Voltage - 300v
    • Conductor Insulation Diameter - 1.08mm
    • Overall Diameter (OD) - 7.30mm
    • Weight - 42.0 lbs
    • Length - 17.5 in
    • Width - 10.25 in
    • Height - 17.5 in
