Description

Outdoor Rated Ethernet Cable

Not rated for direct burial.
The OSP UV resistant jacket is designed to withstand sunlight, snow, and ice
Perfect for tight installation applications requiring thinner outdoor grade cable, such as exterior surveillance cameras

Everyday Performance

Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet
Bandwidth tested up to 350 MHz
Unshielded twisted pairs - U/UTP
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improves efficiency and easily allows you to track how much cable is left on the EZ Pull Reel

Compatibility Counts

Compatibility tested and verified with trueCABLE Cat5e Unshielded Pass Through RJ45 Connectors
24AWG solid conductors with an insulated conductor diameter of 0.91 mm and an overall cable jacket diameter of 5.10mm fits most readily available Cat5e RJ45 connectors

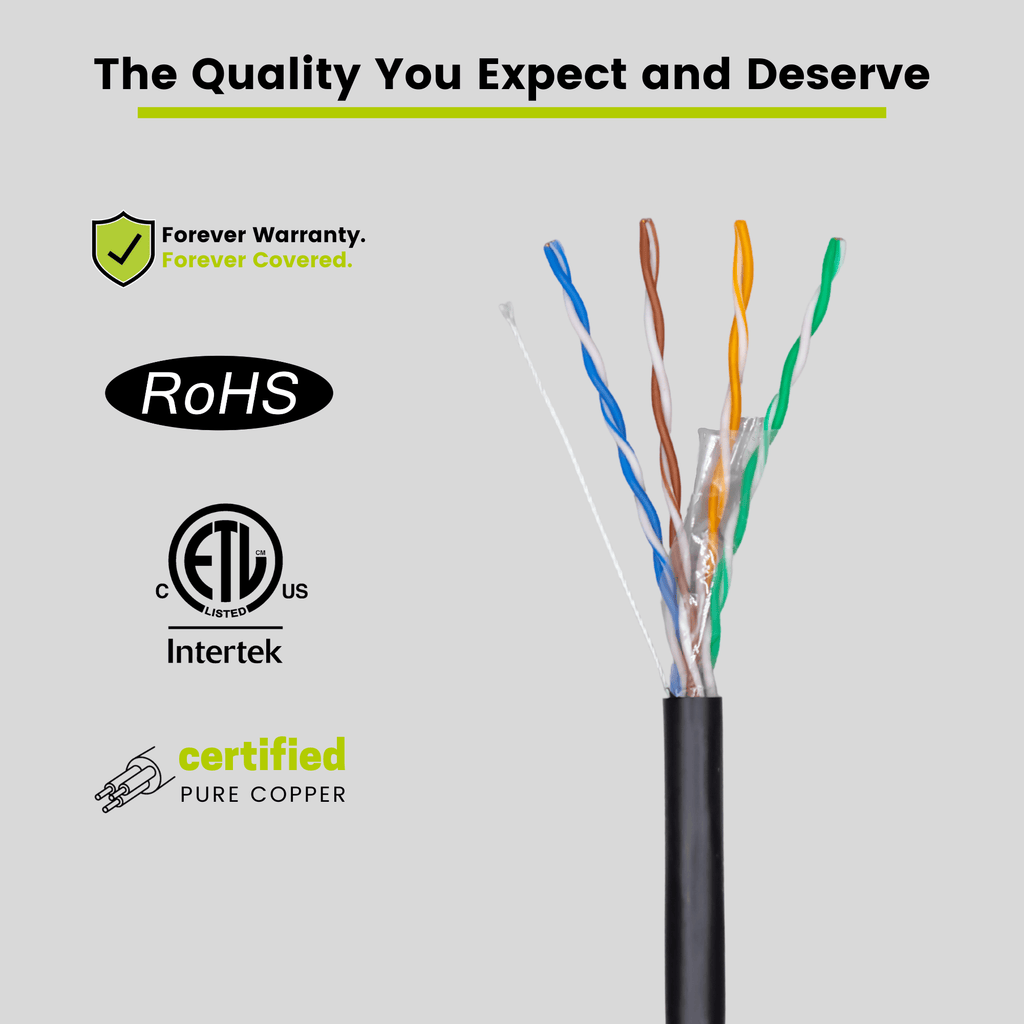

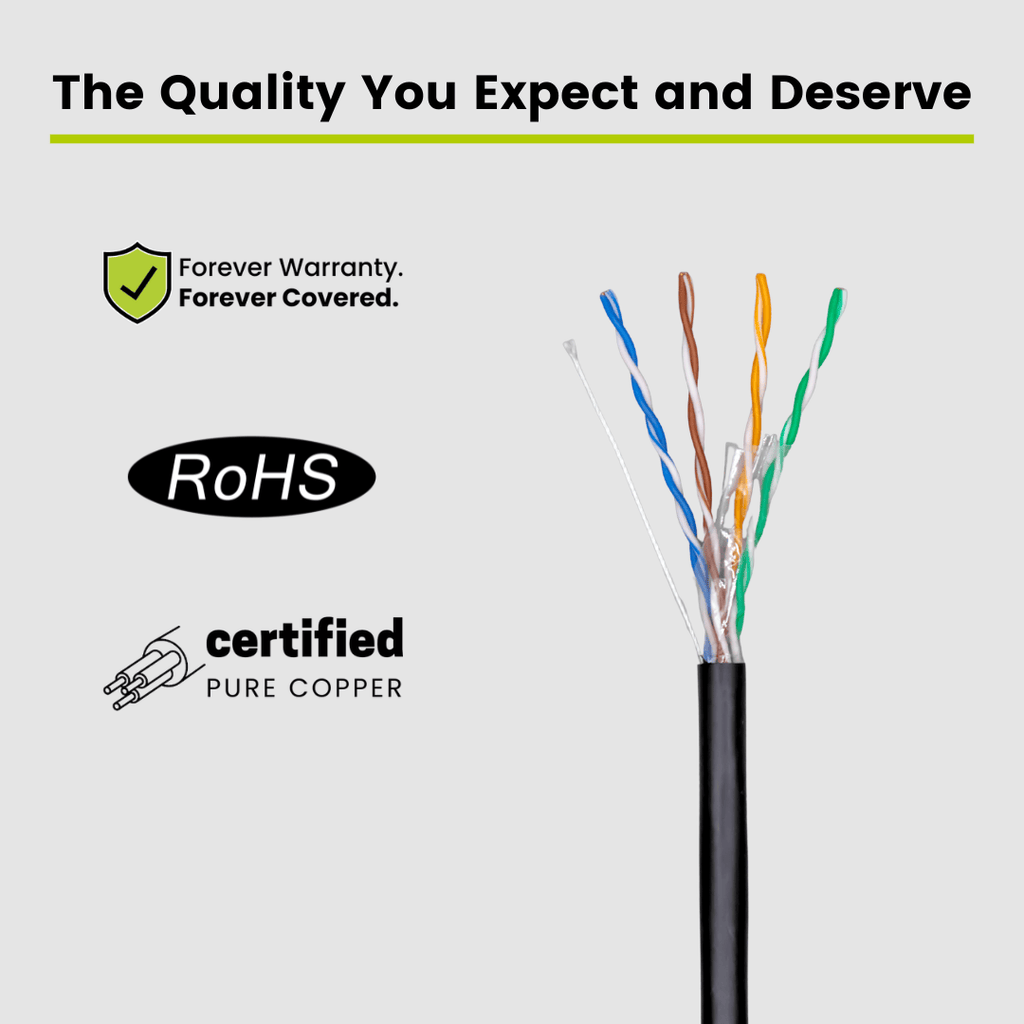

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards
Bare copper is a superior conductor material for data transmission and PoE use
The only industry and government-approved type of conductor for use in Ethernet networks

✓ Field Tested, Customer Approved

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and comply with ANSI/TIA 568.2-E standards, RoHS-3 compliant. Backed by our FOREVER WARRANTY.

Item Details

Weight	12.42 lb
Length	10.5 in
Width	10.5 in
Height	7 in
Barcode	X002WUHXHP

Specs & User Guides

Download Spec Sheet

Cat5e Outdoor Ethernet Cable｜Unshielded

Part Number - 5ECMXUVBLK_500rl

$167.99

24AWG 4-Pair, solid bare copper conductors
Bandwidth tested up to 350 MHz
Supports PoE++ (802.3bt) 4PPoE, up to 100W
RoHS-3 & ANSI/TIA 568.2-E compliant
NOT rated for direct burial

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$163.79	2.5%
25-49	$159.59	5%
50+	$155.39	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Outdoor Rated Ethernet Cable

Not rated for direct burial.
The OSP UV resistant jacket is designed to withstand sunlight, snow, and ice
Perfect for tight installation applications requiring thinner outdoor grade cable, such as exterior surveillance cameras

Everyday Performance

Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet
Bandwidth tested up to 350 MHz
Unshielded twisted pairs - U/UTP
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improves efficiency and easily allows you to track how much cable is left on the EZ Pull Reel

Compatibility Counts

Compatibility tested and verified with trueCABLE Cat5e Unshielded Pass Through RJ45 Connectors
24AWG solid conductors with an insulated conductor diameter of 0.91 mm and an overall cable jacket diameter of 5.10mm fits most readily available Cat5e RJ45 connectors

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards
Bare copper is a superior conductor material for data transmission and PoE use
The only industry and government-approved type of conductor for use in Ethernet networks

✓ Field Tested, Customer Approved

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and comply with ANSI/TIA 568.2-E standards, RoHS-3 compliant. Backed by our FOREVER WARRANTY.

Specifications

Weight	12.42 lb
Length	10.5 in
Width	10.5 in
Height	7 in
Barcode	X002WUHXHP

Downloads

Download Spec Sheet

Frequently Asked Questions

Is this cable suitable for PoE++ (802.3bt) applications?

Yes, this cable supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) standards and can handle 4PPoE up to 100W DC, making it suitable for powering devices with high power requirements.

Can I use this cable for direct burial applications?

No. This cable is NOT rated for direct burial. It is for outdoor above ground applications only.

What is the bandwidth and speed capability of this Cat5e outdoor Ethernet cable?

Our Cat5e unshielded outdoor Ethernet cable has been quality tested (in laboratory conditions) to 350 MHz, ensuring stable ANSI/TIA required Cat5e 100 MHz operating bandwidth under all in-field conditions. Maximum application speed is 2.5 Gbps up to 328 feet.

What certifications does this product hold?

This product has been tested for IEEE 802.3, ANSI/TIA 568.2, and RoHS-3 Compliance, ensuring it meets rigorous standards for performance and environmental responsibility.

Are these cables suitable for indoor use as well?

No. Our Cat5e outdoor unshielded Ethernet cable is Unlisted, which means it has no fire safety rating. It is not suitable for indoor installation by Code. It may, however, be brought into a structure from outside up to 50 feet prior to termination or transition to an indoor fire rated cable type.

What is the conductor type used in this cable?

The conductors in this cable are made of 24 AWG pure solid copper, providing high-quality signal transmission and durability.

What is the main difference between Cat5e, Cat6, and Cat6A cables?

Cat5e, Cat6, and Cat6A solid copper Ethernet cables all support data transmission up to 328 feet but do so at different maximum application speeds. Cat5e supports up to 2.5 Gbps at 328 feet where Cat6A supports up to 10 Gbps at 328 feet, for example.

How do I choose the right cable type for my network infrastructure?

Choosing the right Ethernet cable is a balance between speed needs, local Code compliance, environmental considerations, and more. trueCABLE offers a tool to help you select the right cable for your needs at https://www.truecable.com/pages/guided-selling.

Can I purchase a mix of Cat5e, Cat6, and Cat6A bulk Ethernet cables?

Yes, we offer mixed bundles and can customize your order to meet your specific needs. Contact us to discuss your requirements and receive a quote.

Can I purchase bulk quantities of this cable?

Yes. trueCABLE offers bulk quantity pricing. Pricing can be found on the product page.
