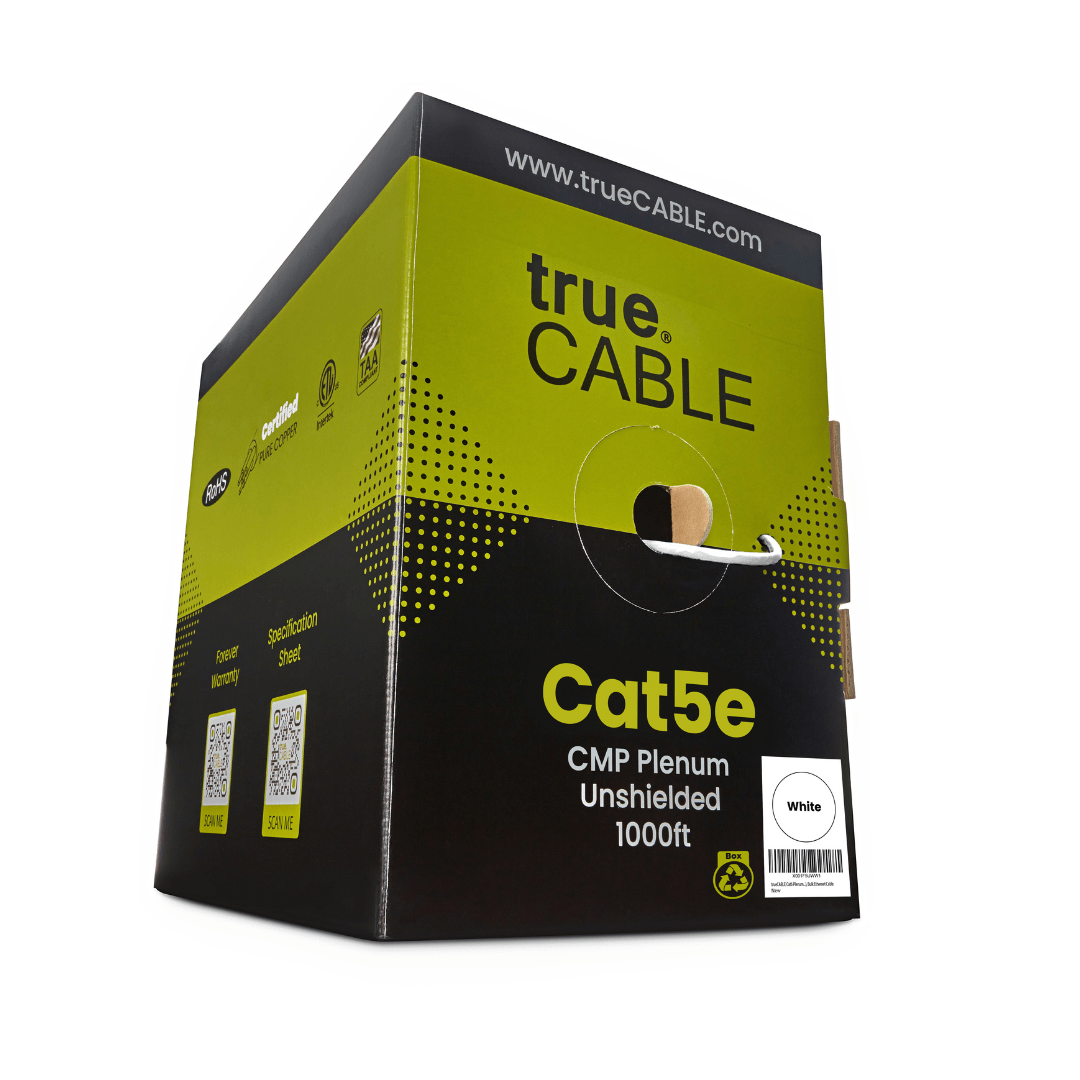

A black and green box labeled "trueCABLE Cat5e CMP Plenum Unshielded 1000ft," shown at an angle.
1/8
  • A black and green box labeled "trueCABLE Cat5e CMP Plenum Unshielded 1000ft," shown at an angle.

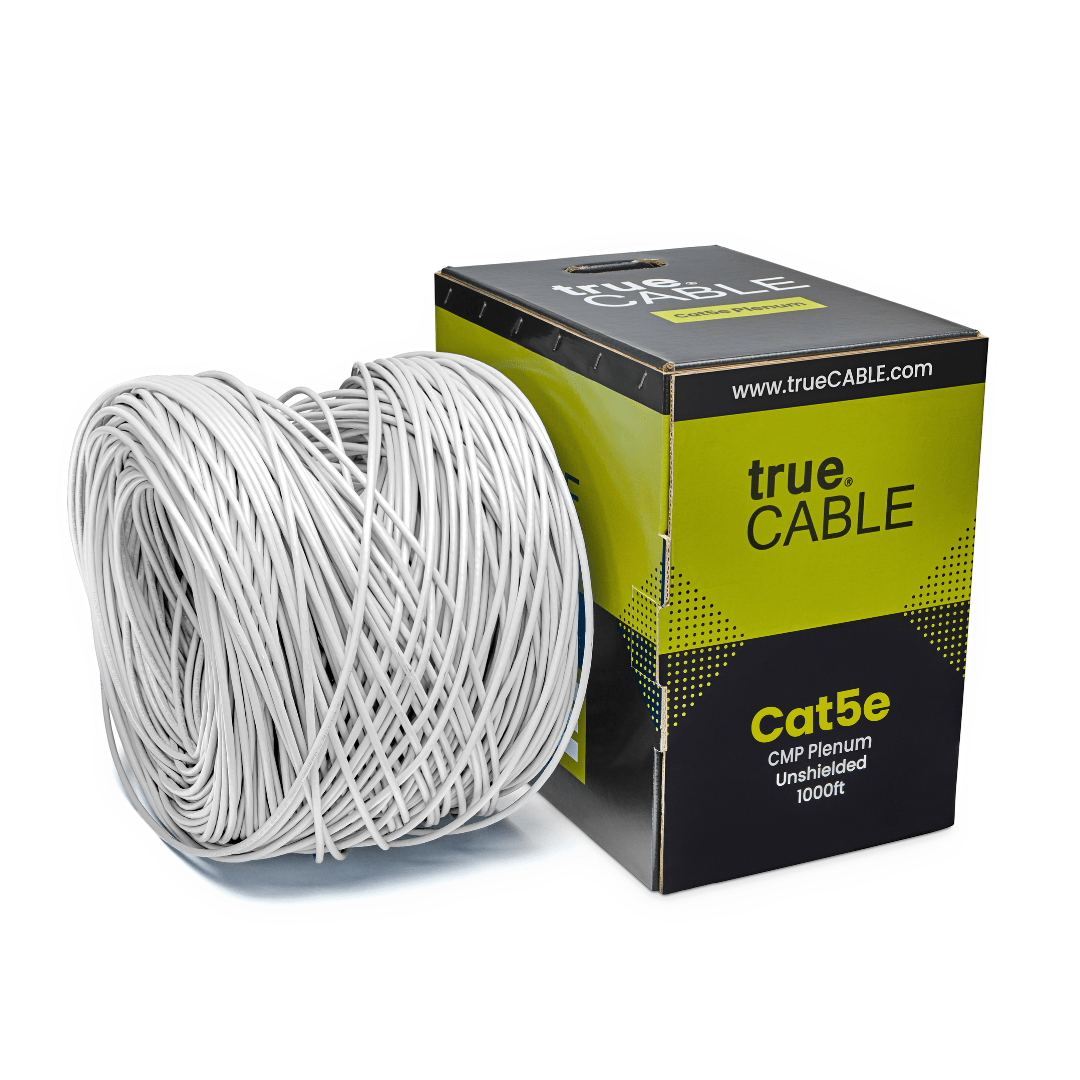

  • A coiled white cable next to the "trueCABLE" box.

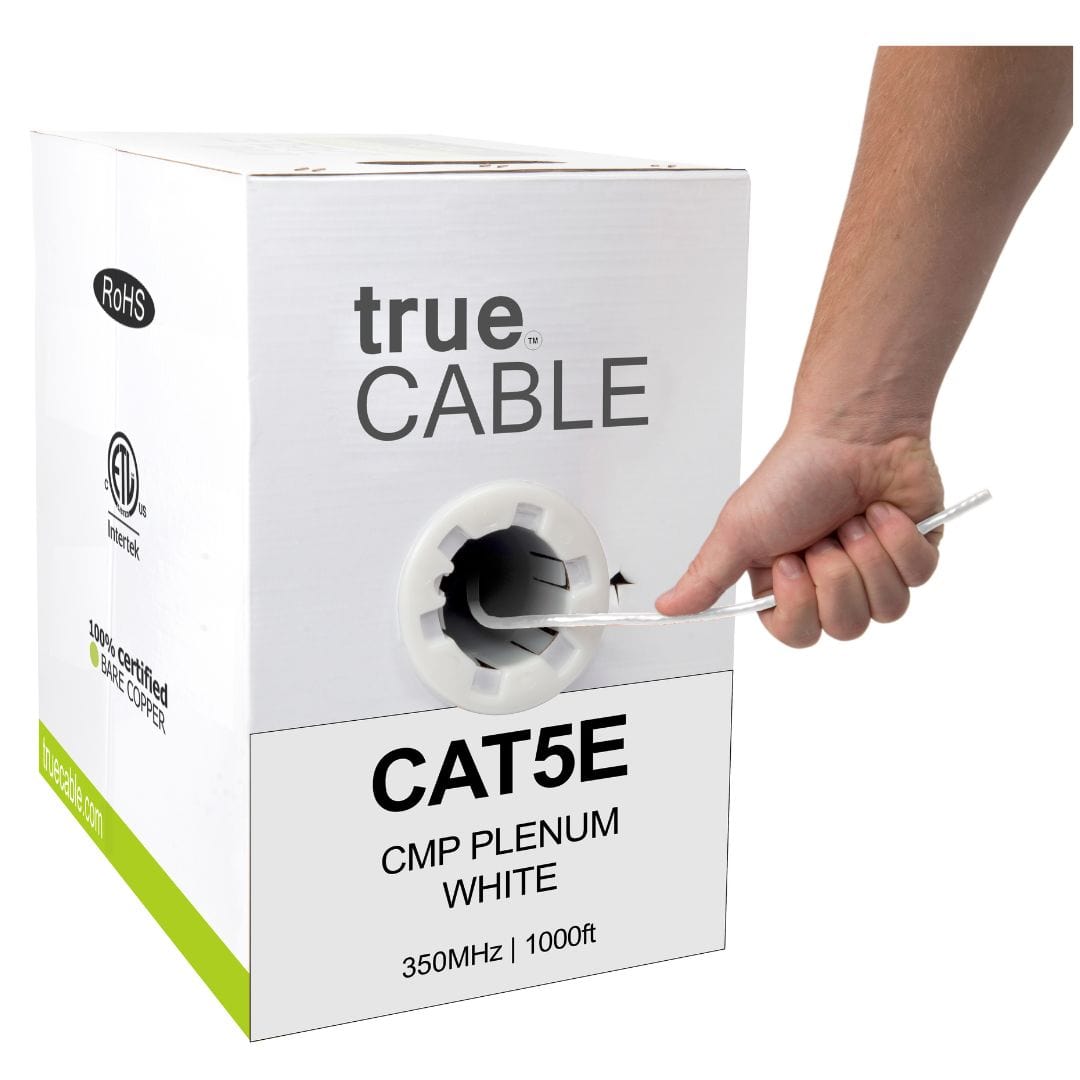

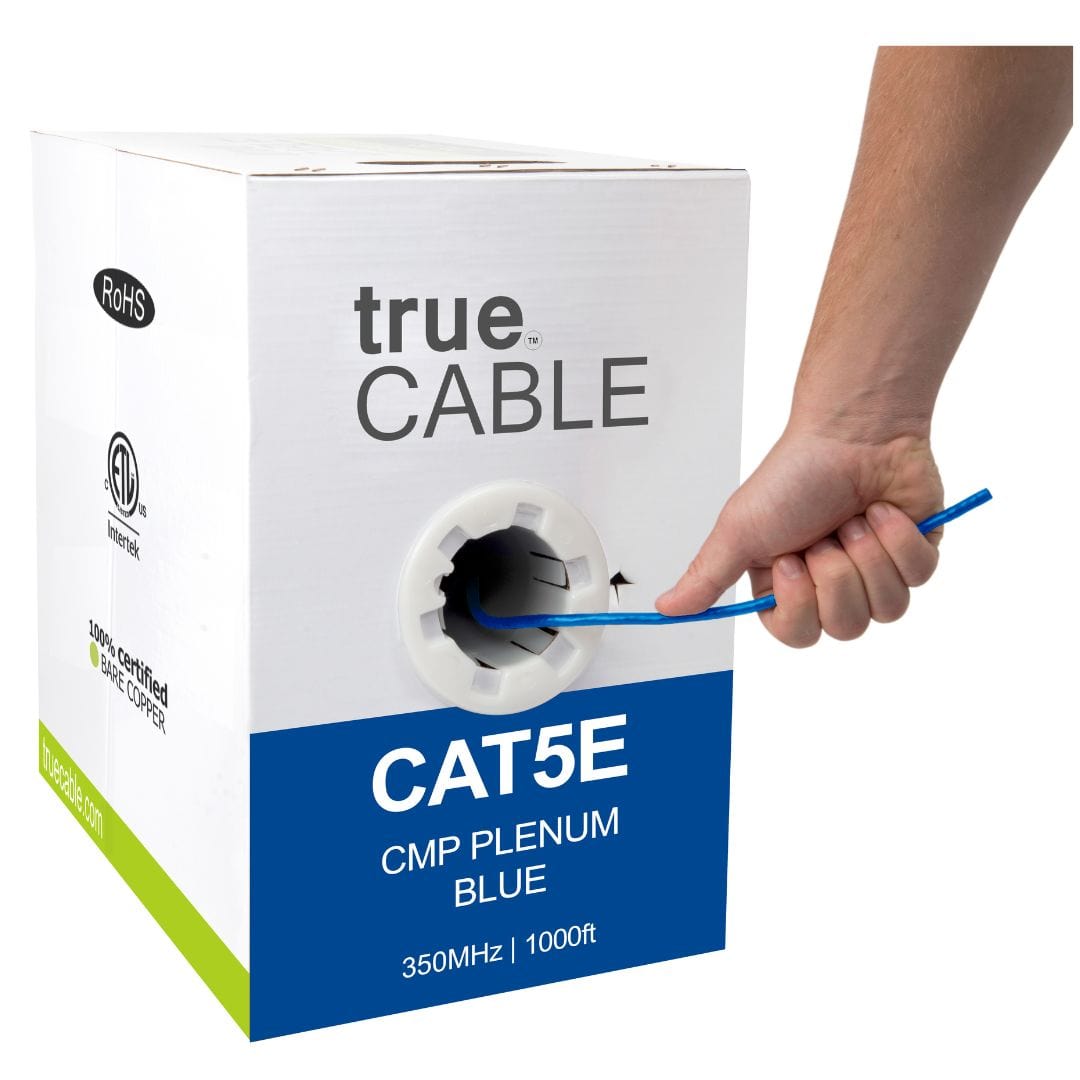

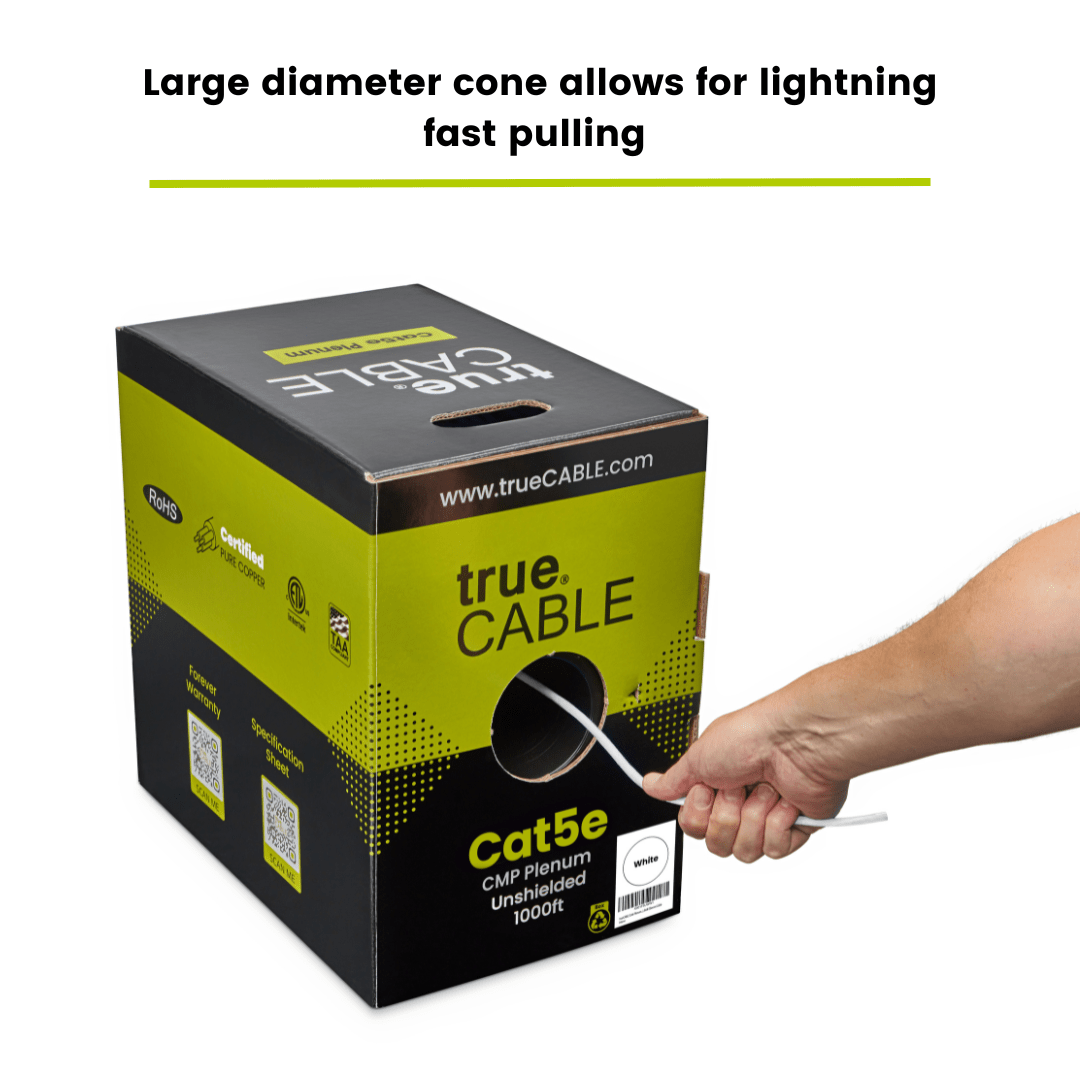

  • A hand pulling a white cable from the "trueCABLE" box, with the label "Large diameter cone allows for lightning fast pulling."

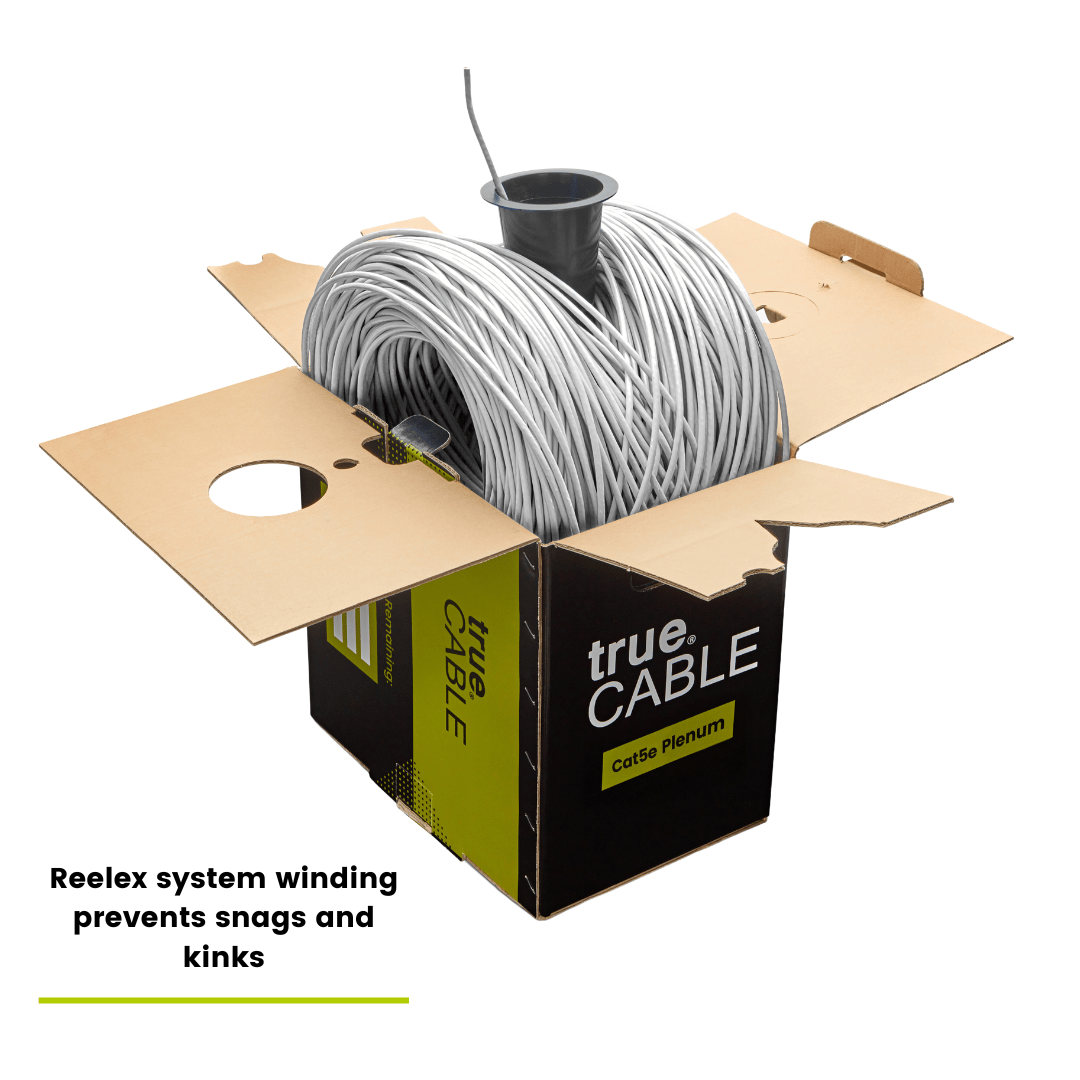

  • The "trueCABLE" box with a white cable partially pulled out, showing ease of use for preventing tangles, labeled "Resets system winding prevents snags and kinks."

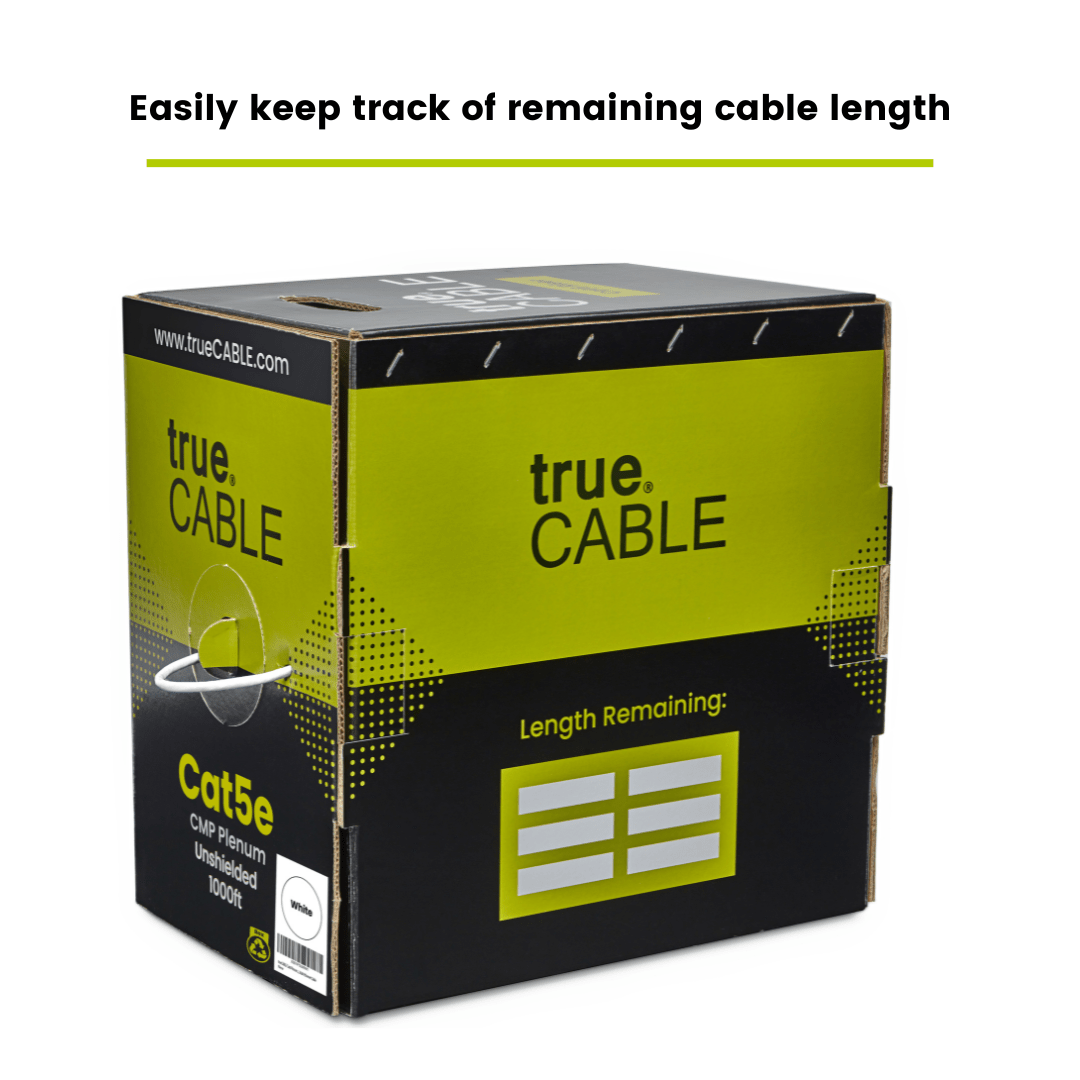

  • The "trueCABLE" box, labeled "Easily keep track of remaining cable length" with markings for length on the side.

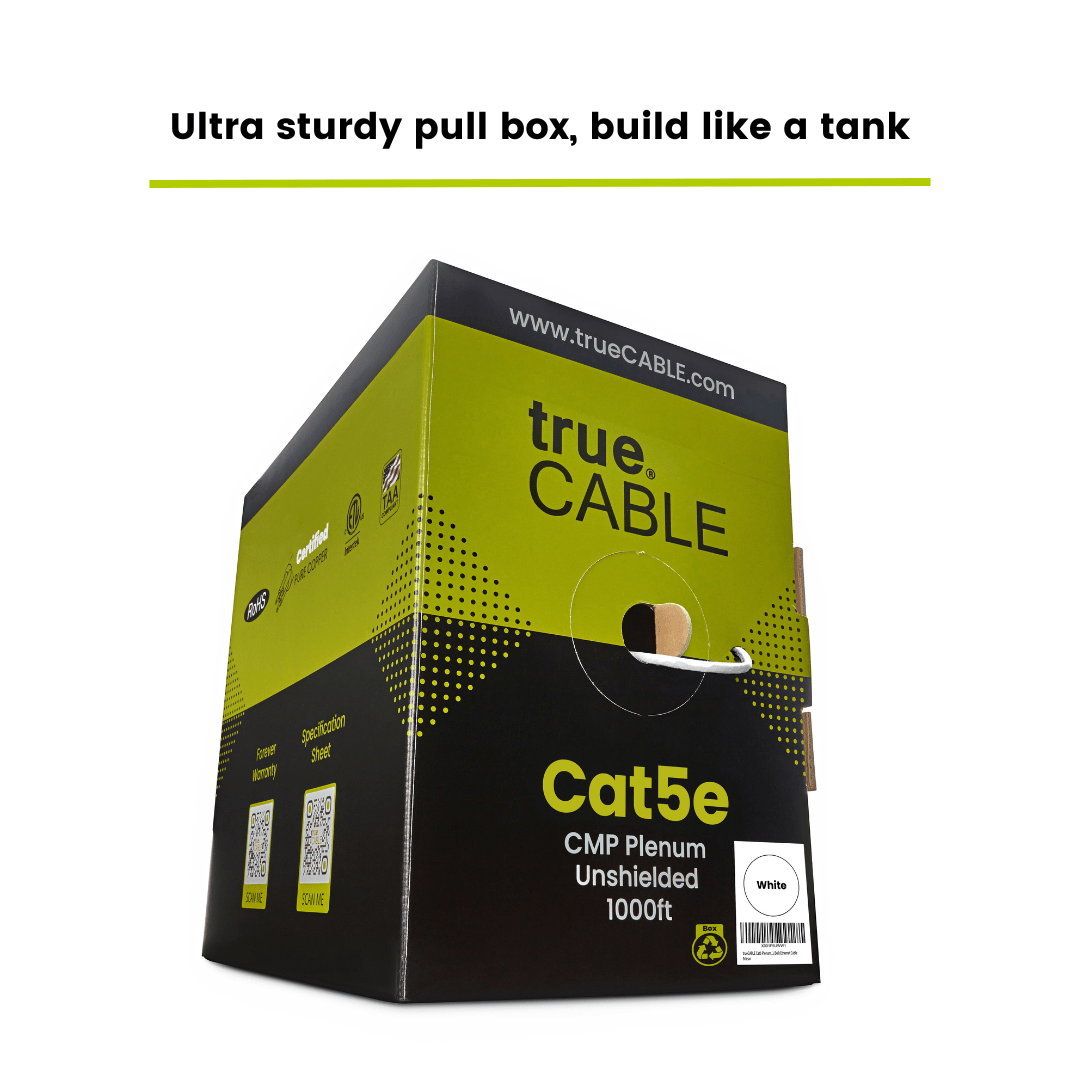

  • A black and green "trueCABLE" box, labeled "Ultra sturdy pull box, build like a tank."

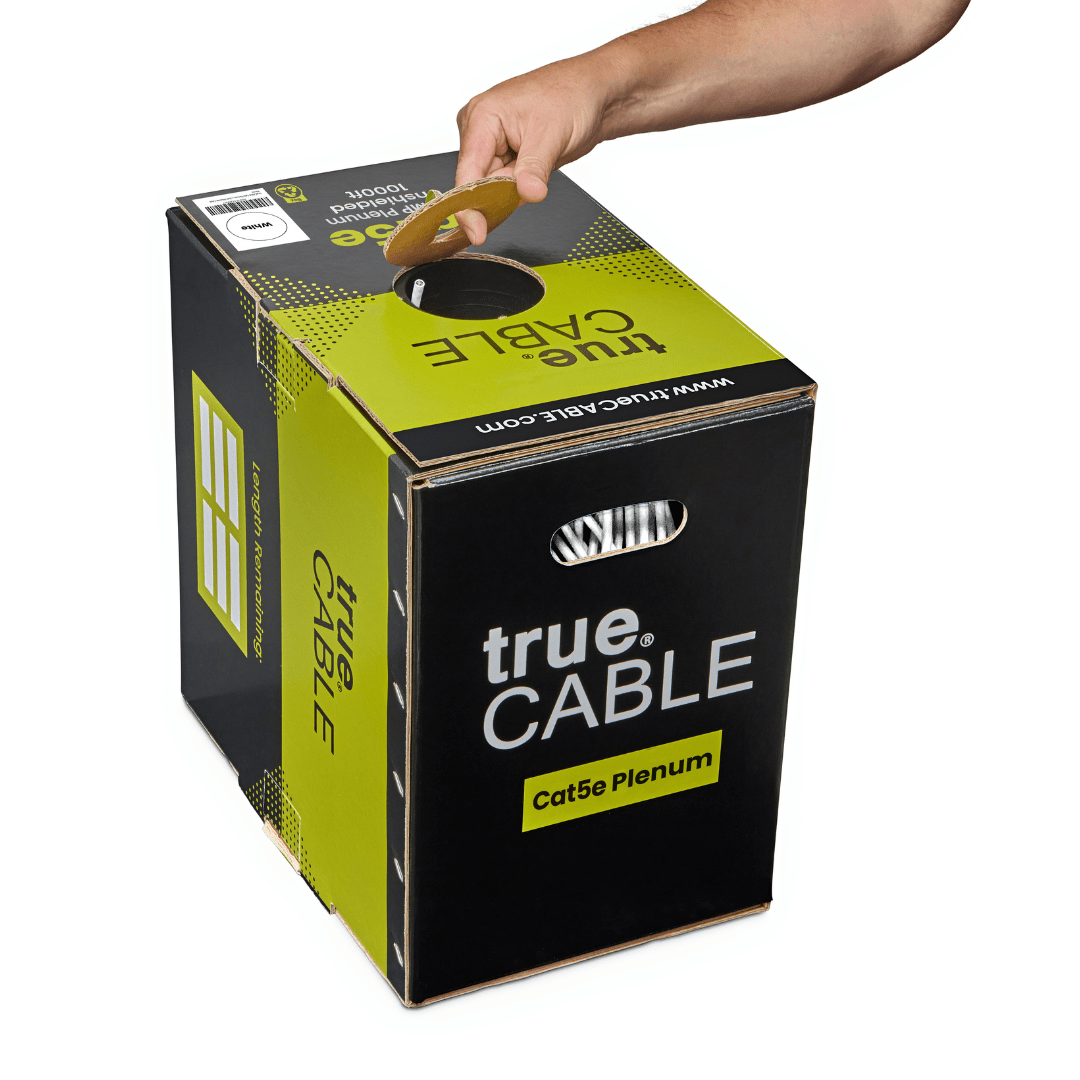

  • A hand lifting the "trueCABLE" box using its carrying handle, showing portability.

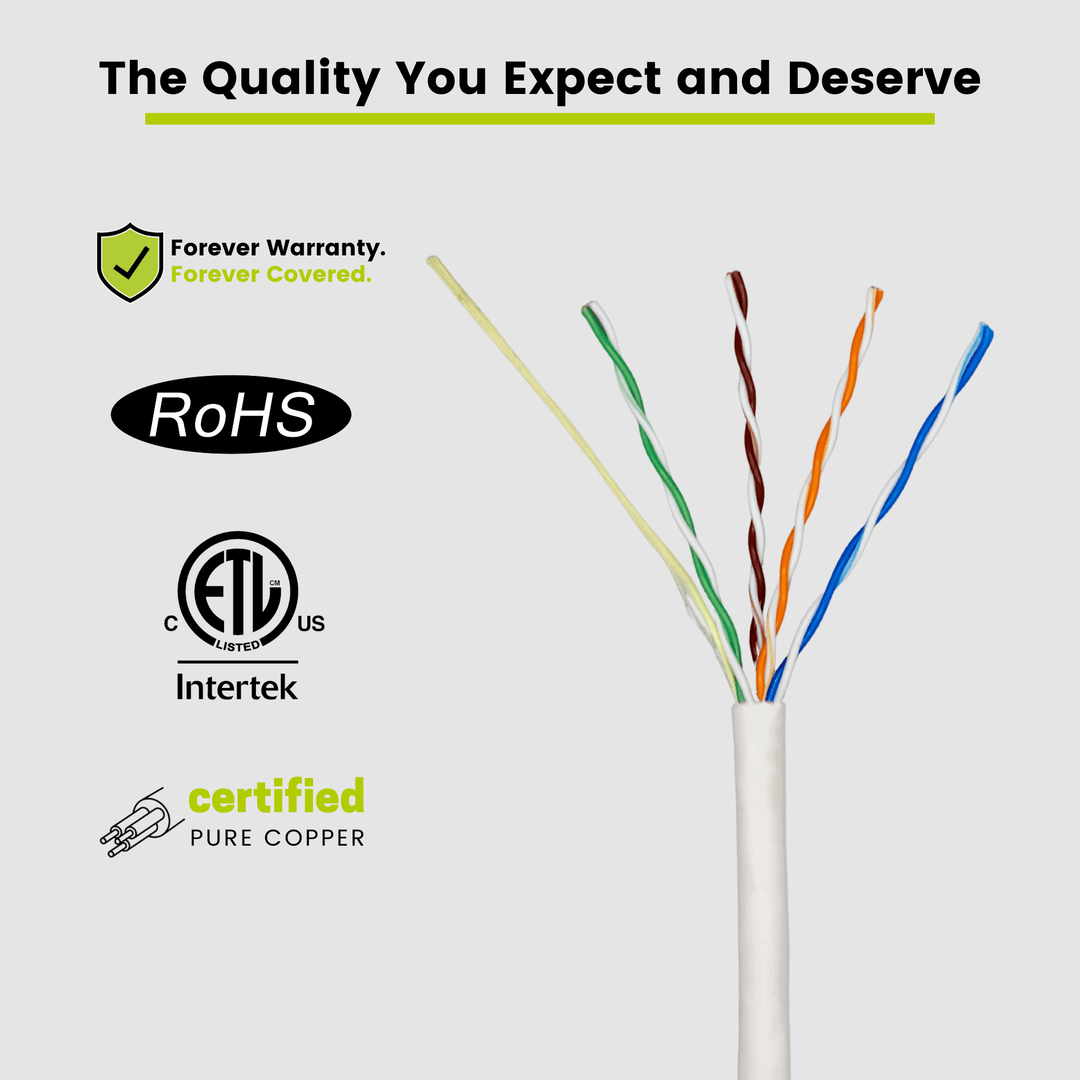

  • A quality assurance graphic showing logos for certifications like "RoHS," "ETL," and "certified pure copper," alongside an image of a cable with exposed wires.

Description

Plenum Rated Ethernet Cable
  • The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

Everyday Performance

  • Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
  • Bandwidth tested up to 350 MHz
  • Unshielded twisted pairs - U/UTP
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.

    Compatibility Counts

    • Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.89mm and an overall cable jacket diameter of 4.90mm.

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.

      Item Details

      Weight 23.5 lbs
      Length 14.25 in
      Width 10.50 in
      Height 13.50 in
      Barcode X001L52U9N

      Specs & User Guides

      Download Spec Sheet

      Cat5e Plenum Ethernet Cable｜Unshielded

      8 reviews

      Part Number - 5ECMPWHT_1Kbx
      $245.99
      • 24AWG 4-Pair, solid bare copper conductors
      • Unshielded twisted pairs - U/UTP
      • Bandwidth tested up to 350 MHz
      • Supports PoE++ (802.3bt) 4PPoE, up to 100W
      • cETLus Certified, RoHS-3 Compliant
      Color: White
      Length:

      Add 9 more for 2.5% discount
      • product-certificate-image
      • product-certificate-image
      • product-certificate-image
      Bulk Save with trueCABLE
      Qty Price Per Item Your Savings
      10-24 $239.84 2.5%
      25-49 $233.69 5%
      50+ $227.54 7.5%

      Why buy direct from trueCABLE?

      30 day returns Returns Policy

      We stand by our products with our Forever Warranty

      Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $149.99.

      Estimate Your Delivery Date

      Description

      Plenum Rated Ethernet Cable
      • The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

      Everyday Performance

      • Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
      • Bandwidth tested up to 350 MHz
      • Unshielded twisted pairs - U/UTP
      • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
      • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.

        Compatibility Counts

        • Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.89mm and an overall cable jacket diameter of 4.90mm.

        Pure Solid Bare Copper Conductors

        • Complies with UL, ANSI/TIA, and U.S. product safety standards.
        • Bare copper is superior conductor material for data transmission and PoE use.
        • The only industry and governmental approved type of conductor for use in Ethernet networks.
        ✓ CERTIFIED by trueCABLE
        • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.

          Specifications

          Weight 23.5 lbs
          Length 14.25 in
          Width 10.50 in
          Height 13.50 in
          Barcode X001L52U9N

          Downloads

          Download Spec Sheet
