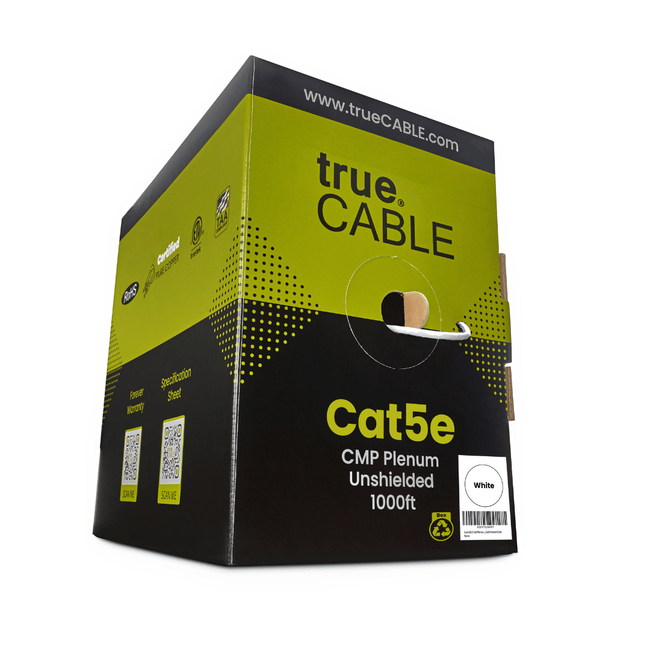

A black and green box labeled "trueCABLE Cat5e CMP Plenum Unshielded 1000ft," shown at an angle.

1/8

Description

Plenum Rated Ethernet Cable

The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

Everyday Performance

Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
Bandwidth tested up to 350 MHz
Unshielded twisted pairs - U/UTP
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

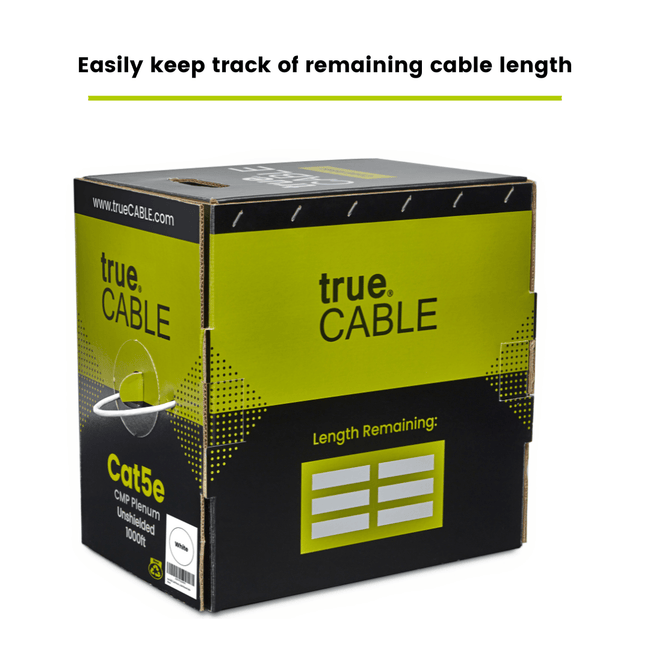

Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.

Compatibility Counts

Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.89mm and an overall cable jacket diameter of 4.90mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.

Item Details

Weight	23.5 lb
Length	14 in
Width	8.5 in
Height	14.25 in
Barcode	X001L52U9N

Specs & User Guides

Download Spec Sheet

Cat5e Plenum Ethernet Cable｜Unshielded

Part Number - 5ECMPWHT_1Kbx

$286.99

24AWG 4-Pair, solid bare copper conductors
Unshielded twisted pairs - U/UTP
Bandwidth tested up to 350 MHz
Supports PoE++ (802.3bt) 4PPoE, up to 100W
cETLus Certified, RoHS-3 Compliant

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$279.82	2.5%
25-49	$272.64	5%
50+	$265.47	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Plenum Rated Ethernet Cable

The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

Everyday Performance

Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
Bandwidth tested up to 350 MHz
Unshielded twisted pairs - U/UTP
Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.

Compatibility Counts

Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.89mm and an overall cable jacket diameter of 4.90mm.

Pure Solid Bare Copper Conductors

Complies with UL, ANSI/TIA, and U.S. product safety standards.
Bare copper is superior conductor material for data transmission and PoE use.
The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.

Specifications

Weight	23.5 lb
Length	14 in
Width	8.5 in
Height	14.25 in
Barcode	X001L52U9N

Downloads

Download Spec Sheet

Frequently Asked Questions

What is the bandwidth rating of this Cat5e Ethernet cable?

Our Cat5e unshielded plenum Ethernet cable has been quality tested (in laboratory conditions) to 350 MHz, ensuring stable ANSI/TIA required Cat5e 100 MHz operating bandwidth under all in-field conditions.

Can I use this unshielded cable for outdoor installations?

No. This cable is designed for indoor applications only.

Can I use this cable with PoE++ devices that require up to 100W of power?

This cable supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) standards and can handle 4PPoE up to 100W DC, making it suitable for powering devices with high power requirements.

What certifications does this cable hold?

This cable meets or exceeds IEEE 802.3 and ANSI/TIA 568.2 industry standards, in addition to being cETLus (UL-444) Listed (plenum rating) for electrical and fire safety as required by the NEC. It is also RoHS-3 Compliant.

How long is a single spool of this cable?

This cable comes in a 1000ft (305 meter) pull boxes only.

What type of conductor does this cable feature?

The conductors in this cable are made of 24 AWG pure solid copper, providing high-quality signal transmission and durability.

Can I use this cable with my existing network equipment?

Yes. This cable is compatible with a wide range of network devices, including switches, routers, and patch panels designed for Ethernet networking. However, please ensure compatibility by checking your device specifications before installation.
