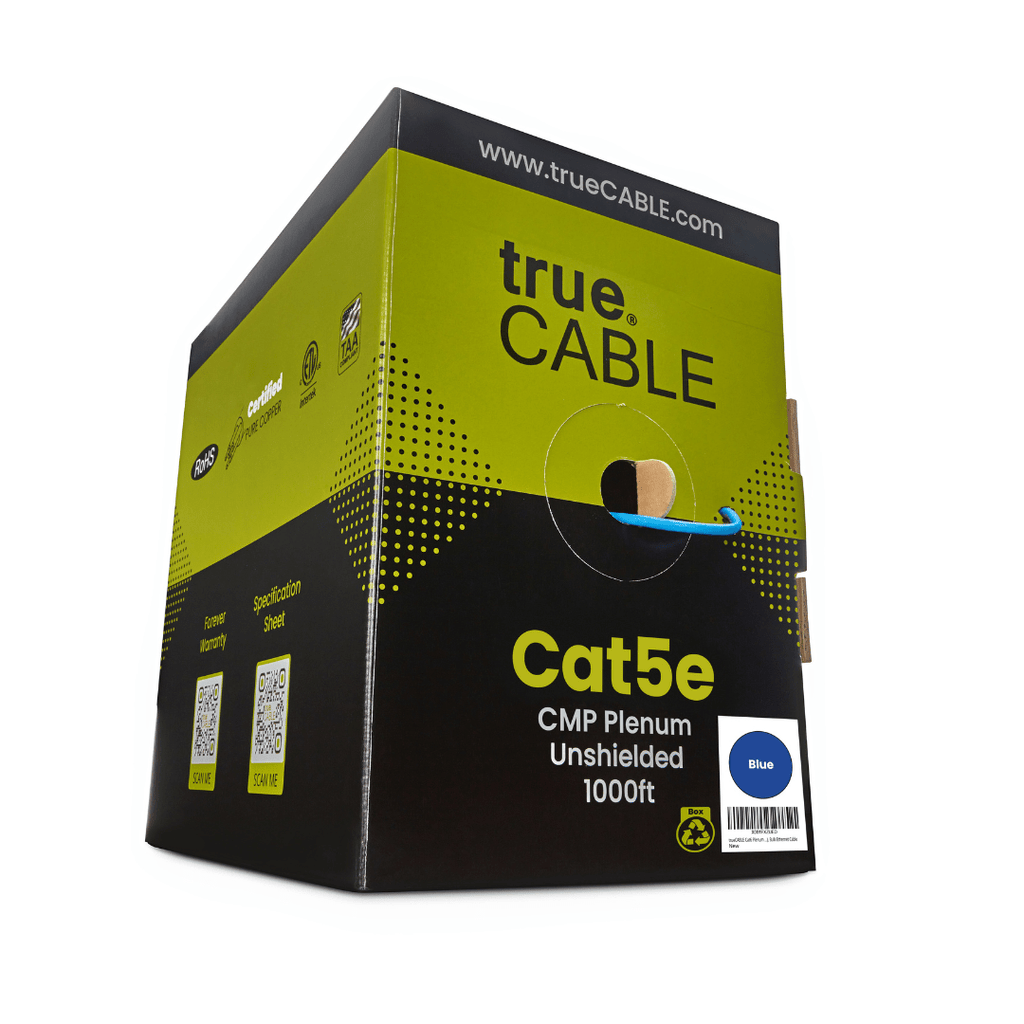

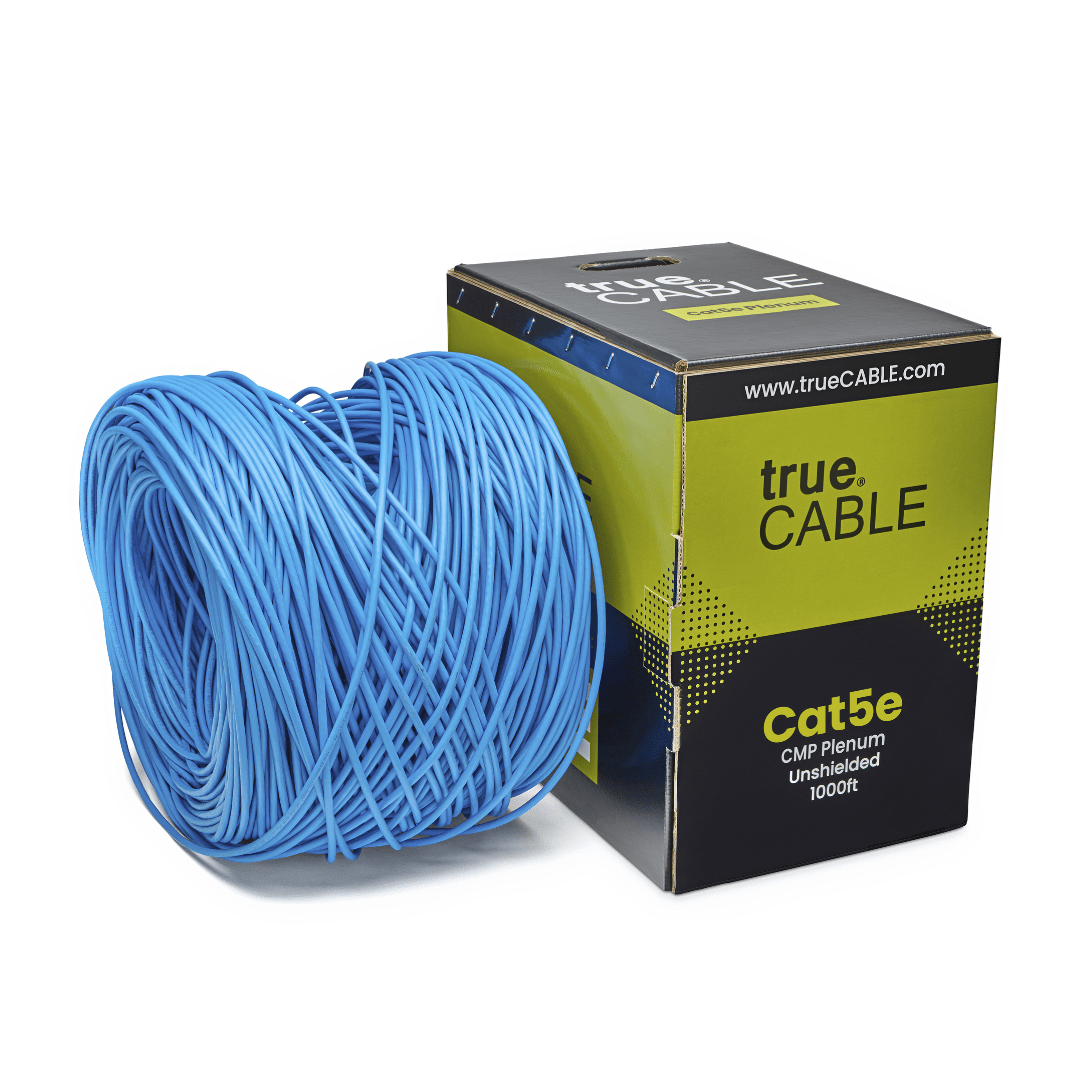

Cat5e Plenum Ethernet Cable|Unshielded

Part Number - 5ECMPBLU_1Kbx

Features

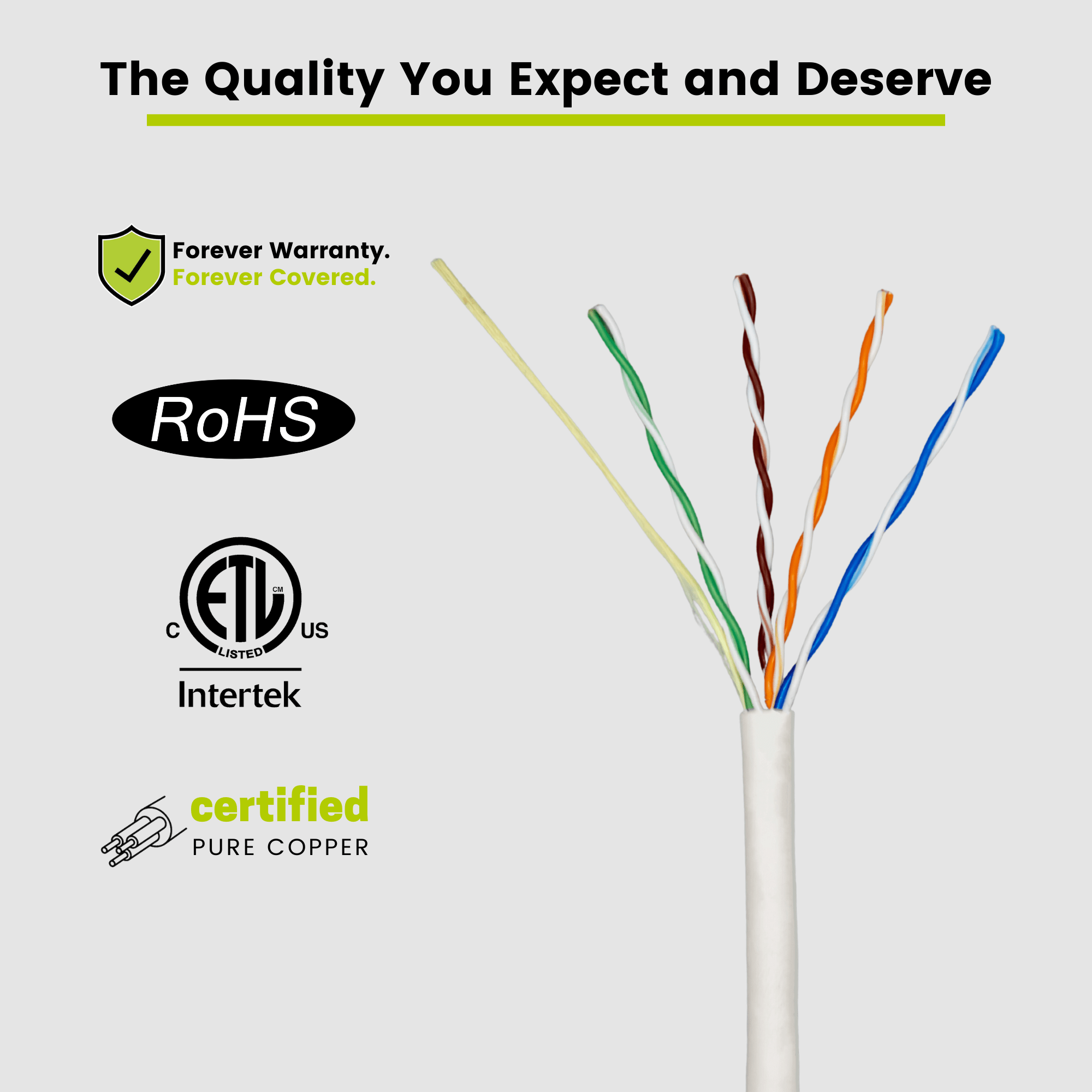

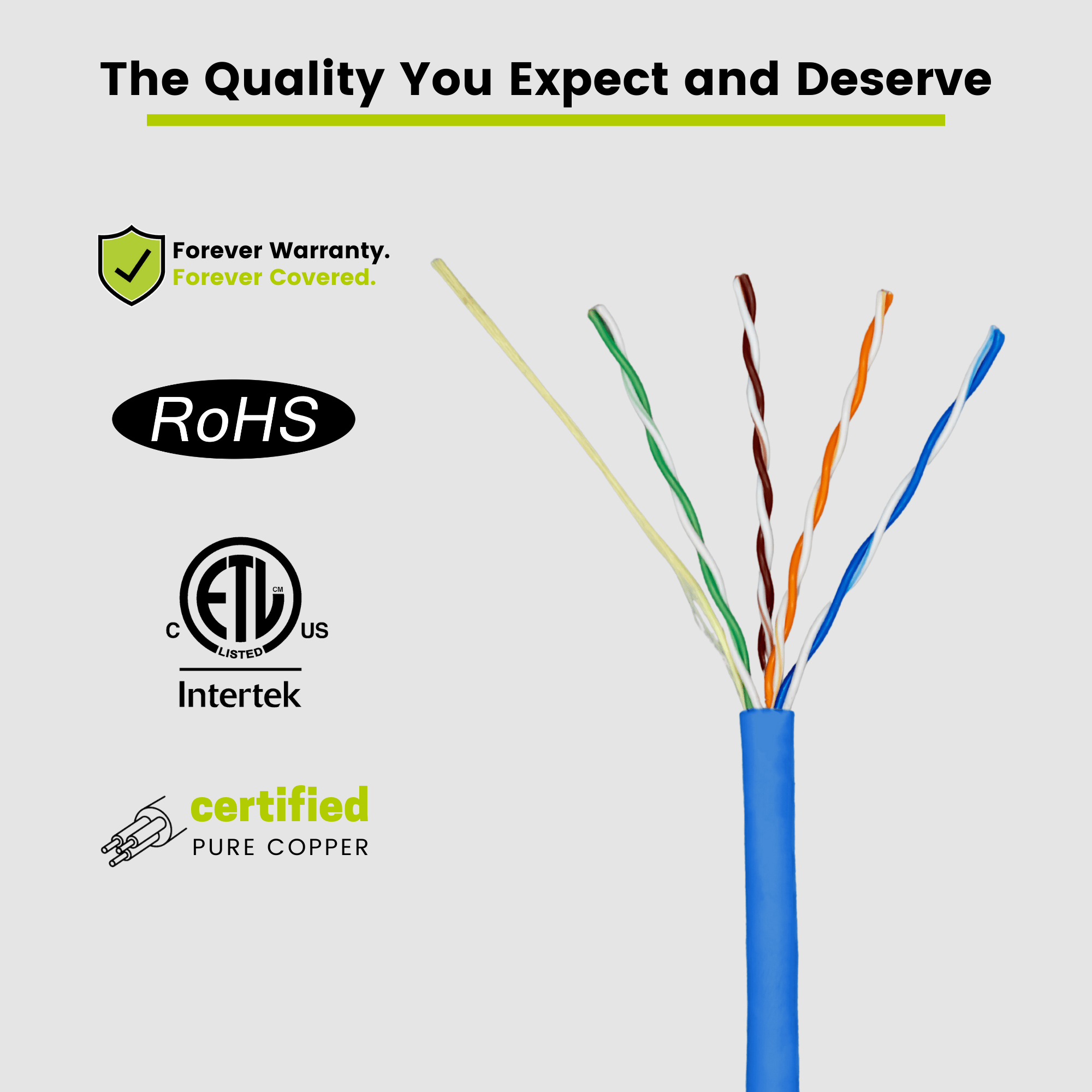

  • 24AWG 4-Pair, solid bare copper conductors
  • Unshielded twisted pairs - U/UTP
  • Bandwidth tested up to 350 MHz
  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • cETLus Certified, RoHS-3 Compliant

Struggling to find the best Ethernet cable for your install?

Look no further than our Ethernet Cable Finder

Test

Test

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $211.57 2.5%
25-49 $206.14 5%
50+ $200.72 7.5%
$216.99 216.99
-Liquid error (sections/product-template line 309): Computation results in '-Infinity'%
Color
Length
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount

Only 43 left in stock - order soon.

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Plenum Rated Ethernet Cable
  • The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

Everyday Performance

  • Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
  • Bandwidth tested up to 350 MHz
  • Unshielded twisted pairs - U/UTP
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

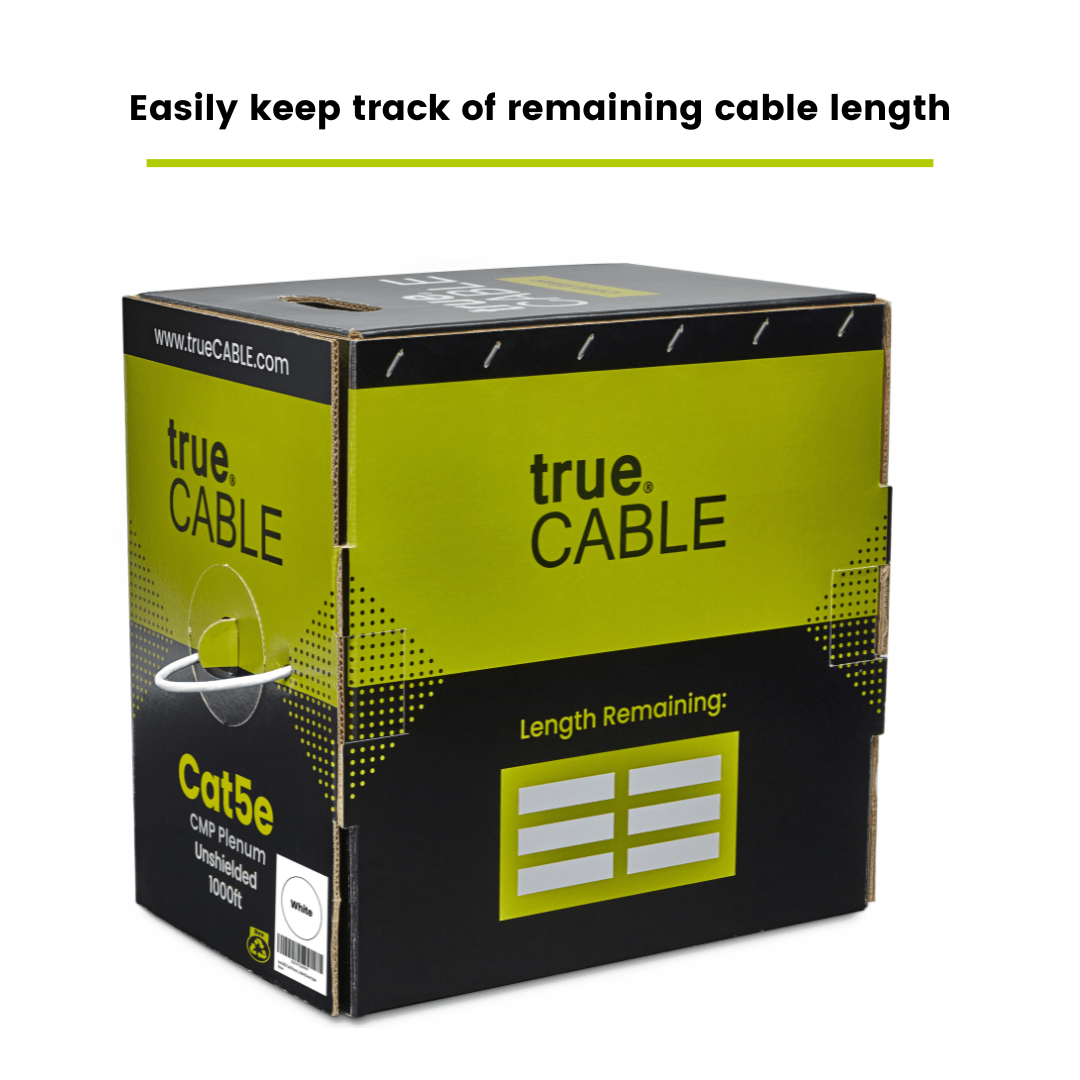

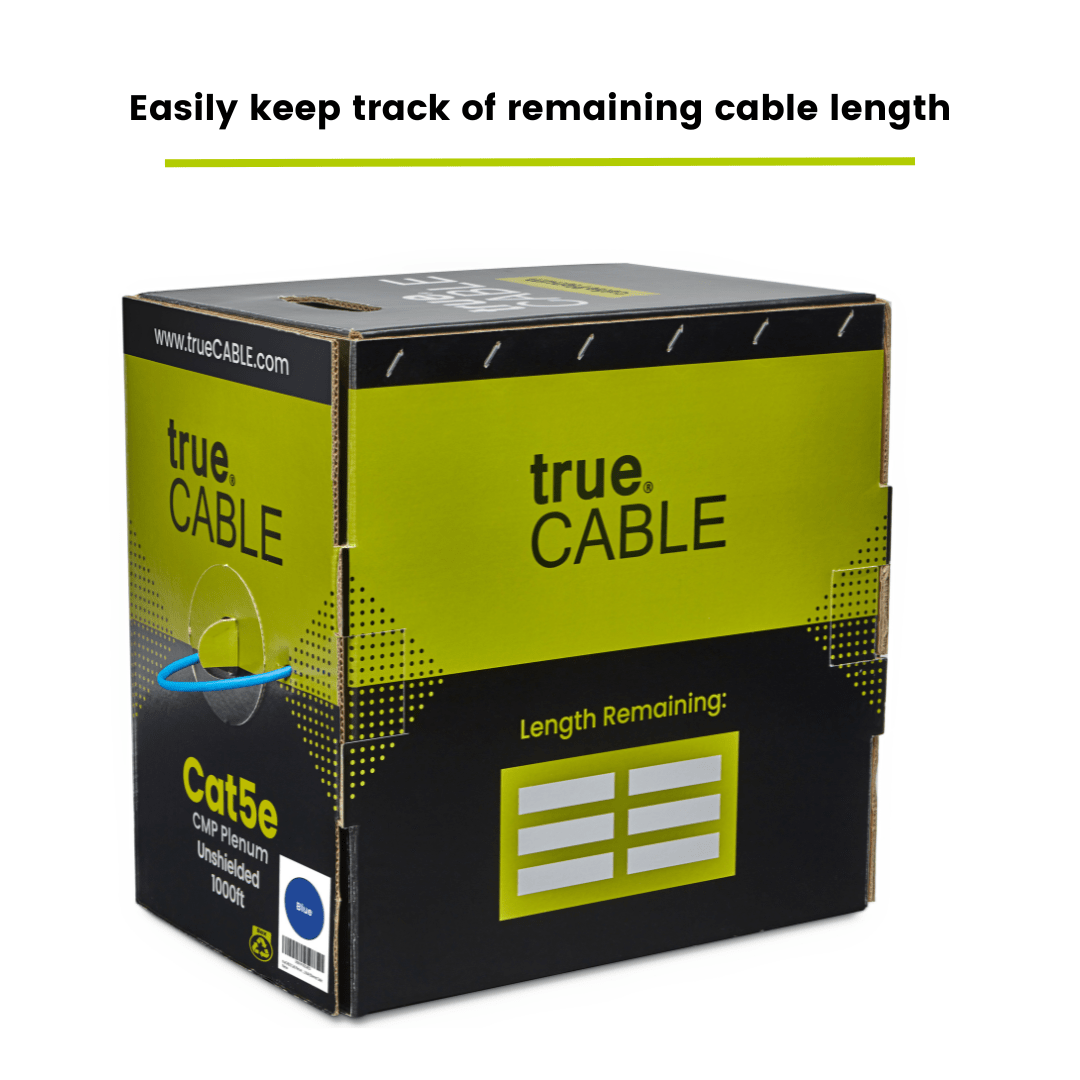

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.

    Compatibility Counts

    • Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.89mm and an overall cable jacket diameter of 4.90mm.

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
      Weight 28.0 lbs
      Length 13.5 in
      Width 8.5 in
      Height 13.5 in
      Barcode X001F5V0OF
      Plenum Rated Ethernet Cable
      • The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

      Everyday Performance

      • Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
      • Bandwidth tested up to 350 MHz
      • Unshielded twisted pairs - U/UTP
      • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
      • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.

        Compatibility Counts

        • Terminate with shielded or unshielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.89mm and an overall cable jacket diameter of 4.90mm.

        Pure Solid Bare Copper Conductors

        • Complies with UL, ANSI/TIA, and U.S. product safety standards.
        • Bare copper is superior conductor material for data transmission and PoE use.
        • The only industry and governmental approved type of conductor for use in Ethernet networks.
        ✓ CERTIFIED by trueCABLE
        • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
          • Weight - 28.0 lbs
          • Length - 13.5 in
          • Width - 8.5 in
          • Height - 13.5 in
          • Barcode - X001F5V0OF
