Description

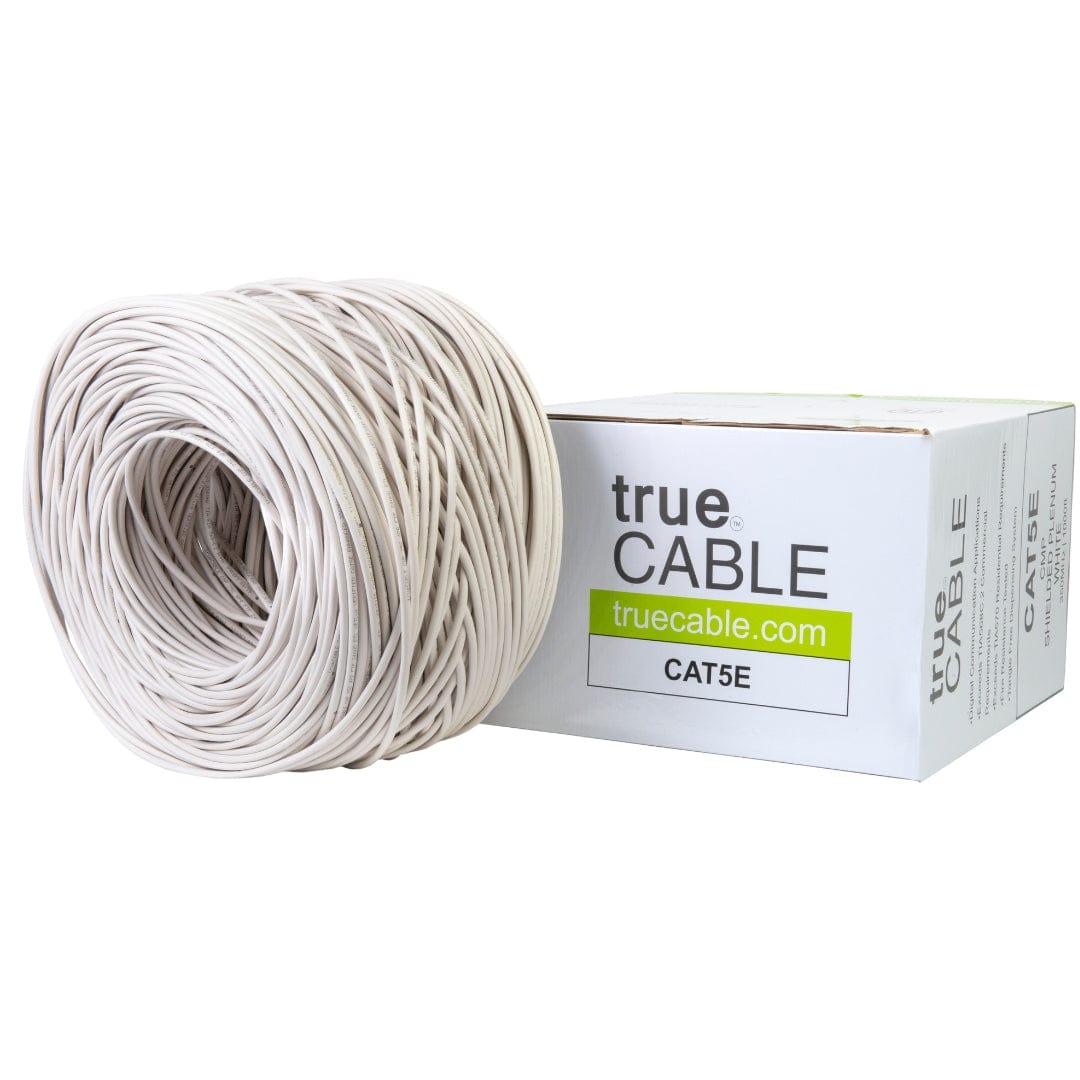

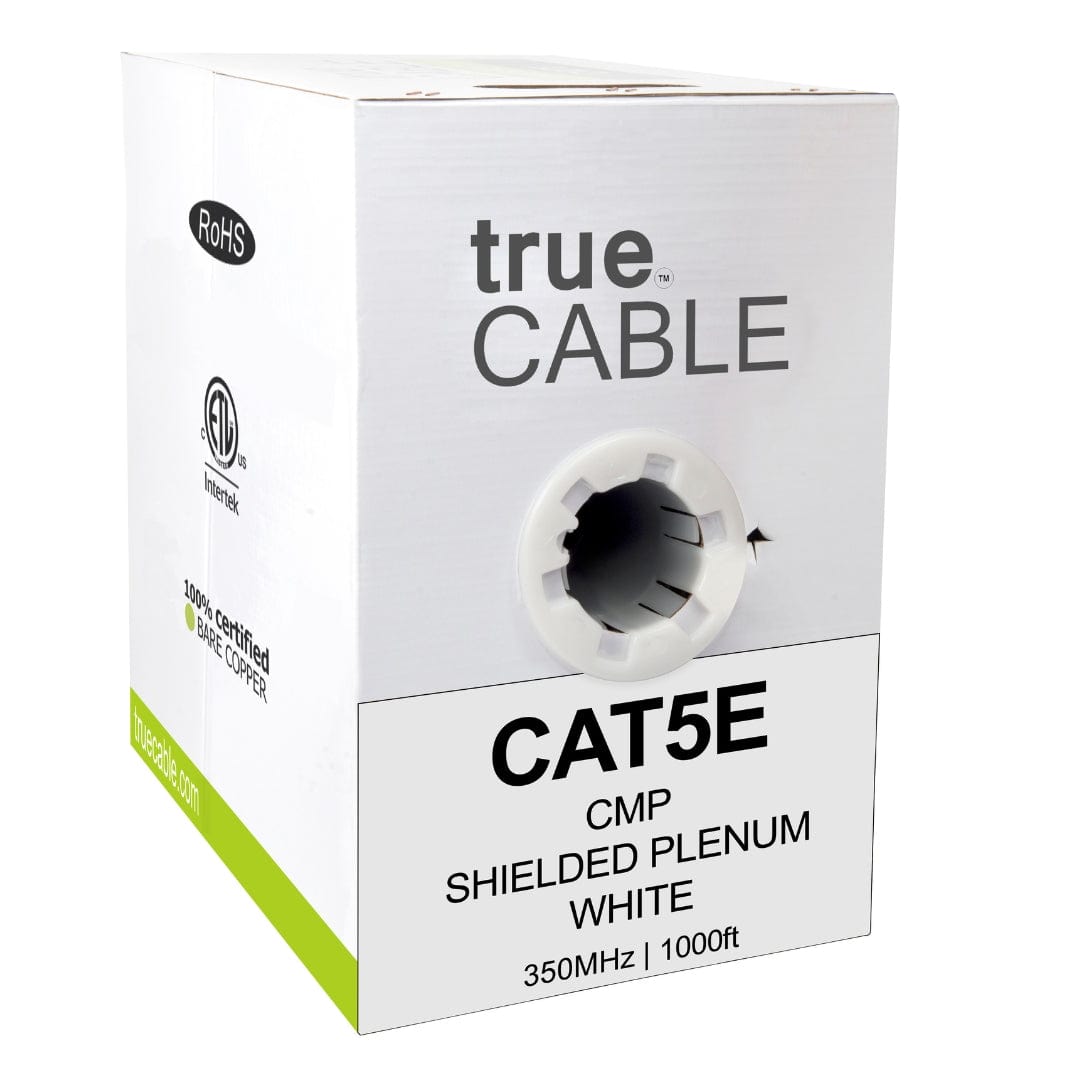

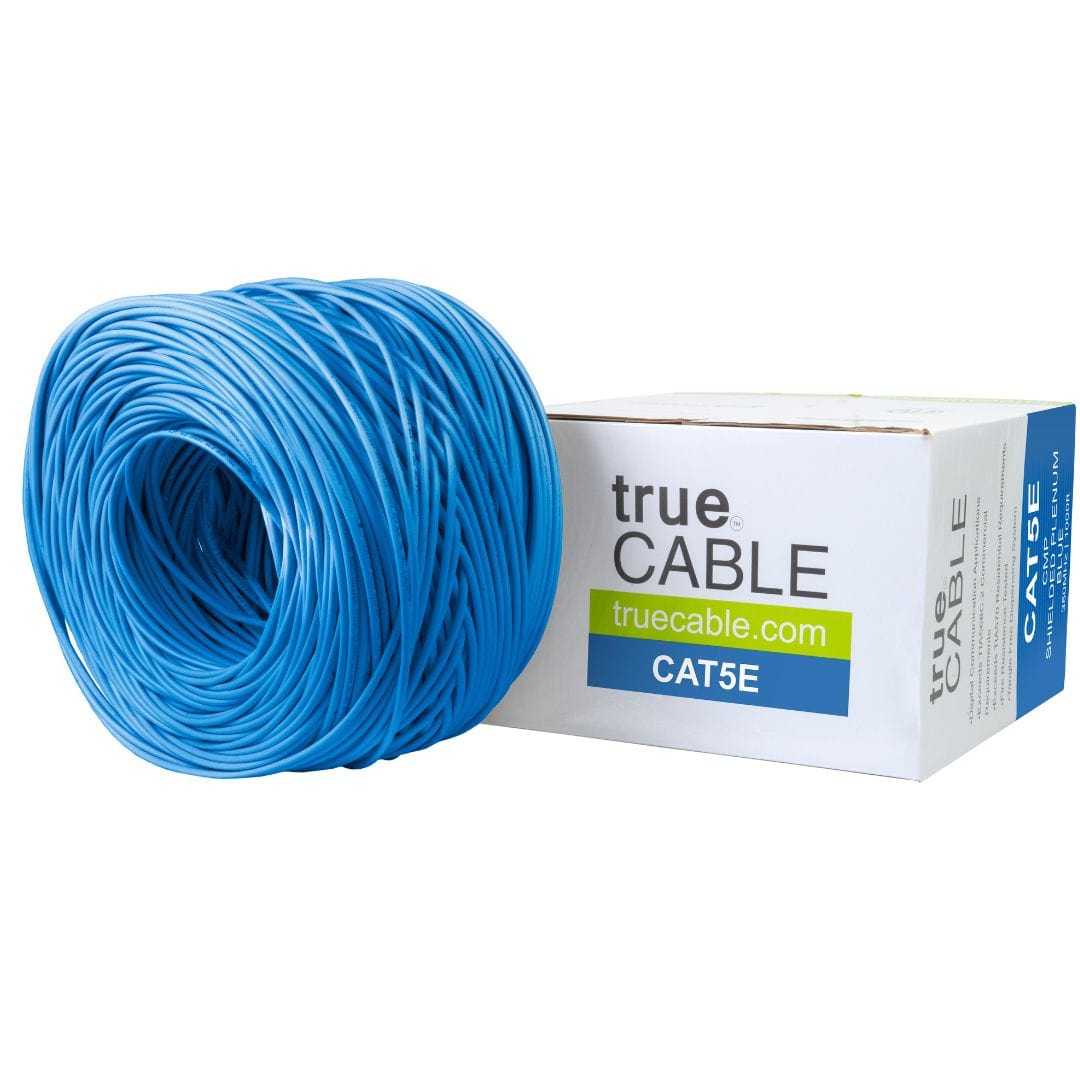

Plenum Rated Ethernet Cable
- The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.
Everyday Performance
- Suitable for 1 Gigabit speed and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.
- Bandwidth tested up to 350 MHz

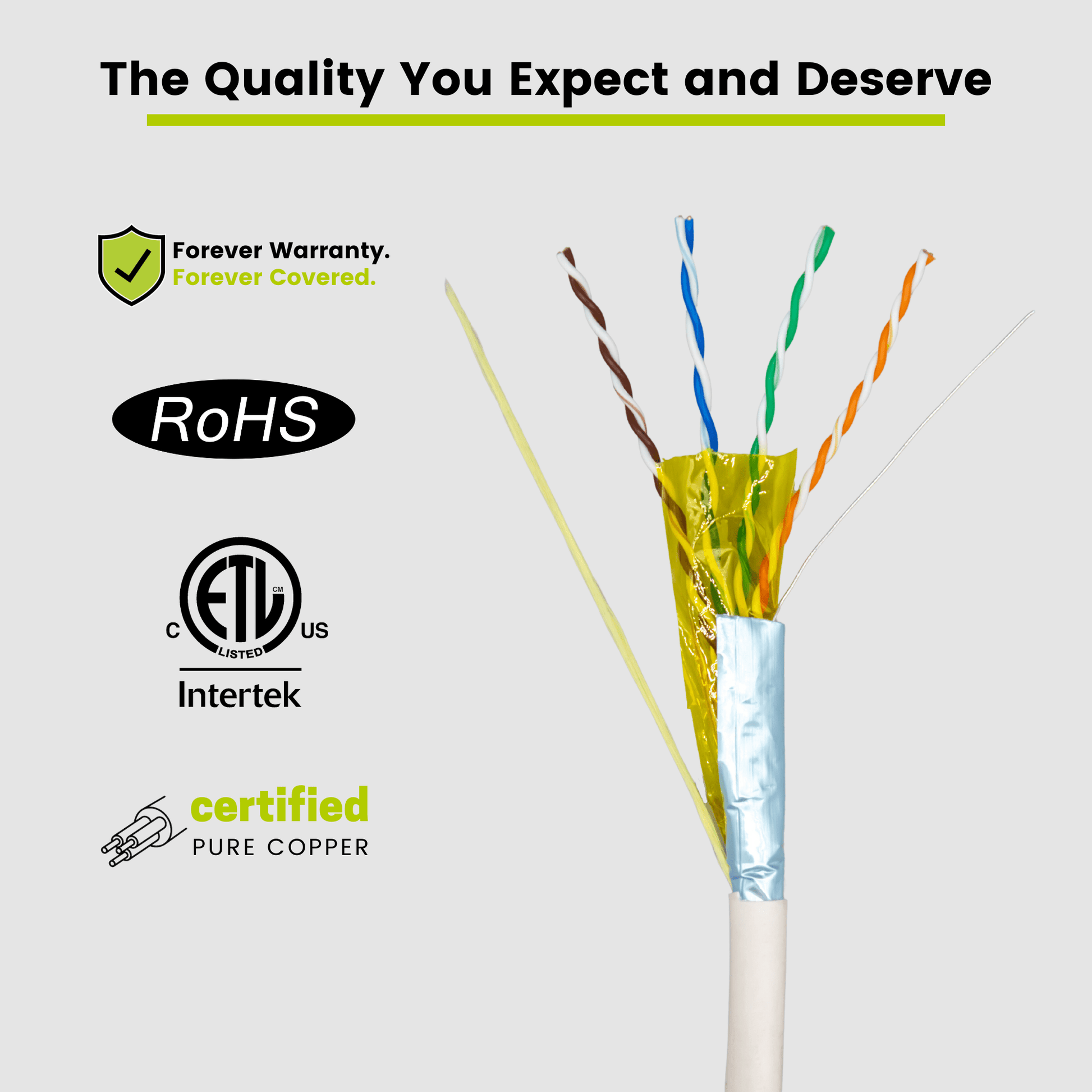

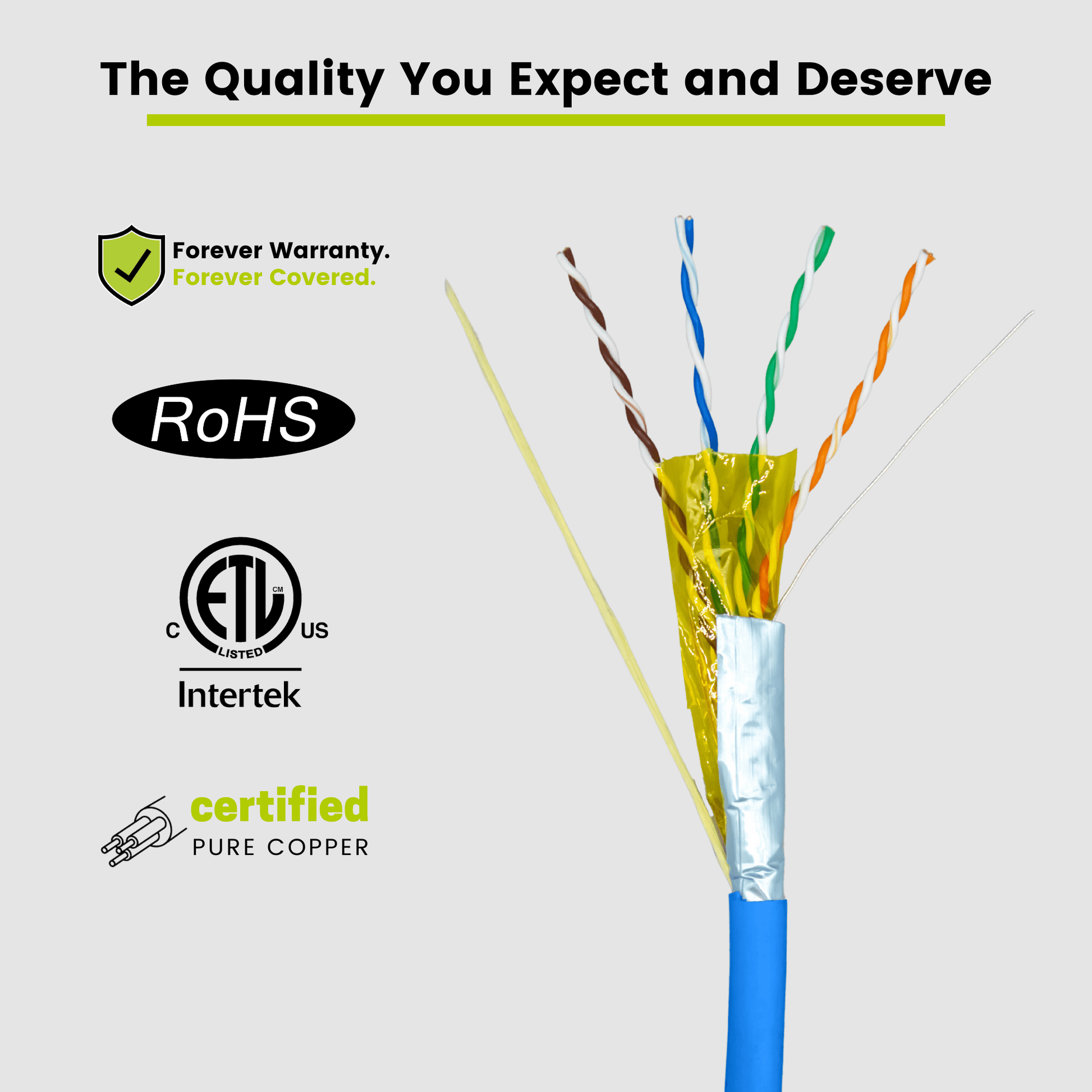

- Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

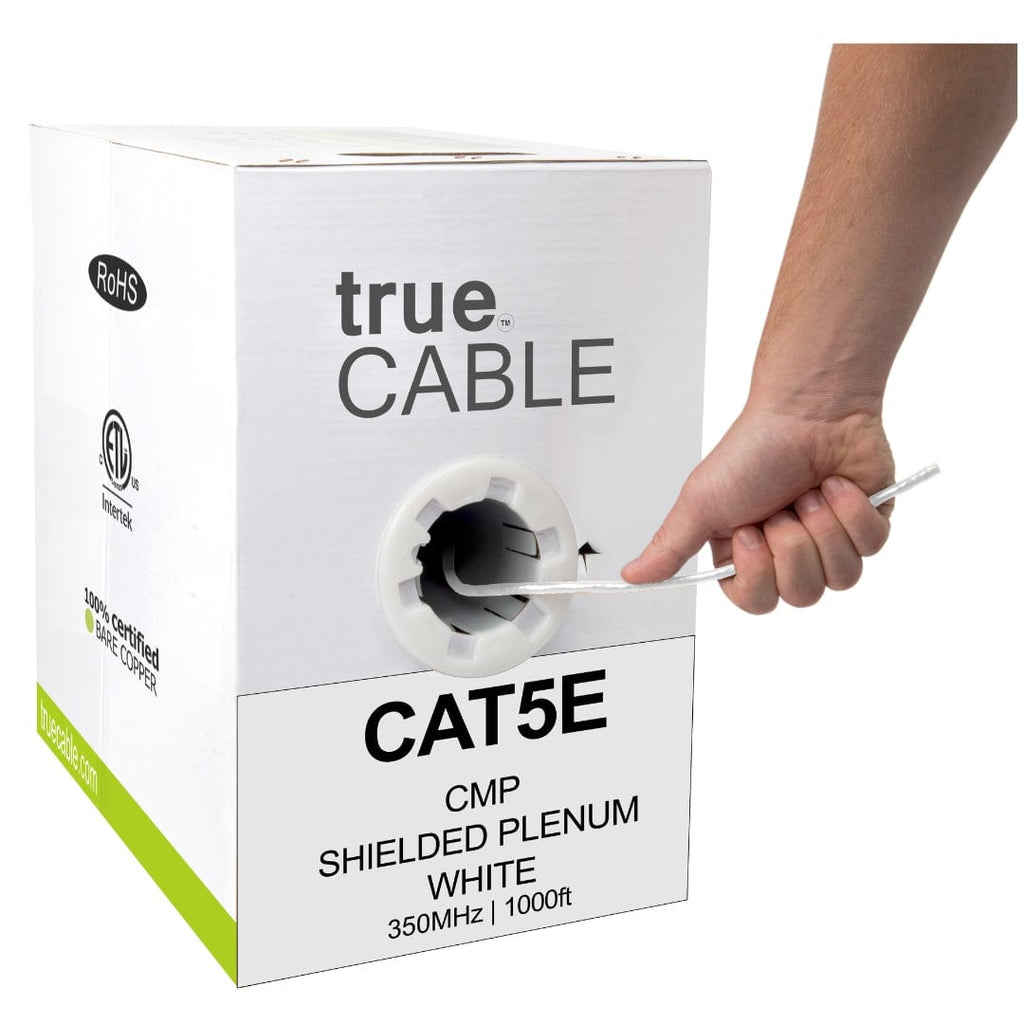

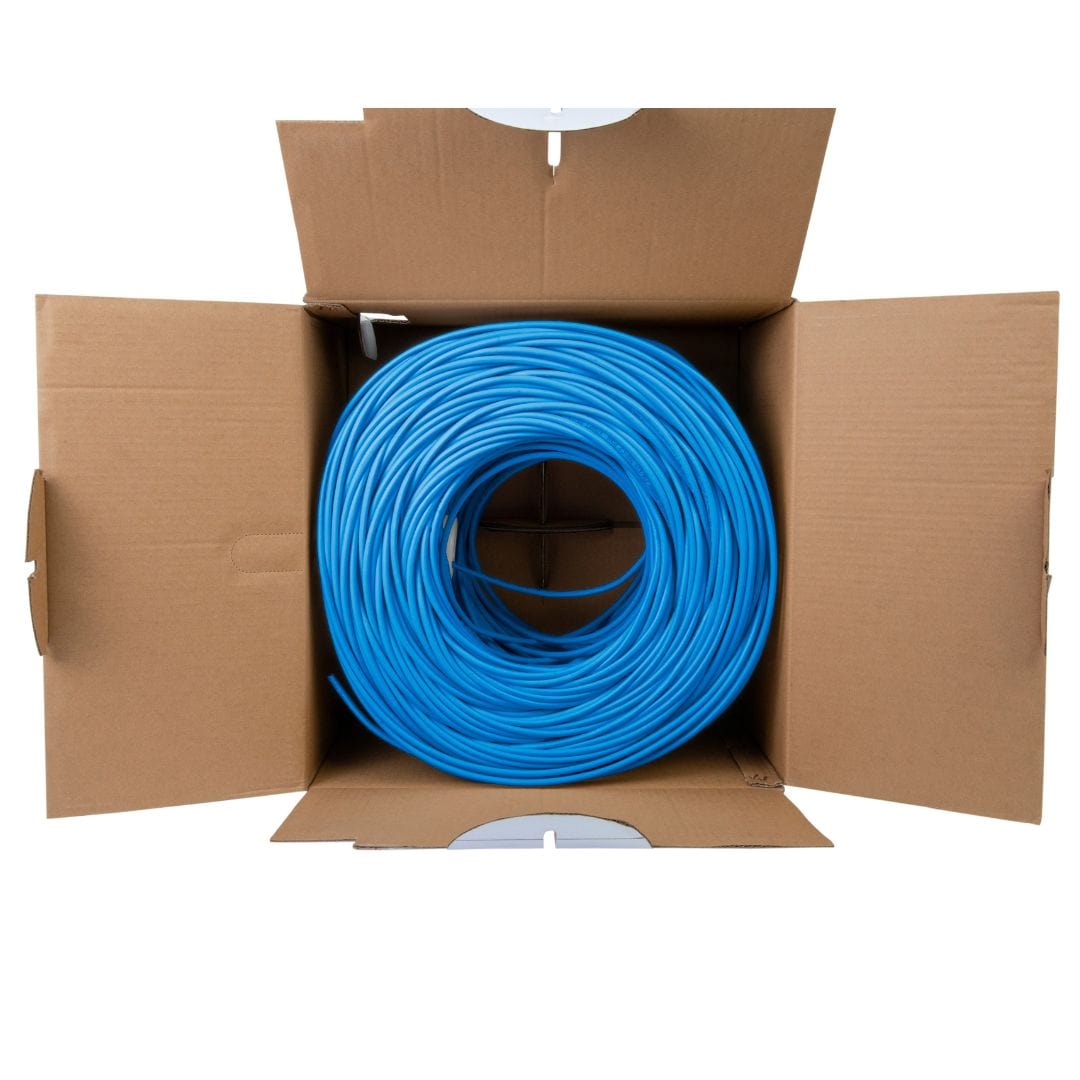

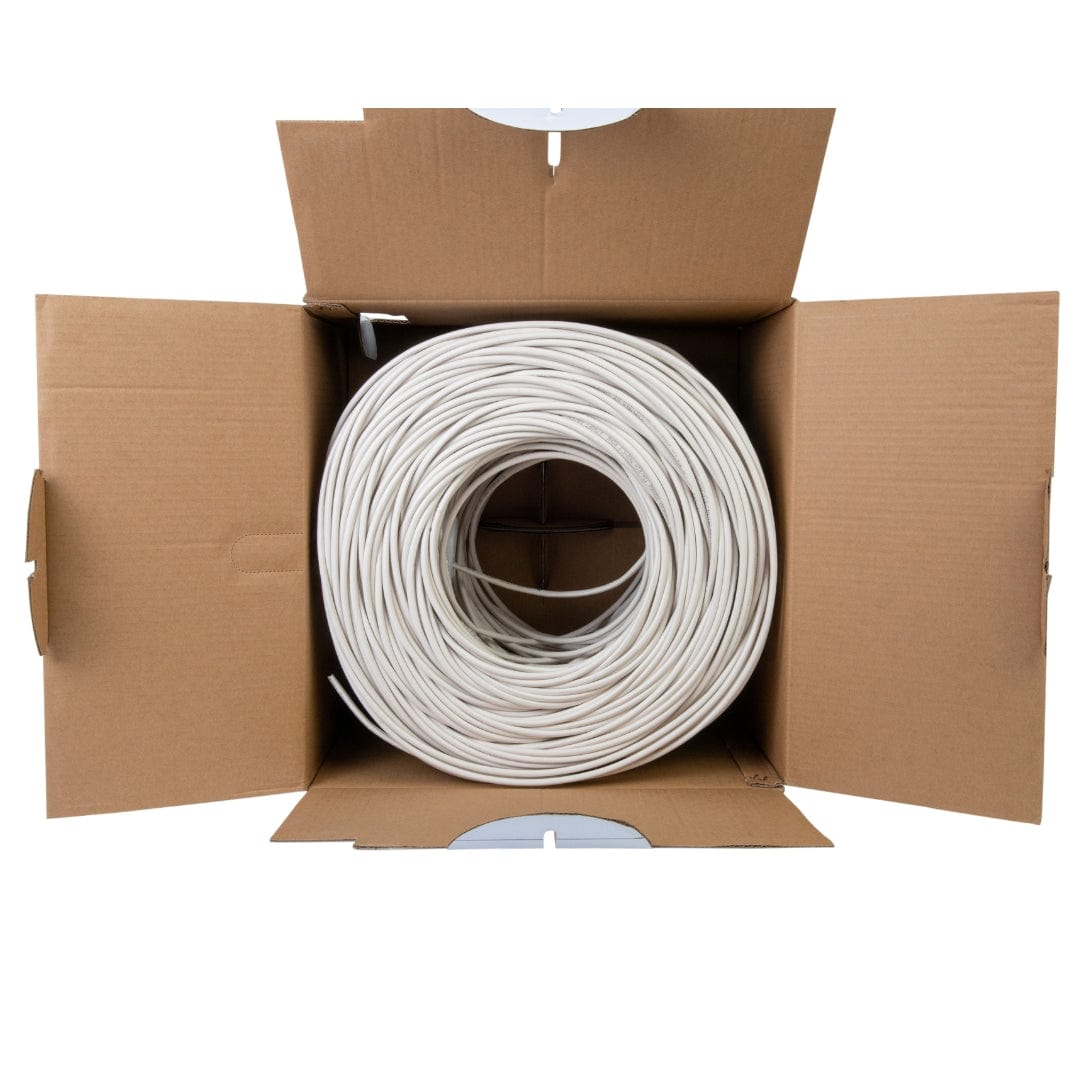

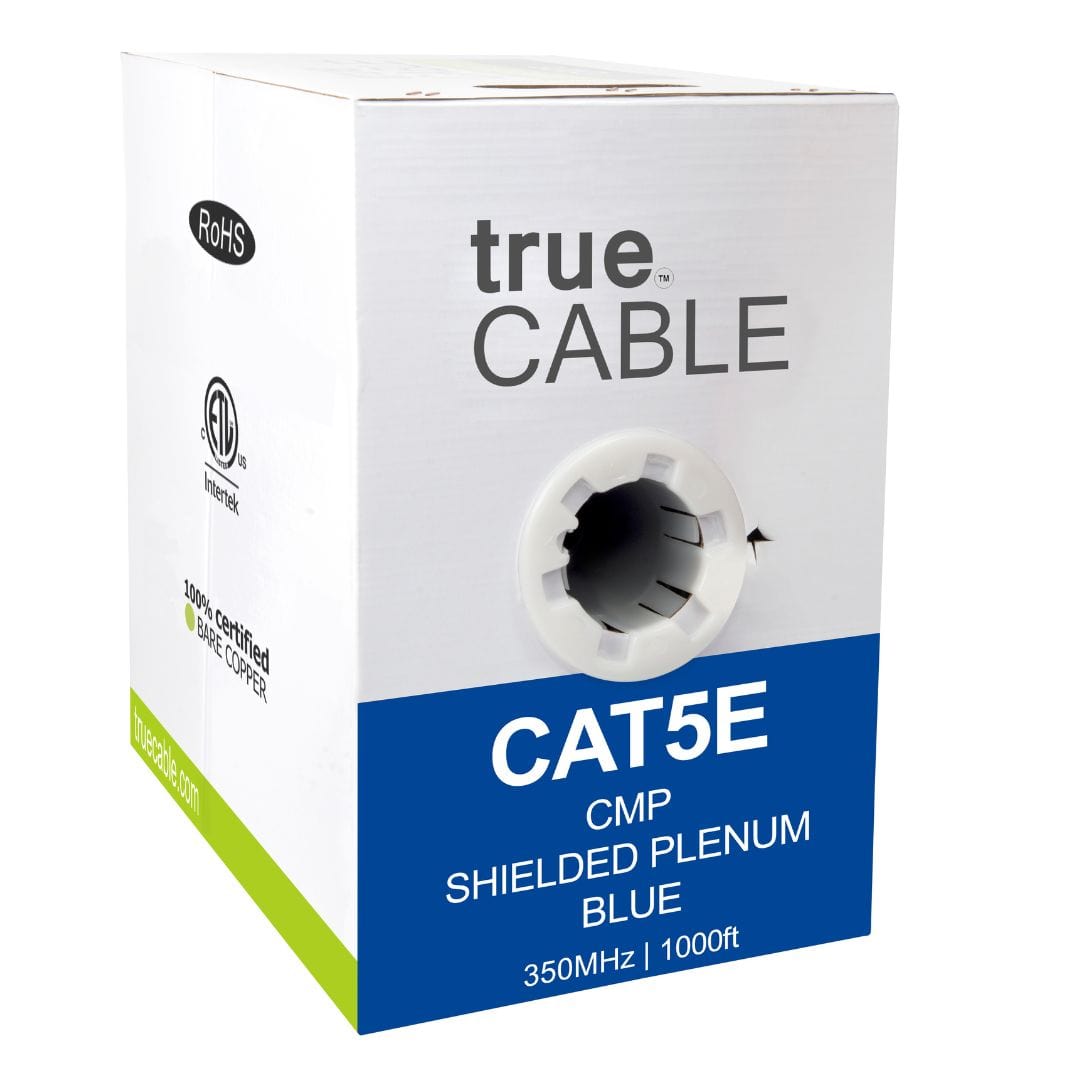

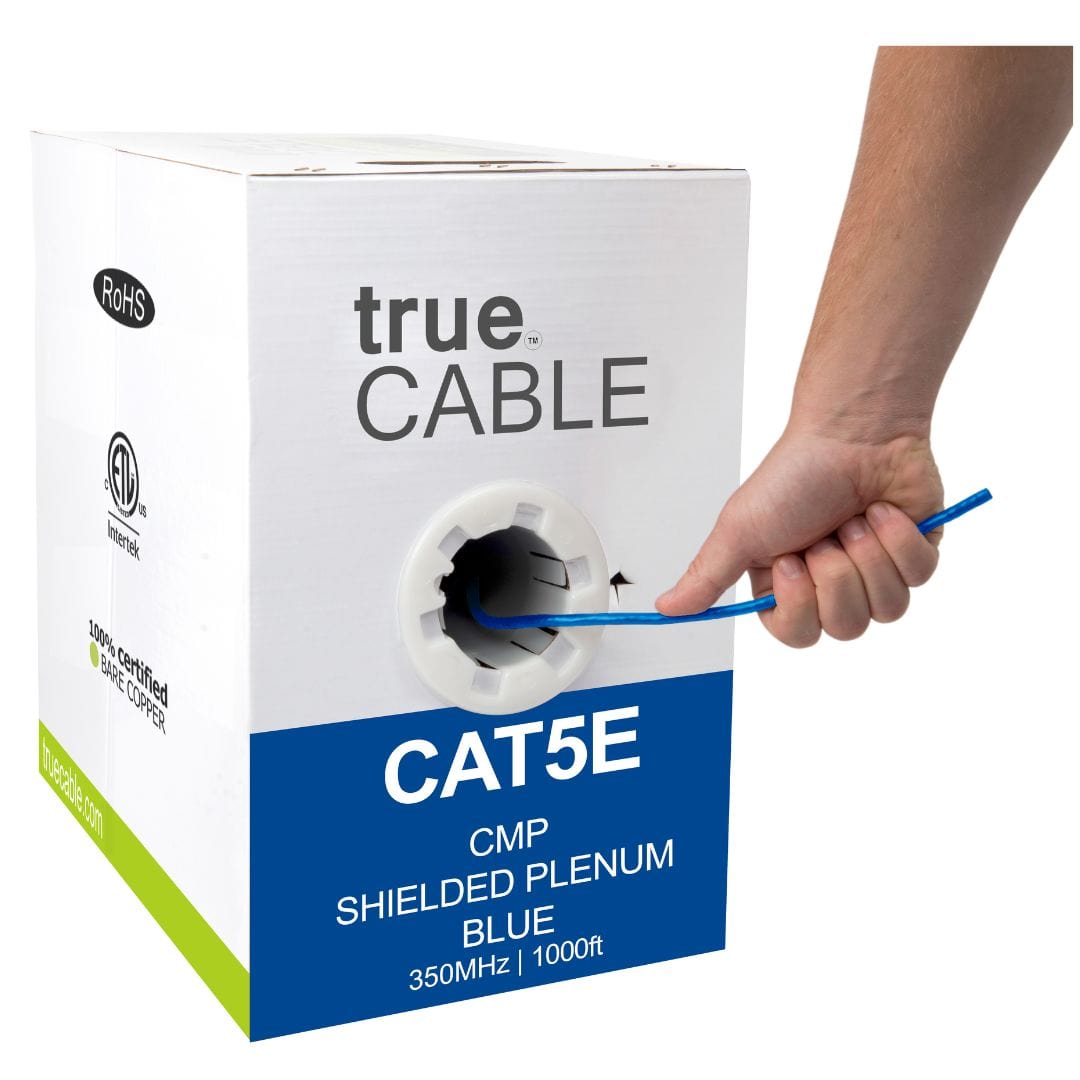

- Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox.
Compatibility Counts
- Terminate with shielded Cat5e RJ45 connectors compatible with 24AWG solid conductors with an insulated conductor diameter of 0.96mm and an overall cable jacket diameter of 6.10mm.
Pure Solid Bare Copper Conductors
- Complies with UL, ANSI/TIA, and U.S. product safety standards.
- Bare copper is superior conductor material for data transmission and PoE use.
- The only industry and governmental approved type of conductor for use in Ethernet networks.
✓ CERTIFIED by trueCABLE
- Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
Specifications
| Weight | 33.0 lbs |
| Length | 15.75 in |
| Width | 10.25 in |
| Height | 15.75 in |
