Cat6 Direct Burial|Shielded

Part Number - 6ESCMXBLK_1Krl

Features

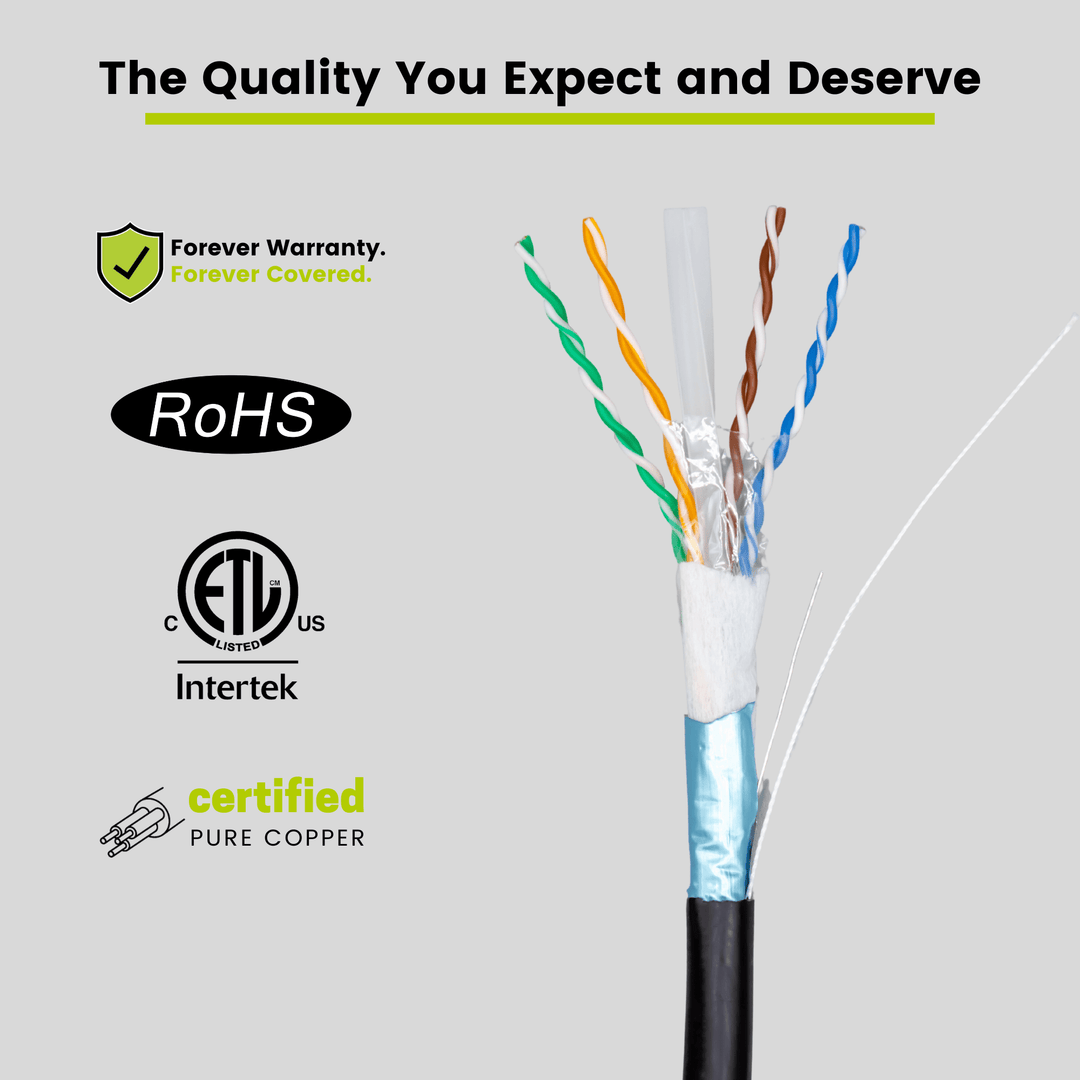

  • 23AWG 4-Pair, solid bare copper conductors
  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 550 MHz
  • Supports PoE++ (802.3bt) 4PPoE, up to 90W
  • cETLus Certified, RoHS-3 Compliant

Struggling to find the best Ethernet cable for your install?

Look no further than our Ethernet Cable Finder

Bulk Save with trueCABLE
Qty Price Per Item your saving
10-24 $218.49 5%
25-49 $206.99 10%
50+ $195.49 15%
$229.99 229.99
Color
Length
Quantity
Qty:
Saves you 5%
Add 9 more for 5% discount

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Capable of withstanding harsh environments while providing an efficient and effective connection to your network, our direct burial shielded Cat6 cables have been well-loved members of our inventory for a multitude of reasons.

Outdoor Rated
  • The CMX jacket is designed to withstand sunlight, dirt, snow, and moisture.
  • Suitable for direct burial with or without conduit.
  • Water blocking tape provides ultimate moisture protection for outdoor use.

Optimum Performance

  • Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
  • Bandwidth tested up to 550 MHz
  • Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 90W.

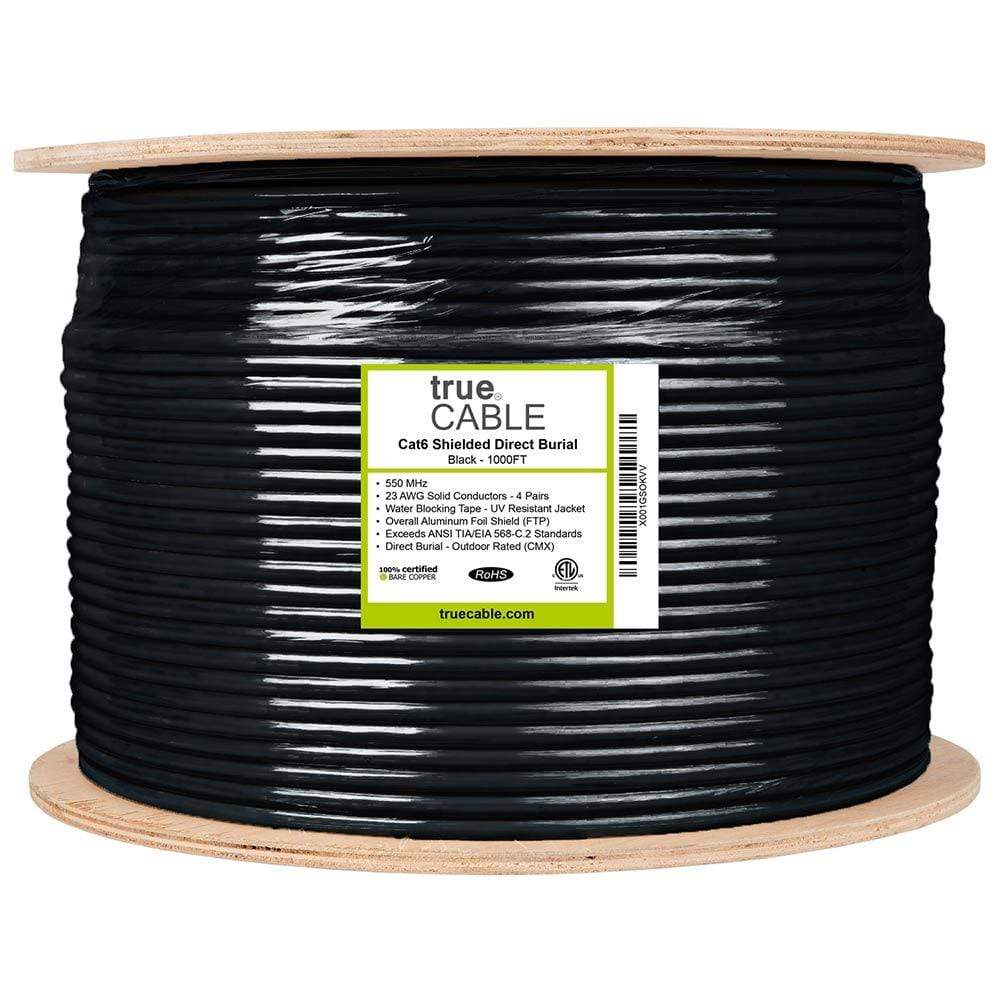

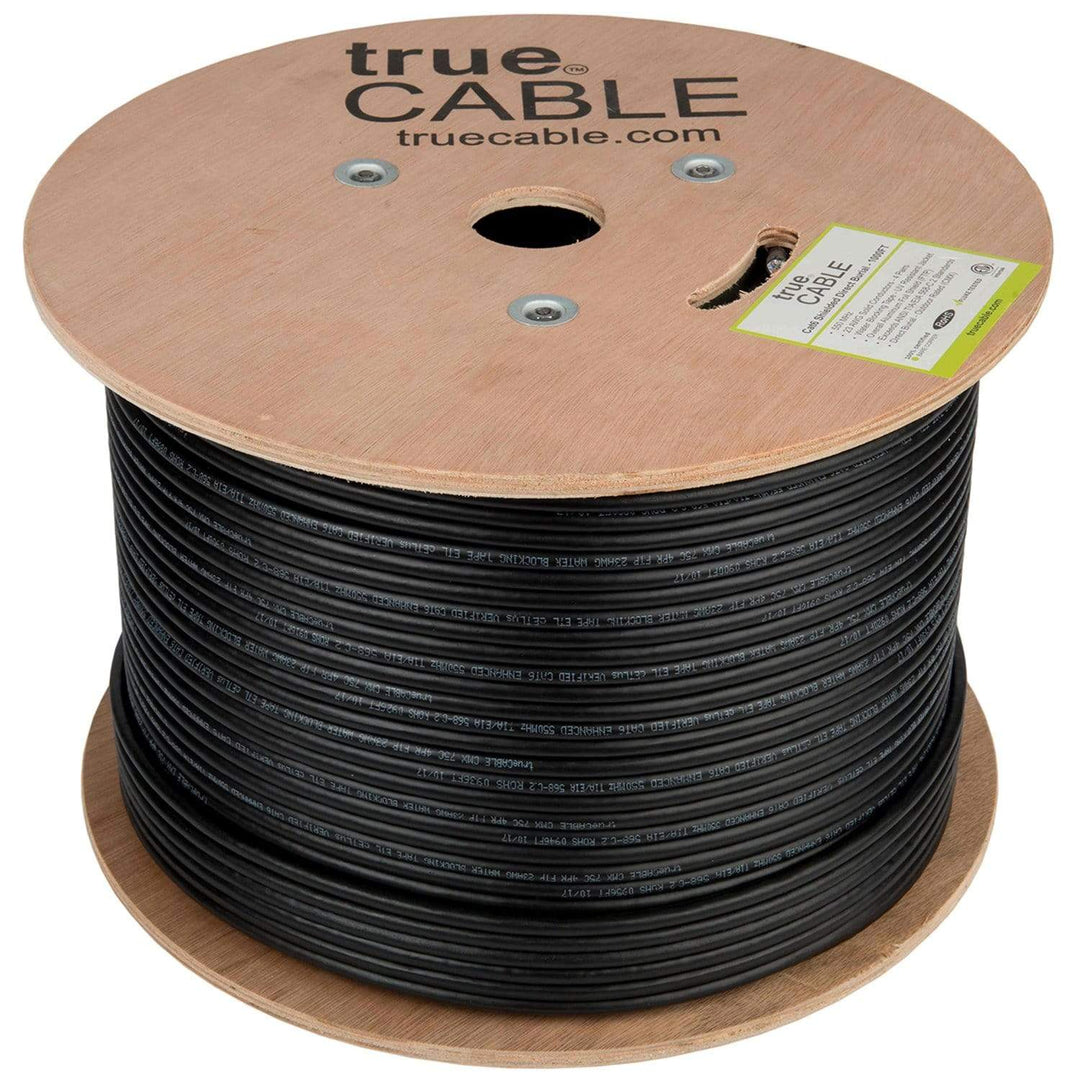

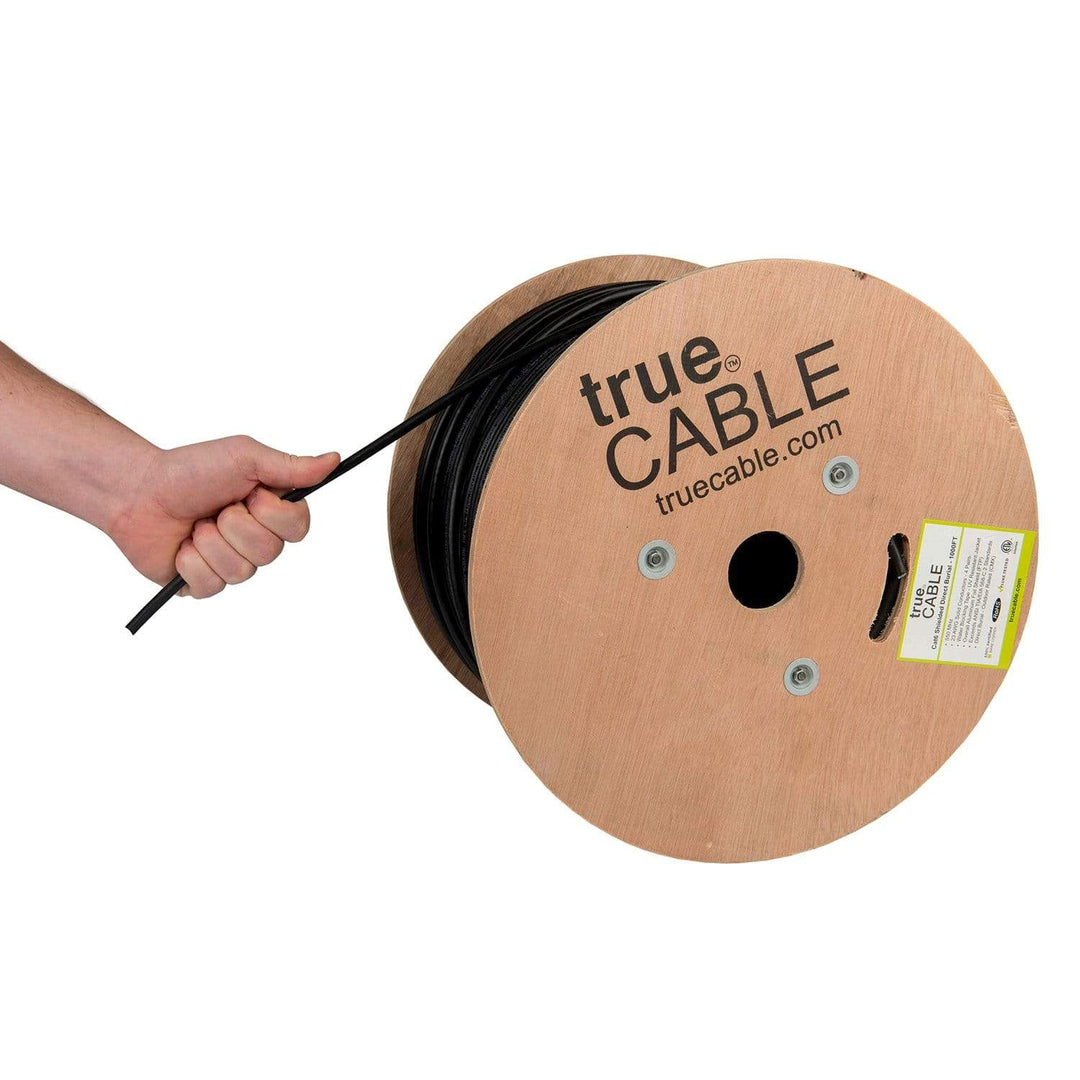

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
  • Internal spline in the direct burial shielded Cat6 cable adds strength, fights against kinks, and further separates pairs for a cleaner signal.

    Compatibility Counts

    • Terminate with direct burial shielded Cat6 cable RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.80mm.

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.

    If you have any questions or concerns regarding our ethernet cables, then don’t hesitate to reach out to us. We’d be more than happy to help, and we want nothing more than to help you acquire the perfect match for you and your systems.

    Weight 38.0 lbs
    Length 14.5 in
    Width 14.5 in
    Height 9.5 in

    Capable of withstanding harsh environments while providing an efficient and effective connection to your network, our direct burial shielded Cat6 cables have been well-loved members of our inventory for a multitude of reasons.

    Outdoor Rated
    • The CMX jacket is designed to withstand sunlight, dirt, snow, and moisture.
    • Suitable for direct burial with or without conduit.
    • Water blocking tape provides ultimate moisture protection for outdoor use.

    Optimum Performance

    • Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
    • Bandwidth tested up to 550 MHz
    • Overall Foil Shield - F/UTP. The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.
    • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 90W.
    • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
    • Internal spline in the direct burial shielded Cat6 cable adds strength, fights against kinks, and further separates pairs for a cleaner signal.

      Compatibility Counts

      • Terminate with direct burial shielded Cat6 cable RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.80mm.

      Pure Solid Bare Copper Conductors

      • Complies with UL, ANSI/TIA, and U.S. product safety standards.
      • Bare copper is superior conductor material for data transmission and PoE use.
      • The only industry and governmental approved type of conductor for use in Ethernet networks.
      ✓ CERTIFIED by trueCABLE
      • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.

      If you have any questions or concerns regarding our ethernet cables, then don’t hesitate to reach out to us. We’d be more than happy to help, and we want nothing more than to help you acquire the perfect match for you and your systems.

      • Weight - 38.0 lbs
      • Length - 14.5 in
      • Width - 14.5 in
      • Height - 9.5 in
