Cat6A Field Term Plug|Shielded

Part Number - 6ASFT_2pc

Features

  • Component Level Connector
  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • Suitable for Shielded & Unshielded Ethernet Cable
  • ANSI/TIA 568 2.D Certified

Need help finding compatible connectors for your Ethernet cable?

Look no further than our Connector Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $16.57 2.5%
25-49 $16.14 5%
50+ $15.72 7.5%
$16.99 16.99
-Liquid error (sections/product-template line 309): Computation results in '-Infinity'%
Size
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Maximum Performance

  • Component level rated. Tested up to 600 MHz.
  • Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet.
  • Compatible with 23 to 24AWG solid copper conductors.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
  • Press-Fit Technology makes our product more reliable and increases transmission performance.

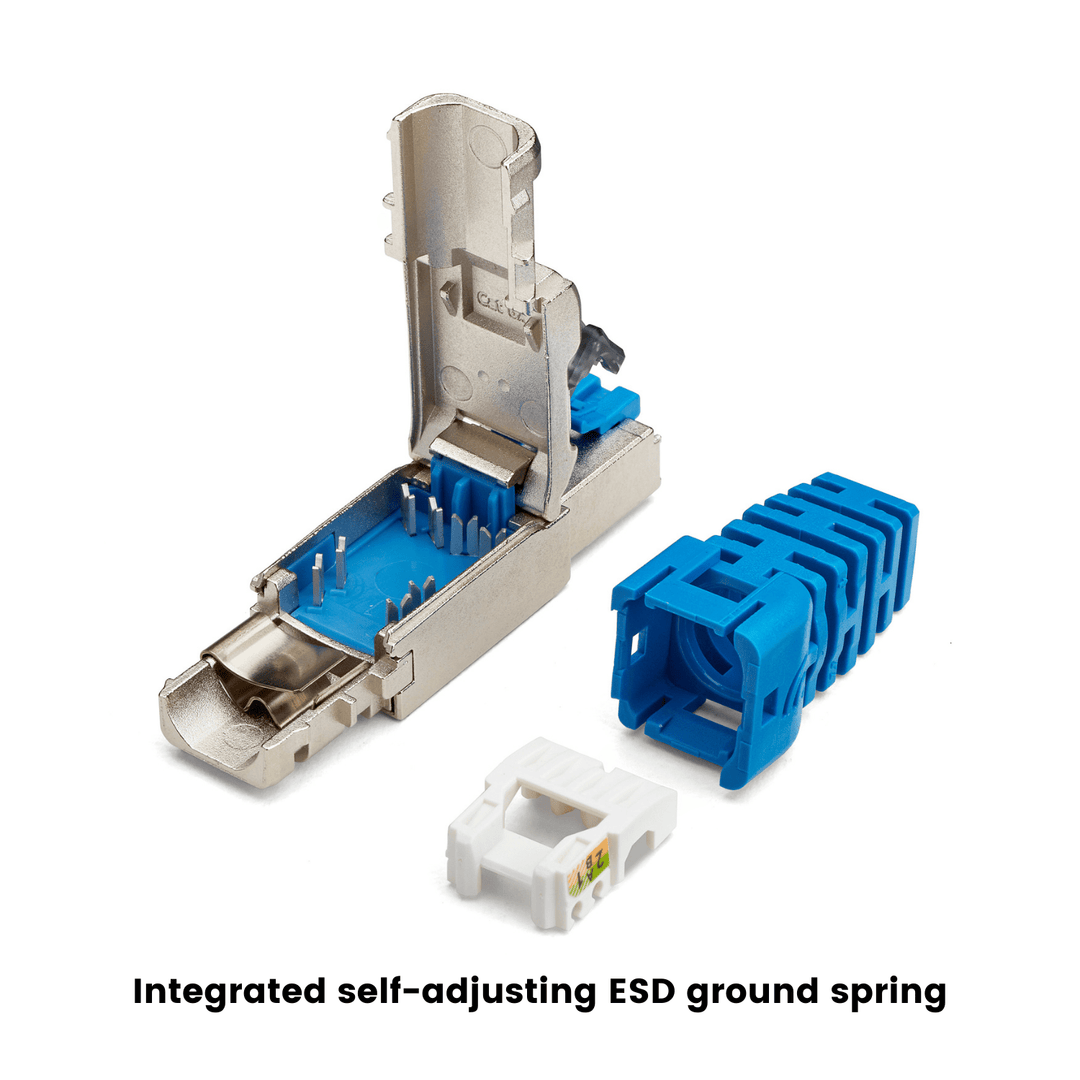

  • Self-adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing, providing resilient grounding.

Easy to Use

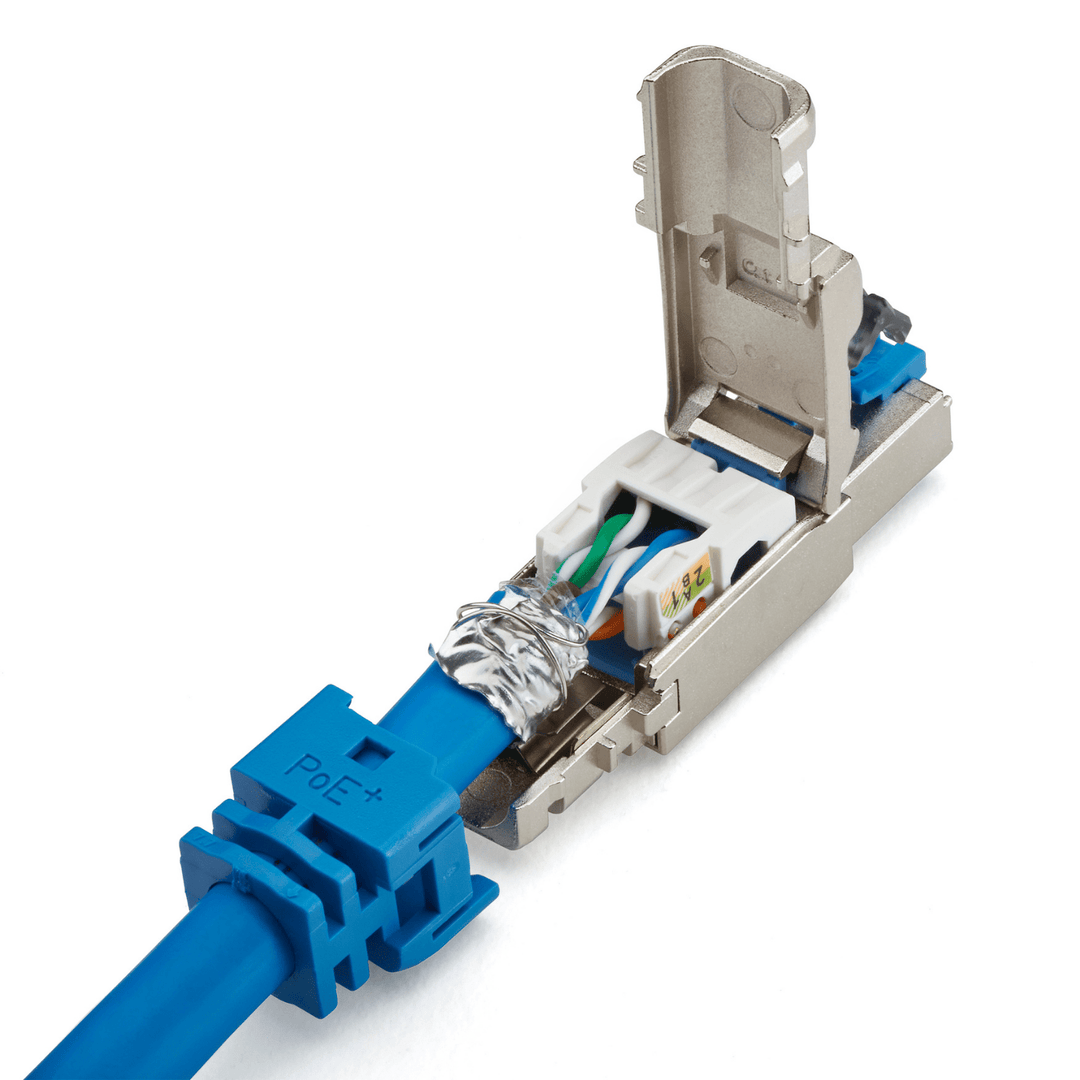

  • Self-terminating means no more punch down tools required. Our 90-degree tool-less design provides maximum snap-shut confidence.

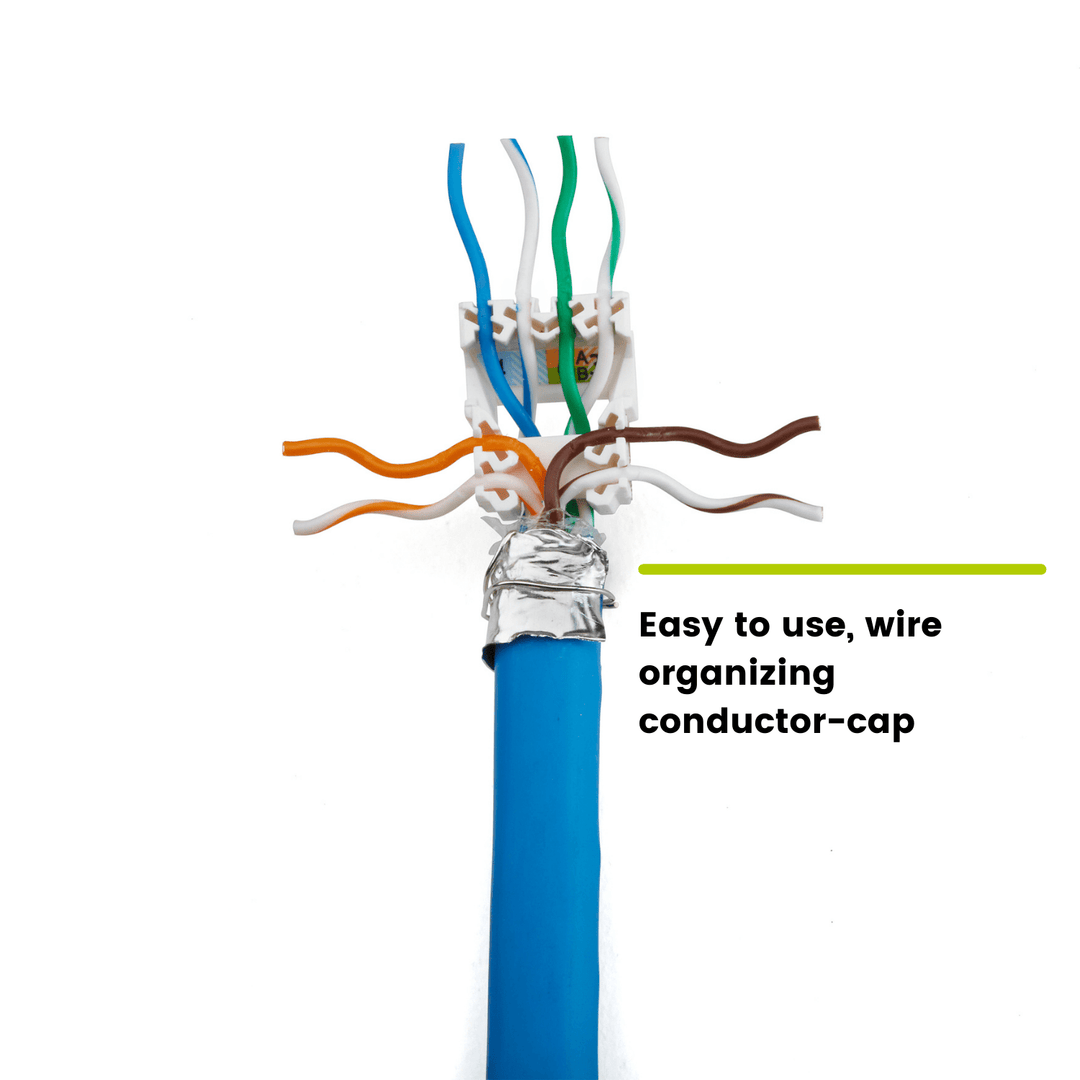

  • The dual level termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate.

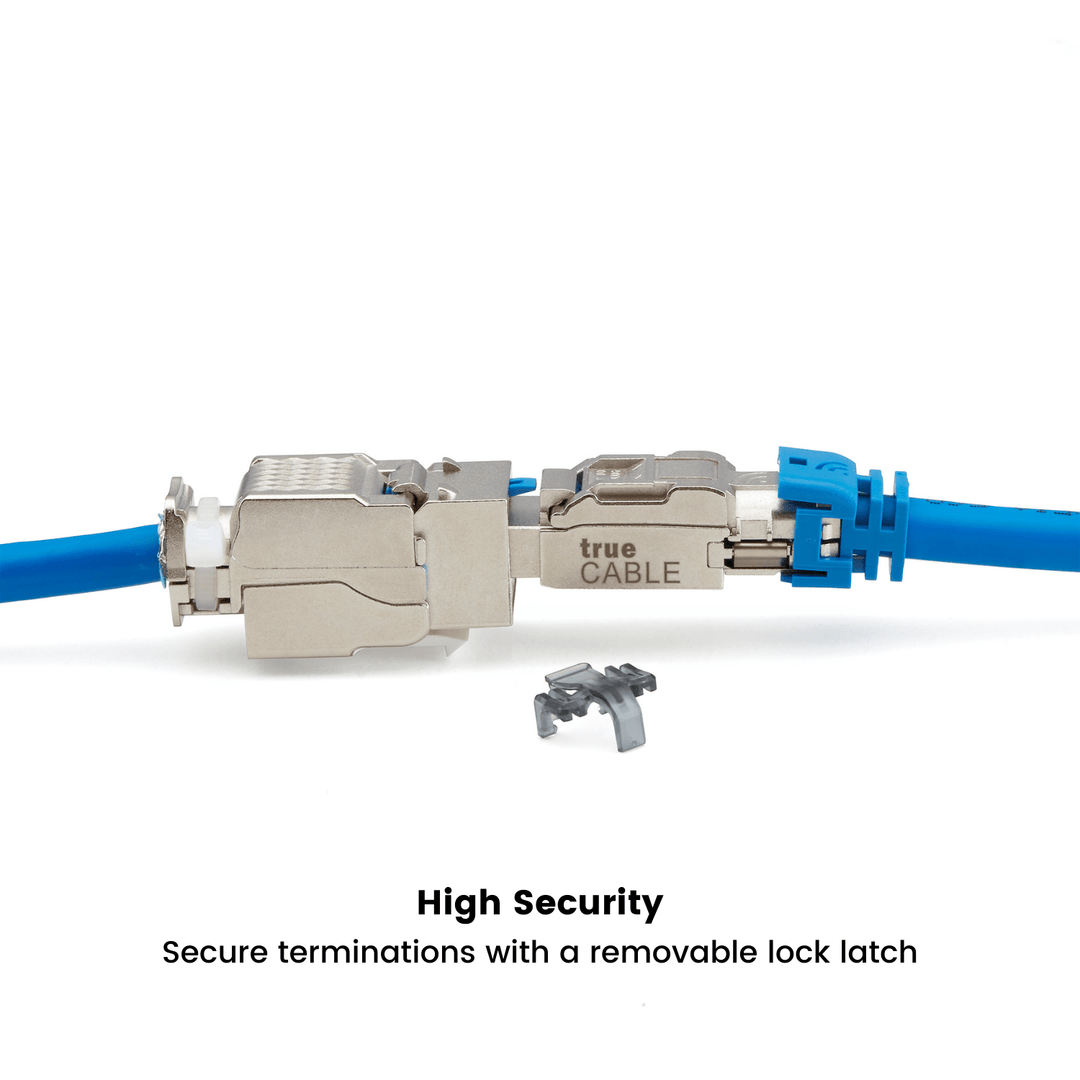

  • An integrated anti-disconnect slide lock prevents accidental disconnections. The lock may also be removed to prevent tampering.

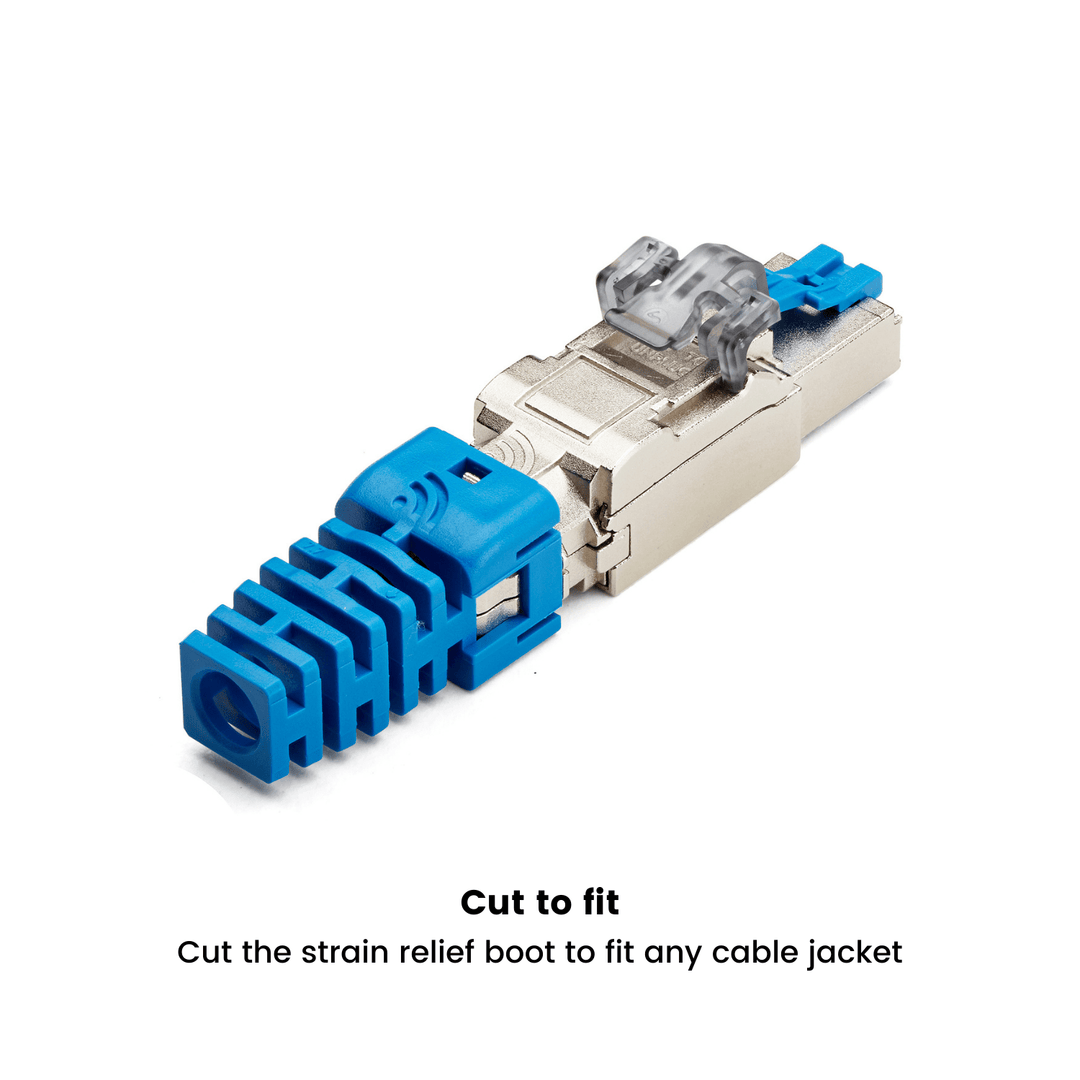

  • Cut-to-fit strain relief boot supports ∅5.80 - 7.80mm cable jackets and ∅0.86 - 1.14mm insulated conductors.

Versatile & Durable

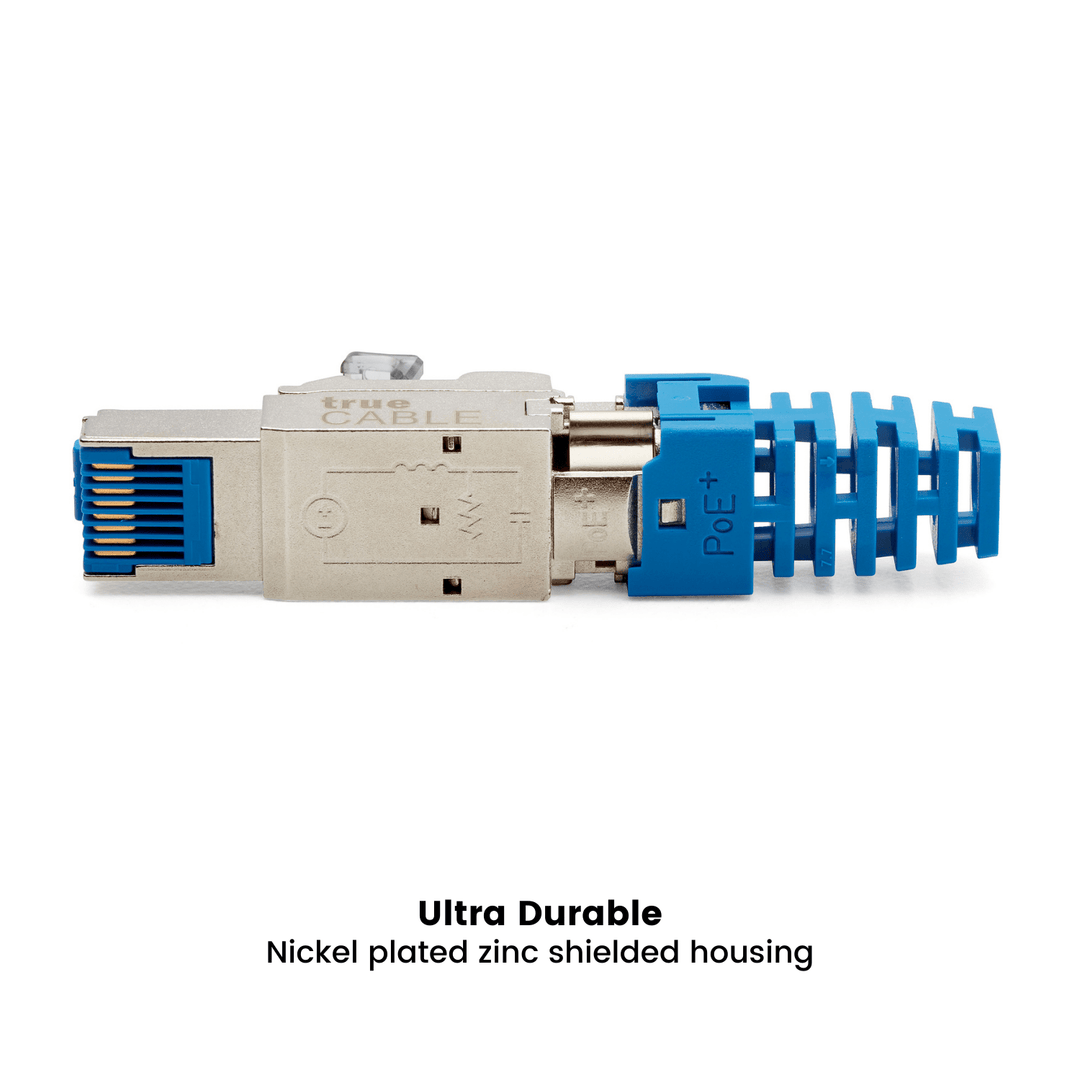

  • 100% compatible with any RJ45 female Ethernet port. Ultra-durable metal construction. Integrated full circumference strain relief neck provides additional termination protection from conductor stress pre and post-installation. No more ruined terminations due to handling.
  • Compatible with our trueCLOSE tool and F/UTP Ethernet cables.
  • Fully backward compatible with Cat5e and Cat6. Also works with unshielded (U/UTP) cables.

Quality Guaranteed

  • ANSI/TIA 568 2.D Certified by trueCABLE. CE Listed. TUV RoHS-2 Certified, US TAA compliant, ISO/IEC Certified. Tested in the real world by real installers.

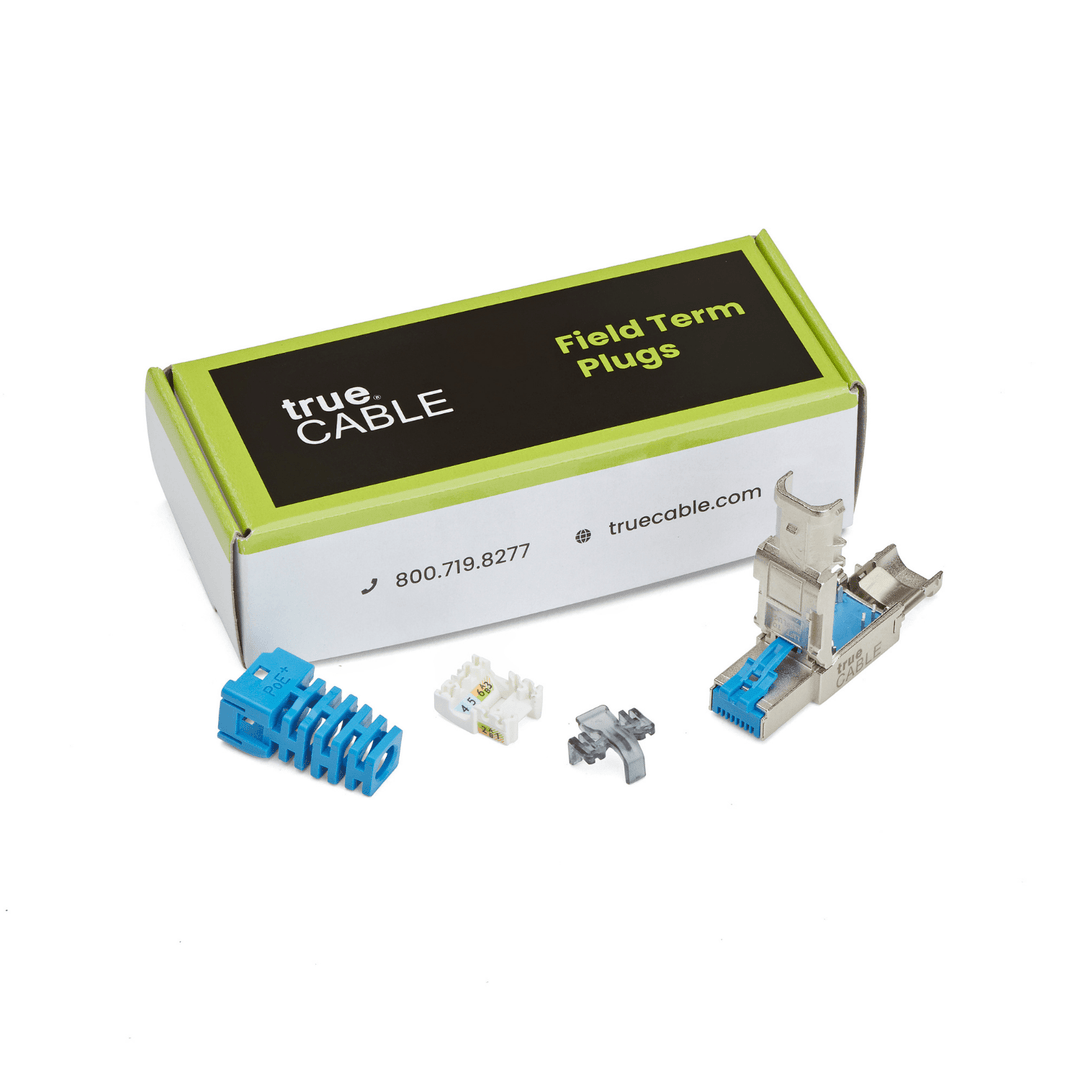

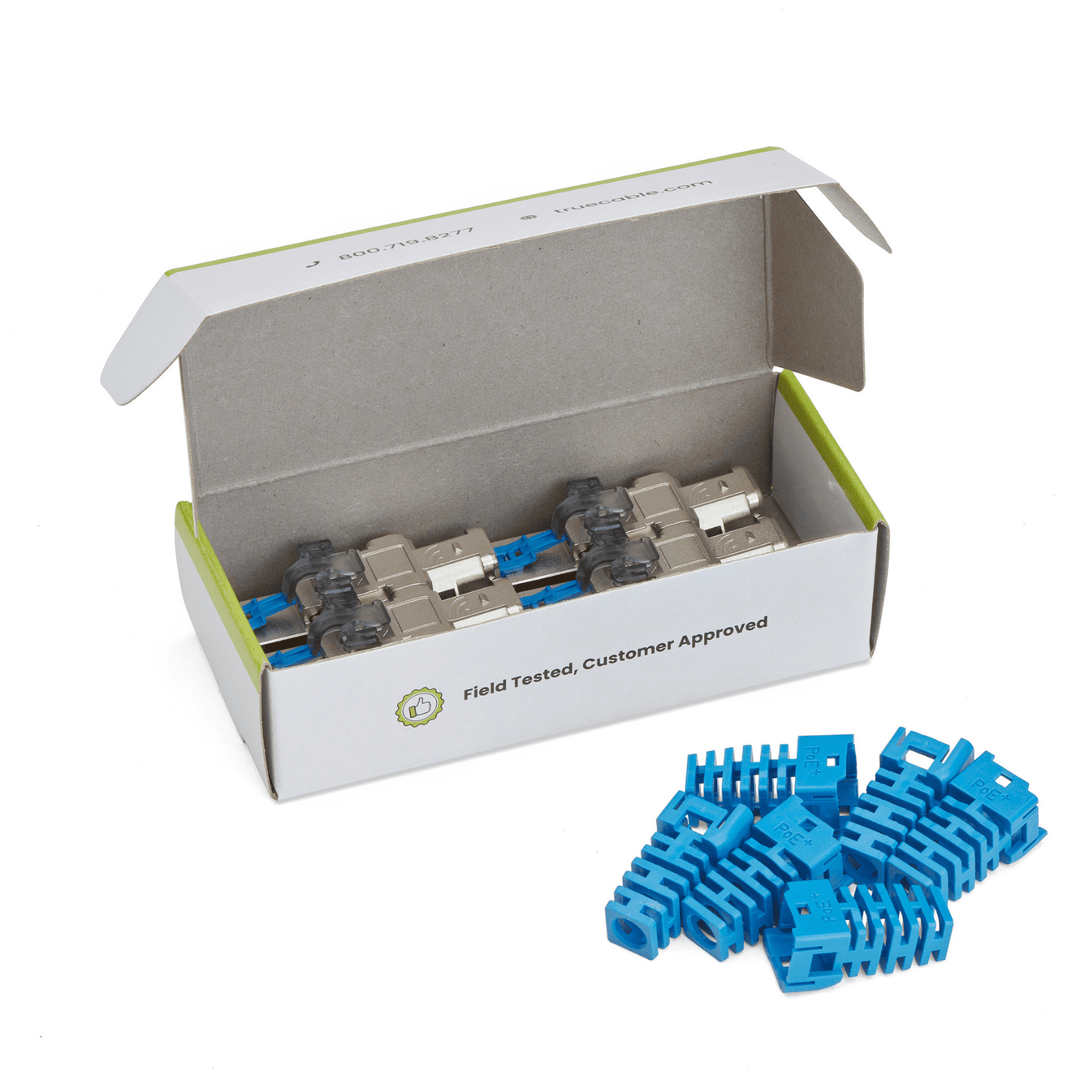

What's In The Box?

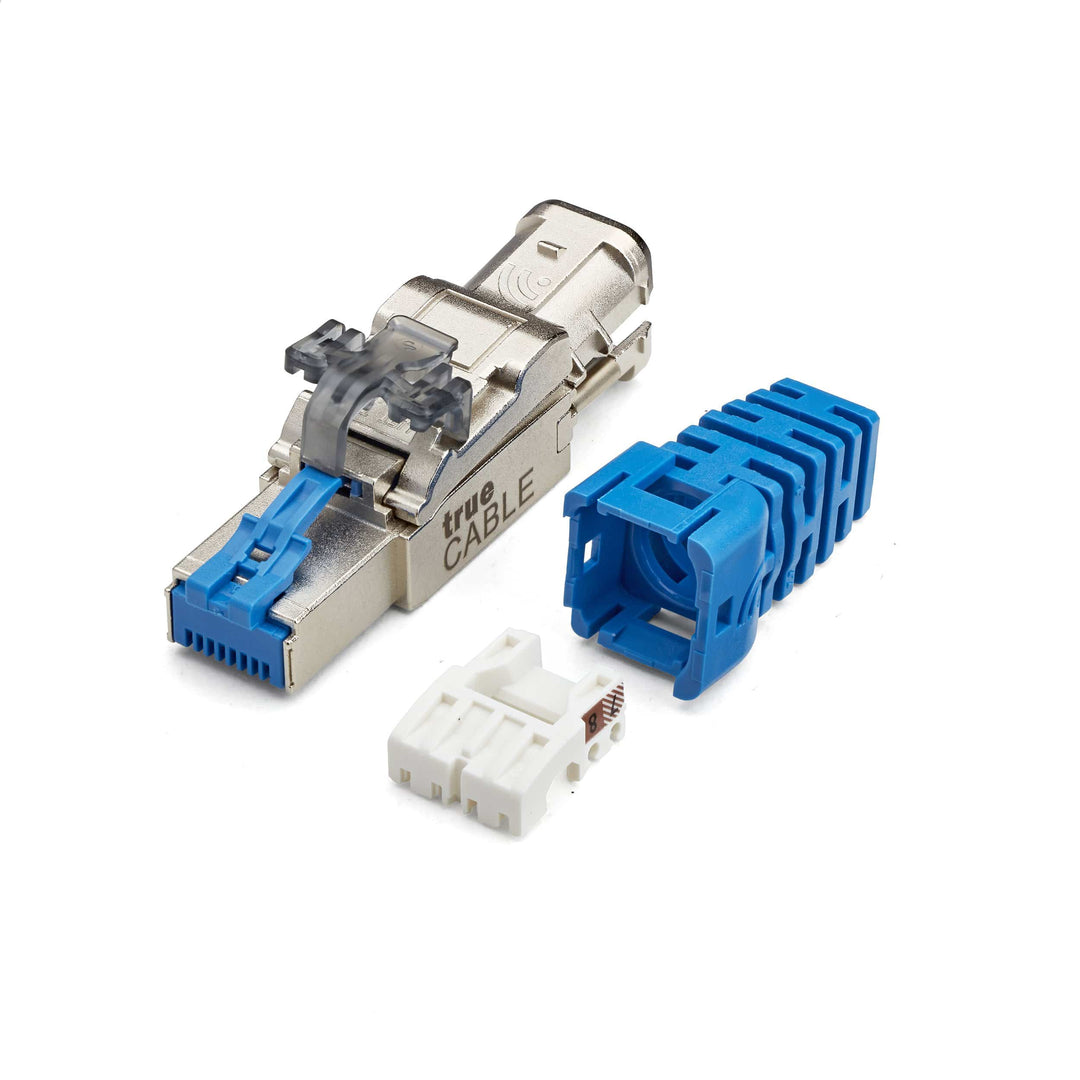

  • Each field termination plug includes a dual-level conductor guide holder, nylon tie, cut to fit universal boot, plus full instructions. These durable and time-saving component level field termination plugs are sure to make your install hassle-free.
Weight 0.1 lbs
Length 2 in
Width 1.5 in
Height 1.25 in
Barcode X002IX65QB

Maximum Performance

  • Component level rated. Tested up to 600 MHz.
  • Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet.
  • Compatible with 23 to 24AWG solid copper conductors.
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
  • Press-Fit Technology makes our product more reliable and increases transmission performance.
  • Self-adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing, providing resilient grounding.

Easy to Use

  • Self-terminating means no more punch down tools required. Our 90-degree tool-less design provides maximum snap-shut confidence.
  • The dual level termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate.
  • An integrated anti-disconnect slide lock prevents accidental disconnections. The lock may also be removed to prevent tampering.
  • Cut-to-fit strain relief boot supports ∅5.80 - 7.80mm cable jackets and ∅0.86 - 1.14mm insulated conductors.

Versatile & Durable

  • 100% compatible with any RJ45 female Ethernet port. Ultra-durable metal construction. Integrated full circumference strain relief neck provides additional termination protection from conductor stress pre and post-installation. No more ruined terminations due to handling.
  • Compatible with our trueCLOSE tool and F/UTP Ethernet cables.
  • Fully backward compatible with Cat5e and Cat6. Also works with unshielded (U/UTP) cables.

Quality Guaranteed

  • ANSI/TIA 568 2.D Certified by trueCABLE. CE Listed. TUV RoHS-2 Certified, US TAA compliant, ISO/IEC Certified. Tested in the real world by real installers.

What's In The Box?

  • Each field termination plug includes a dual-level conductor guide holder, nylon tie, cut to fit universal boot, plus full instructions. These durable and time-saving component level field termination plugs are sure to make your install hassle-free.
  • Weight - 0.1 lbs
  • Length - 2 in
  • Width - 1.5 in
  • Height - 1.25 in
  • Barcode - X002IX65QB
