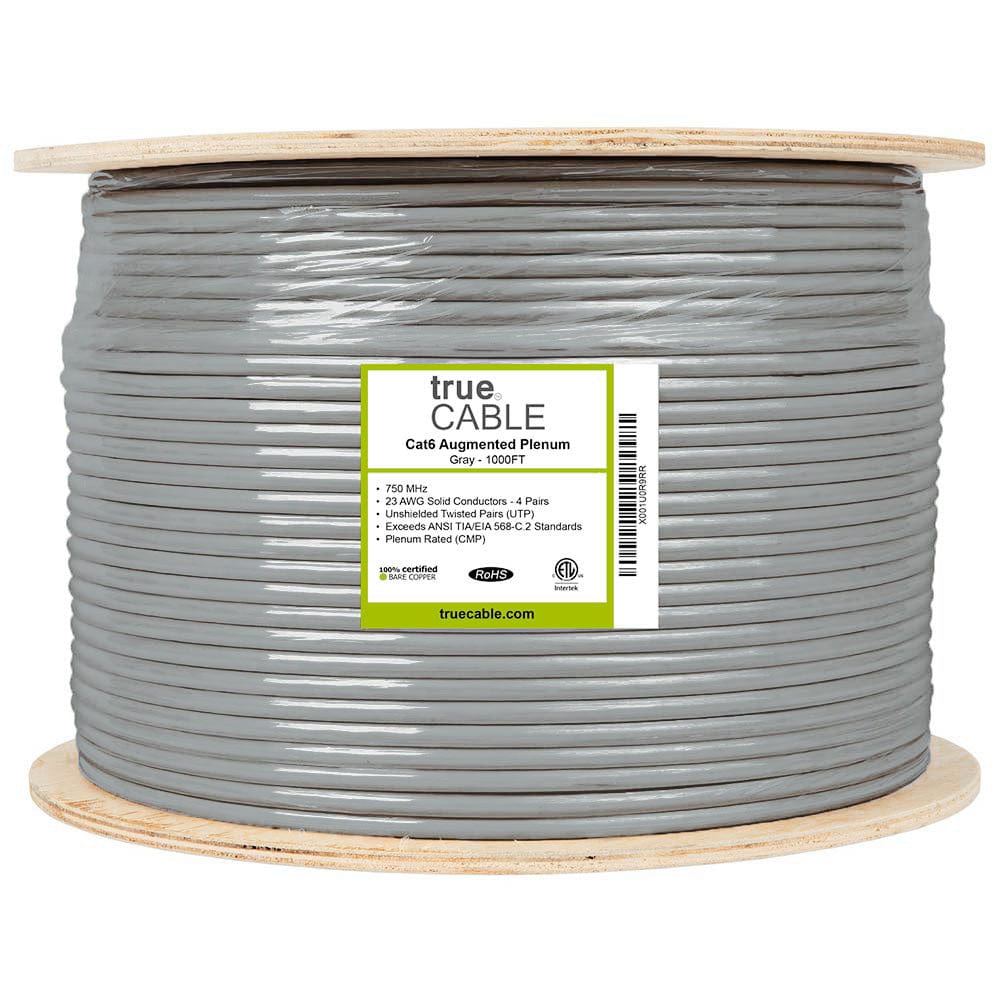

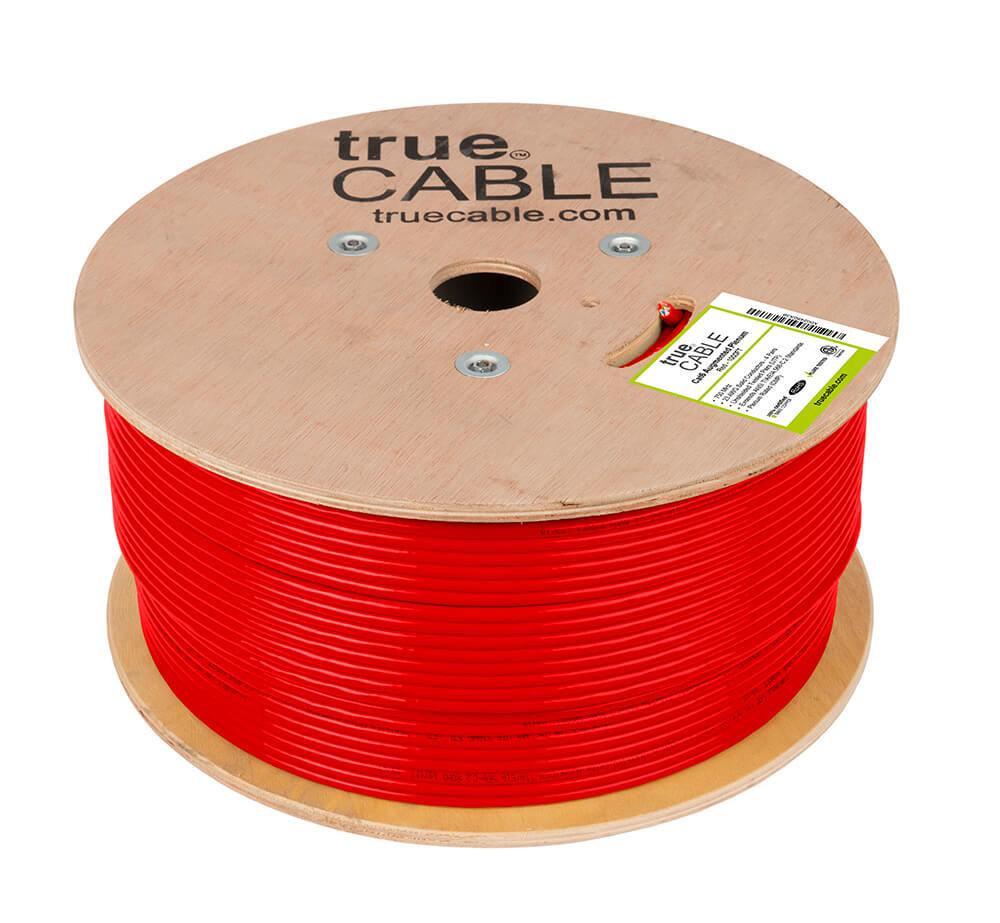

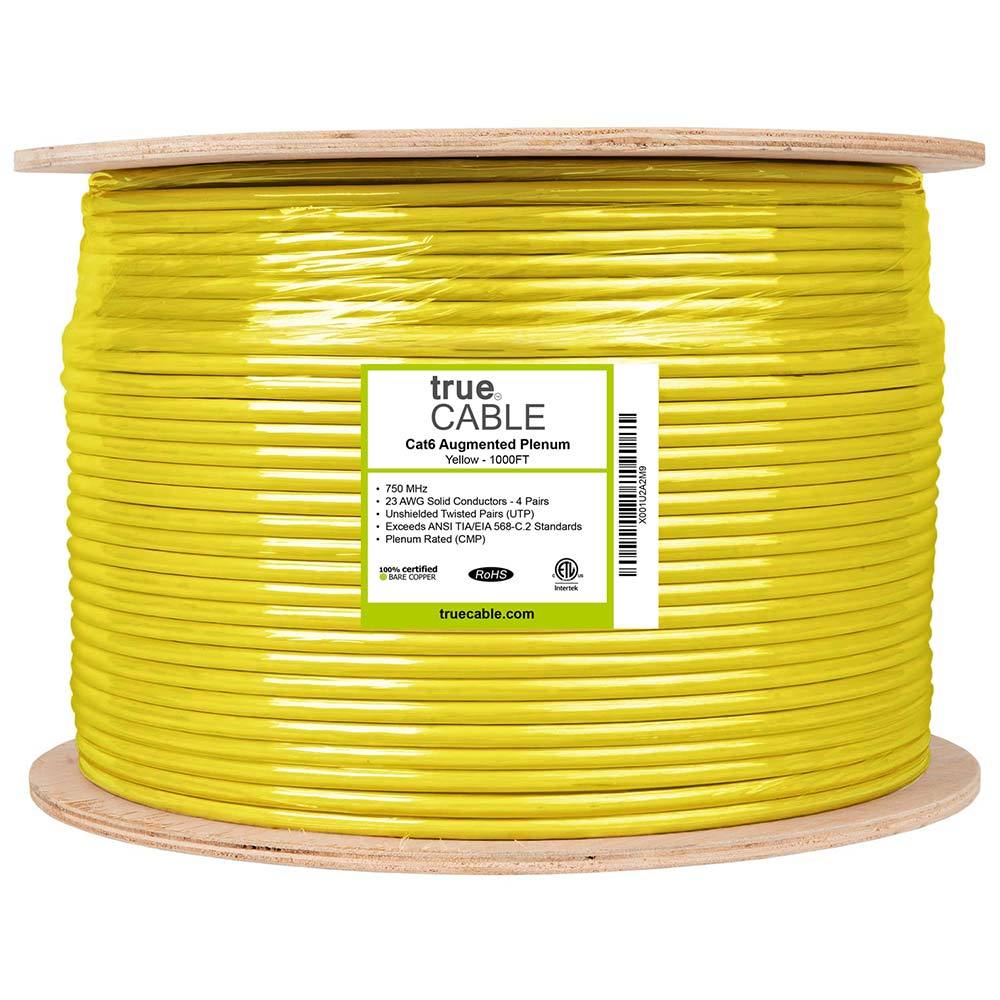

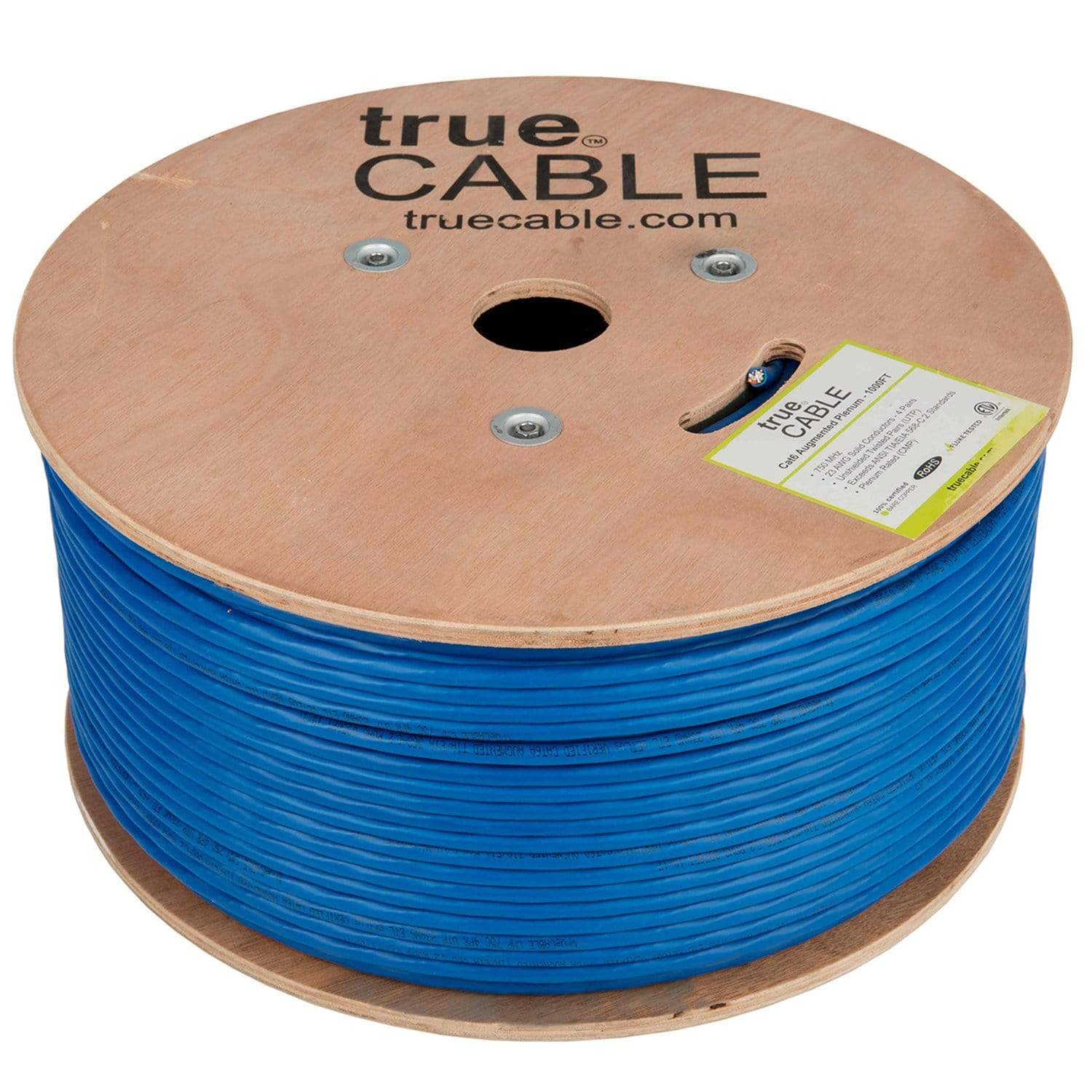

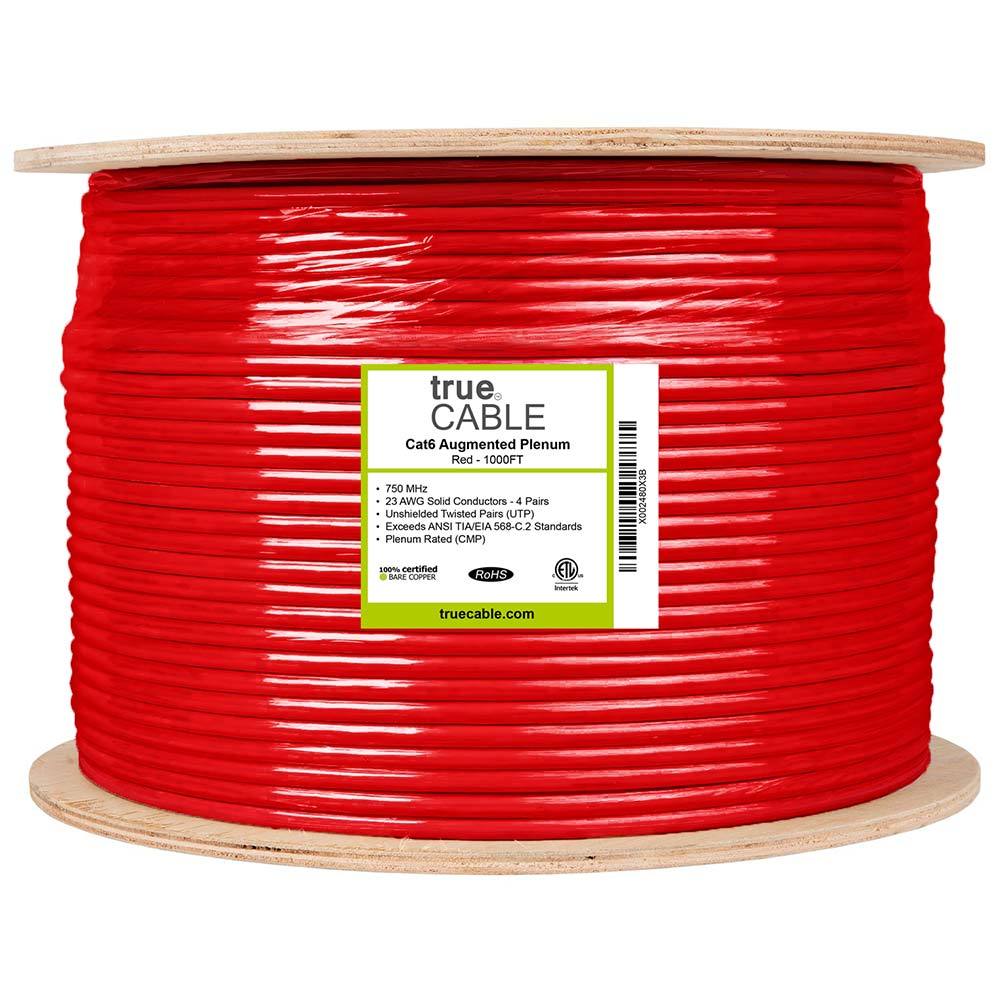

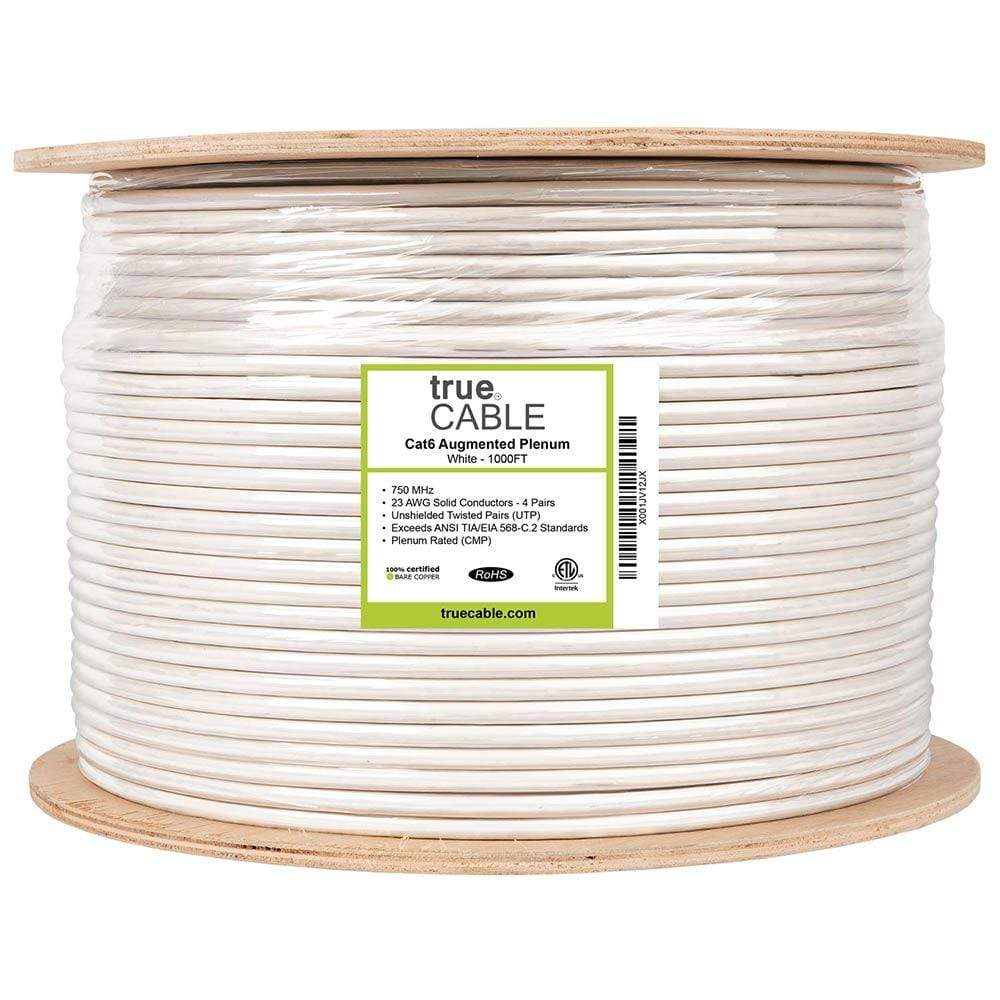

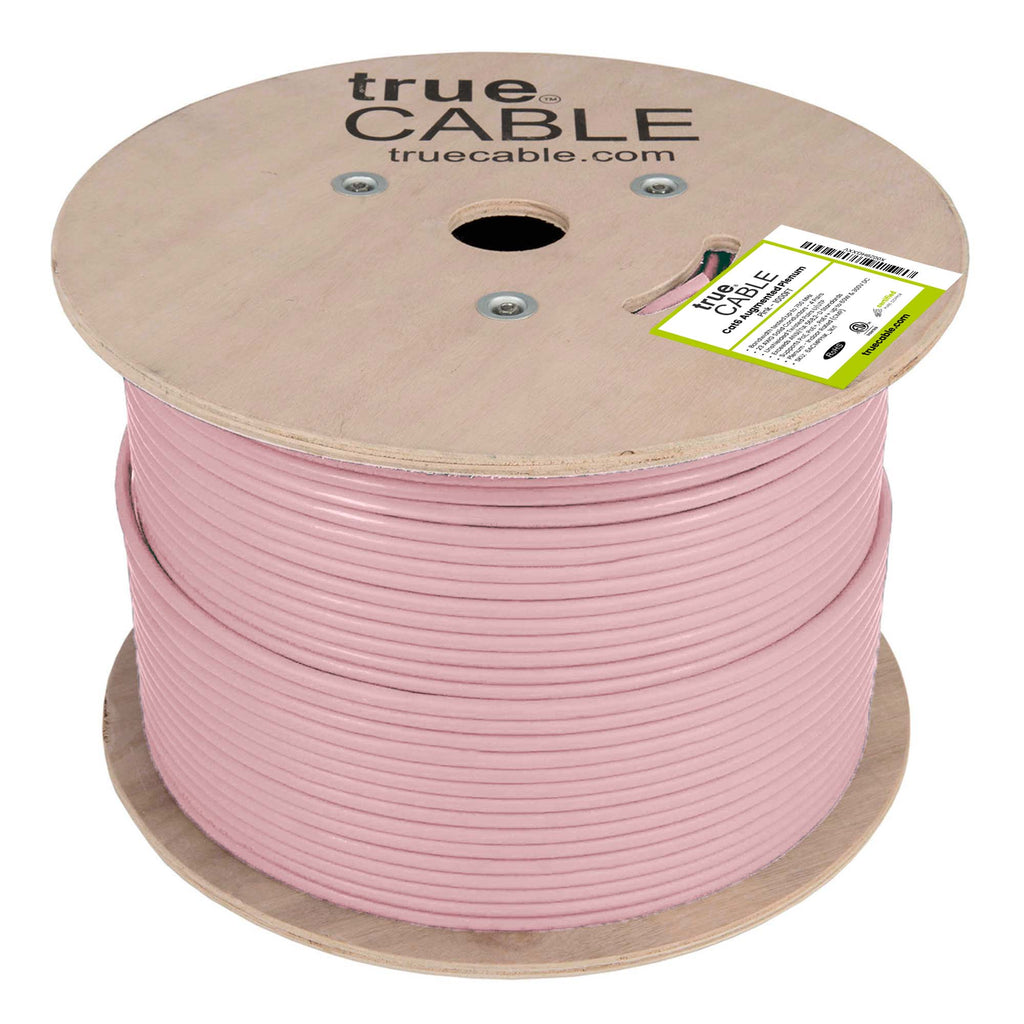

Cat6A Plenum|Unshielded

  • 23AWG 4-Pair, solid bare copper conductors
  • Unshielded twisted pairs - U/UTP
  • Bandwidth tested up to 750 MHz
  • Supports PoE, PoE+, and PoE++
  • cETLus Certified, RoHS-3 Compliant

$385.99 385.99

Buy 10 or more each save 5%

Buy 25 or more each save 10%

Buy 50 or more each save 15%

Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Plenum Rated
  • The CMP jacket is fire safety rated for use in air plenum spaces above suspended ceilings or below raised floors. High degree of flame resistance and low toxicity smoke.

Ultimate Performance

  • Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds up to 328 feet.
    Bandwidth tested up to 750 MHz.
  • Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) up to 60W and 300V DC.

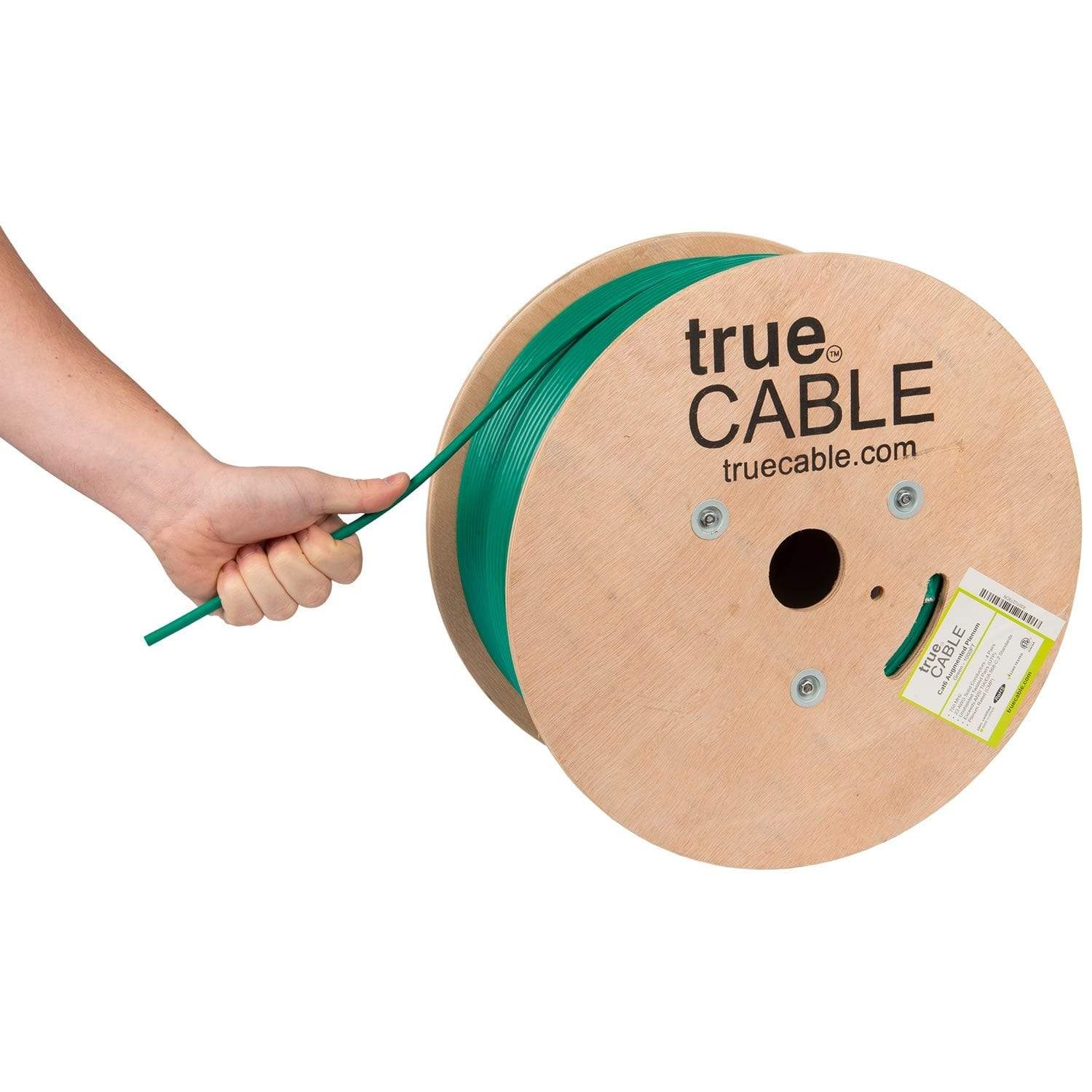

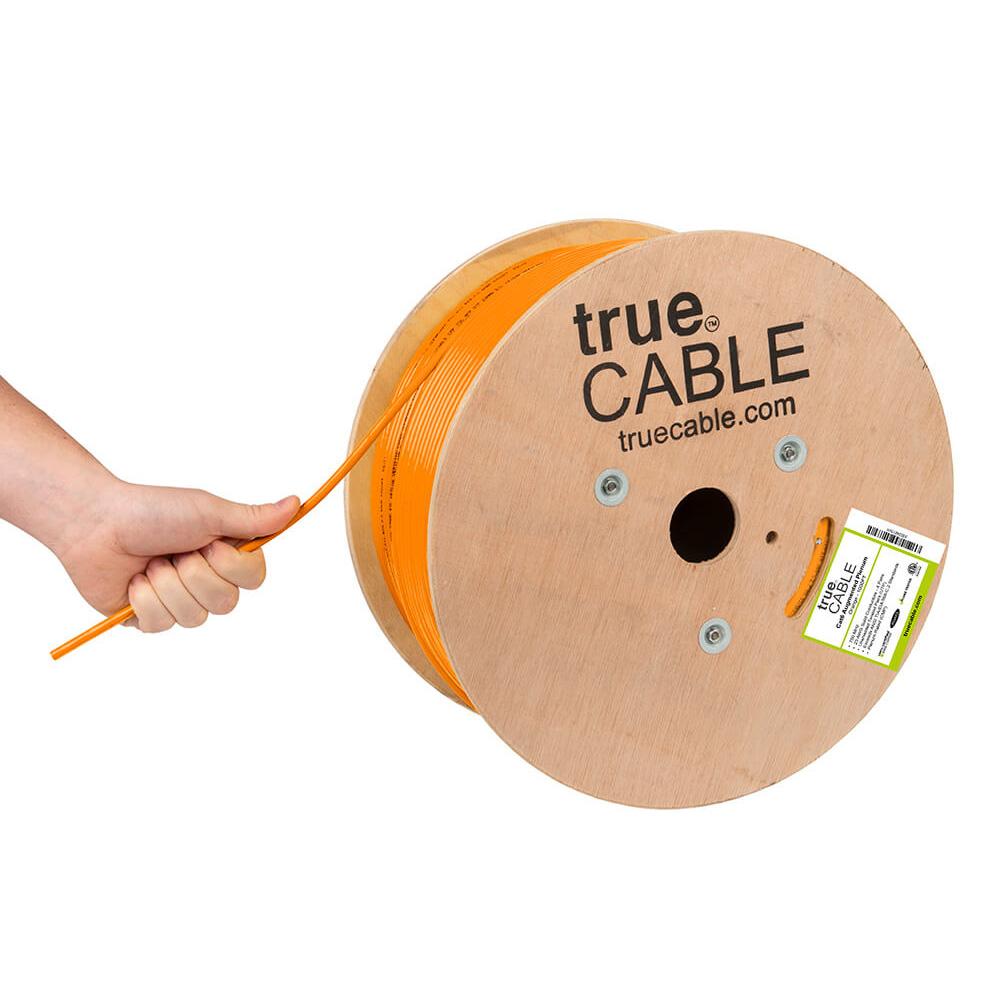

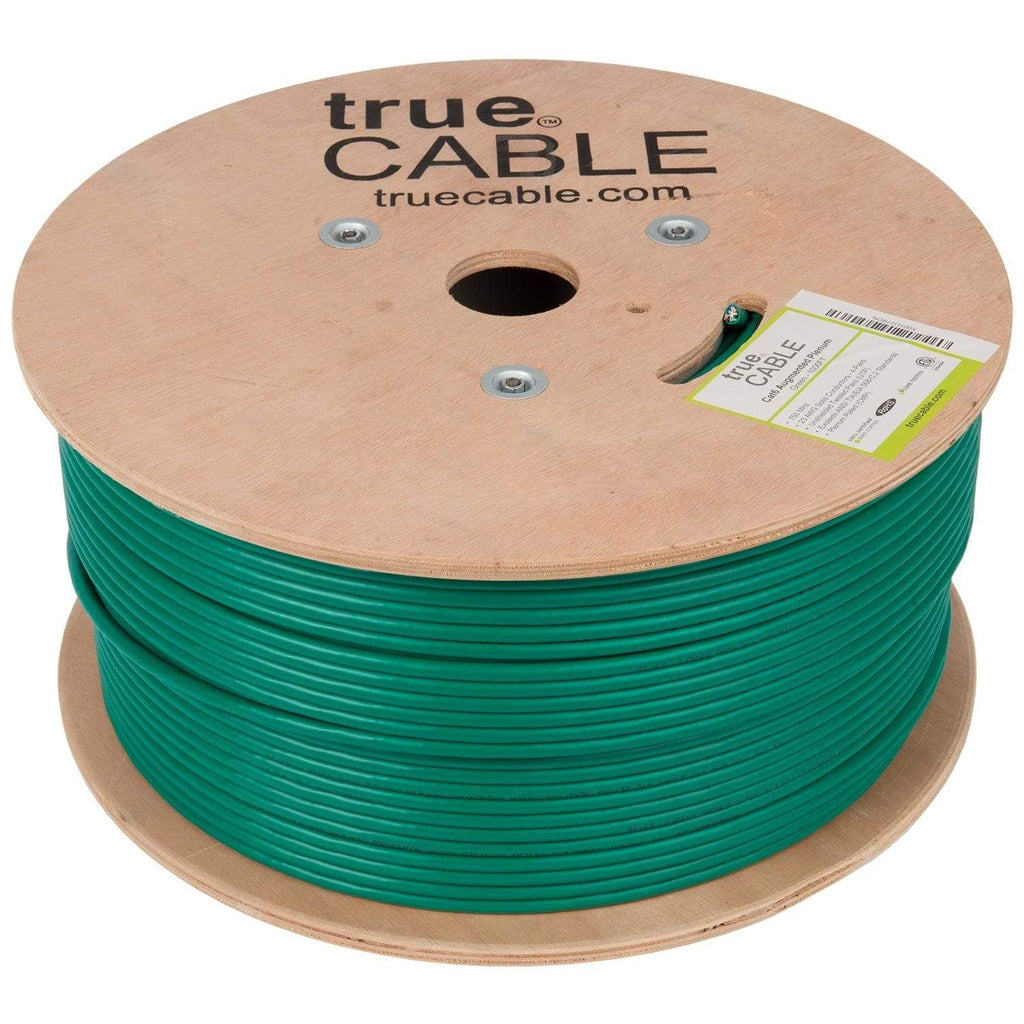

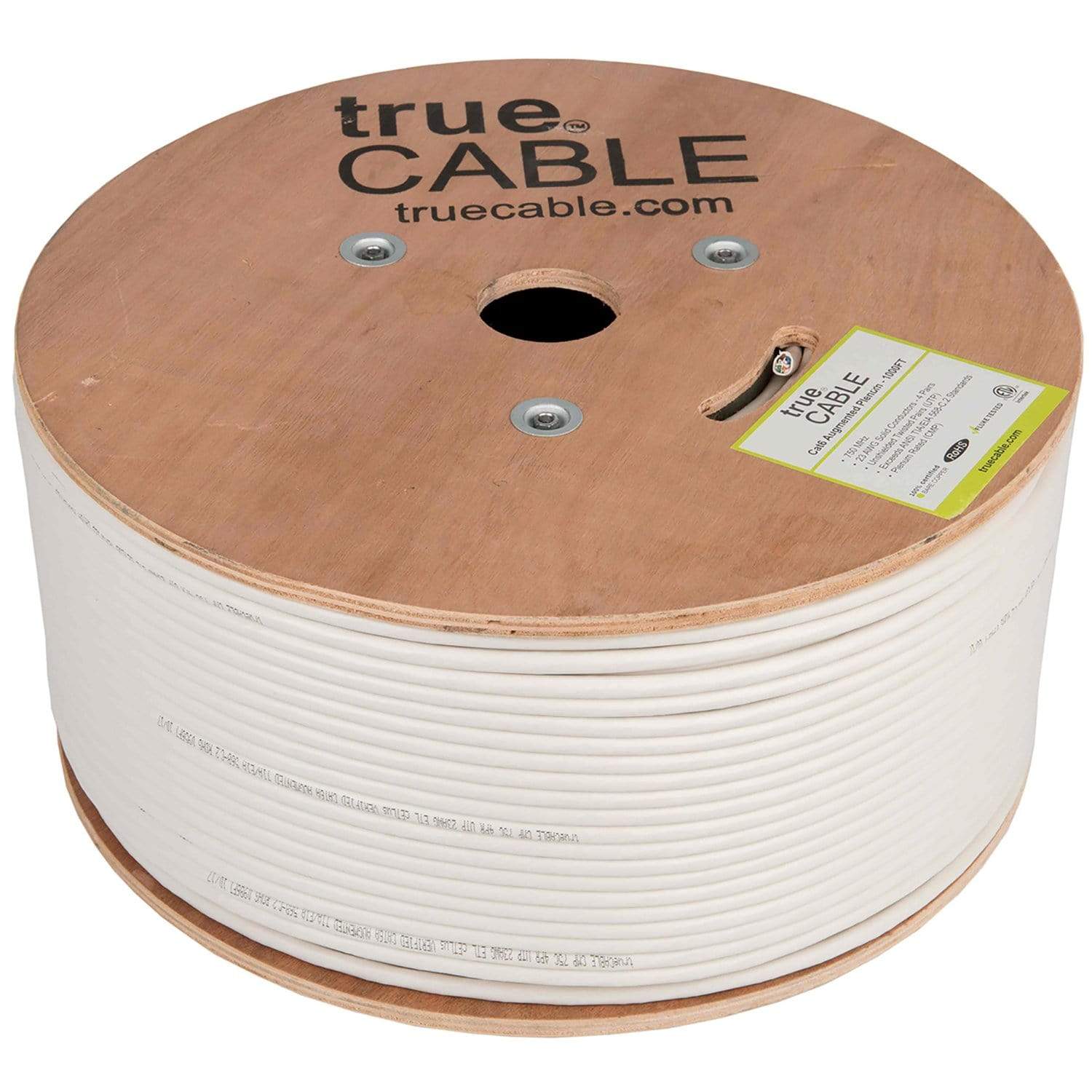

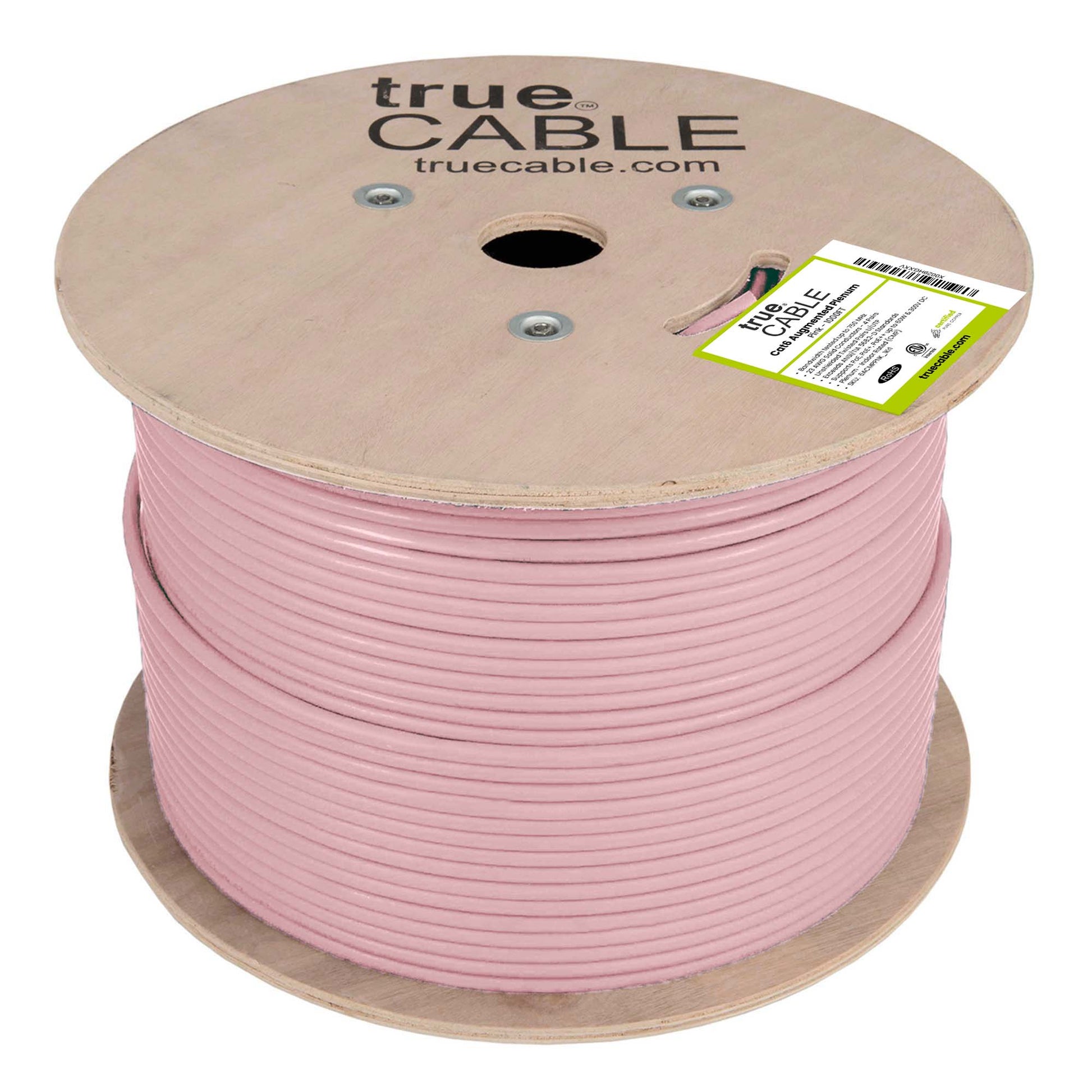

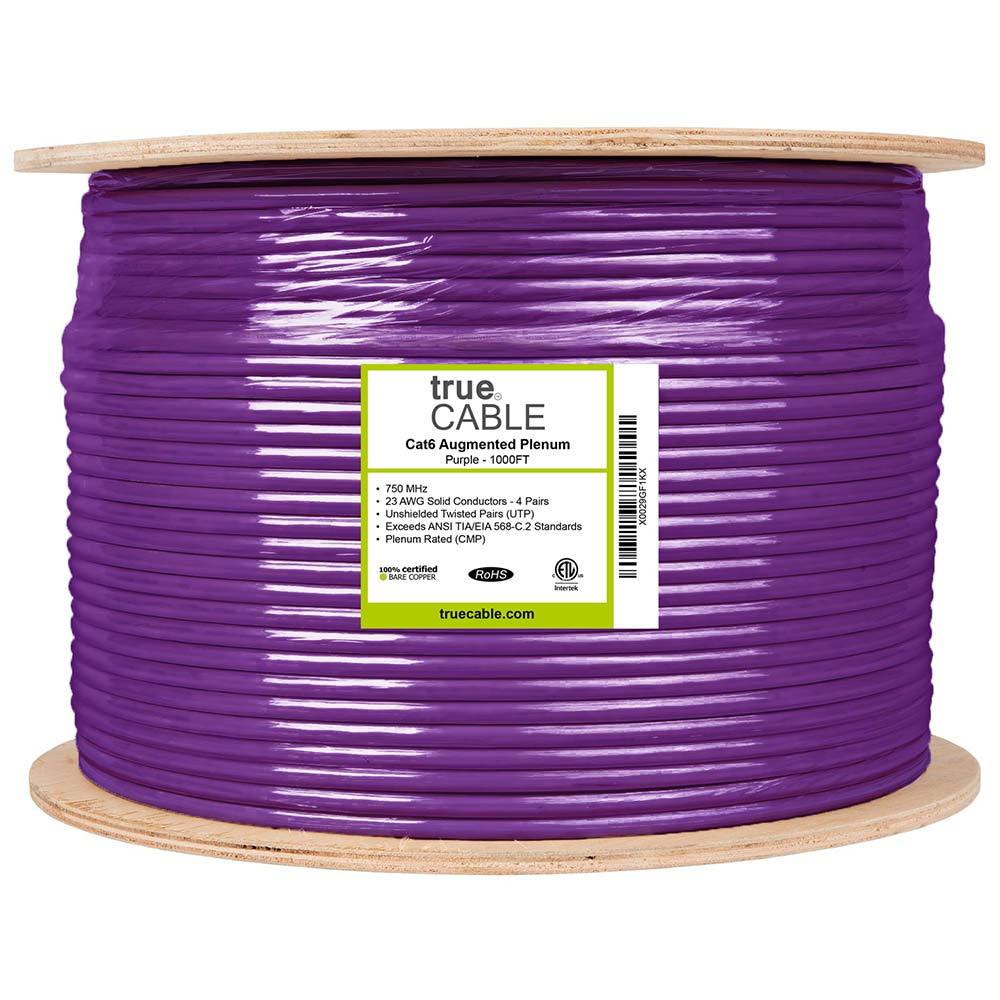

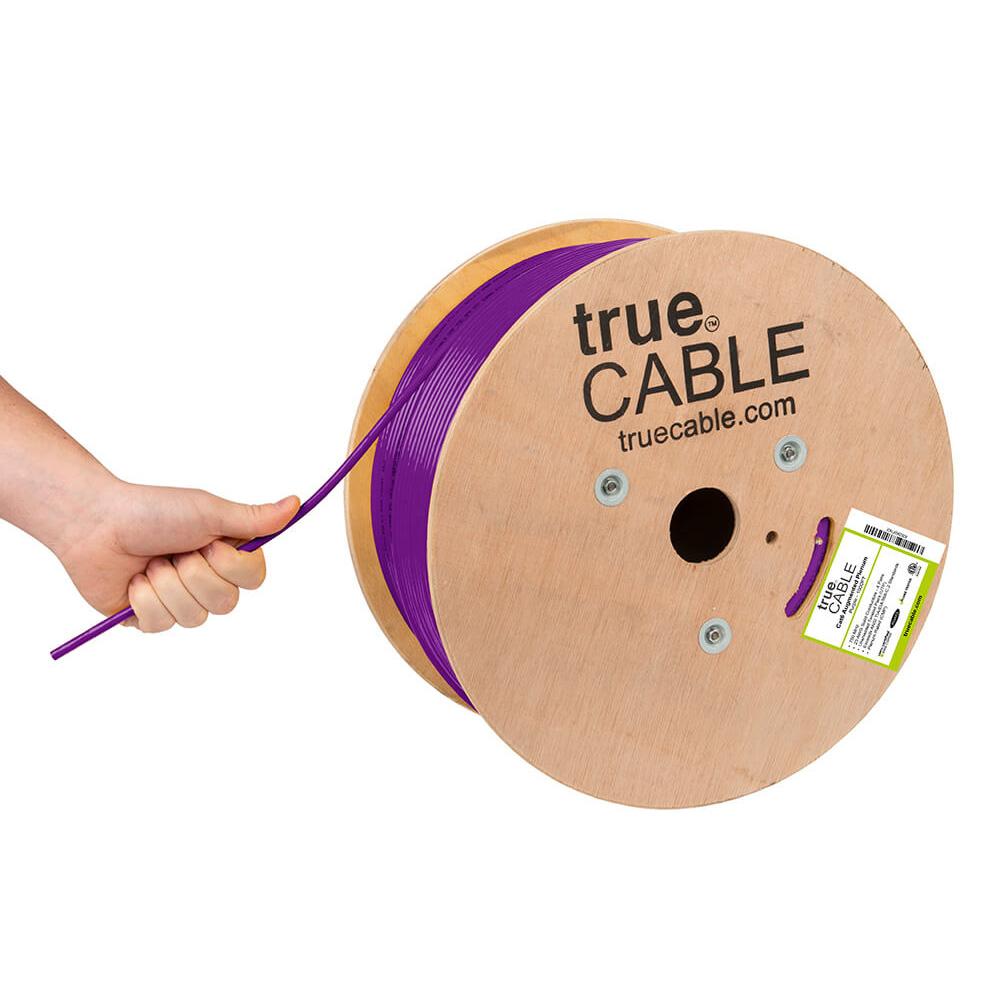

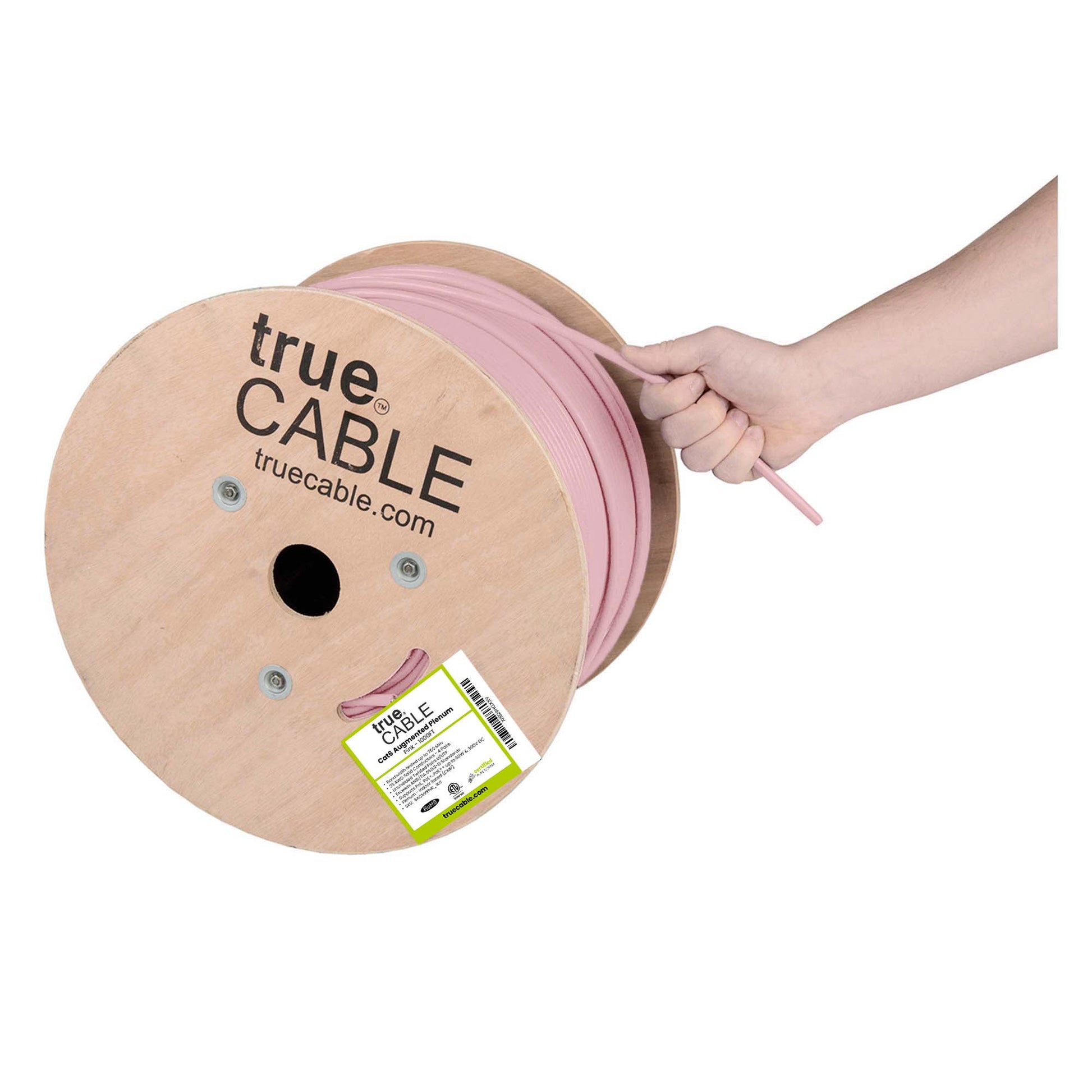

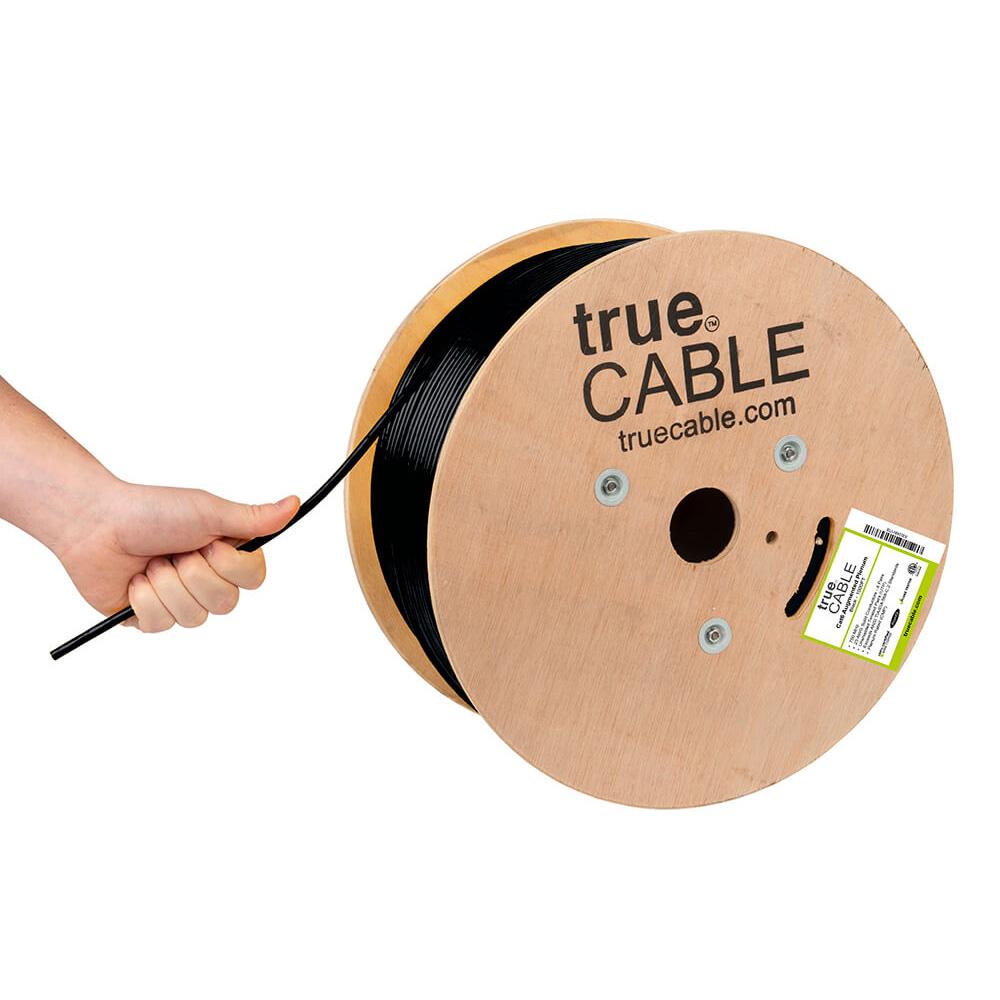

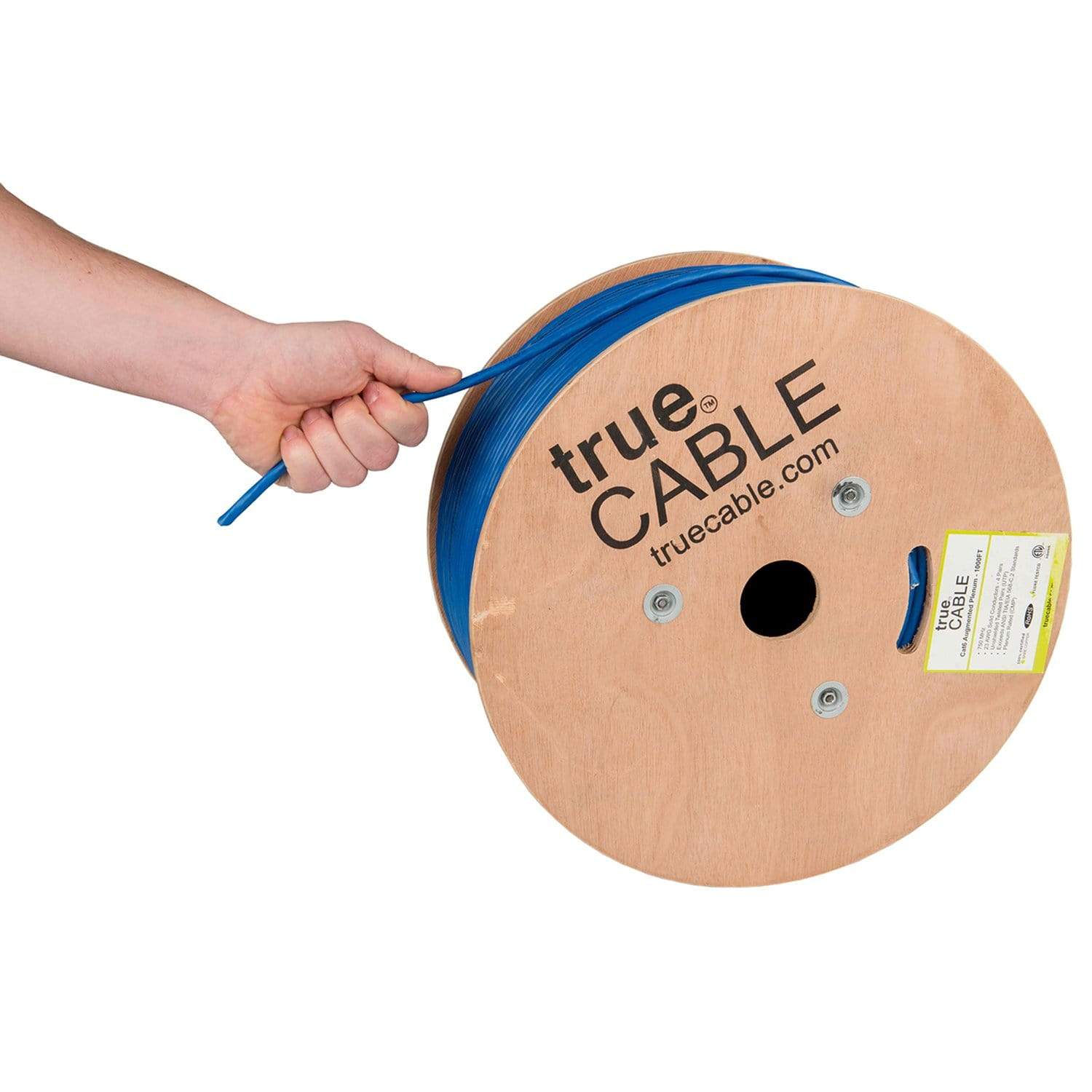

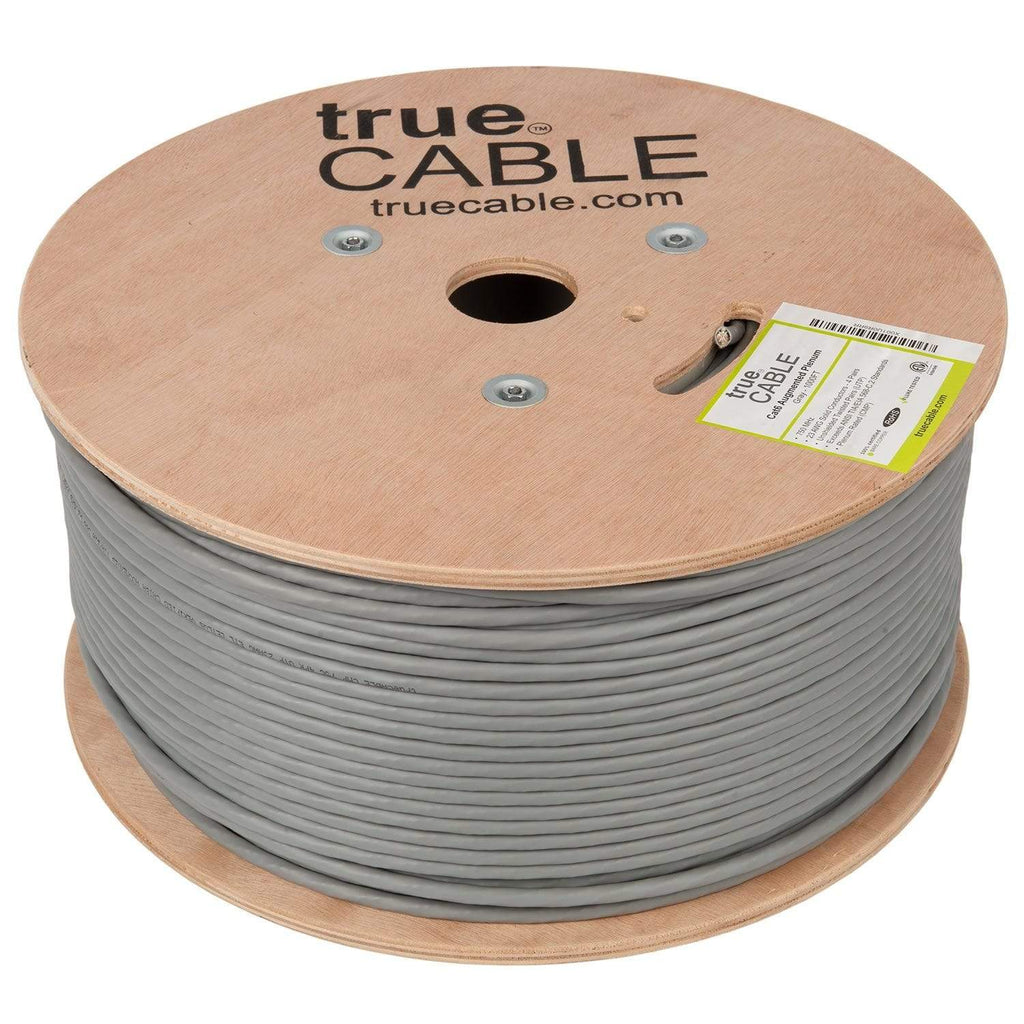

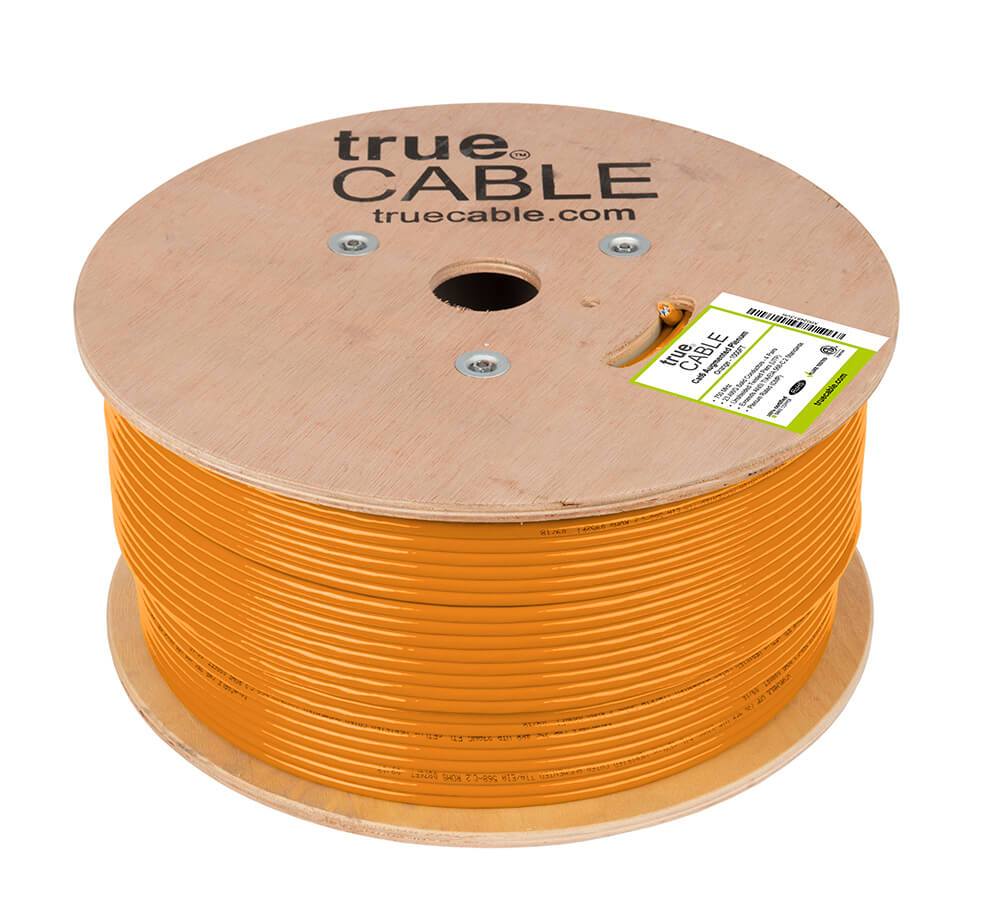

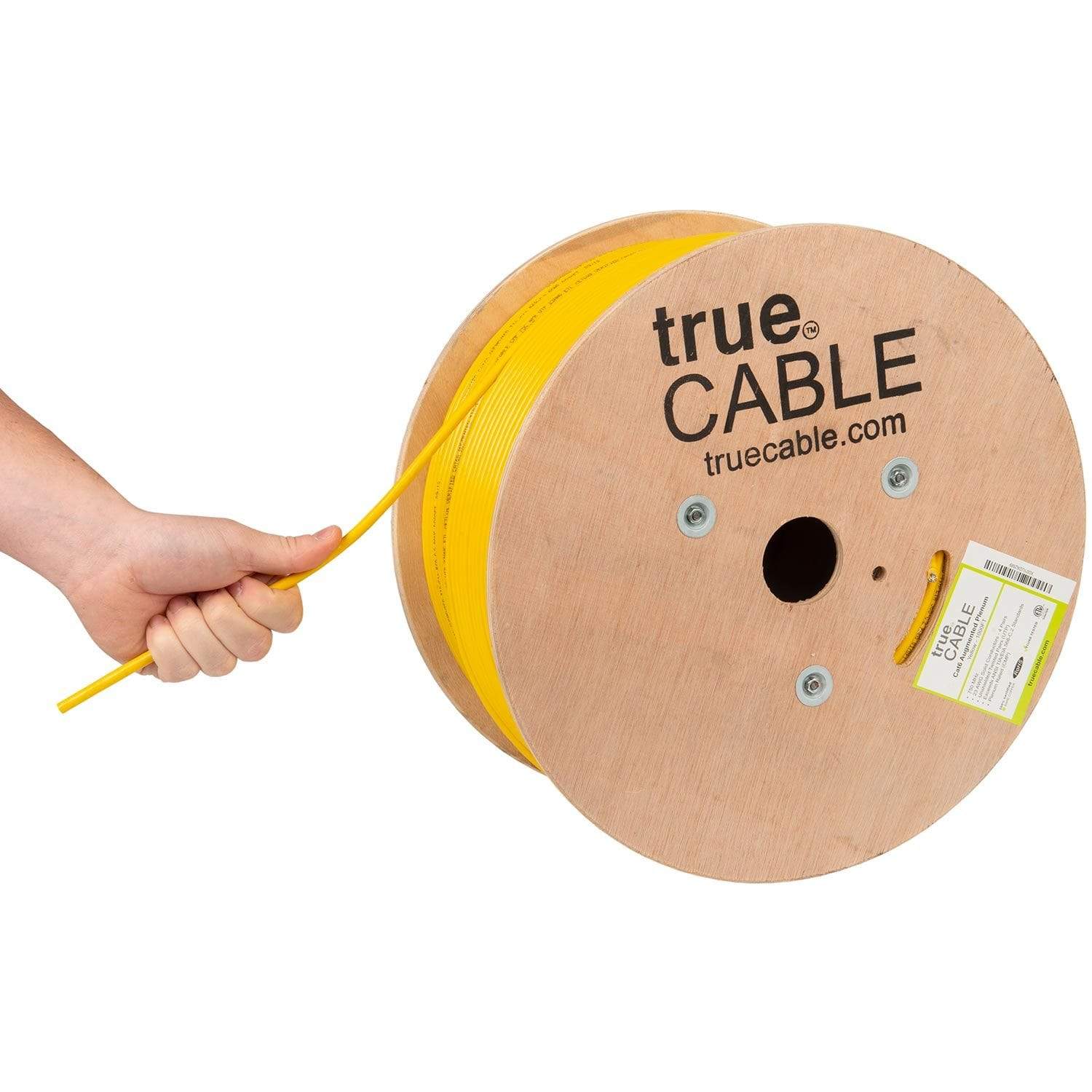

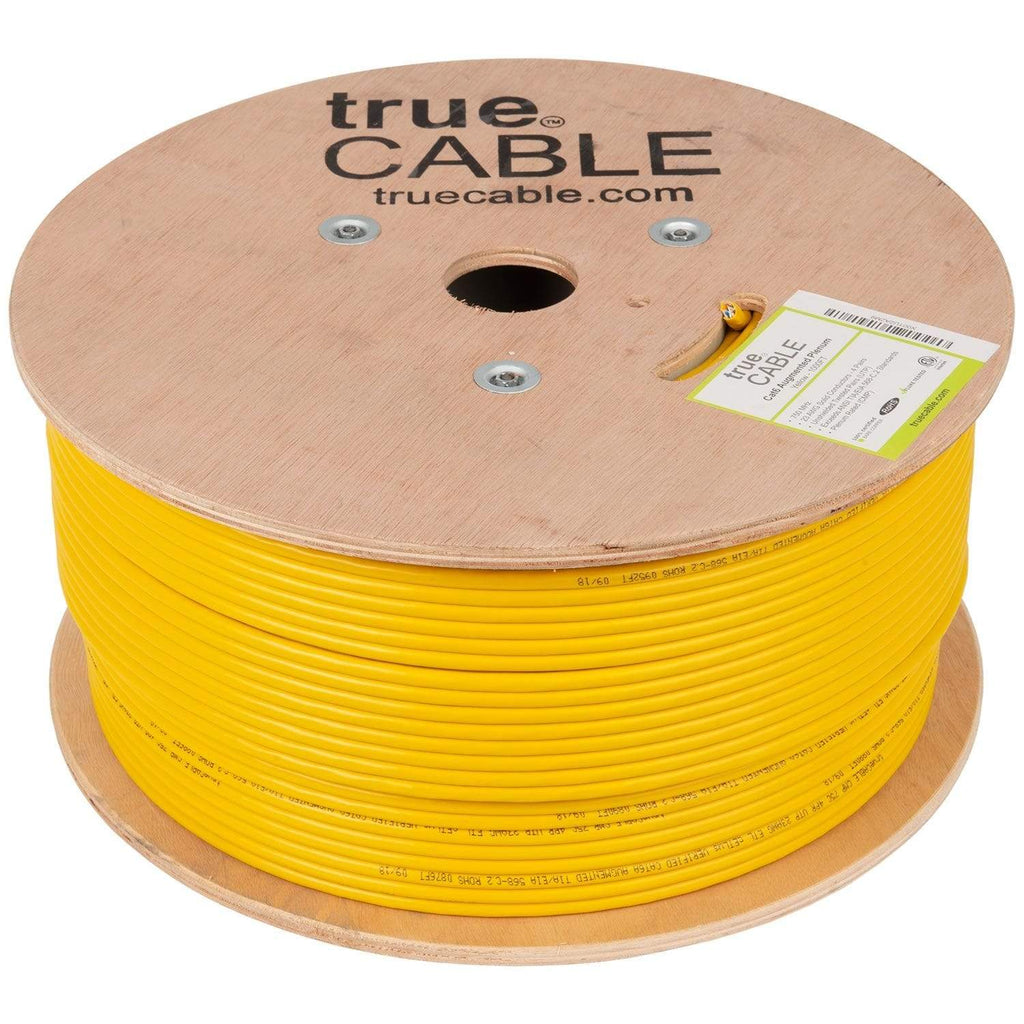

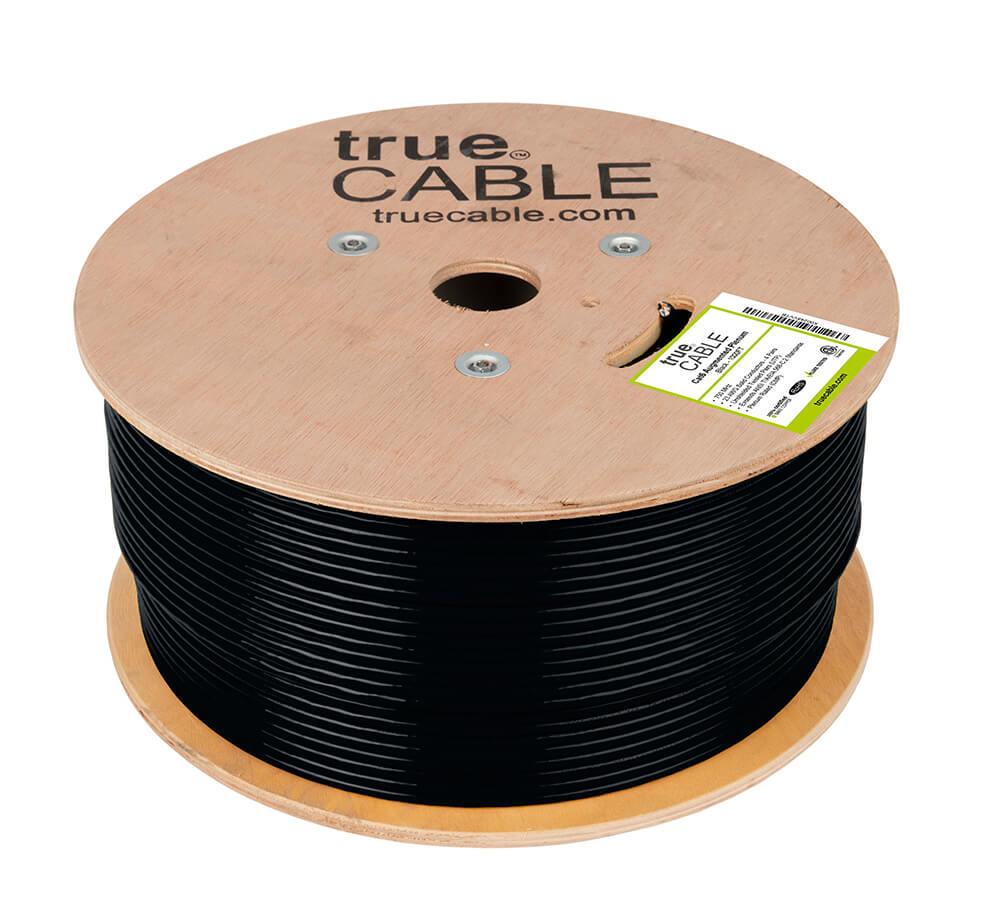

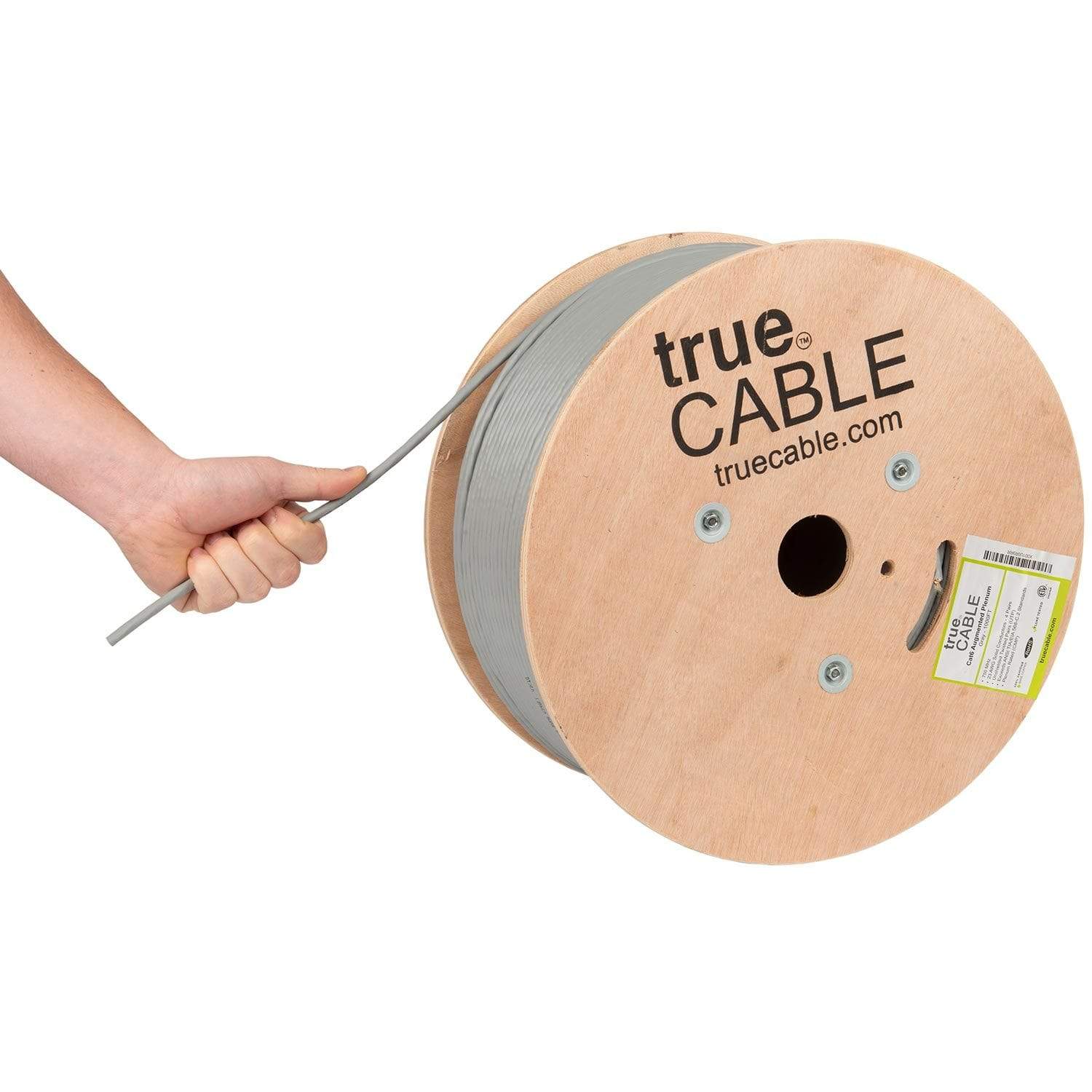

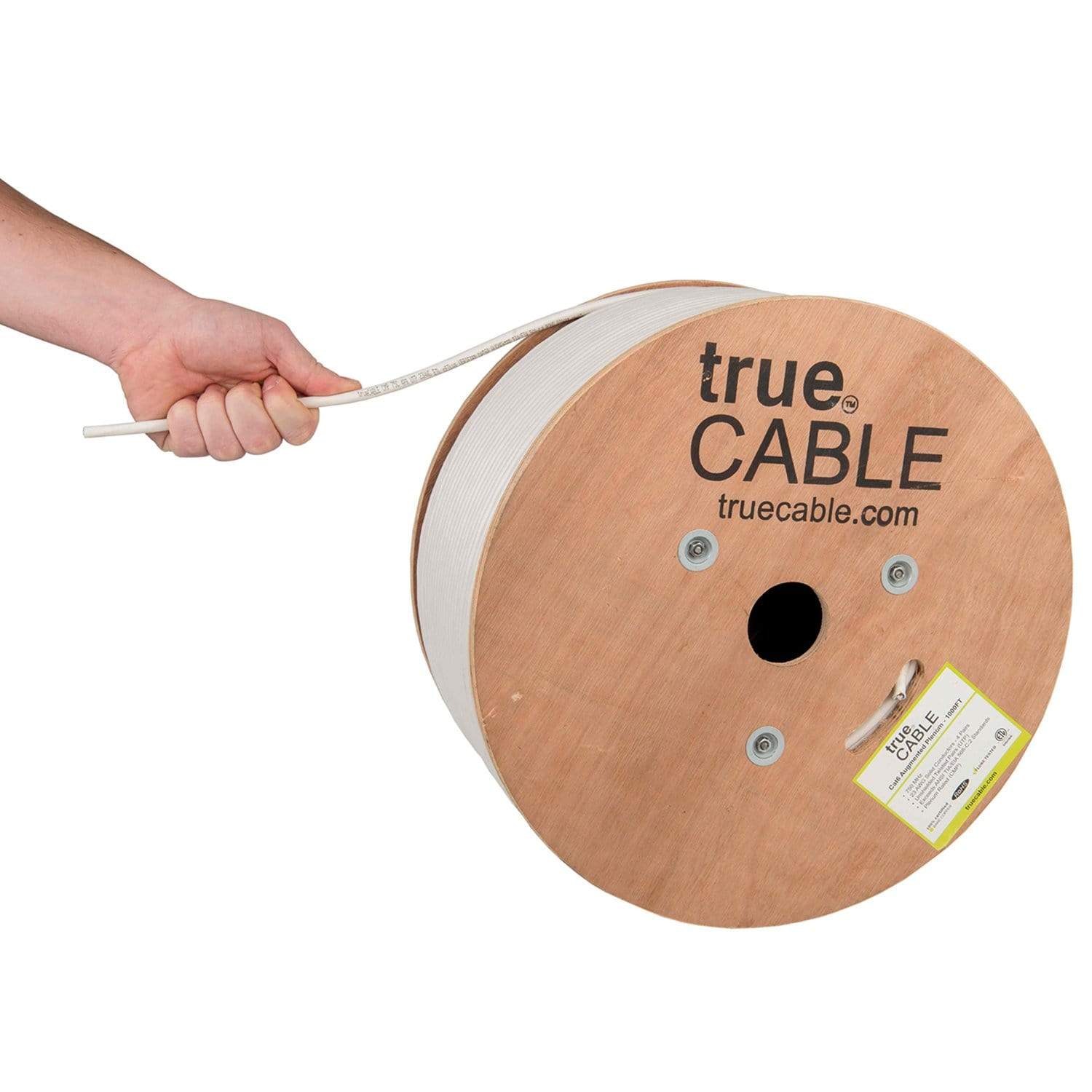

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.

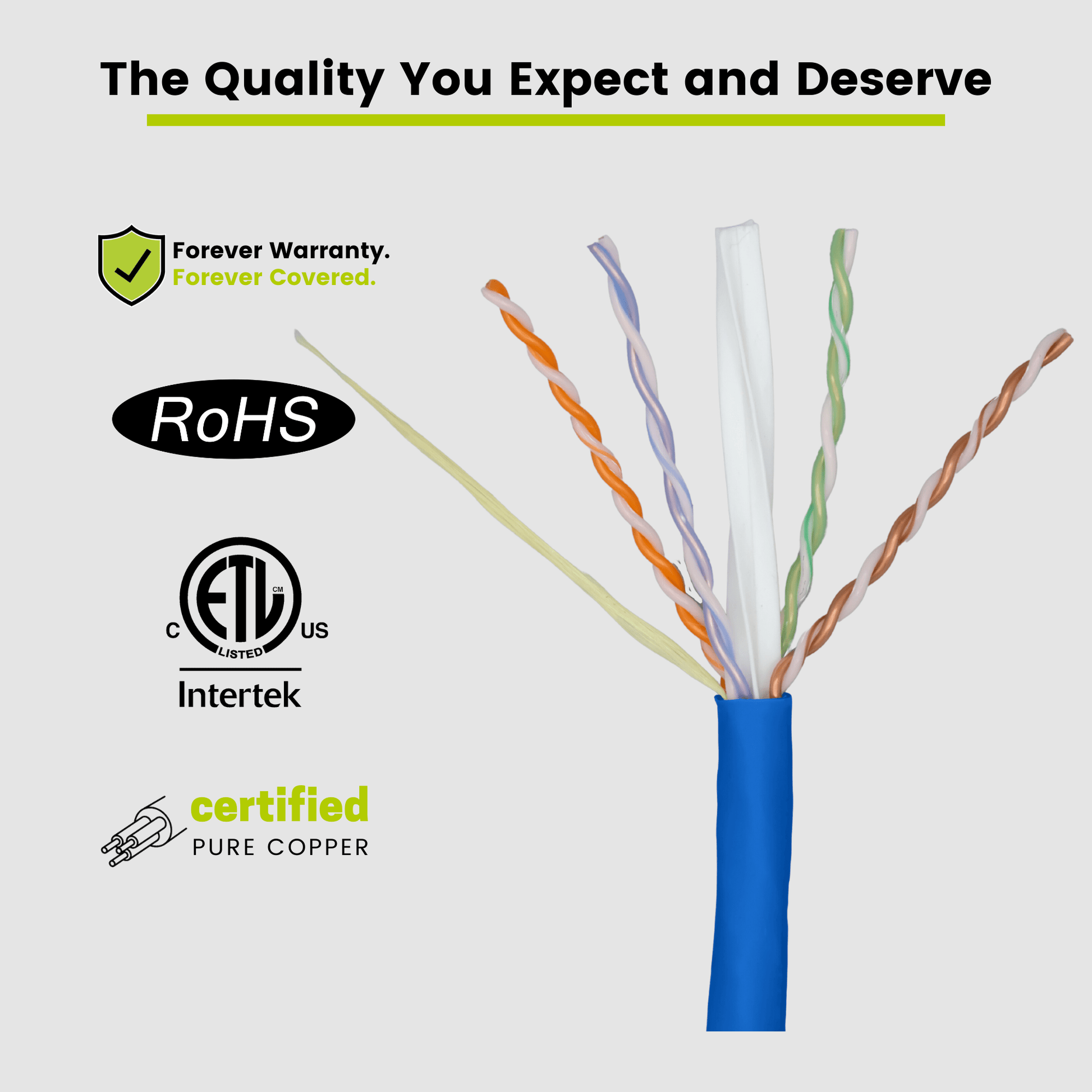

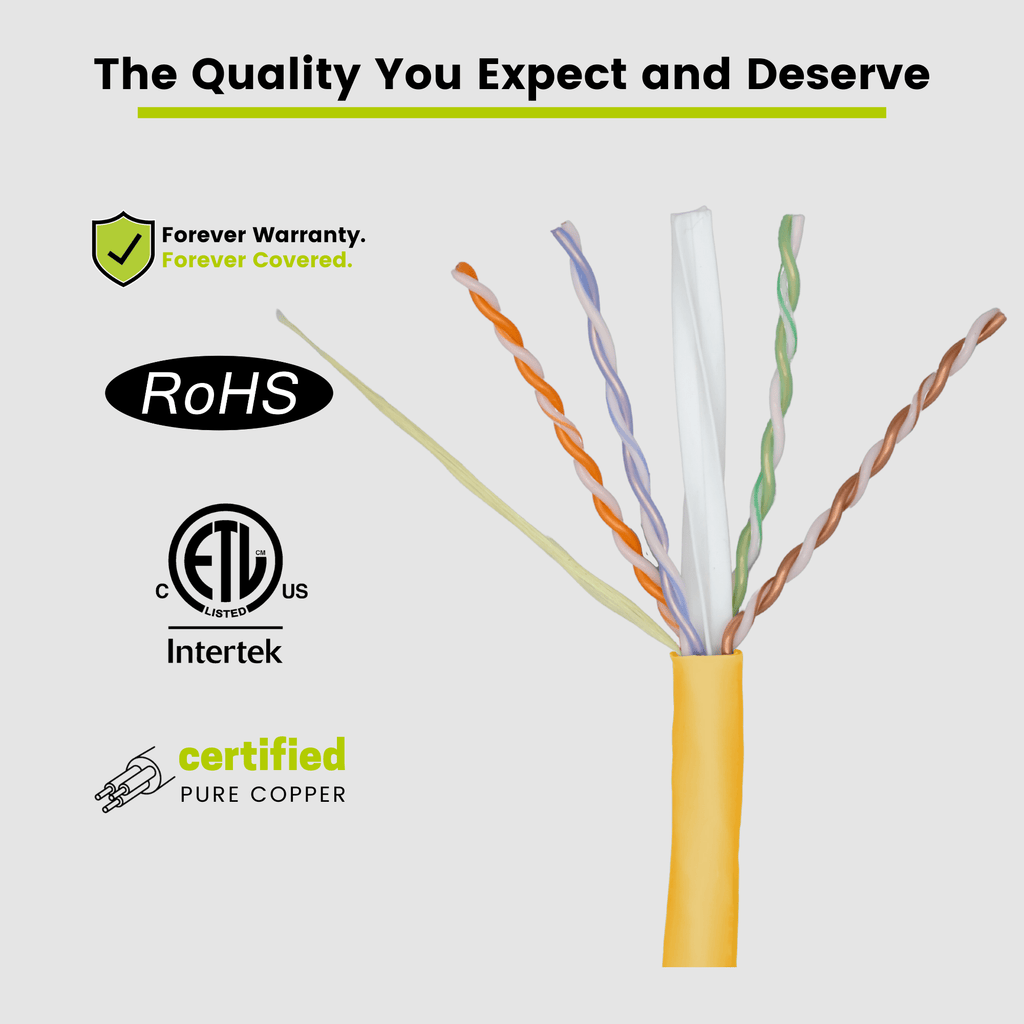

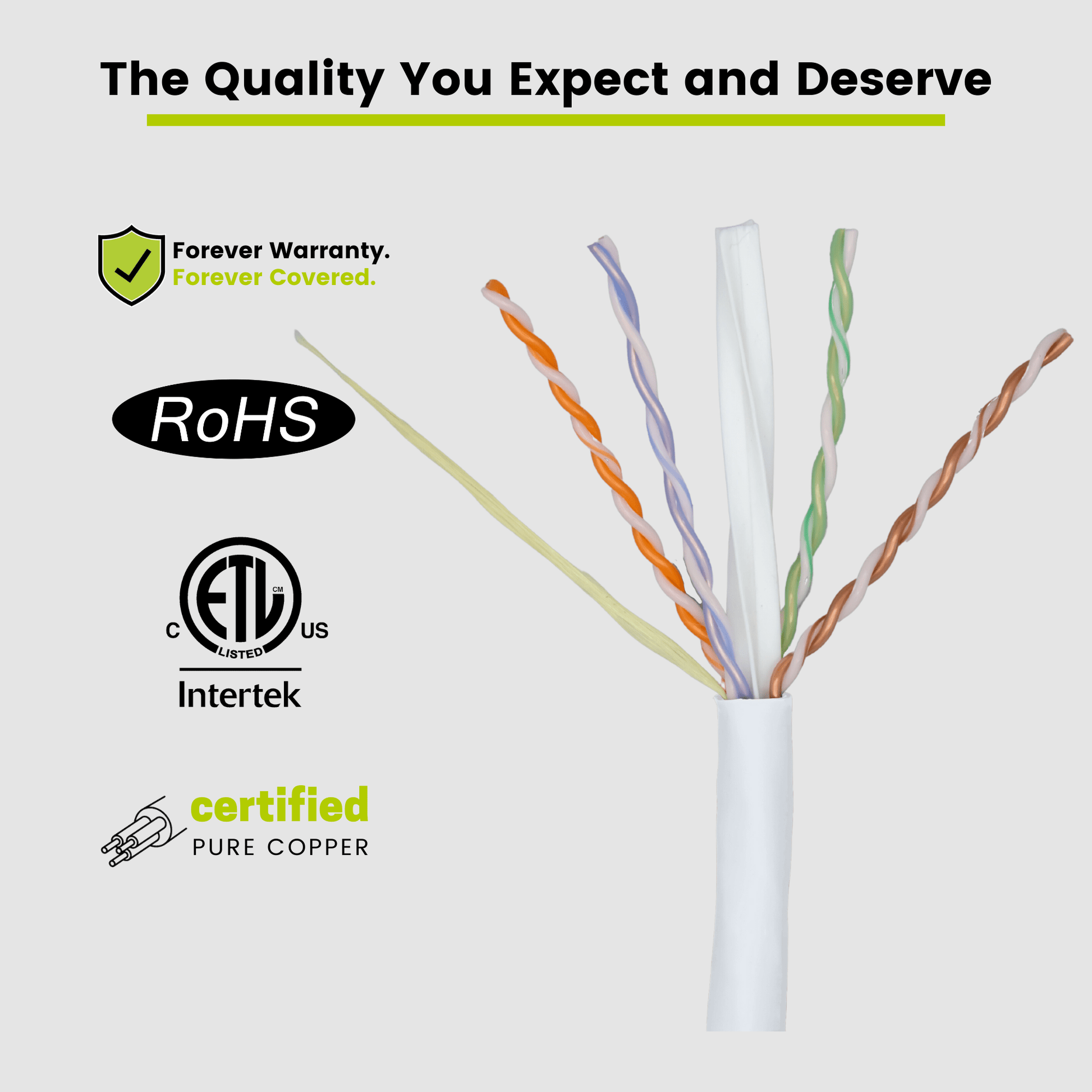

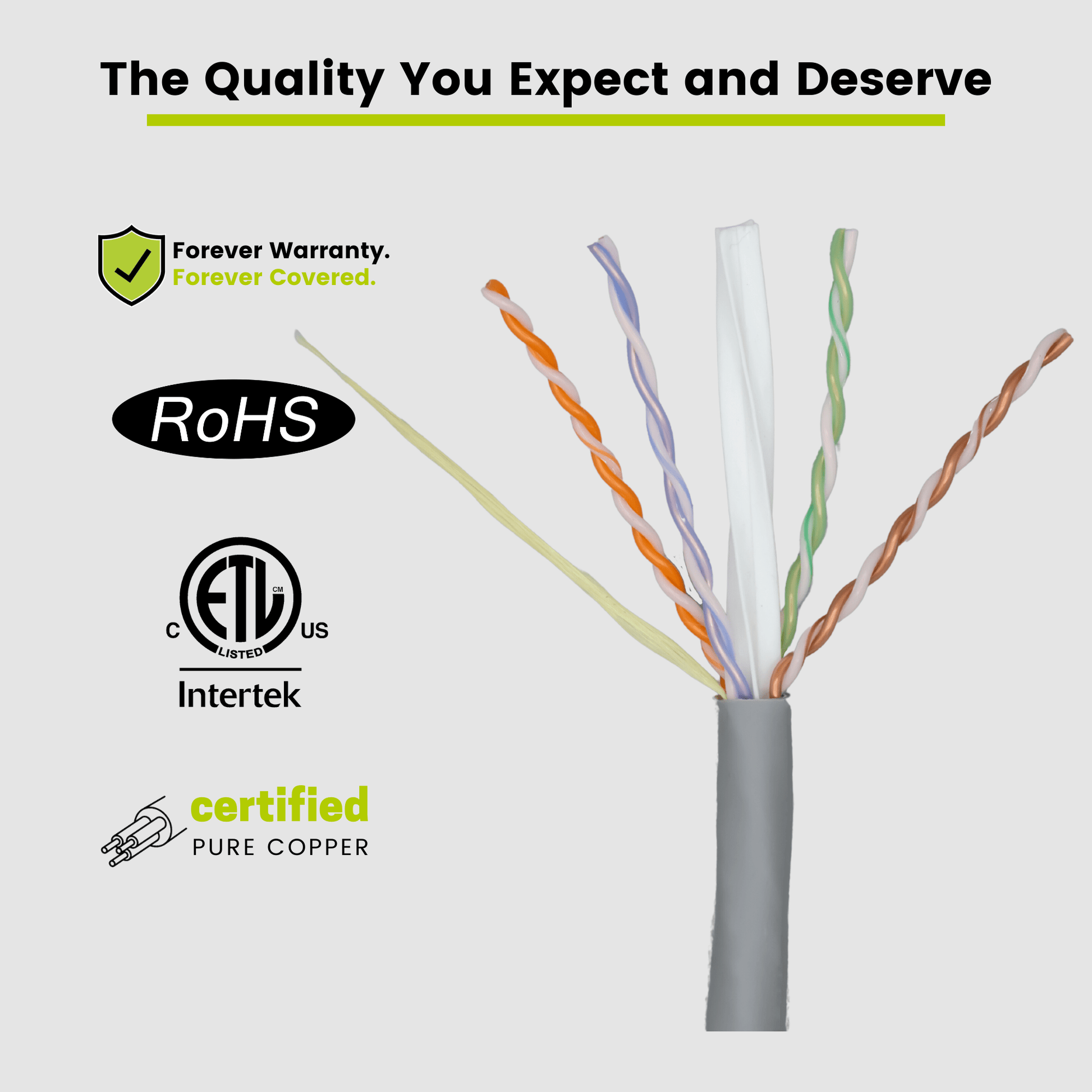

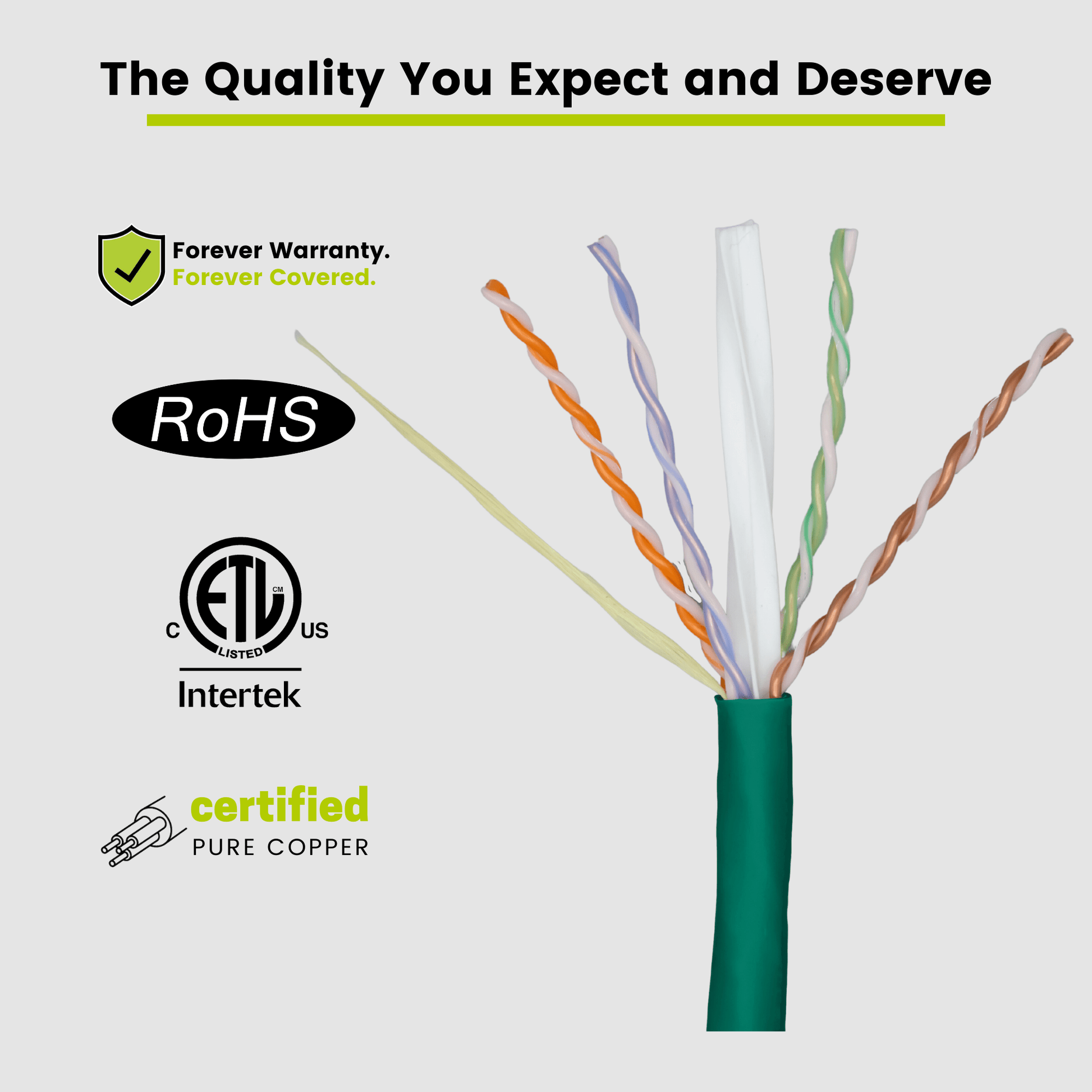

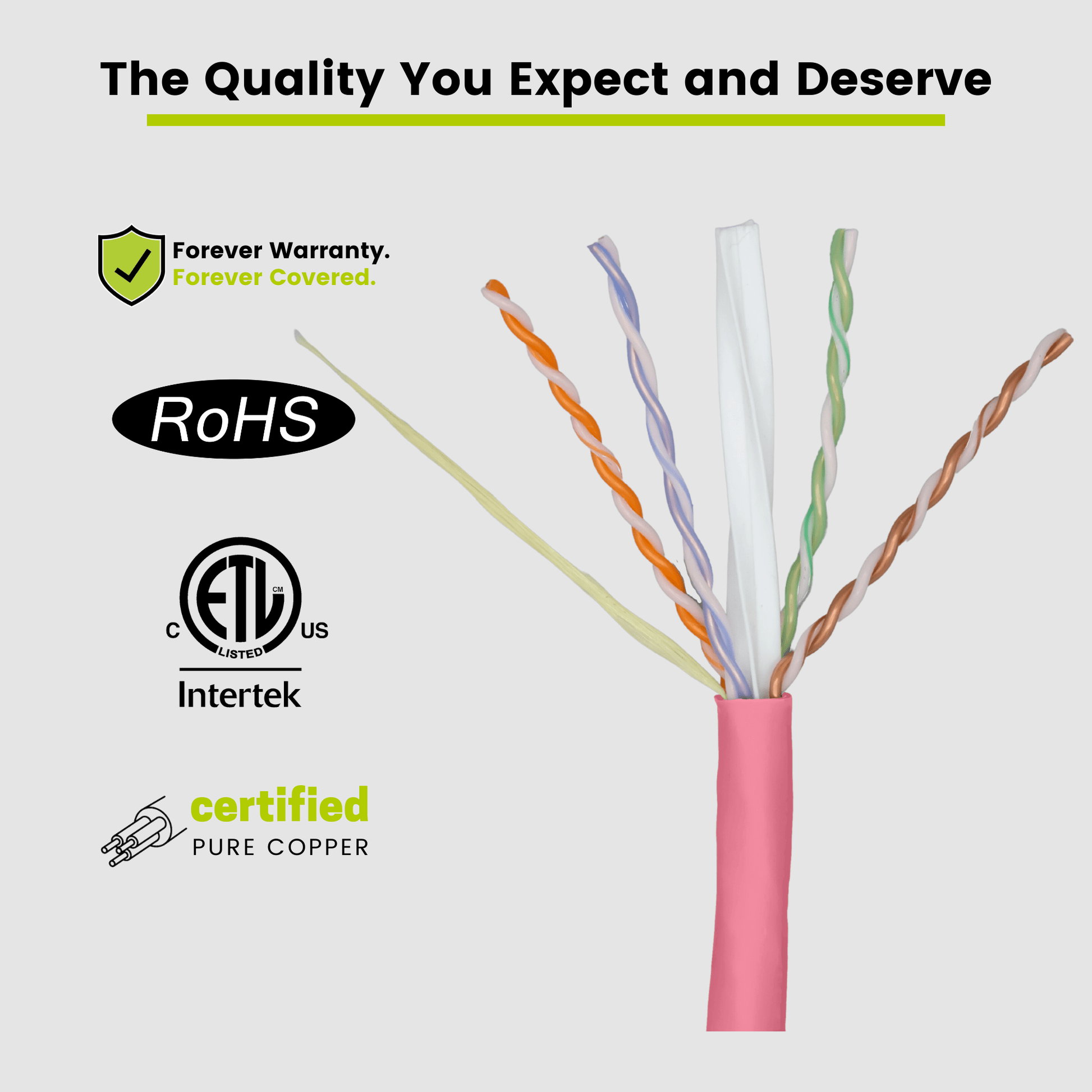

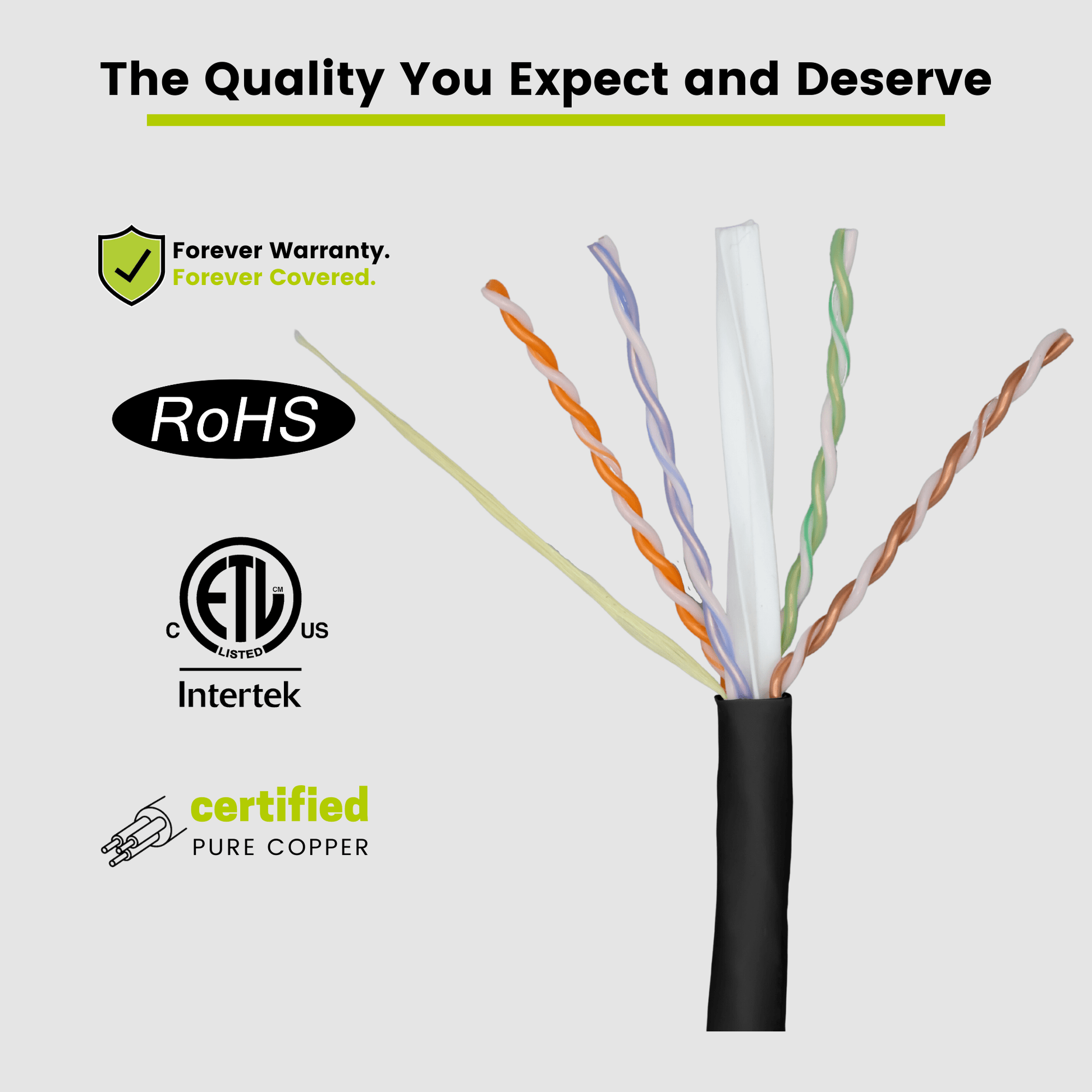

  • Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

    Compatibility Counts

    • Terminate with shielded or unshielded Cat6A RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 6.20mm.

    Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
    • Part Number - 6ACMPBLU_1Krl
    • Operating Temp. Range - 75 C / 167 F
    • Max. Operating Voltage - 300v
    • Conductor Insulation Diameter - 1.08mm
    • Overall Diameter (OD) - 6.20mm
    • Weight - 40.0 lbs
    • Length - 14.5 in
    • Width - 14.5 in
    • Height - 7 in
