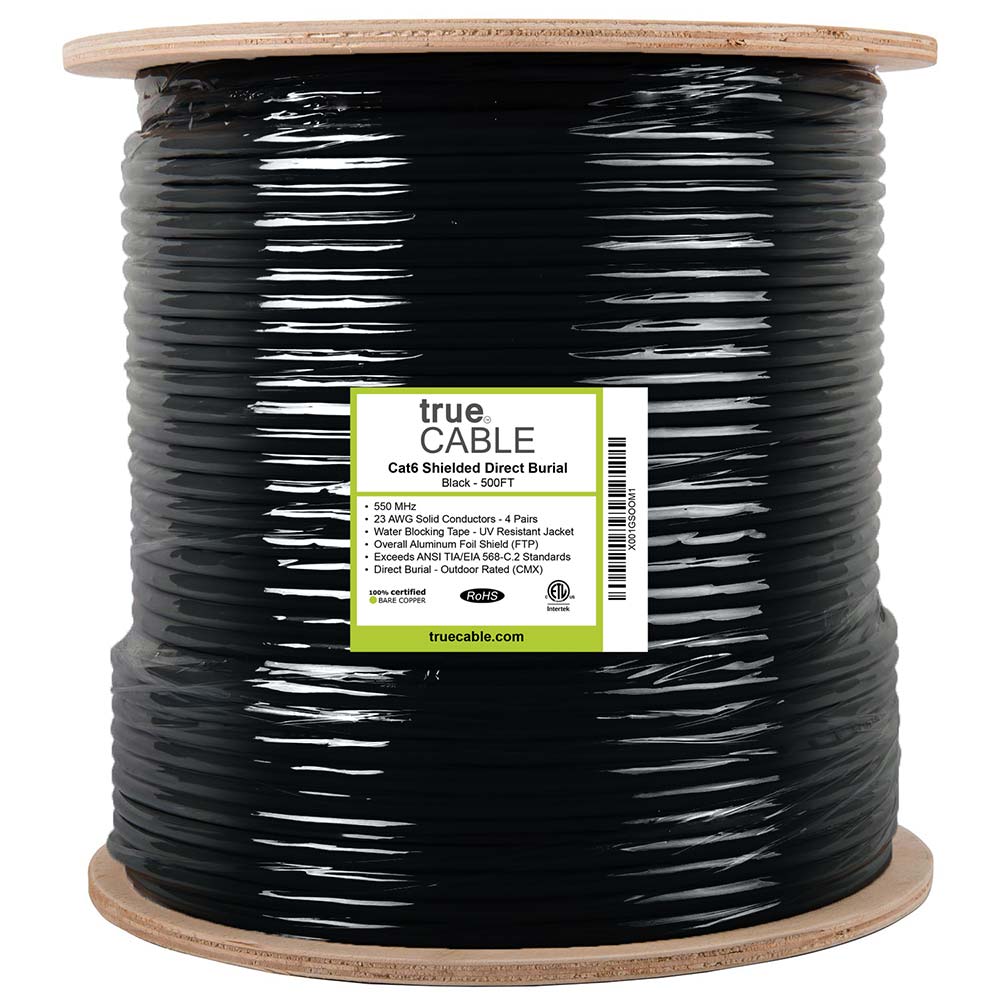

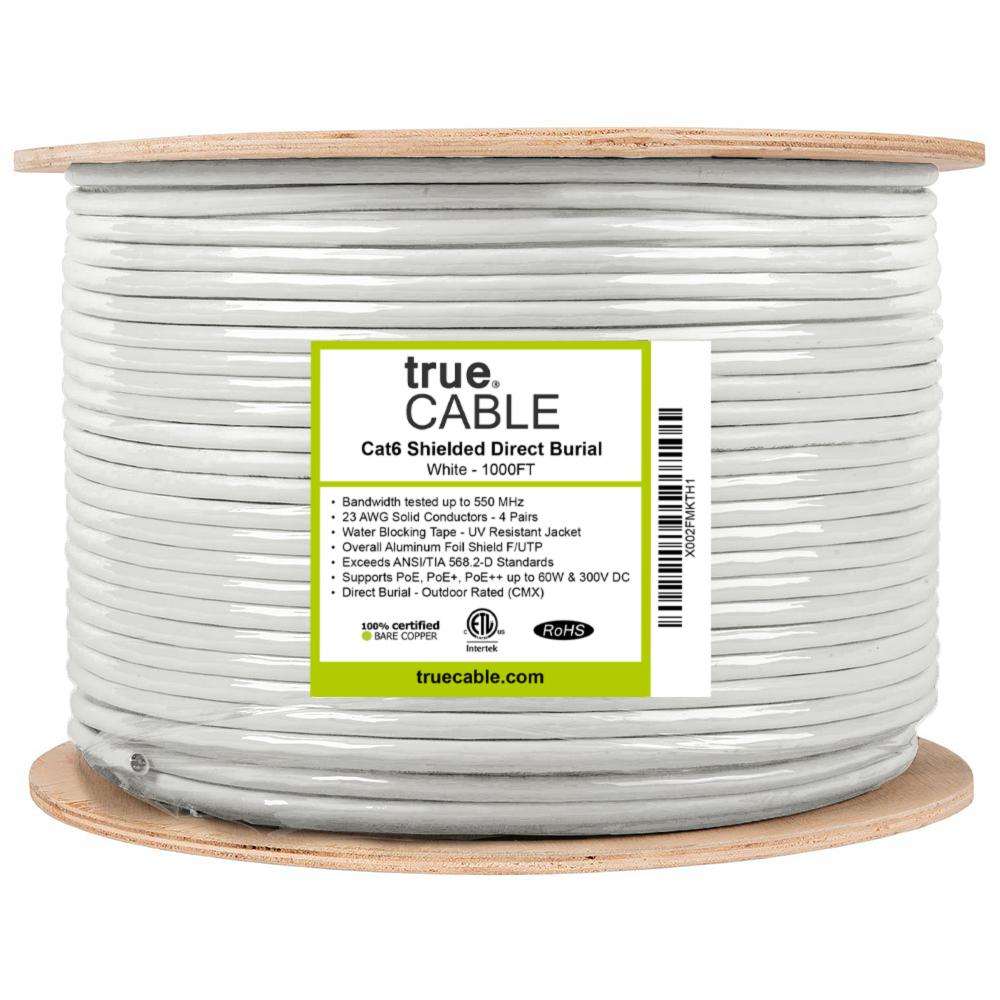

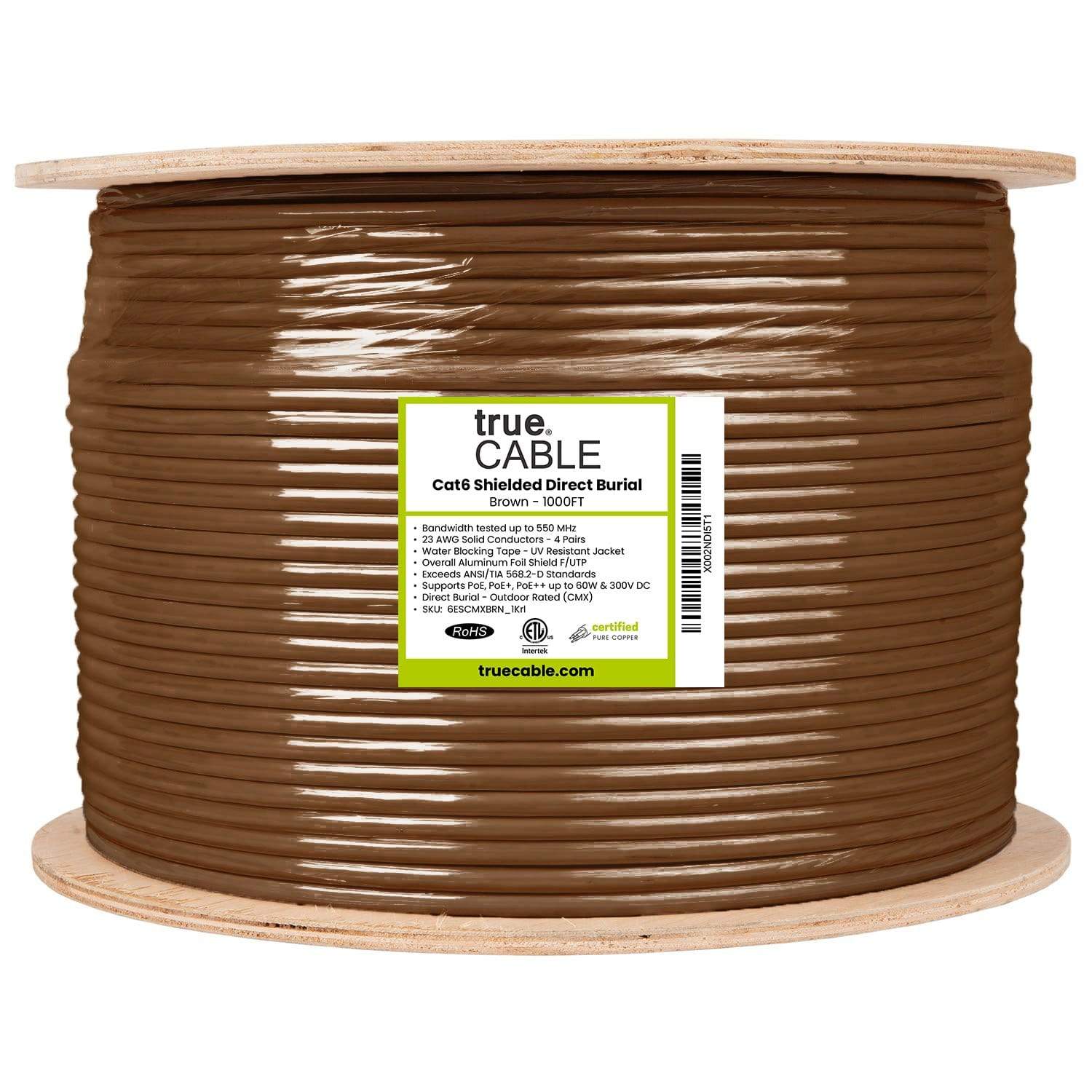

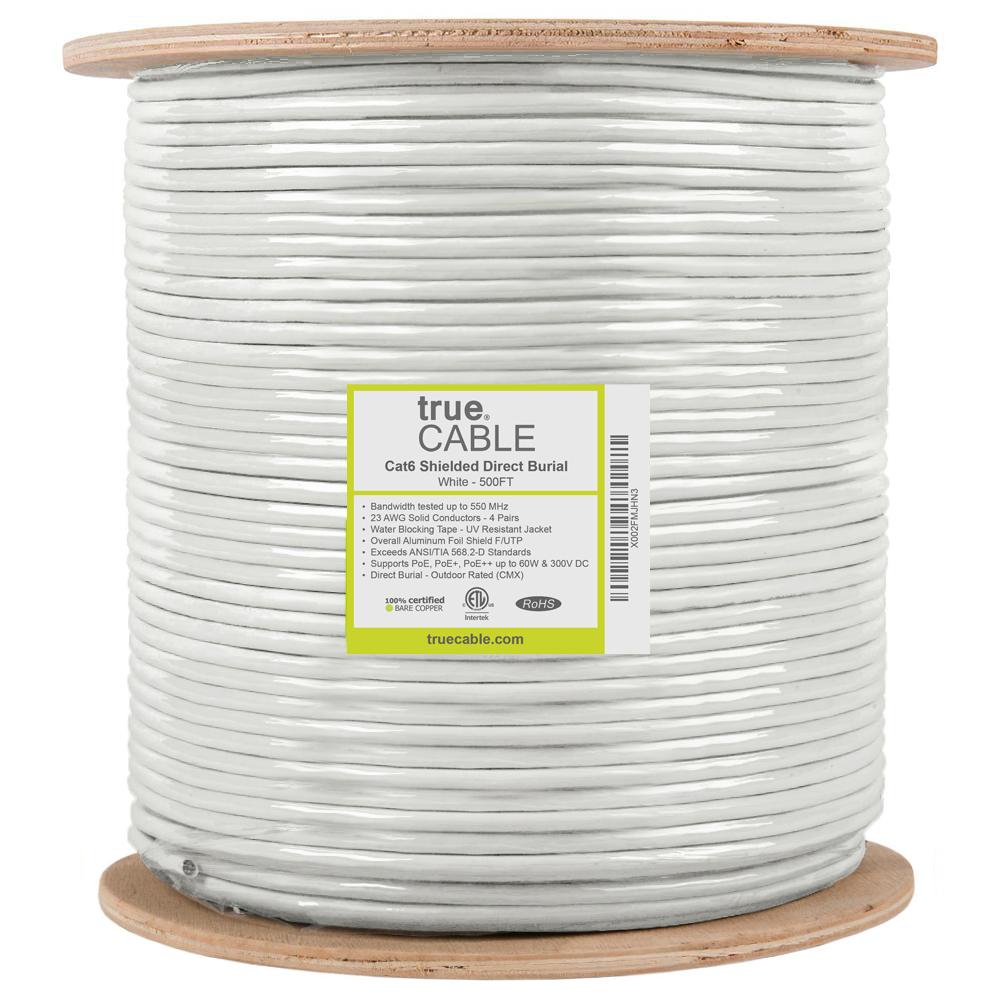

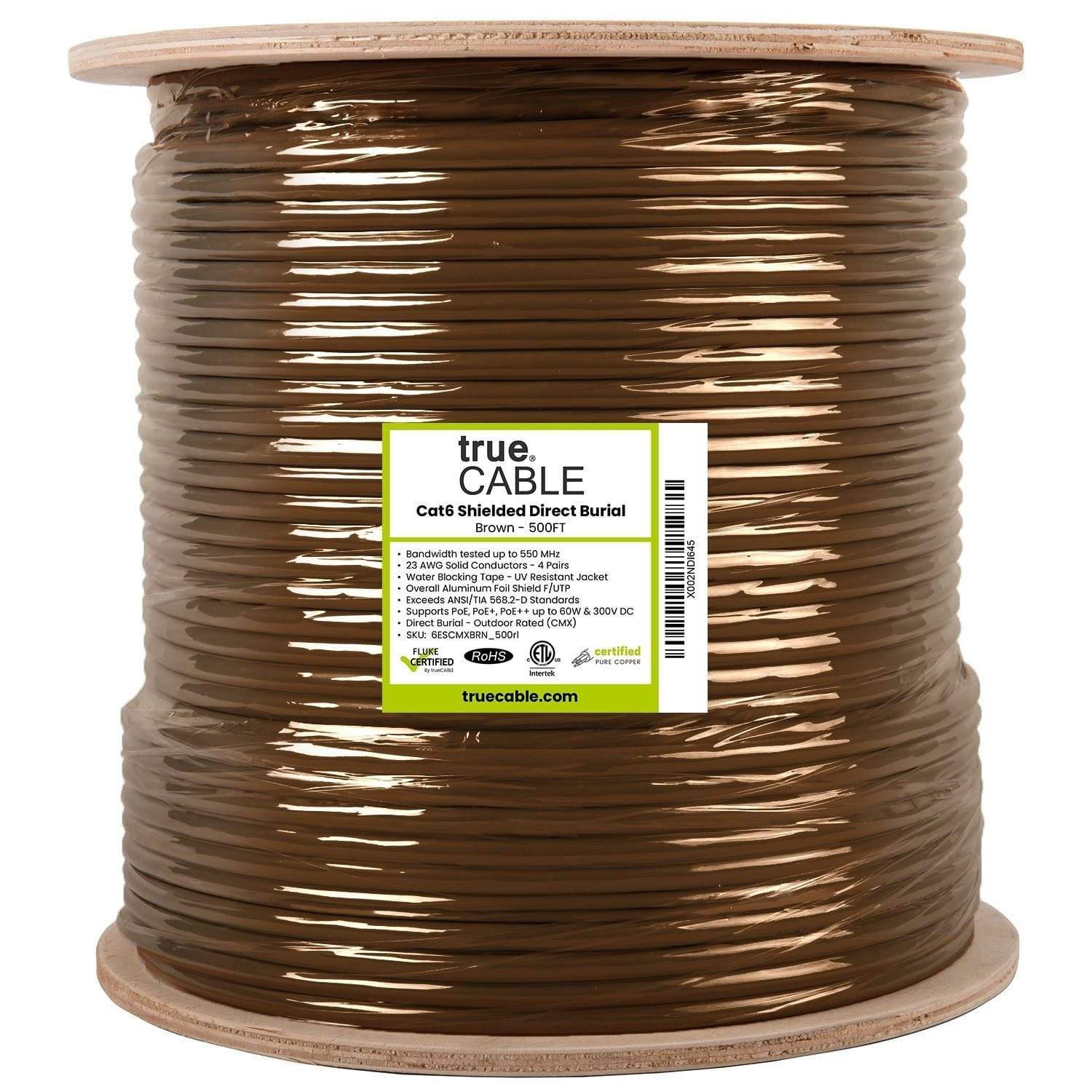

Outdoor Cat6|Shielded

  • 23AWG 4-Pair, solid bare copper conductors
  • Overall aluminum foil shield - F/UTP
  • Bandwidth tested up to 550 MHz
  • Supports PoE, PoE+, and PoE++
  • cETLus Certified, RoHS-3 Compliant

$199.99 199.99

Buy 10 or more each save 5%

Buy 25 or more each save 10%

Ships Same Day - Order by 3pm CT
100% Solid Copper Conductors
Outdoor Rated
  • The CMX jacket is designed to withstand sunlight, dirt, snow, and moisture.
  • Suitable for direct burial with or without conduit.
  • Water blocking tape provides ultimate moisture protection for outdoor use.

Optimum Performance

  • Suitable for 1 Gigabit and 10-Gigabit Ethernet up to 165ft depending on the installation environment.
  • Bandwidth tested up to 550 MHz
  • Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) up to 60W and 300V DC.

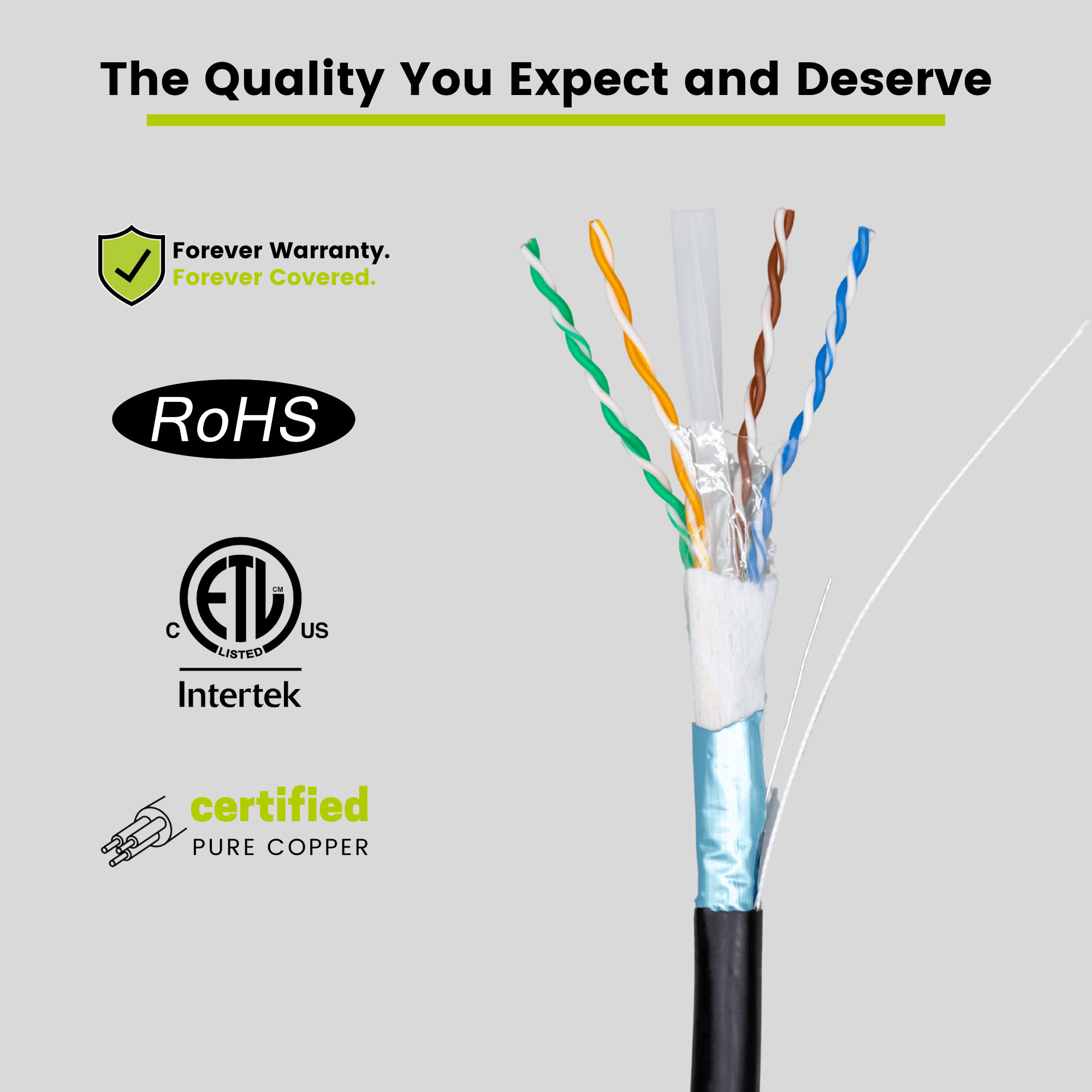

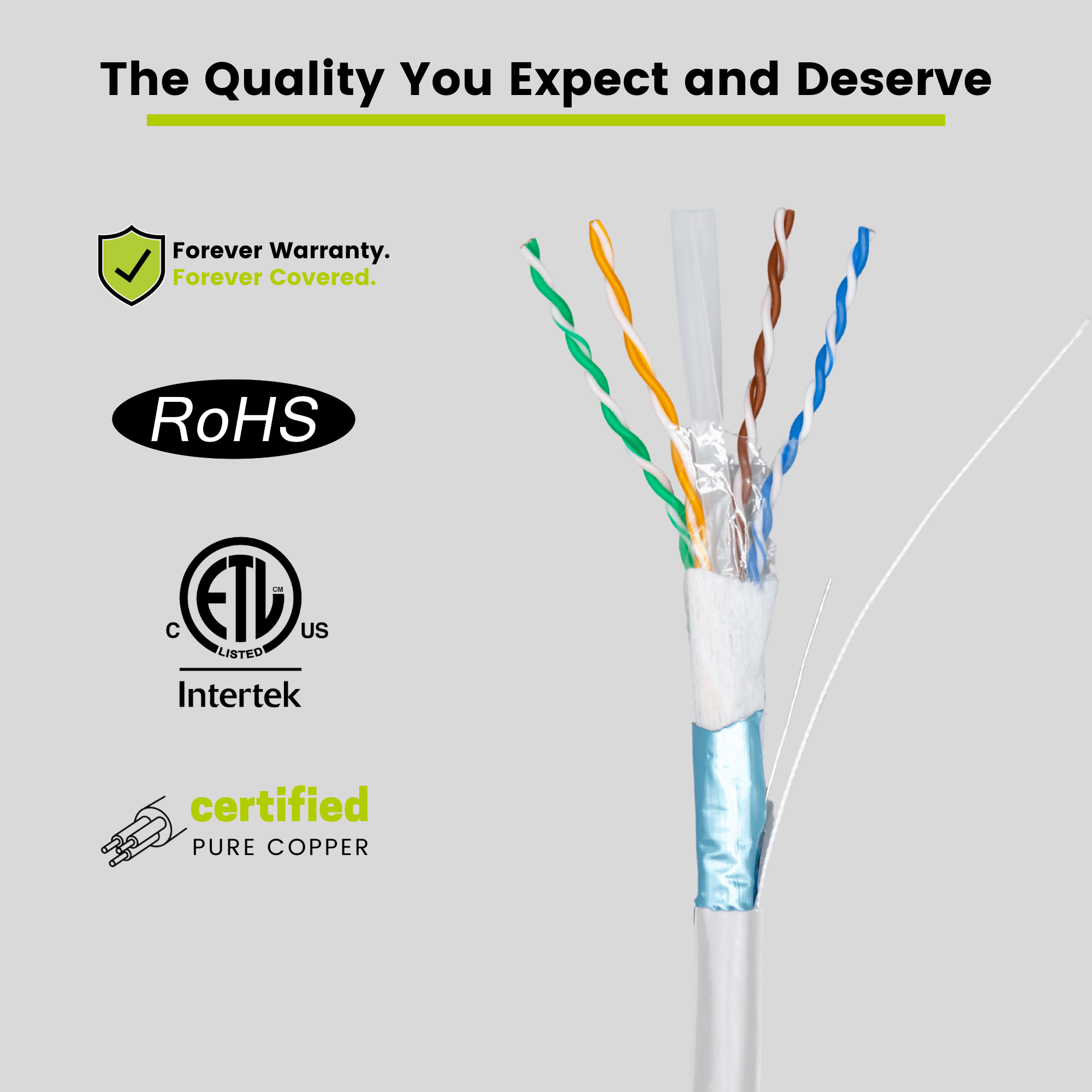

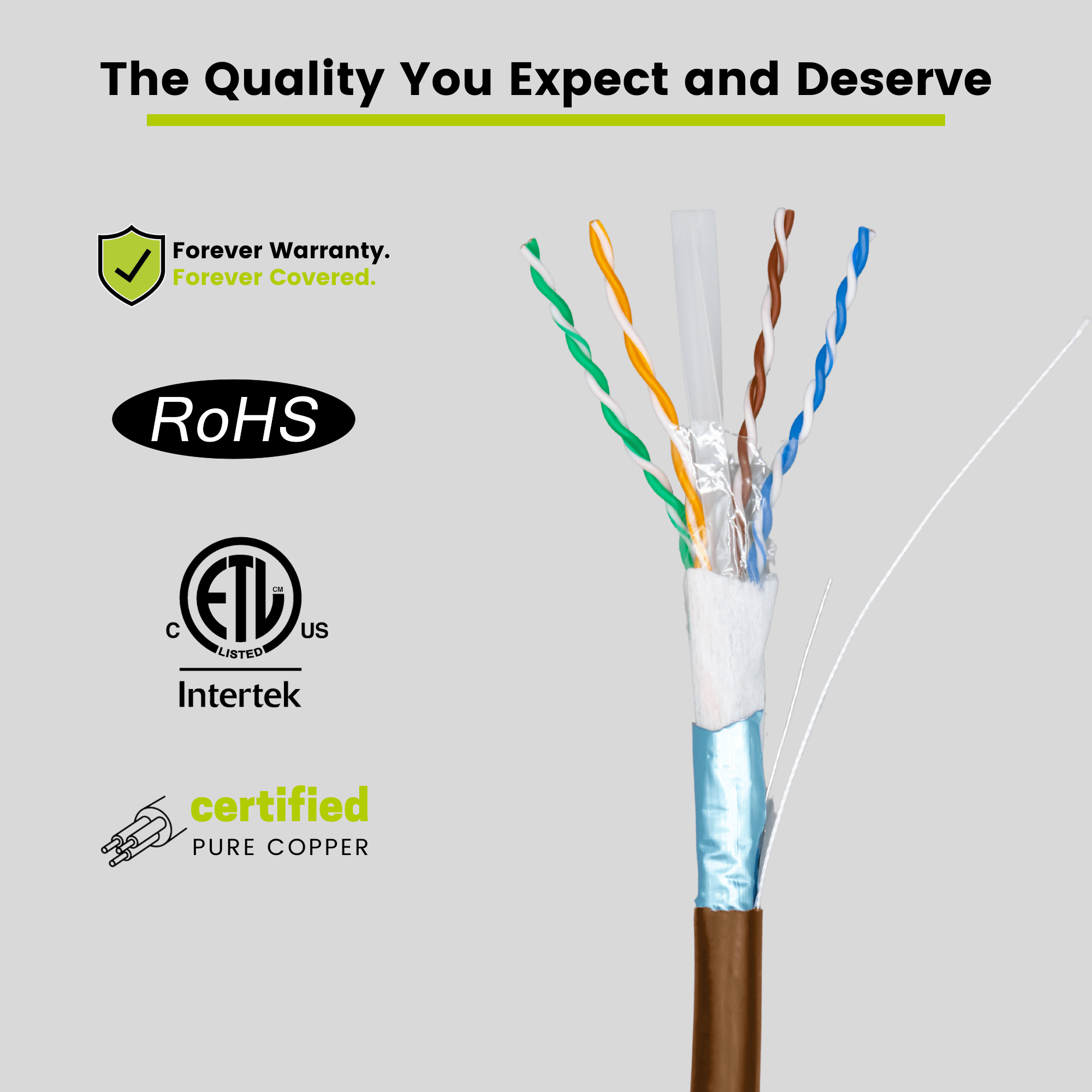

  • The overall aluminum foil shield helps eliminate cross-talk and prevents electromagnetic interference, otherwise known as EMI.

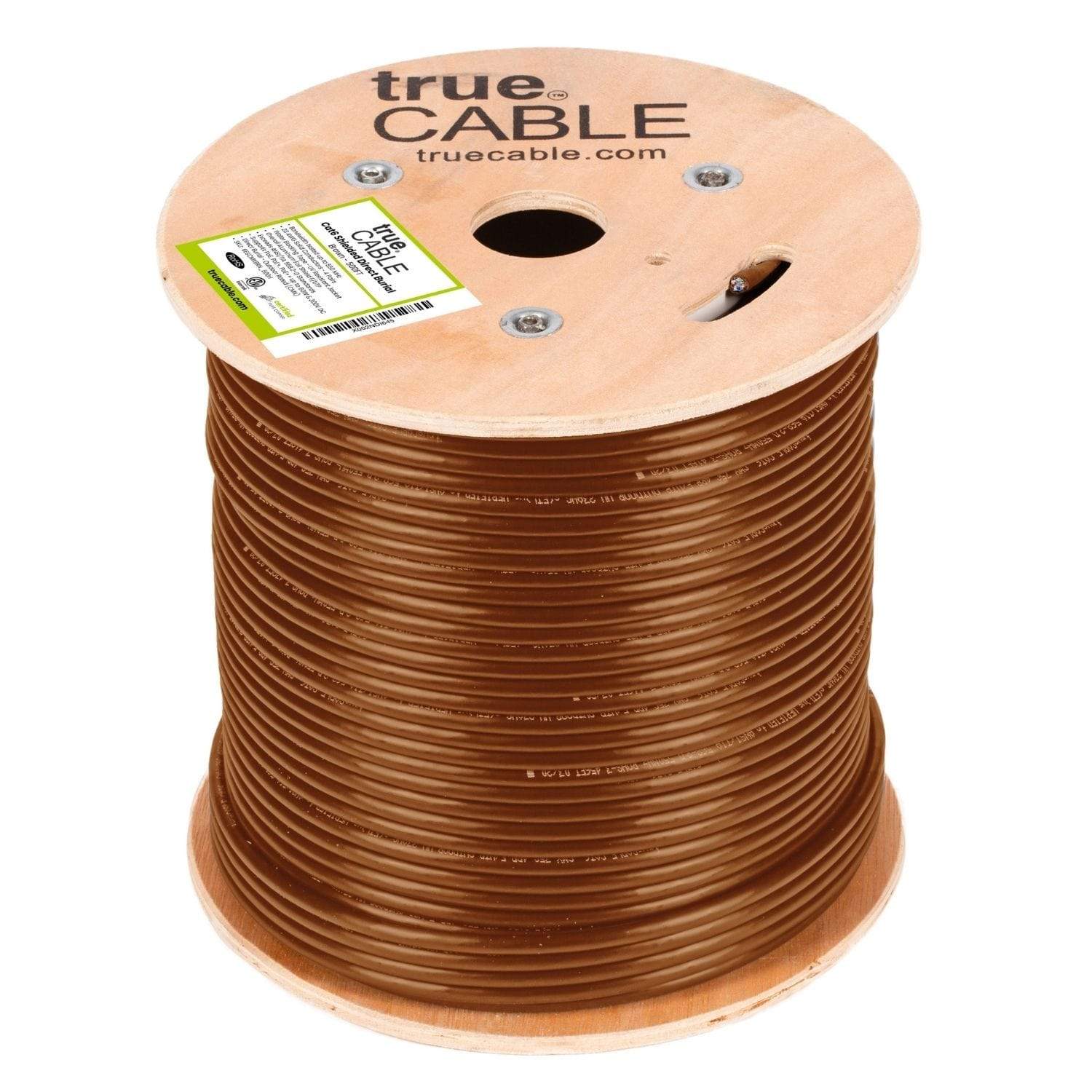

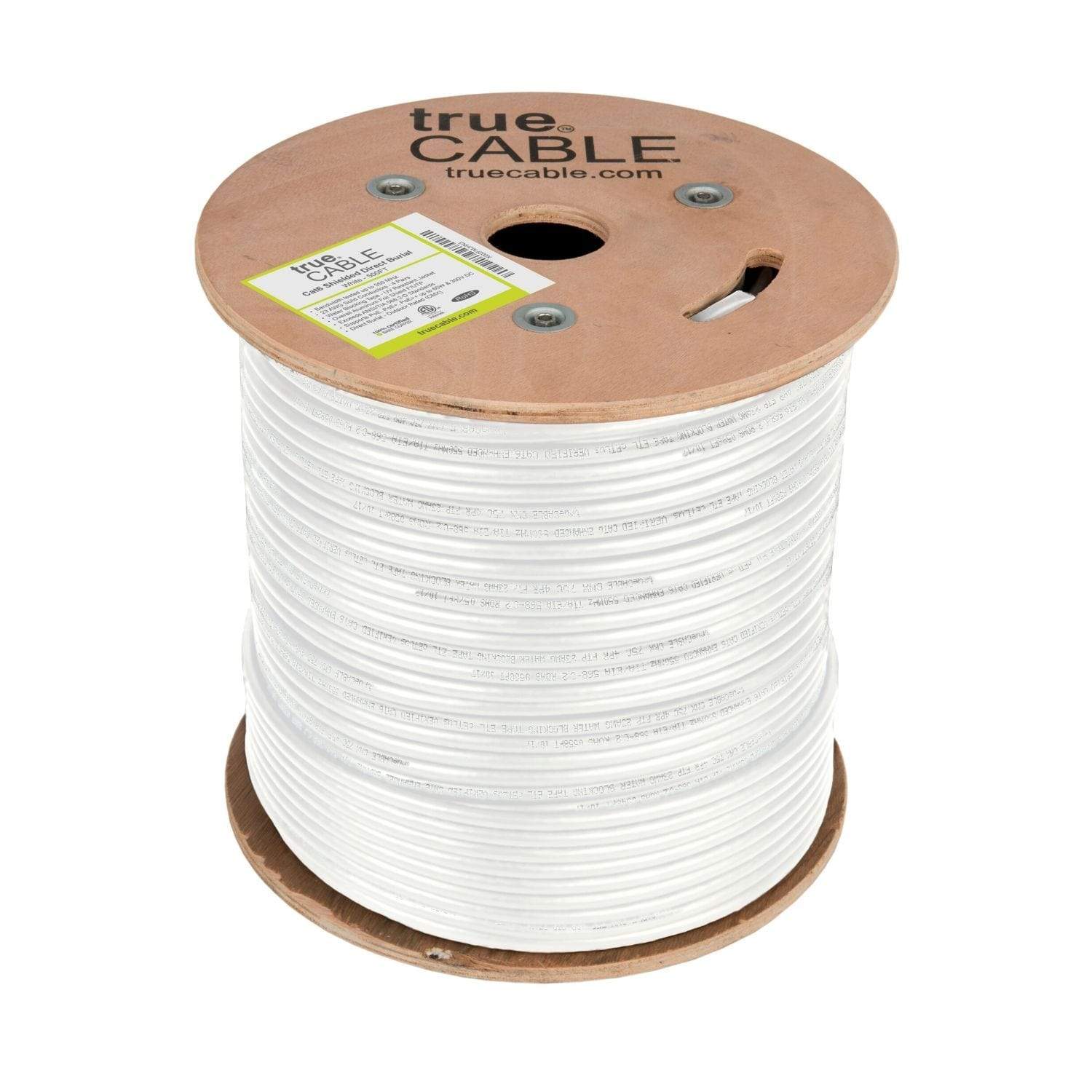

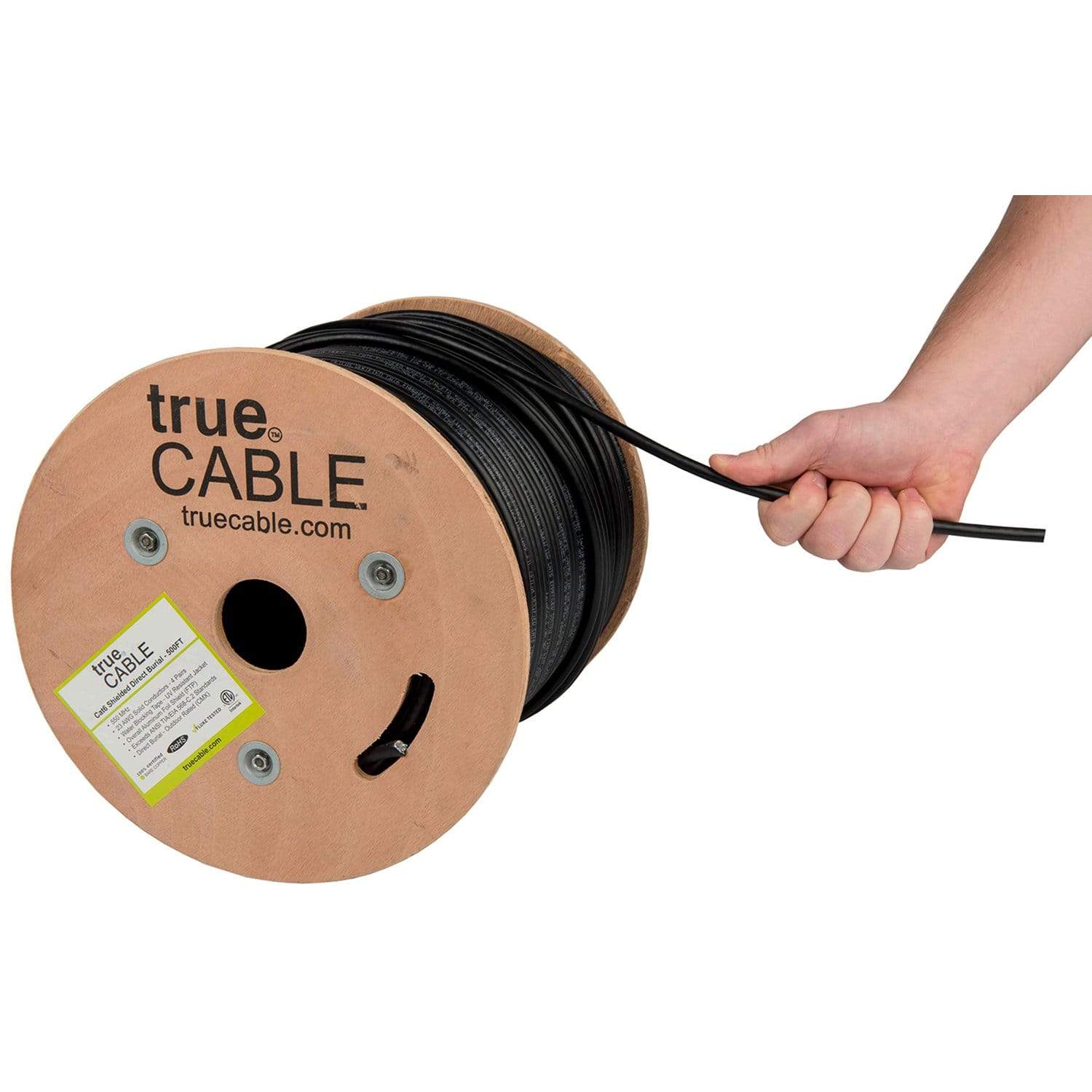

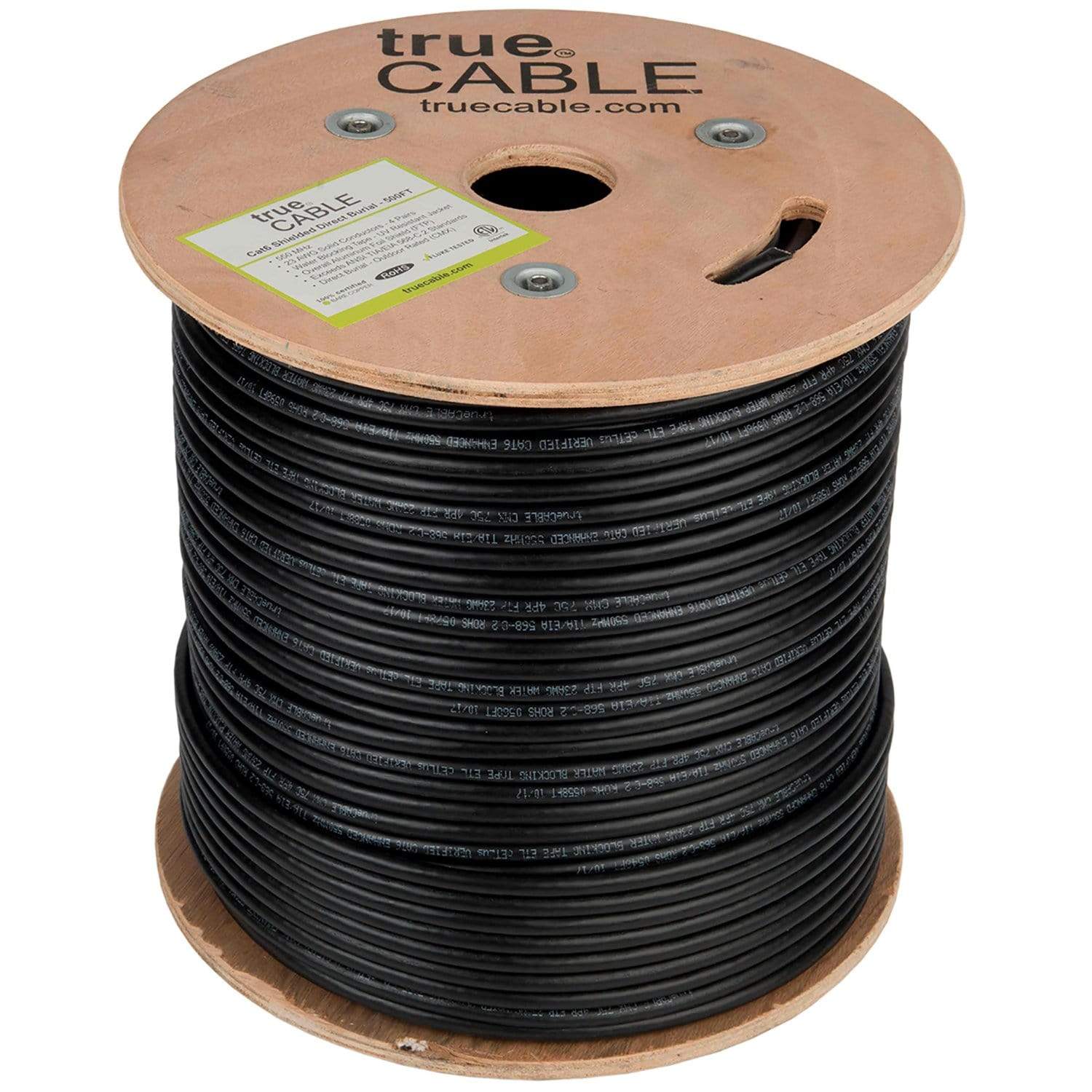

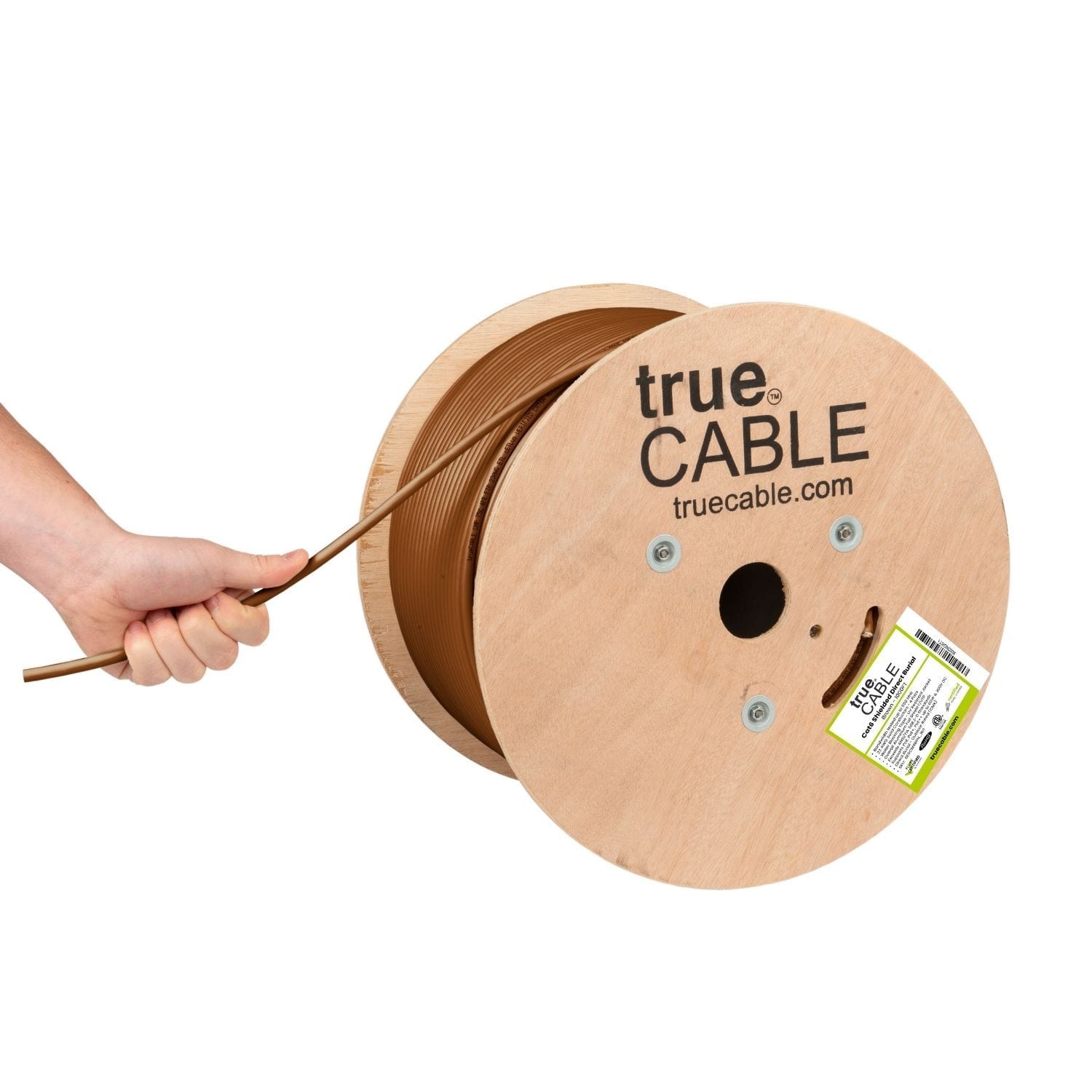

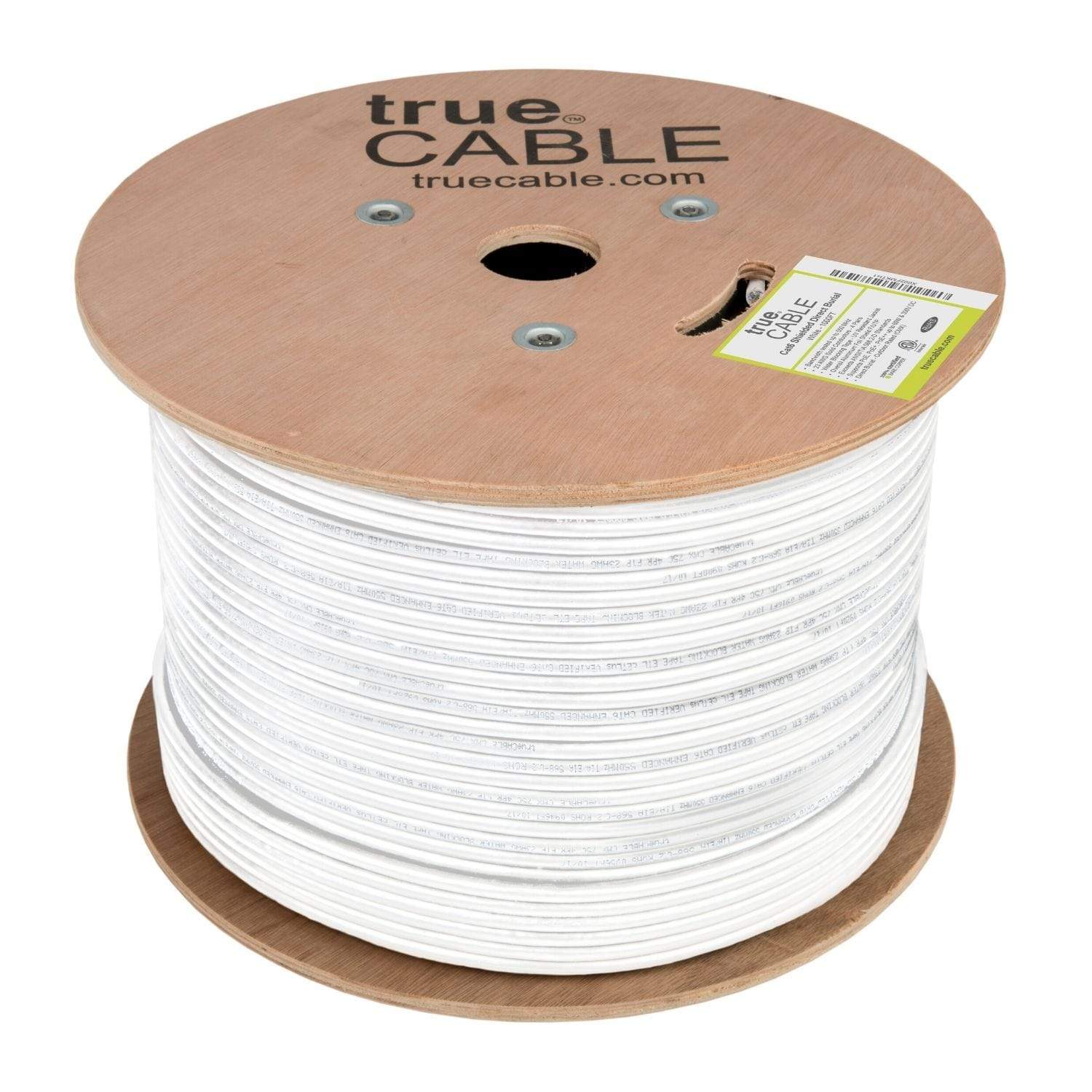

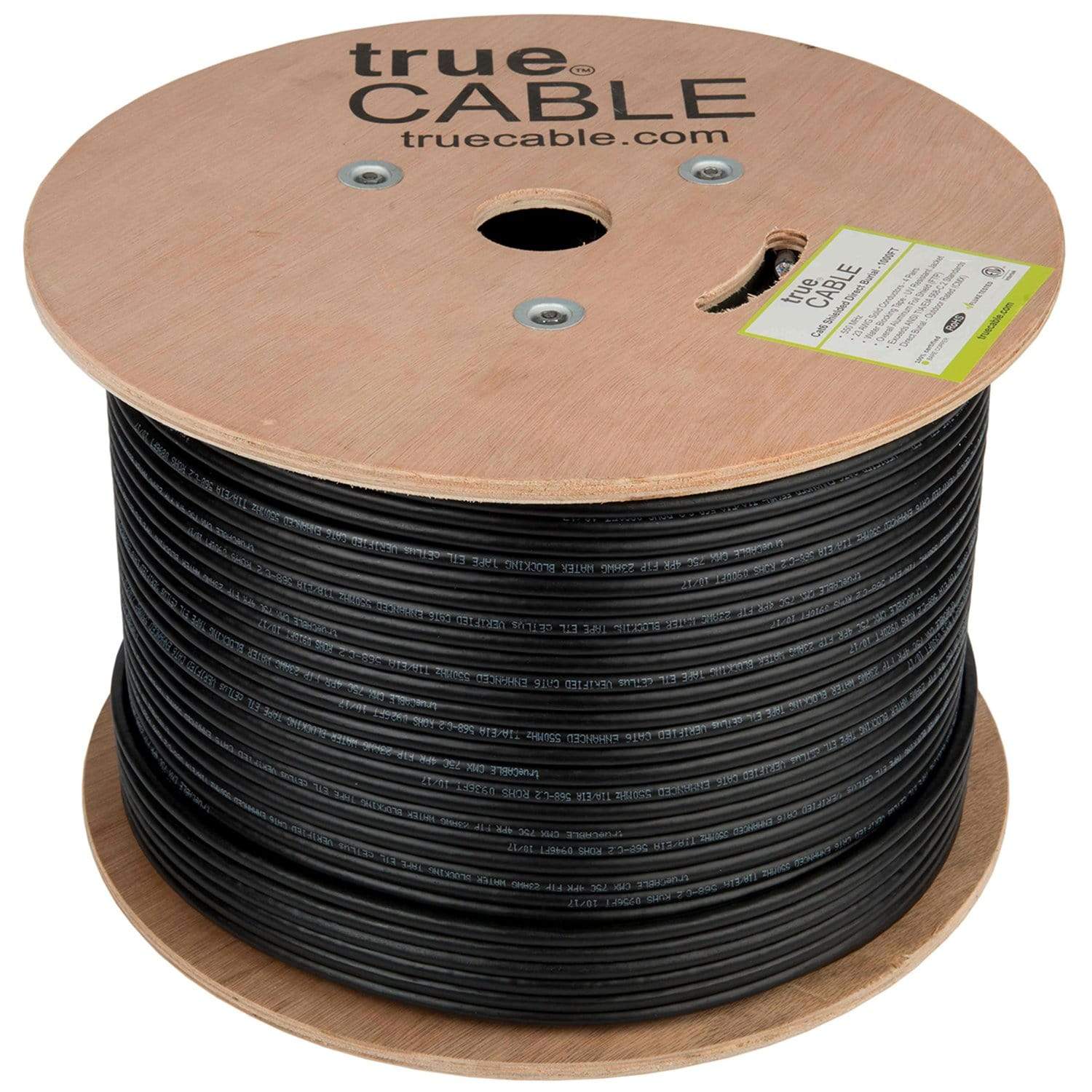

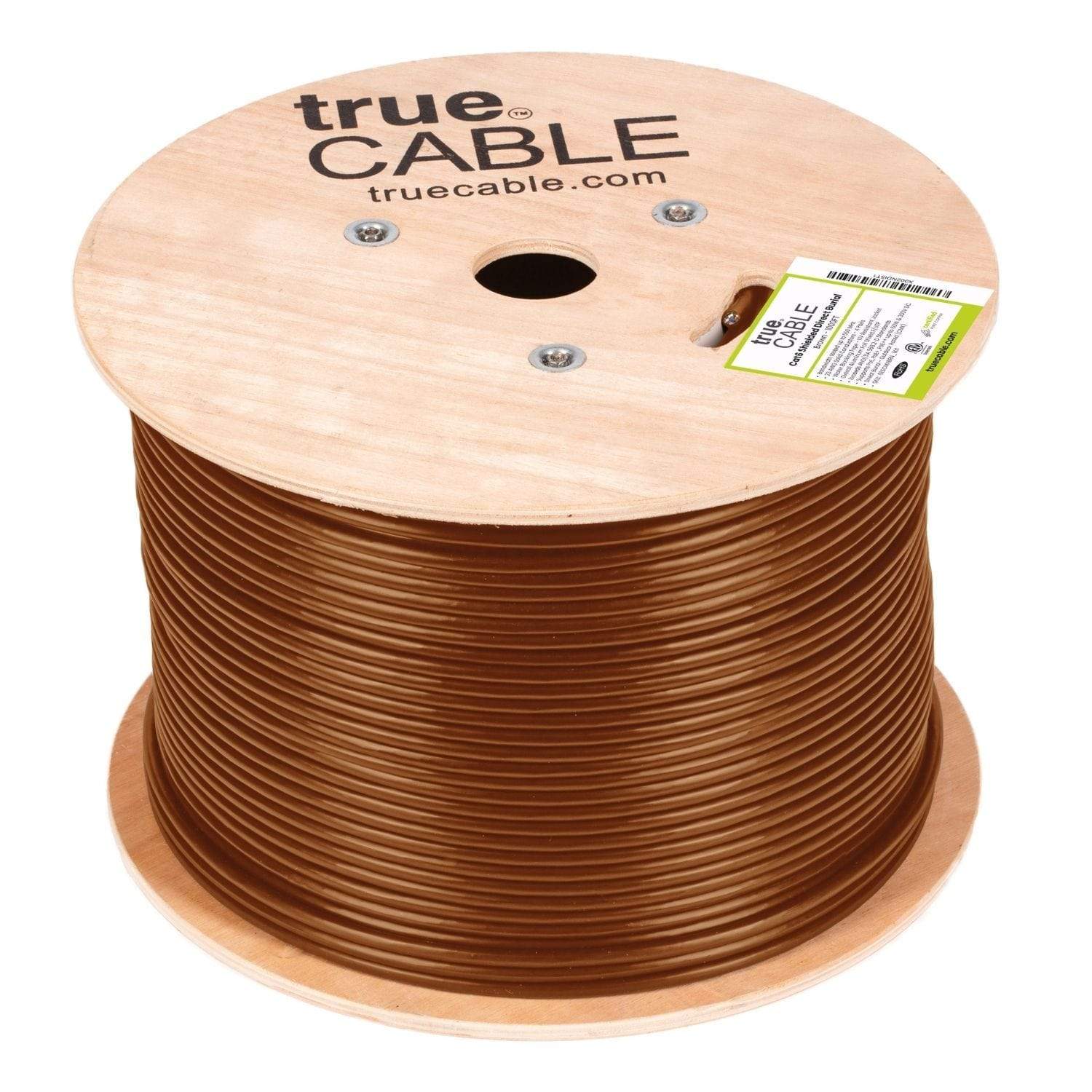

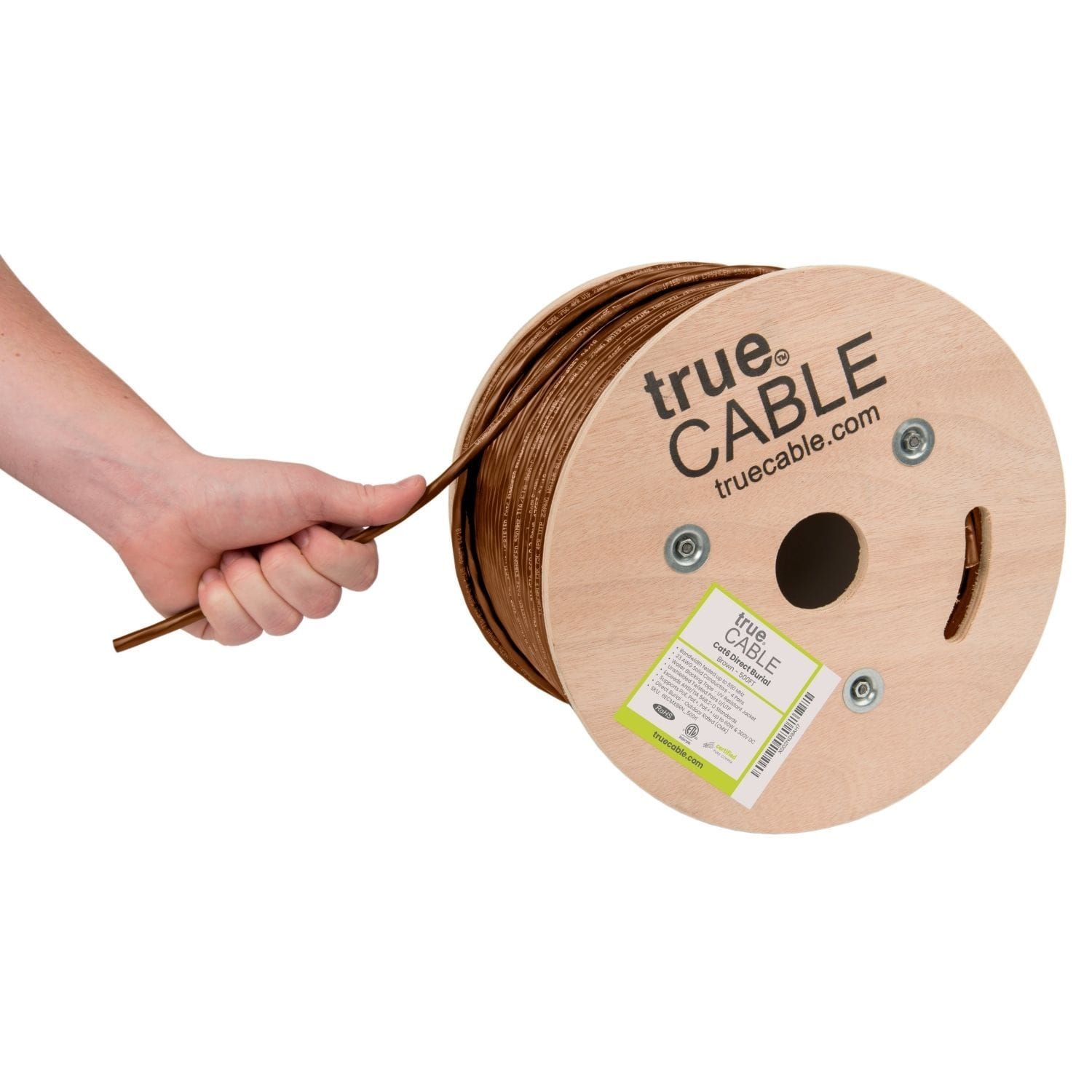

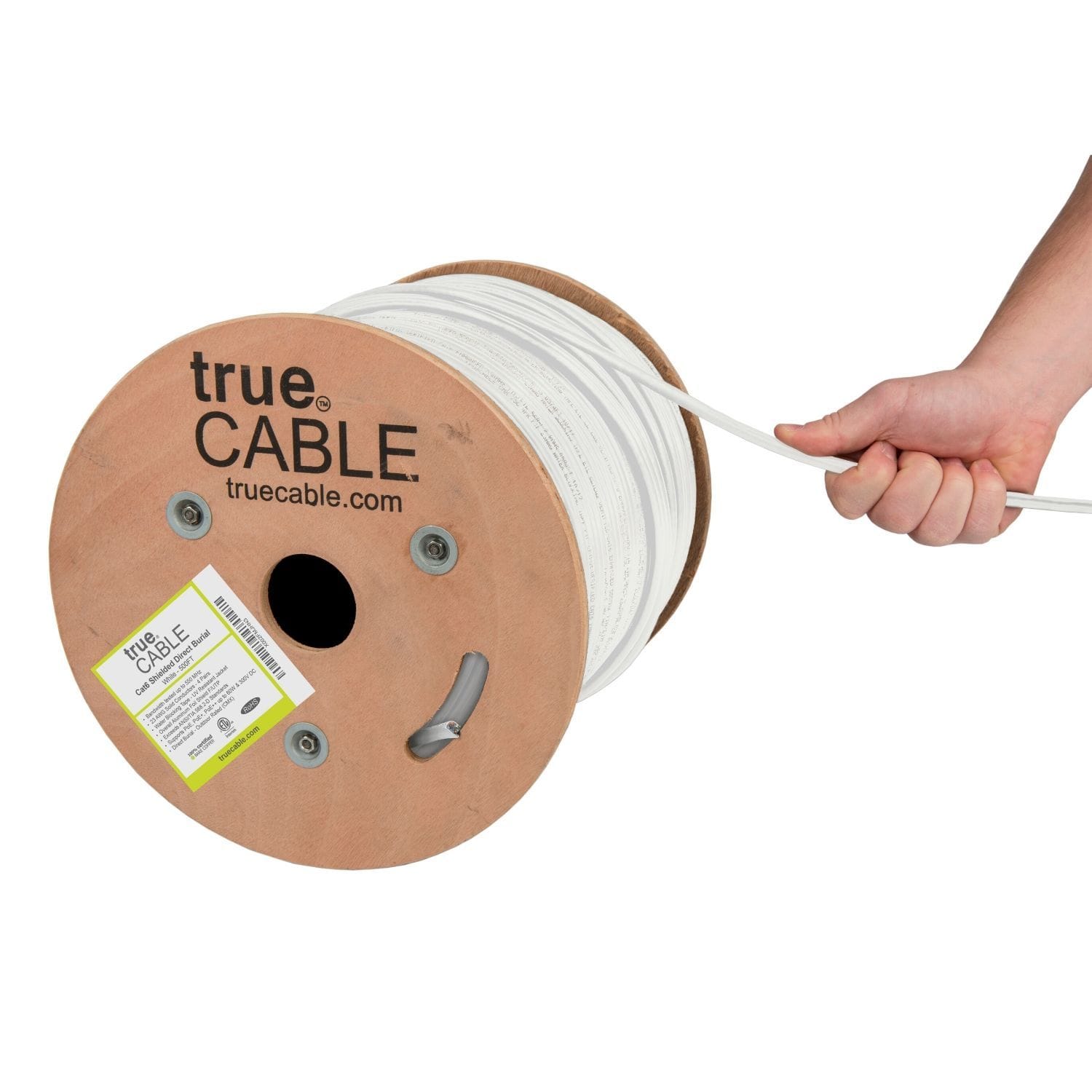

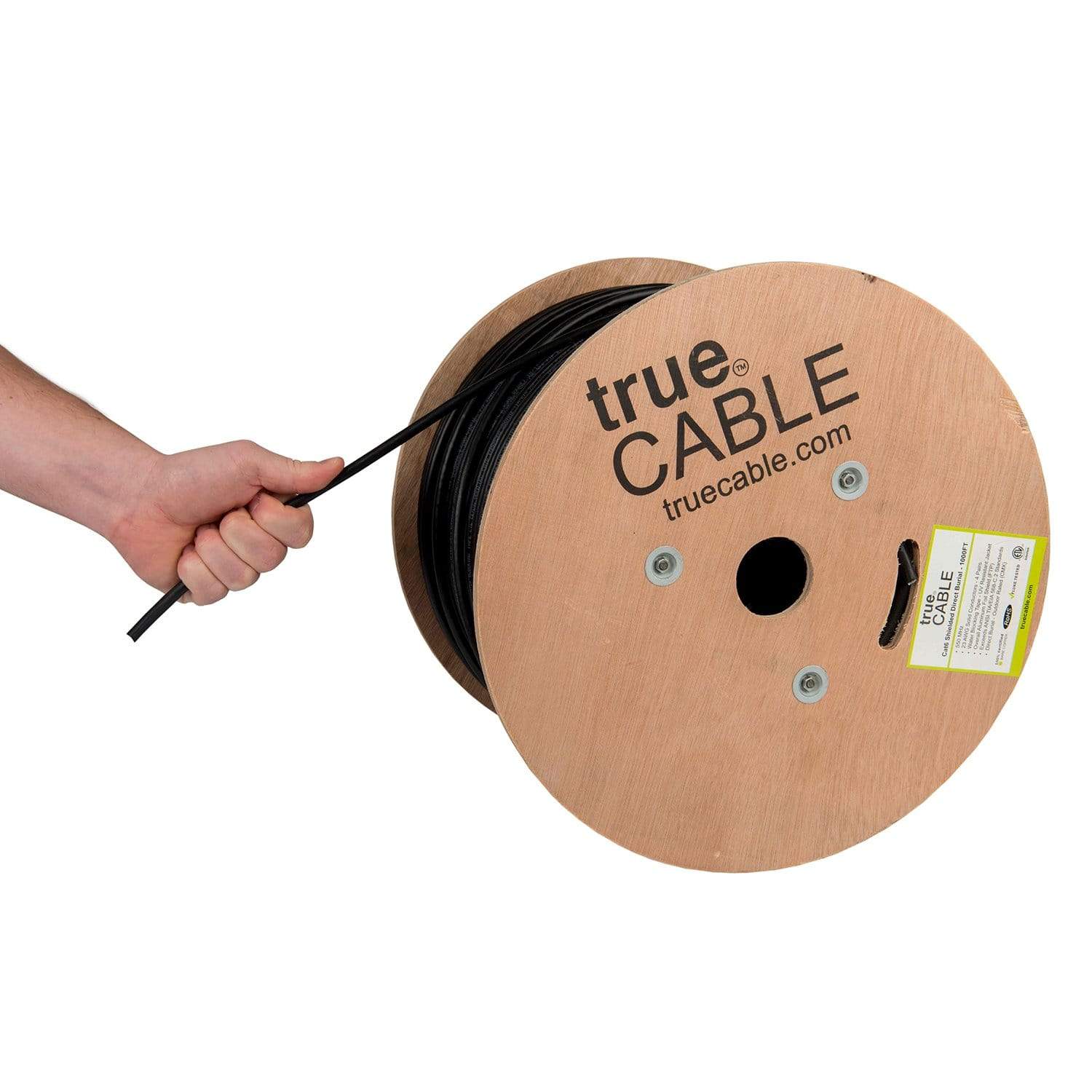

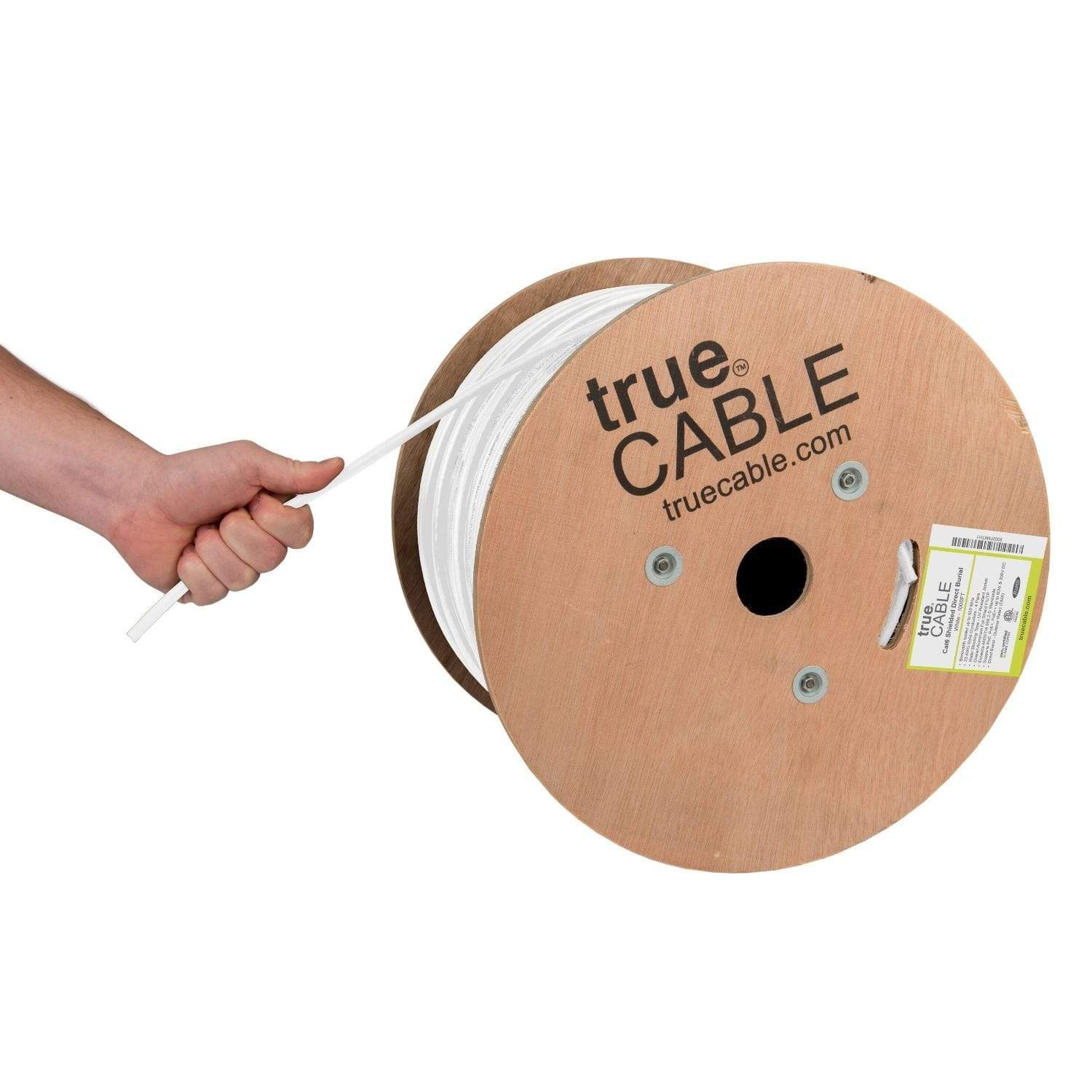

  • Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left on the EZ Pull Reel.
  • Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

    Compatability Counts

    • Terminate with shielded Cat6 RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 1.08mm and an overall cable jacket diameter of 7.80mm.

    100% Pure Solid Bare Copper Conductors

    • Complies with UL, ANSI/TIA, and U.S. product safety standards.
    • Bare copper is superior conductor material for data transmission and PoE use.
    • The only industry and governmental approved type of conductor for use in Ethernet networks.
    ✓ FLUKE CERTIFIED by trueCABLE
    • Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
    • Part Number - 6ESCMXBLK_1Krl
    • Operating Temp. Range - 75 C / 167 F
    • Max. Operating Voltage - 300v
    • Conductor Insulation Diameter - 1.08mm
    • Overall Diameter (OD) - 7.80mm
    • Weight - 35.0 lbs
    • Length - 14.5 in
    • Width - 14.5 in
    • Height - 9.5 in
