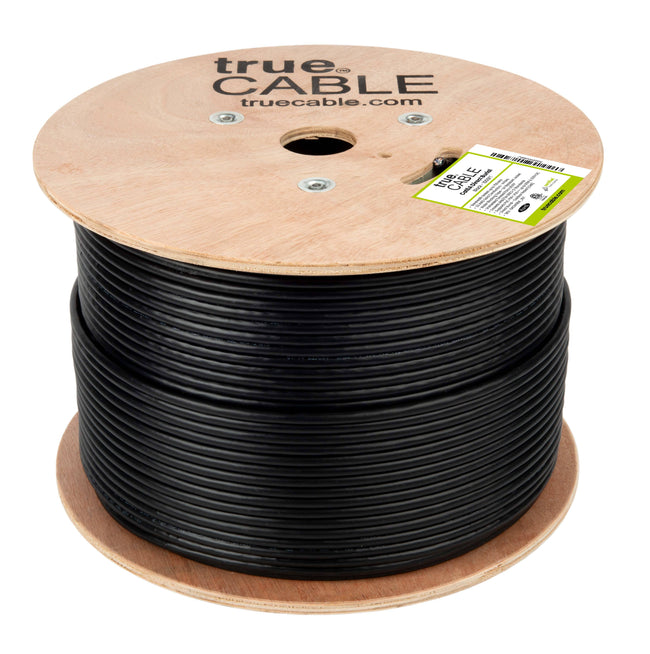

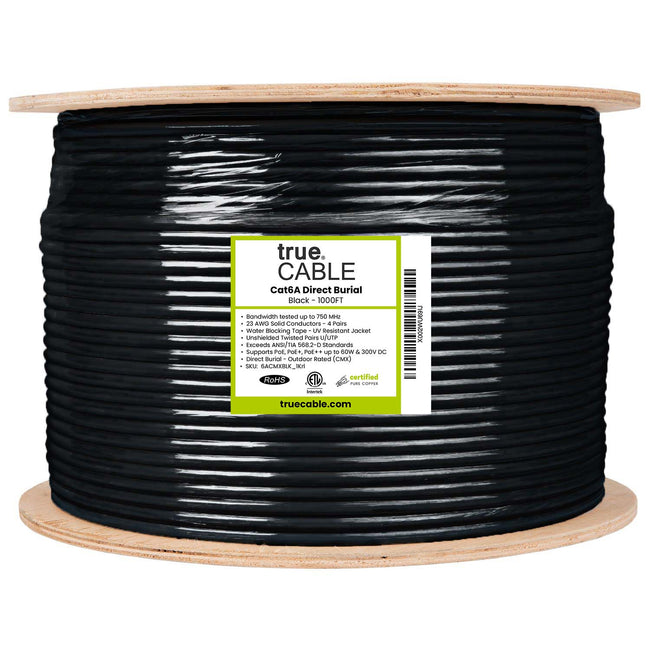

Cat6A Direct Burial Ethernet Cable｜Unshielded

1/4

Description

Extreme Performance

Upgrade your outdoor network with our Cat6A Unshielded Direct Burial Ethernet Cable. Designed for both 1 Gigabit and 10 Gigabit Ethernet up to 328 feet, this cable is bandwidth tested to 750MHz for blazing-fast, reliable internet in any environment. The advanced U/UTP construction and solid bare copper conductors ensure minimal signal loss and interference, even across long runs or in challenging outdoor conditions.

Quality Guaranteed

Our cable features pure 23AWG solid bare copper conductors, offering superior conductivity, signal integrity, and long-term durability compared to copper clad aluminum (CCA). Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

Versatile

The rugged OSP jacket is designed for direct burial and outdoor use, withstanding sunlight, dirt, snow, and moisture. Whether you’re running cable underground, through conduit, or exposed to the elements, this cable is built to last. Perfect for residential, commercial, and industrial networking projects that demand high-speed, reliable connections in harsh environments.

Easy To Use

Each reel comes with sequential footage markings every 2 feet making it easy to measure, cut, and track your cable on the job site. Internal spline resists kinks and helps keep twisted pairs separated for optimal signal quality.

✓ Field Tested, Customer Approved

Our cables are tested with a Fluke DSX-8000 Versiv CableAnalyzer, ANSI/TIA 568.2-E & RoHS-3 compliant. Trusted by professional installers and backed by our FOREVER WARRANTY.

Item Details

Weight	32.6 lb
Length	14.5 in
Width	14.5 in
Height	8 in
Barcode	X002WU69IJ

Specs & User Guides

Download Spec Sheet

Cat6A Direct Burial Ethernet Cable｜Unshielded

Part Number - 6ACMXBLK_1Krl

$307.99

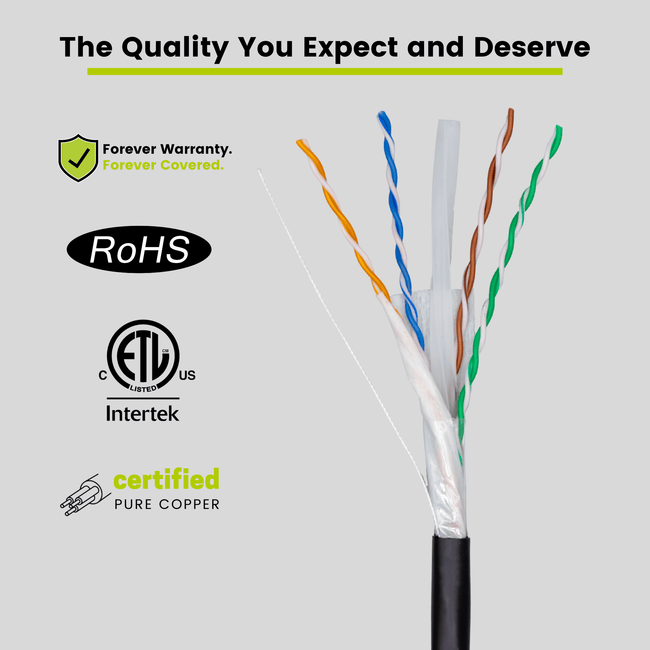

23AWG 4-Pair, solid bare copper conductors
Unshielded twisted pairs - U/UTP
Bandwidth tested up to 750 MHz & 1G & 10G Ethernet up to 328 ft (100m)
PoE/PoE+/PoE++ (IEEE 802.3af/at/bt), 4PPoE up to 100W
6.80mm diameter jacket
RoHS-3 & ANSI/TIA 568.2-E compliant

Color: Black

Length: 1000ft 500ft

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$300.29	2.5%
25-49	$292.59	5%
50+	$284.89	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Extreme Performance

Quality Guaranteed

Versatile

Easy To Use

✓ Field Tested, Customer Approved

Our cables are tested with a Fluke DSX-8000 Versiv CableAnalyzer, ANSI/TIA 568.2-E & RoHS-3 compliant. Trusted by professional installers and backed by our FOREVER WARRANTY.

Specifications

Weight	32.6 lb
Length	14.5 in
Width	14.5 in
Height	8 in
Barcode	X002WU69IJ

Downloads

Download Spec Sheet

Frequently Asked Questions

What's the difference between Cat5e, Cat6, and Cat6A Ethernet cables?

Cat5e, Cat6, and Cat6A solid copper Ethernet cables all support data transmission up to 328 feet but do so at different maximum application speeds. Cat5e supports up to 2.5 Gbps at 328 feet where Cat6A supports up to 10 Gbps at 328 feet, for example.

Is this Cat6A direct burial cable suitable for outdoor use?

Yes, this Cat6A direct burial unshielded Ethernet cable is designed for outdoor use and can also be buried directly in the ground, making it ideal for installation in harsh environments.

Does this cable support Power over Ethernet (PoE) applications?

This cable supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) standards and can handle 4PPoE up to 100W DC, making it suitable for powering devices with high power requirements.

What certifications does this cable meet?

This product has been tested for IEEE 802.3, ANSI/TIA 568.2, and RoHS-3 Compliance, ensuring it meets rigorous standards for performance and environmental responsibility.

How do I choose the right cable type and quantity for my networking project?

Consider your specific needs, including data transfer speed requirements, cable length, and installation environment. For some help selecting the right cable, see https://www.truecable.com/pages/guided-selling.

What termination methods are compatible with this Cat6A cable?

Cat6A direct burial unshielded Ethernet cable is best terminated with Cat6A rated unshielded keystone jacks and patch panels. If necessary, we also offer tested and compatible unshielded RJ45 connectors for PoE end-point device applications.

What is the bandwidth limit for this cable?

Our Cat6A unshielded direct burial Ethernet cable has been quality tested (in laboratory conditions) to 750 MHz, ensuring stable ANSI/TIA required Cat6A 500 MHz operating bandwidth under all in-field conditions.
