Reliable Performance

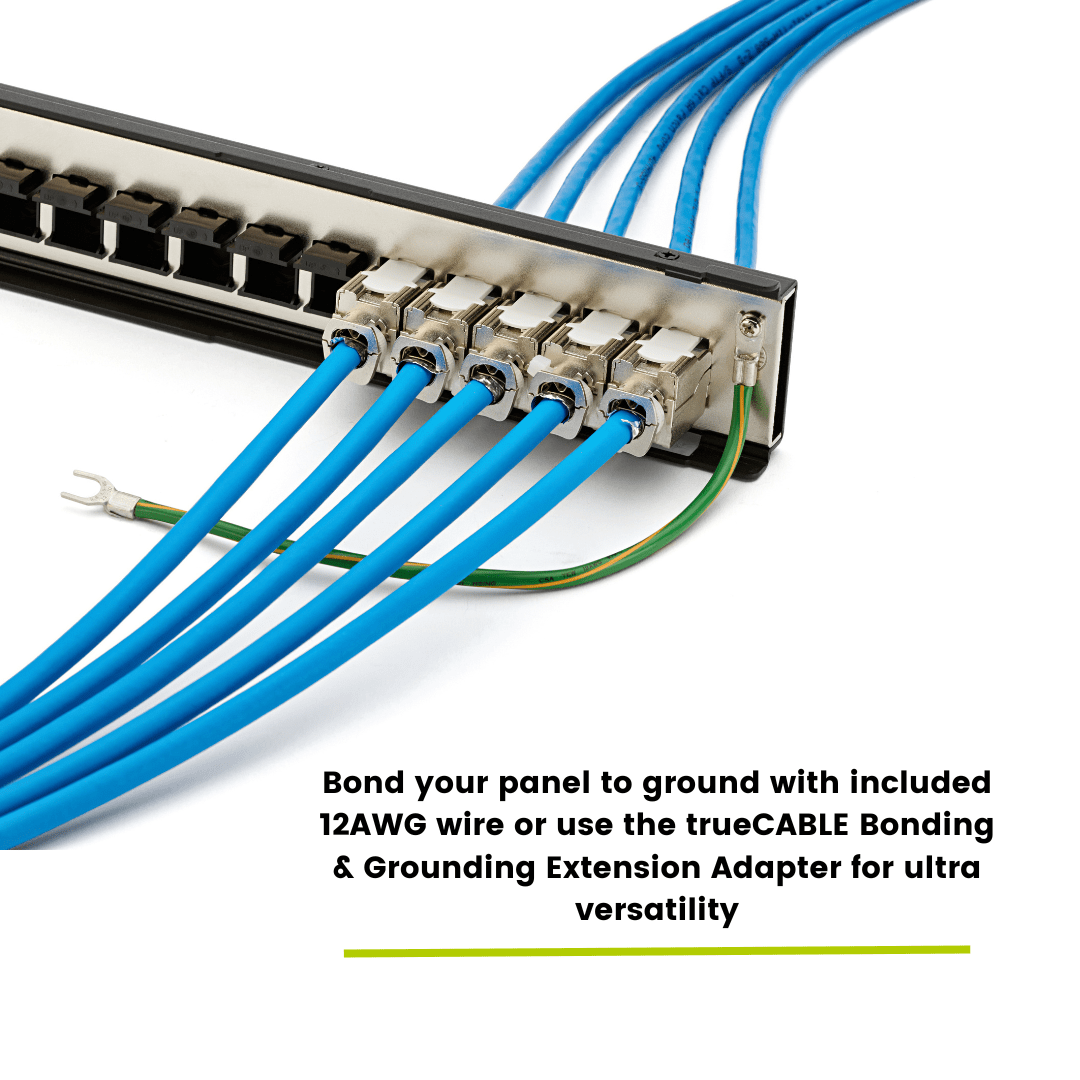

Our 12-port toolless shielded keystone patch panel is designed to provide reliable EMI, RFI, and ESD protection for your network. Shielded Ethernet cables and keystone jacks connect directly to ground using the included 8.80” 12AWG two position bond wire, helping to drain off interference and static discharge for clean, stable signal transmission. For additional flexibility, use our truePLUG Bond & Ground Extension Adapter (sold separately).

Quality Guaranteed

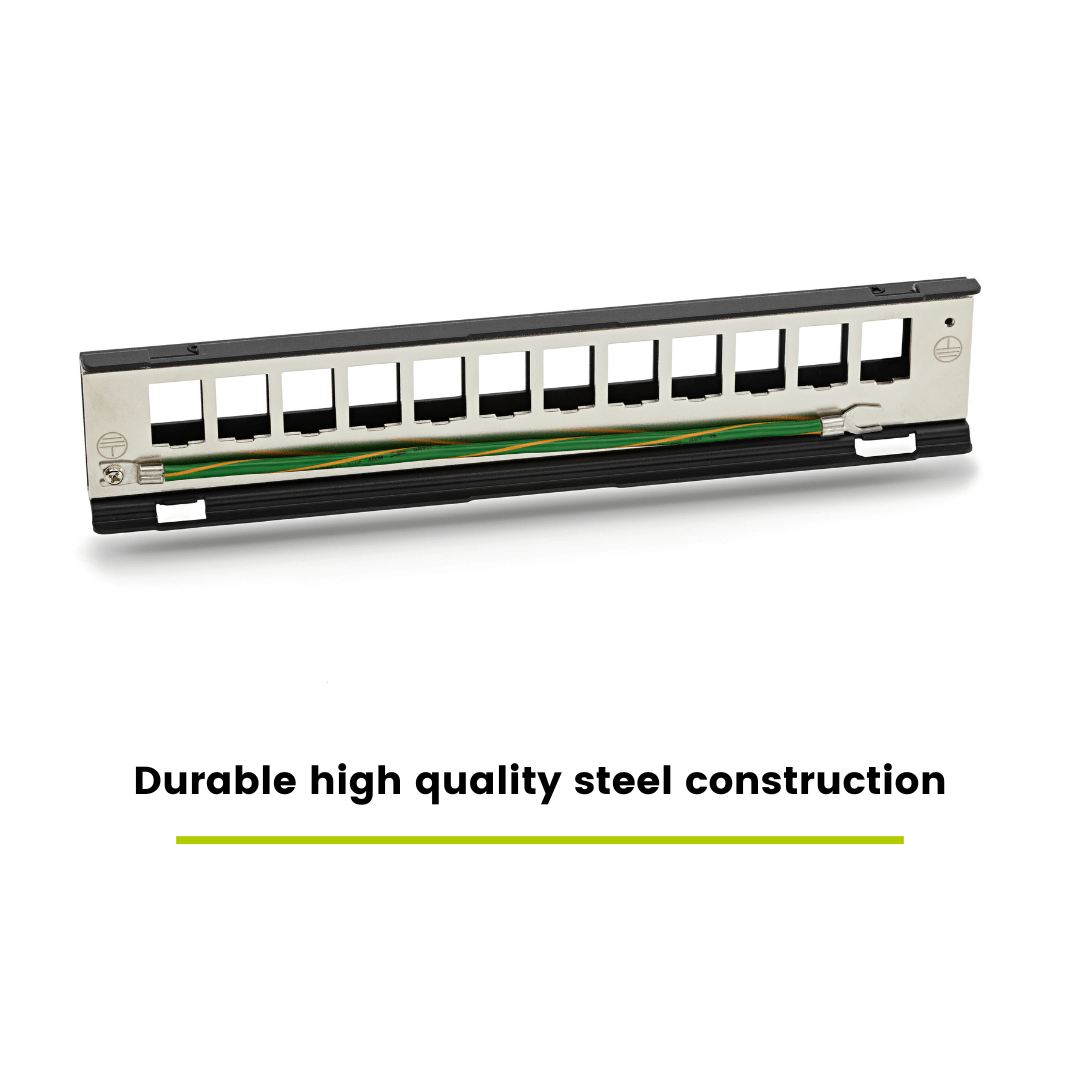

The panel features a SECC nickel-plated steel back and a black powder-coated cold-rolled SECC steel front for strength, durability, and corrosion resistance. The 89D wall mount bracket is constructed from fire-rated ABS UL94V-0 material. Meets EIA-310-E, FCC part 68-F, and IEC 60603-7 standards. It is UL Listed, TAA compliant, and RoHS compliant.

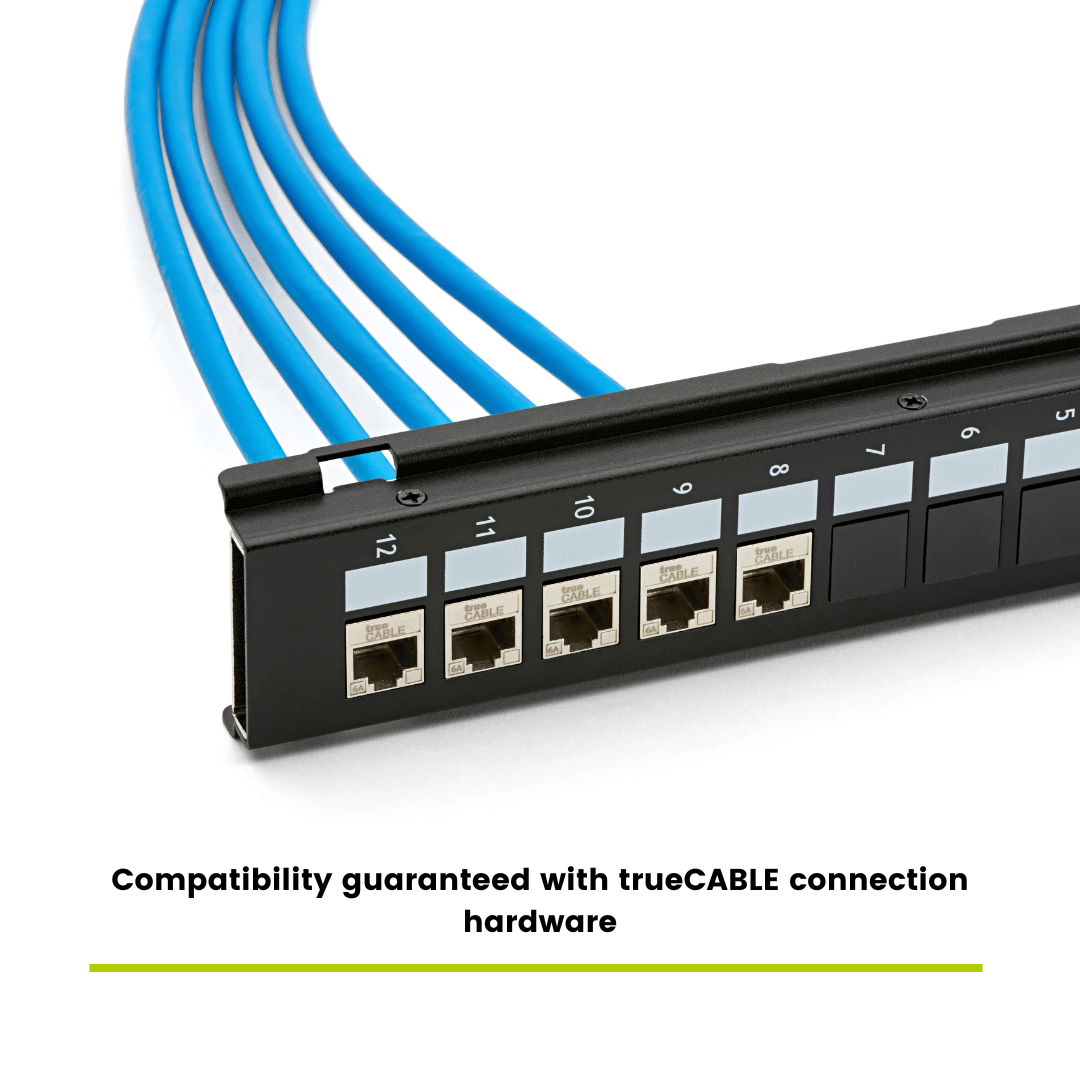

Versatile

Compatible with Cat5e, Cat6, Cat6A, Cat7, and Cat8 shielded keystone jacks, couplers, and shielded Ethernet cable. Also supports Cat5e and Cat6 unshielded keystones and Ethernet cable. Accepts BNC, RCA, HDMI, USB, fiber optic, and snap-in coaxial couplers. Please note: not recommended for 10G+ applications with unshielded Cat6A or higher due to ANSI/TIA 568-2.D ANEXT (Alien Crosstalk) requirements.

Thoughtfully Designed

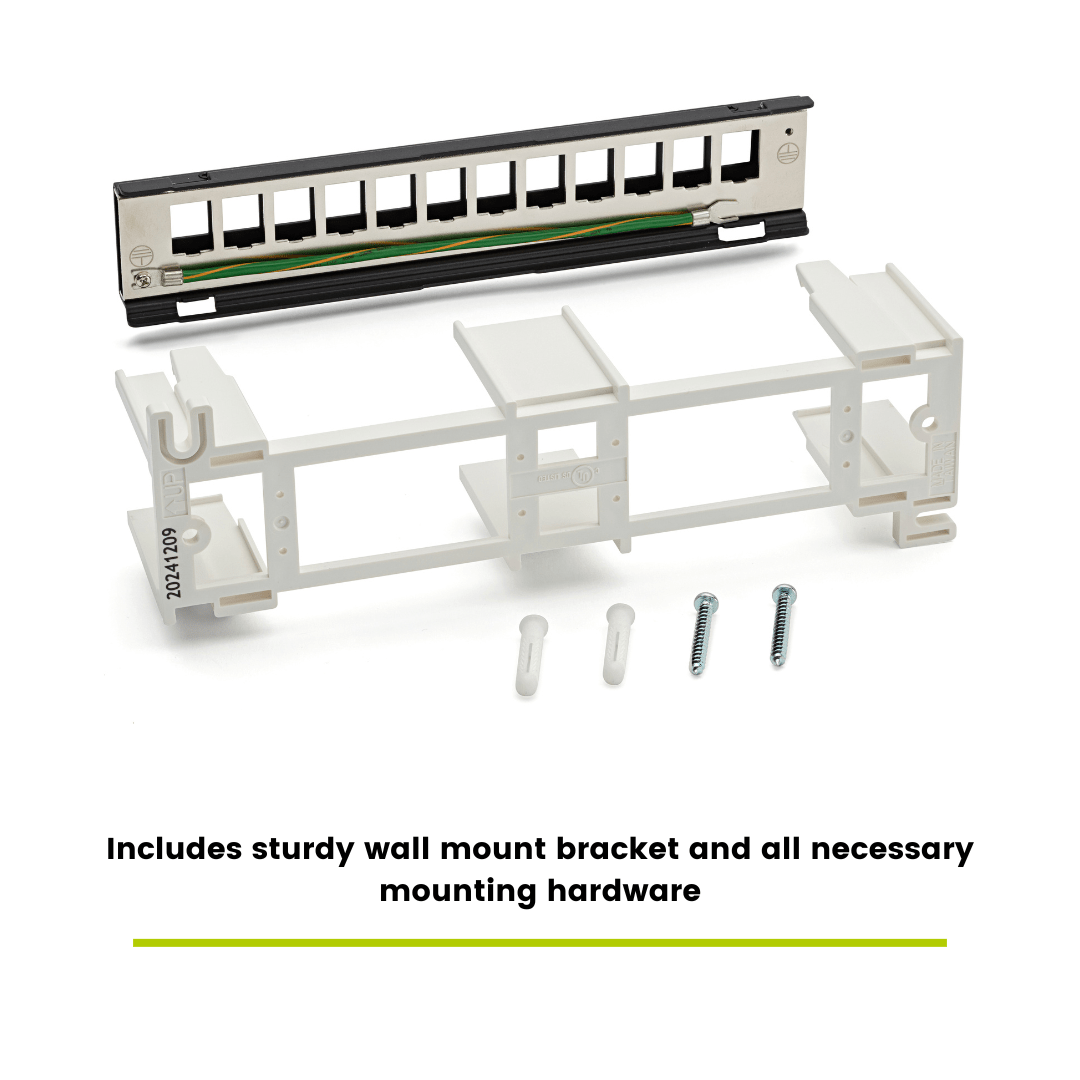

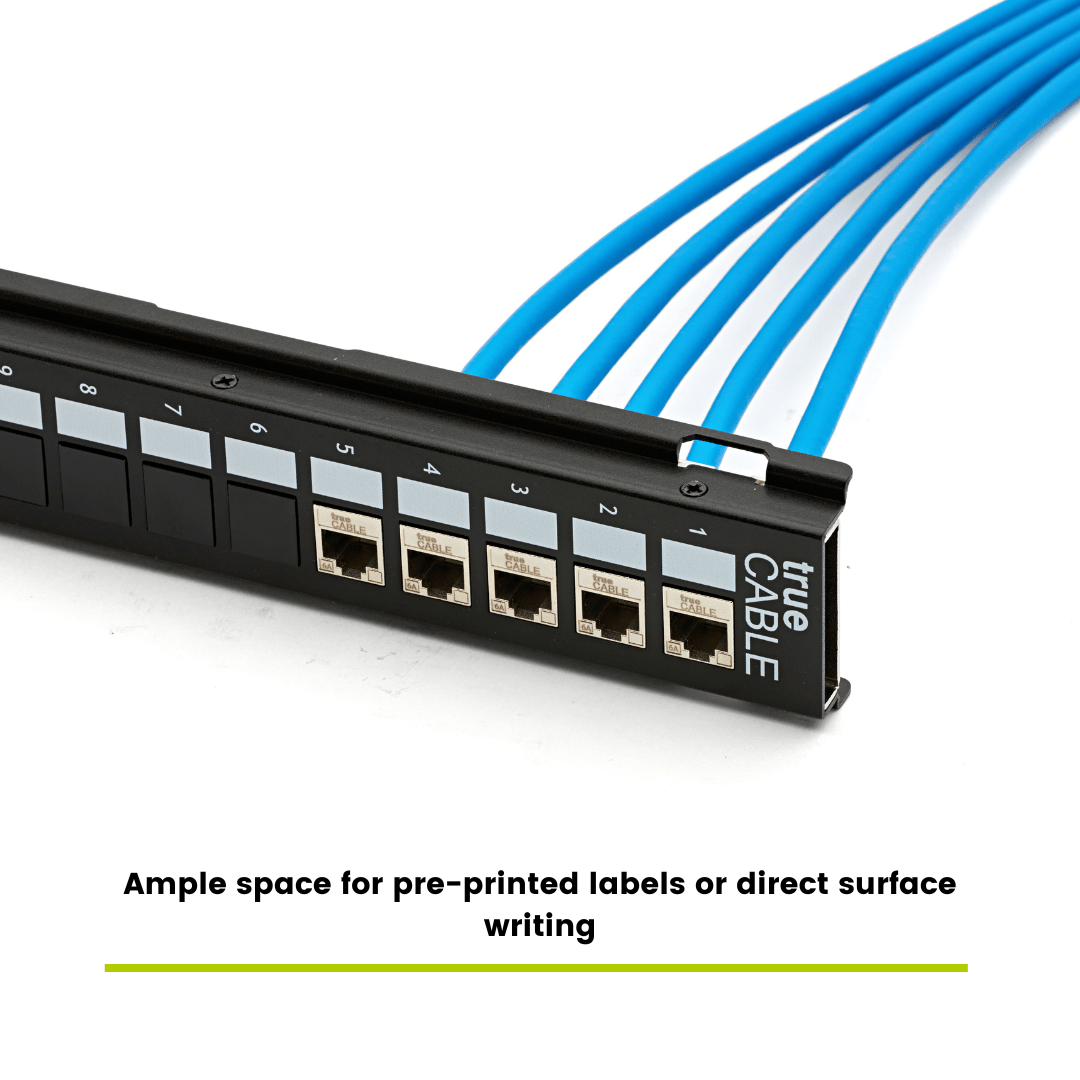

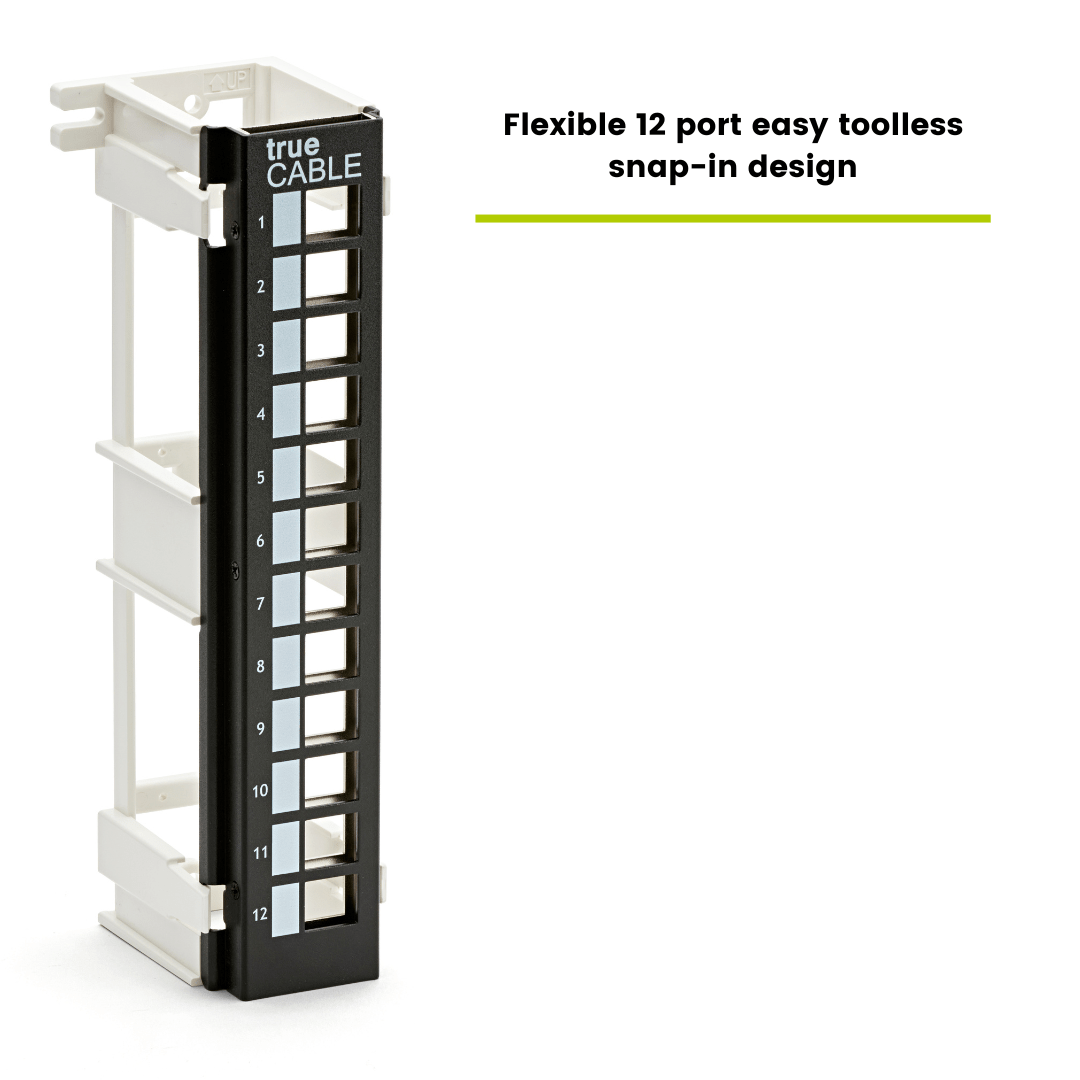

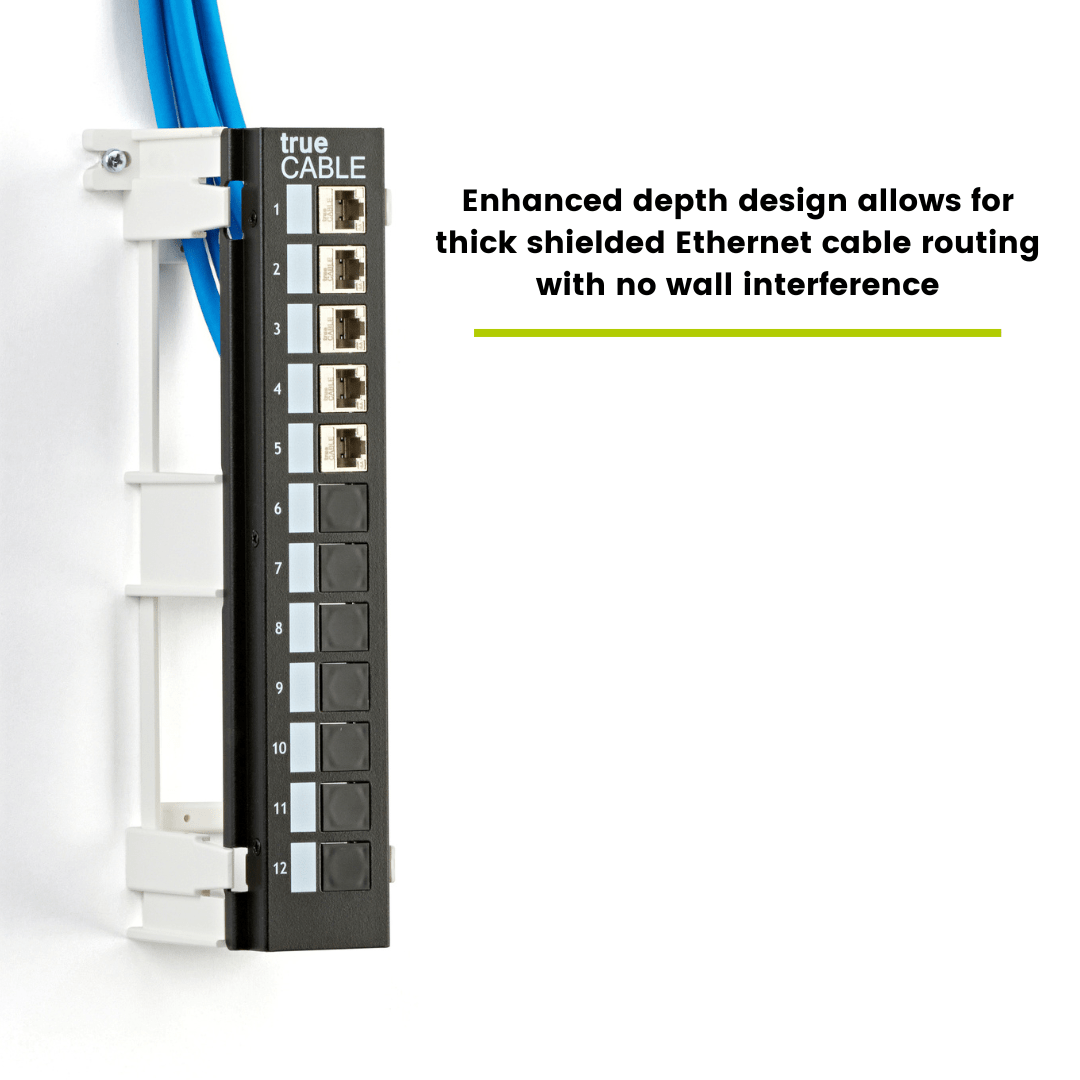

The snap-in 12-port modular layout mounts directly to any wood or drywall surface with no need for a complex rack setup. The panel frame detaches from the 89D bracket for easy installation and maintenance. The depth offset panel supports long shielded keystone jacks (up to 41mm) with thick shielded Ethernet cable while avoiding clearance issues with the mounting surface. Two-position bond wire attachment offers flexible grounding and individually numbered ports provide space for permanent labels or write-on identification. The Panel with 89D bracket measures 9.96” tall by 3.14” deep by 3.37” wide. Supplied with (two each) drywall anchors and screws.

✓ Field Tested, Customer Approved

Our 12 port toolless shielded modular patch panel has been thoroughly field tested by real installers for reliable performance. Meets ANSI/TIA 568-2.D, EIA-310-E, FCC part 68-F, IEC 60603-7 standards. RoHS compliant, UL listed, and TAA compliant. Backed by our Forever Warranty.
