Cat5e Toolless Keystone Jack|Shielded

Part Number - 5ESTL90CMPT_2pc

Features

  • Supports PoE++ (802.3bt) 4PPoE, up to 100W
  • Tested to 250 MHz. Suitable for 2.5GBASE-T
  • Suitable for shielded (F/UTP, S/FTP, F/FTP) Ethernet cable
  • UL Listed, ETL Verified, ANSI/TIA 568 2.D Cat5e Certified
  • Data Center Ready
  • Impedance Matches Disparate Patch Cord Conductor Gauges and Types
  • Maximum Durability Against PoE Connect/Disconnect Spark Arc Damage

Need help finding compatible connectors for your Ethernet cable?

Look no further than our Connector Finder

Bulk Save with trueCABLE
Qty Price Per Item Your Savings
10-24 $5.84 2.5%
25-49 $5.69 5%
50+ $5.54 7.5%
$7.99 $5.99 5.99
-26%
Size
Quantity
Qty:
Saves you 2.5%
Add 9 more for 2.5% discount

Why buy direct from trueCABLE?

30 day returns

We stand by our products with our Forever Warranty

Same-day free shipping on orders placed Mon-Fri by 3pm Central.

Ultimate Performance

  • trueCABLE Cat5e keystones have been tested to 250 Mhz (see solid green line)! Advanced PCB layout gives superior cross-talk performance at extended frequencies above 100 MHz (see dashed orange line). 2.5GBASE-T requires 156 MHz to operate effectively, which exceeds the ANSI/TIA 100 MHz requirement as specified in the standards (see solid red line).
  • Suitable for 2.5 Gigabit (10/100/1000/2500 Mb/s) up to 295 feet
  • Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W

Cat5e toolless keystone jack unshielded


  • IMAGE A: Proven Component Rated performance. trueCABLE keystones nearly double the NEXT headroom in a Permanent Link Certification test as compared to competing mass-produced Channel Level keystone jacks. Lower-priced commodity keystone jacks are known as “Channel Level”. Channel Level hardware is not subjected to strict Connection Hardware Test Limits during assembly and only gets Certified in the context of a field installation. trueCABLE Component Rated connection hardware is Category and ANSI/TIA 568-2.D Connection Hardware Certified twice during production. The PCB must pass testing and then the completed keystone jack must pass again. Component Rating means the connection hardware must meet strict Category NEXT, FEXT, Return Loss, Insertion Loss, TCL/TCTL, and Alien Crosstalk requirements before it makes it into the box and in your hands.

  • IMAGE B:  Impedance matching technology provides advanced electromagnetic balancing to allow for mixed conductor gauges and types while maintaining maximum performance for the entire channel. A great example of how this feature translates into real-world benefits is when mixing cables from different manufacturers.
  • IMAGE C: Data Center Ready. No more worrying about short point-to-point links in the data center failing Certification! Permanent Links as short as 1 meter will pass Certification.

Durable

  • Tuned RJ45 port spring wire design helps prevent PoE spark arc pitting damage

  • caused by connecting and disconnecting live PoE circuits--even at 100W PoE++

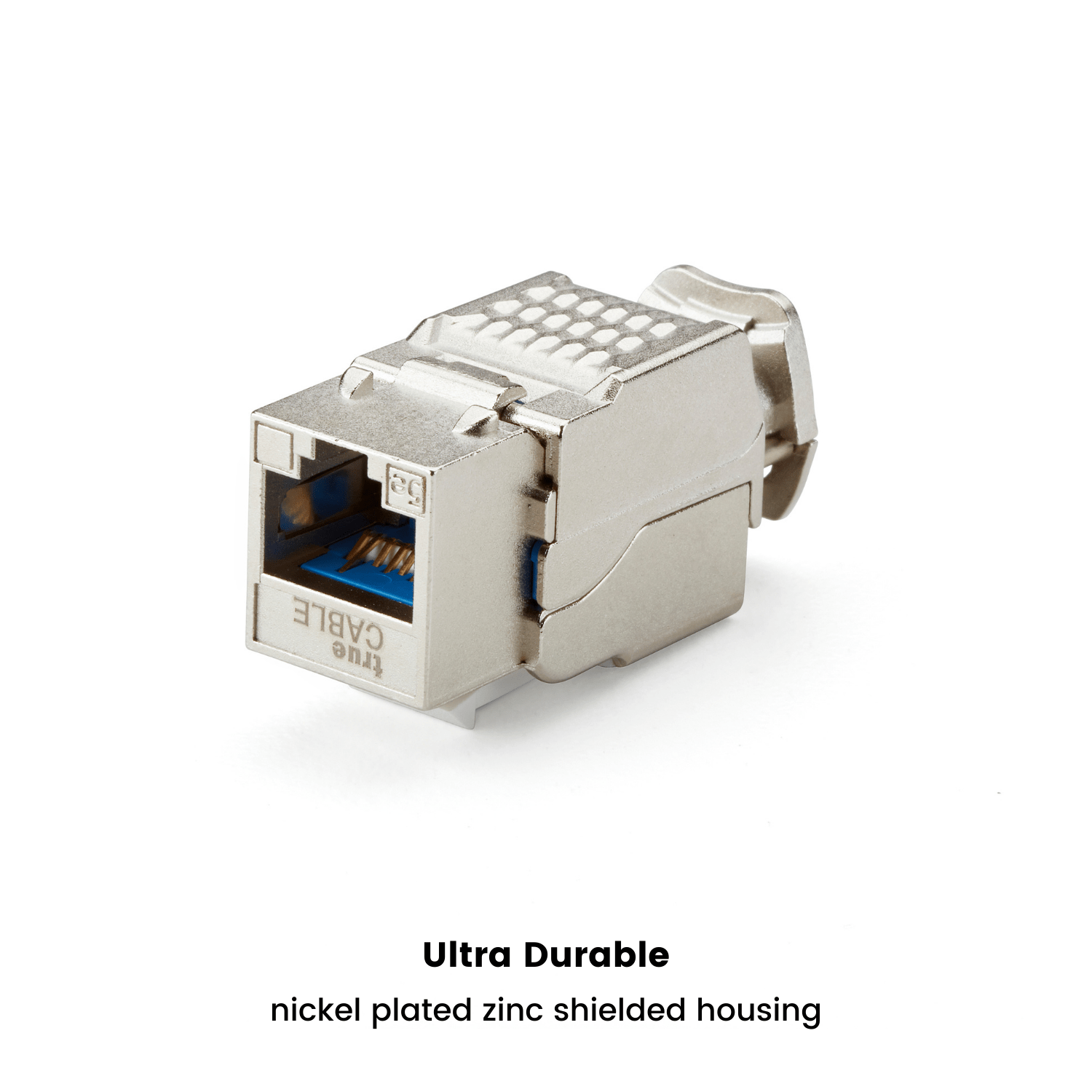

  • Tough Nickel Plated Zinc Alloy construction
  • Press-Fit Technology makes our product more reliable and increases transmission performance
  • Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold-plated RJ45 contacts

Versatile

  • Compatible with 23 to 24 AWG solid copper conductors and ∅0.86 - 1.20mm insulated conductors.

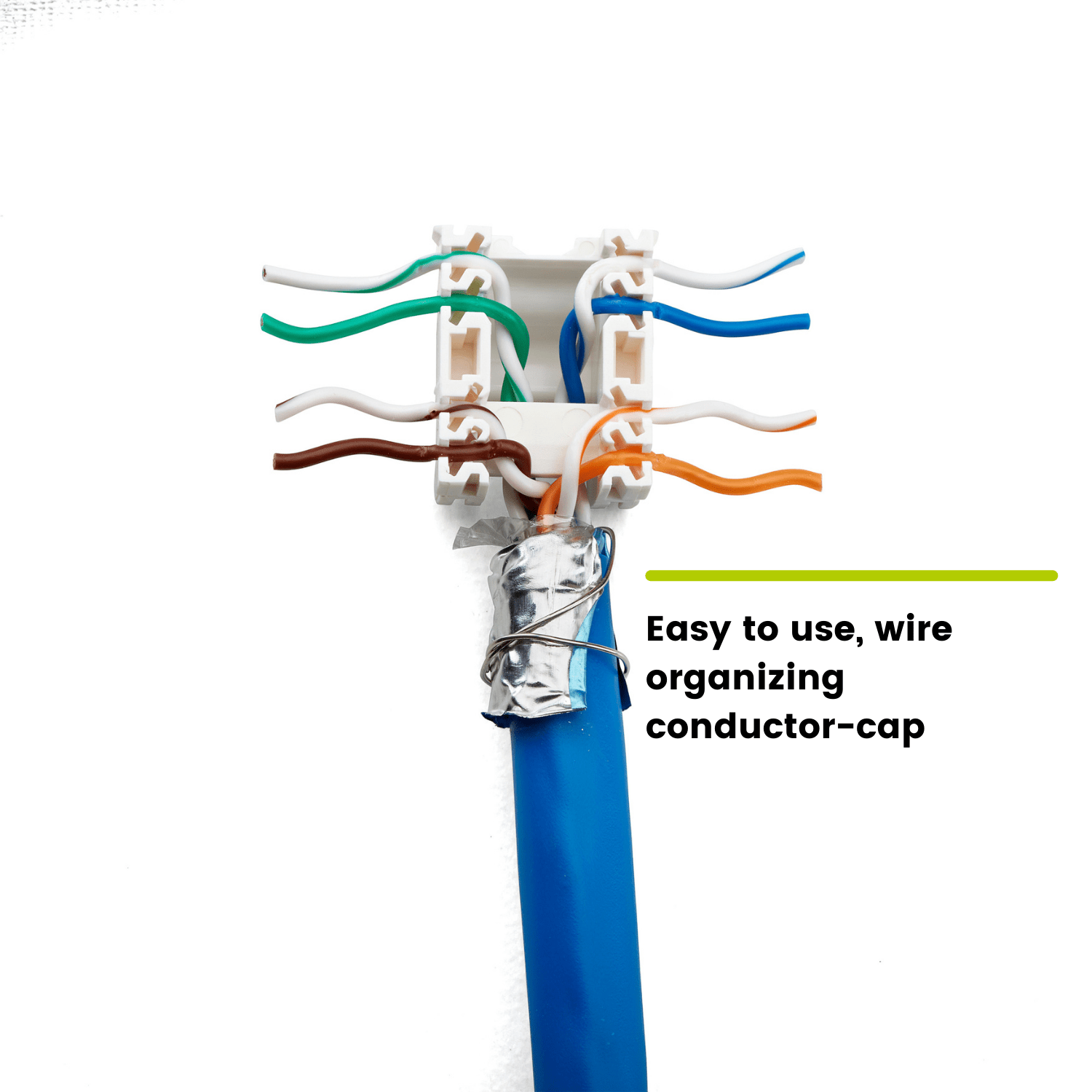

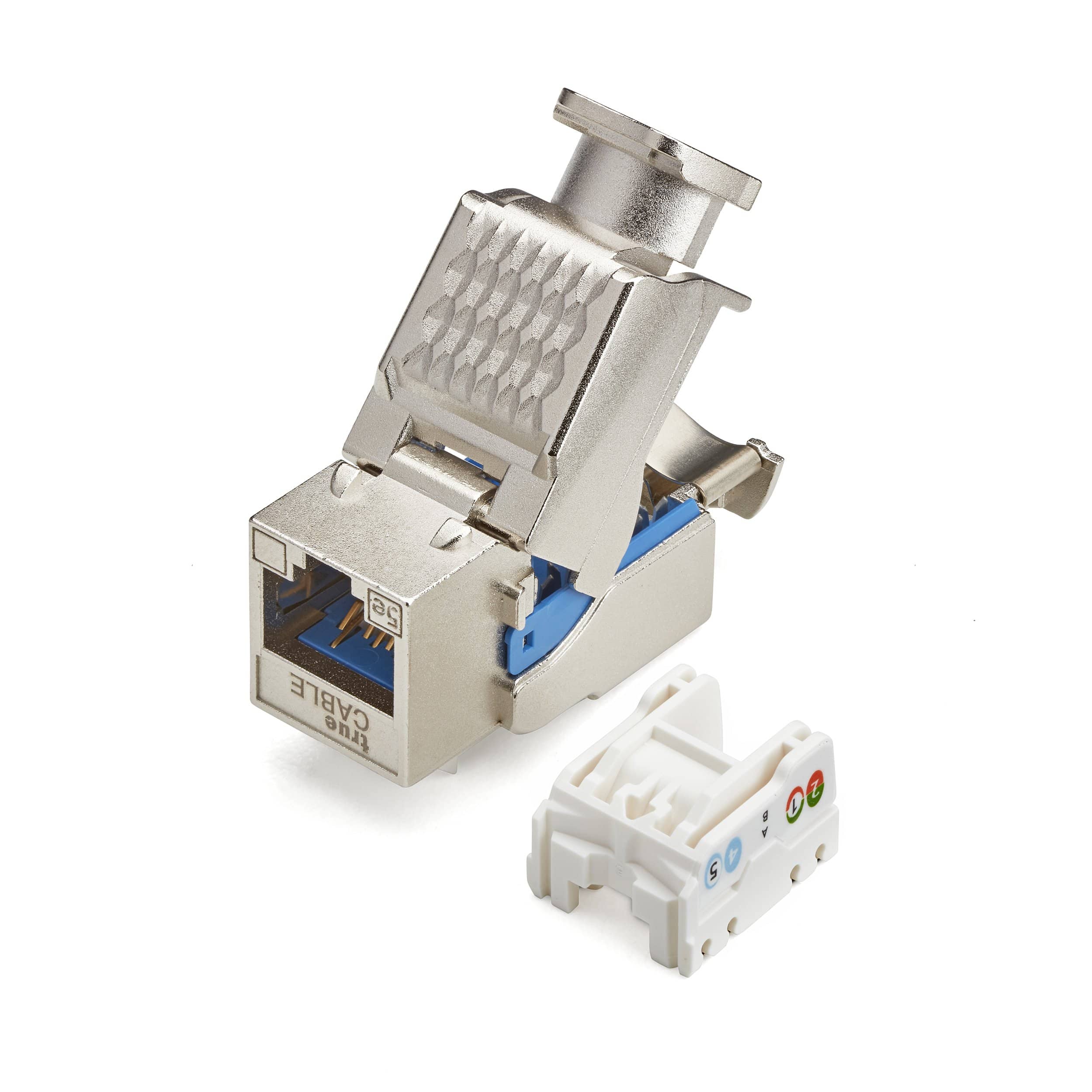

  • 90 degree tool-less design with conductor wiring cap
  • T568A and T568B wiring code printed on side of conductor wiring cap
  • For use with shielded (F/UTP, S/FTP, F/FTP) Ethernet cables
  • 100% compatible with any standard wall plate or patch panel
  • 110 impact tool not required. Our trueCLOSE tool is recommended for closure of tool-less mechanism when working with thick insulated conductors

Ultimate Protection against EMI/RFI/ESD

Cat6 Toolless Keystone Jack|Shielded

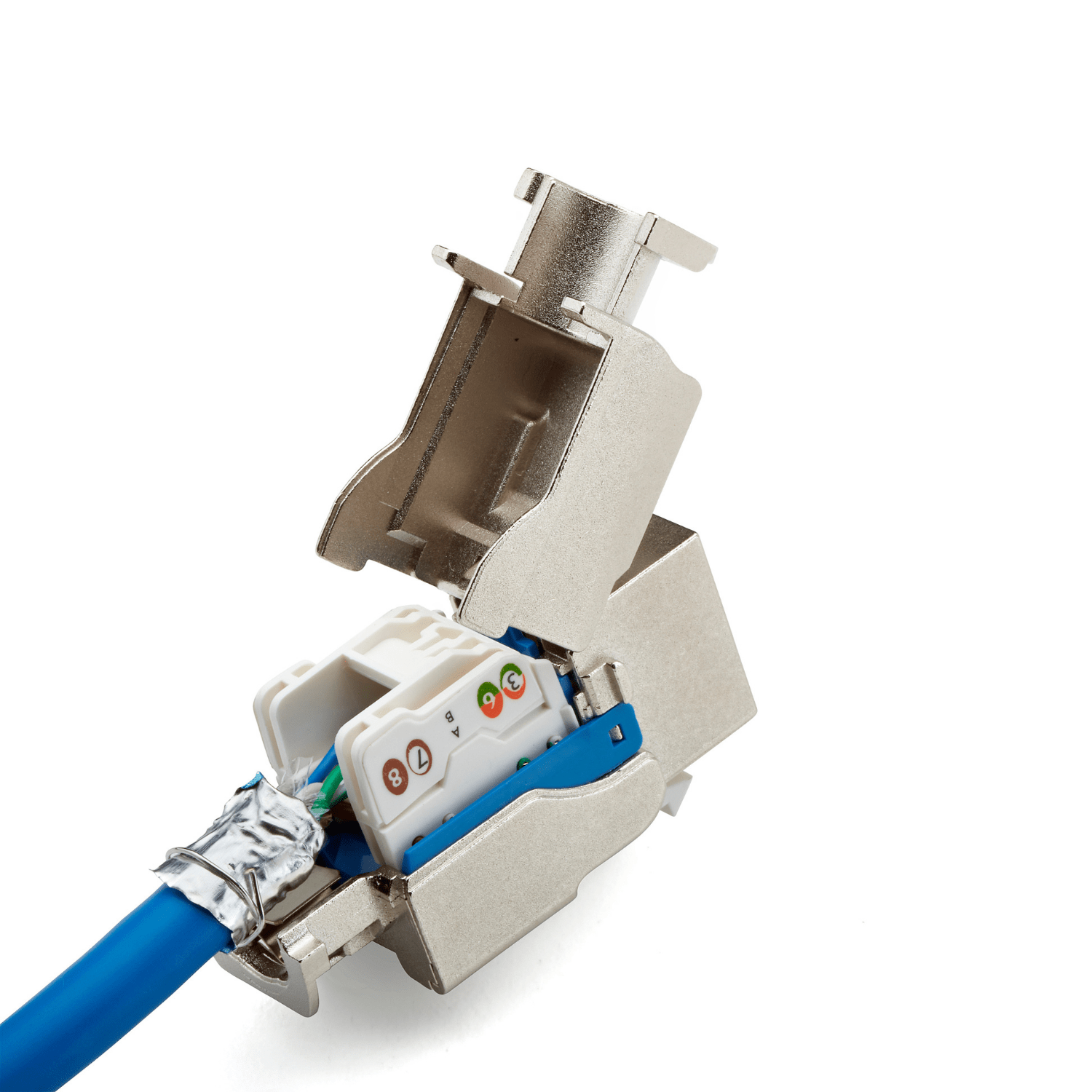

  • Robust all-metal shielded housing
  • Maximum protection against alien crosstalk (ANEXT)

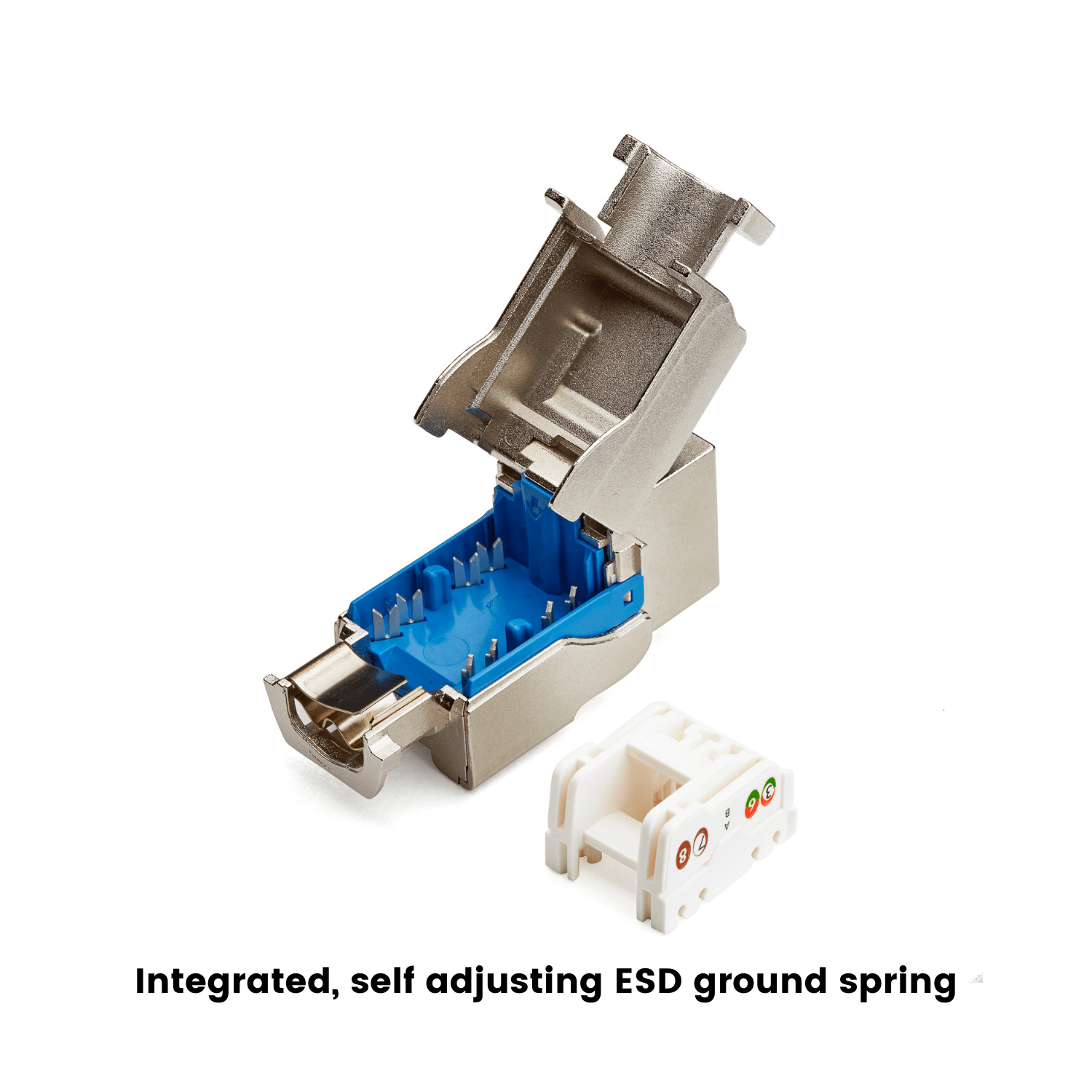

  • Grounding leaf spring automatically adjusts for cable diameter
  • Low impedance path to ground is ensured

Quality Guaranteed

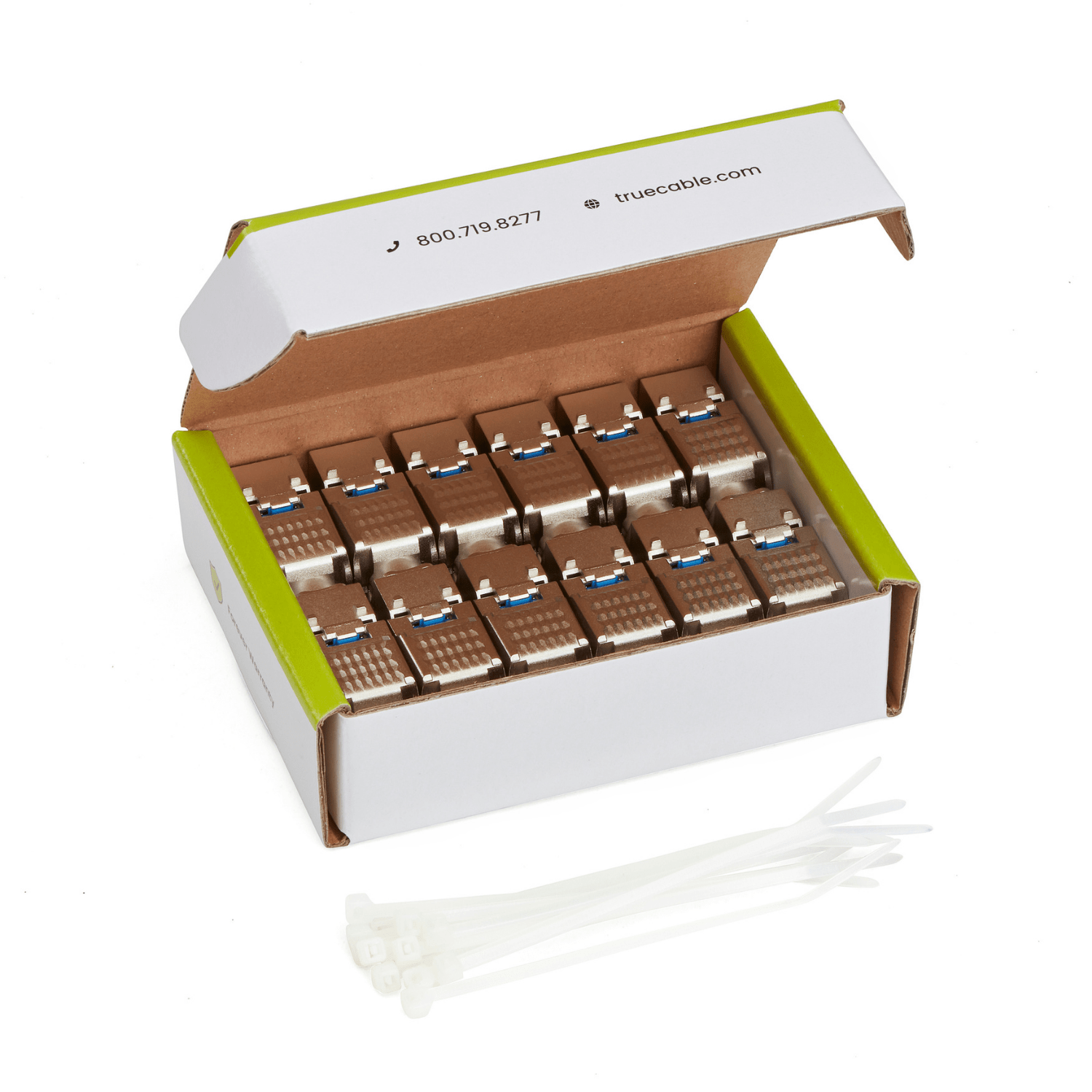

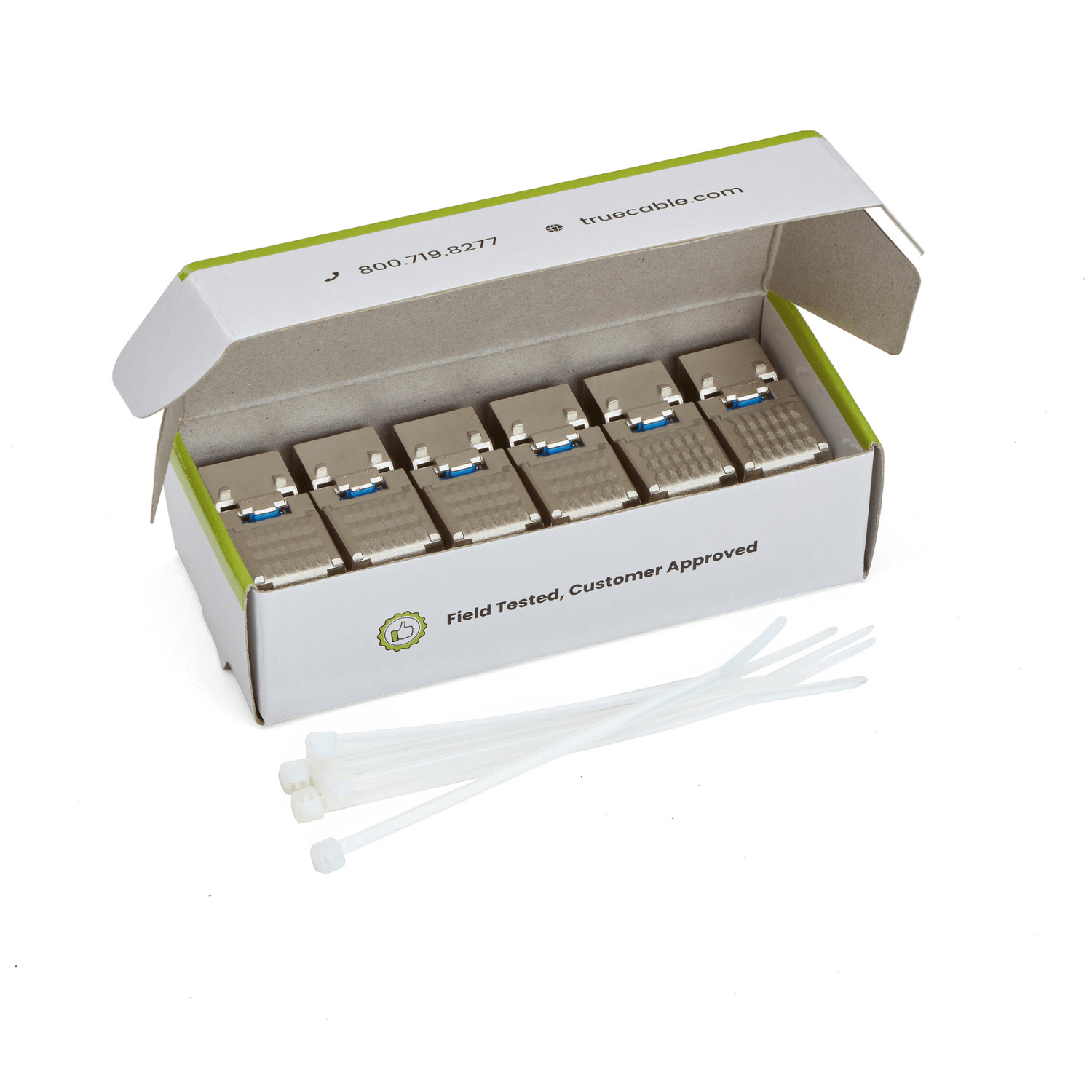

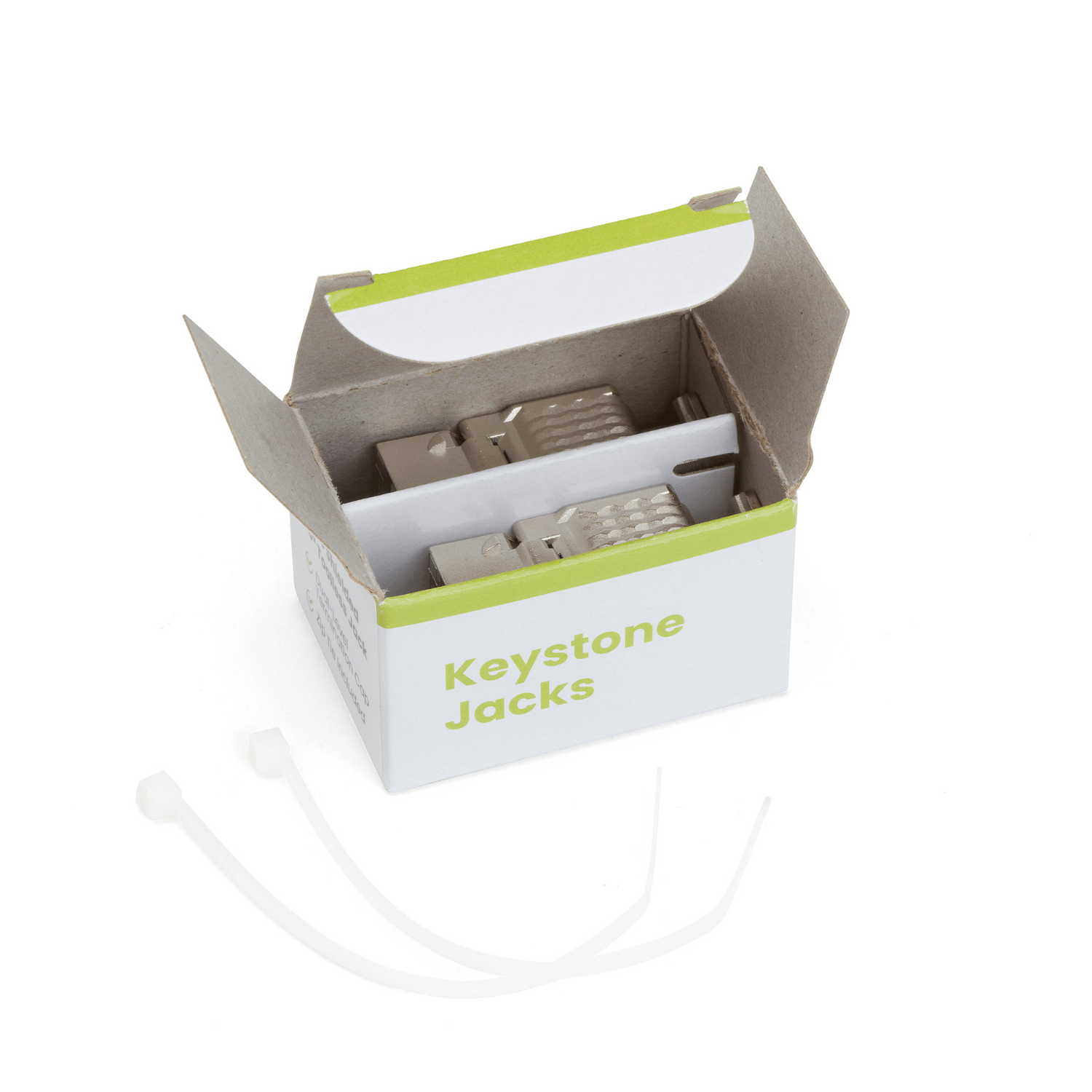

What's In The Box?

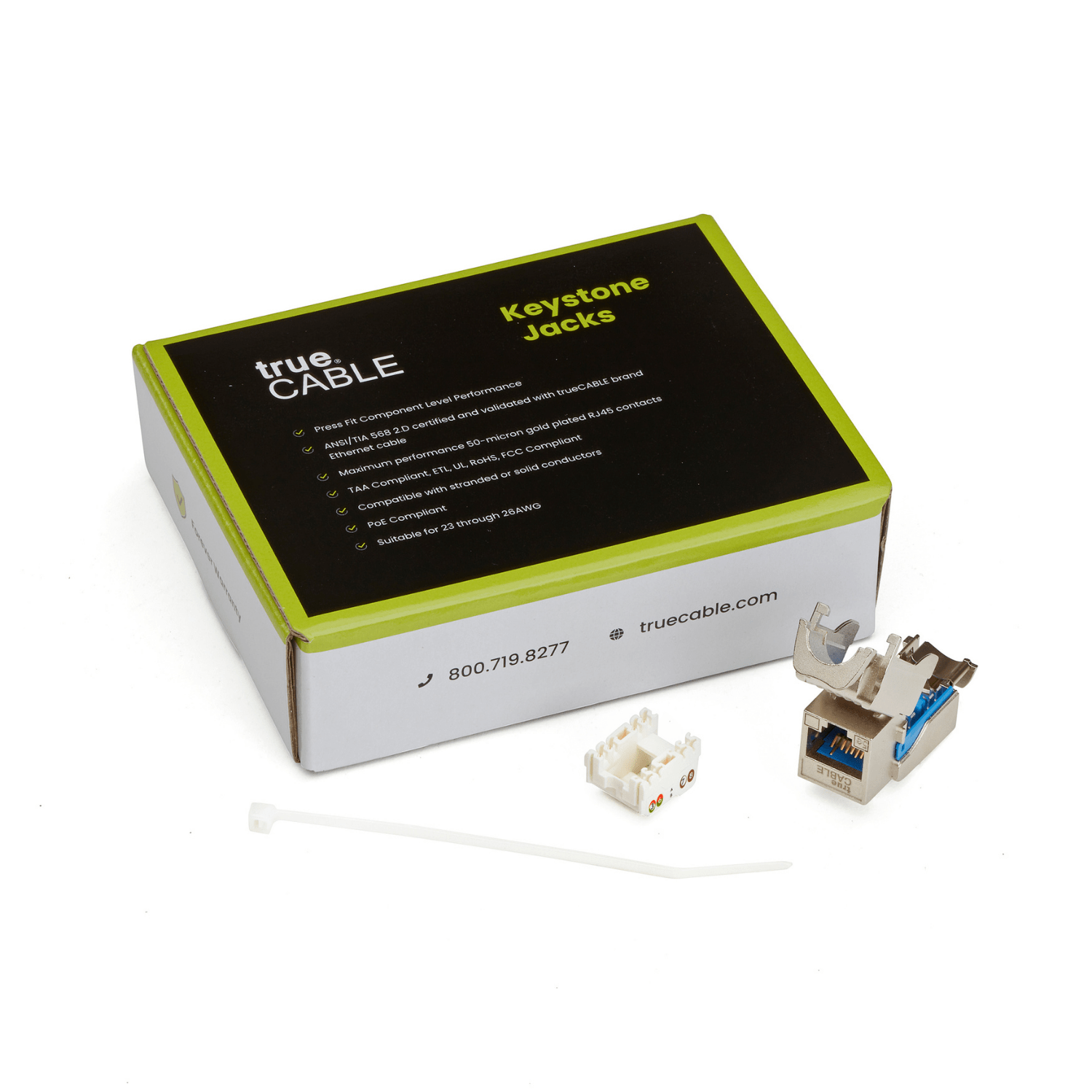

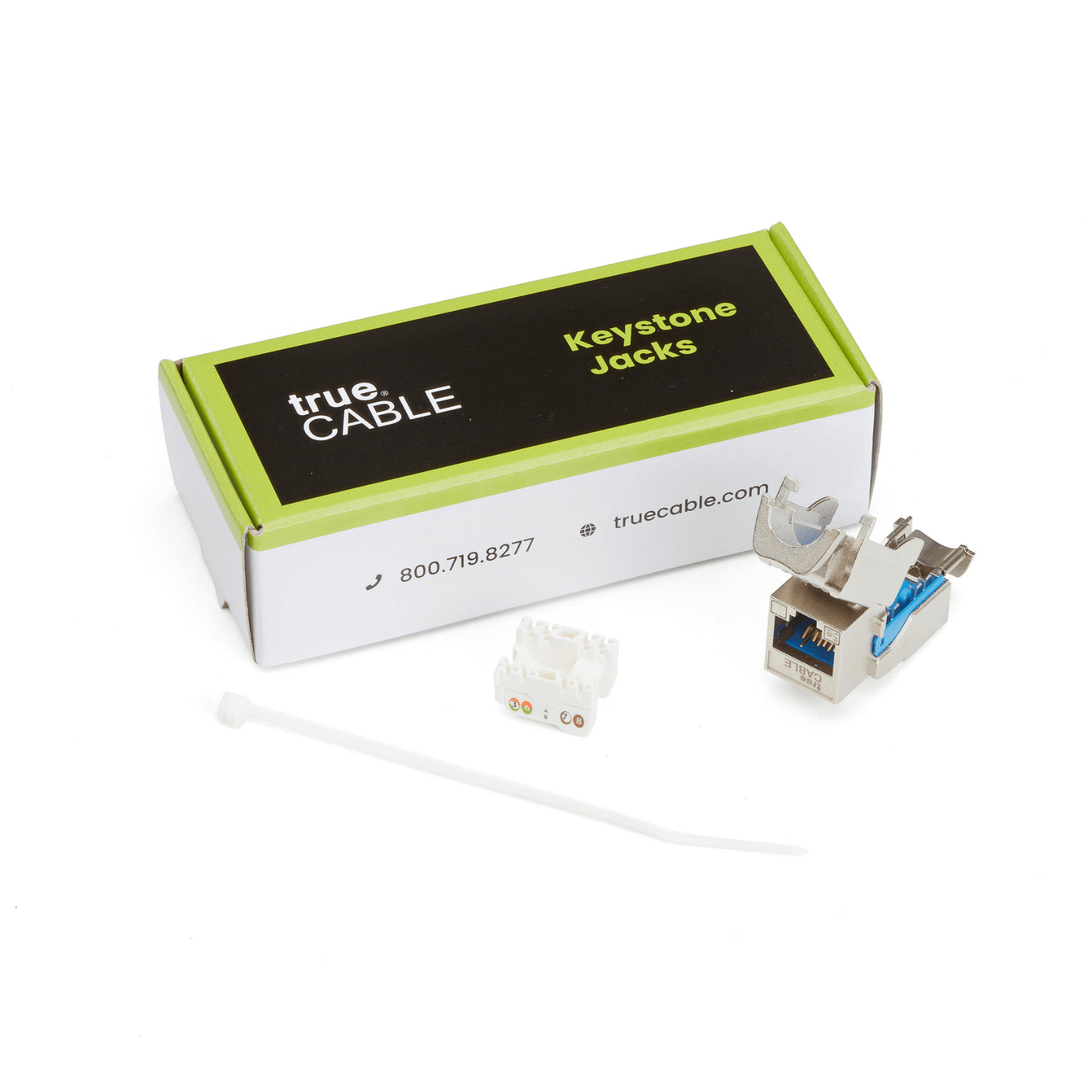

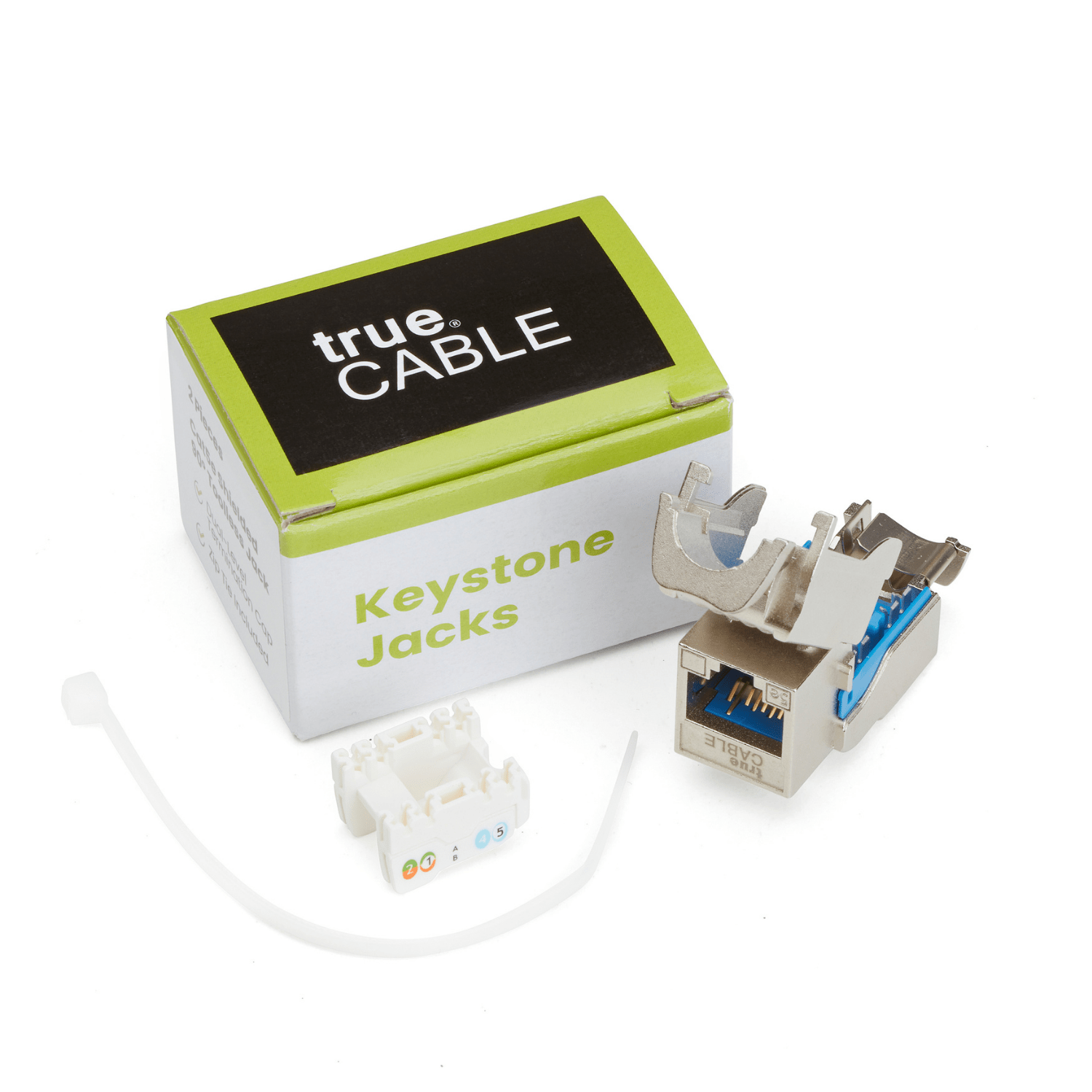

  •  Each keystone jack includes tool-less housing, conductor wiring cap, nylon tie, and full instructions on how to terminate.
Weight 0.2 lbs
Length 2 in
Width 1.5 in
Height 1.25 in
Barcode X002IVEN7V
