Ultimate Performance

•

  IMAGE A: Proven Component Rated performance. trueCABLE keystones nearly double the NEXT headroom in a Permanent Link Certification test as compared to competing mass-produced Channel Level keystone jacks. Lower-priced commodity keystone jacks are known as “Channel Level”. Channel Level hardware is not subjected to strict Connection Hardware Test Limits during assembly and only gets Certified in the context of a field installation. trueCABLE Component Rated connection hardware is Category and ANSI/TIA 568-2.D Connection Hardware Certified twice during production. The PCB must pass testing and then the completed keystone jack must pass again. Component Rating means the connection hardware must meet strict Category NEXT, FEXT, Return Loss, Insertion Loss, TCL/TCTL, and Alien Crosstalk requirements before it makes it into the box and in your hands.

• IMAGE B:  Impedance matching technology provides advanced electromagnetic balancing to allow for mixed conductor gauges and types while maintaining maximum performance for the entire channel. A great example of how this feature translates into real-world benefits is when mixing cables from different manufacturers.

• IMAGE C: Data Center Ready. No more worrying about short point-to-point links in the data center failing Certification! Permanent Links as short as 1 meter will pass Certification.

• Tuned RJ45 port spring wire design helps prevent PoE spark arc pitting damage
•

  caused by connecting and disconnecting live PoE circuits--even at 100W PoE++
• Tough ABS plastic construction
• Press-Fit Technology makes our product more reliable and increases transmission performance

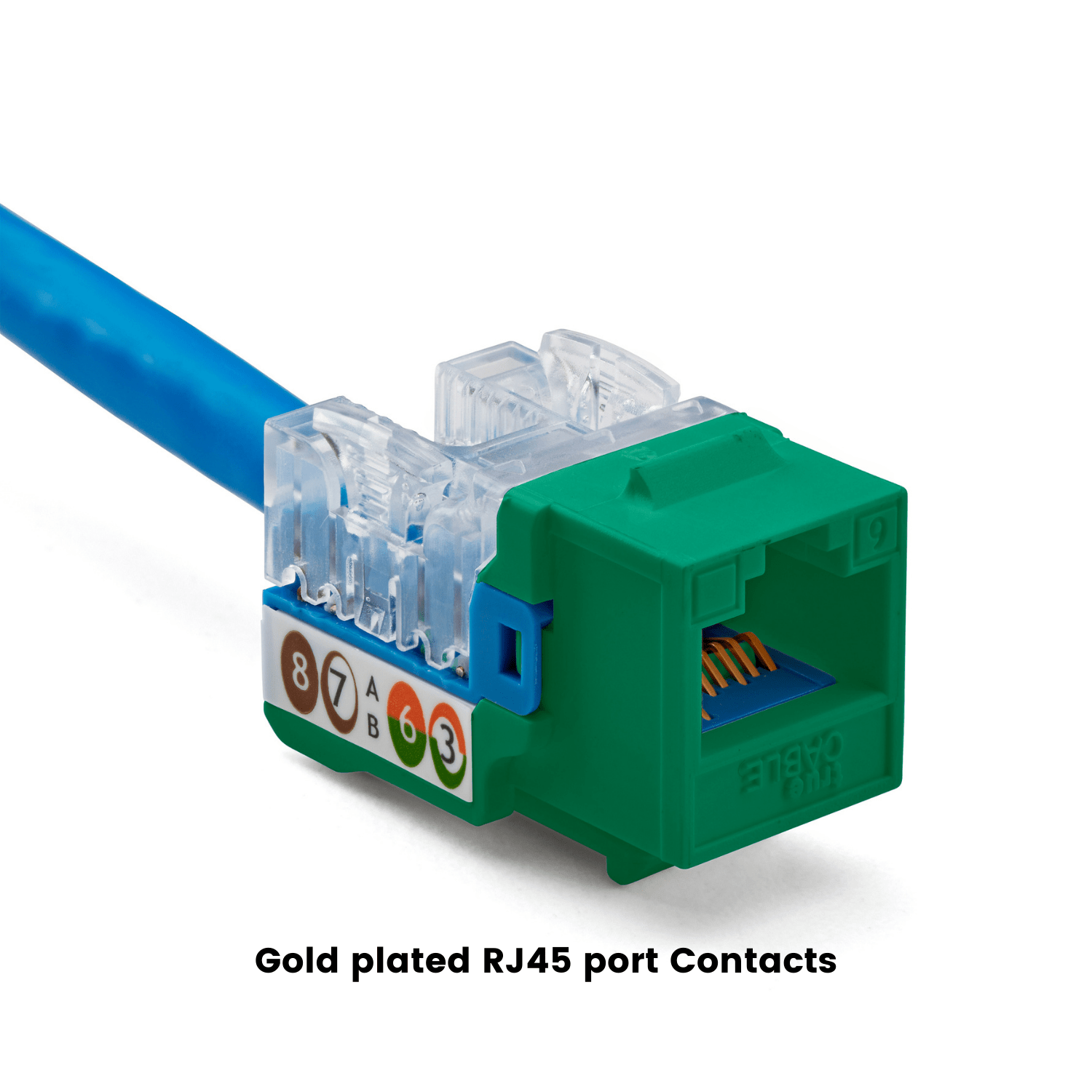

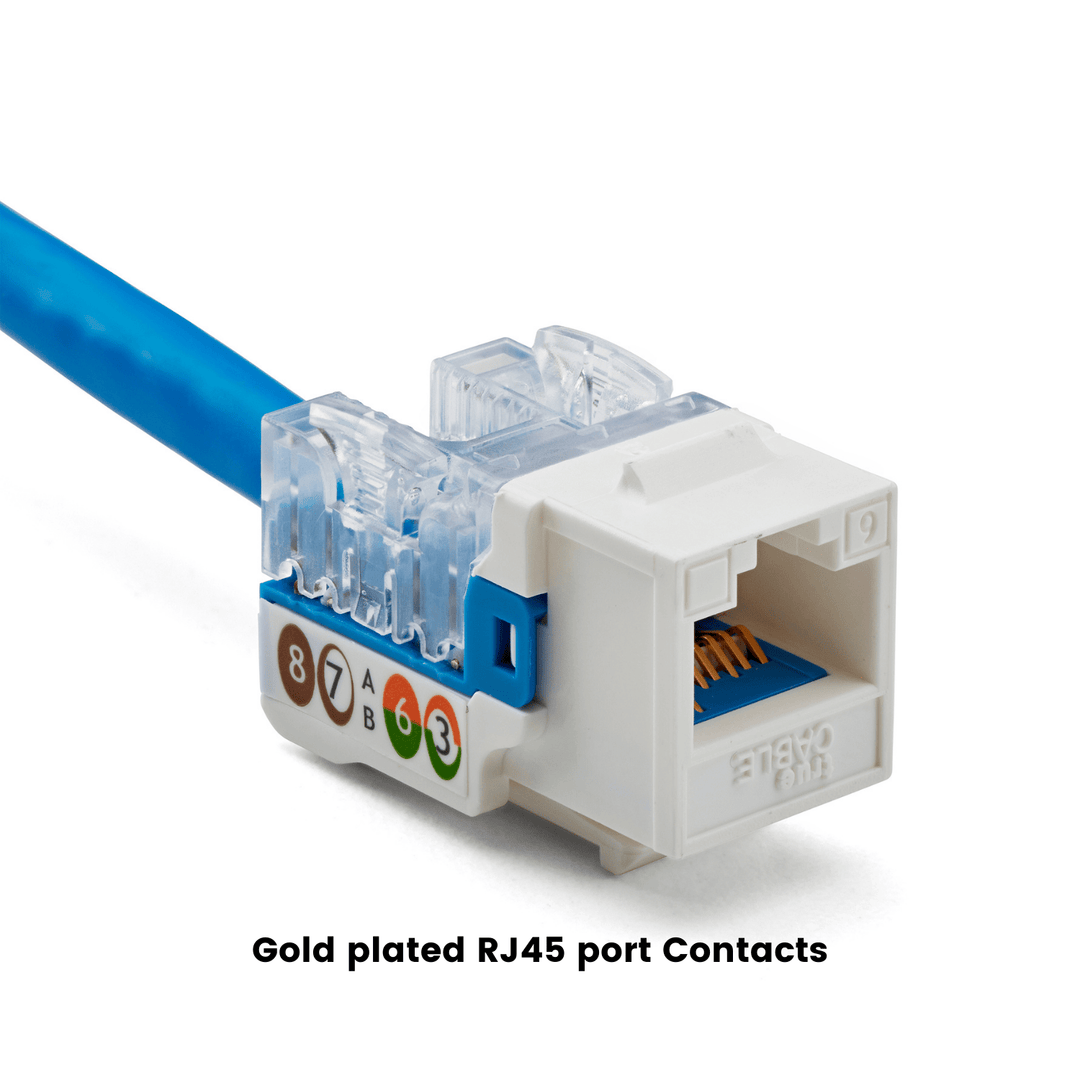

• Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold-plated RJ45 contacts

• Compatible with 23 to 24 AWG solid copper conductors and ∅0.86 - 1.10mm insulated conductors.

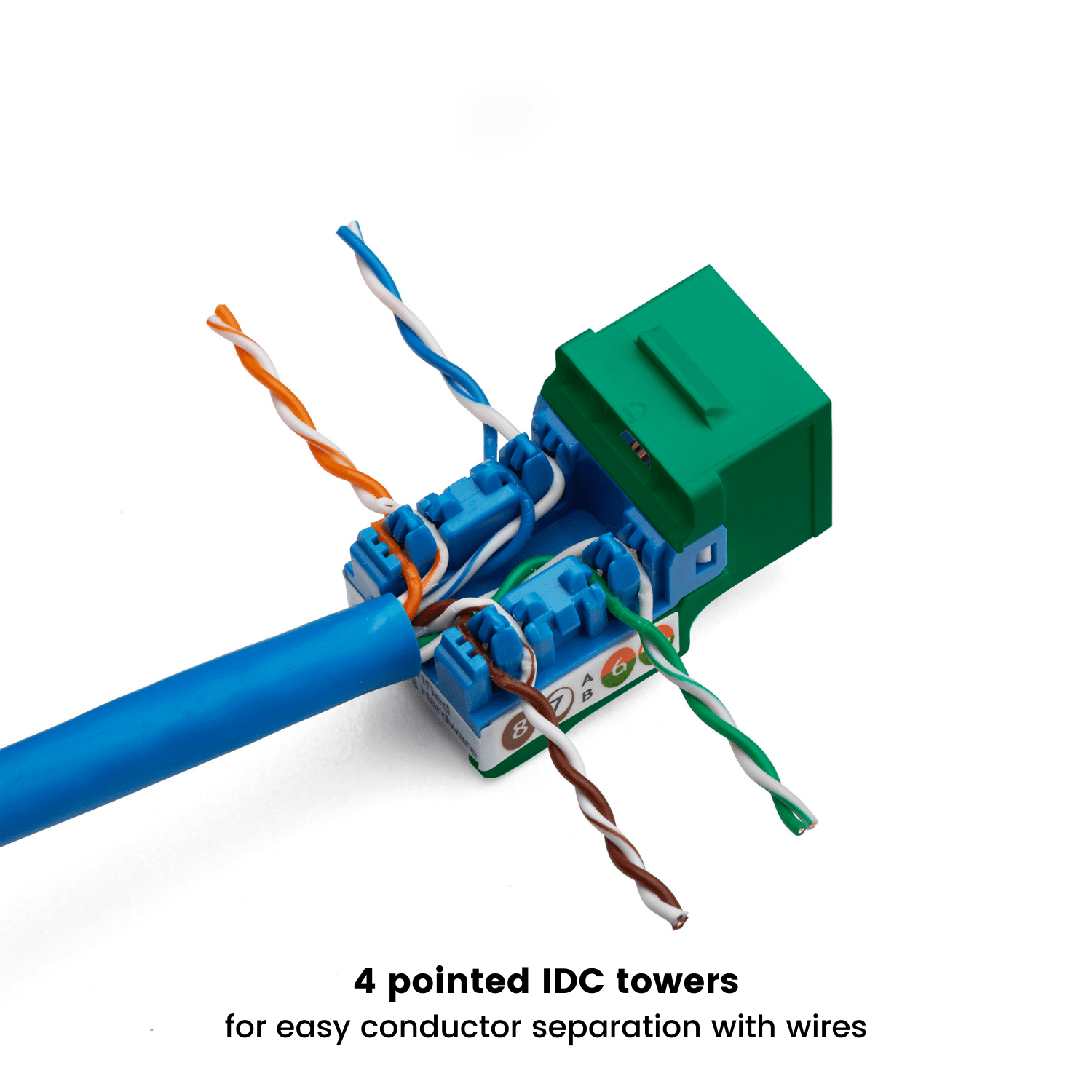

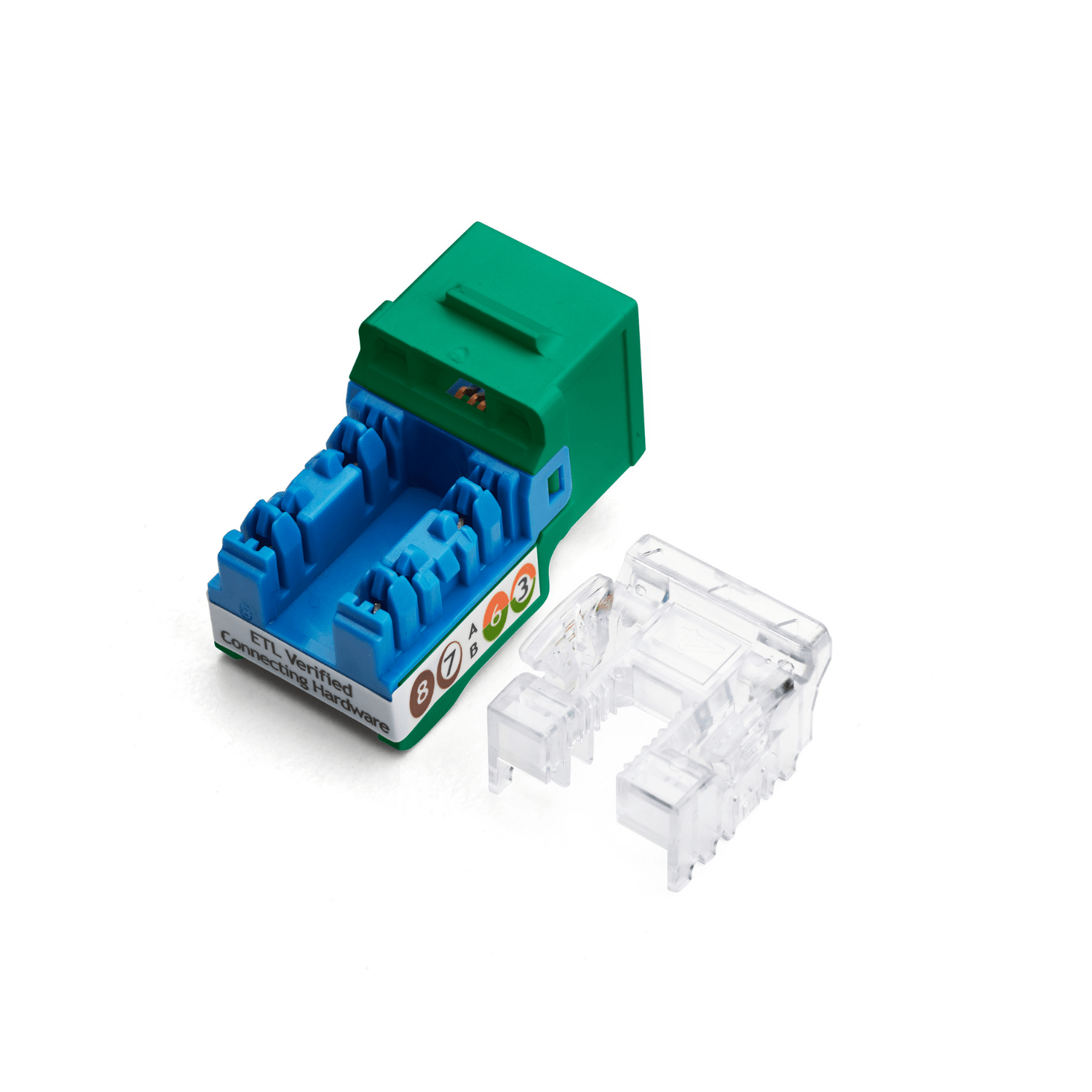

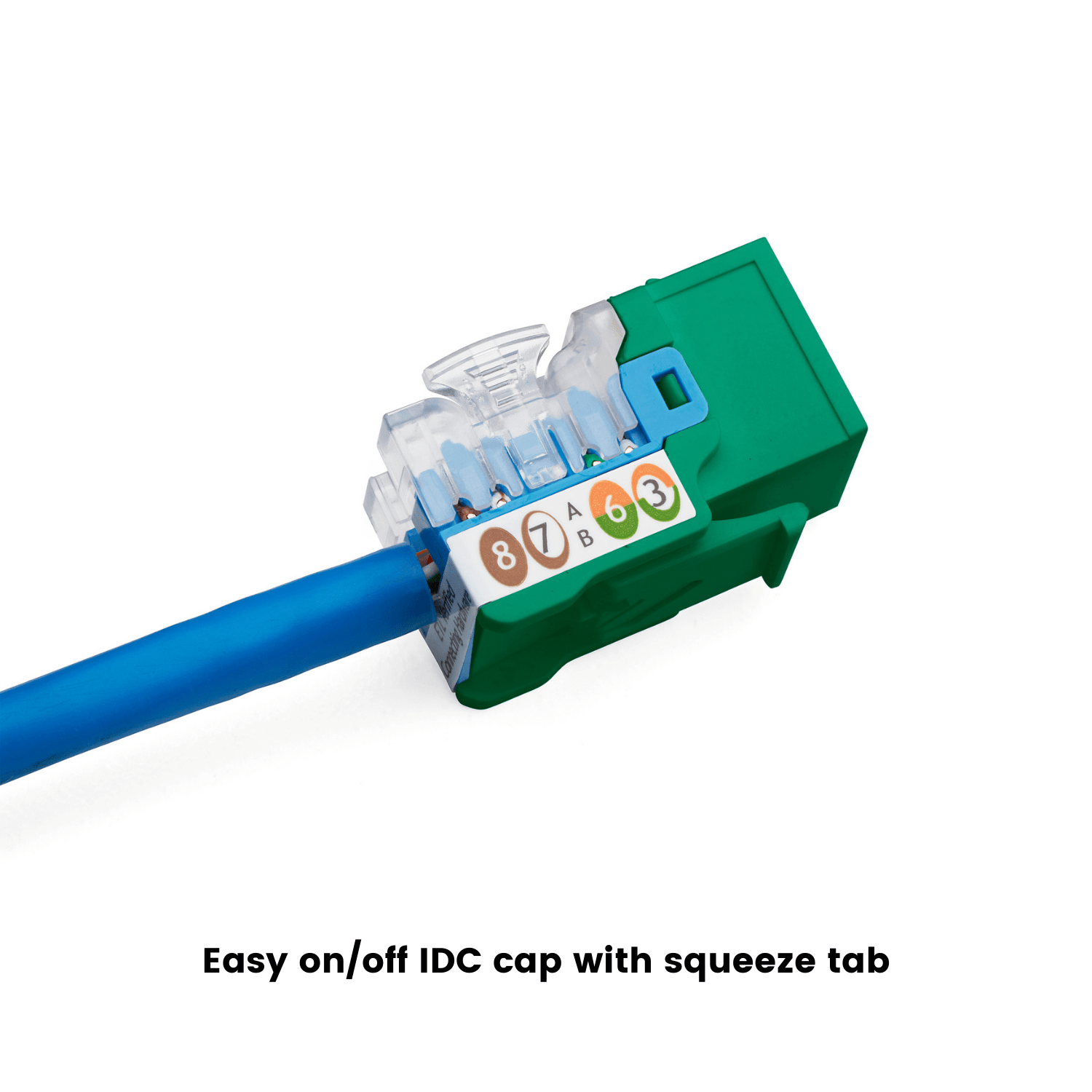

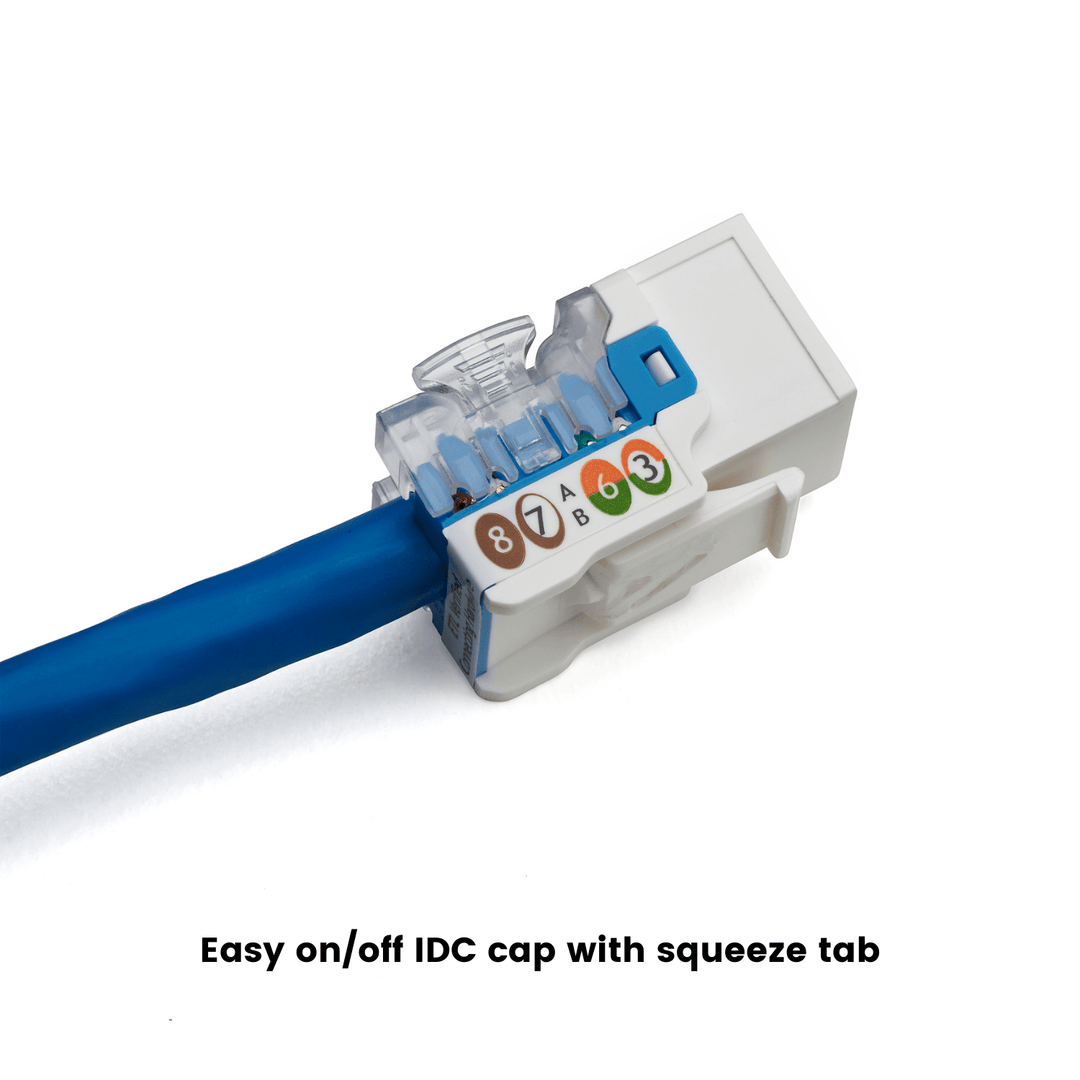

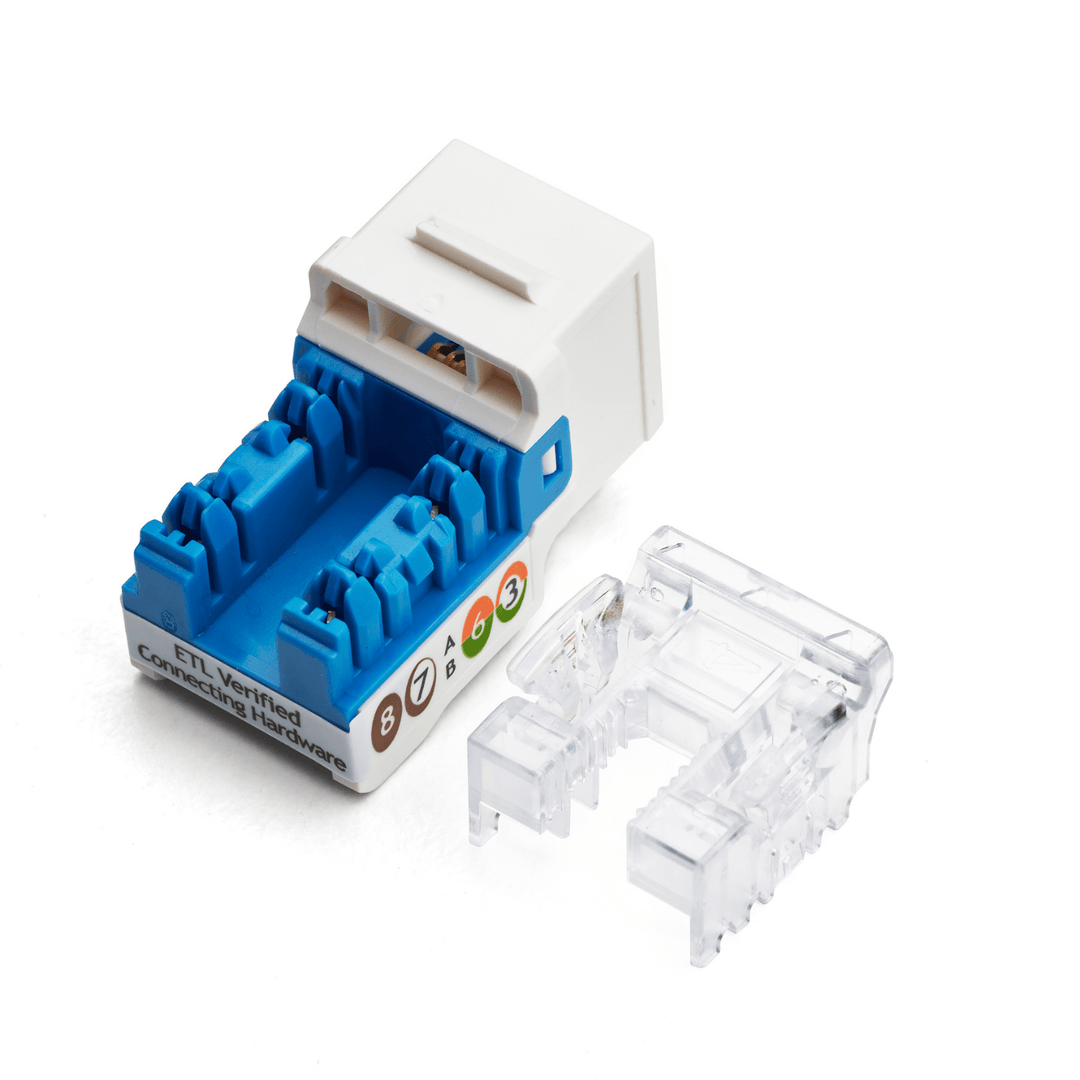

• 90-degree design with IDC retaining cap

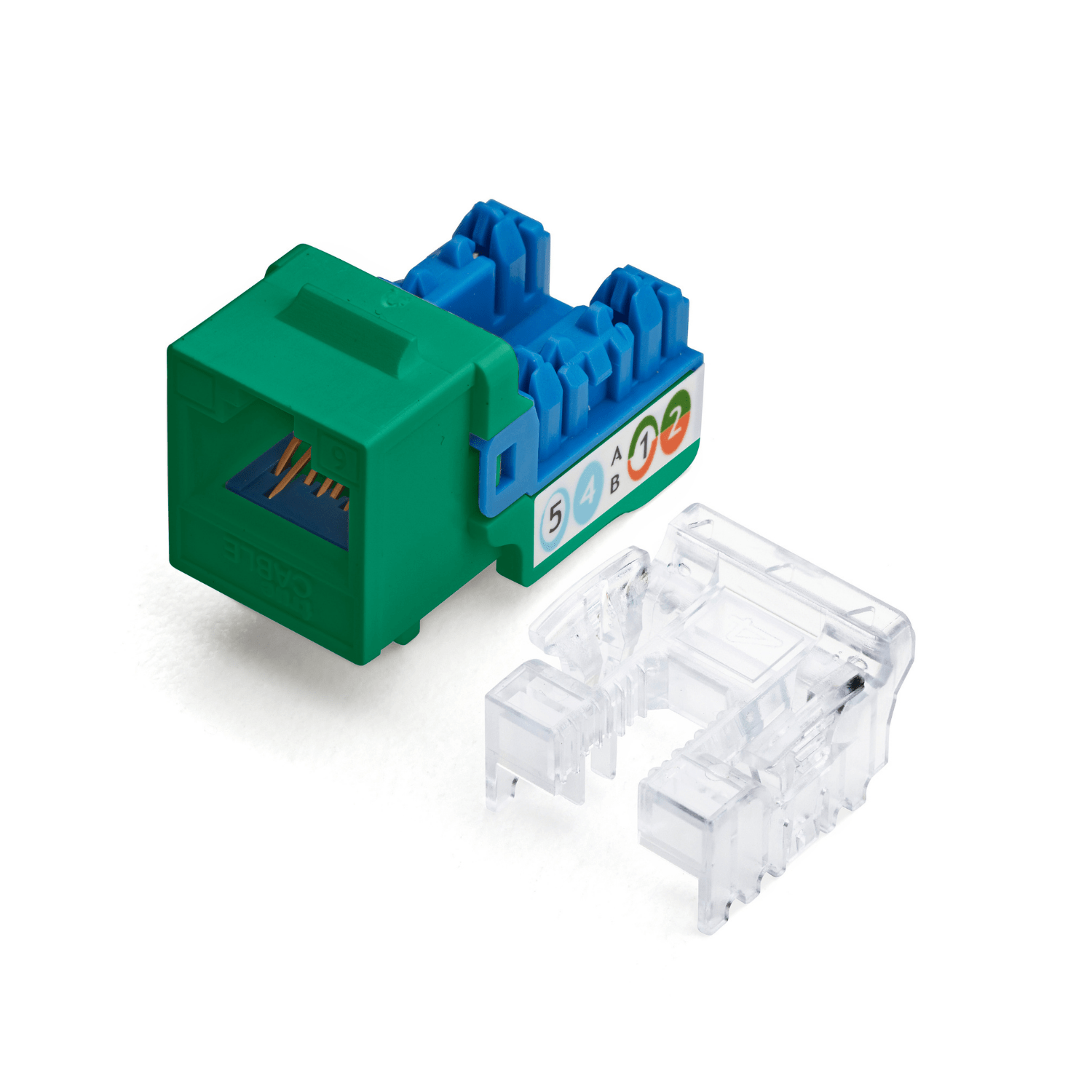

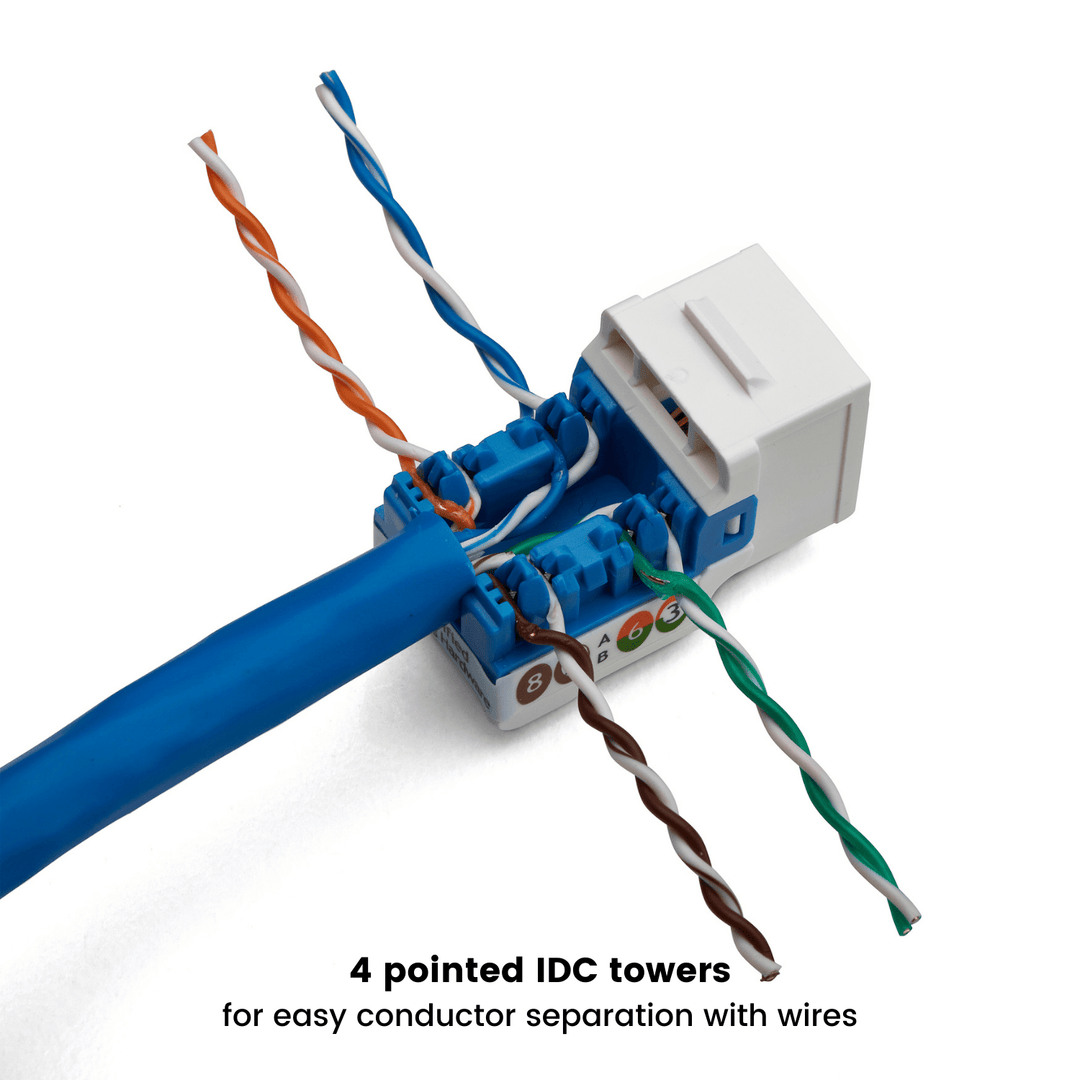

• Highly visible colors printed on the side for easy T568A or T568B wiring
• For use with unshielded (U/UTP) Ethernet cables
• 100% compatible with any standard wall plate or patch panel
• Terminate with our trueTERM or trueIMPACT termination tools

• ANSI/TIA 568 2.D Certified by trueCABLE. UL Listed, TAA compliant, ETL Verified, RoHS-2 compliant.
• Tested in the Real World by Real Installers
• Forever Warranty
• UL Certificate of Compliance
• ETL Certificate of Compliance

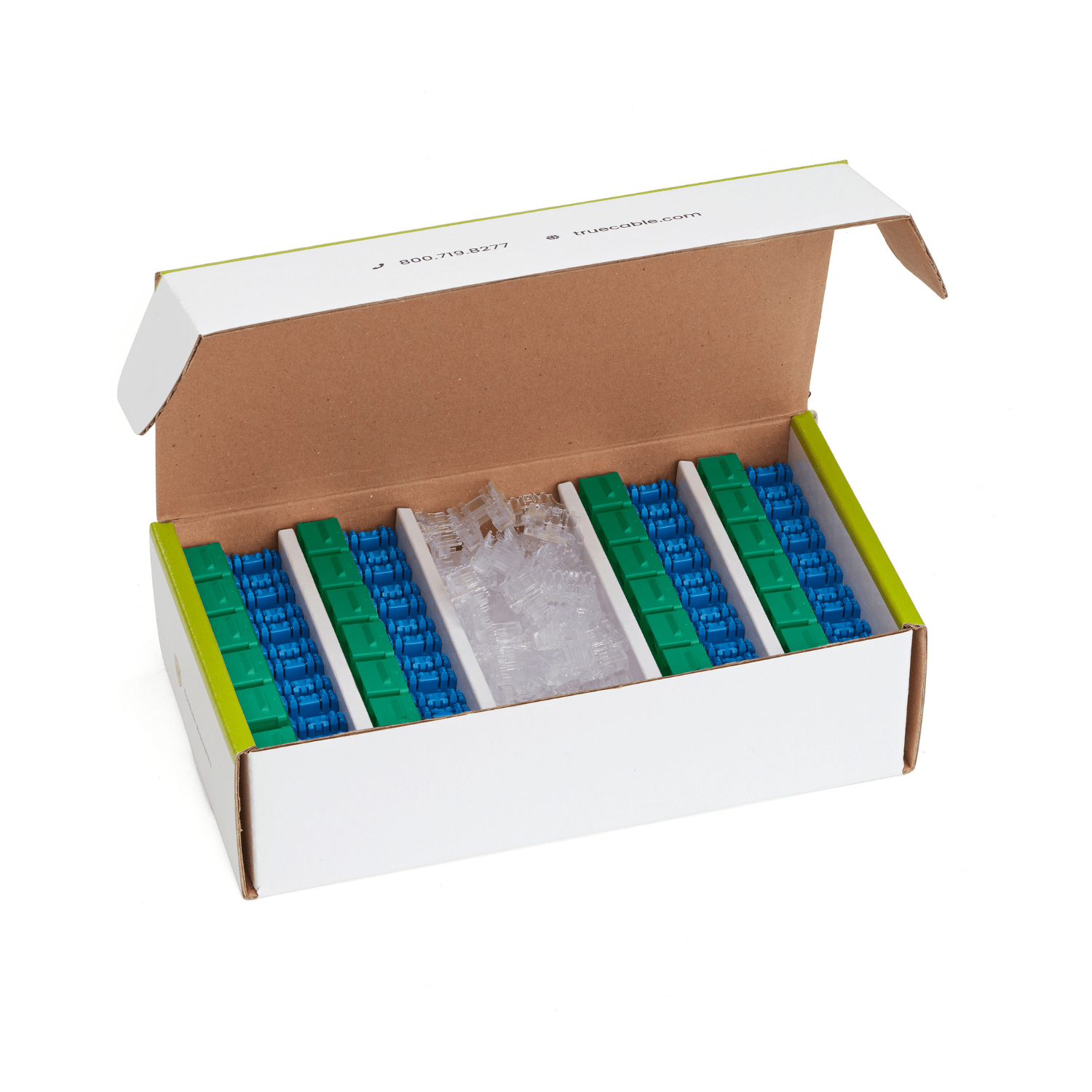

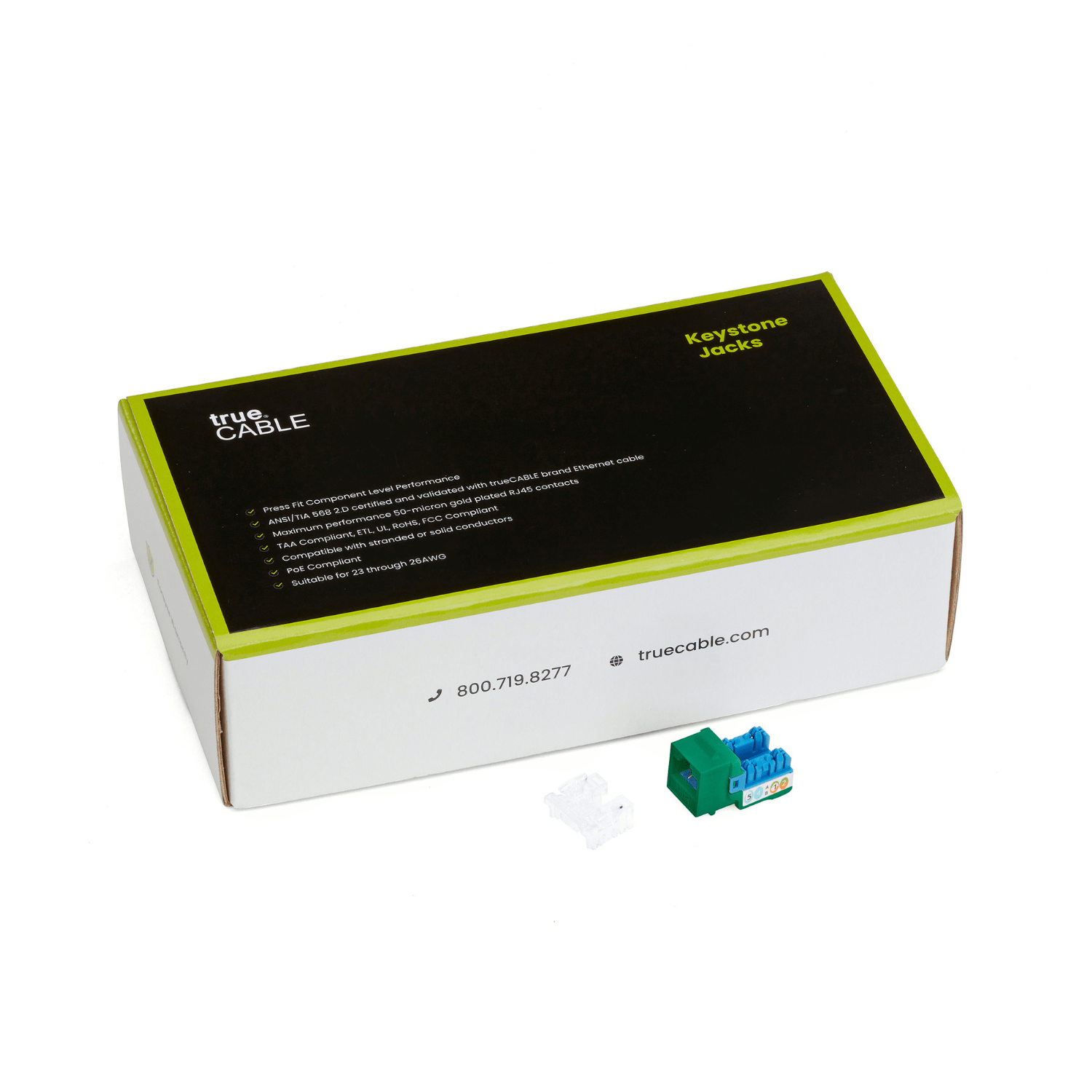

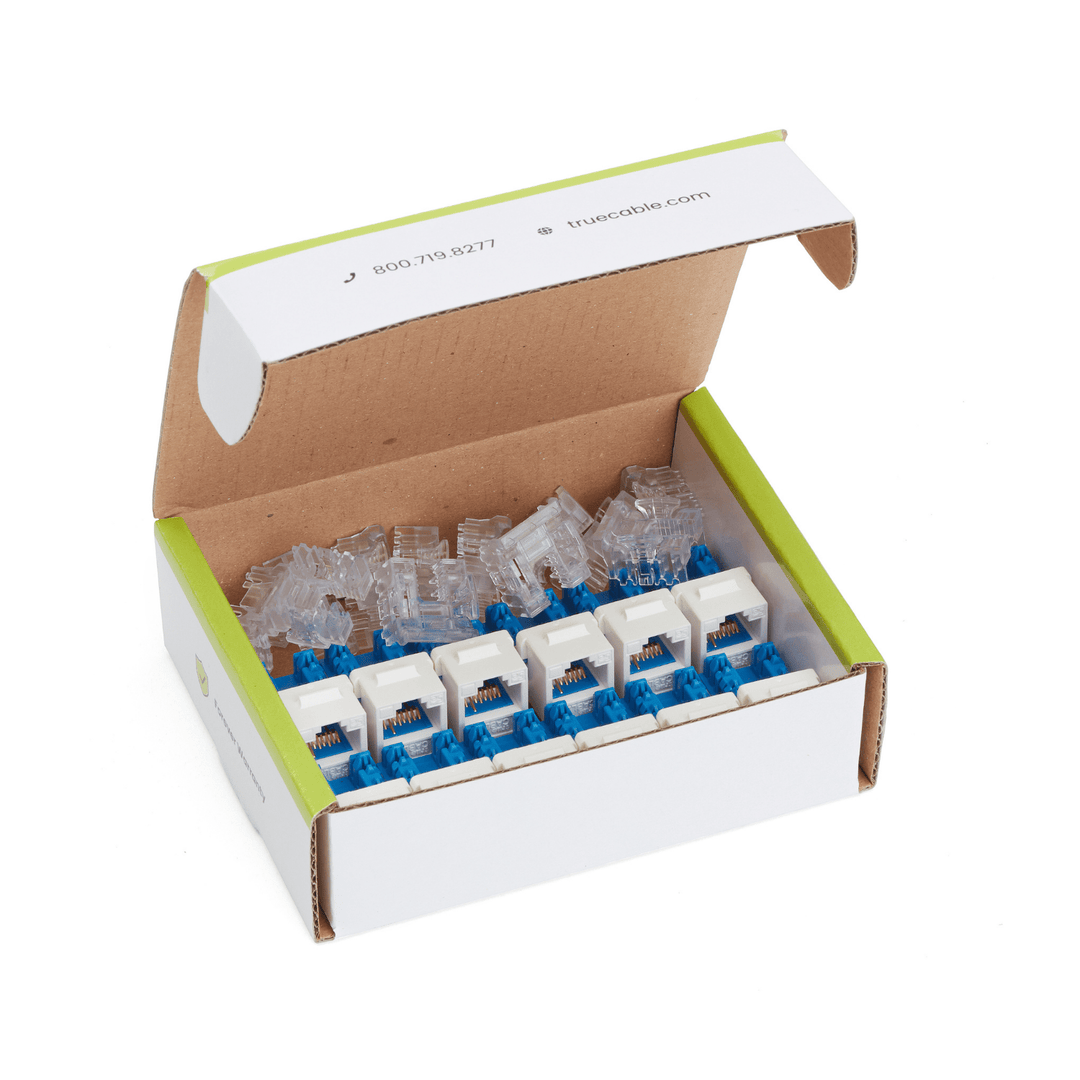

• Each keystone jack includes an IDC cap along with full instructions on how to terminate.

• Weight - 0.3 lbs

• Length - 4.6 in
• Width - 3.6 in
• Height - 1.5 in
• Barcode - X002J44Y8Z
