Cat6 Toolless Keystone Jack | Shielded | 2pc | Packaging

1/8

Description

Ultimate Performance

trueCABLE Cat6 keystones have been tested to 500 Mhz! Advanced PCB layout gives superior cross-talk performance above 250 MHz. 5GBASE-T requires 312 MHz to operate effectively, which exceeds the ANSI/TIA 250 MHz requirement as specified in the standards.

Suitable for 5 Gigabit (10/100/1000/2500/5000 Mb/s) up to 295 feet and 10 Gigabit up to 165 feet

Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W

IMAGE A: Proven Component Rated performance. trueCABLE keystones nearly double the NEXT headroom in a Permanent Link Certification test as compared to competing mass-produced Channel Level keystone jacks. Lower-priced commodity keystone jacks are known as “Channel Level”. Channel Level hardware is not subjected to strict Connection Hardware Test Limits during assembly and only gets Certified in the context of a field installation. trueCABLE Component Rated connection hardware is Category and ANSI/TIA 568-2.D Connection Hardware Certified twice during production. The PCB must pass testing and then the completed keystone jack must pass again. Component Rating means the connection hardware must meet strict Category NEXT, FEXT, Return Loss, Insertion Loss, TCL/TCTL, and Alien Crosstalk requirements before it makes it into the box and in your hands.

IMAGE B: Impedance matching technology provides advanced electromagnetic balancing to allow for mixed conductor gauges and types while maintaining maximum performance for the entire channel. A great example of how this feature translates into real-world benefits is when mixing cables from different manufacturers.

IMAGE C: Data Center Ready. No more worrying about short point-to-point links in the data center failing Certification! Permanent Links as short as 1 meter will pass Certification.

Durable

Tuned RJ45 port spring wire design helps prevent PoE spark arc pitting damage
caused by connecting and disconnecting live PoE circuits--even at 100W PoE++

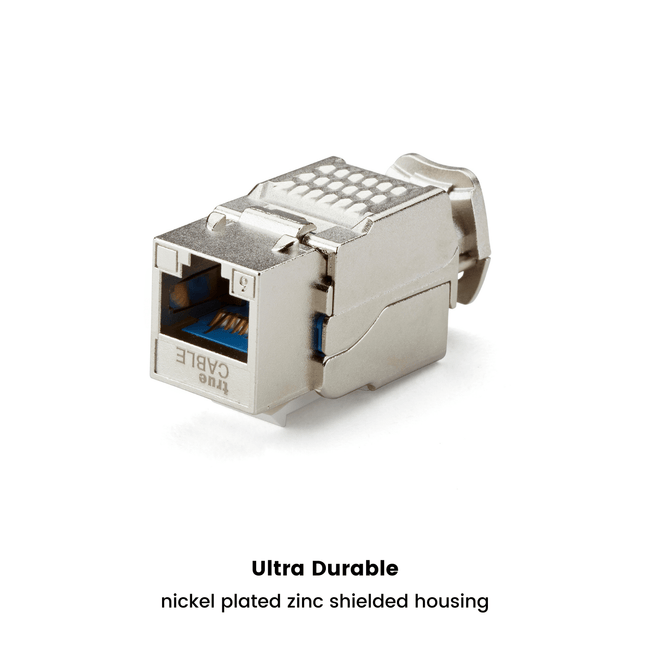

Tough Nickel Plated Zinc Alloy construction
Press-Fit Technology makes our product more reliable and increases transmission performance
Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold-plated RJ45 contacts

Versatile

Compatible with 23 to 24 AWG solid copper conductors and ∅0.86 - 1.20mm insulated conductors.

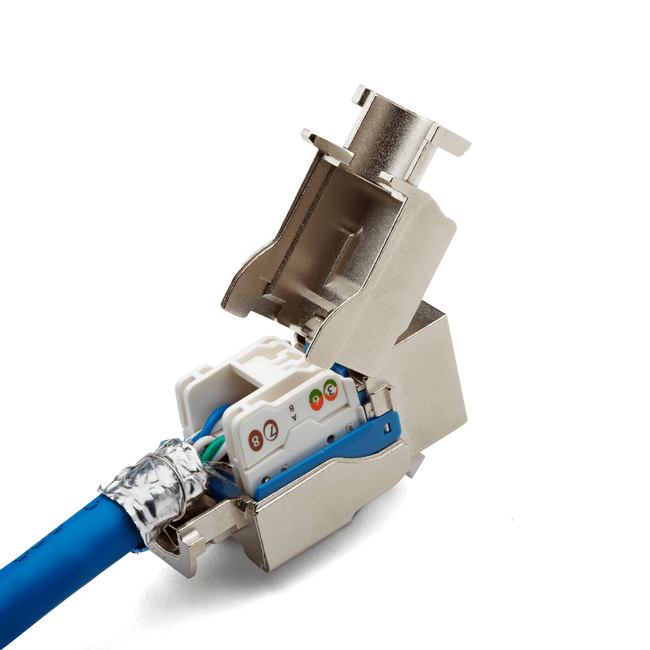

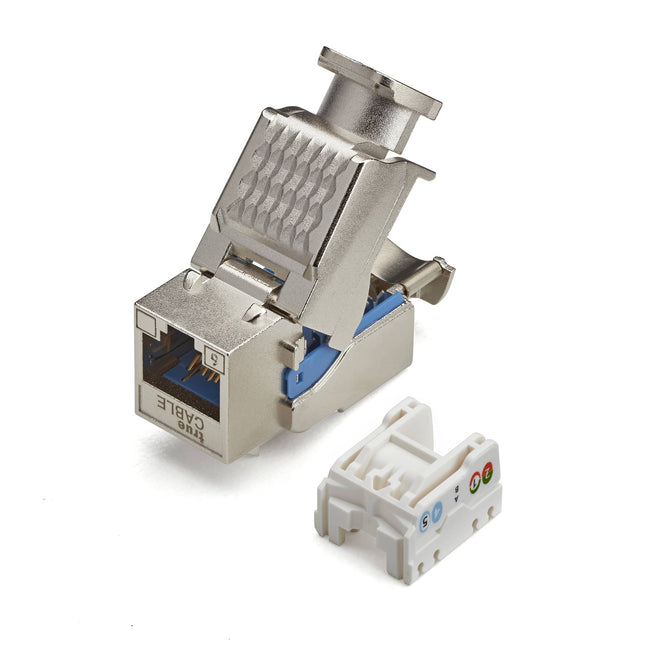

90 degree tool-less design with conductor wiring cap

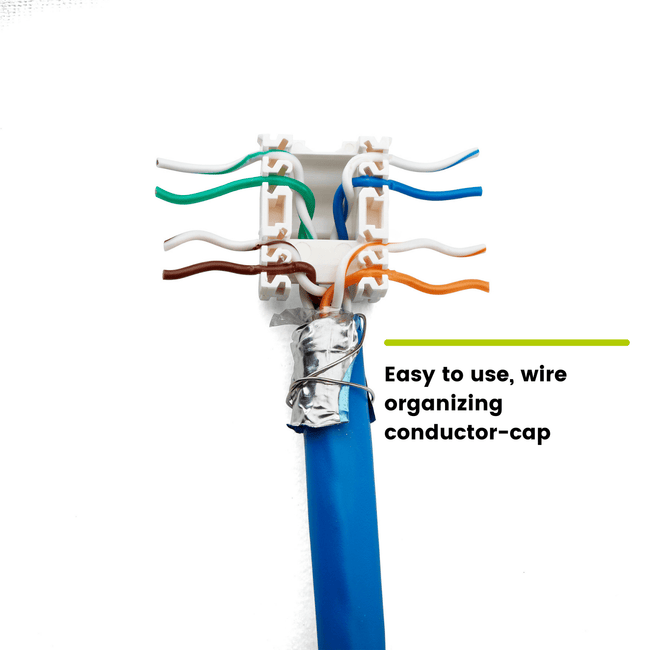

T568A and T568B wiring code printed on side of conductor wiring cap
For use with shielded (F/UTP, S/FTP, F/FTP) Ethernet cables
100% compatible with any standard wall plate or patch panel
110 impact tool not required. Our trueCLOSE tool is recommended for closure of tool-less mechanism when working with thick insulated conductors

Ultimate Protection against EMI/RFI/ESD

Robust all-metal shielded housing
Maximum protection against alien crosstalk (ANEXT)

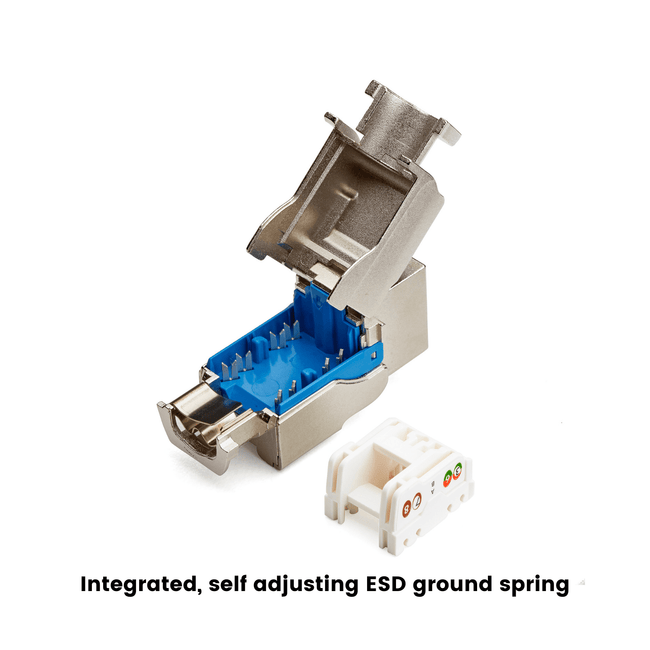

Grounding leaf spring automatically adjusts for cable diameter
Low impedance path to ground is ensured

Quality Guaranteed

ANSI/TIA 568 2.D Certified by trueCABLE. UL Listed, TAA compliant, ETL Verified, RoHS-2 compliant.
Tested in the Real World by Real Installers
Forever Warranty
UL Certificate of Compliance
ETL Certificate of Compliance

What's In The Box?

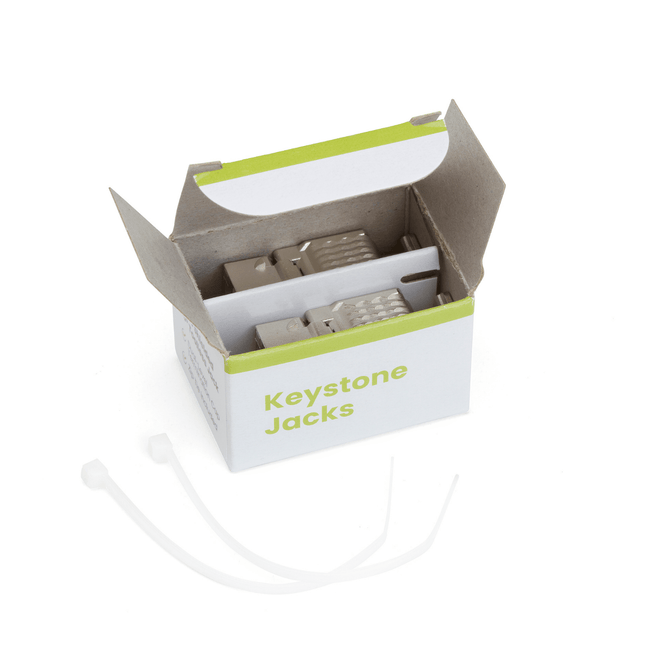

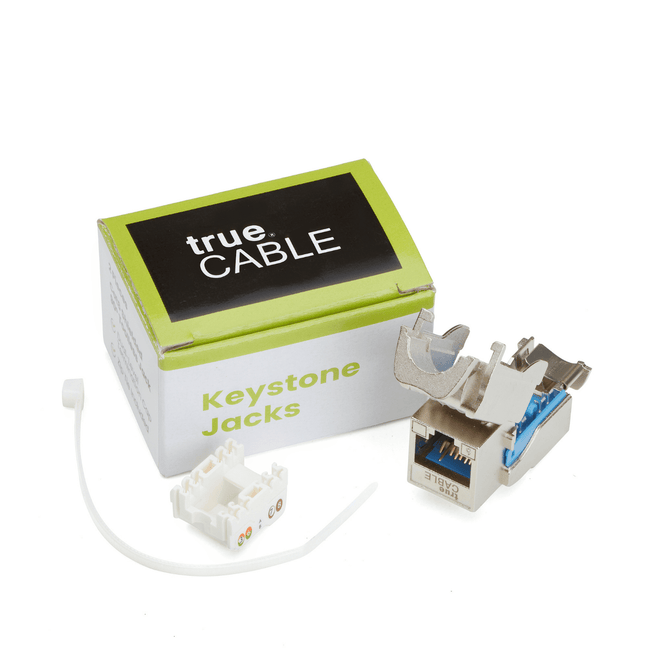

Each keystone jack includes tool-less housing, conductor wiring cap, nylon tie, and full instructions on how to terminate.

Item Details

Weight	0.17 lb
Length	2 in
Width	1.5 in
Height	1.25 in
Barcode	X002IUYXOF

Specs & User Guides

Download Spec Sheet
Download Instructions

Cat6 Toolless Keystone Jack｜Shielded

Part Number - 6ESTL90CMPT_2pc

$14.99

Supports PoE++ (802.3bt) 4PPoE, up to 100W
Tested to 500 MHz. Suitable for 5GBASE-T
Suitable for shielded (F/UTP, S/FTP, F/FTP) Ethernet cable
UL Listed, ETL Verified, ANSI/TIA 568 2.D Cat6 Certified
Data Center Ready
Impedance Matches Disparate Patch Cord Conductor Gauges and Types
Maximum Durability Against PoE Connect/Disconnect Spark Arc Damage

Visit the Product Certification and Compliance List for full documentation and technical standards.

Bulk Save with trueCABLE
Qty	Price Per Item	Your Savings
10-24	$14.62	2.5%
25-49	$14.24	5%
50+	$13.87	7.5%

Why buy direct from trueCABLE?

30 day returns Returns Policy

We stand by our products with our Forever Warranty

Same-day shipping on orders placed Mon-Fri by 3pm Central. Free shipping on all orders over $449.99.

Description

Ultimate Performance

trueCABLE Cat6 keystones have been tested to 500 Mhz! Advanced PCB layout gives superior cross-talk performance above 250 MHz. 5GBASE-T requires 312 MHz to operate effectively, which exceeds the ANSI/TIA 250 MHz requirement as specified in the standards.

Suitable for 5 Gigabit (10/100/1000/2500/5000 Mb/s) up to 295 feet and 10 Gigabit up to 165 feet

Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W

IMAGE A: Proven Component Rated performance. trueCABLE keystones nearly double the NEXT headroom in a Permanent Link Certification test as compared to competing mass-produced Channel Level keystone jacks. Lower-priced commodity keystone jacks are known as “Channel Level”. Channel Level hardware is not subjected to strict Connection Hardware Test Limits during assembly and only gets Certified in the context of a field installation. trueCABLE Component Rated connection hardware is Category and ANSI/TIA 568-2.D Connection Hardware Certified twice during production. The PCB must pass testing and then the completed keystone jack must pass again. Component Rating means the connection hardware must meet strict Category NEXT, FEXT, Return Loss, Insertion Loss, TCL/TCTL, and Alien Crosstalk requirements before it makes it into the box and in your hands.

IMAGE B: Impedance matching technology provides advanced electromagnetic balancing to allow for mixed conductor gauges and types while maintaining maximum performance for the entire channel. A great example of how this feature translates into real-world benefits is when mixing cables from different manufacturers.

IMAGE C: Data Center Ready. No more worrying about short point-to-point links in the data center failing Certification! Permanent Links as short as 1 meter will pass Certification.

Durable

Tuned RJ45 port spring wire design helps prevent PoE spark arc pitting damage
caused by connecting and disconnecting live PoE circuits--even at 100W PoE++
Tough Nickel Plated Zinc Alloy construction
Press-Fit Technology makes our product more reliable and increases transmission performance
Corrosion-resistant nickel and tin-coated phosphor bronze termination prongs and gold-plated RJ45 contacts

Versatile

Compatible with 23 to 24 AWG solid copper conductors and ∅0.86 - 1.20mm insulated conductors.
90 degree tool-less design with conductor wiring cap
T568A and T568B wiring code printed on side of conductor wiring cap
For use with shielded (F/UTP, S/FTP, F/FTP) Ethernet cables
100% compatible with any standard wall plate or patch panel
110 impact tool not required. Our trueCLOSE tool is recommended for closure of tool-less mechanism when working with thick insulated conductors

Ultimate Protection against EMI/RFI/ESD

Robust all-metal shielded housing
Maximum protection against alien crosstalk (ANEXT)
Grounding leaf spring automatically adjusts for cable diameter
Low impedance path to ground is ensured

Quality Guaranteed

ANSI/TIA 568 2.D Certified by trueCABLE. UL Listed, TAA compliant, ETL Verified, RoHS-2 compliant.
Tested in the Real World by Real Installers
Forever Warranty
UL Certificate of Compliance
ETL Certificate of Compliance

What's In The Box?

Each keystone jack includes tool-less housing, conductor wiring cap, nylon tie, and full instructions on how to terminate.

Specifications

Weight	0.17 lb
Length	2 in
Width	1.5 in
Height	1.25 in
Barcode	X002IUYXOF

Downloads

Download Spec Sheet
Download Instructions

Frequently Asked Questions

What type of cable does this Cat6 Toolless Keystone Jack support?

This keystone jack is designed to work with Cat6 shielded (F/UTP, S/FTP, F/FTP) Ethernet cables and is backward compatible with shielded Cat5e Ethernet cable as well.

Is this keystone jack suitable for high-speed networking applications like 5GBASE-T?

Yes, it's suitable for 5GBASE-T and has been extensively tested by trueCABLE to those speeds when using trueCABLE Cat6 Ethernet cable.

What kind of termination methods are supported by this keystone jack?

This keystone jack is designed to terminate Cat6 and lower bulk shielded Ethernet cable. It supports toolless termination for easy installation.

Does this product comply with industry standards?

All trueCABLE keystone jacks are UL Listed, cETLus Verified, ANSI/TIA 568.2-E Component Rated, and RoHS Compliant.

Is this product suitable for use in data centers or high-traffic networking environments?

All trueCABLE keystone jacks are designed with data centers and high performance LANs in mind. Our jacks are ANSI/TIA 568.2-E Component Rated, impedance matching, and feature a tuned category rated printed circuit board for maximum bandwidth.

What kind of durability can I expect from this keystone jack?

This keystone jack may be re-terminated up to 20 times. The RJ45 female plug side will withstand 750 connect/disconnect cycles.

Is there a minimum order quantity or spool size requirement for bulk purchases?

trueCABLE does not impose a minimum order quantity and bulk purchase pricing is available.
