Cat6A Field Term Plug｜Unshielded
![Cat6a unshielded field term plug, two parts, 6 piece]()
![Cat6a unshielded field term plug, two parts, 2 piece]()
![Cat6a unshielded field term plug, 2 pieces]()
![Cat6a unshielded field term plug, wires terminated, 2 piece]()
![Cat6a unshielded field term plug, snapping together, 2 piece]()
![Cat6a unshielded field term plug, terminated, 2 pieces]()
![Cat6a unshielded field term plug, terminated, 2 piece]()
![Cat6a unshielded field term plug, terminated, 2 piece]()
![Cat6a unshielded field term plug, side image, 2 piece]()
![Cat6a unshielded field term plug, closed box, 2 piece]()
![Cat6a unshielded field term plug, open box, 2 piece]()
![Cat6a unshielded field term plug, 6 piece]()
![Cat6a unshielded field term plug, wires terminated, 6 piece]()
![Cat6a unshielded field term plug, snapping together, 6 piece]()
![Cat6a unshielded field term plug, terminated, 6 piece]()
![Cat6a unshielded field term plug, terminated, 6 piece]()
![Cat6a unshielded field term plug, terminated, 6 piece]()
![Cat6a unshielded field term plug, side image, 6 piece]()
![Cat6a unshielded field term plug, closed box, 6 piece]()
![Cat6a unshielded field term plug, open box, 6 piece]()
![Cat6a unshielded field term plug, two parts, 12 piece]()
![Cat6a unshielded field term plug, 12 piece]()
![Cat6a unshielded field term plug, wires terminated, 6 piece]()
![Cat6a unshielded field term plug, snapping together, 12 piece]()
![Cat6a unshielded field term plug, terminated, 12 piece]()
![Cat6a unshielded field term plug, terminated, 12 piece]()
![Cat6a unshielded field term plug, terminated, 12 piece]()
![Cat6a unshielded field term plug, side image, 12 piece]()
![Cat6a unshielded field term plug, closed box, 12 piece]()
![Cat6a unshielded field term plug, open box, 12 piece]()
Cat6A Field Term Plug｜Unshielded
Part Number - 6AFT_6pc
Features
- Component Level Connector
- Supports PoE++ (802.3bt) 4PPoE, up to 100W
- Suitable for Unshielded Ethernet Cable
- ANSI/TIA 568 2.D Certified
| Bulk Save with trueCABLE | ||
|---|---|---|
| Qty | Price Per Item | Your Savings |
| 10-24 | $30.22 | 2.5% |
| 25-49 | $29.44 | 5% |
| 50+ | $28.67 | 7.5% |
$30.99
30.99
Why buy direct from trueCABLE?
30 day returns
We stand by our products with our Forever Warranty
Same-day free shipping on orders placed Mon-Fri by 3pm Central.
Maximum Performance
- ANSI/TIA 568-2.D Cat6A MPTL and Cat6A Patch Cord component level rated. Tested up to 600 MHz.
- Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet.
- Compatible with 23 to 24AWG solid copper conductors.
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
- ETL verified to IEC 60512-99-002.

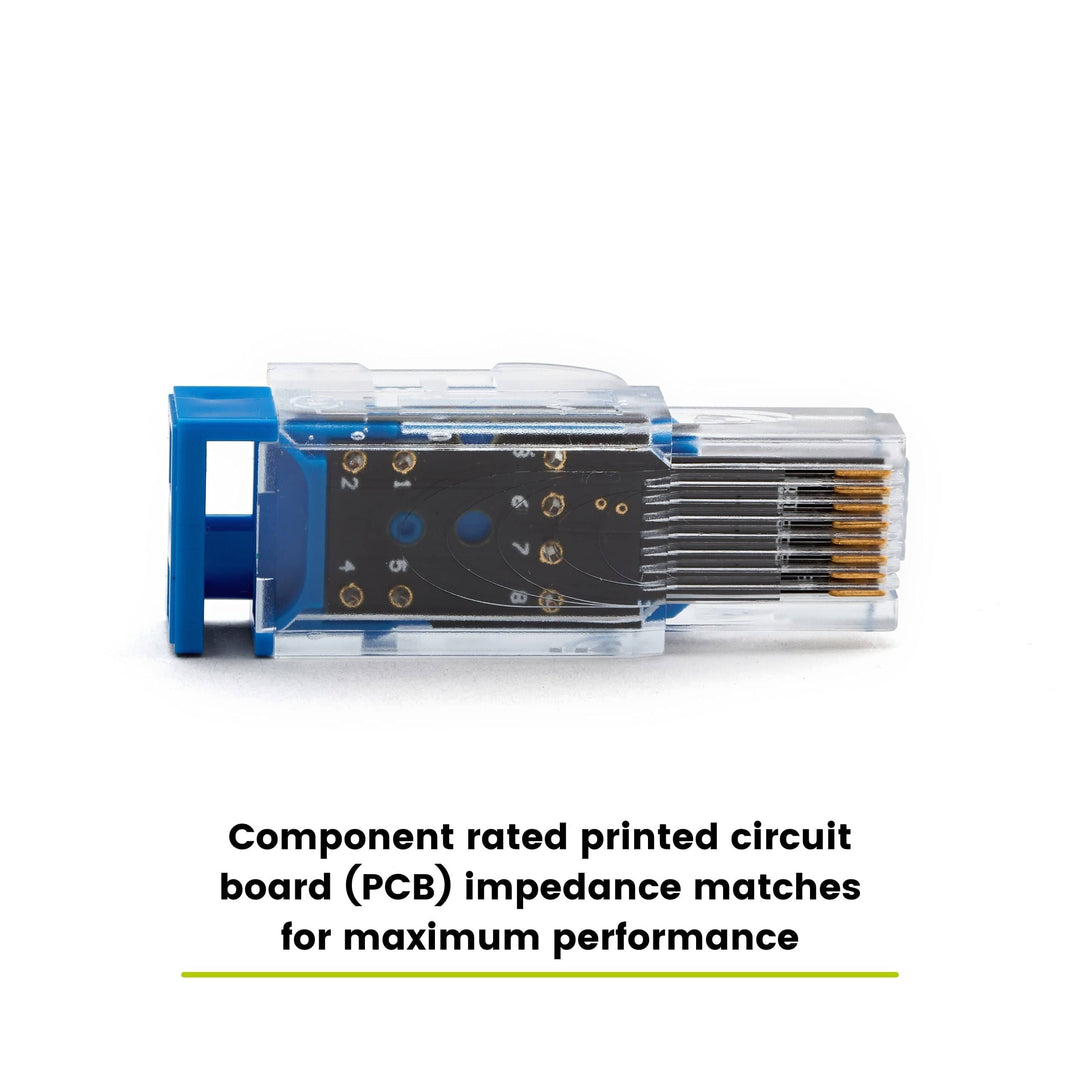

- Press-Fit Technology makes our product more reliable and increases transmission performance.
Easy to Use

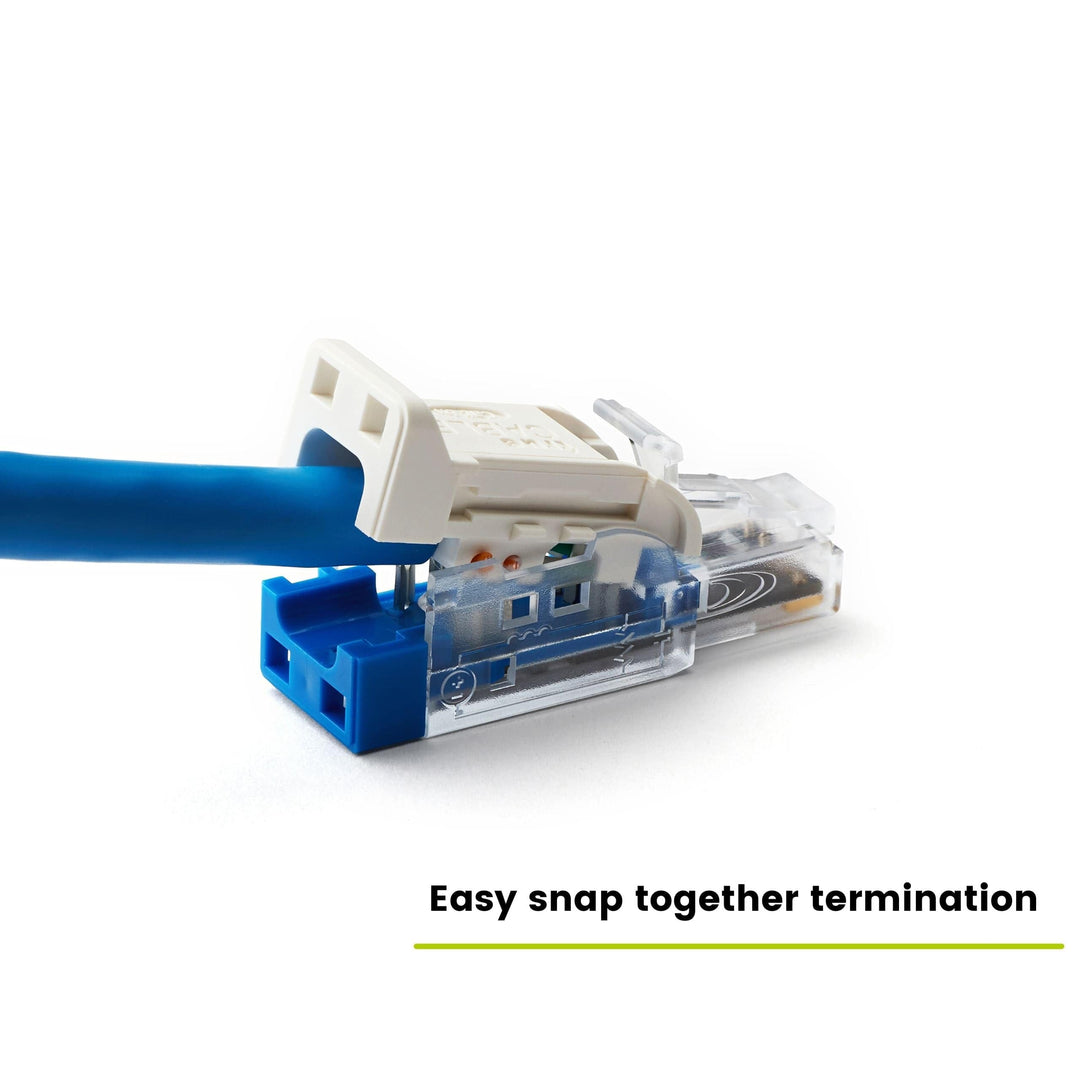

- Self-terminating means no punch-down tool is required. Our 90-degree tool-less design provides maximum snap-shut confidence.

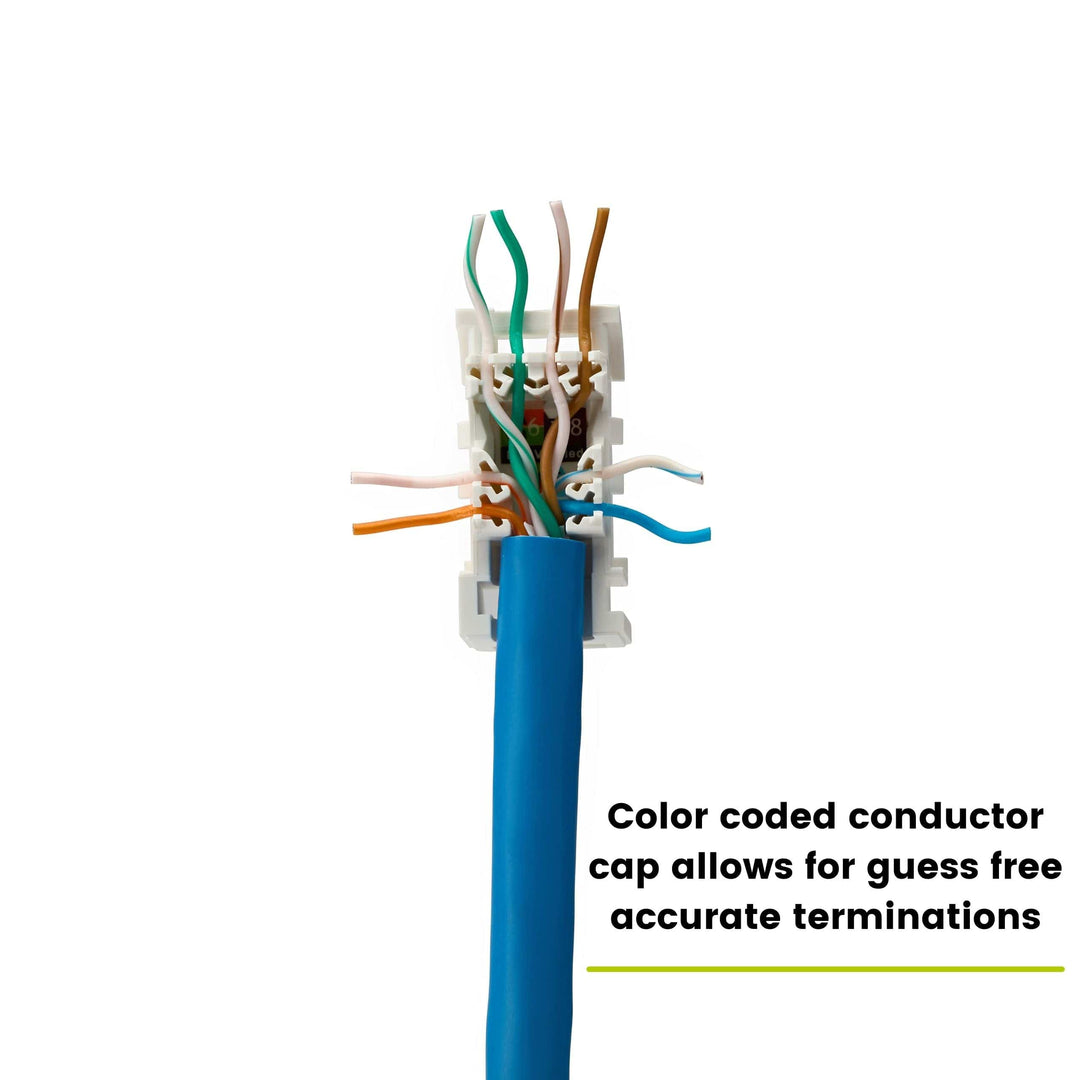

- The termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate.
- Supports ∅6.00 - 8.50mm cable jackets and ∅0.86 - 1.20mm insulated conductors.
Versatile & Durable

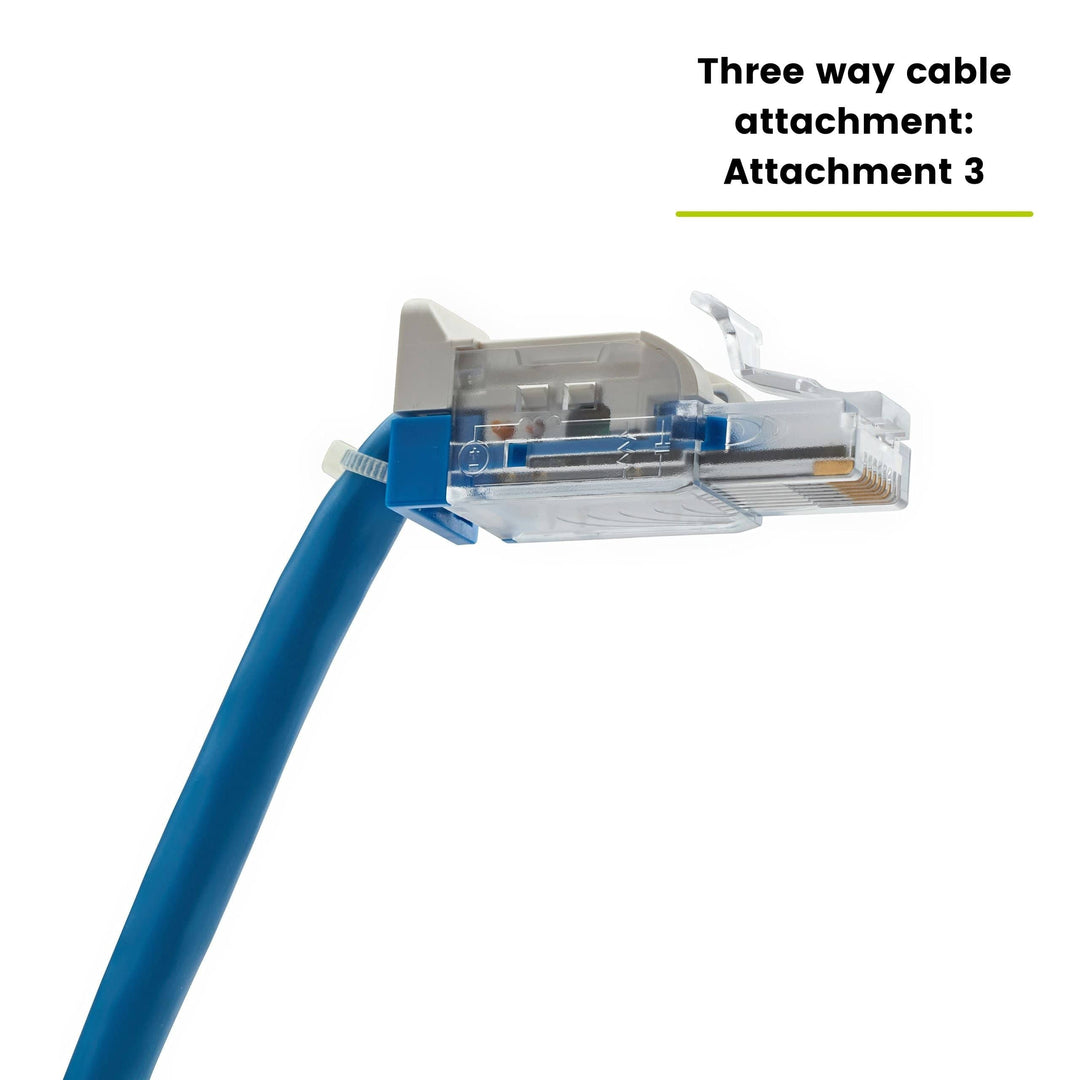

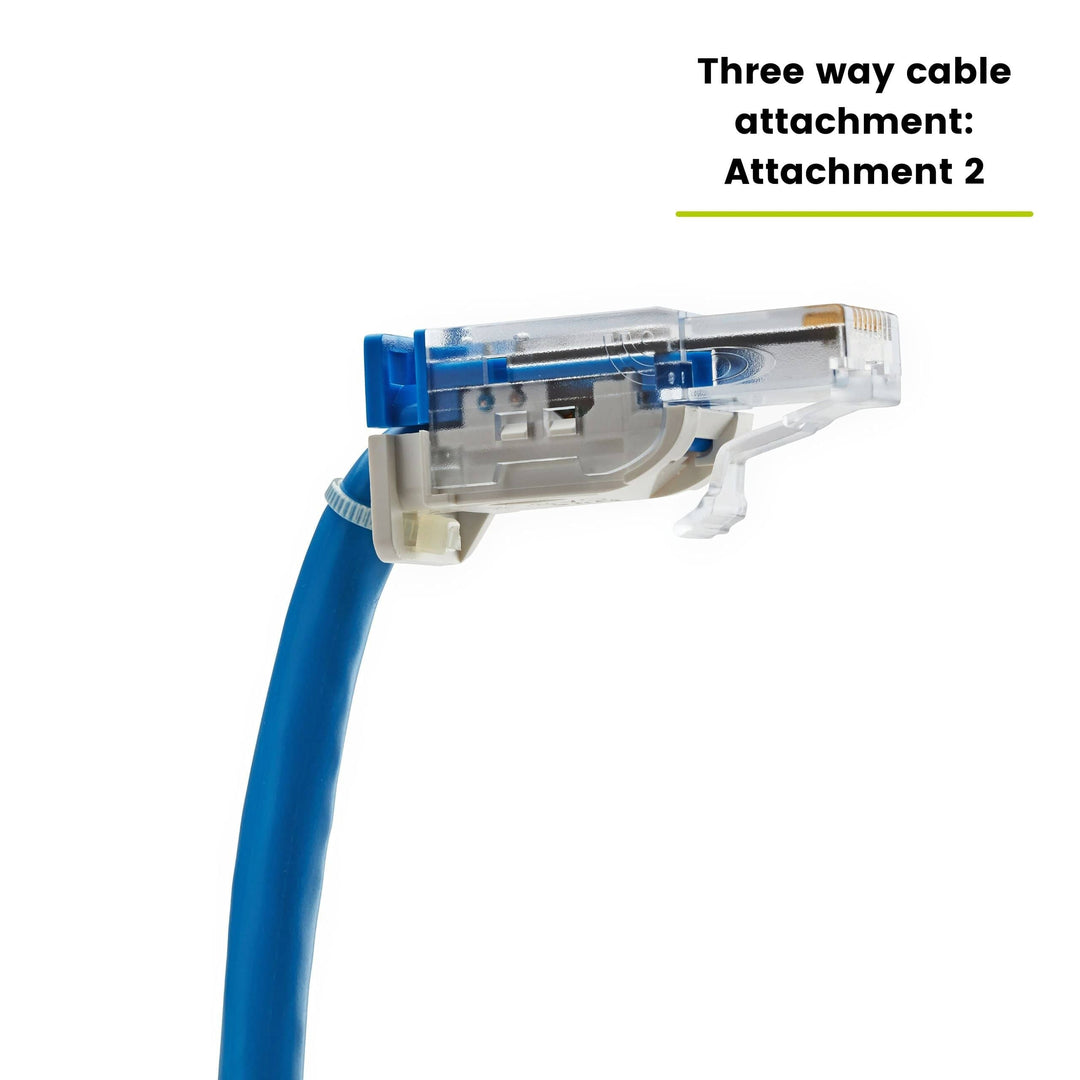

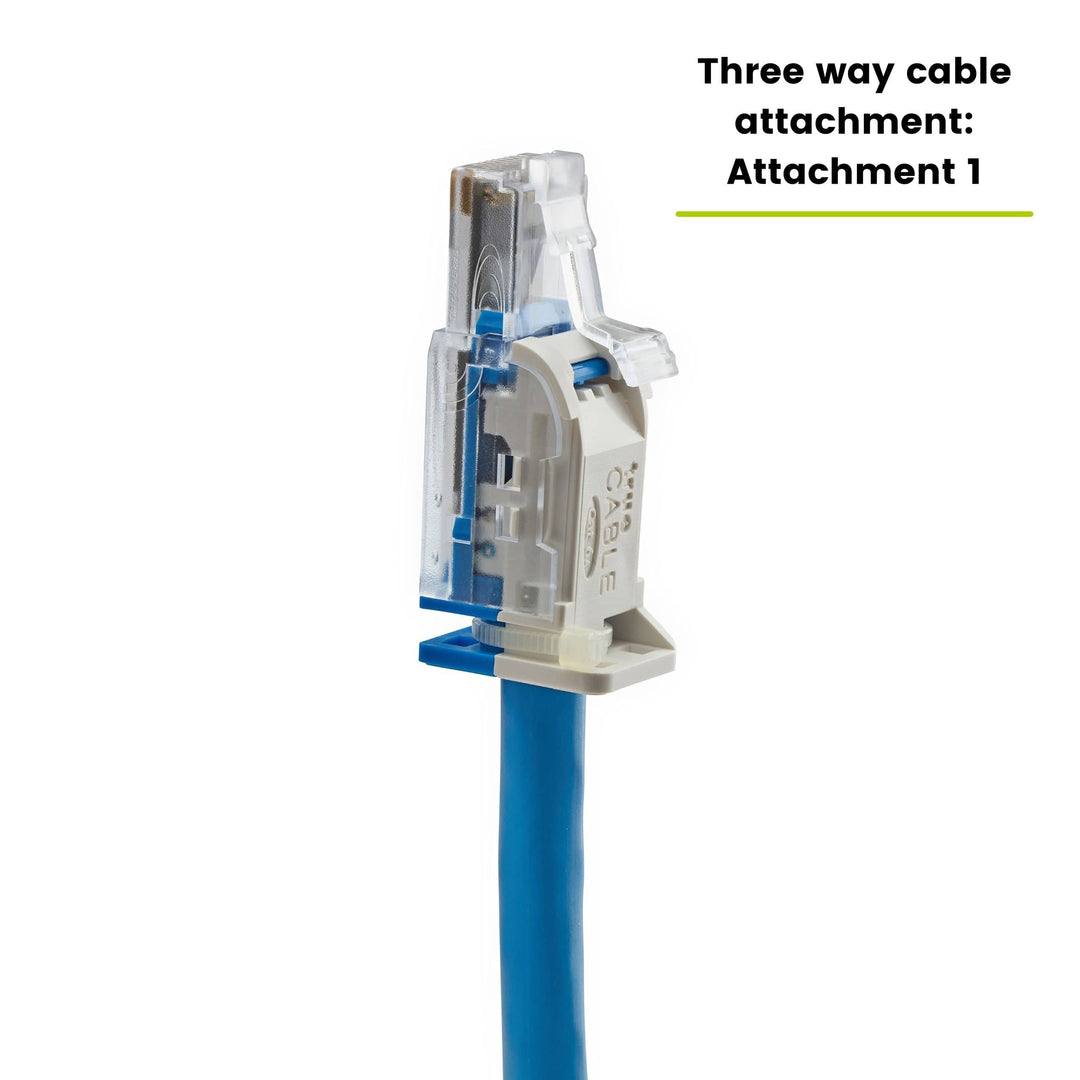

- 100% compatible with any RJ45 8P8C female Ethernet port. Three-way strain relief design allows you to bend the terminated cable to adapt to limited space providing installation flexibility. Compact enough to allow for high-density 48 port blade applications.
- Compatible with U/UTP (fully unshielded) Ethernet cables. Our trueCLOSE tool is strongly recommended for effortless and accurate termination cap closure.
- Fully backward compatible with Cat5e and Cat6 assuming the cable jacket outer diameter and insulated conductor dimension requirements stated above are obeyed.
Quality Guaranteed
- ANSI/TIA 568 2.D Certified by trueCABLE. CE Listed. TUV RoHS-2 Certified, US TAA compliant, ISO/IEC Certified. Tested in the real world by real installers.

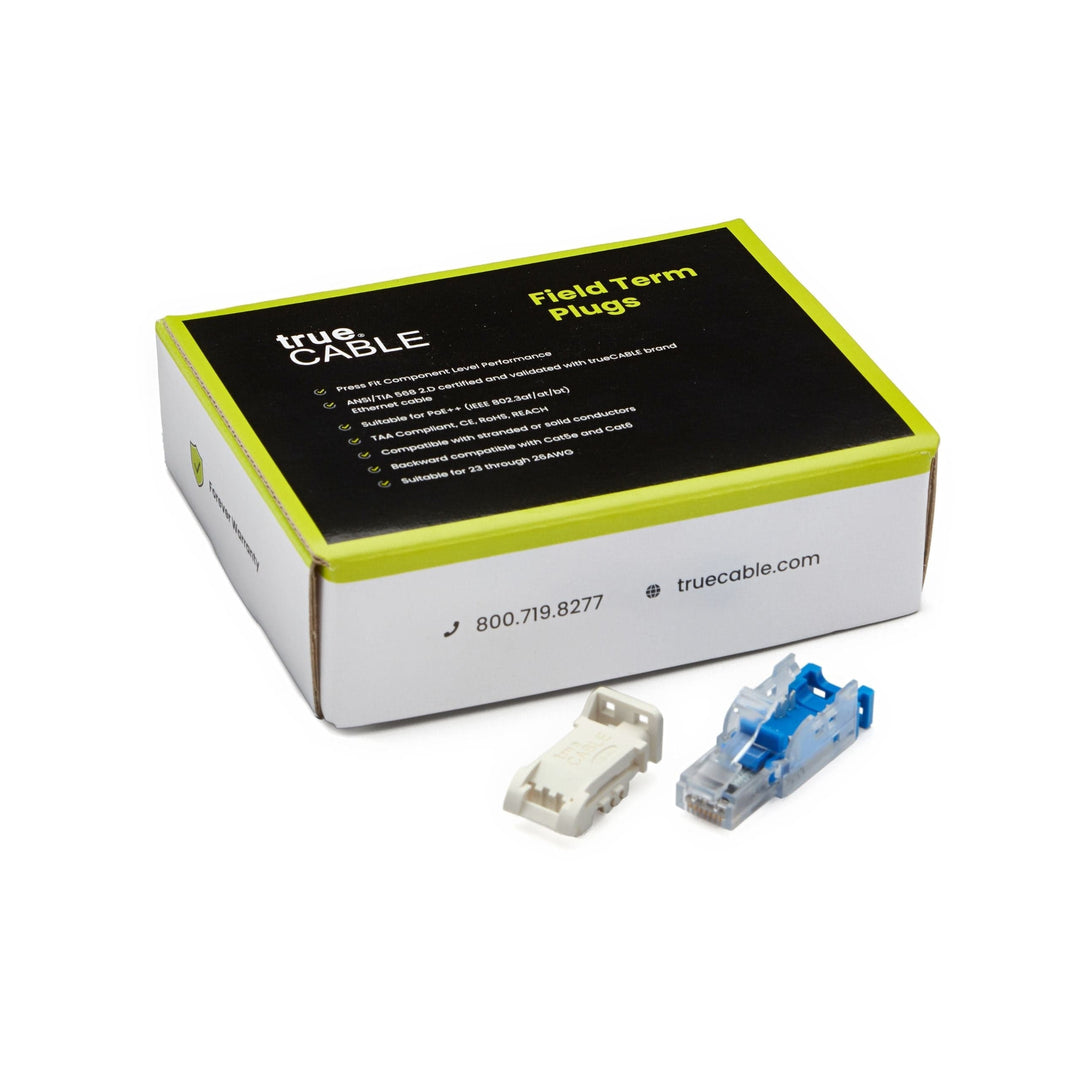

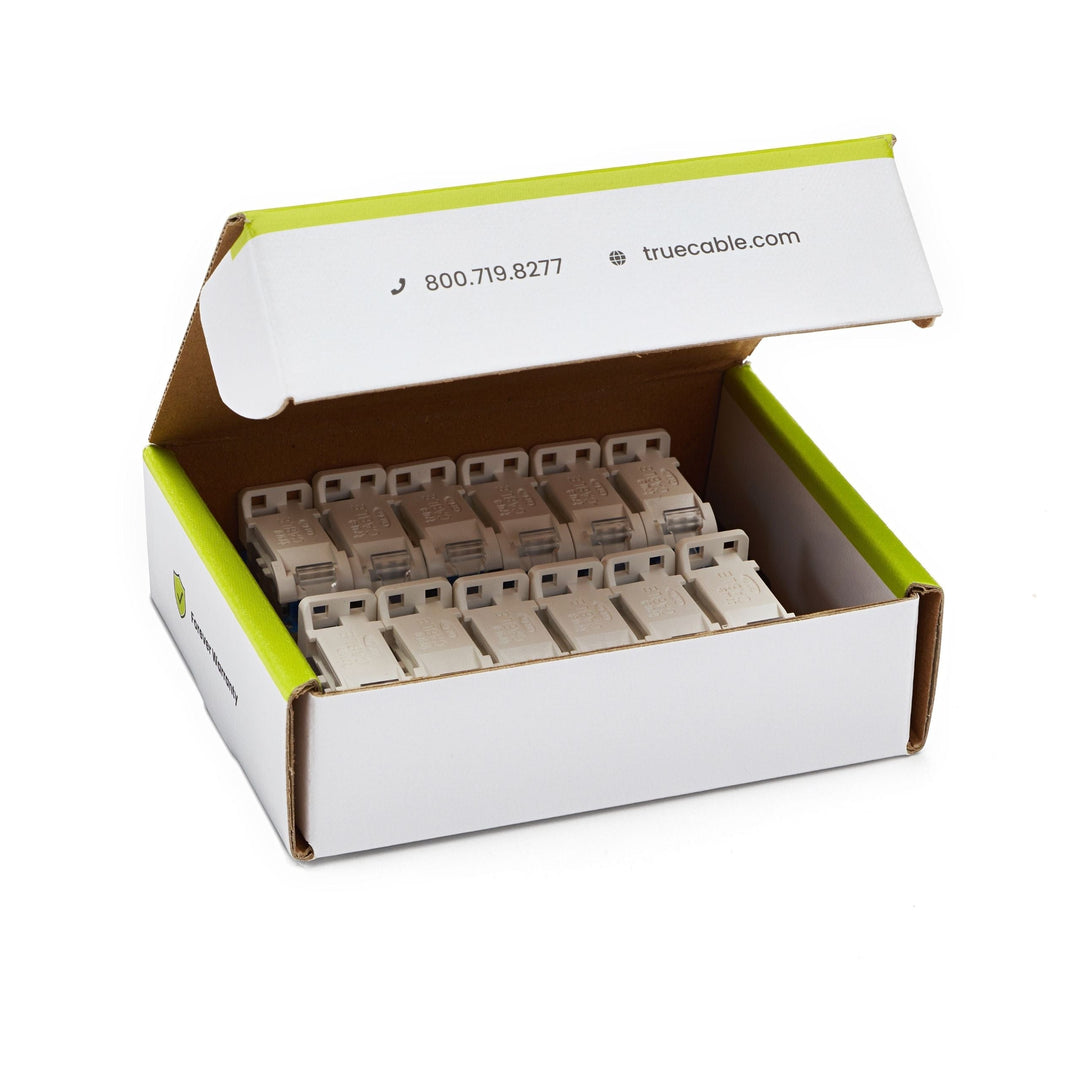

What's In The Box?

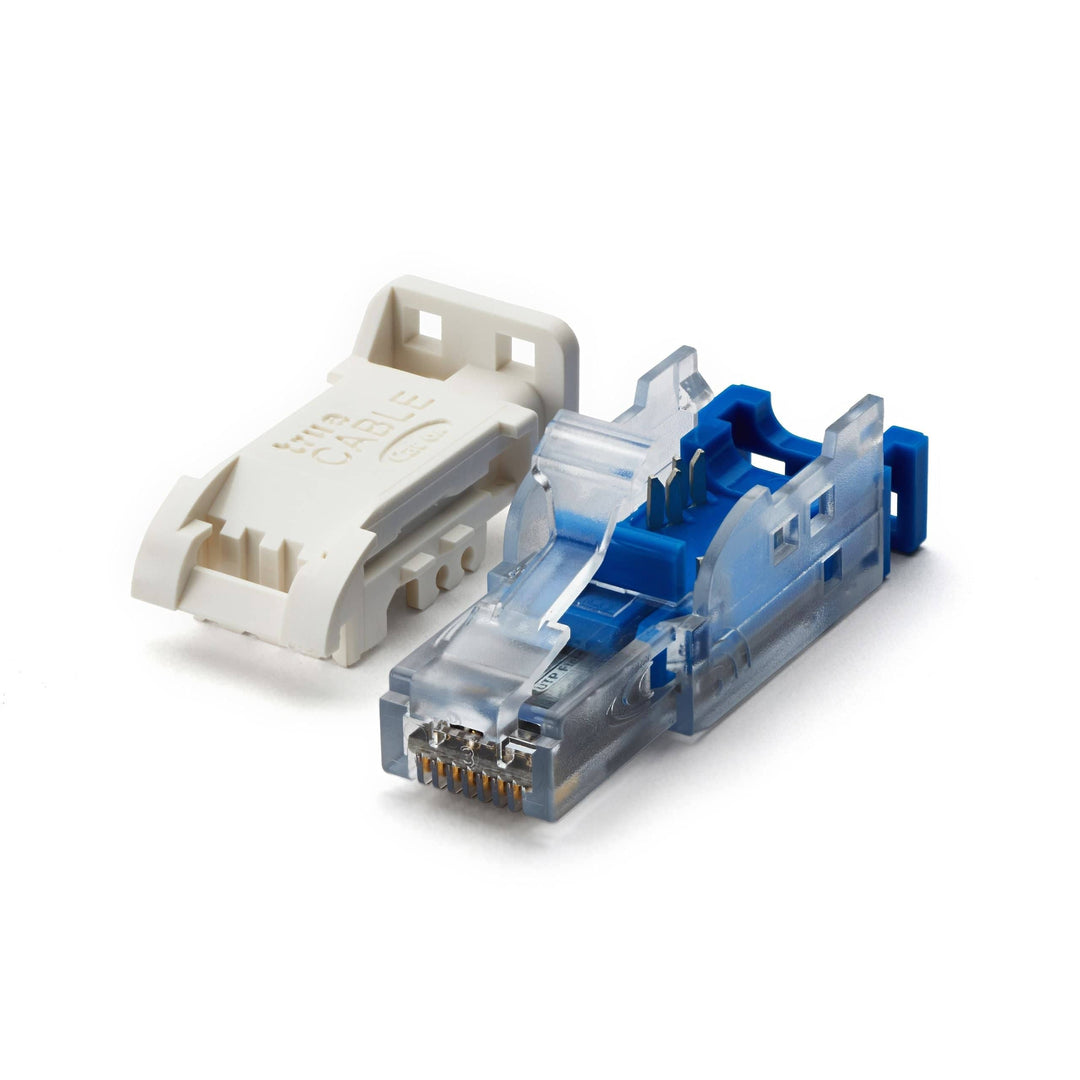

- Each field termination plug includes a conductor holder, nylon tie, and full instructions. These durable and time-saving component-level field termination plugs are sure to make your installation hassle-free.
| Weight | 0.1 lbs |
| Length | 4.50 in |
| Width | 1.88 in |
| Height | 1.25 in |
| Barcode |
Maximum Performance
- ANSI/TIA 568-2.D Cat6A MPTL and Cat6A Patch Cord component level rated. Tested up to 600 MHz.
- Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet.
- Compatible with 23 to 24AWG solid copper conductors.
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
- ETL verified to IEC 60512-99-002.
- Press-Fit Technology makes our product more reliable and increases transmission performance.
Easy to Use
- Self-terminating means no punch-down tool is required. Our 90-degree tool-less design provides maximum snap-shut confidence.
- The termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate.
- Supports ∅6.00 - 8.50mm cable jackets and ∅0.86 - 1.20mm insulated conductors.
Versatile & Durable
- 100% compatible with any RJ45 8P8C female Ethernet port. Three-way strain relief design allows you to bend the terminated cable to adapt to limited space providing installation flexibility. Compact enough to allow for high-density 48 port blade applications.
- Compatible with U/UTP (fully unshielded) Ethernet cables. Our trueCLOSE tool is strongly recommended for effortless and accurate termination cap closure.
- Fully backward compatible with Cat5e and Cat6 assuming the cable jacket outer diameter and insulated conductor dimension requirements stated above are obeyed.
Quality Guaranteed
- ANSI/TIA 568 2.D Certified by trueCABLE. CE Listed. TUV RoHS-2 Certified, US TAA compliant, ISO/IEC Certified. Tested in the real world by real installers.
What's In The Box?
- Each field termination plug includes a conductor holder, nylon tie, and full instructions. These durable and time-saving component-level field termination plugs are sure to make your installation hassle-free.
- Weight - 0.1 lbs
- Length - 4.50 in
- Width - 1.88 in
- Height - 1.25 in
- Barcode -
Needing a little more help?
Cable Academy - Cat6A Field Term Plug｜Unshielded
These in-depth blogs will cover everything you need to know about trueCABLE’s product: Cat6A Field Term Plug｜Unshielded. On the off chance there is something you still can't find we also offer our expertise through our customer support
-
Feb 13, 2024Cat6A 3-Way Unshielded Field Termination Plug: Have it Your Way!- Cat6A
- Connector
- field term
Field termination plugs are a key way of achieving good performance when you need a male plug end as opposed to using a plain RJ45. I strongly recommend you use them when you can, and leave the RJ45s to pre-terminated patch cables that come from a factory. If you need to make a high performing custom and reliable patch cord (male to male end) in the field, especially when using solid copper Ethernet, you will need to use field termination plugs at both ends. -
May 9, 2024Ethernet Quality: Channel Level vs Component Level Rating- ANSI TIA
- bulk cable
- Ethernet Cable
One way we strive to bring this extra level of quality is by component level testing of our keystone jacks and field termination plugs to extremely strict ANSI/TIA 568 2.D guidelines. When trueCABLE introduces patch cables they will also be required to meet this strict metric as well. -
Feb 1, 2024How To: Open Cat6A Shielded and Unshielded Field Term Plugs- Cat6A
- field term
- FTP
trueCABLE sells two great pieces of Ethernet cable termination hardware that makes putting male ends onto your cable runs easy and effective. Ironically, the less experienced installers are the folks who will benefit most from the usability of these accessories but less experienced installers don’t understand what they are for. What is this secret weapon that makes lives better and cables perform? They are known as Field Termination Plugs. They come in shielded and unshielded. Both are rated for Cat6A and are backwards compatible with Cat6 and even some thicker Cat5e cables. In a pinch, you can even use the shielded field termination plugs on unshielded Ethernet cable and not cause yourself any technical issues--although doing so might cause cable misidentification and is considered bad form. But, the option is there if need be. The primary factor is no matter what Category Ethernet cable you use (solid or stranded copper) our field terminations work with 23AWG and 24AWG conductors only. -
Oct 6, 2023How To: Reterminate an IDC Connector- Connector
- DIY
- field term

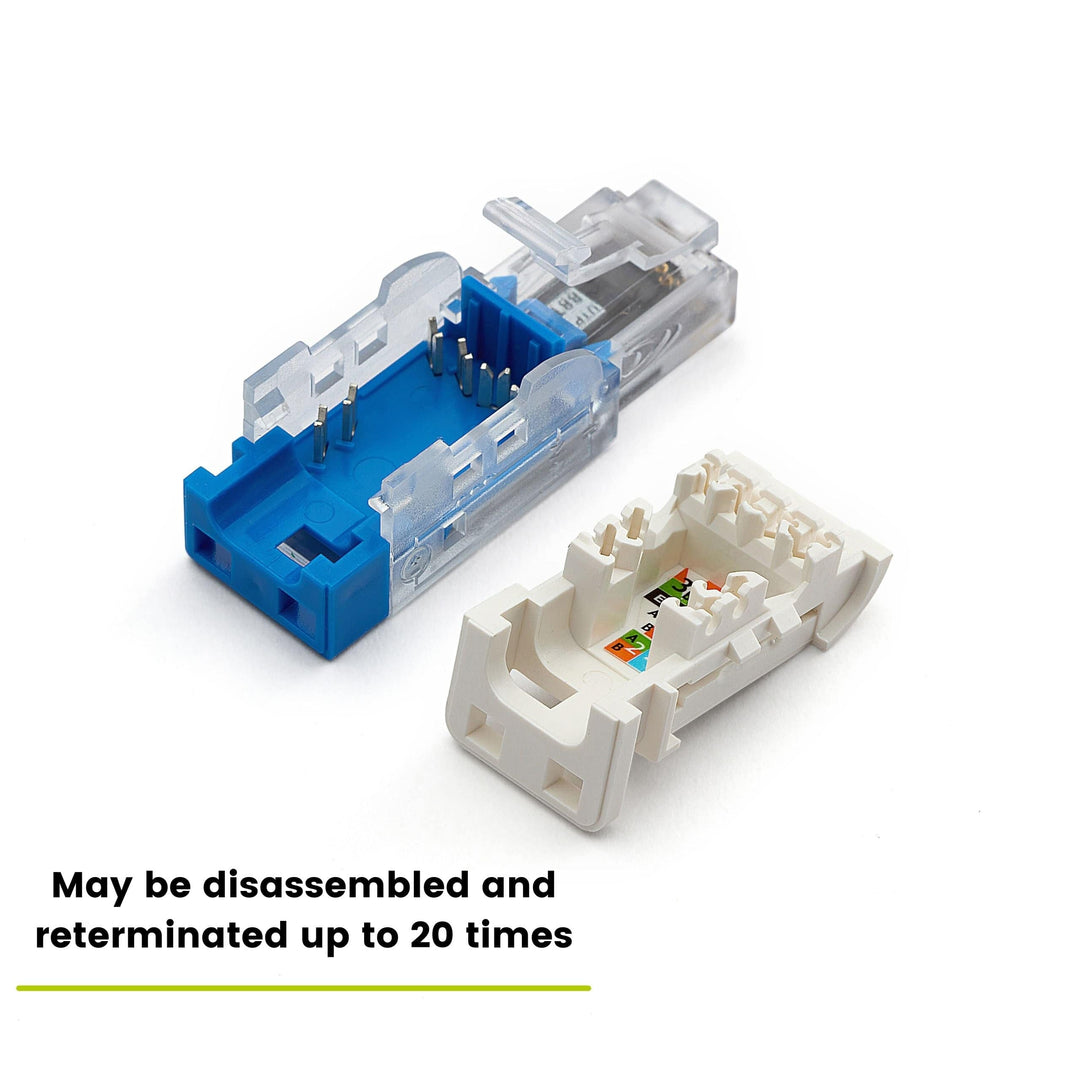

Sometimes when you terminate an Ethernet cable, the termination just doesn’t turn out right. Maybe it fails a test, or maybe it just doesn’t look good. If you terminate the cable with a crimp-on RJ45 modular plug, it gets cut off and thrown away. It can’t be reused. However, if you terminate the cable with a keystone jack or field termination plug, the connector can be reused up to twenty times. That's because keystone jacks and field termination plugs are not crimped on, they use Insulation Displacement Contacts (IDC) instead. Read on to see how to re-terminate an IDC connector. -
